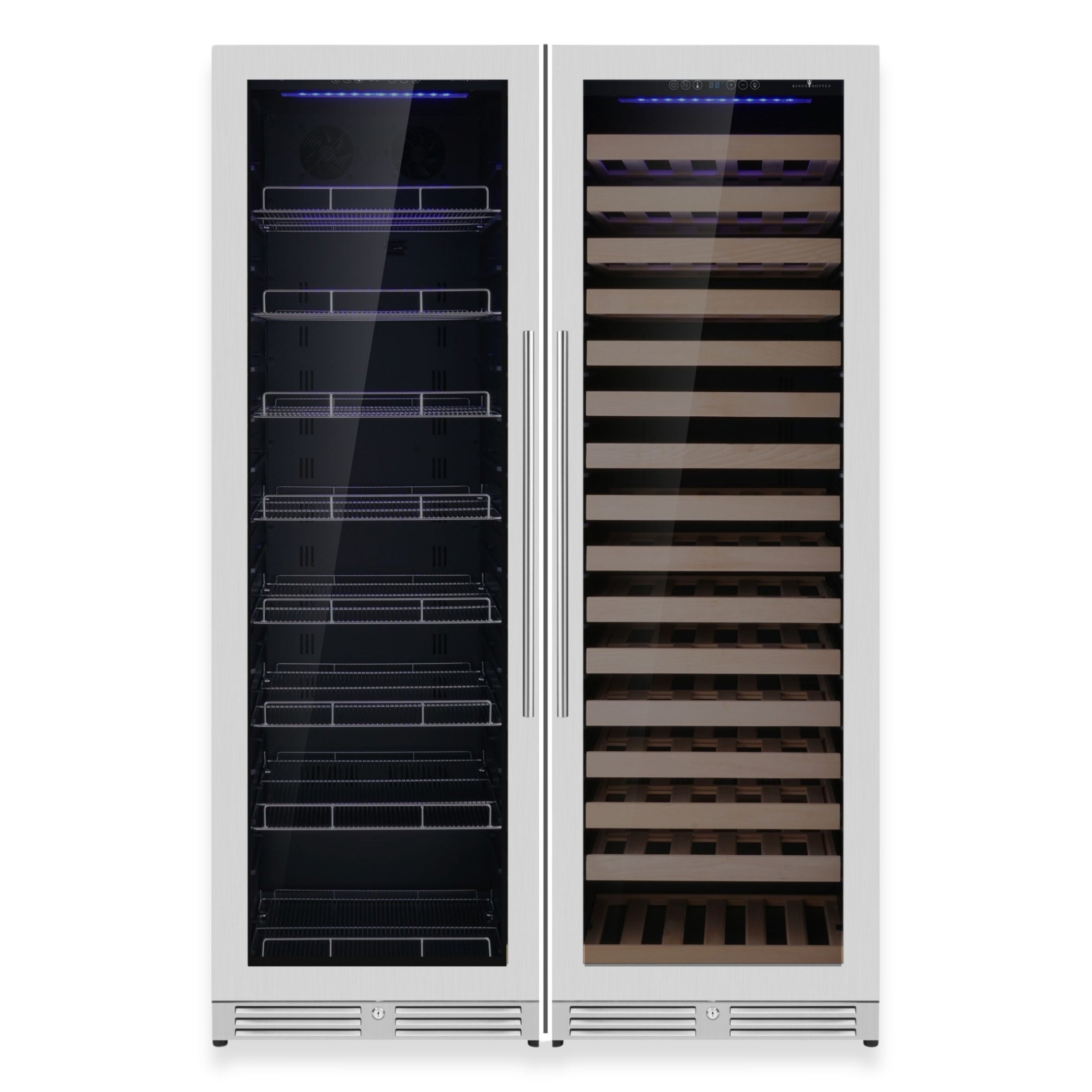

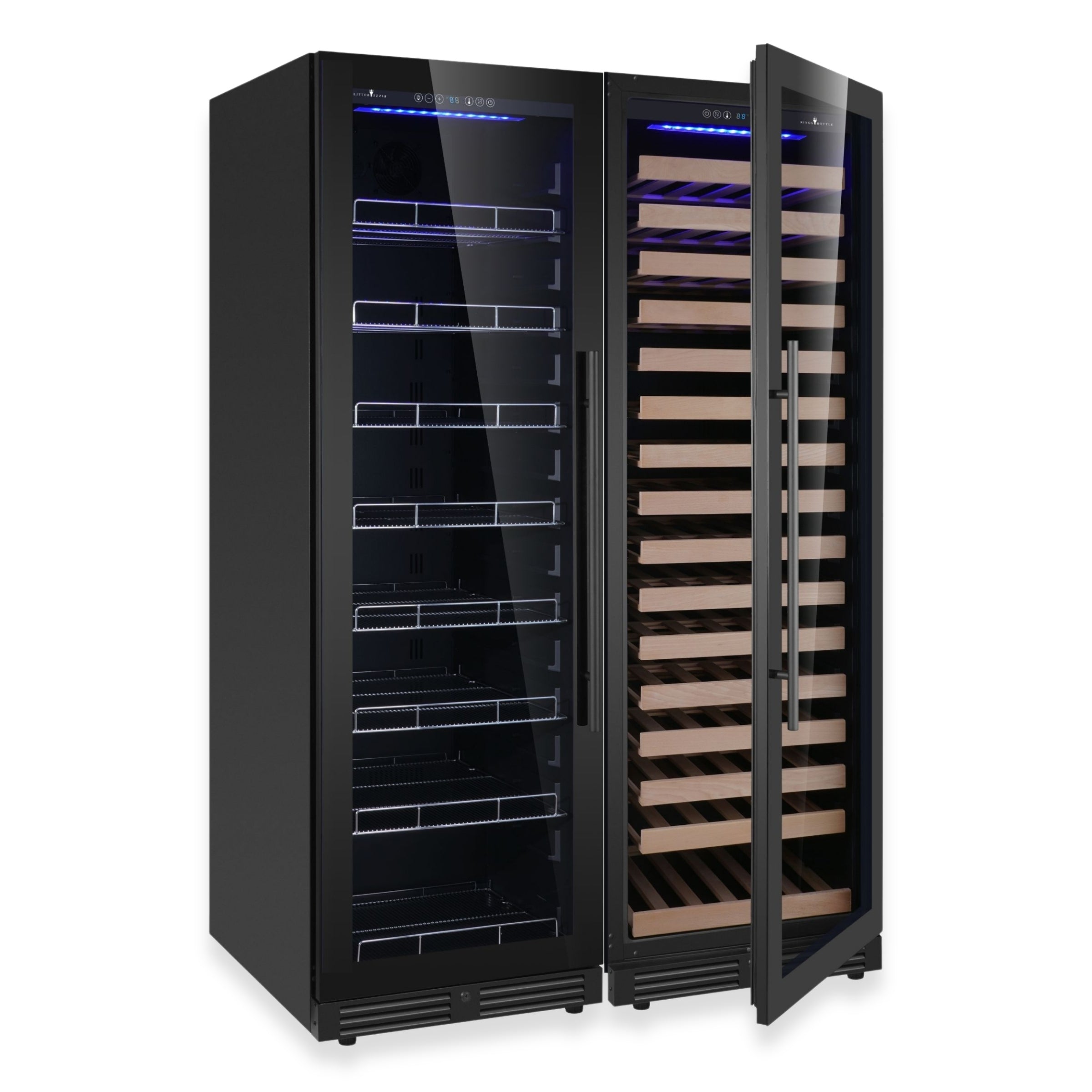

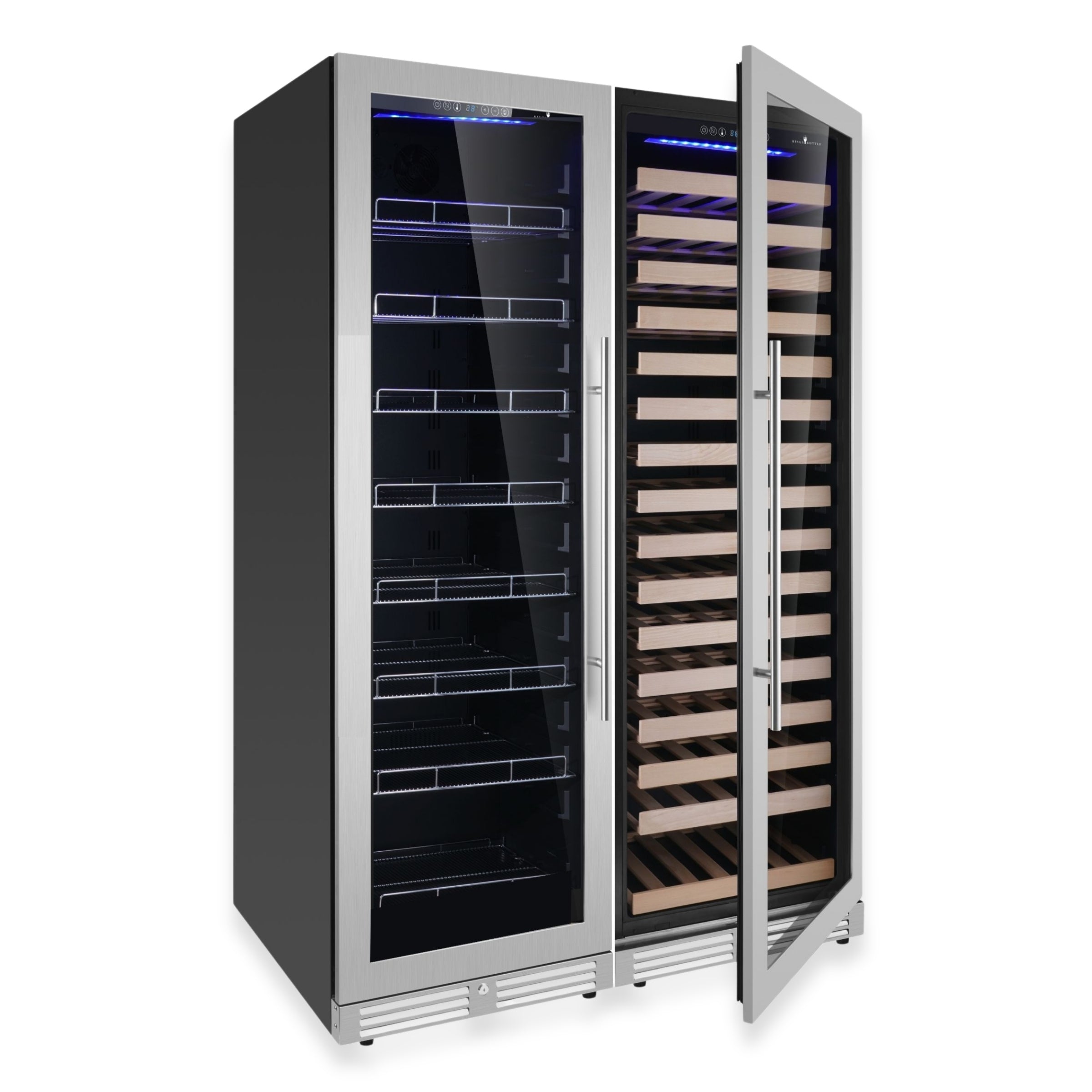

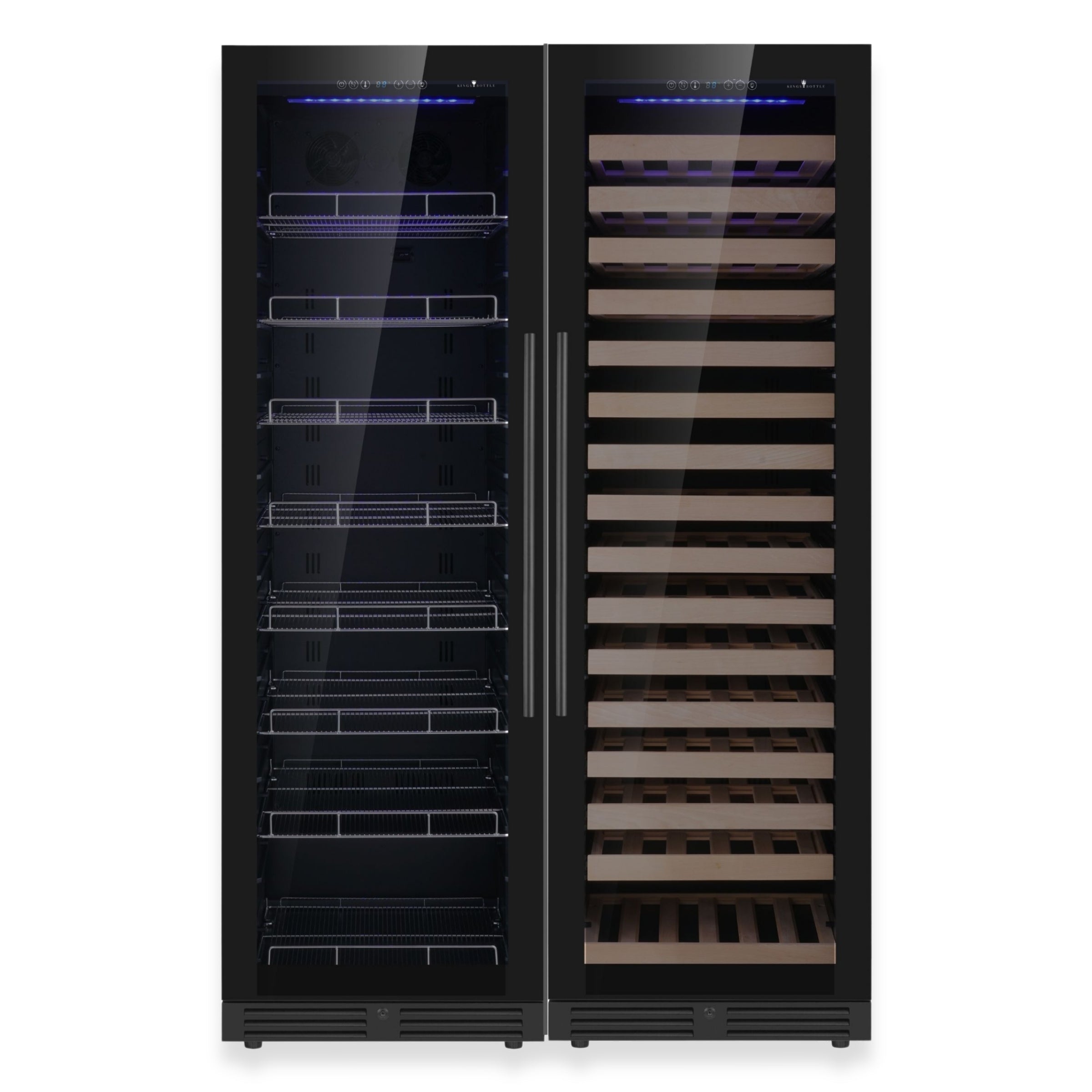

The Ultimate Upright Wine & Beverage Refrigerator Combo delivers a sophisticated, all-in-one solution for storing both wine and beverages at their ideal temperatures. Designed with two independent cooling zones, the upper compartment provides optimal conditions for wine, while the lower zone offers crisp, refreshing temperatures for cans, bottles, and mixed beverages.
Powered by the Embraco Inverter Compressor , this combo ensures whisper-quiet operation, exceptional temperature stability, and up to 40% improved energy efficiency compared to traditional cooling systems. The elegant Low-E glass doors enhance insulation while protecting your collection from harmful UV exposure.
With adjustable chromed steel and beechwood shelving designed to accommodate a wide variety of bottle and can sizes, this upright unit offers flexible, customizable storage for modern homes, entertainment spaces, and dedicated wine rooms. Its full-height stainless steel footprint and built-in or freestanding installation options make it a statement-piece centerpiece in any premium kitchen, bar, or beverage center.
Why it stands out
True dual-zone upright design
Configured as a two-zone, full-height combo: an upper zone optimized for wine and a lower zone tuned for beer, cans, and mixed beverages—so every drink is stored and served at its ideal temperature.
Massive 30 cu ft capacity

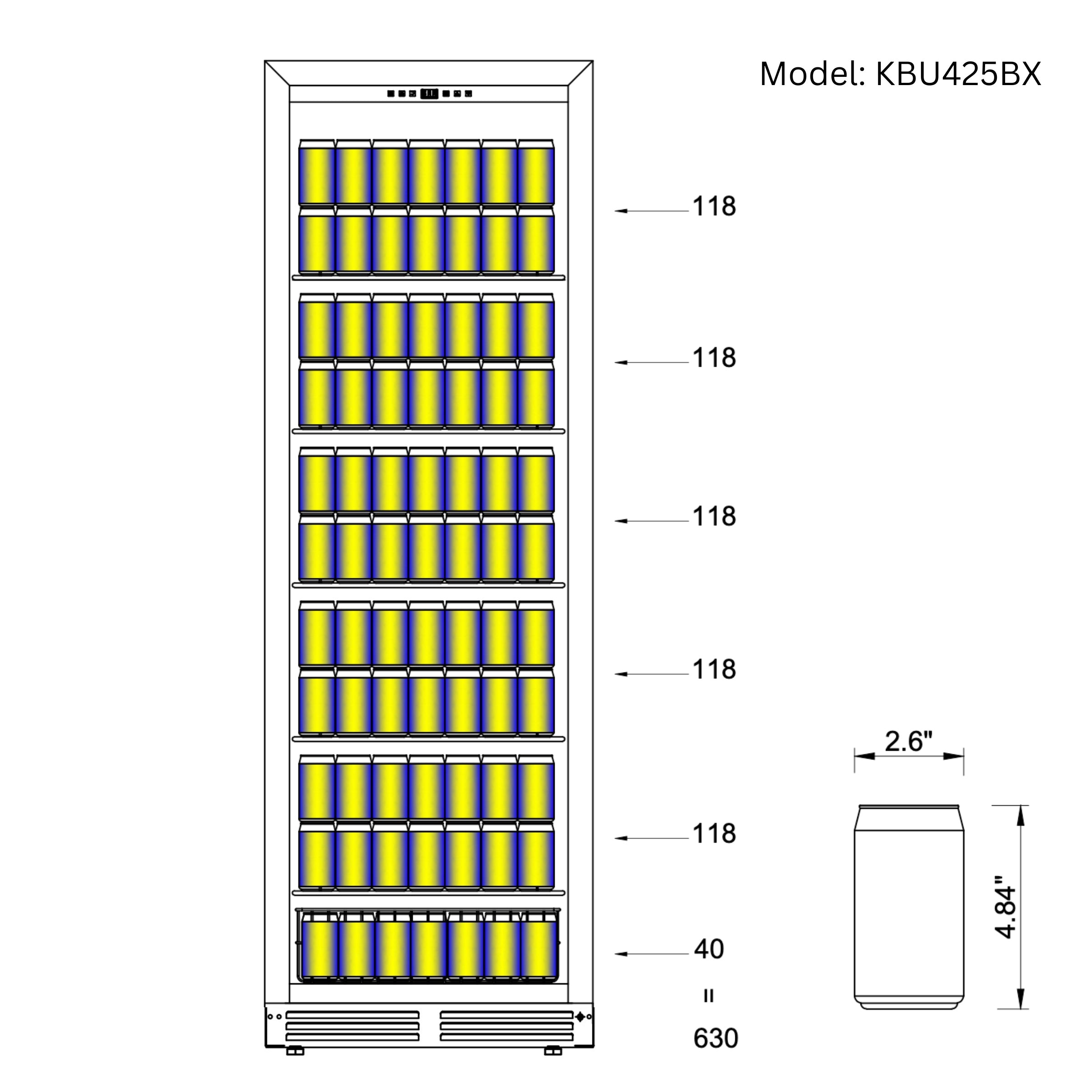

Offers an impressive 30 CF (850 Liters) of total volume, with room for up to 161 wine bottles and 630 cans, making it ideal for serious entertainers, collectors, and light commercial environments.
Embraco inverter efficiency
Dual Embraco Inverter Compressors deliver smoother, variable-speed cooling with up to 40% lower energy consumption, reduced vibration, and stable temperatures across both zones.
Low-E glass & UV protection
Low-E glass doors help minimize condensation and heat transfer while filtering UV light—preserving wine quality and supporting consistent cooling performance in brighter rooms and open spaces.
Flexible shelving & layout
A mix of 8 chromed steel shelves and 16 beechwood shelves provides adjustable, full-height storage that can be tailored for bottles, cases, and multi-pack beverages in both residential and hospitality settings.
Specifications
Key Specifications
| Volume | 30 CF (850 Liters) total, 15 CF (425 Liters) each compartment |
|---|---|
| Capacity – Wine | Up to 161 bottles (configuration-dependent) |
| Capacity – Beverages | Up to 630 cans (standard 12 oz / 355 ml) |
| Installation Type | Built-in or freestanding upright installation |
| Climate Type | N |
| Temperature Zones | Dual zone (upper wine, lower beverage) |
| Adjustable Temperature Range |
Wine zone: 35°F to 68°F (2°C to 20°C) Beverage zone: 35°F to 68°F (2°C to 20°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 8 chromed steel shelves + 16 beech wooden shelves |
| Dimensions (W × D × H) | 46.84" W × 27.36" D × 70.86" H (includes 0.59" stand height) |
| Compressors | Dual Embraco Inverter Compressors |
| Power Supply | 110–115V / 60 Hz |
| Rated Power Input | 330 W total (approximately 165 W per unit) |
| Rated Current | 3.4 A total (approximately 1.7 A per unit) |
| Refrigerant | R600a / 52 g per unit |
Technical Features
Embraco inverter compressors
Dual Embraco Inverter Compressors provide ultra-quiet, low-vibration cooling with up to 40% lower energy consumption compared to traditional fixed-speed units—ideal for open-concept spaces and frequent entertainers.
Patented compressor sink
A patented sink design increases air circulation space around each compressor, improving cooling performance while further reducing vibration and noise under load.
Low-E glass doors
Low-E glass helps reduce energy consumption and condensation on the doors while acting as an invisible thermal barrier, supporting stable interior temperatures and improved efficiency.
Note: The Low-E coating also helps filter UV light, protecting wine labels, corks, and flavor development over time.
Fan-circulated air cooling
A fan-circulated air-cooling system helps maintain temperature uniformity throughout the full-height cabinet, reducing hot and cold spots and compensating for humidity to protect both wine and beverages.
Activated carbon filtration
Integrated activated carbon filters help remove impurities from the internal air, keeping the cabinet fresh and odor-free—especially important for long-term cellaring and mixed storage.

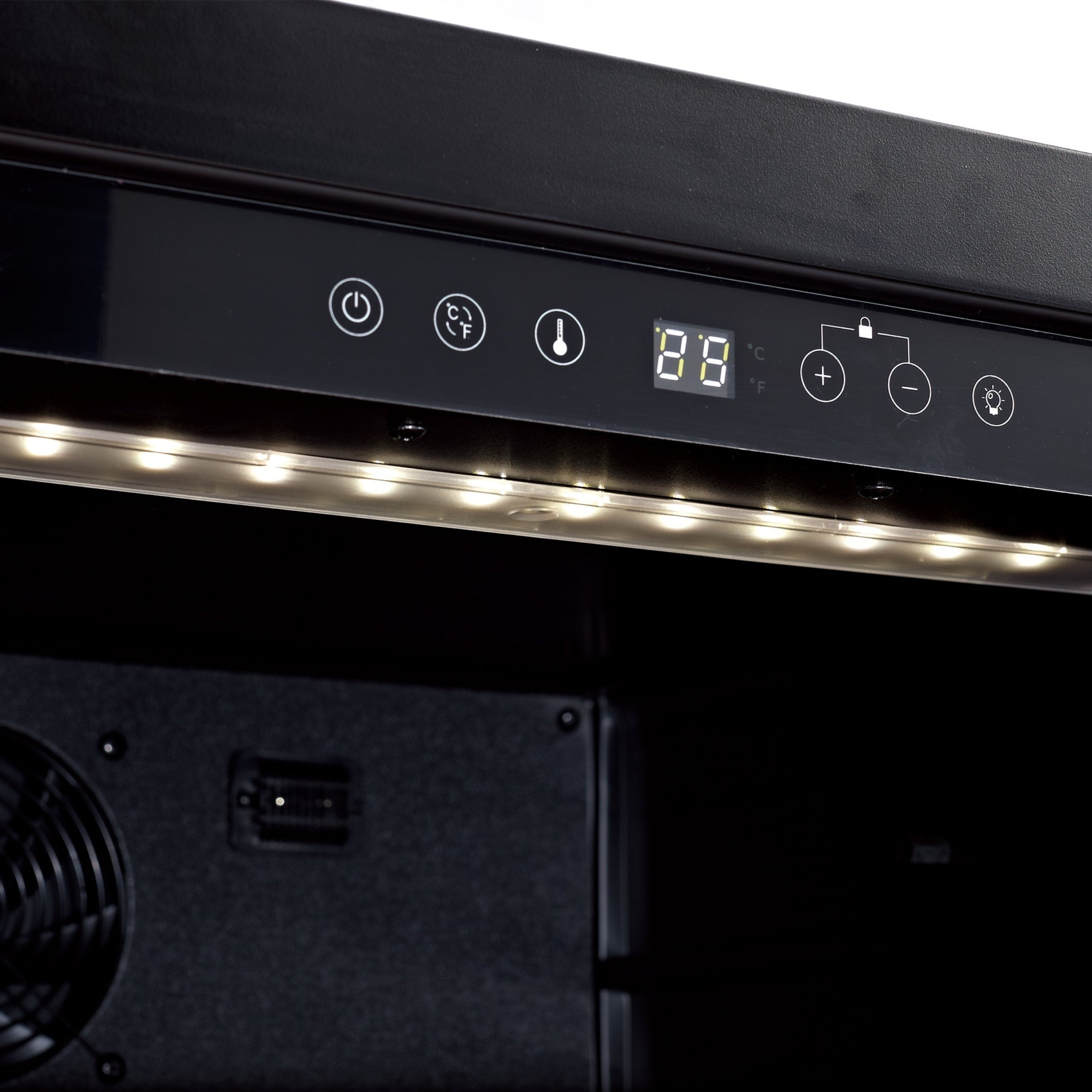

LED digital touchpad controls
Easy-to-use LED touchpad controls on each unit provide precise temperature readings and simple adjustments, so you can independently configure wine and beverage zones for service or storage.

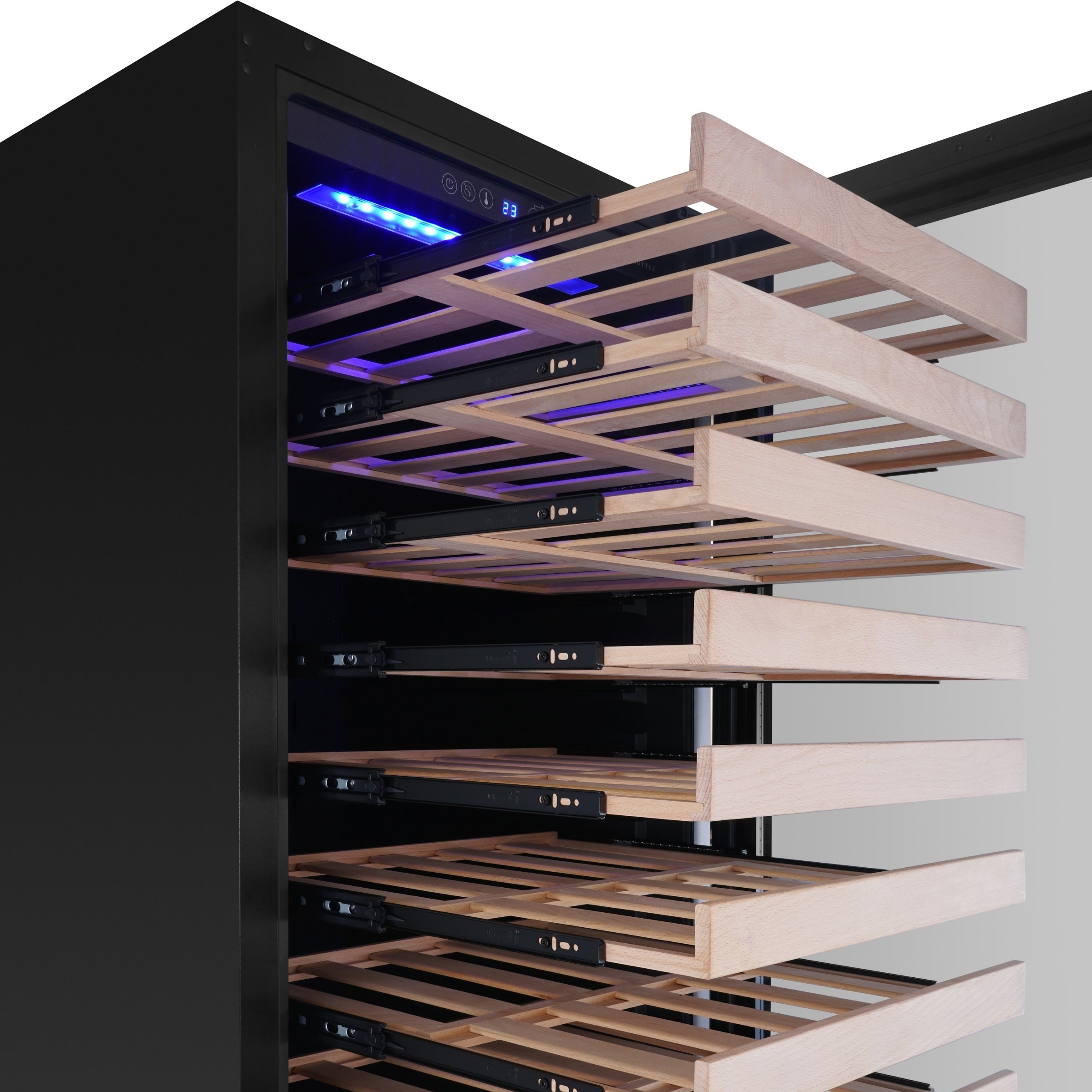

Full-extension beechwood shelves

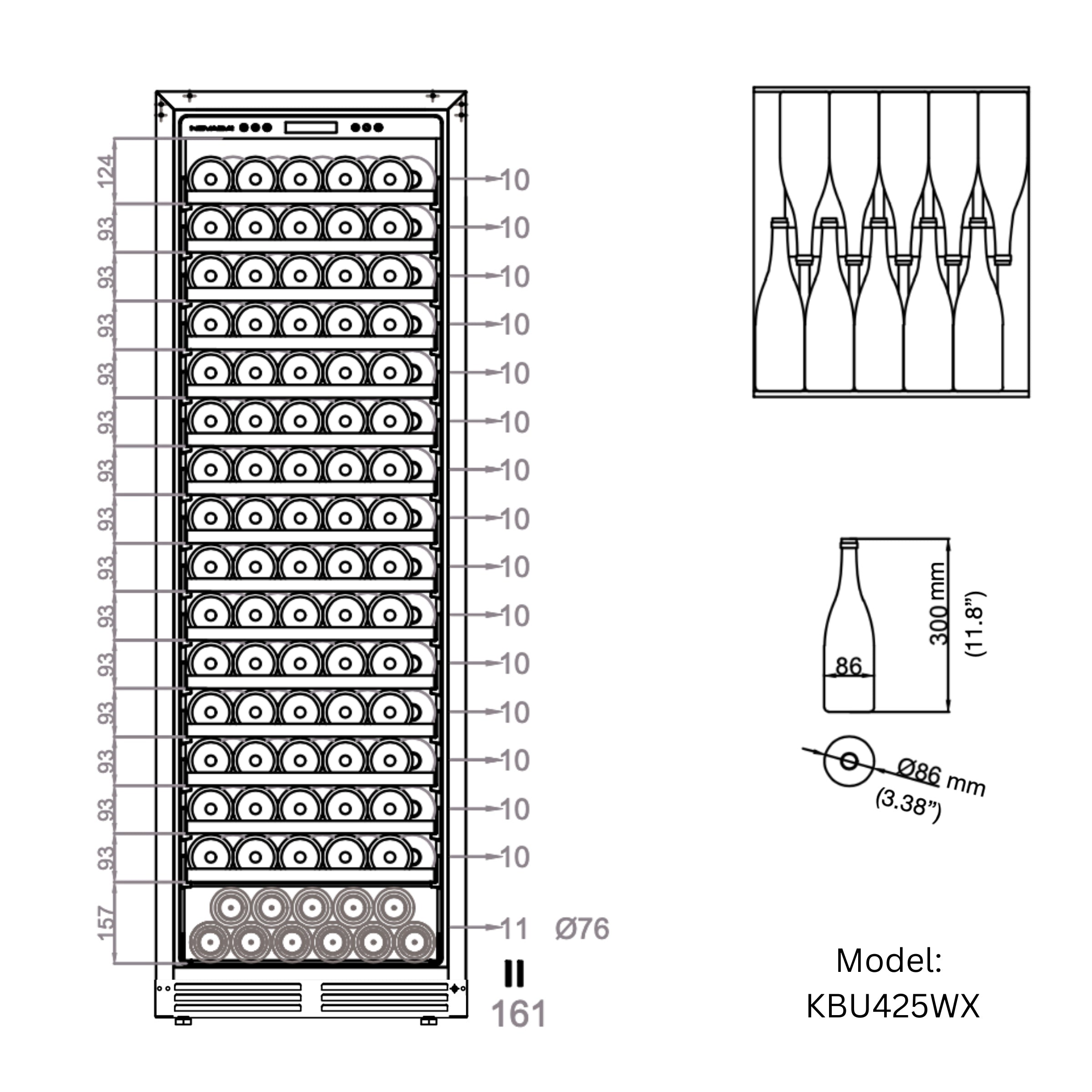

Full-extension beechwood shelves in the wine section are optimized for smooth access and bottle safety, and are cleverly spaced to accommodate both standard and many larger bottles up to 3.39" (86 mm) in diameter.
Magnetic door switch & alarm
A built-in magnetic switch triggers a 2-minute door-open alarm, helping prevent unnecessary temperature drift and energy waste if a door is left ajar.

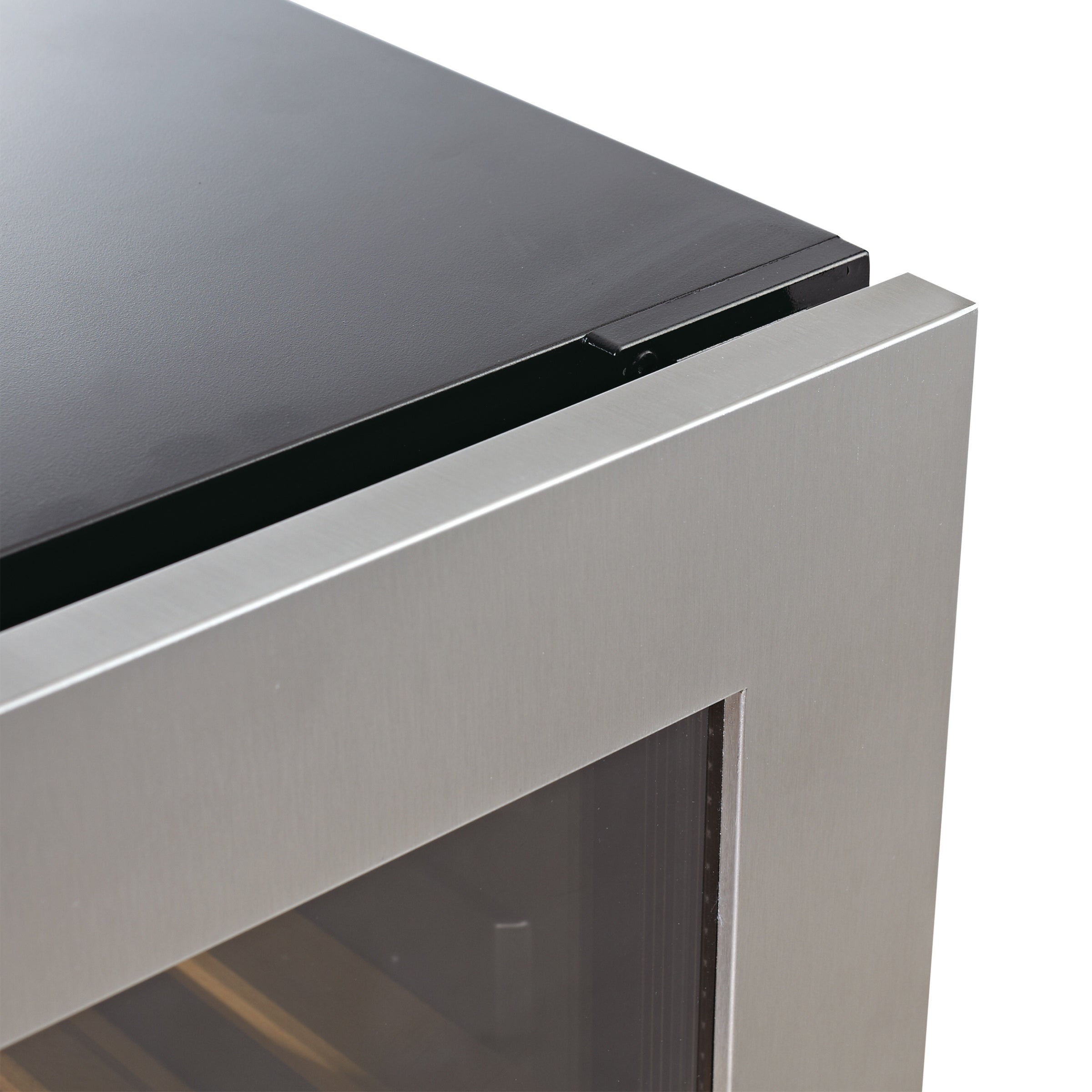

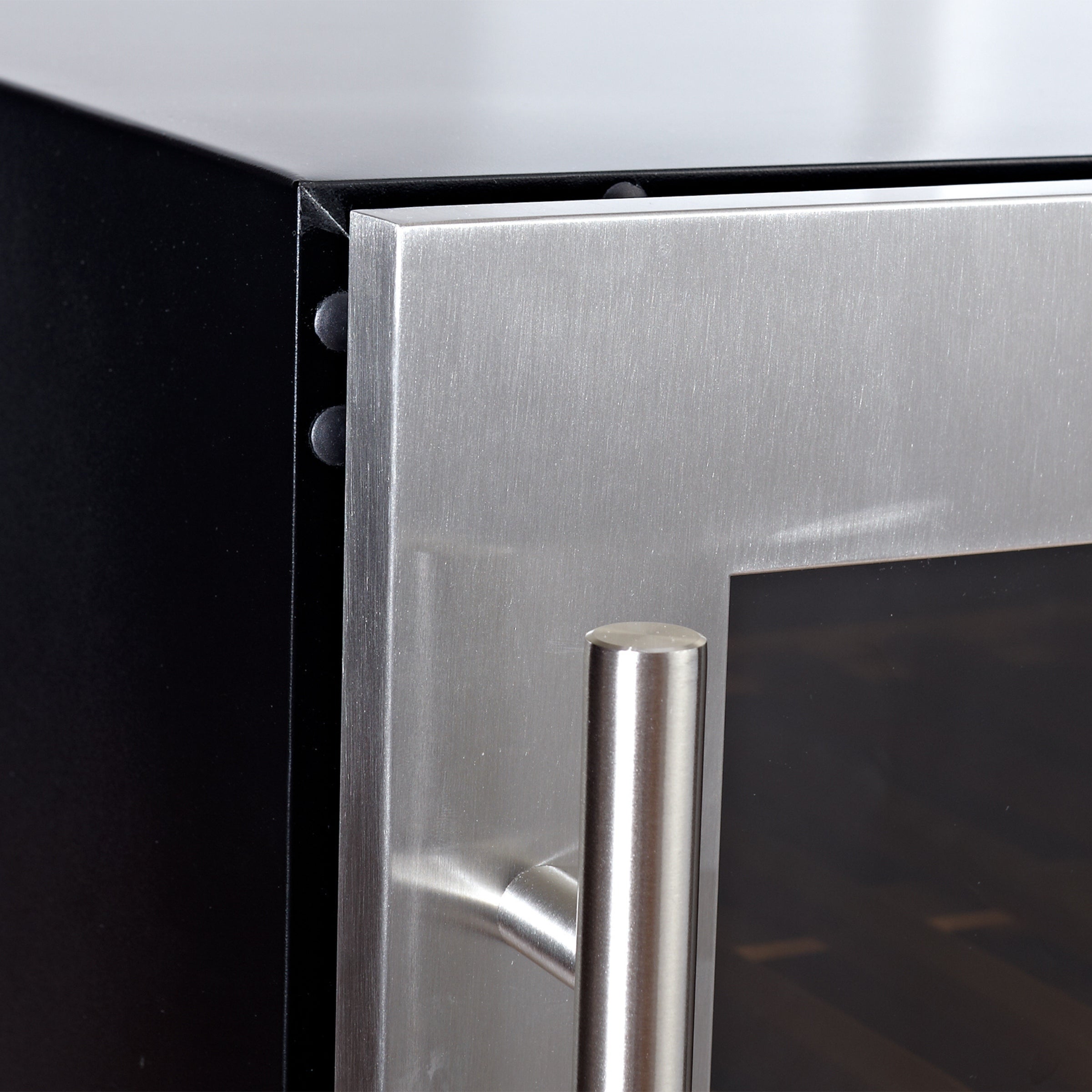

Hidden hinge & seamless frame
A hidden door hinge with laminated steel plate and integrated molding, paired with a seamless stainless steel door frame, delivers a clean built-in look that complements premium cabinetry and appliances.
45 mm C-pentane insulation
Thick 45 mm C-pentane foam helps optimize cooling performance, reduce energy consumption, and support stable interior temperatures in a wide range of ambient conditions.
Dimensions & Diagrams

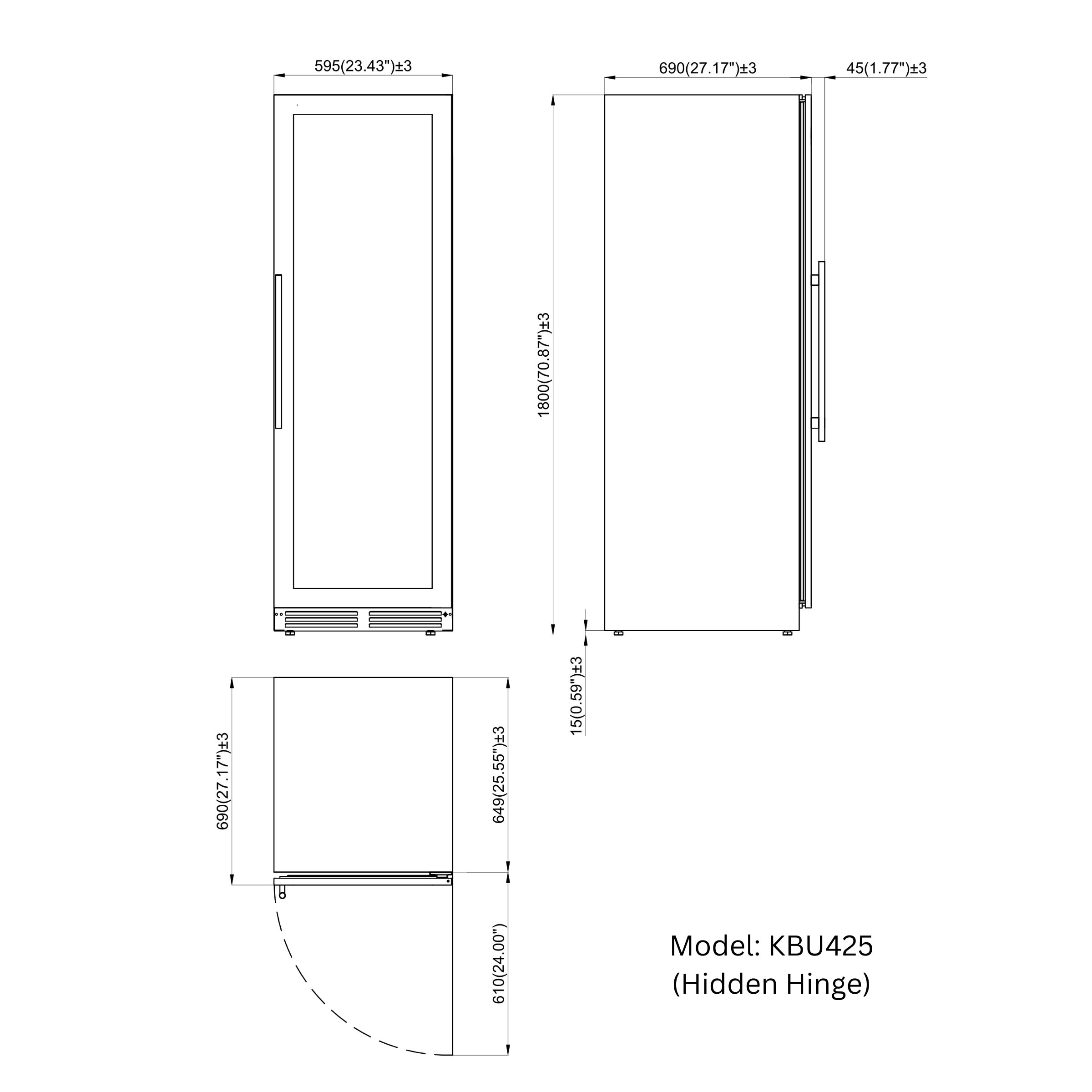

Technical dimensions
Use the technical dimension diagrams to confirm footprint, door swing, and internal layout before integrating the Ultimate Upright Wine & Beverage Refrigerator Combo into custom cabinetry, bars, or dedicated beverage walls.

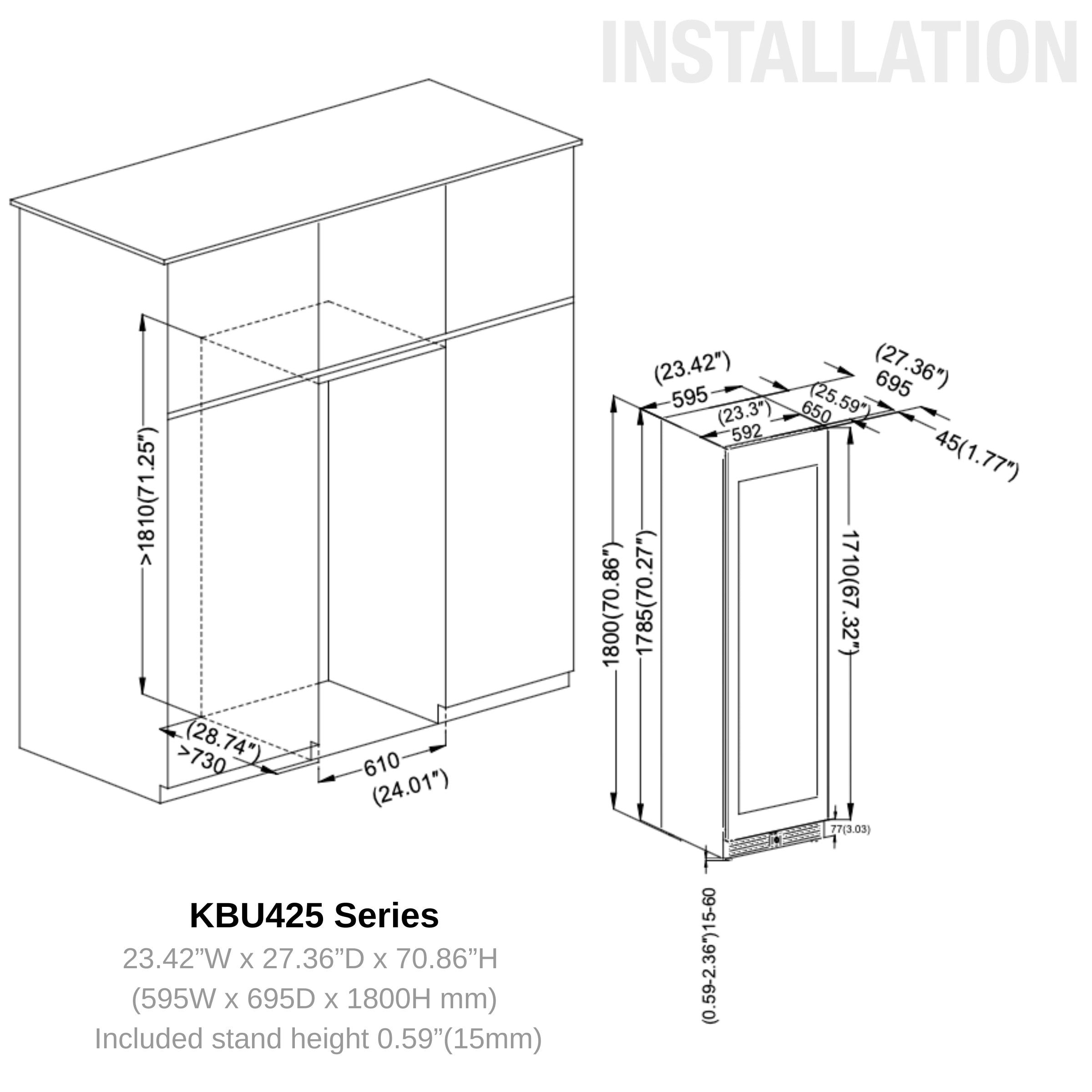

Installation diagrams
Reference the cutout and power-plug diagrams when planning clearances, ventilation, and electrical placement for built-in applications.
Product Manual
View the full manuals
Review the complete user manuals for detailed installation instructions, operating guidance, and maintenance information for both sides of the Ultimate Upright Wine & Beverage Refrigerator Combo.
Manual – Unit 1
Manual – Unit 2
FAQ
This upright dual-zone combo offers up to 30 CF (850 Liters) of total capacity, with storage for approximately 161 wine bottles and up to 630 cans, depending on how you configure the chromed steel and beechwood shelves.
Most owners configure the upper zone for wine storage and serving, and use the lower zone for beer, seltzers, and ready-to-drink beverages. Both zones offer an adjustable range of 35–68°F (2–20°C), so you can fine-tune each compartment for reds, whites, sparkling wines, or mixed beverages as needed.
Yes. The unit is designed for both built-in and freestanding use. When installing as a built-in, always follow the cutout dimensions, ventilation clearances, and electrical requirements shown in the installation diagrams and manuals for optimal performance and longevity.
The dual Embraco Inverter Compressors are engineered for whisper-quiet, low-vibration operation, making this upright combo a strong choice for open-plan kitchens, entertainment areas, and premium residential or hospitality settings where noise control matters.
Yes. The combination of 8 chromed steel shelves and 16 beechwood shelves can be repositioned to accommodate wine bottles, larger formats, cans, and multi-pack beverages. The beechwood shelves are designed to handle many bottles up to 3.39" (86 mm) in diameter.
The Low-E glass doors feature a special coating that helps reduce heat transfer and condensation while filtering UV light. This supports more efficient cooling and helps protect wine flavor, labels, and cork integrity—especially in brighter spaces or installations with more ambient light.
