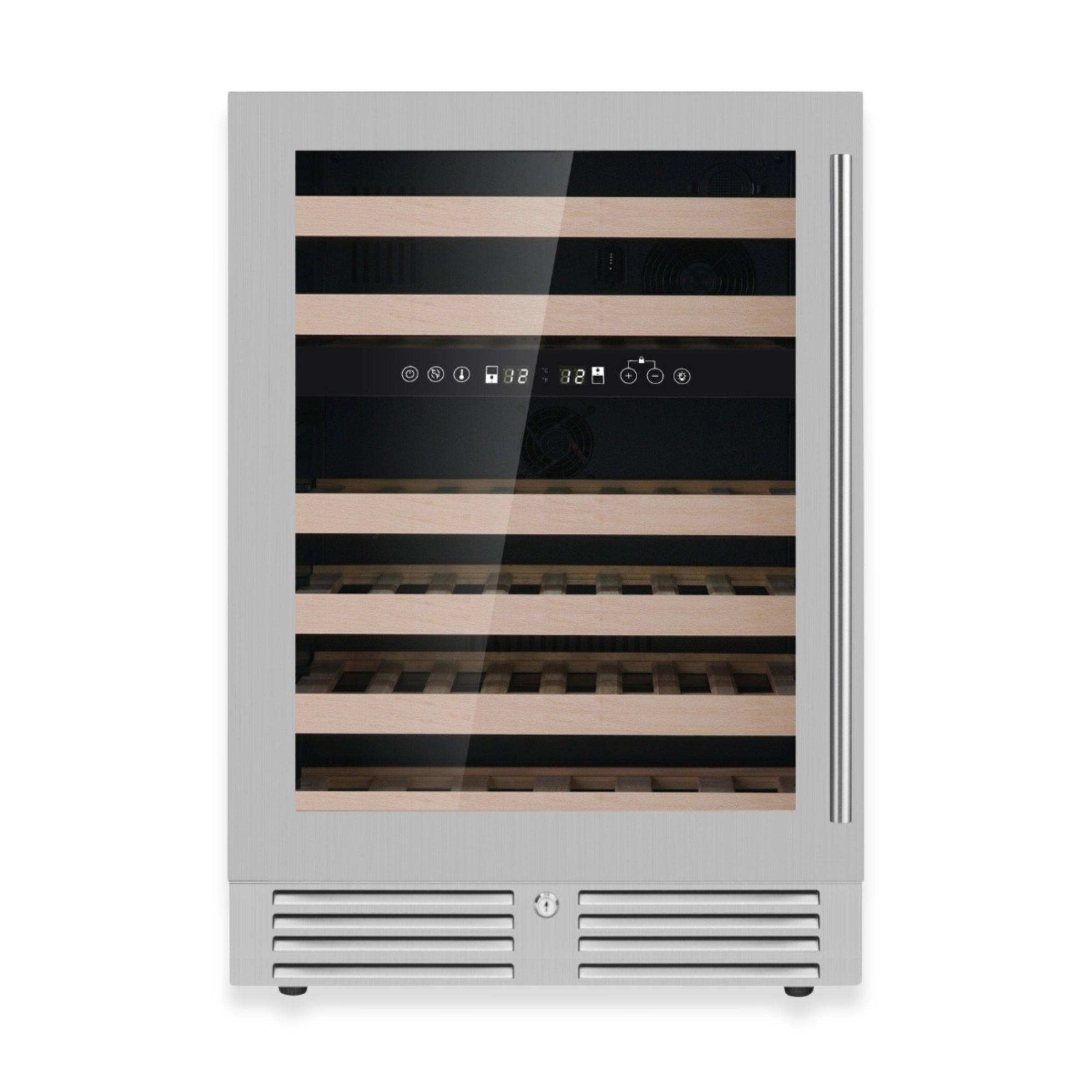

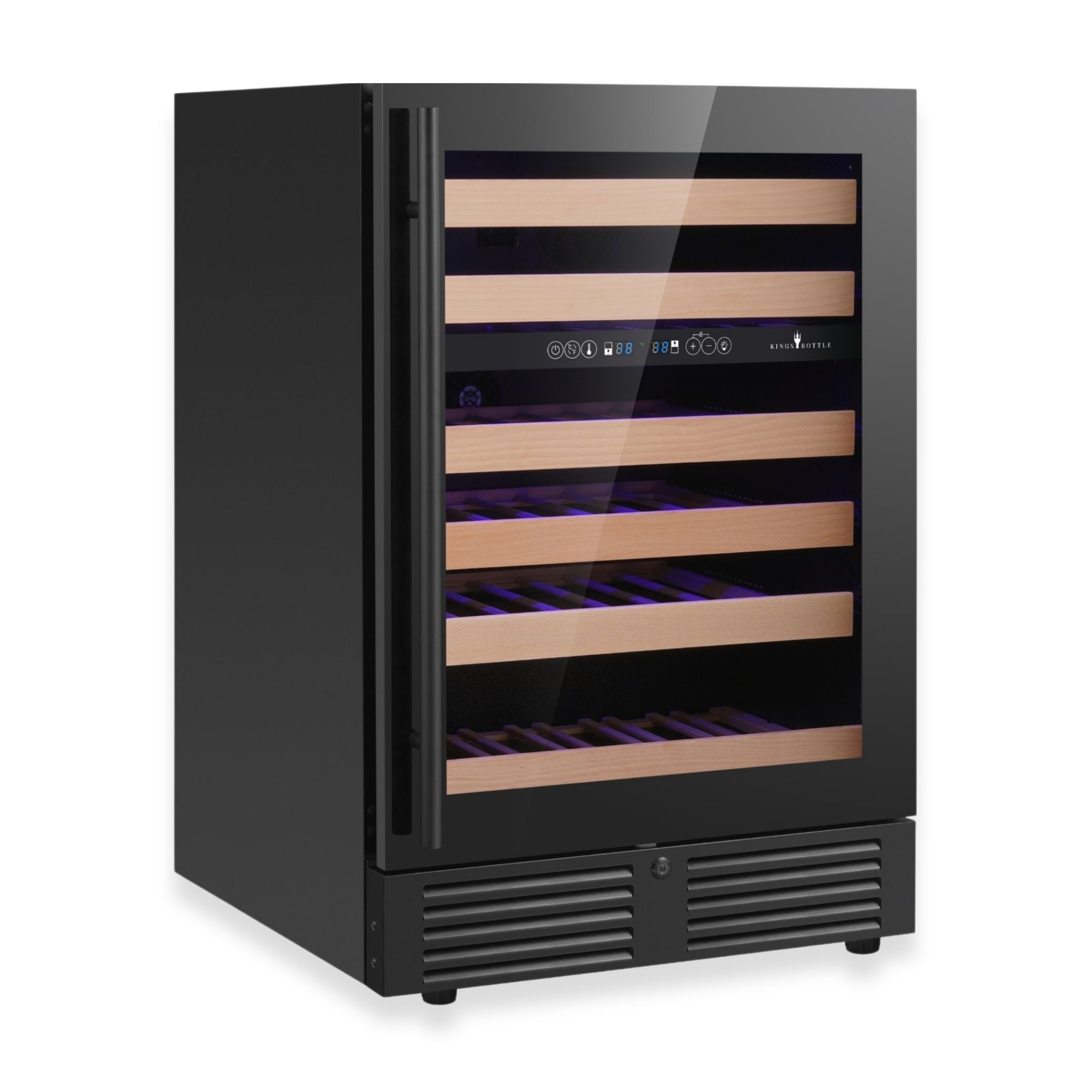

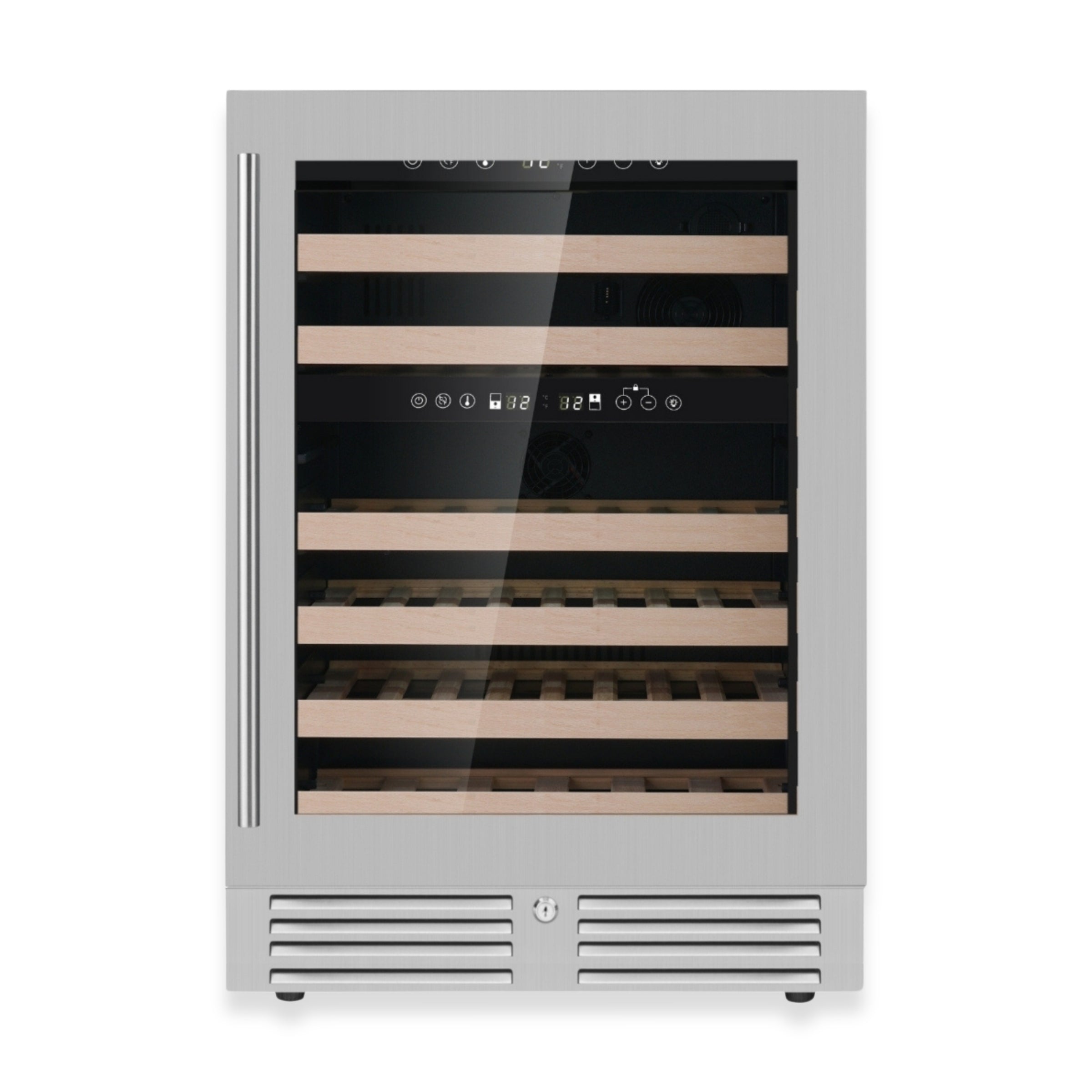

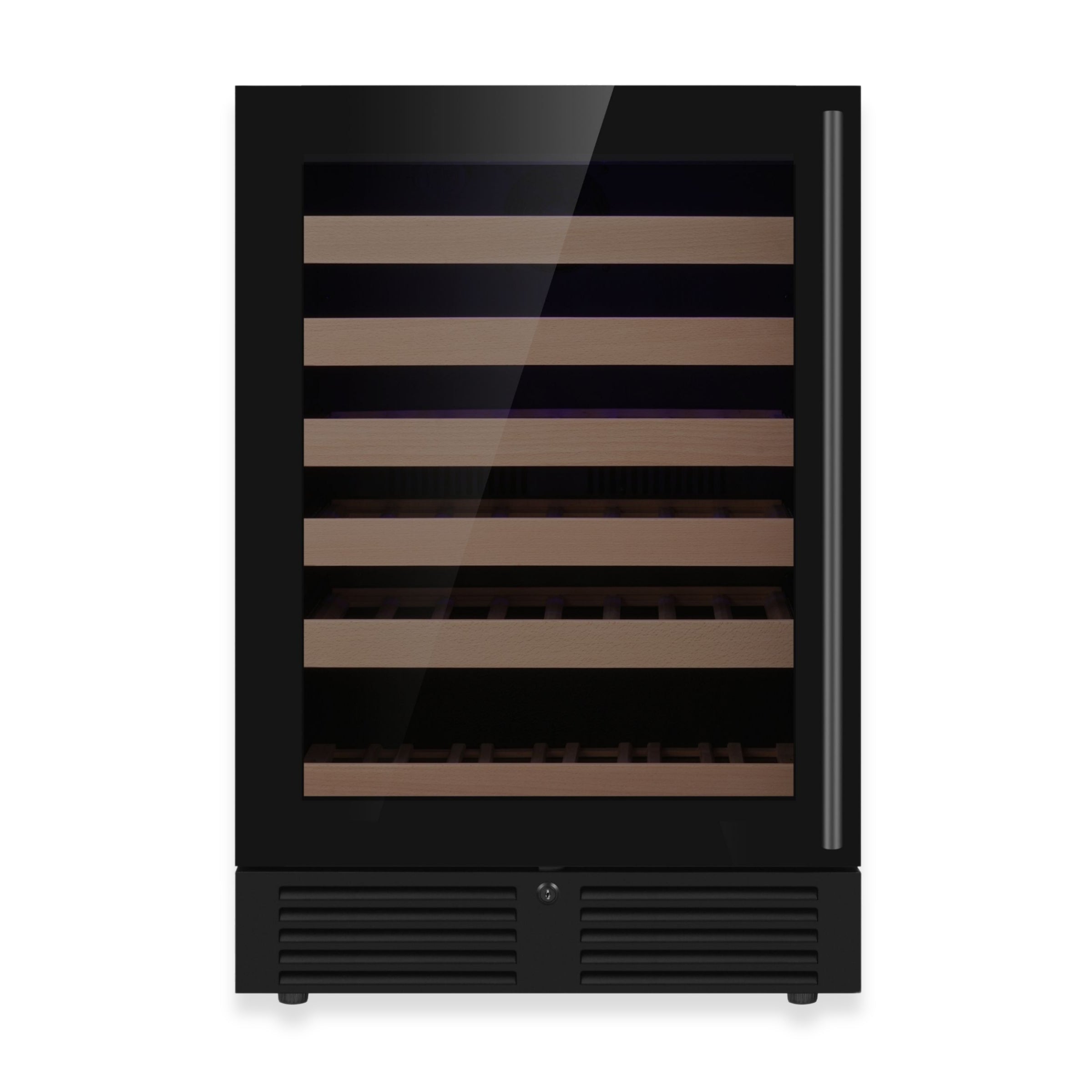

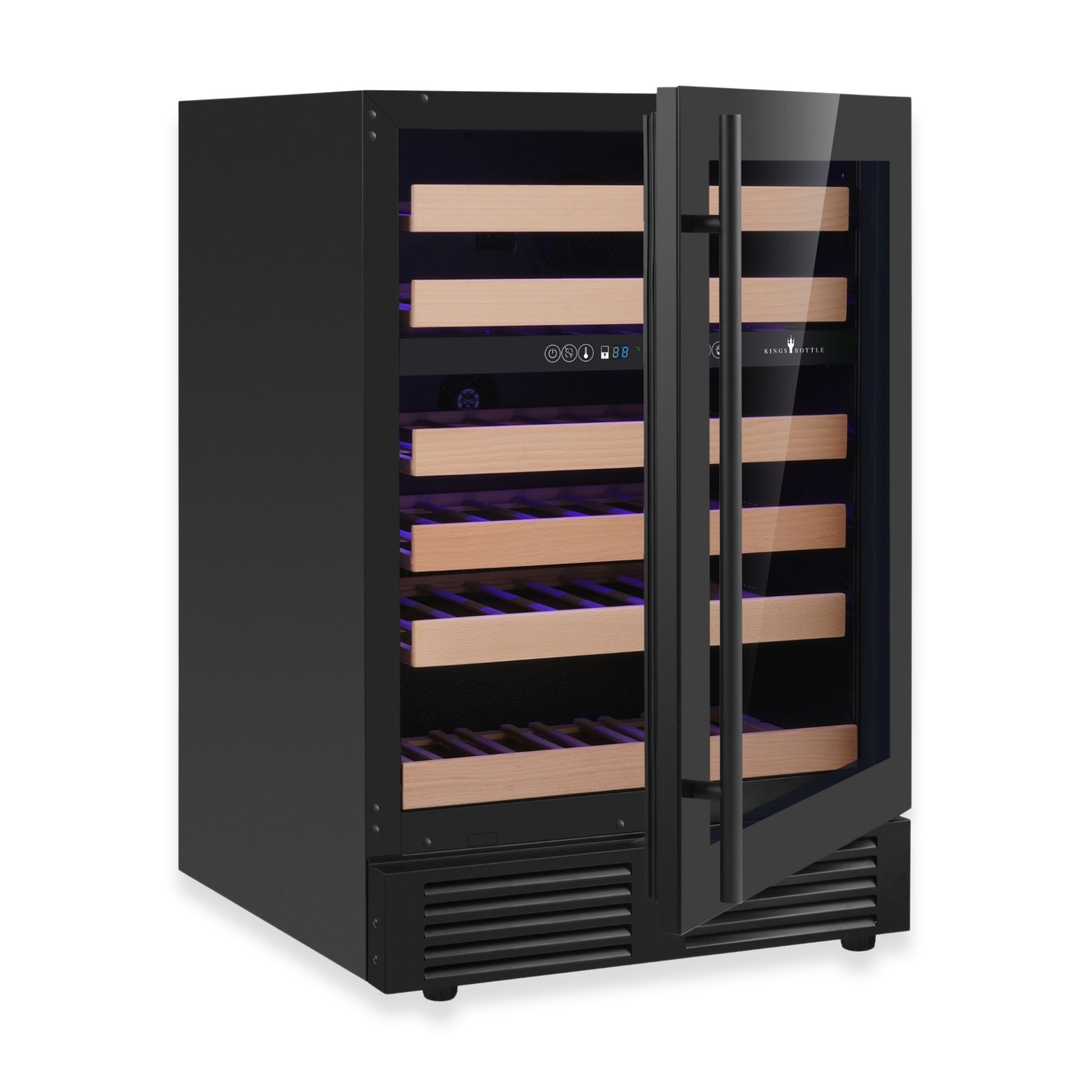

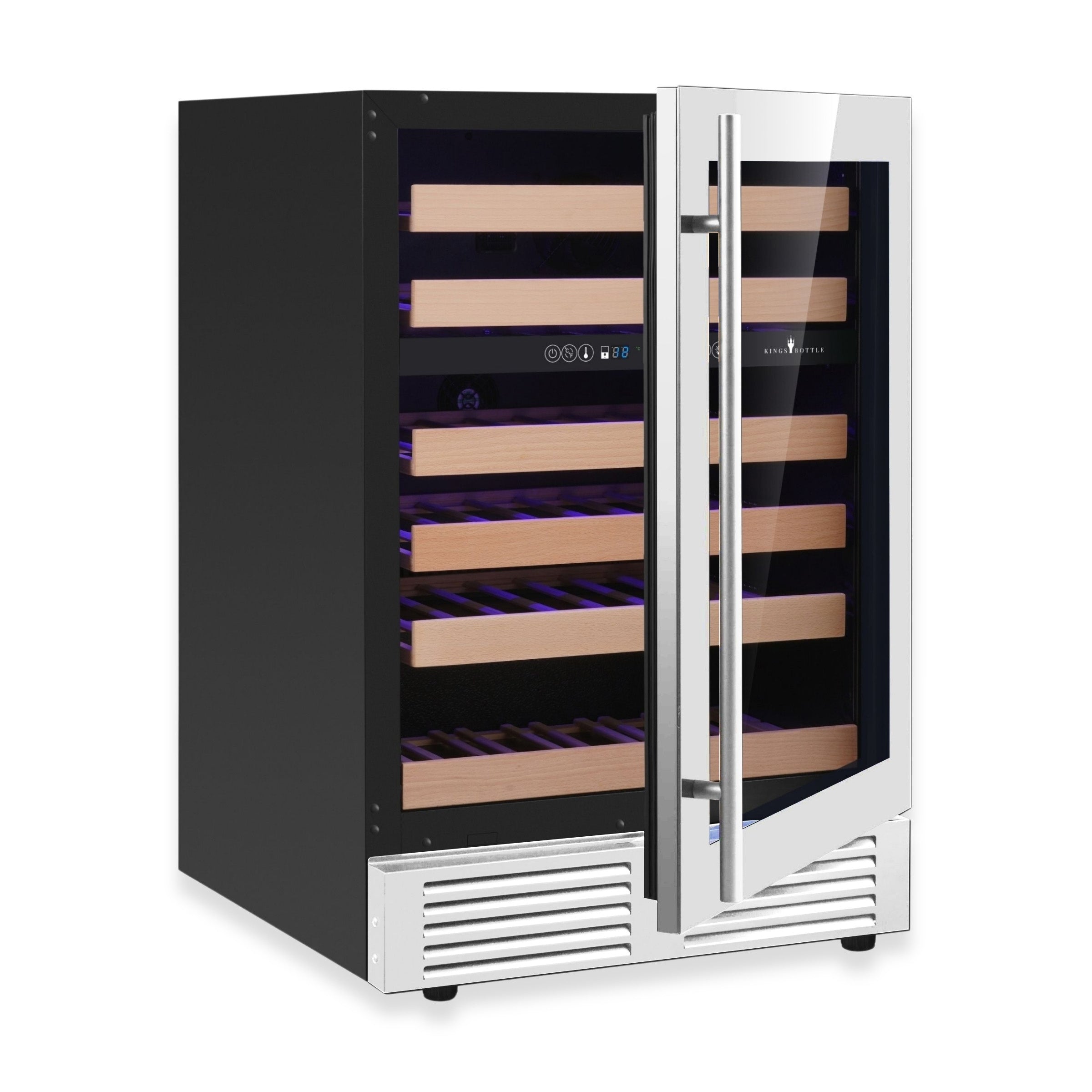

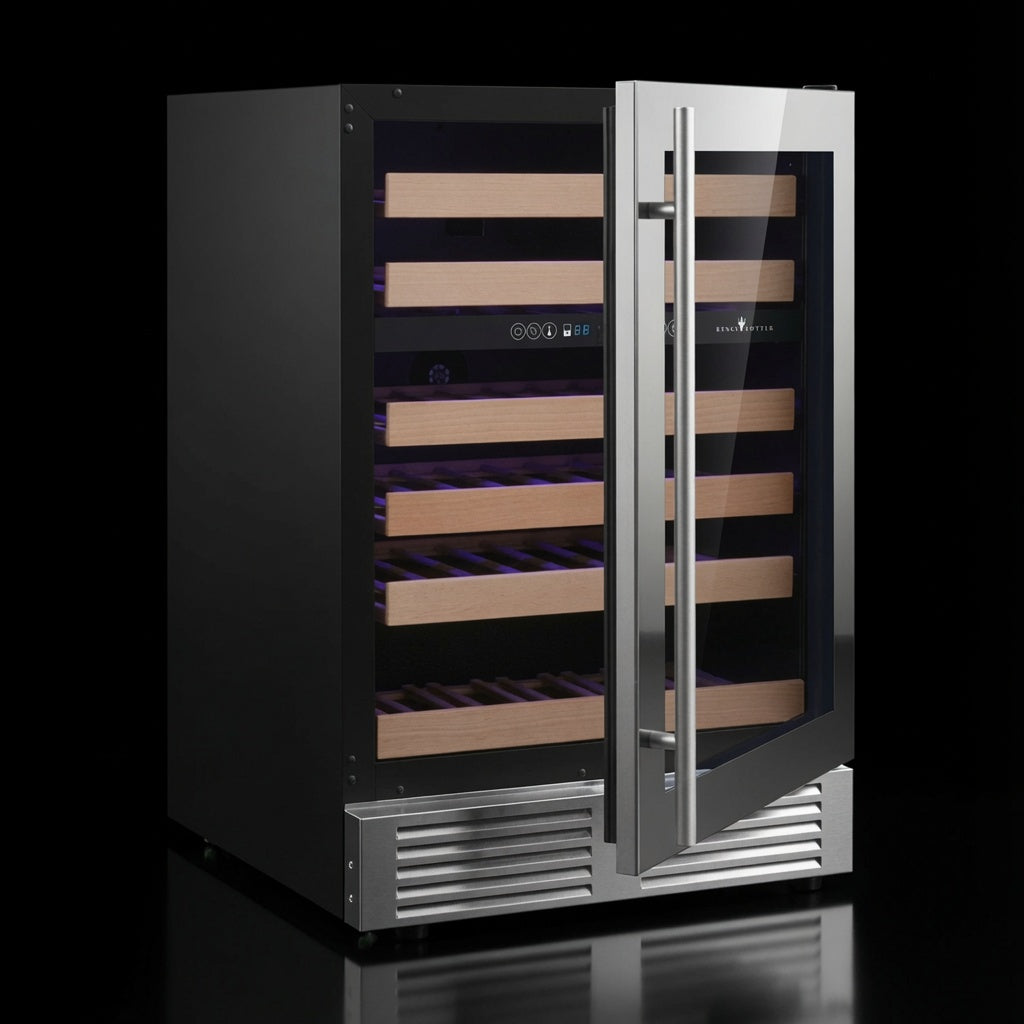

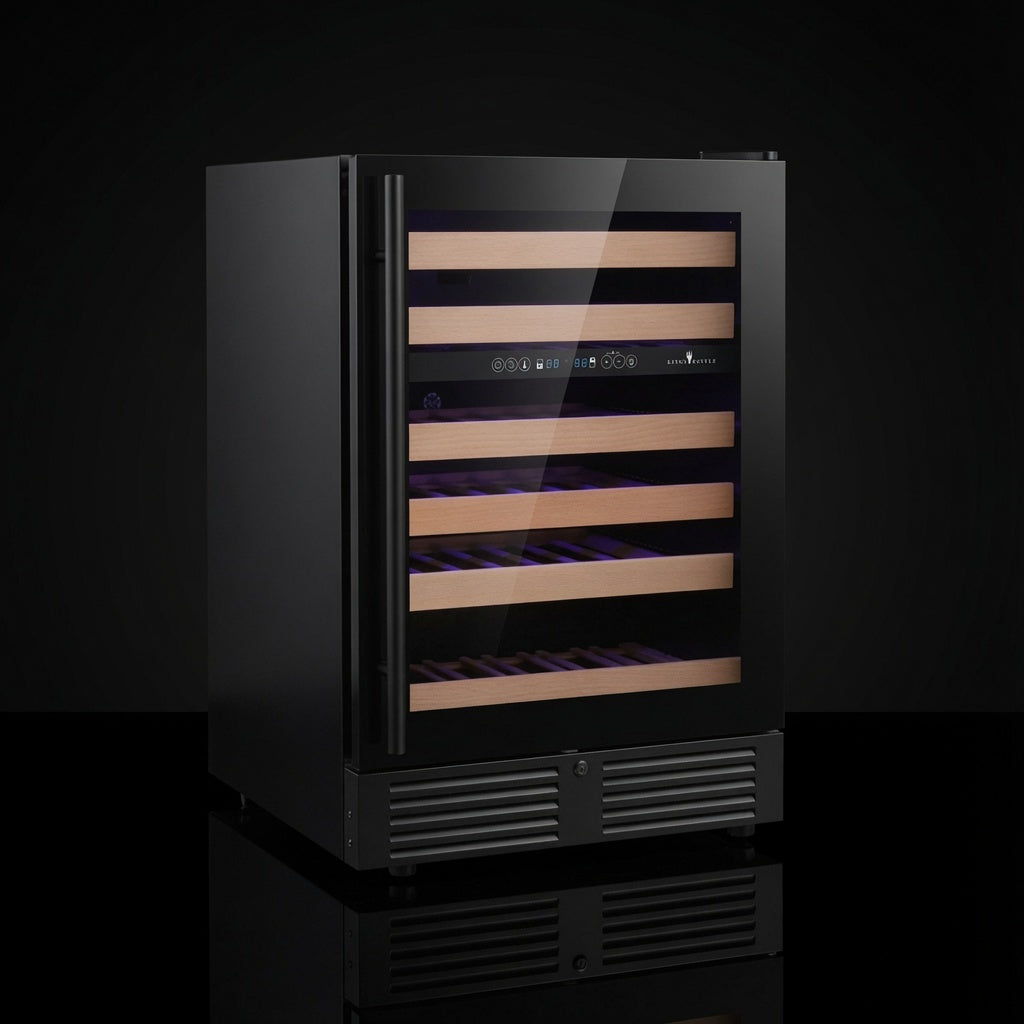

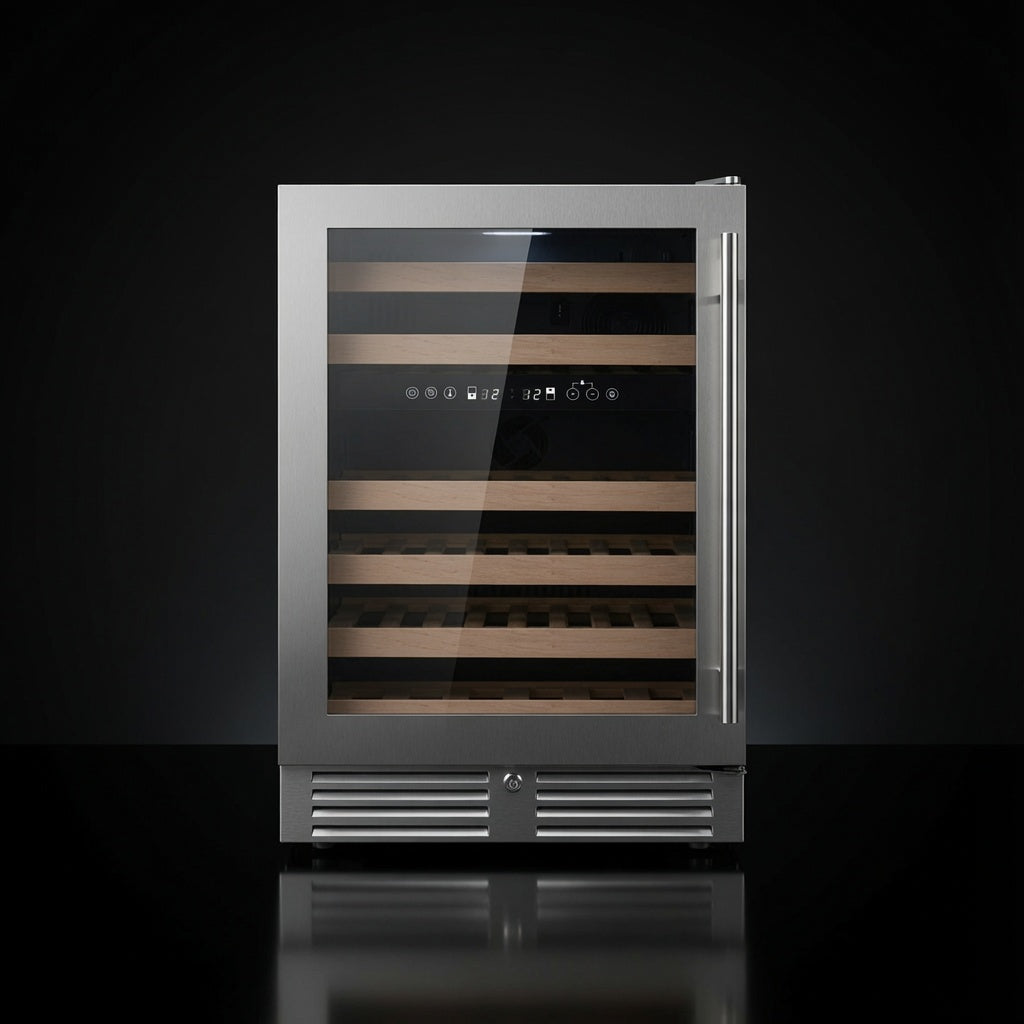

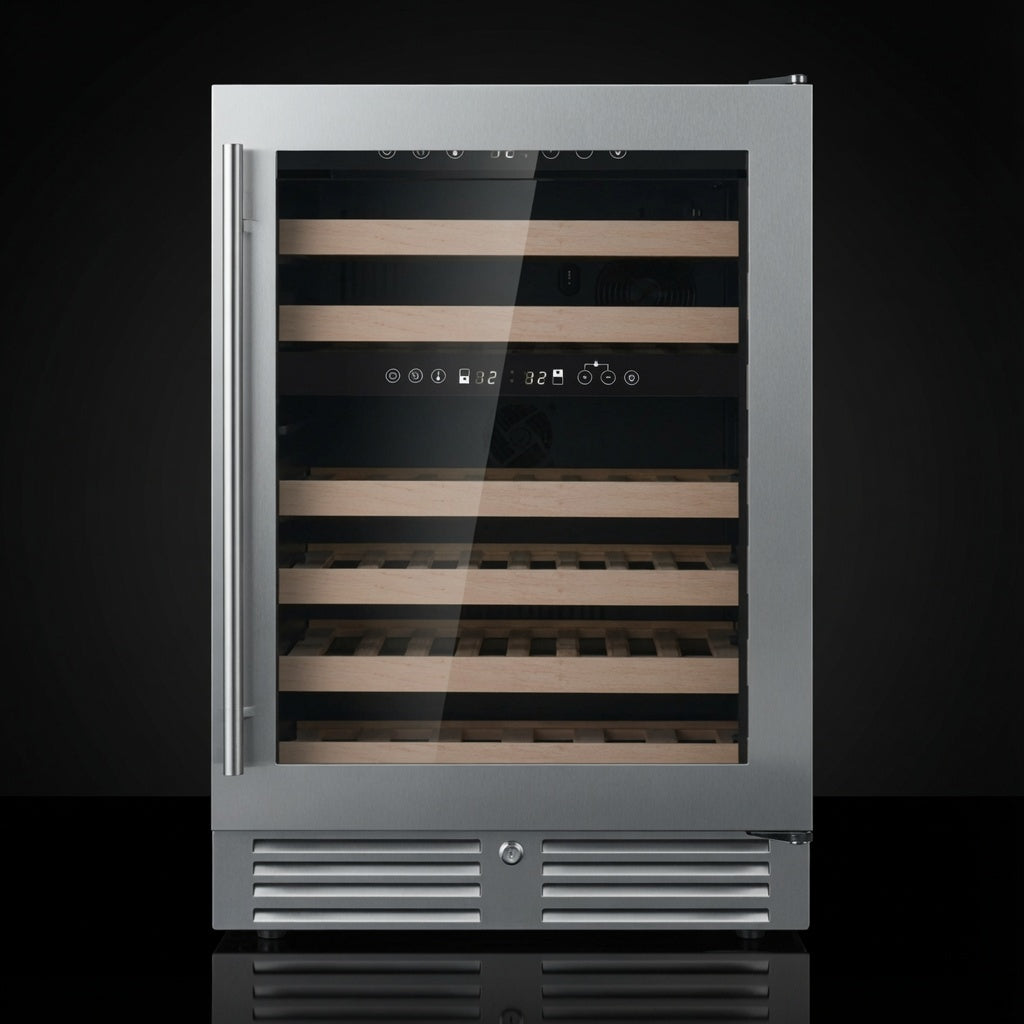

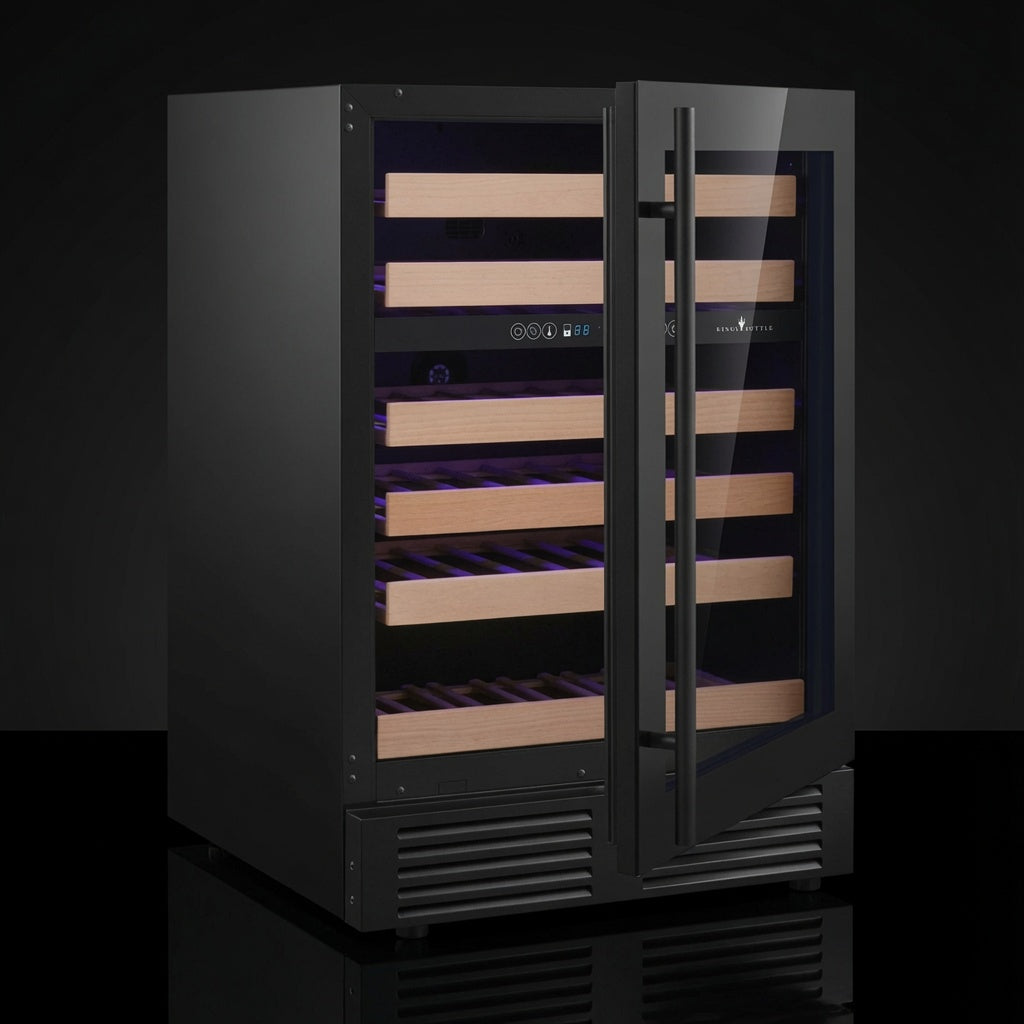

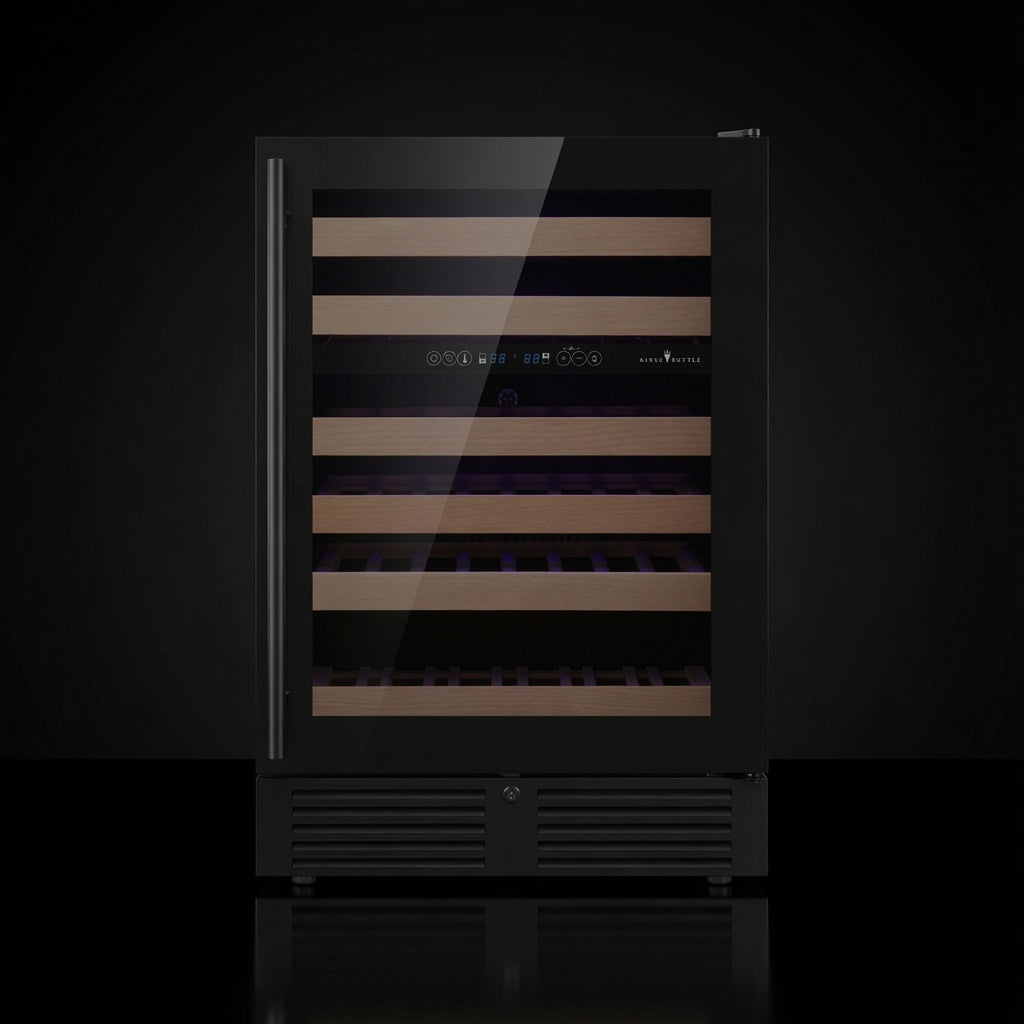

The 24-Inch Under-Counter Dual Zone Wine Cooler is engineered to deliver premium wine storage in a compact, built-in design. Powered by the Embraco Inverter Compressor , it provides whisper-quiet performance, improved energy efficiency, and consistent temperature stability for both long-term cellaring and everyday enjoyment.
Its dual-zone configuration allows you to independently store red and white wines at their ideal serving temperatures. The Low-E glass door offers UV protection while minimizing condensation, maintaining both clarity and energy efficiency. Inside, full-extension beechwood shelves glide smoothly and are designed to accommodate larger bottles up to 3.39" (86 mm) in diameter.
Create a complete beverage center:
Pair this wine cooler with our
24-Inch Under-Counter Beverage Fridge
for a seamless, side-by-side under-counter setup that separates wine storage from beer and ready-to-drink beverages.
Why it stands out
True dual-zone wine storage
Independently controlled upper and lower zones let you keep whites and sparkling wines cooler in the upper zone and reds slightly warmer in the lower zone, with precise temperature ranges tuned for proper serving and storage.
Embraco inverter performance
The Embraco Inverter Compressor delivers smoother, variable-speed cooling with lower vibration, helping protect delicate wines while improving energy efficiency and long-term reliability.
Low-E glass & under-counter design
A Low-E UV-protective glass door reduces condensation and heat transfer, while the front-venting under-counter design is ideal for built-in cabinetry or seamless integration in kitchens, bars, and entertainment spaces.
Full-extension beechwood shelves
Six full-extension beechwood shelves glide smoothly for easy access and are optimized to handle larger bottles up to 3.39" (86 mm), accommodating many popular premium and reserve formats beyond standard 750 ml.
Pairable with 24" beverage fridge
Designed to match the 24-Inch Under-Counter Beverage Fridge, this wine cooler can be installed side-by-side for a cohesive, high-end under-counter beverage station that separates wine from beer, sodas, and mixers.
Specifications
Key Specifications
| Volume | 5.12 CF (145 Liters) |
|---|---|
| Capacity (bottles) | Up to 46 standard wine bottles (configuration-dependent) |
| Installation Type | Built-in or freestanding |
| Climate Type | N |
| Temperature Zones | Dual zone (upper and lower) |
| Adjustable Temperature Range |
Upper zone: 35°F to 54°F (2°C to 12°C) Lower zone: 54°F to 68°F (12°C to 20°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 6 beech wooden shelves (full-extension) |
| Bottle Diameter Support | Accommodates bottles up to 3.39" (86 mm) in diameter (configuration-dependent) |
| Dimensions (W × D × H) | 23.42" W × 22.75" D × 33.99" H (includes 0.59" stand height) |
| Compressor | Embraco Inverter Compressor |
| Defrost Type | Automatic defrost |
| Power Supply | 110–115V / 60 Hz |
| Rated Power Input | 100 W |
| Rated Current | 1.2 A |
| Refrigerant | R600a / 25 g |
| Internal Lighting | 0.7 W × 2 |
| Energy Efficiency Standard | ETL / DOE compliant |
Technical Features
Quiet inverter compressor
A high-quality Embraco Inverter Compressor provides whisper-quiet, low-vibration cooling, helping preserve wine integrity while keeping your kitchen or bar environment calm and comfortable.
Patented compressor sink
A patented sink design increases air circulation space around the compressor, improving cooling performance while further reducing vibration and overall operating noise.
Low-E glass door
The Low-E glass door helps reduce energy consumption and condensation on the glass while acting as an invisible insulating barrier that supports temperature stability inside the cabinet.
Note: The Low-E coating also helps block UV light, protecting wine quality—especially in brighter rooms or exposed installations.
Fan-circulated air cooling
A fan-circulated air-cooling system helps maintain uniform temperatures throughout the cabinet, minimizing hot and cold spots and compensating for humidity to better protect your collection.
Activated carbon filtration
An internal activated carbon filter helps remove impurities from the air inside the cabinet, keeping the interior fresh and odor-free—an important factor for long-term wine storage.
LED digital touchpad controls
Simple, easy-to-operate LED touchpad controls provide clear temperature readouts and accurate adjustments for each zone, making it easy to configure serving and storage settings.
Magnetic door switch & alarm
A built-in magnetic switch triggers a 2-minute door-open alarm, helping you avoid unnecessary temperature drift and energy loss if the door is accidentally left ajar.
Hidden hinge & seamless frame
A hidden door hinge with laminated steel plate and integrated molding, combined with a seamless stainless steel door frame, creates a clean built-in look that blends smoothly with surrounding cabinetry.
45 mm C-pentane insulation
Thick 45 mm C-pentane foam insulation helps optimize cooling performance and reduce energy consumption, supporting stable temperatures in a wide range of ambient room conditions.
Dimensions & Diagrams

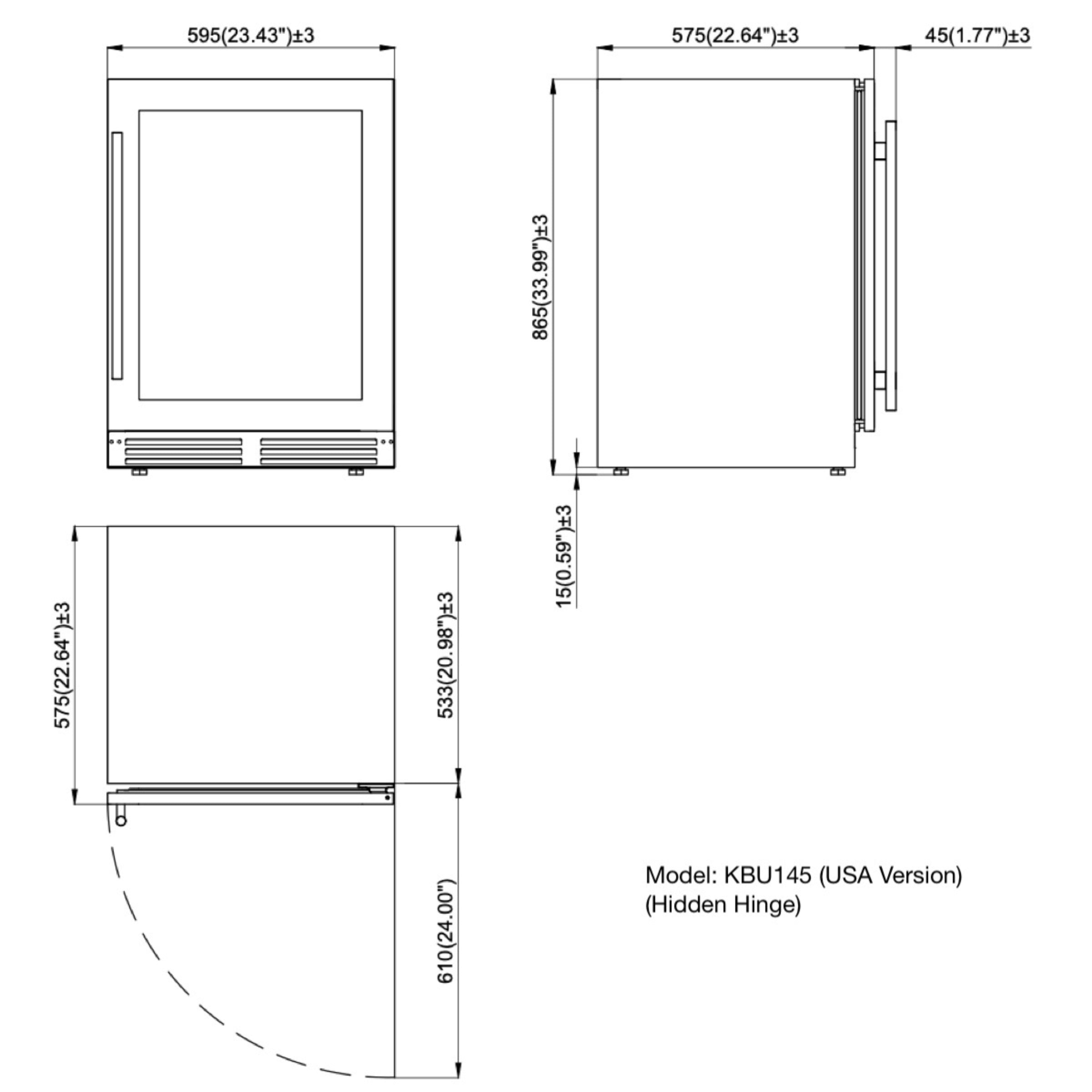

Technical dimensions
Use the technical dimension diagrams to confirm footprint, door swing, and internal layout before integrating the 24-Inch Under-Counter Dual Zone Wine Cooler into cabinetry, kitchen islands, or bar millwork.

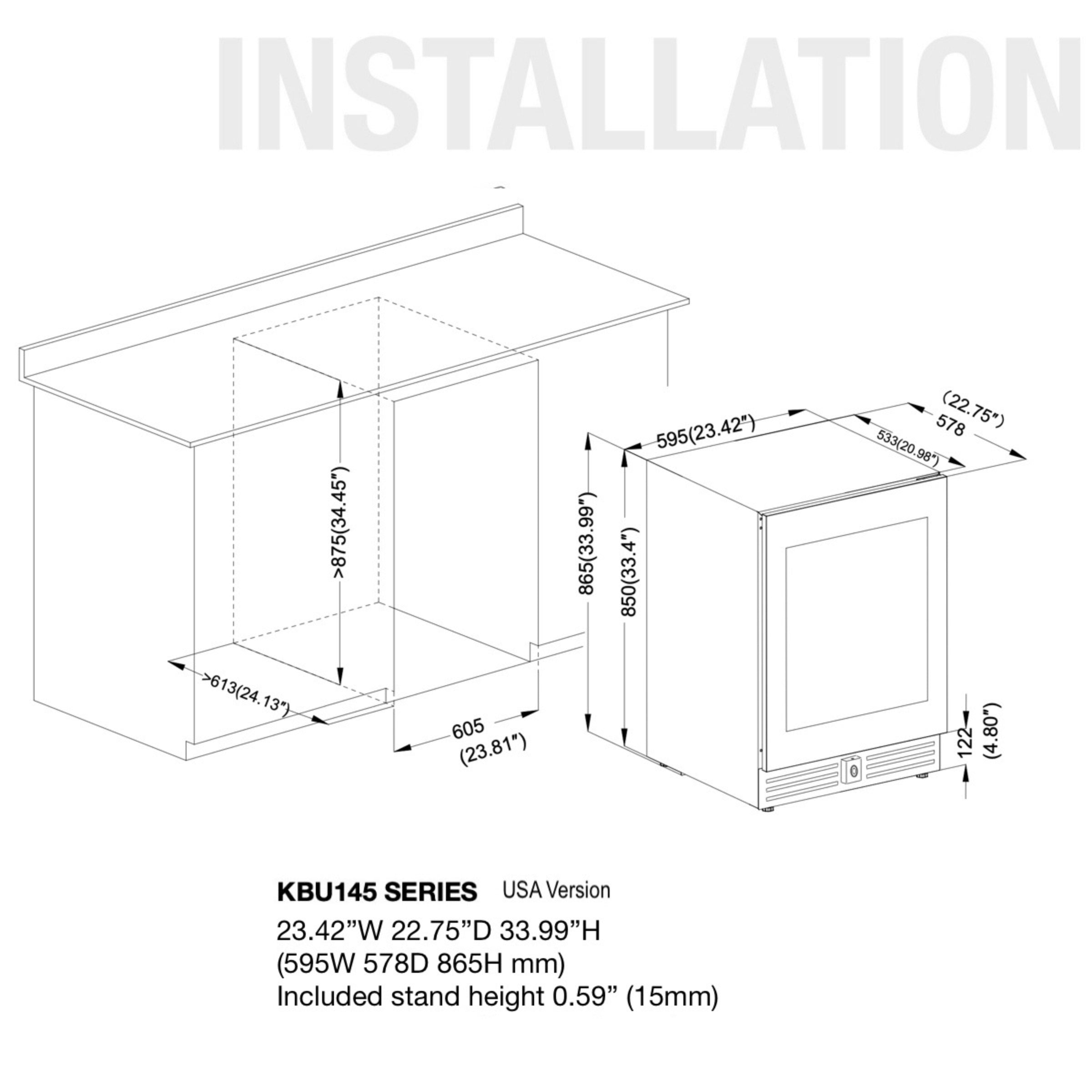

Installation diagrams
Reference the cutout and power-plug diagrams when planning ventilation clearances, recess depth, and electrical placement for built-in installations.
Product Manual
View the full manual
Review the complete user manual for detailed installation instructions, operating guidance, and maintenance recommendations for the 24-Inch Under-Counter Dual Zone Wine Cooler.
Manual – 24-Inch Under-Counter Dual Zone Wine Cooler
FAQ

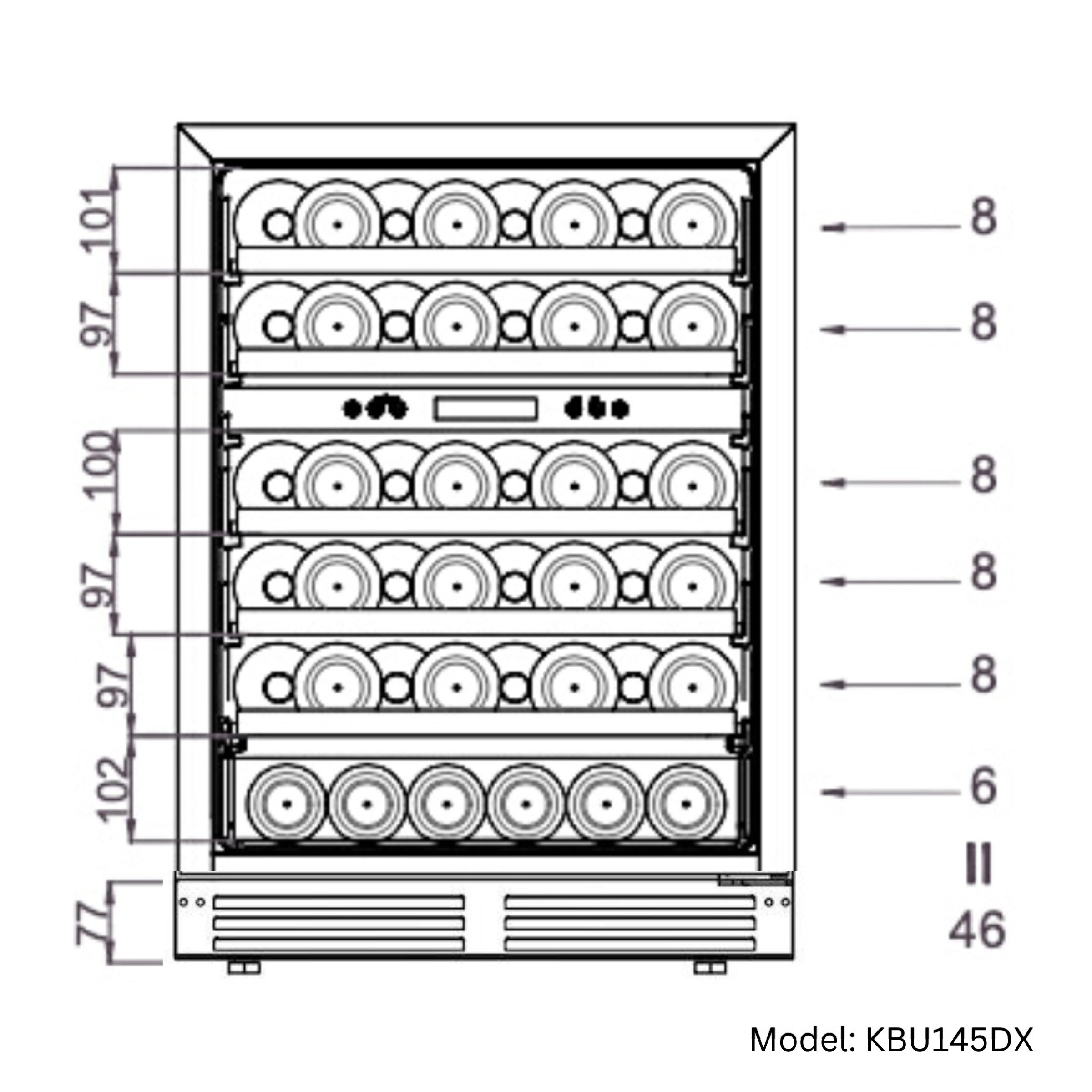

This under-counter wine cooler is designed to hold up to 46 standard 750 ml bottles, depending on how you configure the shelves. The full-extension beechwood shelves and increased shelf spacing also support many bottles up to 3.39" (86 mm) in diameter.
A common setup is to use the upper zone at cooler temperatures for whites and sparkling wines (for example, 40–50°F / 4–10°C) and the lower zone at slightly warmer temperatures for reds (for example, 55–65°F / 13–18°C). You can fine-tune within the available ranges of 35–54°F (2–12°C) for the upper zone and 54–68°F (12–20°C) for the lower zone.
Yes. The unit is designed for both built-in and freestanding use. The front-venting design makes it ideal for under-counter installations in kitchens, bars, and entertainment spaces. Be sure to follow the cutout dimensions and ventilation clearances shown in the installation diagrams and manual for best performance.
Thanks to the Embraco Inverter Compressor and optimized compressor sink, the cooler is engineered for low-vibration, quiet operation, making it a strong choice for open-concept kitchens and living spaces where noise control matters.
Absolutely. This model is designed to match the 24-Inch Under-Counter Beverage Fridge, allowing you to create a cohesive, side-by-side under-counter beverage center that separates wine storage from beer, sodas, and mixers.
The Low-E glass door features a special coating that helps reduce heat transfer and condensation, while also helping to block UV light. This improves energy efficiency and helps protect wine flavor and aging characteristics, especially in brighter or more exposed locations.
