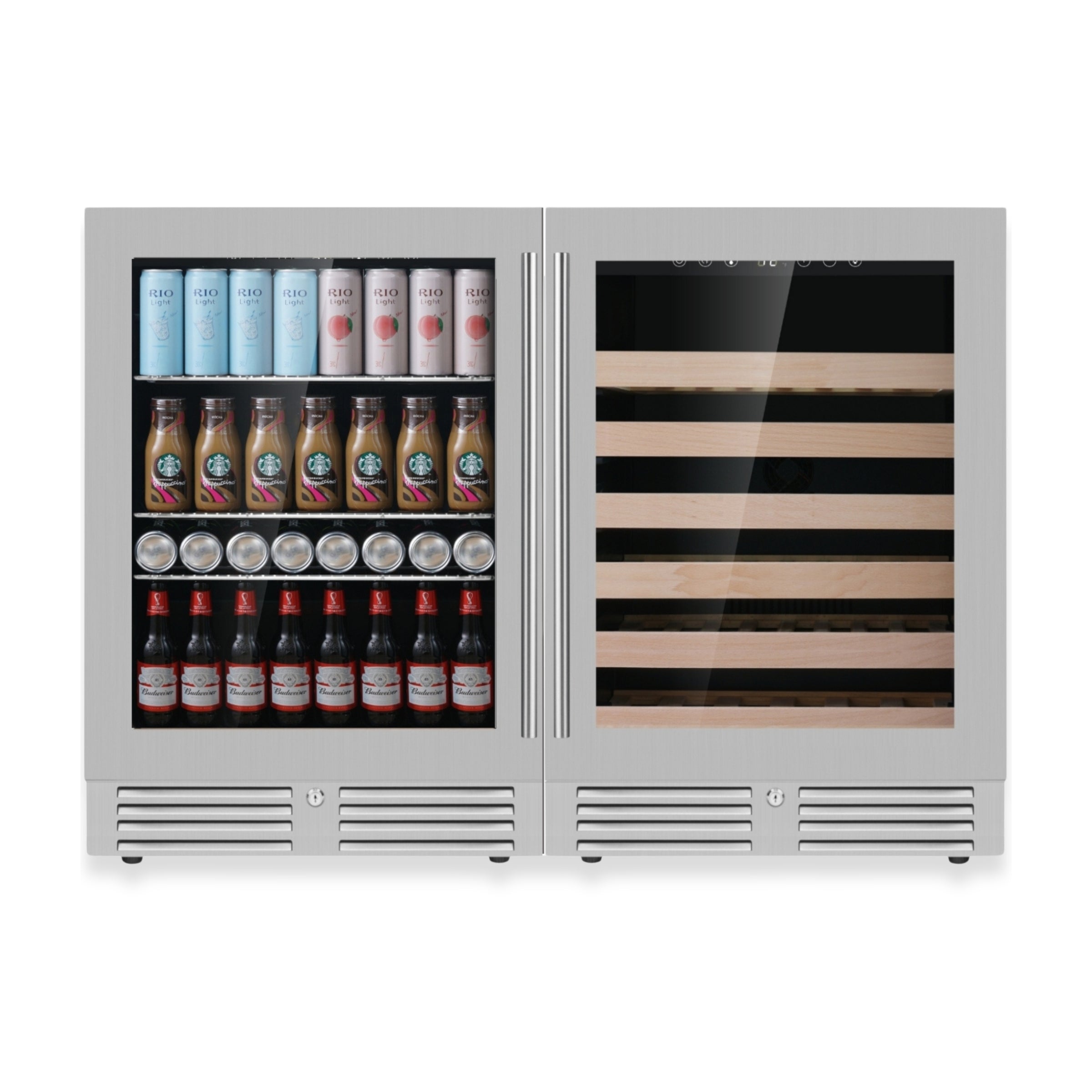

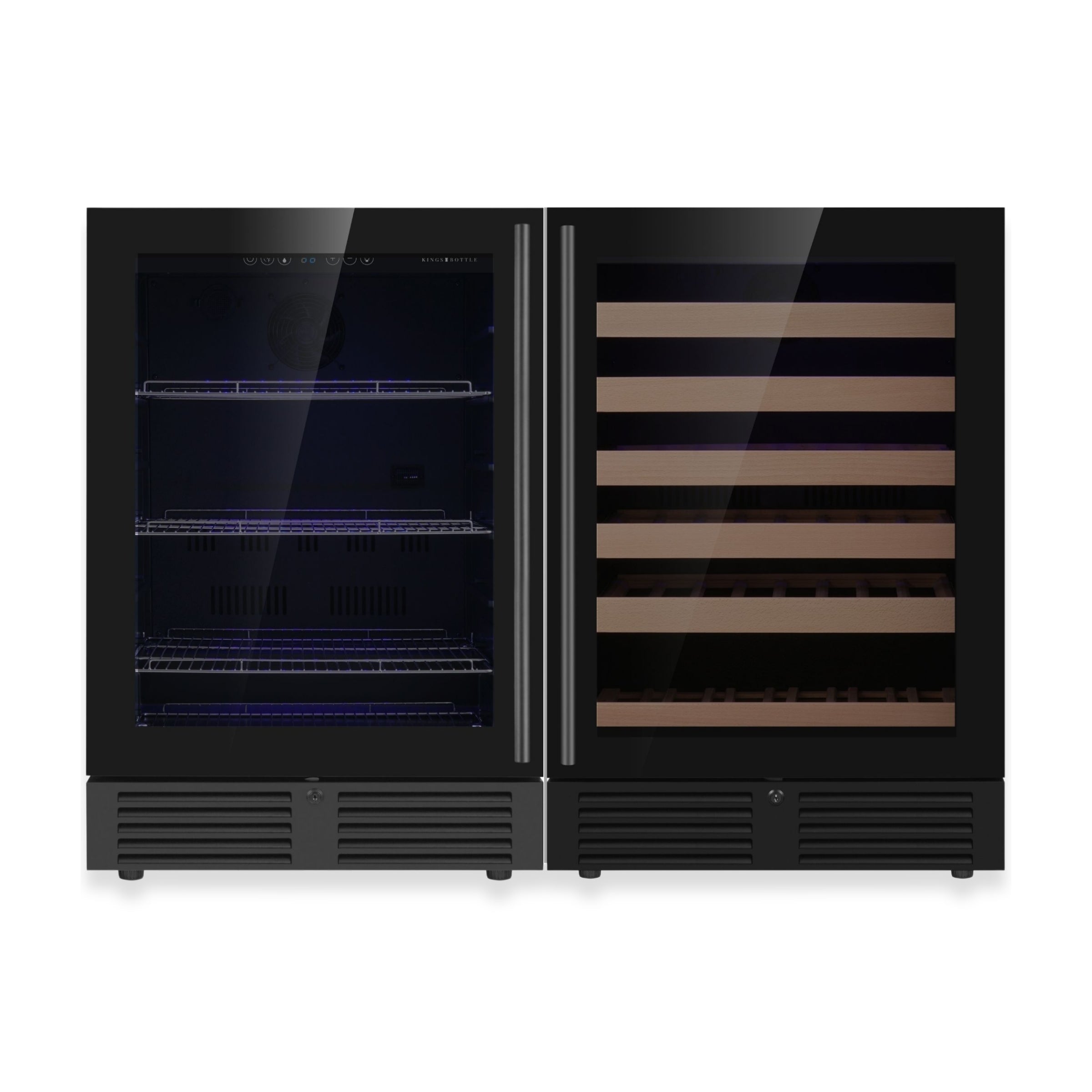

The Ultimate Under-Bench Wine & Beverage Refrigerator Combo is a sophisticated, space-efficient solution for storing both wine and beverages in a seamless under-counter design. The dedicated wine compartment holds up to 46 bottles, while the beverage section accommodates up to 161 cans, giving you a perfectly organized, dual-purpose beverage center.
Powered by the Embraco Inverter Compressor , this combo delivers whisper-quiet performance, exceptional temperature stability, and improved energy efficiency—helping maintain ideal storage conditions while reducing power consumption. The wine zone offers a precision-controlled range ideal for reds and whites, while the beverage zone keeps cans and bottles refreshingly chilled and ready to serve.
Designed for both built-in and freestanding installation, the unit features a sleek stainless steel exterior and a modern, low-profile silhouette that integrates effortlessly into premium kitchens, bars, and entertainment areas. Combining refined aesthetics with high-end functionality, this under-bench combo is a standout addition to any home or luxury beverage center.
Why it stands out
True under-counter dual-zone design
Purpose-built as an under-bench wine and beverage combo with a dedicated wine compartment and a separate beverage section, so you can serve reds, whites, and mixed drinks at their ideal temperatures in one integrated footprint.

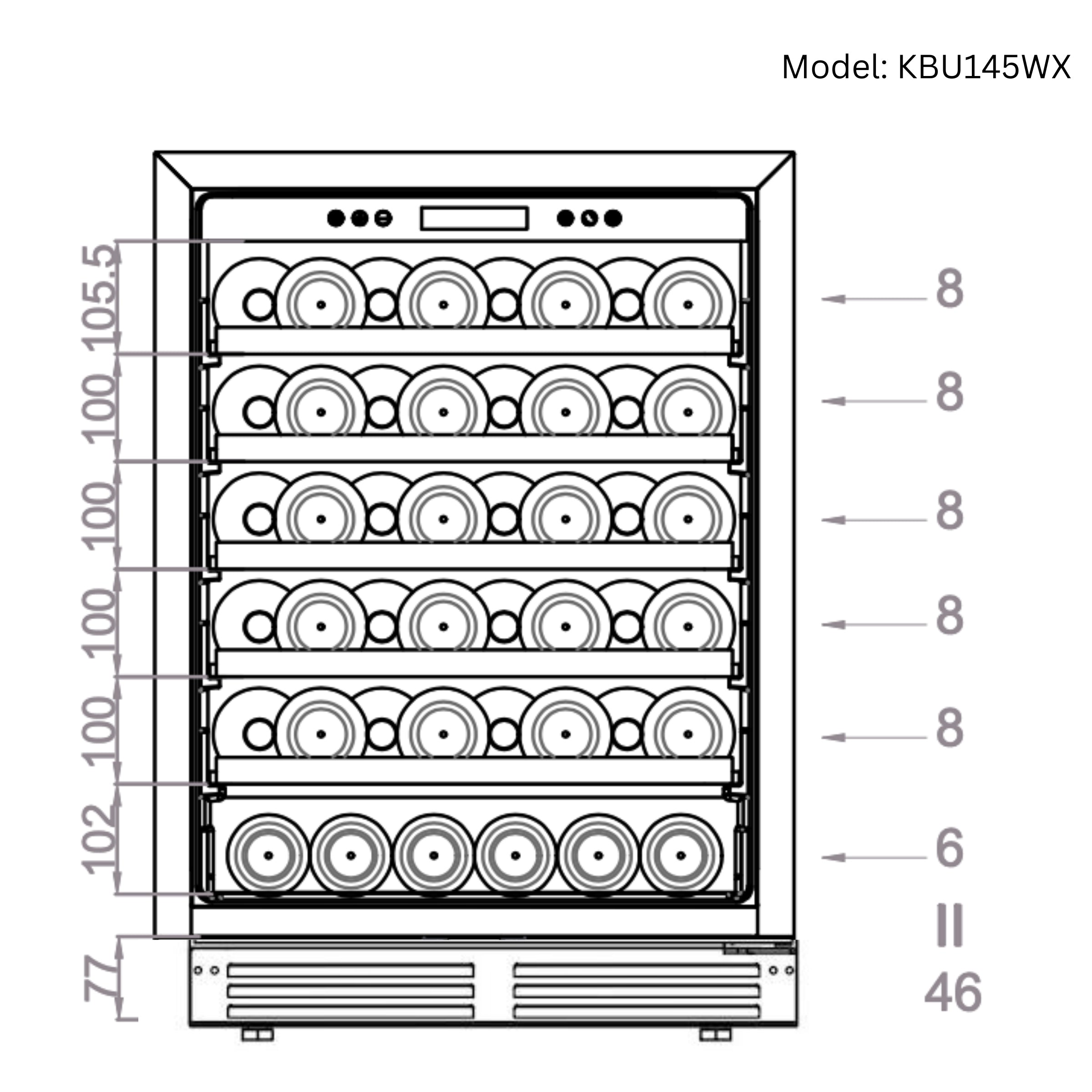

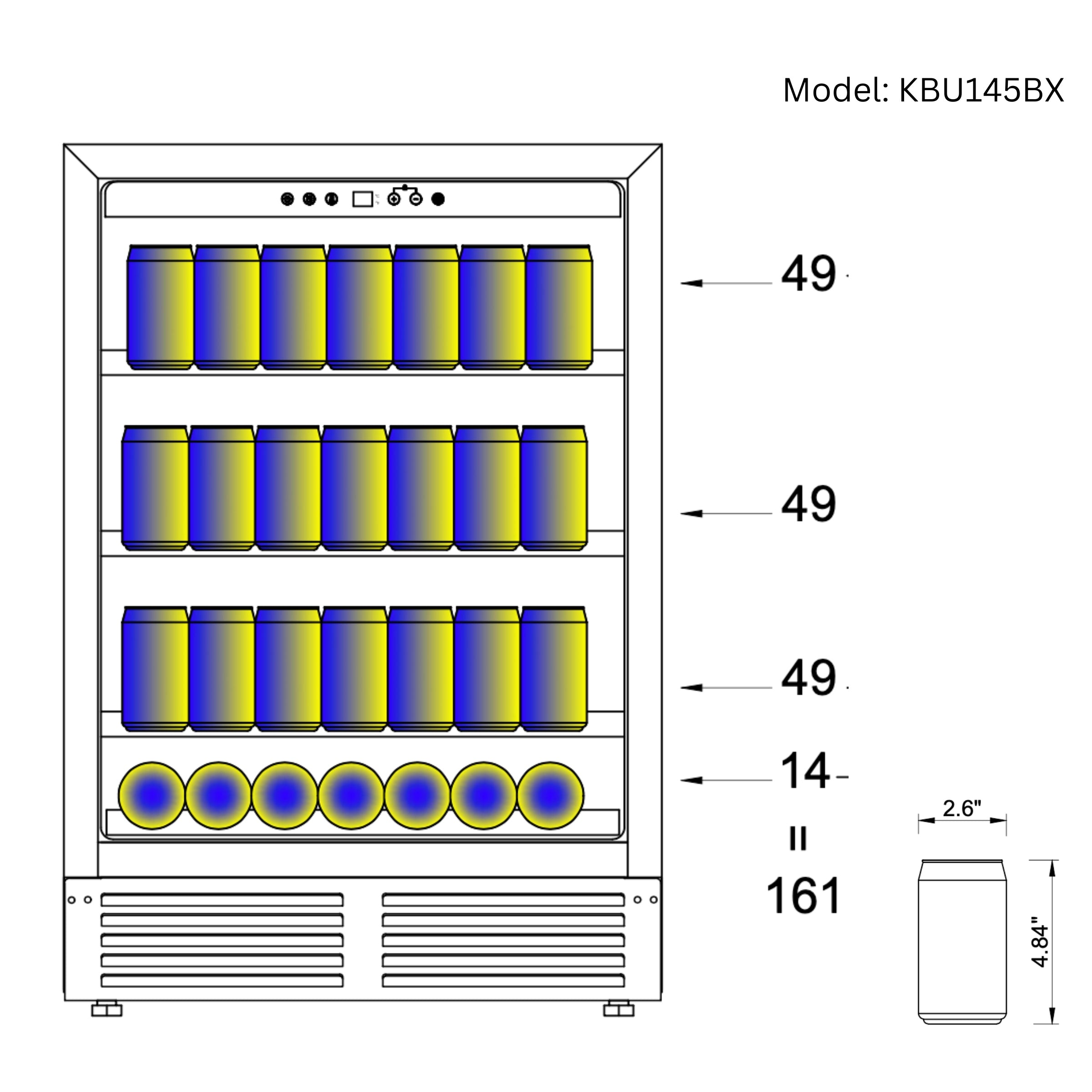

Efficient 46-bottle + 161-can capacity
Stores up to 46 wine bottles plus 161 cans, making it a compact yet high-capacity solution for entertainers, enthusiasts, and homes that want a full beverage program without sacrificing floor space.
Embraco inverter performance
Equipped with Embraco Inverter Compressors for smoother, variable-speed cooling, quieter operation, and up to 40% lower energy consumption compared to traditional fixed-speed systems.
Low-profile built-in integration
The under-counter height and 46.84"-wide footprint are engineered to fit seamlessly into cabinetry runs, islands, and home bars—while also supporting freestanding placement in flexible layouts.
Flexible chromed steel & beech shelving
A mix of 4 chromed steel shelves and 6 beechwood shelves offers versatile storage for bottles, cans, and specialty formats, with full-extension pull-out shelves in the wine zone for easy access and display.
Specifications
Key Specifications
| Volume | 10.24 CF (290 Liters) total, 5.12 CF (145 Liters) each compartment |
|---|---|
| Capacity – Wine | Up to 46 bottles (configuration-dependent) |
| Capacity – Beverages | Up to 161 cans (standard 12 oz / 355 ml) |
| Installation Type | Built-in or freestanding under-counter installation |
| Climate Type | N |
| Temperature Zones | Dual zone (wine compartment + beverage compartment) |
| Adjustable Temperature Range |
Wine side: approximately 41°F to 68°F (5°C to 20°C) Beverage side: 35°F to 68°F (2°C to 20°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 4 chromed steel shelves + 6 beech wooden shelves |
| Dimensions (W × D × H) | 46.84" W × 22.75" D × 32.87" H (includes 0.59" stand height) |
Electrical
| Compressor | Embraco Inverter Compressors |
|---|---|
| Power Supply | 110–115V / 60 Hz |
| Rated Power Input | 200 W total (approximately 100 W per unit) |
| Rated Current | 2.4 A total (approximately 1.2 A per unit) |
| Refrigerant | R600a / 25 g per unit |
| Energy Efficiency Compliance | ETL / DOE |
Technical Features
Embraco inverter compressors
Top-brand Embraco Inverter Compressors deliver smoother, variable-speed cooling with super-quiet operation and up to 40% lower energy consumption compared to conventional fixed-speed systems.
Patented compressor sink
A patented sink design increases air circulation space around the compressor, supporting better cooling performance, reduced vibration, and lower noise—ideal for open-concept living and entertaining spaces.
Low-E glass
Low-E glass doors help reduce energy consumption and condensation on the glass while acting as an invisible insulating barrier, improving temperature stability and overall efficiency.
Note: The Low-E coating also helps reduce heat transfer and filters UV light, protecting wine labels, corks, and flavor over time.
Fan-circulated air cooling
A fan-circulated air-cooling system ensures temperature uniformity throughout both compartments and helps compensate for humidity, protecting wines and beverages from hot spots and inconsistent conditions.
Activated carbon filtration
Integrated activated carbon filters help remove impurities from the internal air, keeping the cabinet fresh and odor-free—especially important for longer-term wine storage in shared beverage centers.

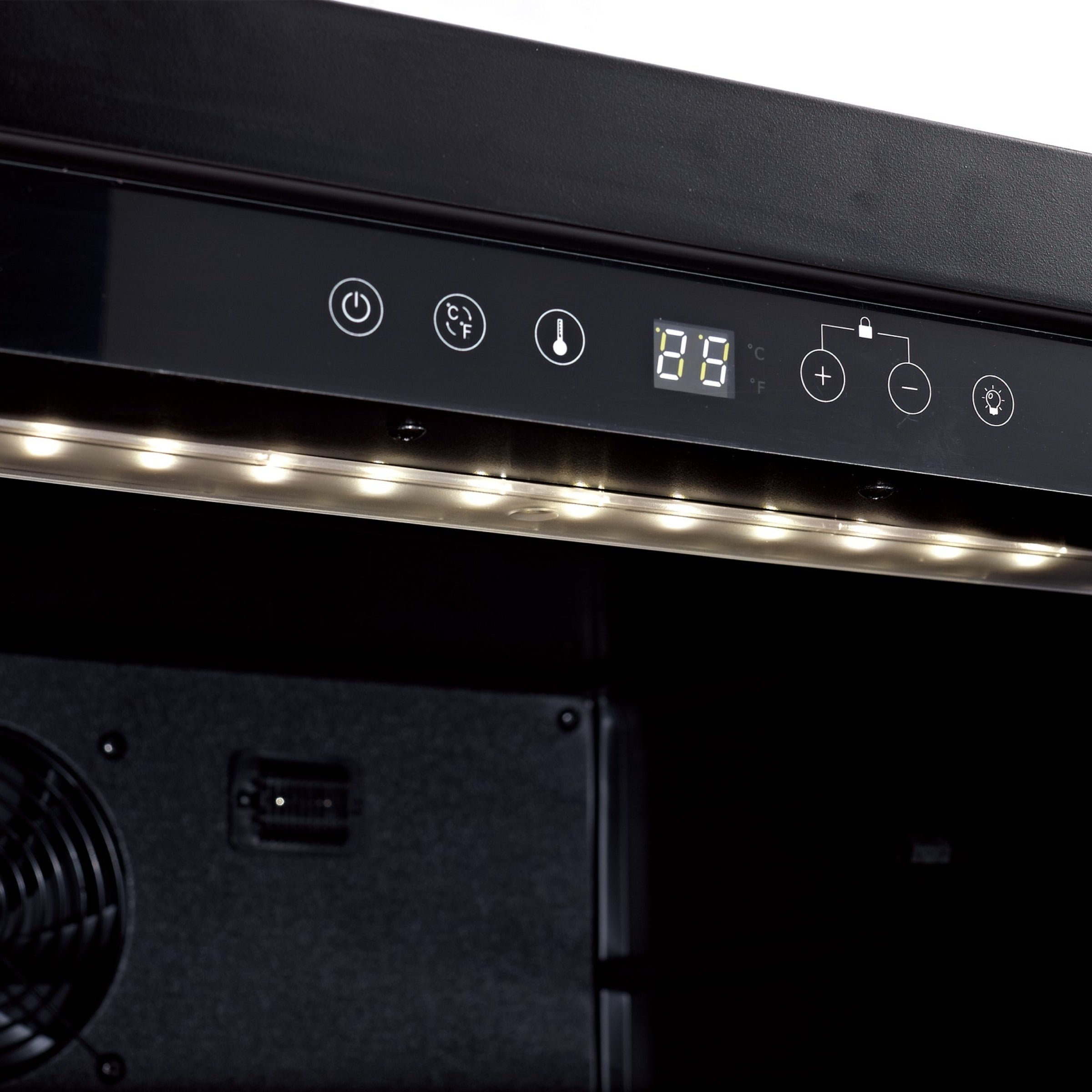

LED digital touchpad controls
Simple, easy-to-operate LED touchpad controls provide clear readings and precise adjustments, so you can dial in each zone for serving or storage temperatures with confidence.

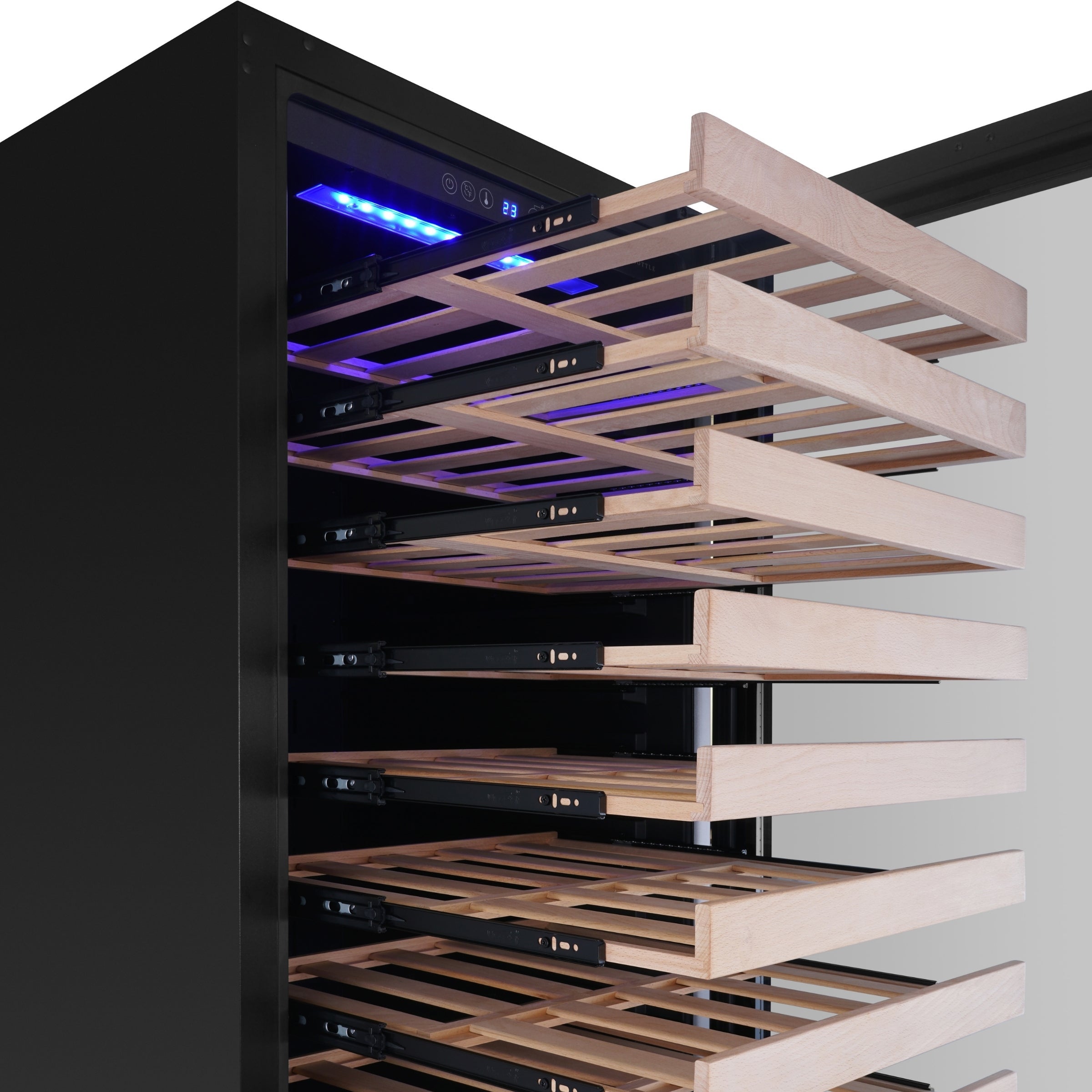

Full-extension beechwood shelves
The wine compartment features full-extension beechwood shelves that are sturdy, bottle-friendly, and cleverly spaced to fit both standard and many larger bottles up to 3.39" (86 mm) in diameter.
Magnetic door switch & alarm
A built-in magnetic switch triggers a 2-minute door-open alarm, helping prevent temperature drift and unnecessary energy use if a door is accidentally left ajar.

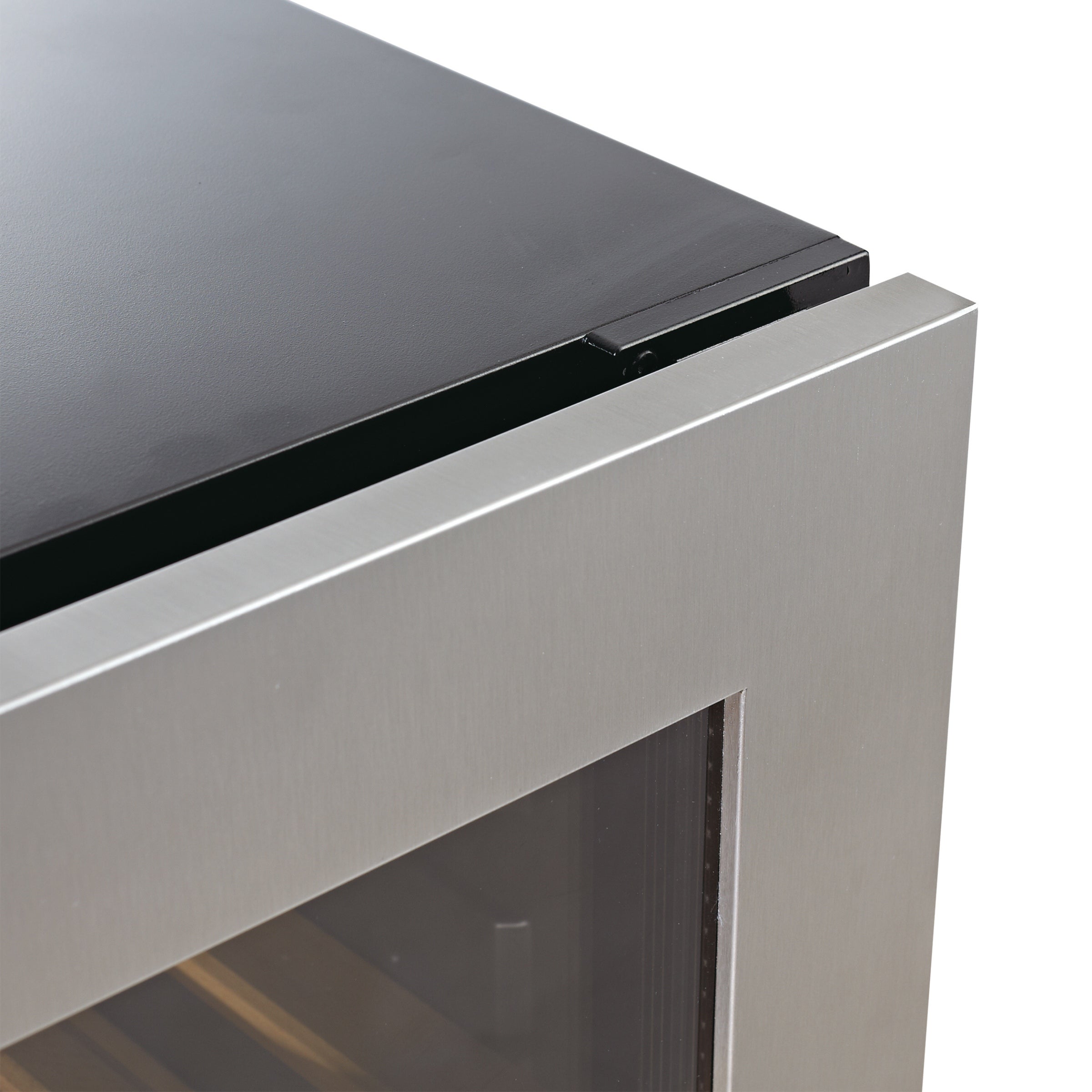

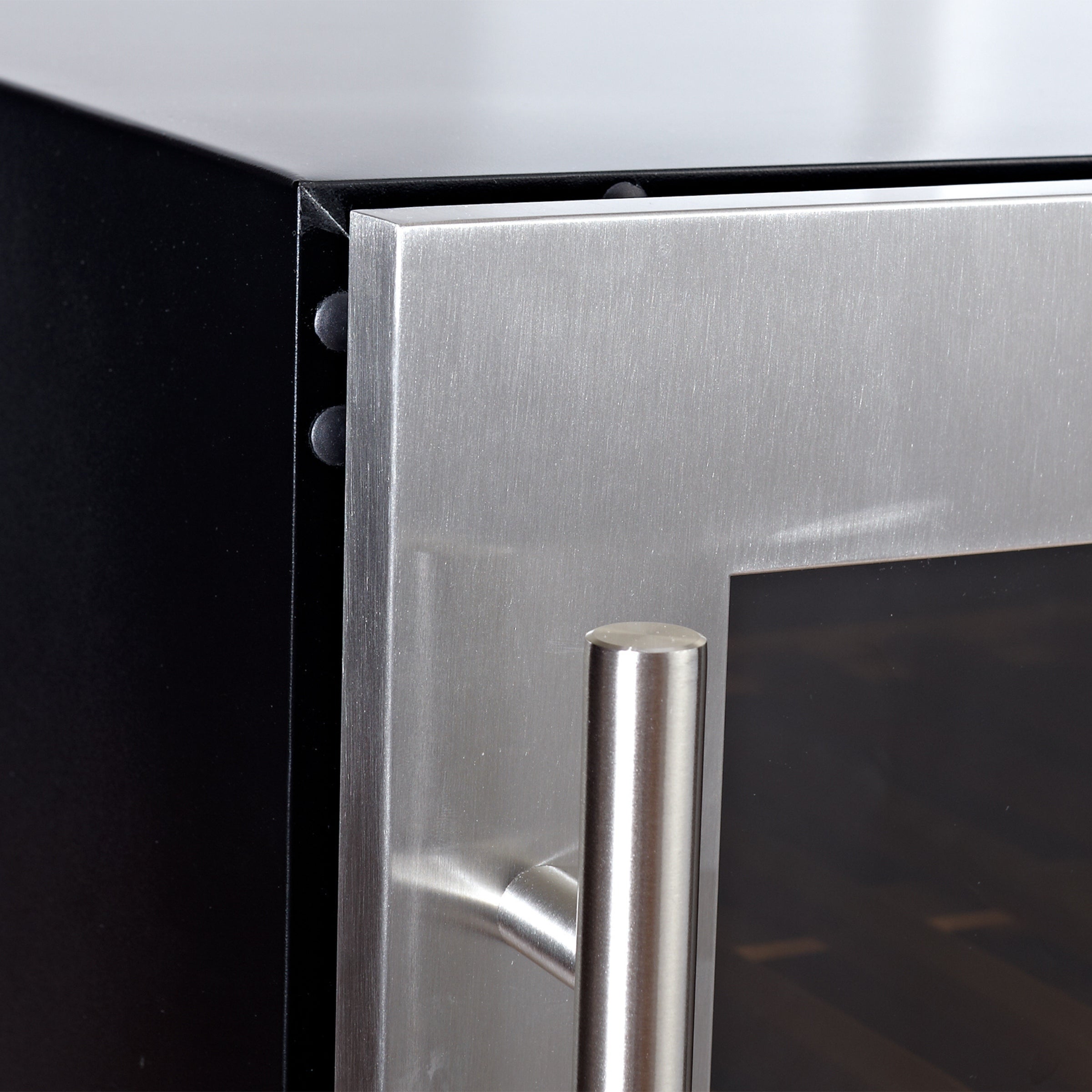

Hidden hinge & seamless frame
A hidden door hinge with laminated steel plate and integrated molding, paired with a seamless stainless steel door frame, creates a clean, fully built-in look that complements high-end cabinetry.
45 mm C-pentane insulation
Thick 45 mm C-pentane foam insulation helps optimize cooling performance, reduce energy consumption, and maintain stable internal temperatures in a wide range of ambient room conditions.
Dimensions & Diagrams

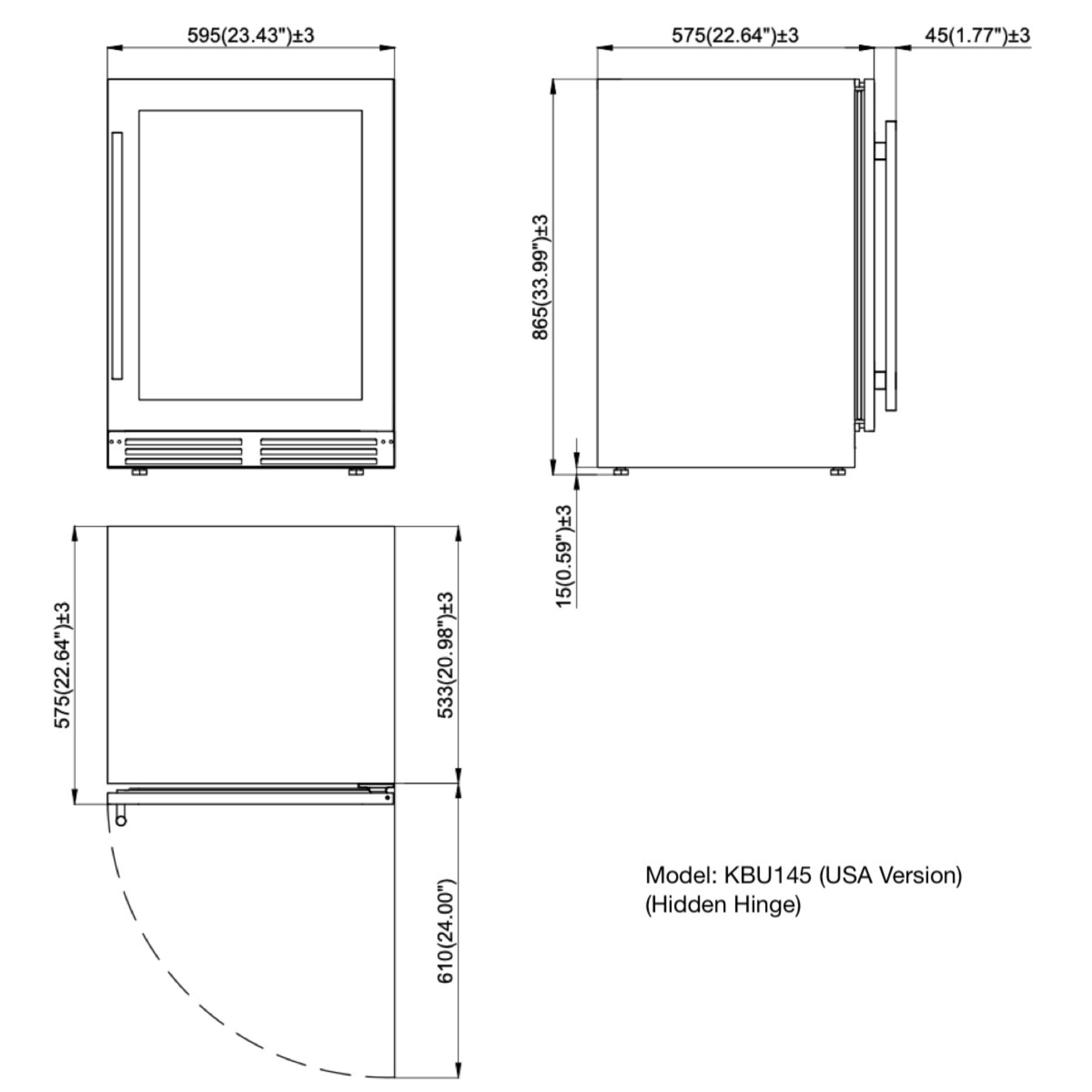

Technical dimensions
Use the technical dimension diagrams to confirm footprint, cutout, and clearances before integrating the Ultimate Under-Bench Wine & Beverage Refrigerator Combo into your cabinetry, island, or bar design.

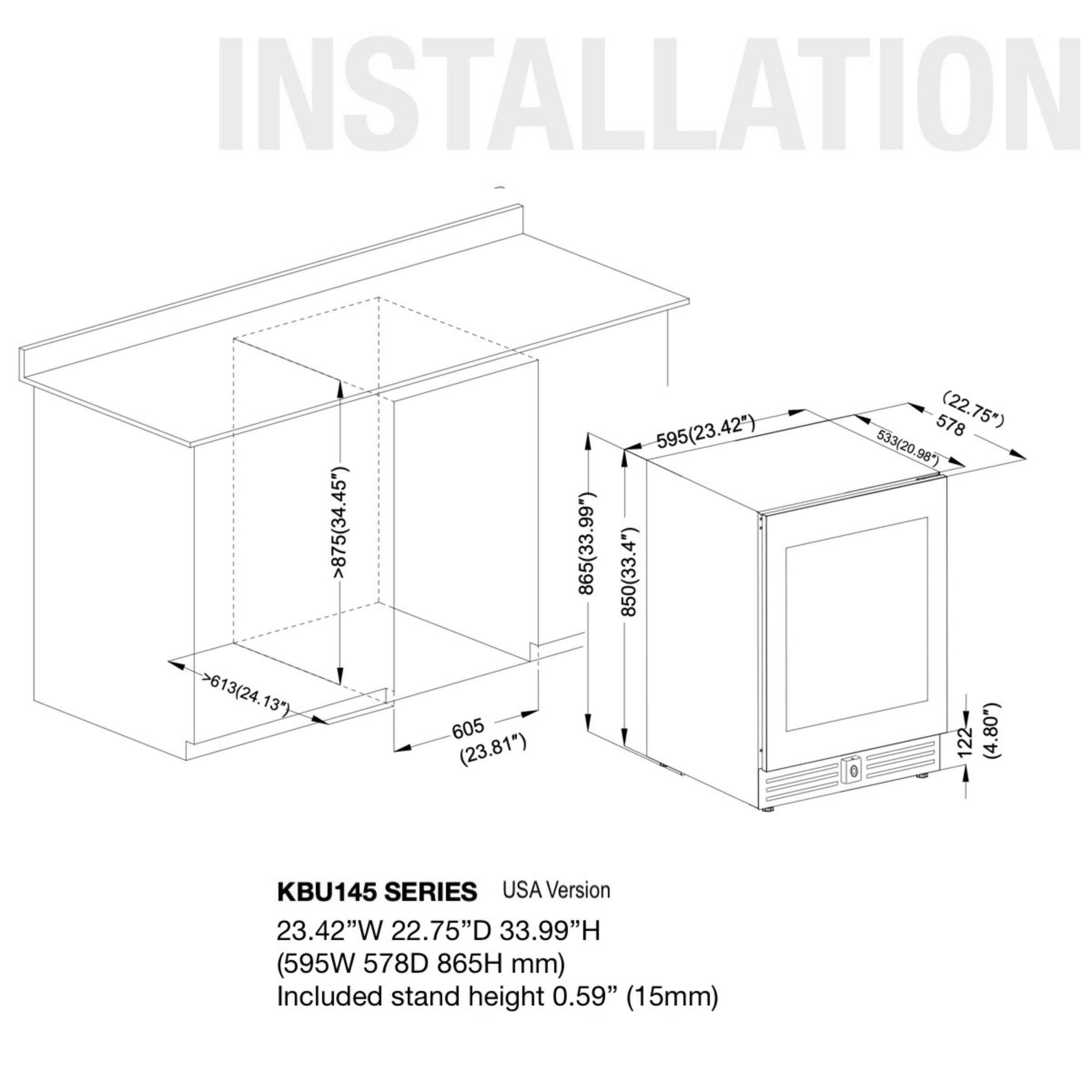

Installation diagrams
Reference the cutout and power-plug diagrams when planning ventilation, cabinet depth, and electrical placement for built-in installation.
Product Manual
View the full manual
Review the complete user manual for detailed installation instructions, operating guidance, and maintenance recommendations for the Ultimate Under-Bench Wine & Beverage Refrigerator Combo.
FAQ
This under-counter dual-zone combo provides approximately 10.24 CF (290 Liters) of total capacity, with storage for up to 46 wine bottles plus 161 cans, depending on how you configure the shelves and bottle orientations.
Yes. The unit is configured as a dual-zone system with independent controls for the wine compartment and the beverage compartment. This allows you to keep reds and whites at ideal serving or storage temperatures while chilling beer, seltzers, and mixed drinks at a cooler setting.
Absolutely. The combo is designed for built-in under-counter use as well as freestanding placement. For best performance and longevity, follow the cutout dimensions, ventilation, and electrical guidelines found in the installation diagrams and product manual.
The Embraco Inverter Compressors are engineered for whisper-quiet, low-vibration operation, making this model well-suited for open-plan kitchens, islands, and entertainment spaces where noise control is important.
Yes. The combination of chromed steel shelves and beechwood shelves is designed for flexibility. The beechwood wine shelves are full-extension and can accommodate many bottles up to 3.39" (86 mm) in diameter, while the chromed steel shelves can be repositioned for cans, tall bottles, and mixed storage layouts.
The Low-E glass helps reduce heat transfer and condensation on the glass while filtering UV light. This supports more efficient cooling, helps protect wine quality and labels, and keeps the viewing window clearer in everyday use.
