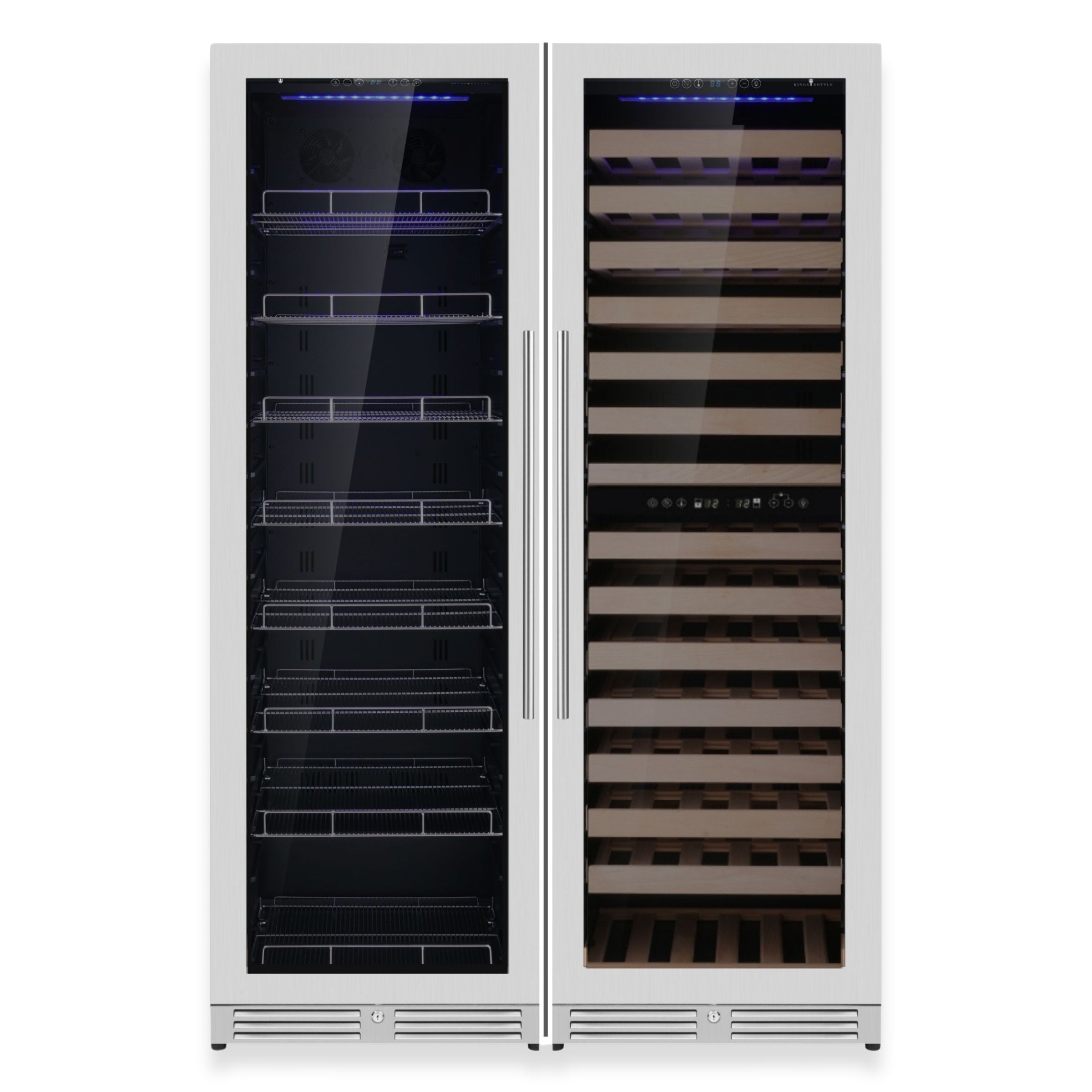

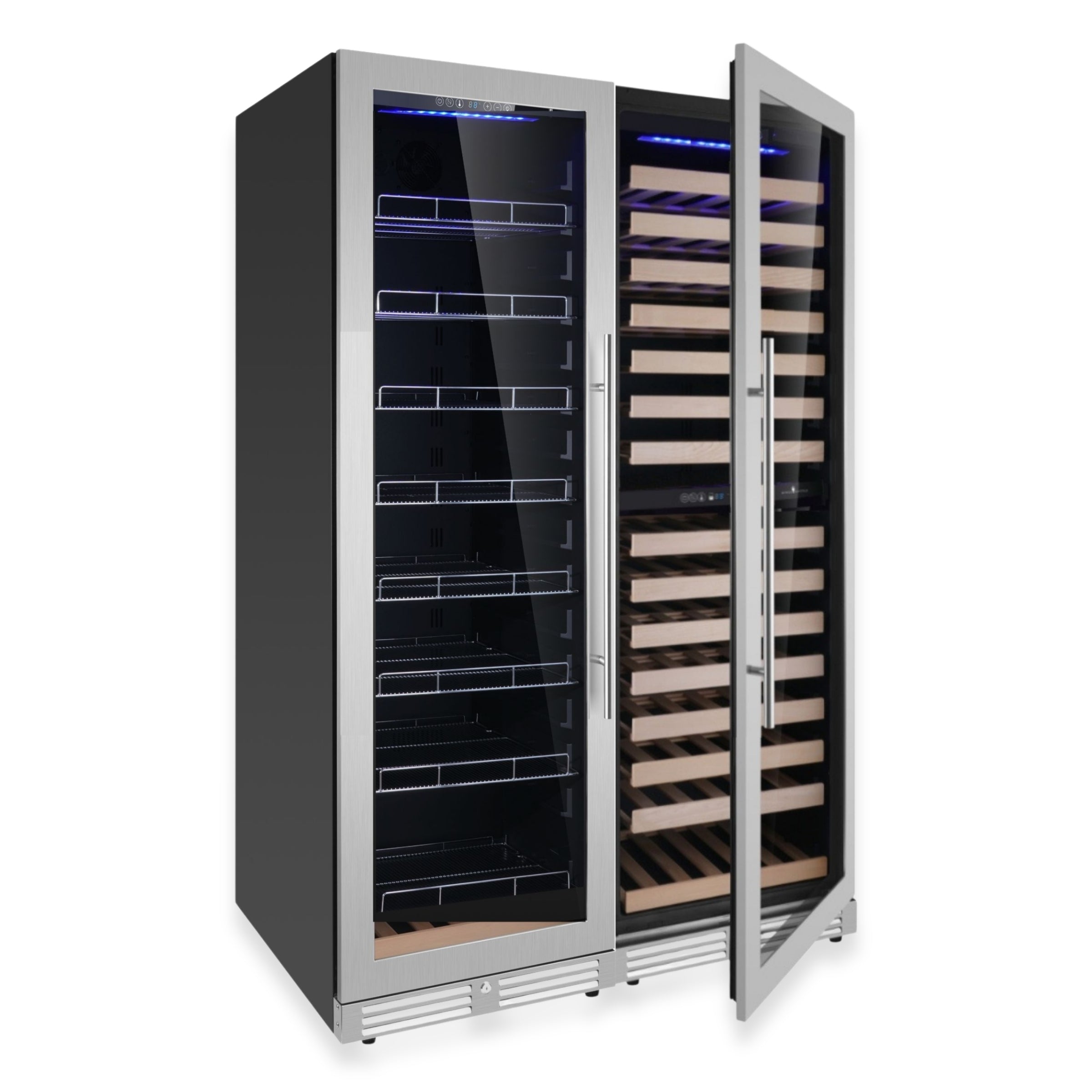

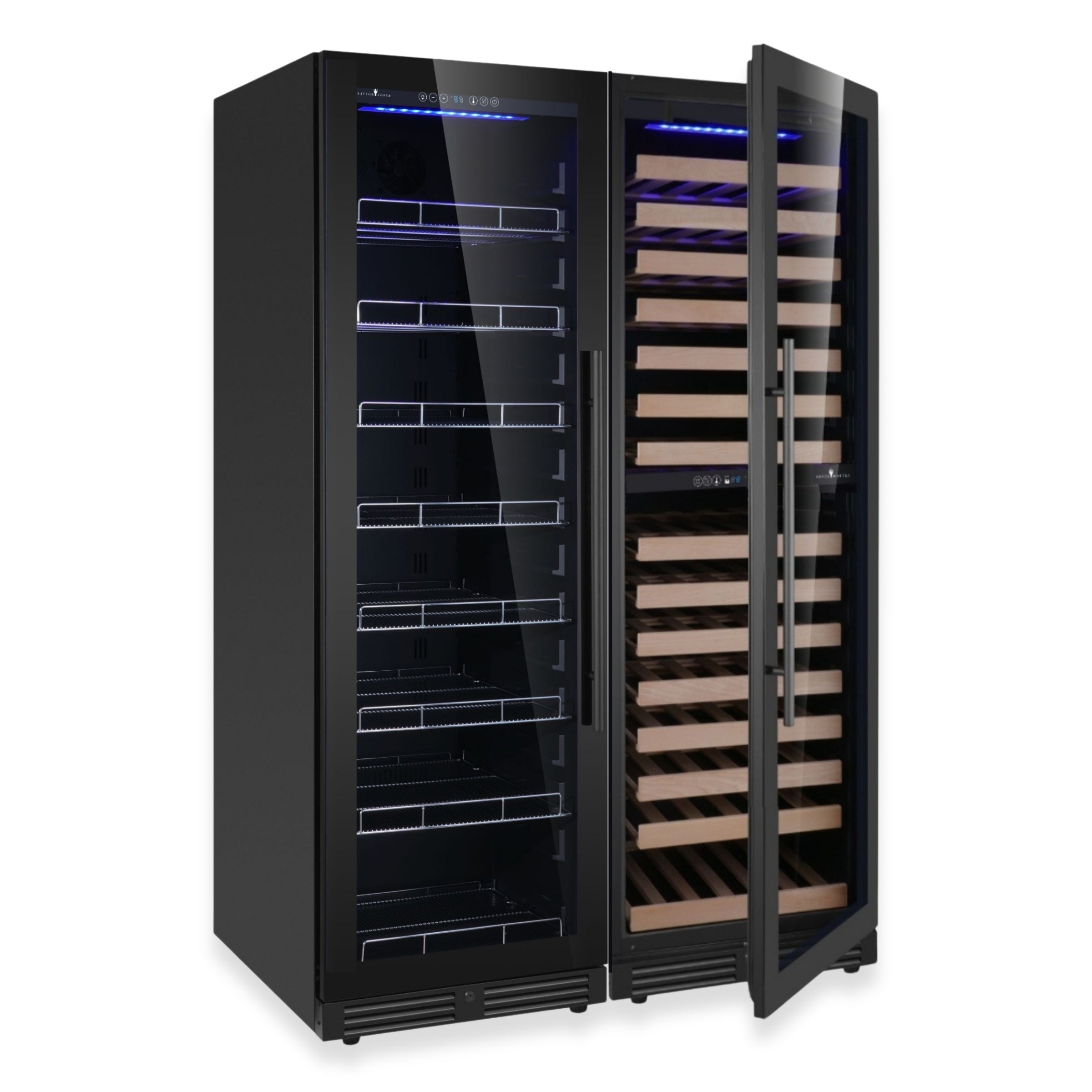

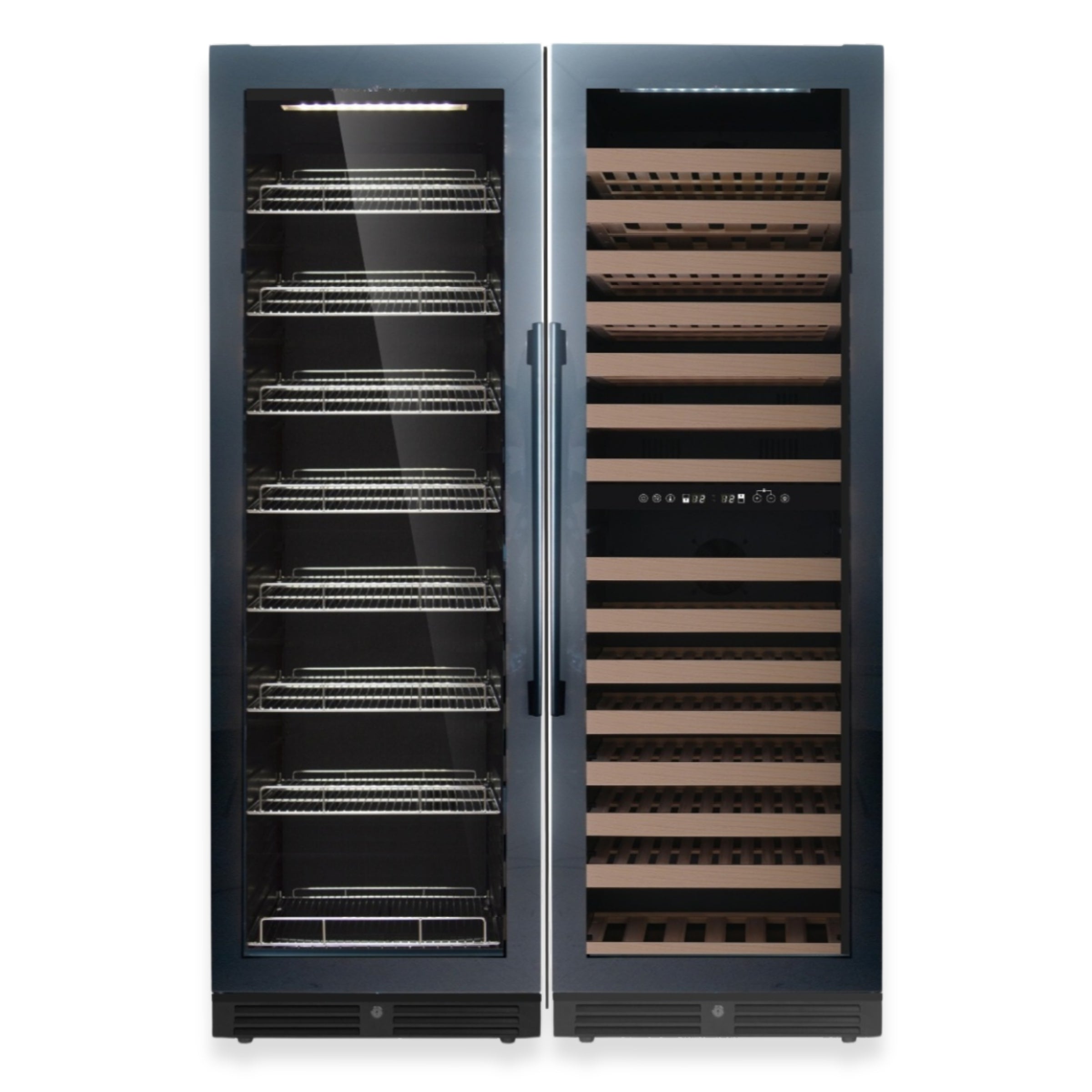

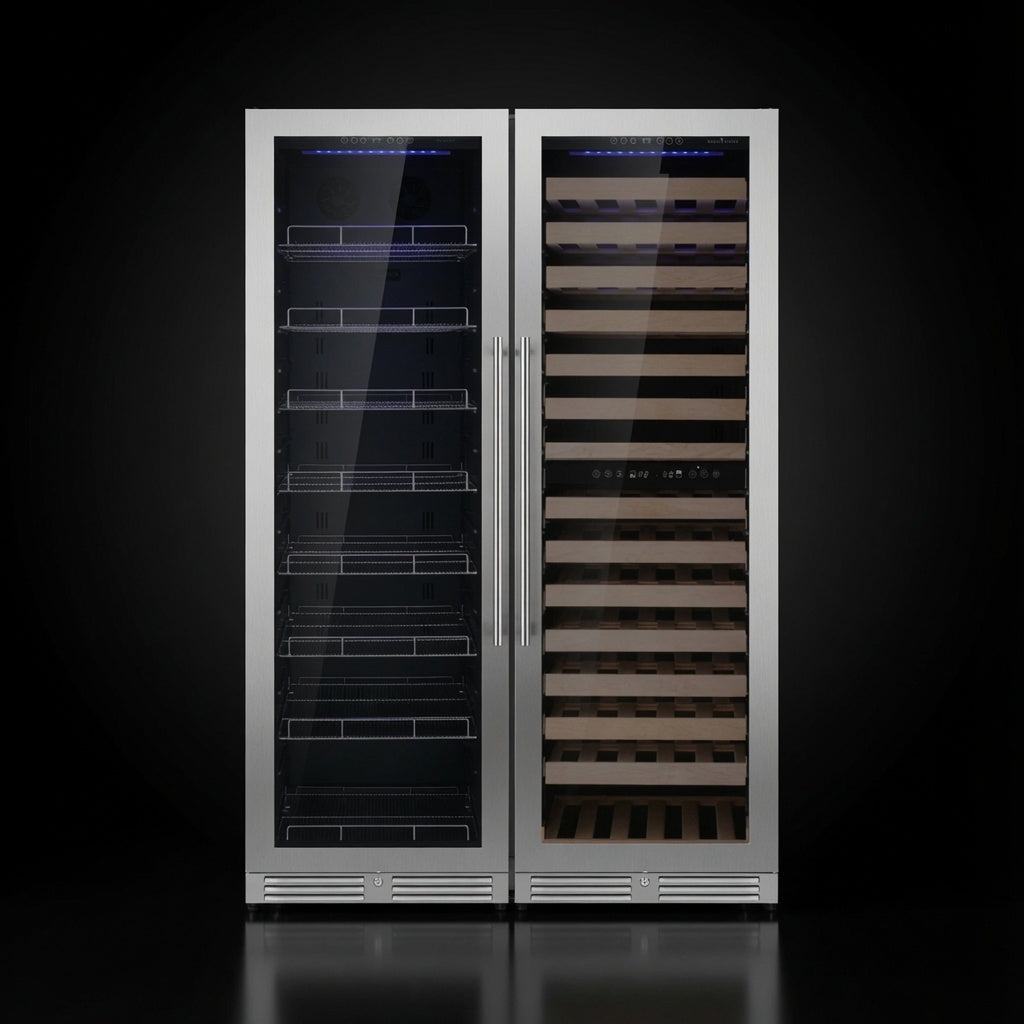

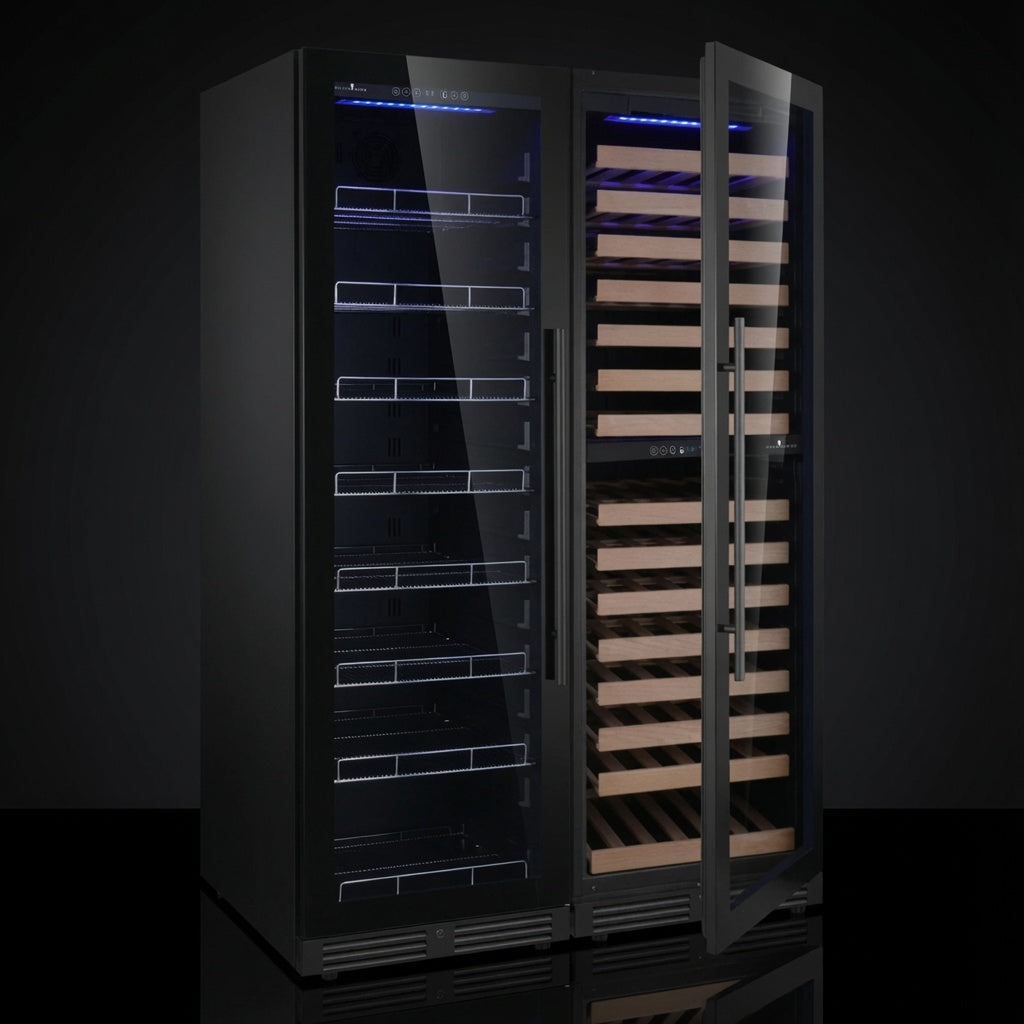

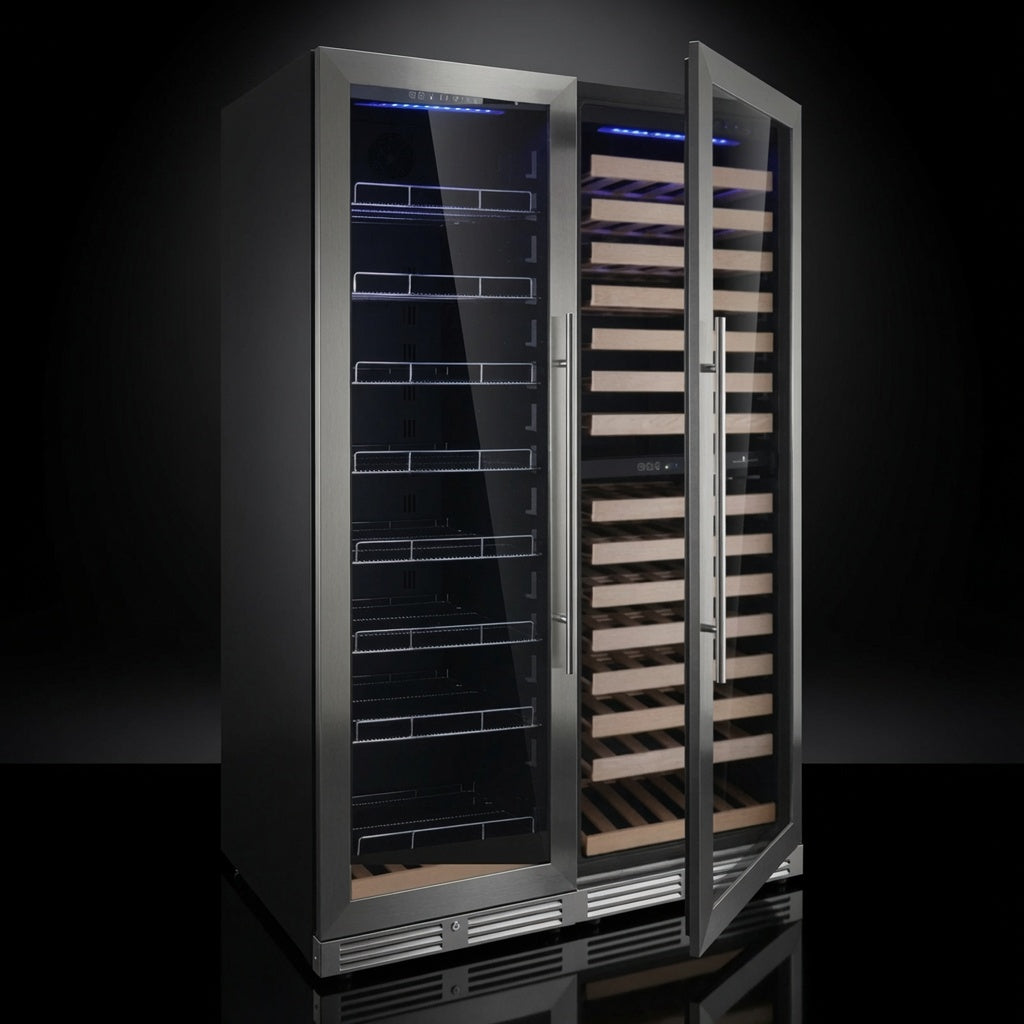

The Upright Wine & Beverage Cooler Combo with Triple Temperature Zones offers a complete, high-capacity solution for storing wine, craft beverages, and everyday drinks in one seamless unit. Dual wine zones allow you to dial in separate serving temperatures for reds and whites, while the independent beverage zone keeps cans, bottles, and specialty drinks perfectly chilled.
Powered by the premium Embraco Inverter Compressor , this combo delivers ultra-quiet operation, exceptional temperature stability, and up to 40% improved energy efficiency compared to traditional cooling systems. The Low-E glass doors enhance insulation and help block UV light to preserve the flavor and integrity of your collection.
With 159 bottles of wine capacity plus 630 cans of beverage storage, adjustable shelving, and a sleek stainless steel exterior, this unit is built for serious entertainers and enthusiasts. It’s designed for both freestanding and built-in installation, making it a refined, space-saving focal point in kitchens, bars, and entertainment spaces.
Why it stands out
Triple-zone flexibility
Delivers three independent temperature zones: one beverage zone and two wine zones (upper and lower), so you can serve reds, whites, and ready-to-drink beverages at their ideal temperatures in a single integrated system.
Huge combined capacity
Offers 30 cu ft (850 L) of total volume, with storage for up to 159 wine bottles and 630 cans—perfect for dedicated collectors, entertainers, and small commercial spaces.
Low-E glass & inverter cooling
Low-E glass doors help reduce heat transfer, UV exposure, and condensation, while twin Embraco inverter compressors provide stable temperatures, quieter operation, and improved energy efficiency.

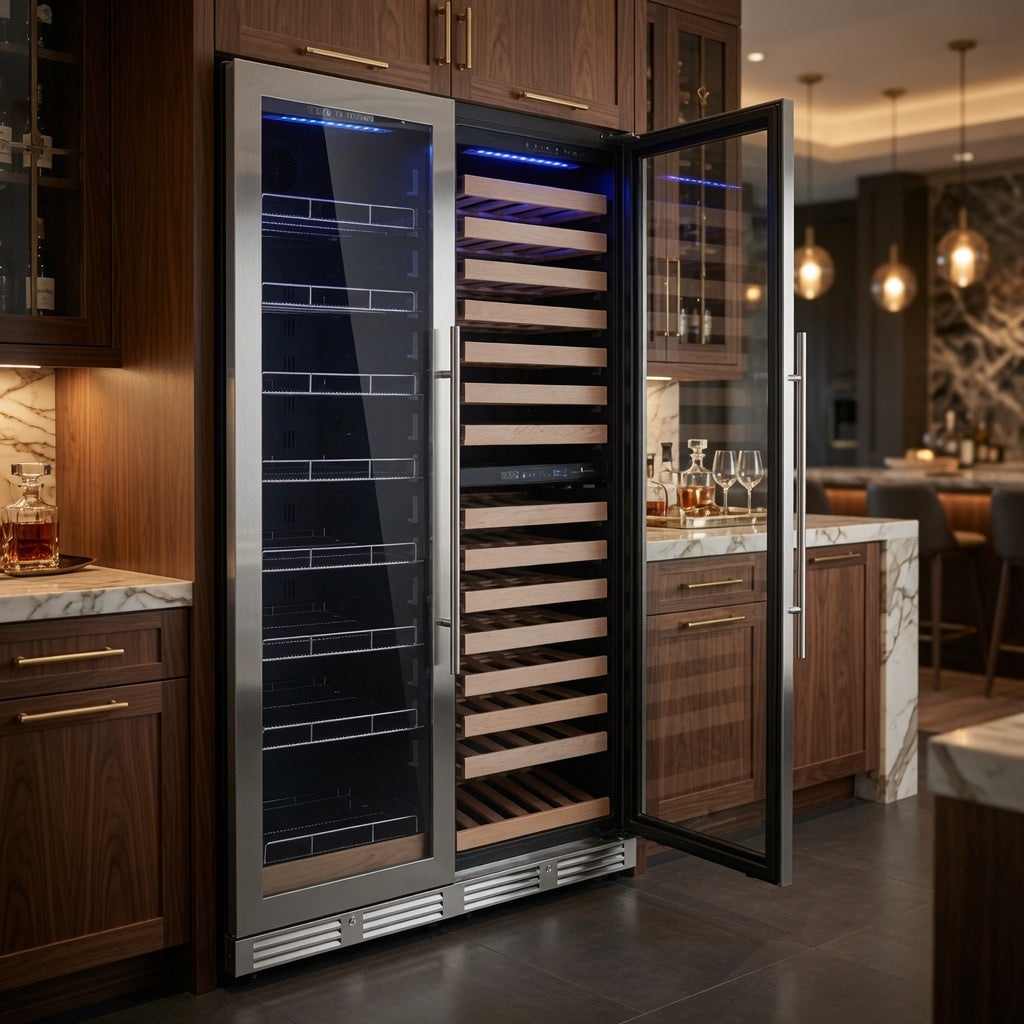

Built-in or freestanding install
Designed for built-in cabinetry or freestanding placement, with modern stainless steel styling that pairs beautifully with premium appliances and bar fixtures.
Specifications
Key Specifications
| Volume | 30 CF (850 Liters) total, 15 CF (425 Liters) each |
|---|---|
| Capacity (bottles) | 159 bottles |

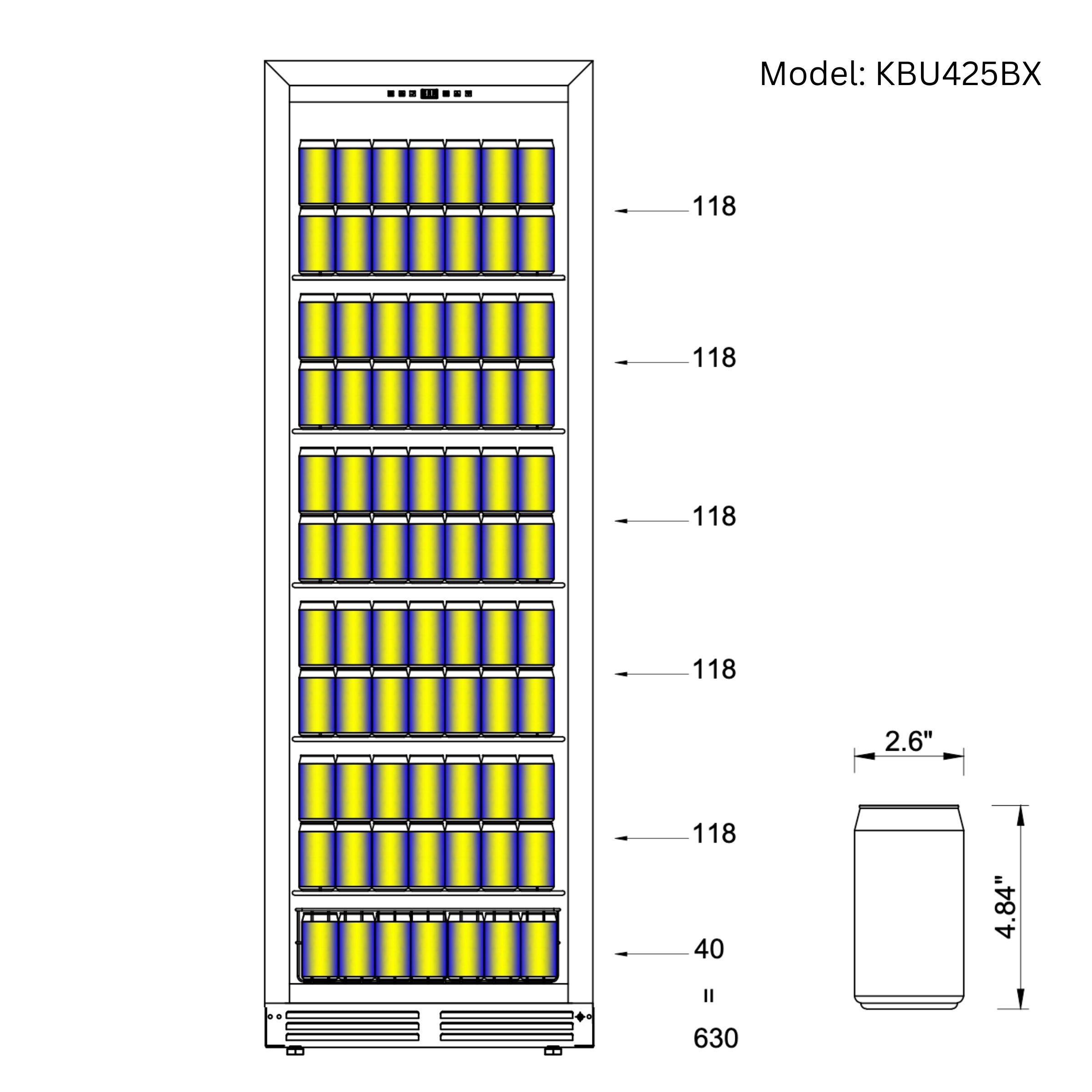

| Capacity (cans) | 630 cans |
| Installation Type | Built-in or freestanding |
| Climate Type | N |
| Temperature Zones | Triple zone (2 × wine, 1 × beverage) |
| Adjustable Temperature Range |
Beer / Beverage zone: 35°F to 68°F (2°C to 20°C) Wine zone (upper): 35°F to 54°F (2°C to 12°C) Wine zone (lower): 54°F to 68°F (12°C to 20°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 8 chromed steel shelves + 15 beech wooden shelves |
| Dimensions | 46.84” W x 27.36” D x 70.86” H (includes 0.59” stand height) |
| Compressors | Dual Embraco inverter compressors |
| Power Supply | 110–115V / 60 Hz |
| Rated Power Input | 330 W total (165 W per unit) |
| Rated Current | 3.4 A total (1.7 A per unit) |
| Refrigerant | R600A / 52 g per unit |
Technical Features
Embraco inverter compressors
Twin Embraco inverter compressors deliver super-quiet performance, smooth ramp-up, and up to 40% lower energy consumption compared to traditional fixed-speed units.
Patented compressor sink
A patented sink design increases air circulation space around the compressor, improving cooling performance while reducing vibration and operating noise.
Low-E glass doors
Low-E glass helps reduce heat transfer and condensation on the doors, acting as an invisible thermal barrier while keeping your collection visible and protected from UV light.
Note: The Low-E coating improves energy efficiency and cooling performance, especially in brighter rooms and warmer climates.
Fan-circulated air cooling
A fan-circulated air-cooling system helps maintain even temperatures throughout each compartment, compensating for humidity and protecting both wine and beverages from hotspots.
Activated carbon filtration
An activated carbon filter helps remove impurities from the internal air, keeping the cabinet fresh and odor-free—especially important for long-term wine storage.

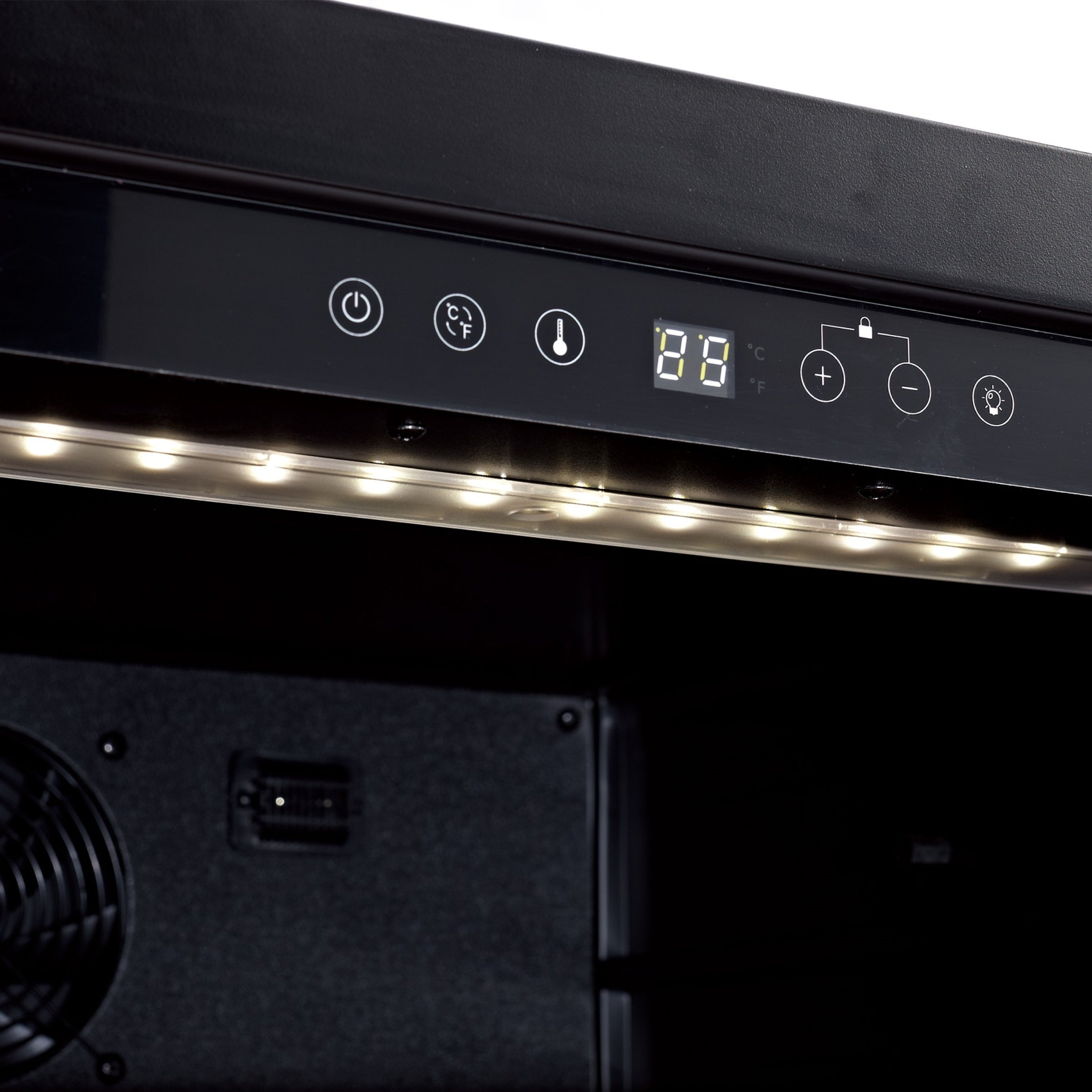

LED digital touchpad controls
Easy-to-use LED touchpad controls provide clear, accurate temperature readings and simple adjustments for each zone, so you can dial in serving or cellaring conditions quickly.

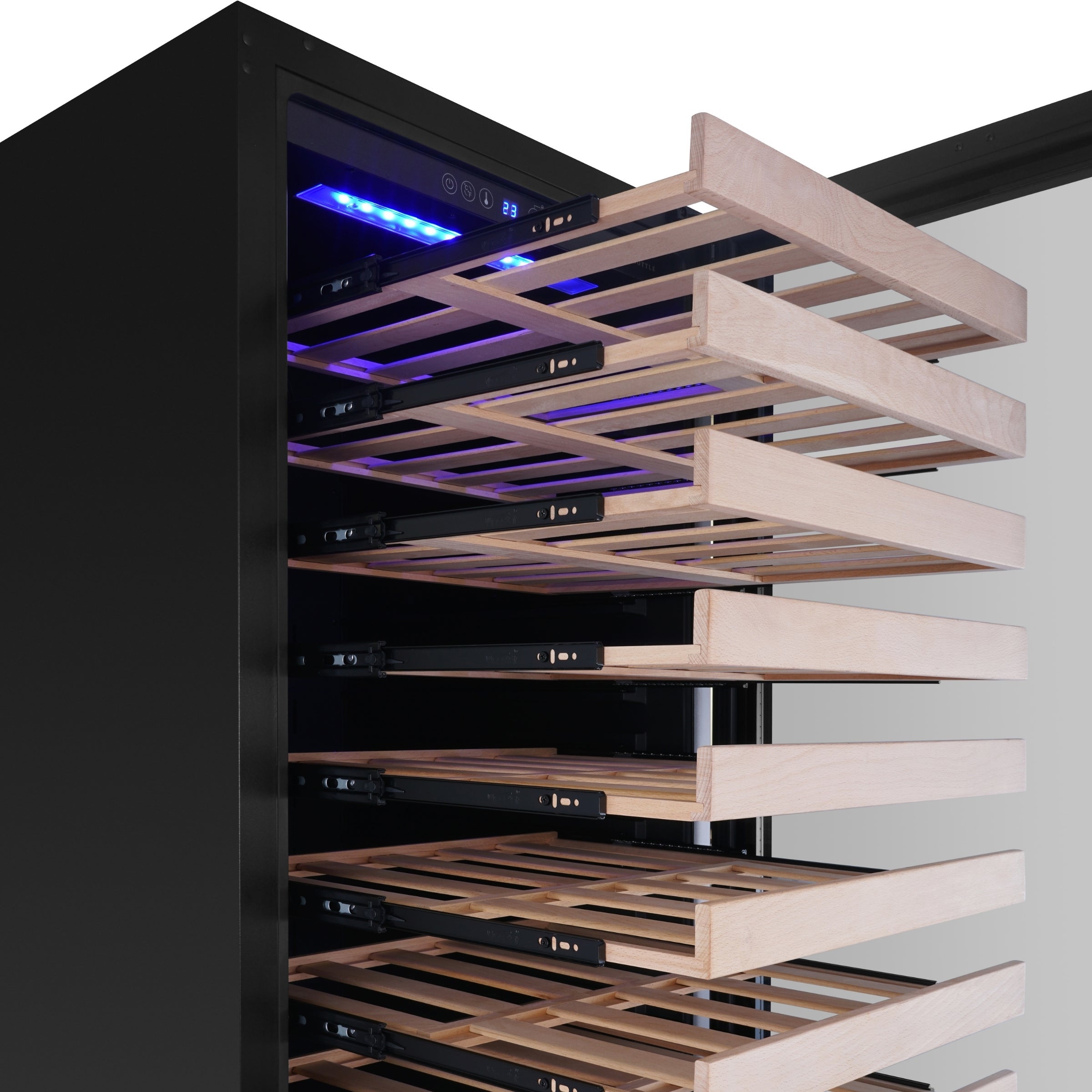

Full-extension beech wood shelves
Optimized, full-extension beech wood shelves are wine-friendly and cleverly spaced to accommodate both standard and larger bottles up to 3.39" (86 mm) in diameter.
Magnetic door switch & alarm
A built-in magnetic door switch triggers a 2-minute door-open alarm, helping you avoid temperature drift and unnecessary energy waste if a door is left ajar.

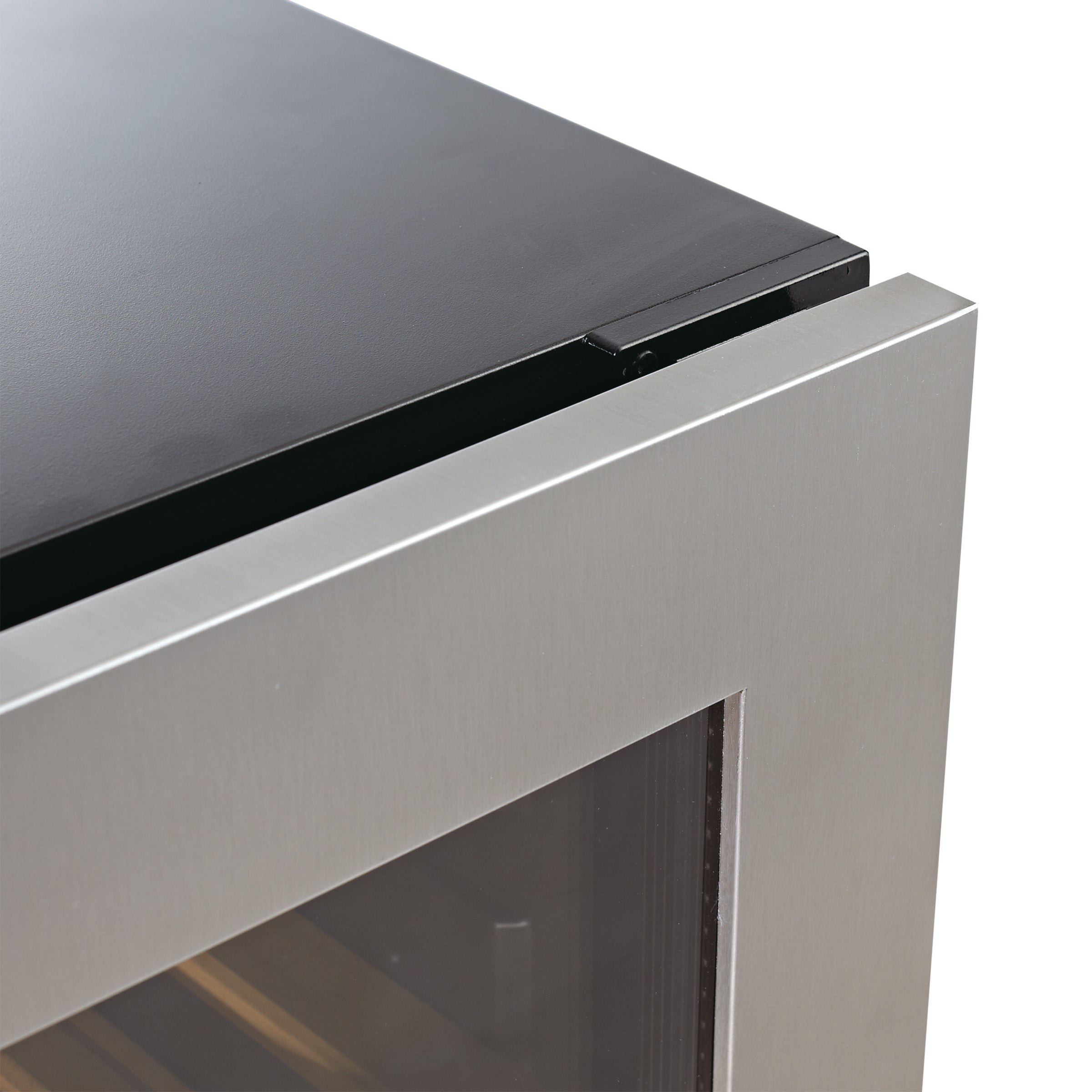

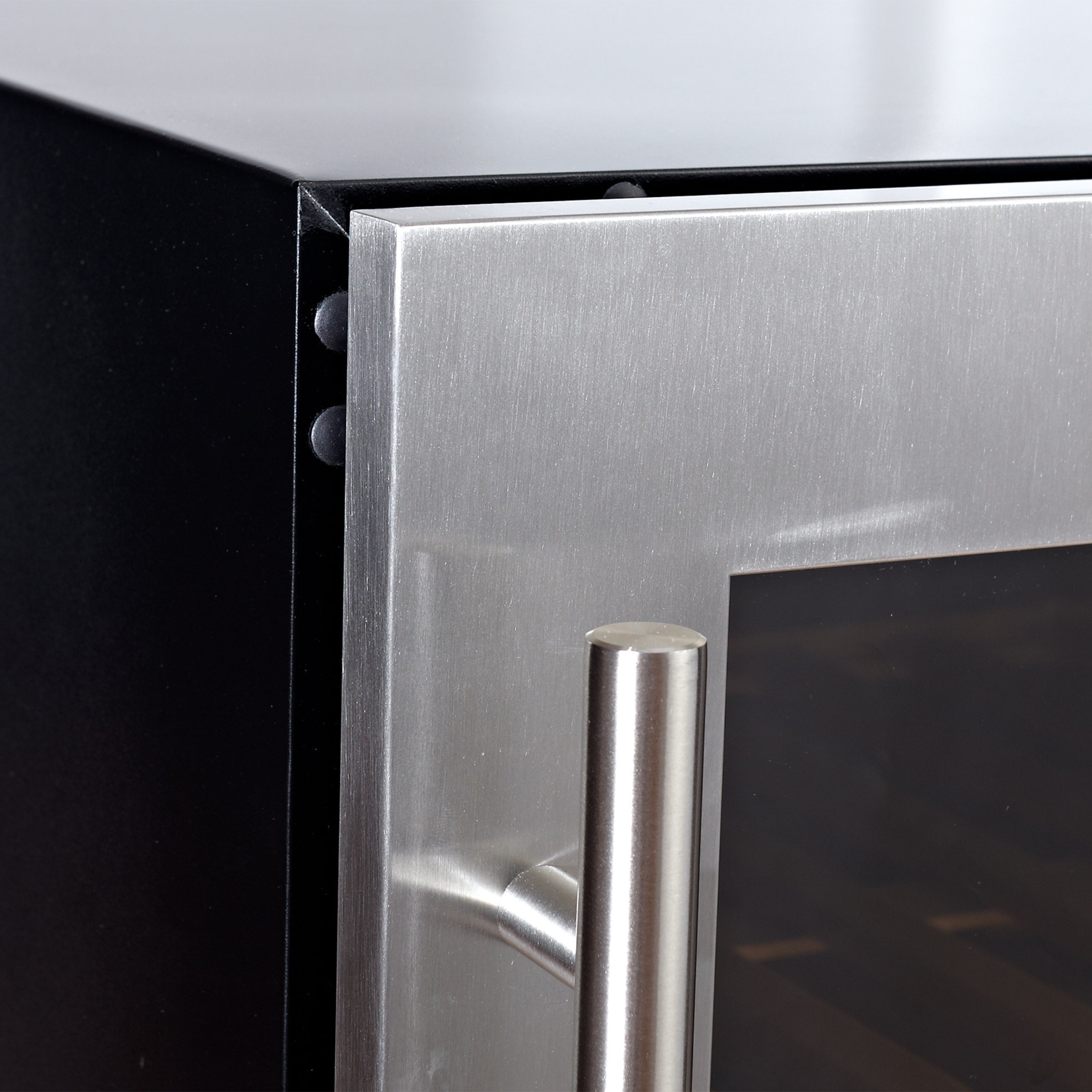

Hidden hinge & seamless frame
A hidden door hinge with integrated molding and a seamless stainless steel door frame create a clean, built-in look that blends smoothly with high-end cabinetry.
45 mm C-Pentane insulation
Thick 45 mm C-pentane foam insulation helps optimize cooling performance and reduce energy consumption, supporting stable long-term storage in a wide range of room temperatures.
Dimensions & Diagrams

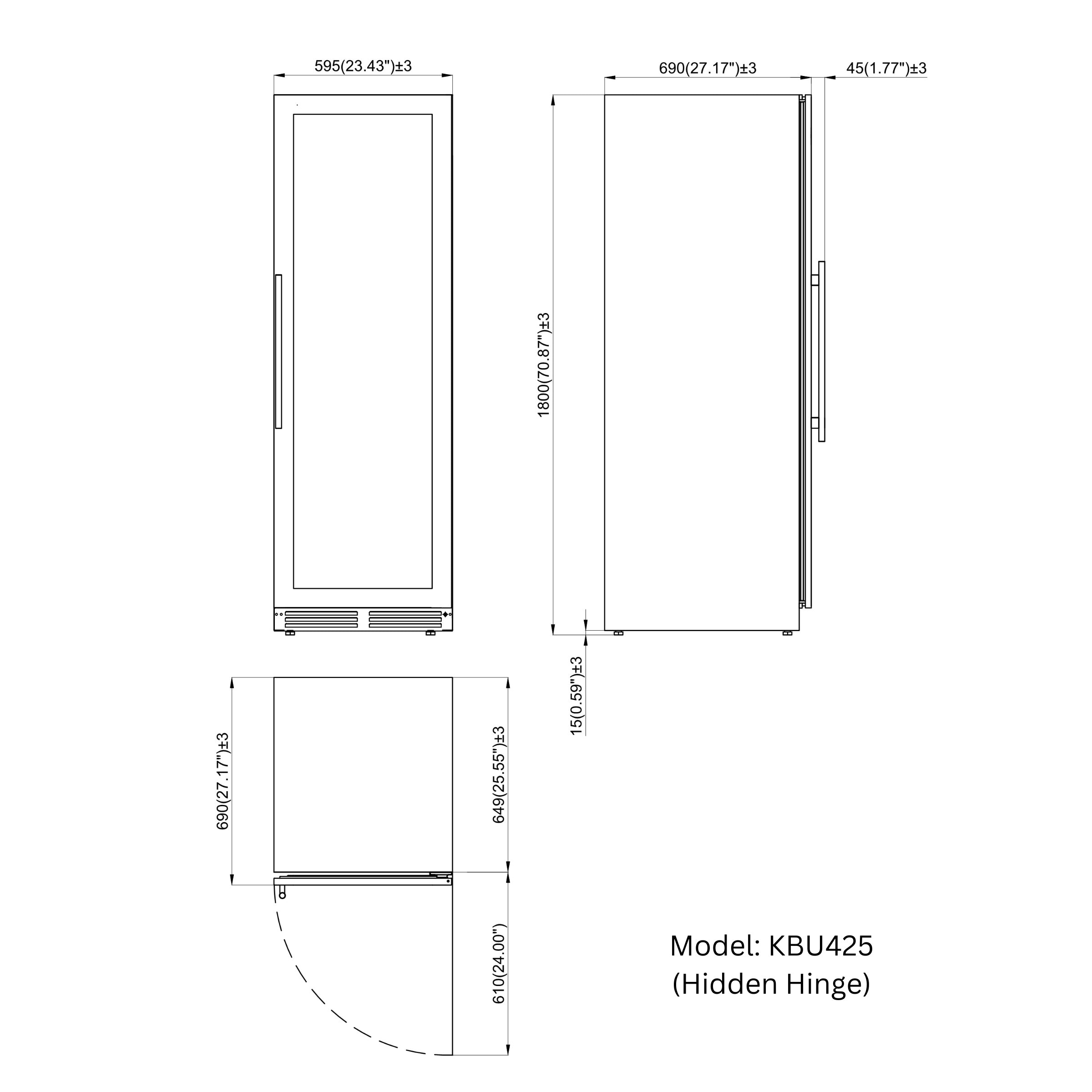

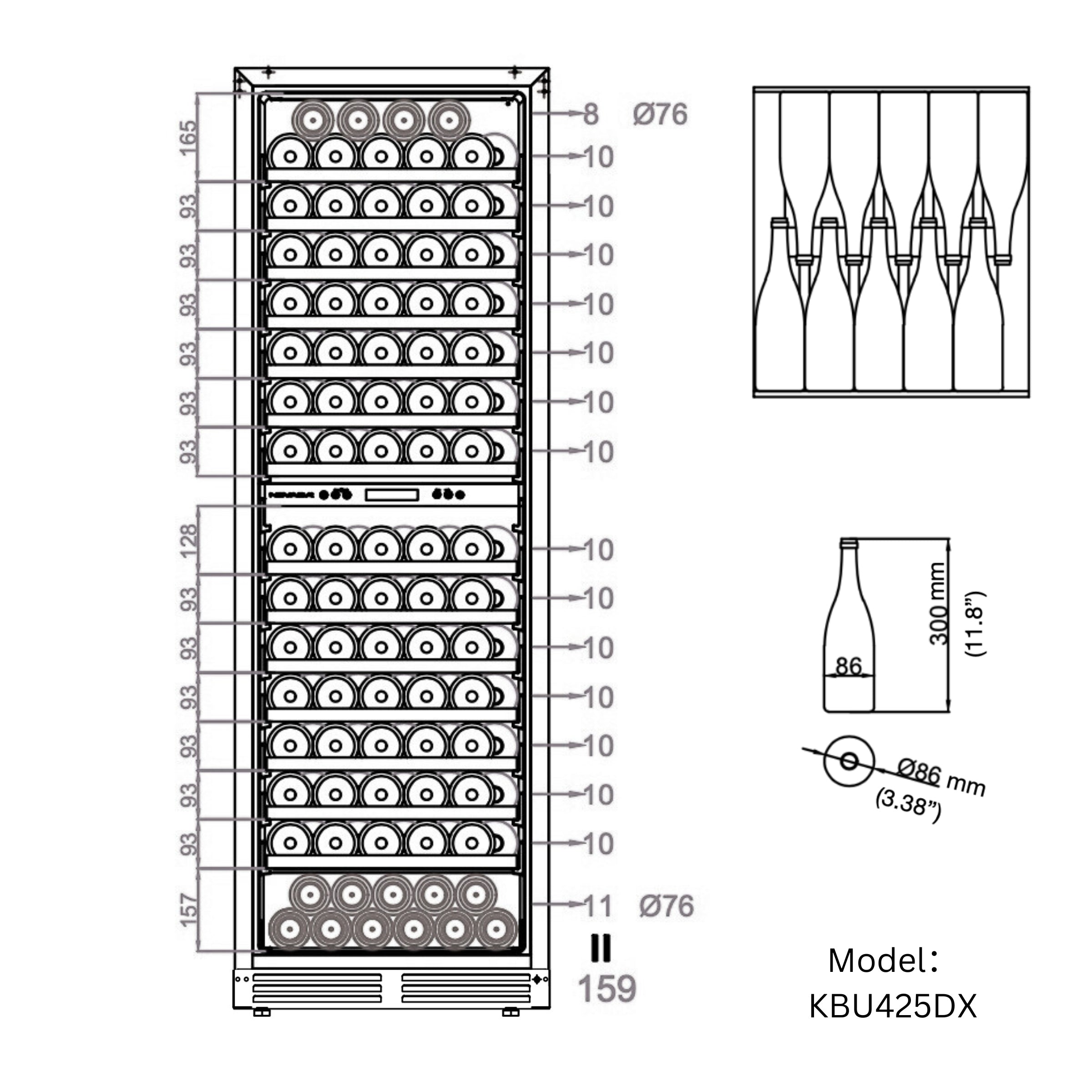

Technical dimensions
Use the technical dimensions diagrams to confirm footprint, door swing, and internal layout before integrating the combo into cabinetry or custom millwork.

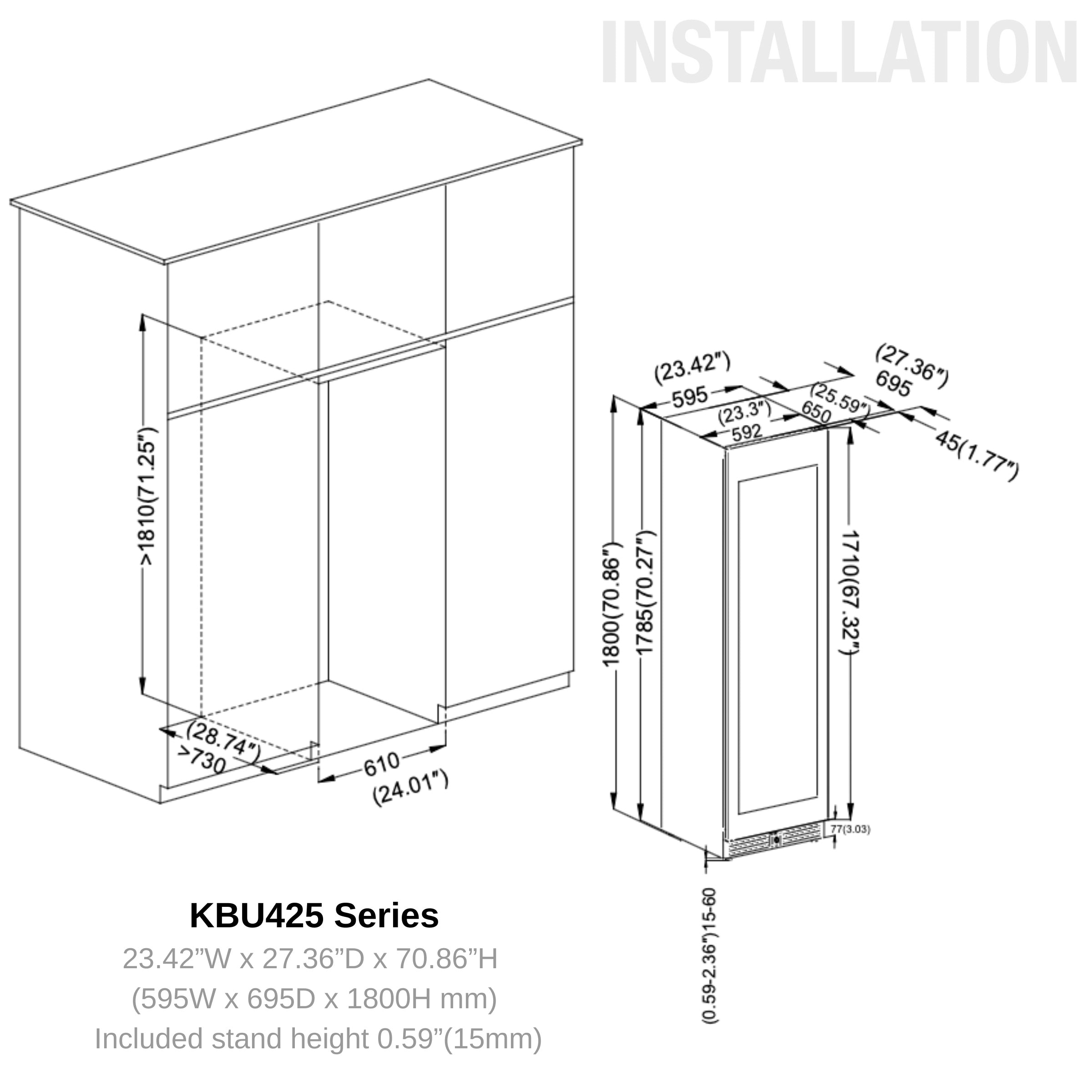

Installation diagrams
Reference the cutout and power plug diagrams when planning clearances, ventilation, and electrical placement for built-in installation.
Product Manual
Download & view the full manuals
Review the complete user manuals for detailed installation instructions, operating guidance, and maintenance information for both sides of the upright wine and beverage combo.
Manual – Unit 1
Manual – Unit 2
Frequently Asked Questions
This upright triple-zone combo provides 30 cu ft (850 L) of total volume and can hold up to 159 wine bottles plus 630 cans, depending on shelf configuration and container sizes.
The beverage side offers an adjustable range of 35°F to 68°F (2°C to 20°C). The wine side features two zones: the upper zone ranges from 35°F to 54°F (2°C to 12°C), and the lower zone ranges from 54°F to 68°F (12°C to 20°C).
Yes. The unit is configured as a triple-zone system with one dedicated beverage zone and two independent wine zones, allowing you to keep reds, whites, and beverages at different temperatures simultaneously.
Yes. It is designed for both built-in and freestanding use. When installing as a built-in, be sure to follow the ventilation clearances and cutout dimensions in the installation diagrams and manuals for best performance and longevity.
Each zone has independent temperature control managed by inverter compressors and digital controls, so you can configure temperatures separately for the beverage side and both wine zones based on your collection and serving preferences.
