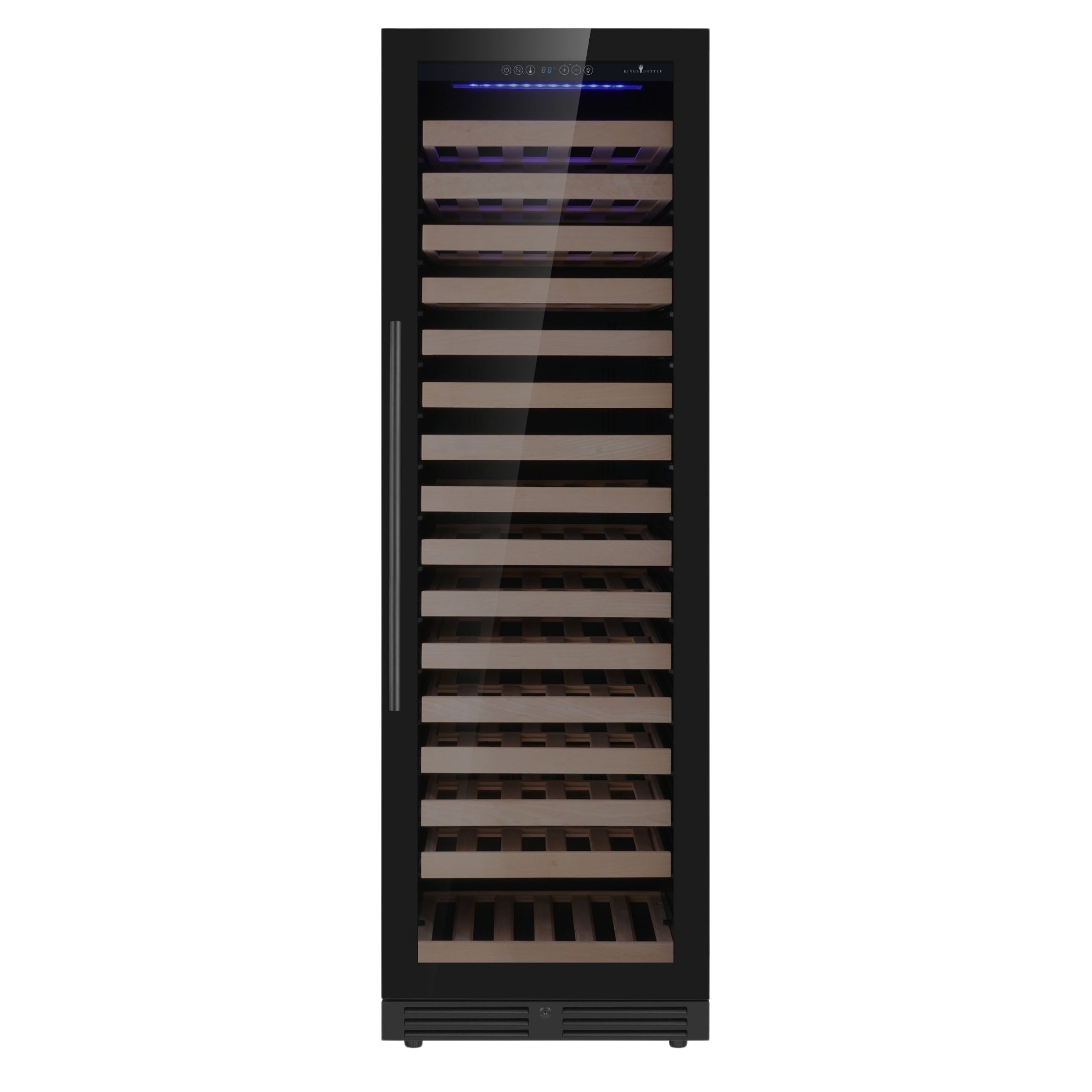

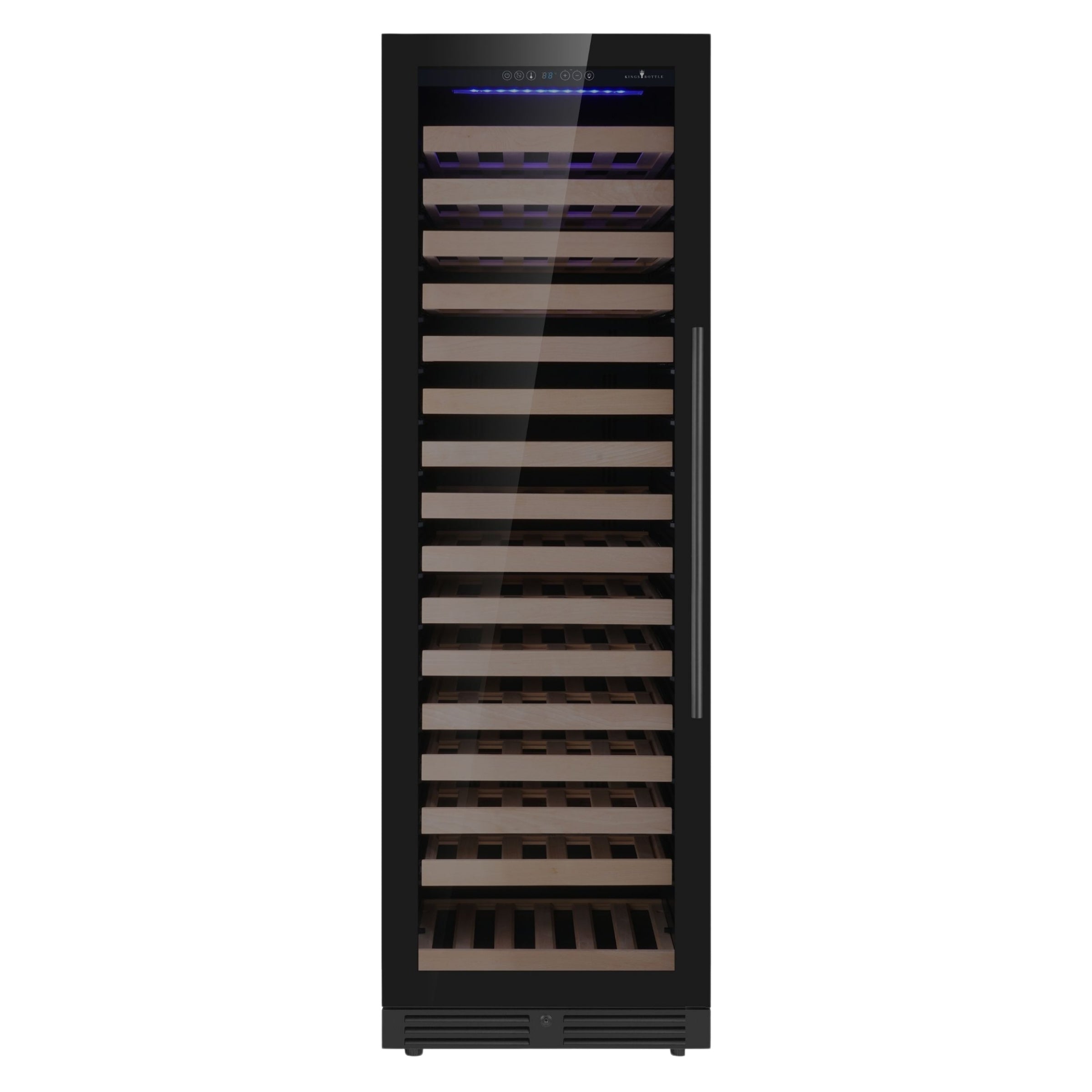

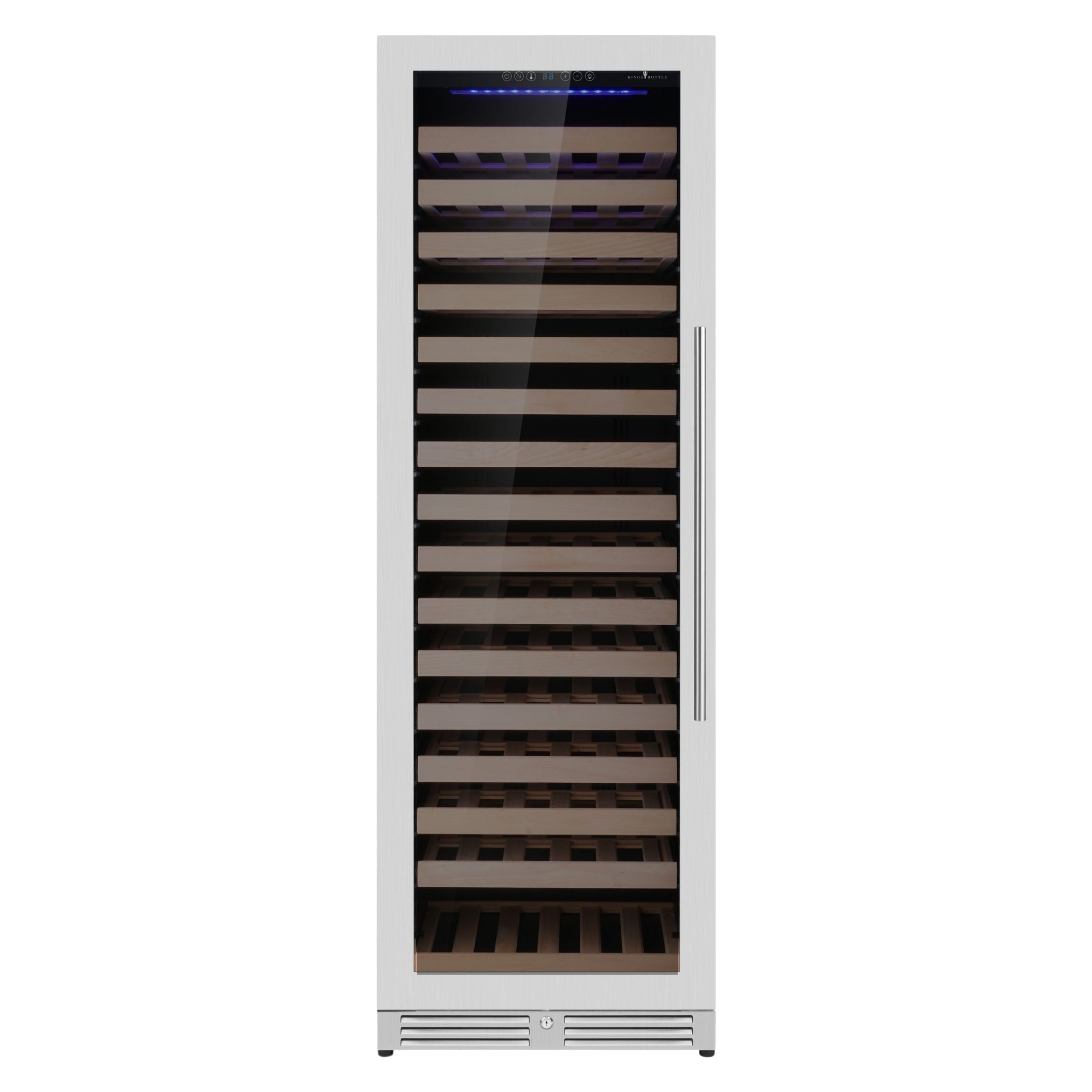

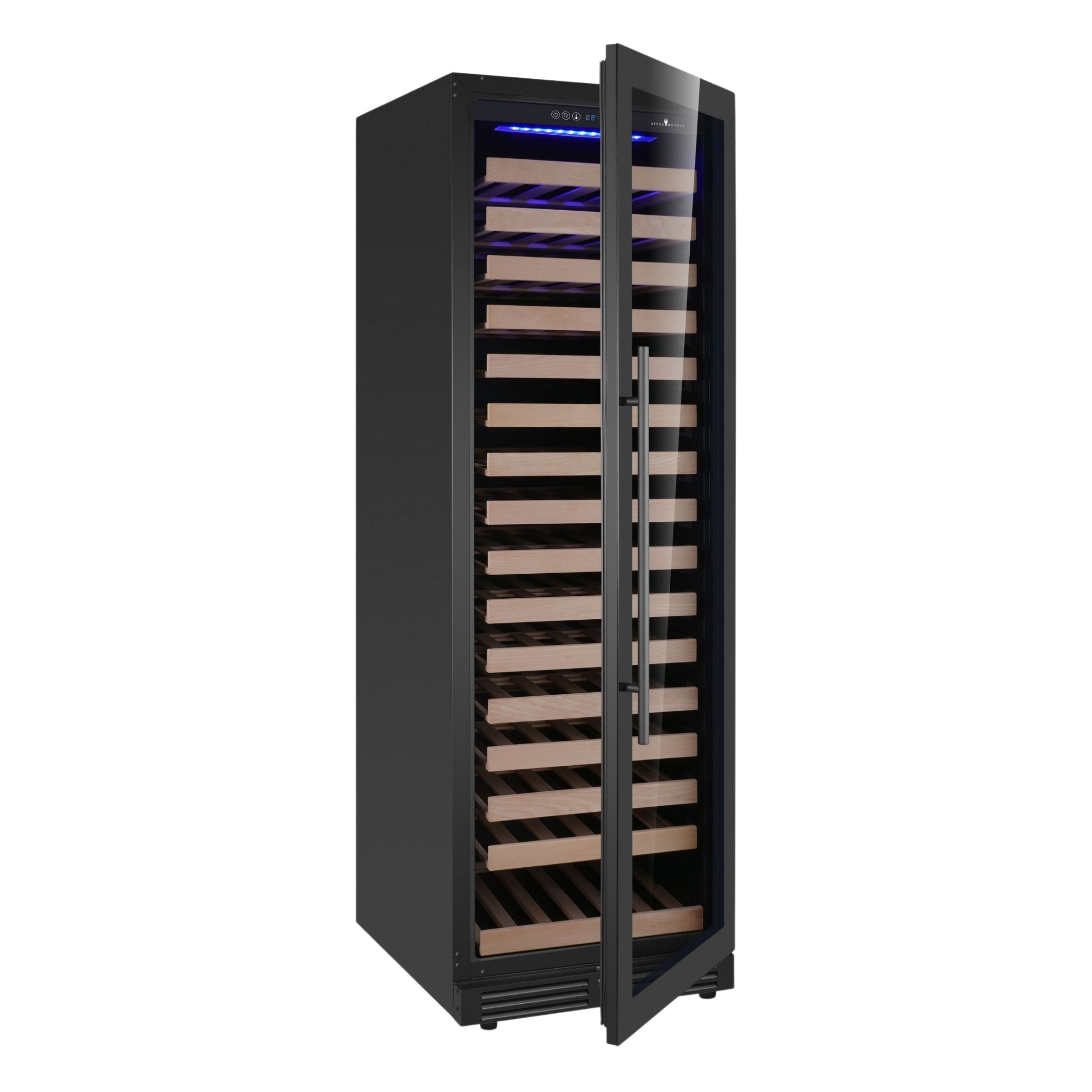

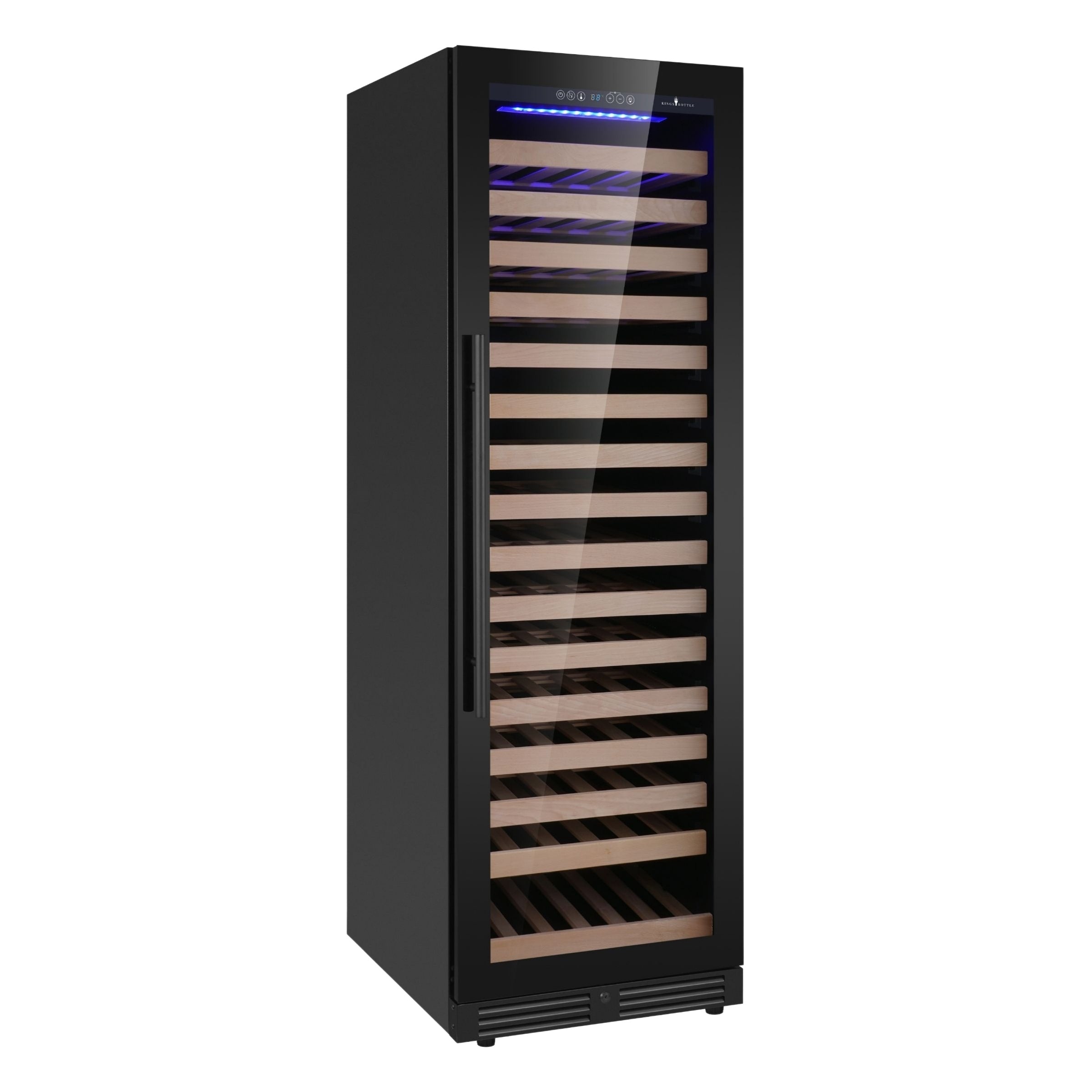

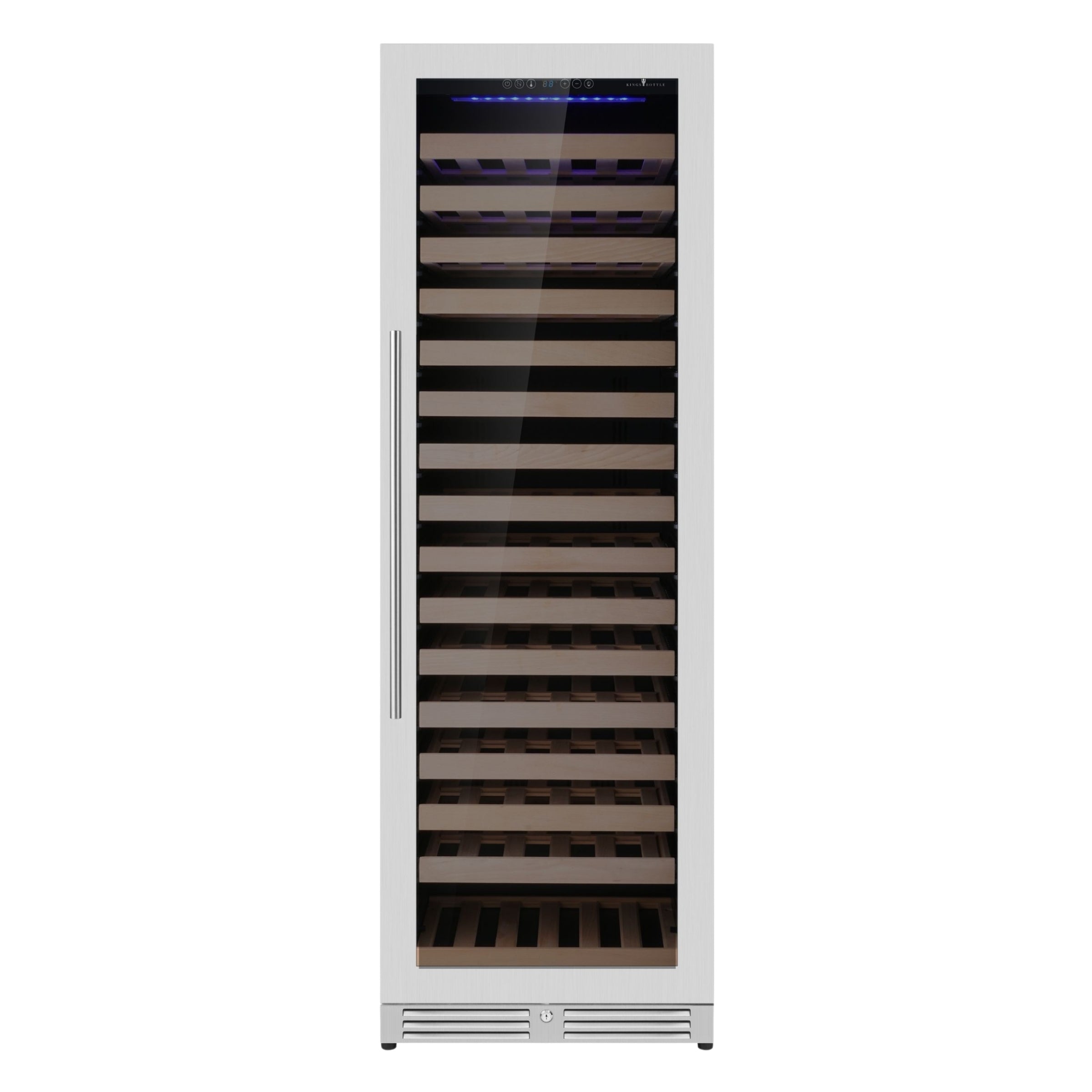

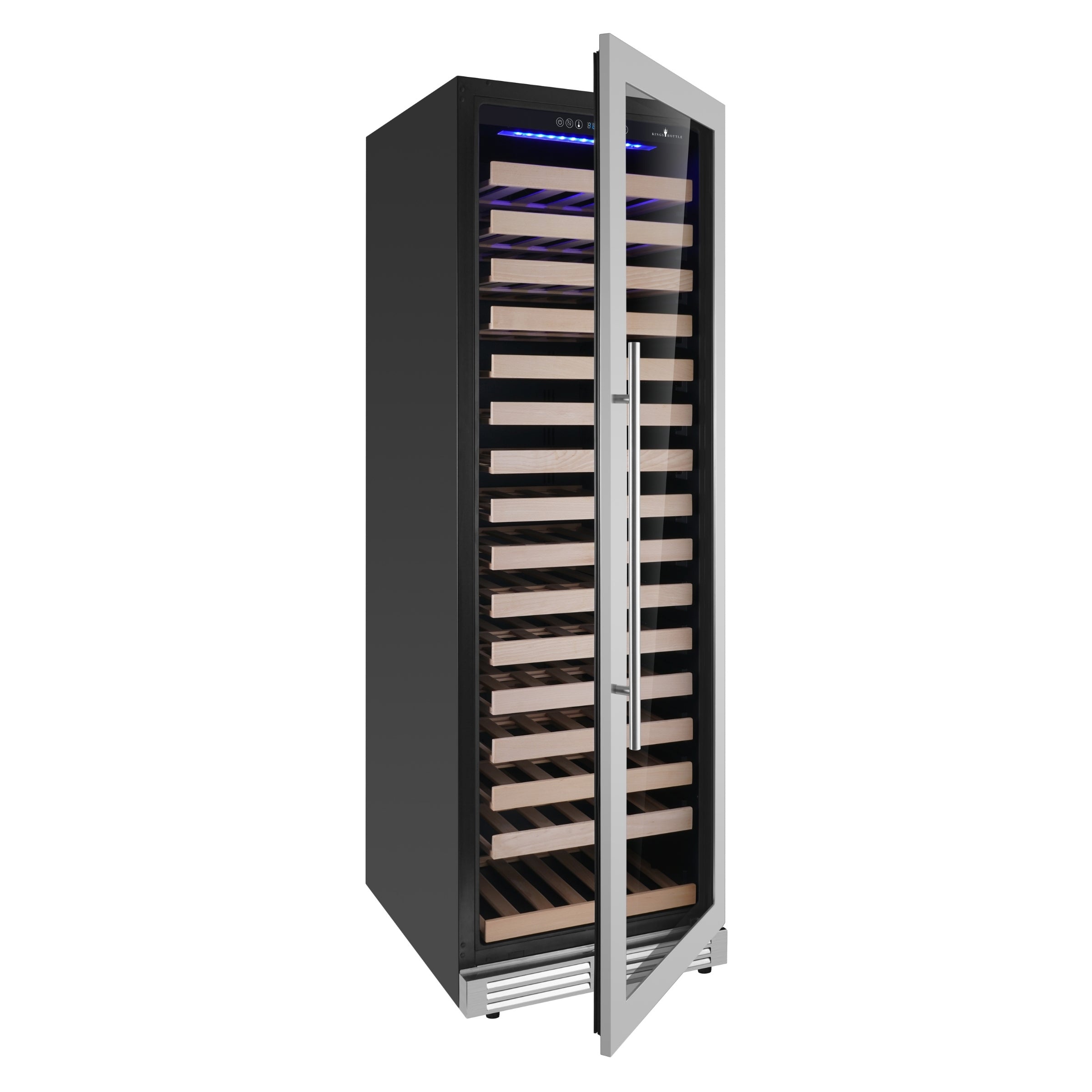

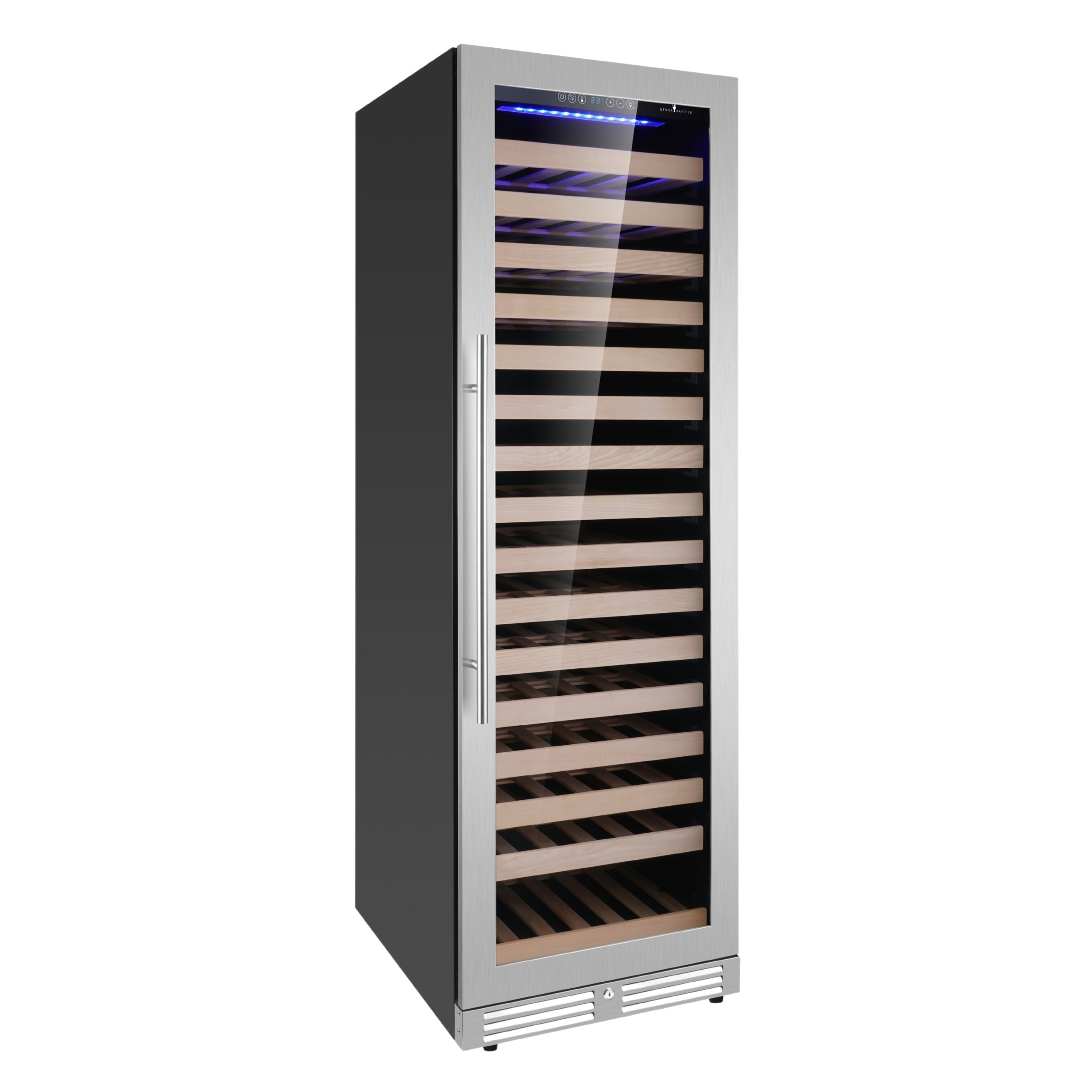

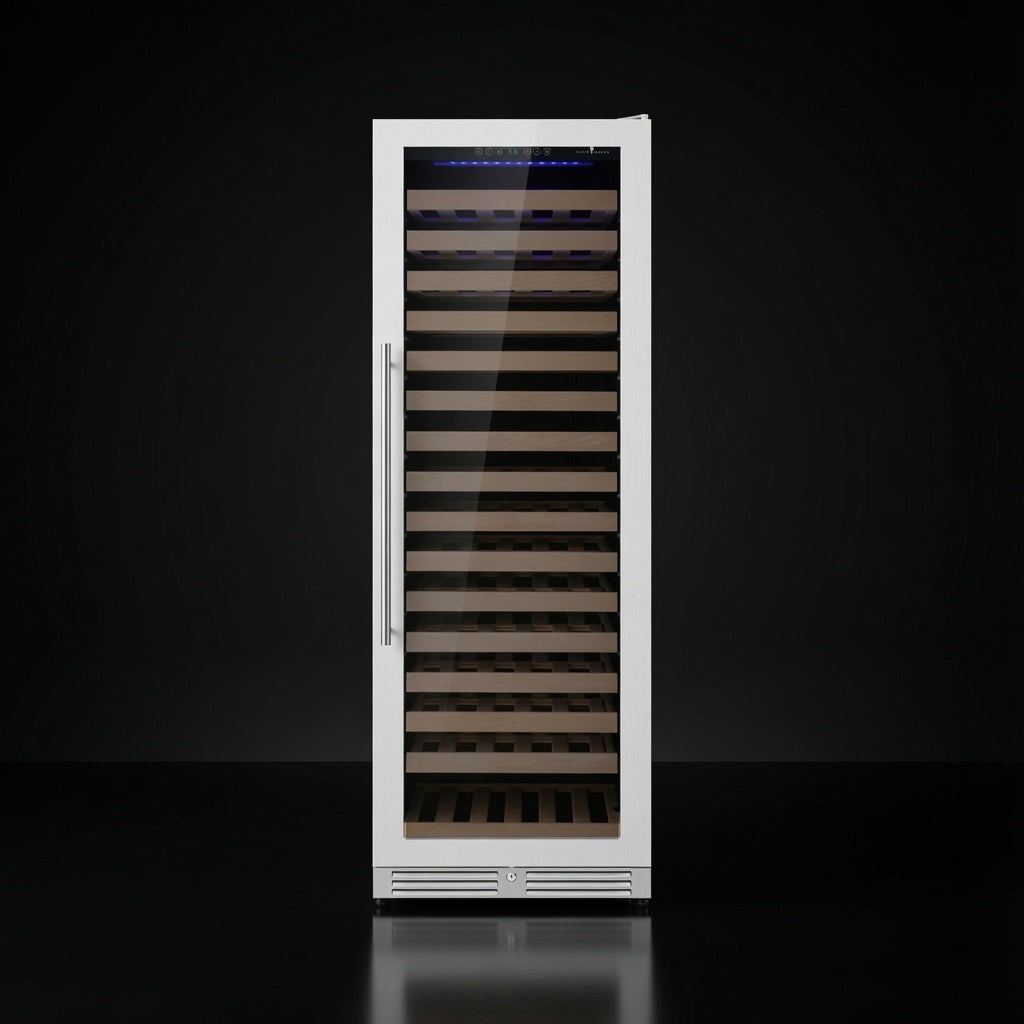

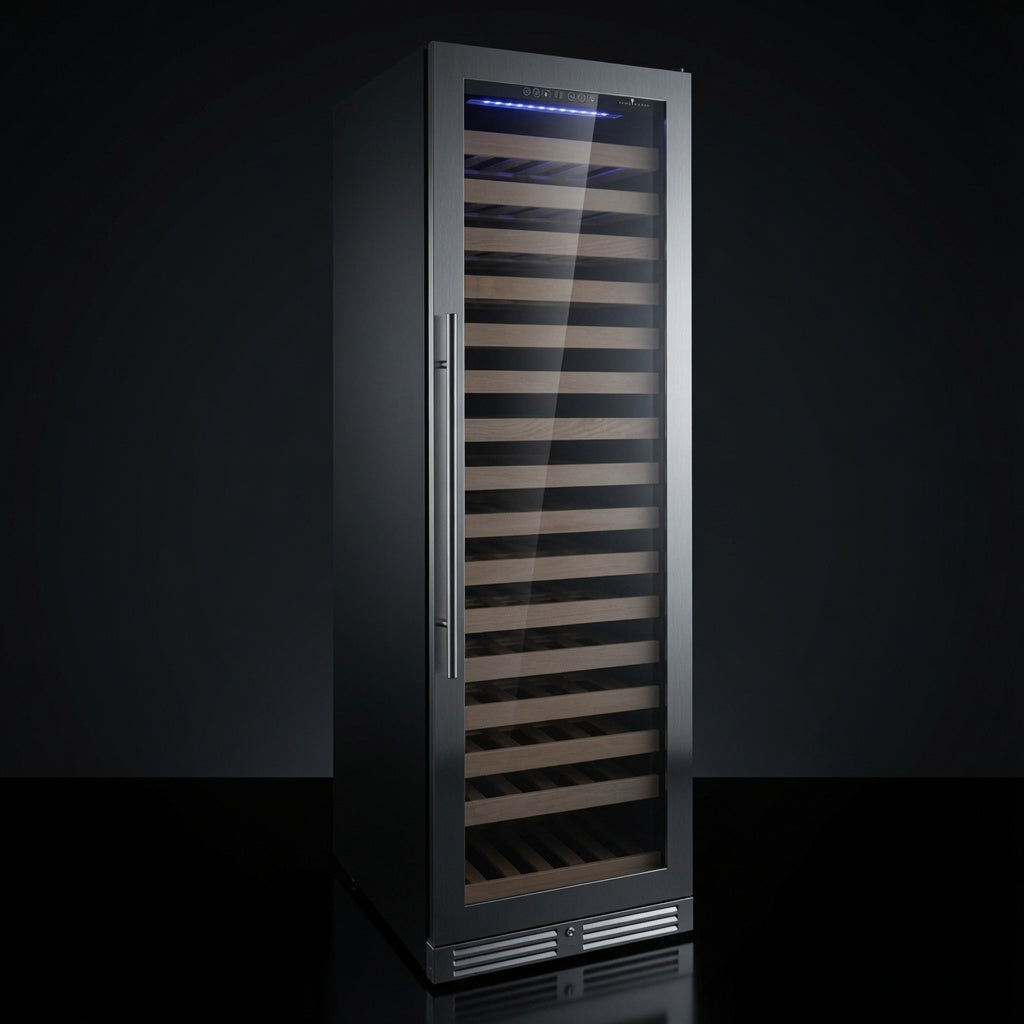

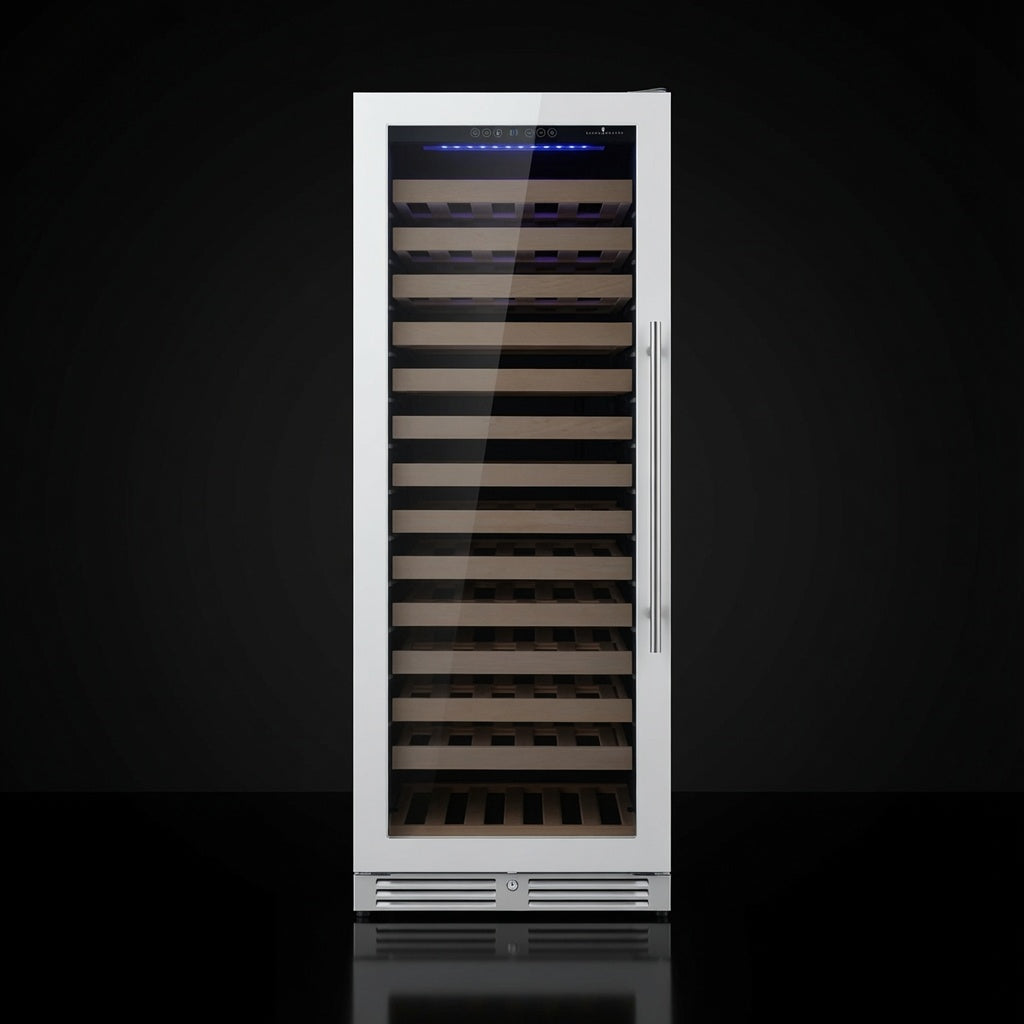

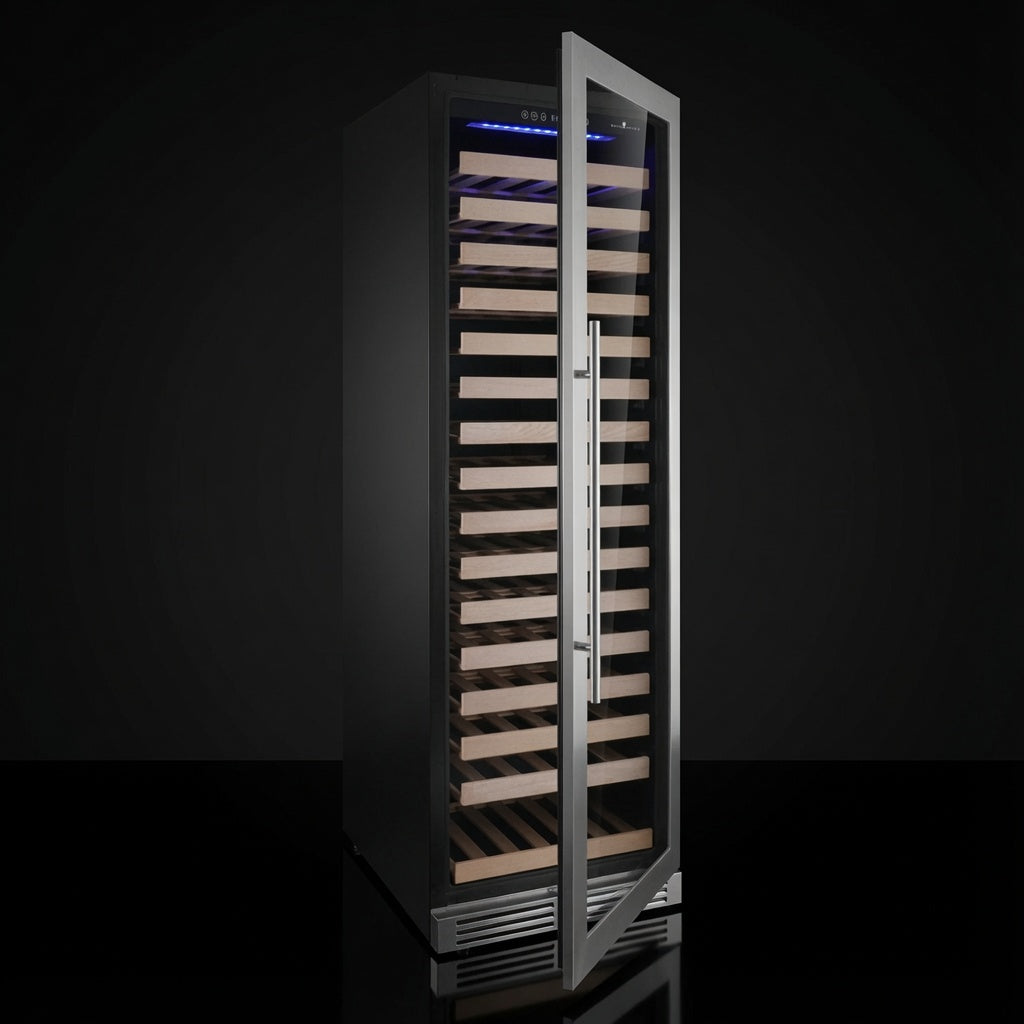

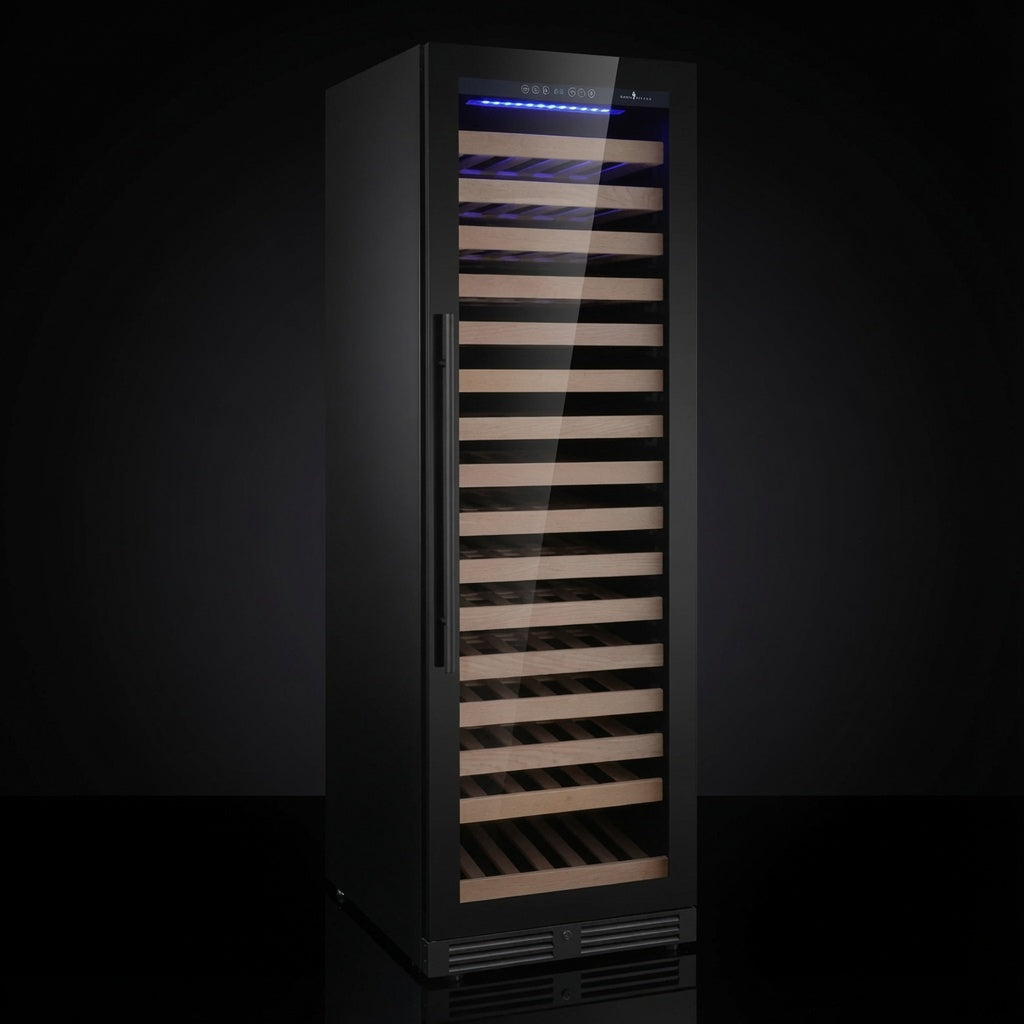

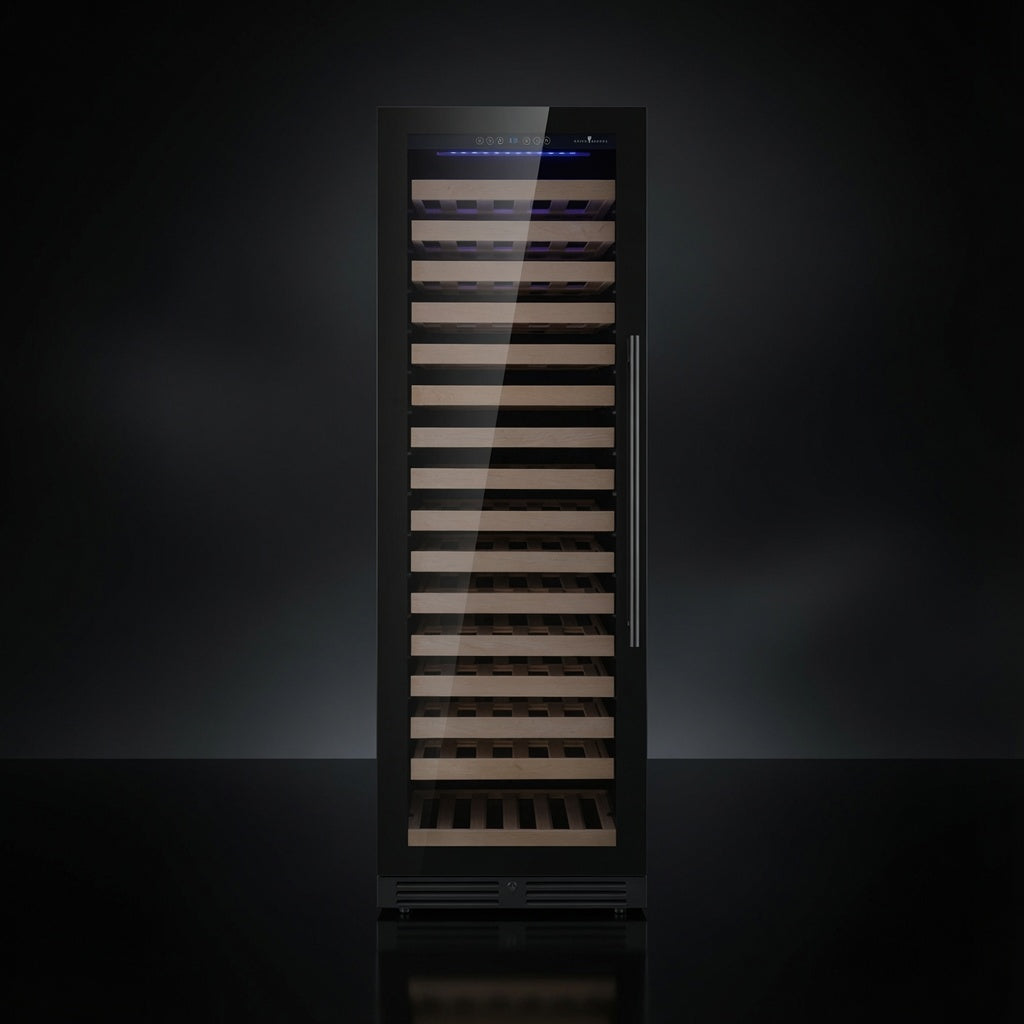

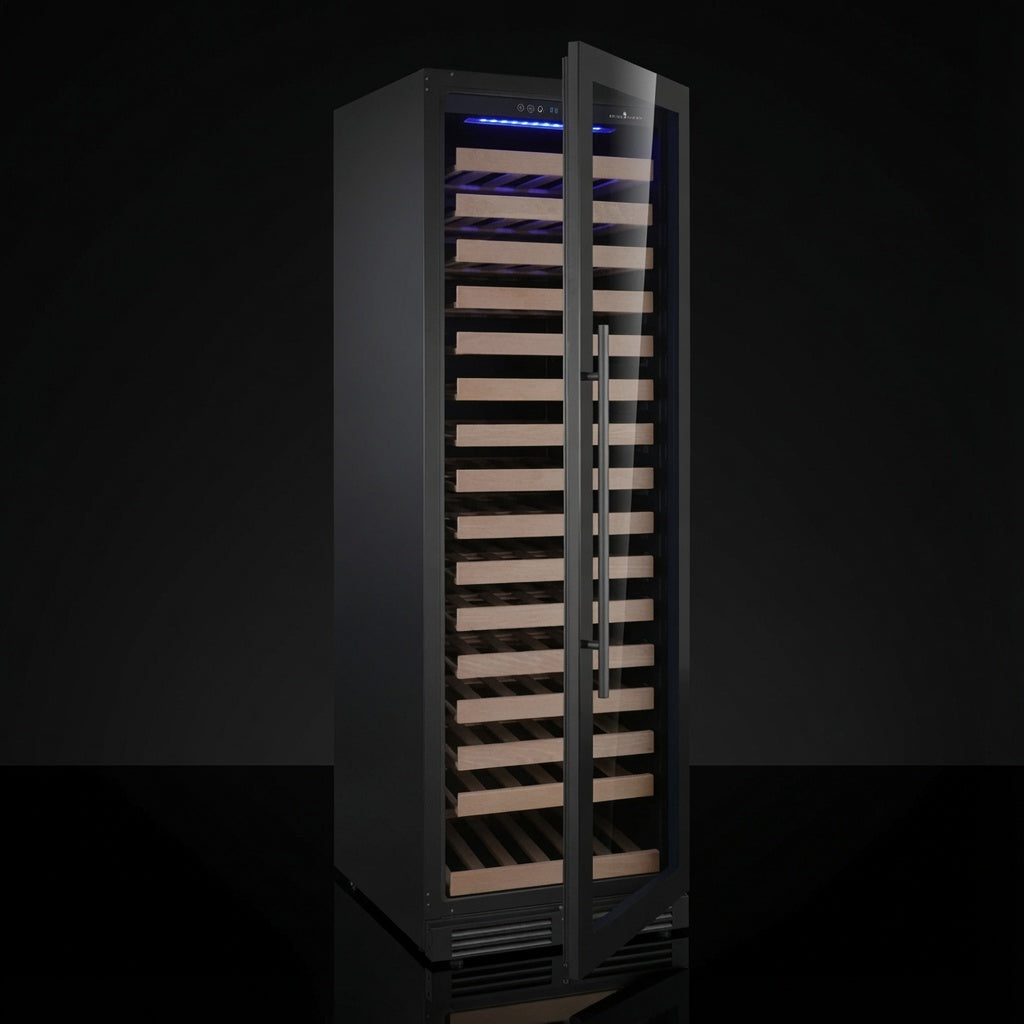

The Upright Single-Zone Large Wine Cooler with Low-E Glass Door is designed for collectors who want high-capacity storage with refined cooling performance. Powered by the Embraco Inverter Compressor , it delivers quieter operation, improved efficiency, and consistent temperature stability for optimal wine preservation.

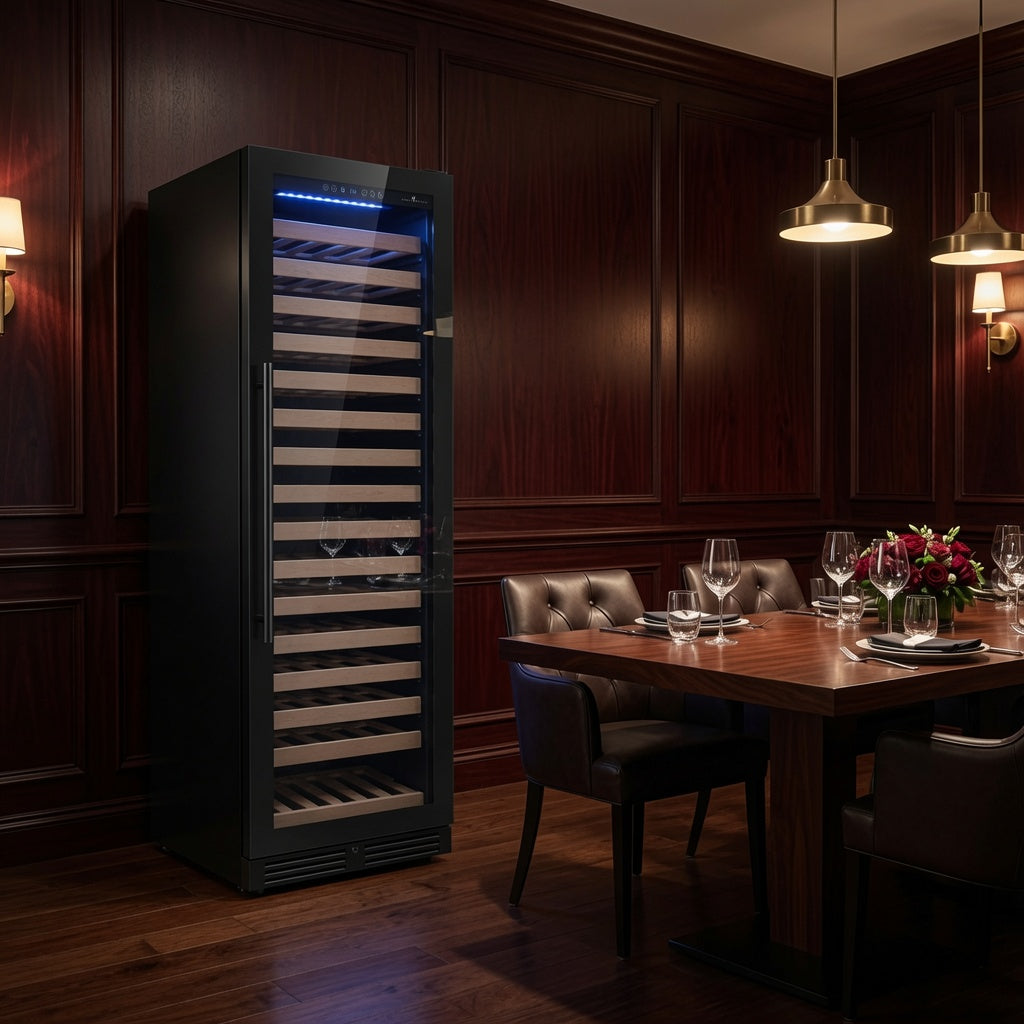

The Low-E glass door offers enhanced UV protection to safeguard your collection while reducing condensation for a clearer, more elegant display. Inside, this spacious cooler holds up to 161 bottles with adjustable beech wood shelving that accommodates a variety of bottle shapes and sizes. Its modern, streamlined design makes it a standout addition to both residential and commercial spaces.
Need dual-zone flexibility?
For collectors storing both reds and whites, explore our matching
Tall Dual Zone Upright Wine Cooler
, designed with the same modern aesthetic and premium cooling performance.
Create a coordinated beverage and wine center:
Pair this wine cooler with our
Large Beverage Refrigerator
to build a seamless, high-end storage solution.
Why it stands out
Collector-level capacity
Offers 15.0 cu ft (425 L) of internal volume with room for up to 161 bottles, ideal for serious collectors and hospitality environments.
Single temperature zone
A dedicated single-zone chamber with a wide adjustable range keeps your entire collection at one optimal serving or cellaring temperature.
Low-E glass door
The Low-E glass door helps protect wine from UV exposure, reduces condensation, and creates a clean, gallery-style presentation of your bottles.
Built-in or freestanding

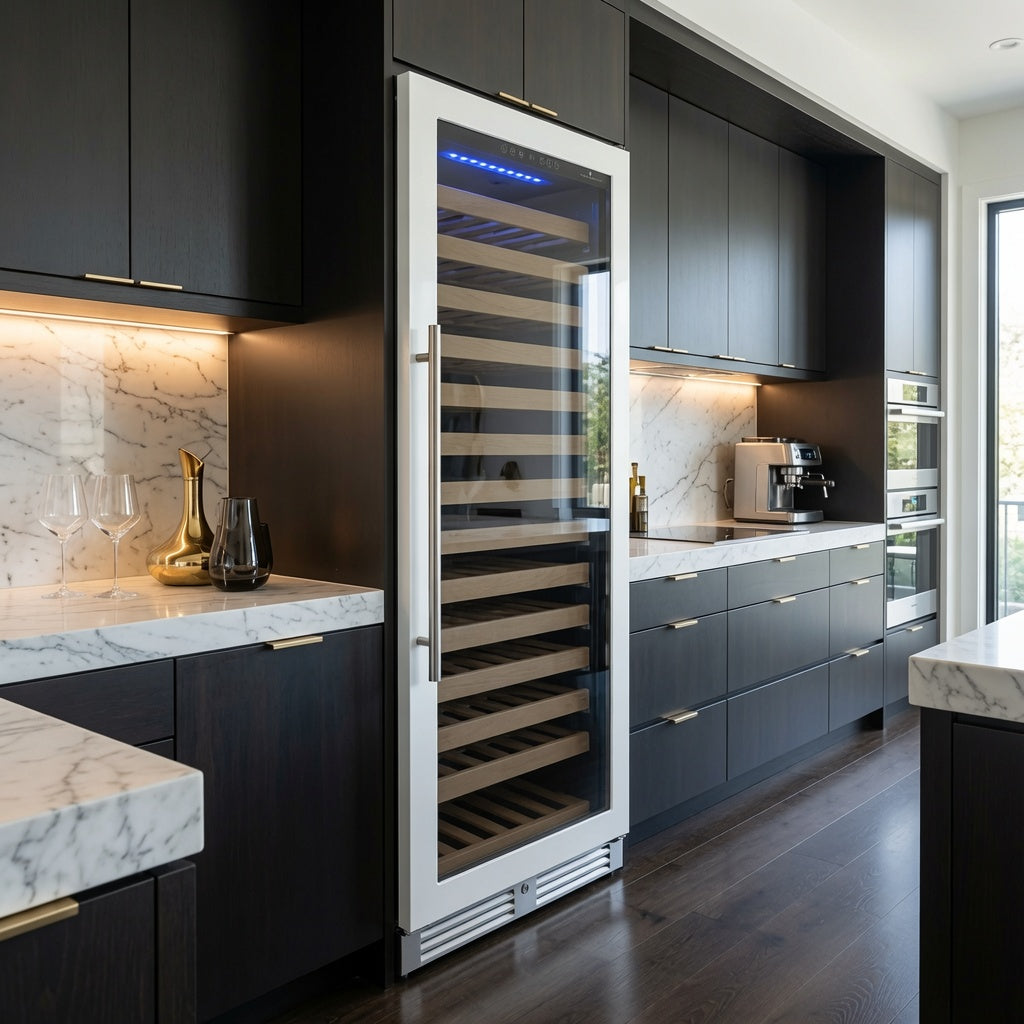

Designed for built-in or freestanding use, this upright wine cooler fits seamlessly into kitchen and bar millwork or stands alone as a statement piece.
Specifications
Key Specifications
| Volume | 15.00 CF (425 Liters) |
|---|---|
| Capacity (bottles) | 161 bottles |
| Installation Type | Built-in or freestanding |
| Climate Type | N |
| Temperature Zones | Single zone |
| Adjustable Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 16 beech wooden shelves |
| Dimensions | 23.42” W x 27.36” D x 70.86” H (includes 0.59” stand height) |
| Compressor | Embraco Inverter Compressor |
| Defrost Type | Automatic defrost |
| Power Supply | 110–115V / 60Hz |
| Rated Power Input | 165 W |
| Rated Current | 1.7 A |
| Refrigerant | R600A / 52 g |
| Energy Consumption | 0.63 kWh / 24 h |
Technical Features
Embraco inverter compressor
A top-brand Embraco Inverter Compressor delivers super quiet operation and can reduce energy consumption by up to 40%, while maintaining stable temperatures ideal for long-term wine storage.
Patented sink of compressor
Increases air circulation space around the compressor to improve cooling performance, reduce vibration, and lower noise output.
Low-E glass door
Low-E glass reduces energy consumption and condensation on the door, acting as an invisible insulating barrier that helps protect your wine from temperature swings and UV exposure.
Note: The Low-E coating reduces heat transfer and enhances overall cooling performance and visual clarity.
Fan-circulated air-cooling
A fan-circulated air-cooling system helps ensure temperature uniformity in the cabinet and compensates for humidity, supporting consistent conditions across all shelves.
Activated carbon filter
An activated carbon filter helps remove impurities from the air, keeping the cabinet interior fresher and reducing unwanted odors that could affect corks over time.

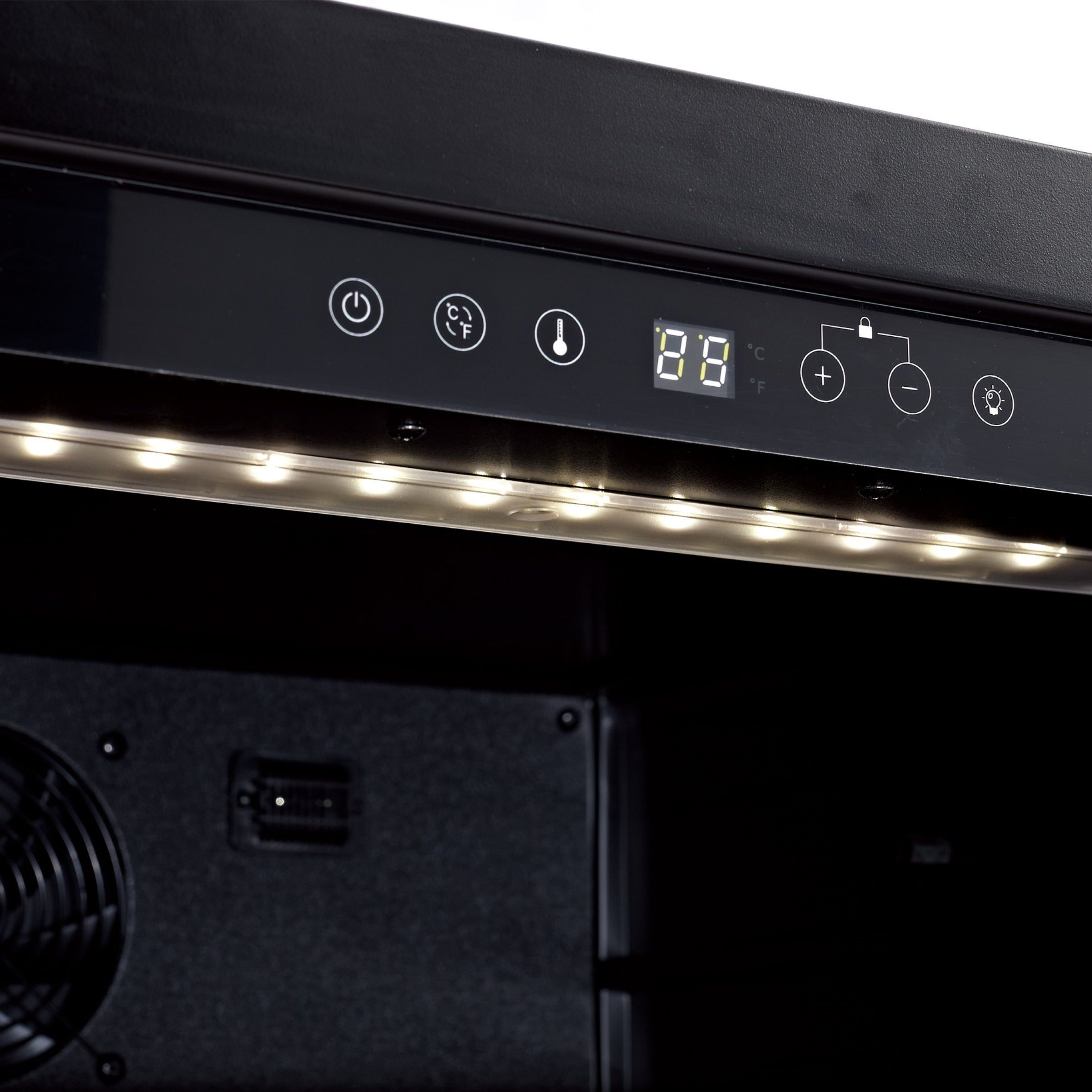

LED digital touchpad
A clear, easy-to-use LED display with digital touch controls provides accurate temperature settings and at-a-glance monitoring.

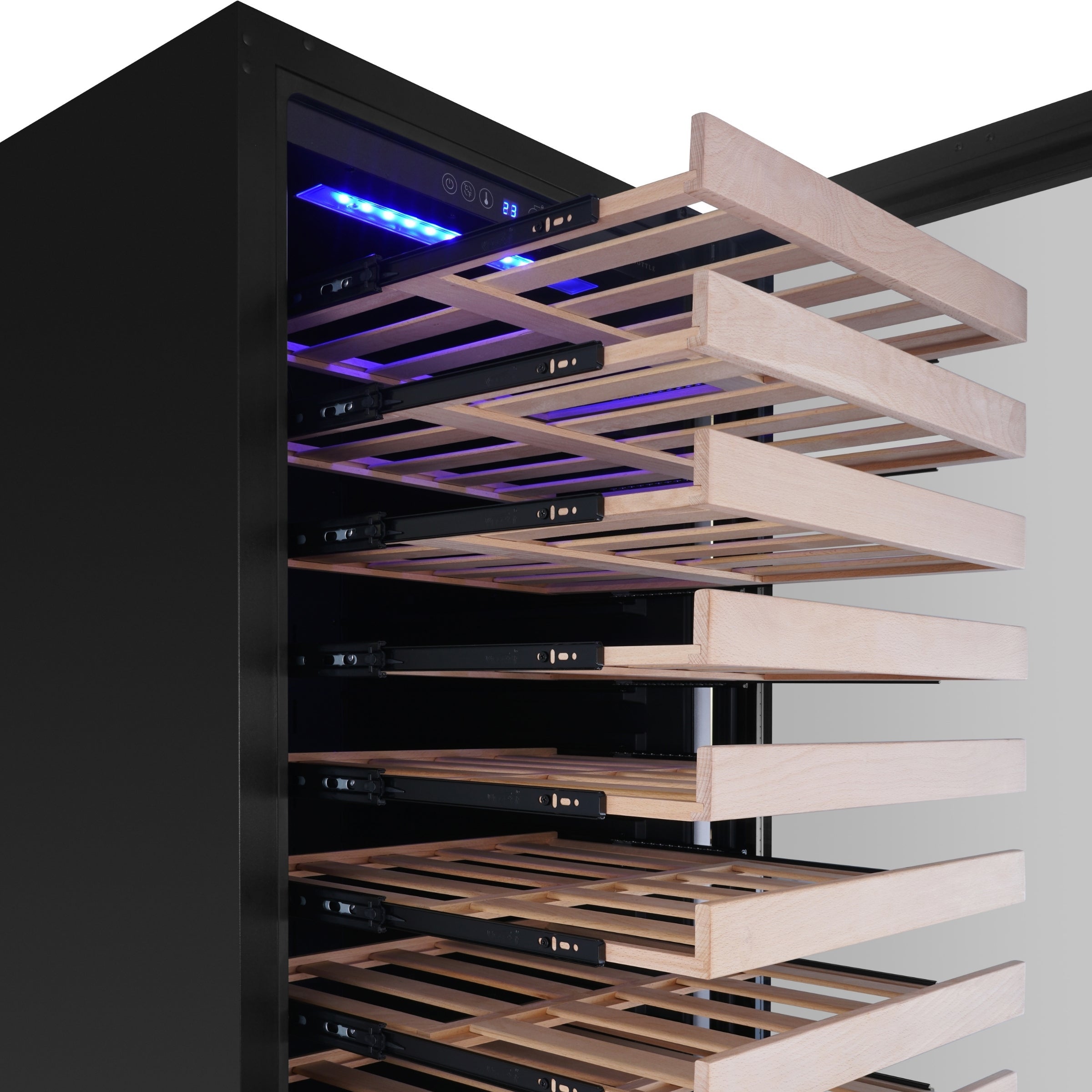

Full-extension beech wood shelves

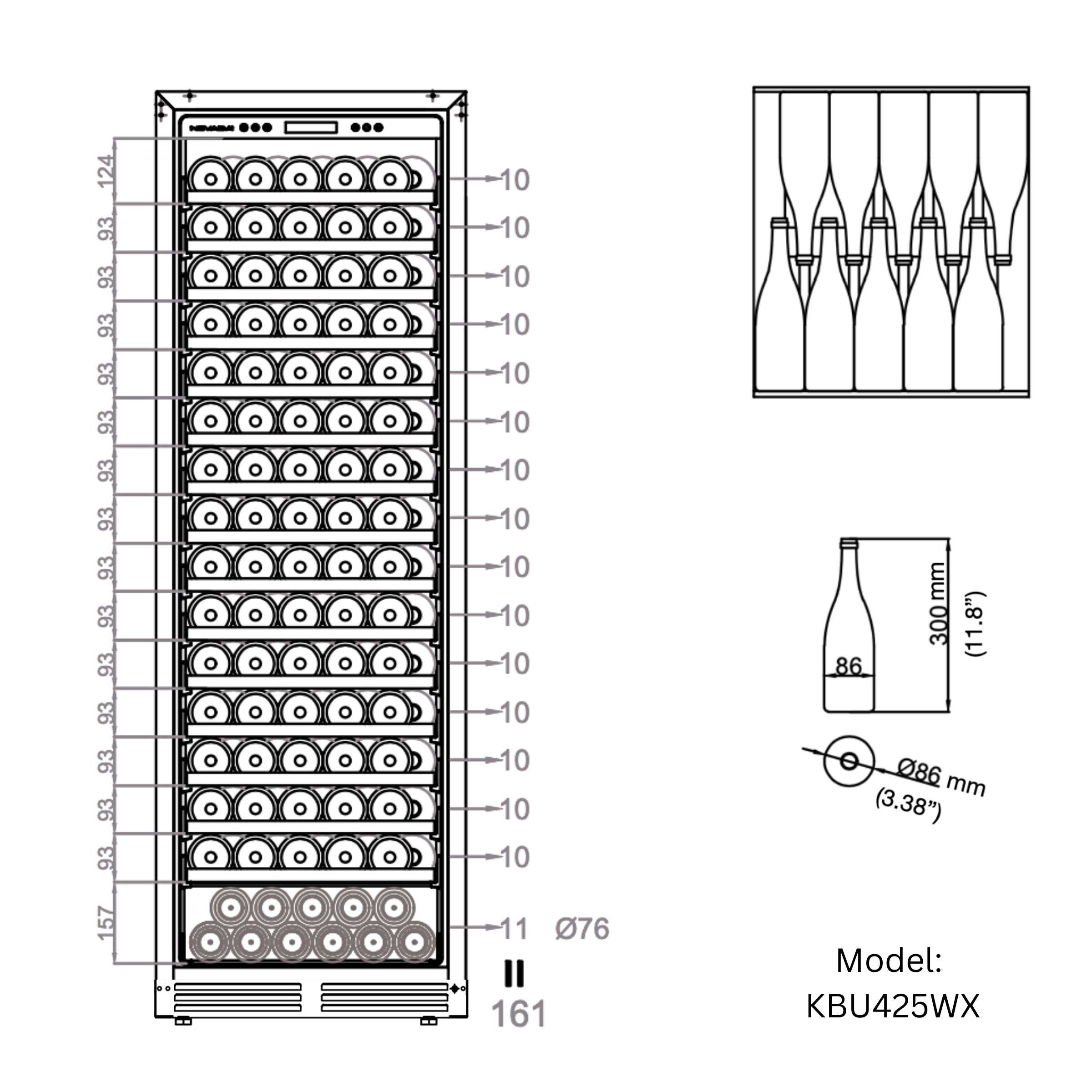

Full-extension beech wood shelves provide sturdy, wine-friendly support and are spaced to fit both regular and larger bottles up to approximately 3.39" (86 mm) in diameter.
Magnetic door switch
A magnetic door switch triggers a 2-minute door-open alarm to help protect your collection from accidental temperature rise.

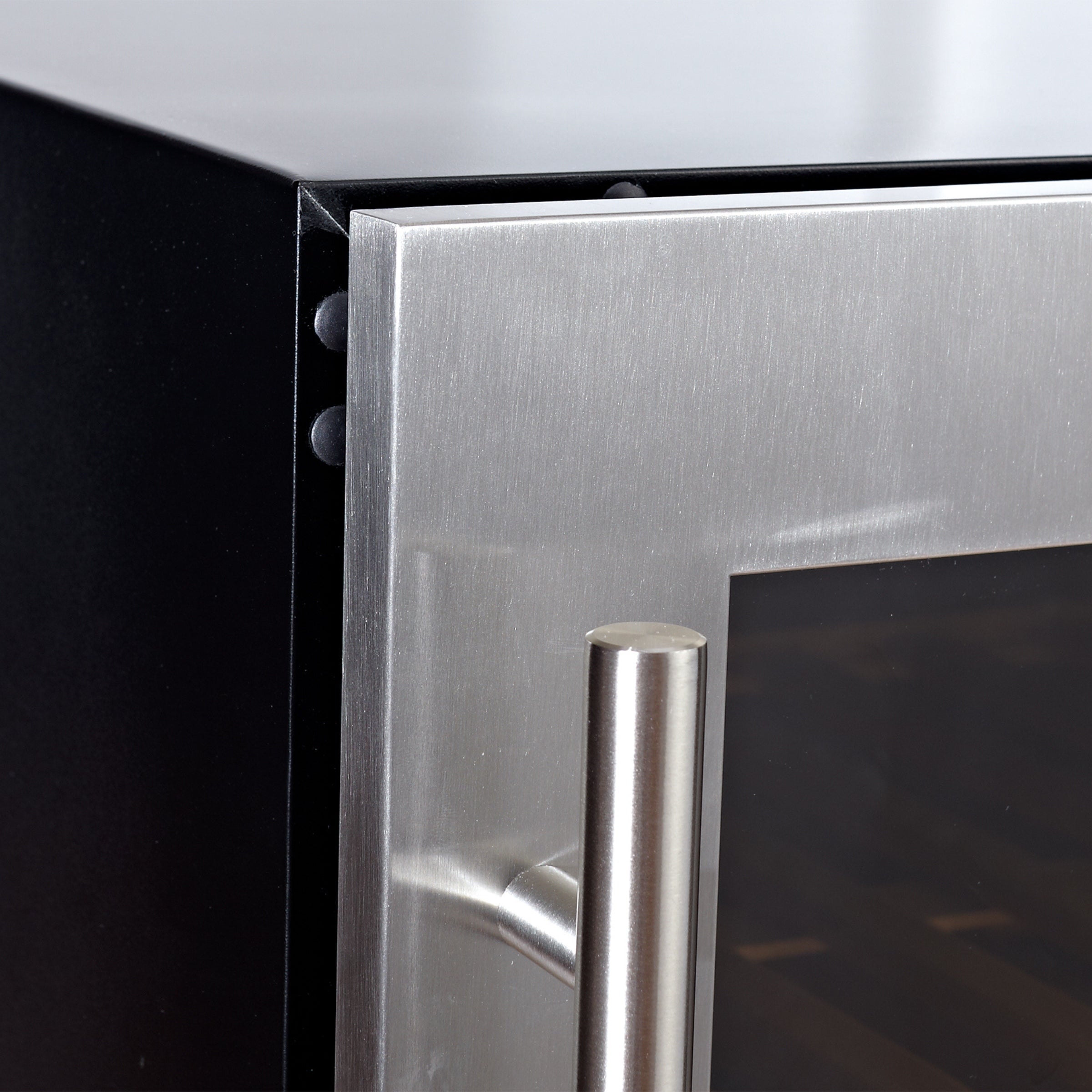

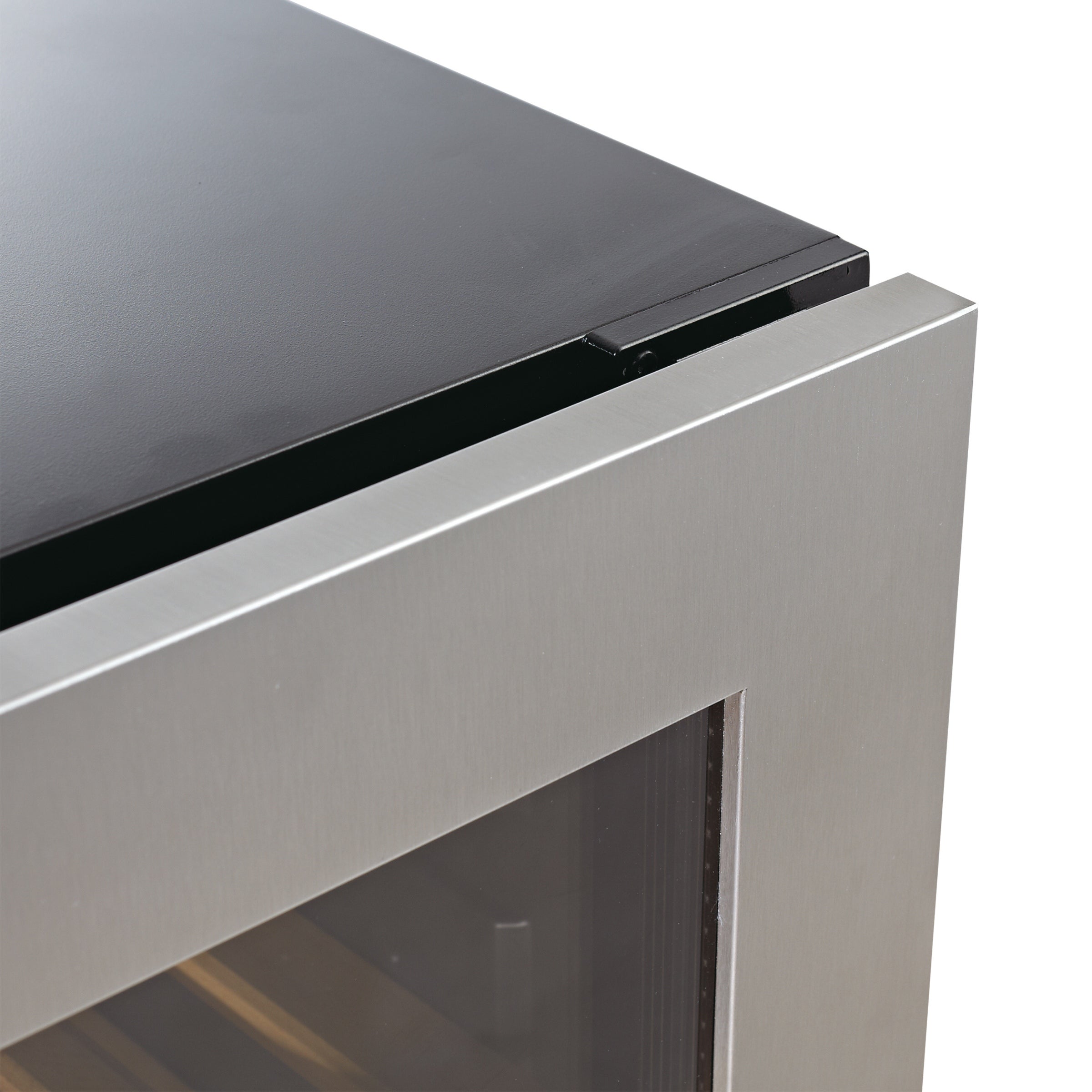

Hidden hinge & seamless frame
A hidden door hinge and seamless stainless steel door frame create a clean, integrated look and support a full built-in design with minimal visual interruption.
45 mm C-pentane insulation
Thicker 45 mm C-pentane foam insulation helps optimize cooling performance, reduce energy consumption, and keep internal temperatures more stable over time.
Dimensions & Diagrams

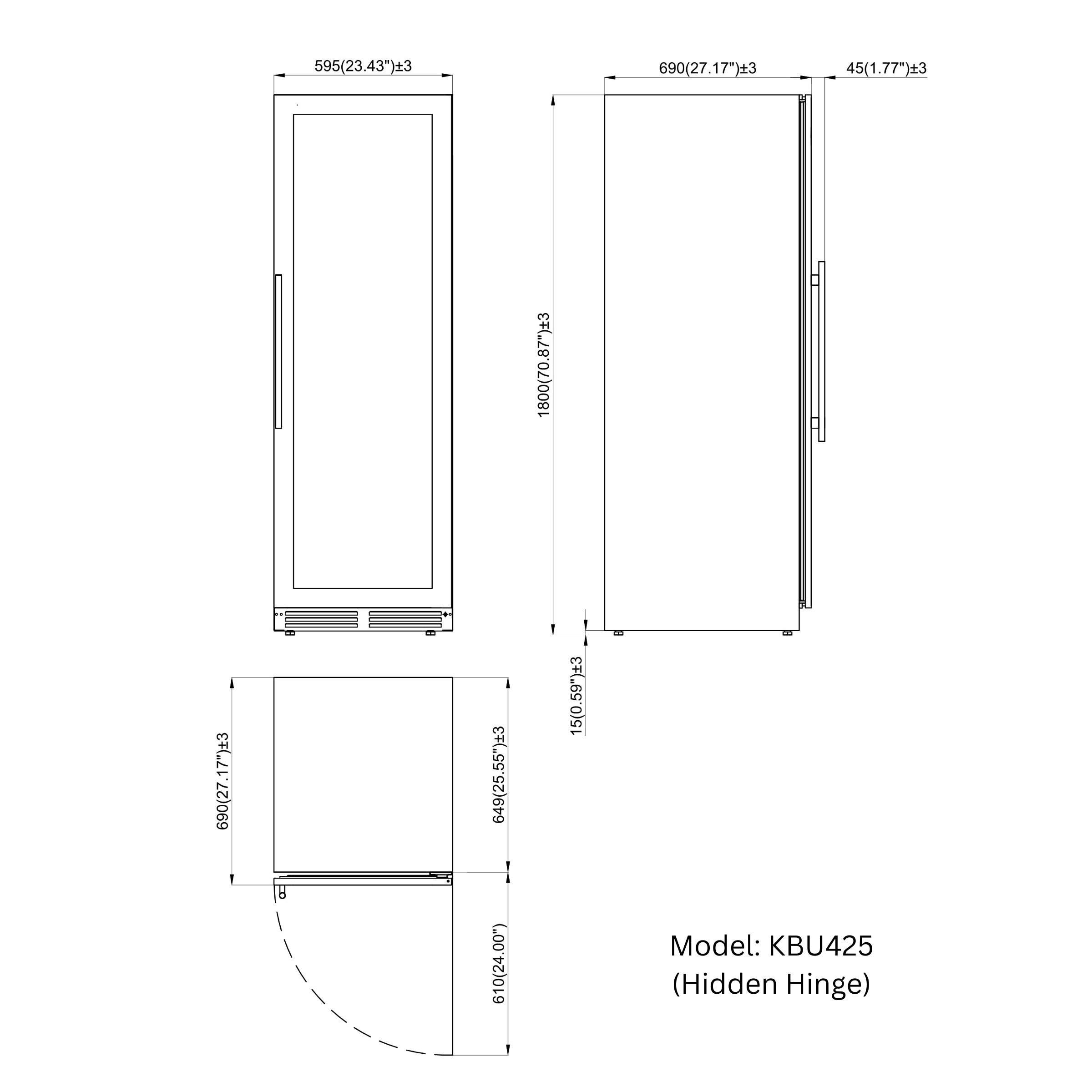

Technical dimensions
Use the technical dimensions diagram to confirm footprint and clearance before finalizing cabinetry, spacing, and placement.

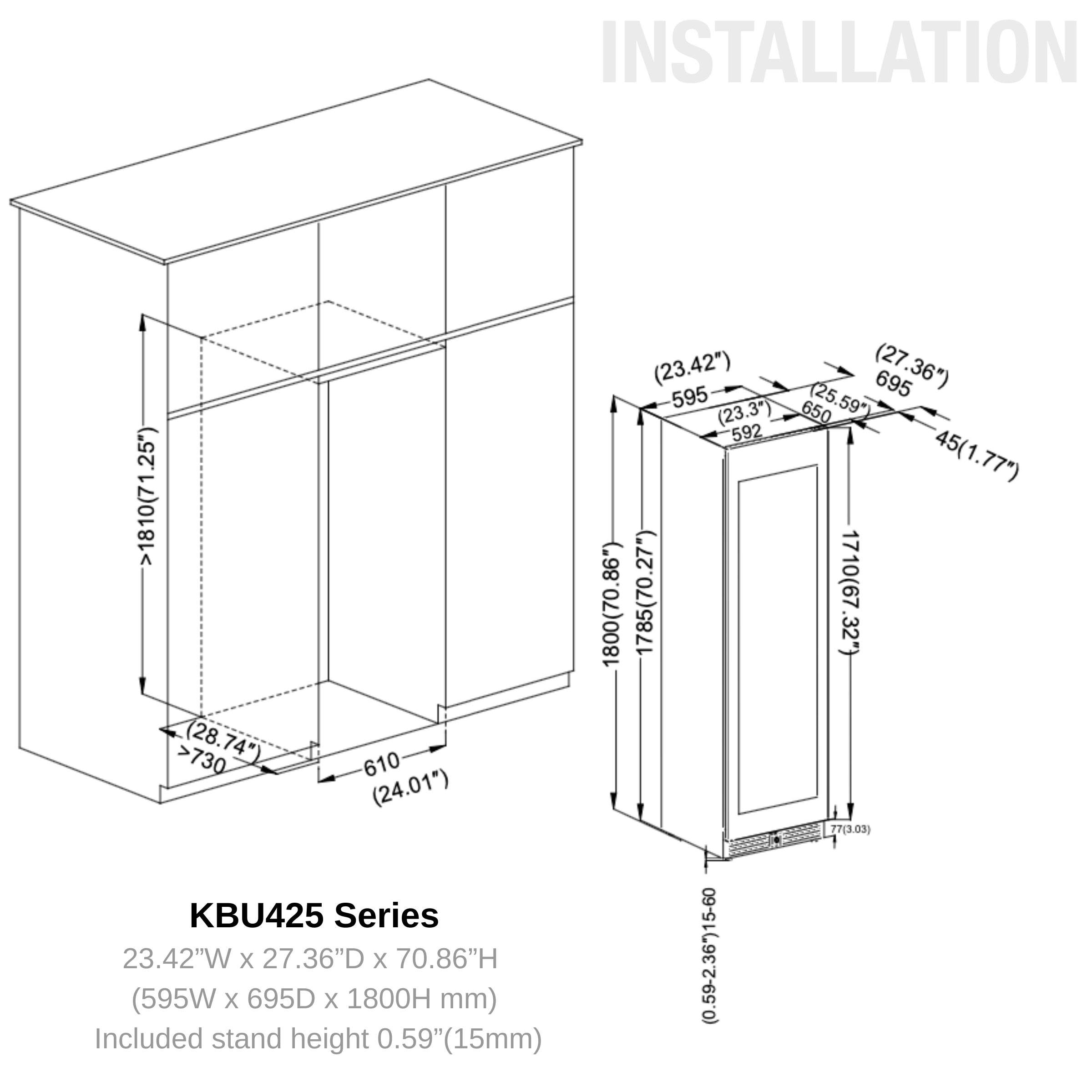

Installation diagrams
Reference the installation diagrams when planning built-in cutouts, ventilation, and electrical access.
Product Manual
Download & view the full manual
Review the complete user manual for detailed installation instructions, operating guidelines, and maintenance information for this upright wine cooler.
Frequently Asked Questions
This single-zone upright wine cooler is designed to hold up to 161 bottles, depending on bottle shape and how the shelves are configured. The full-extension beech wood shelves are spaced to accommodate both standard and some larger-format bottles.
The cooler offers an adjustable temperature range of 35°F to 68°F (2°C to 20°C), giving you flexibility for both serving temperatures and longer-term cellaring of reds or whites.
Yes. It is designed for built-in or freestanding use. Always refer to the cutout and ventilation diagrams to ensure proper airflow and clearances when integrating into cabinetry or bar millwork.
The Low-E glass door helps protect your wine from UV exposure, reduces condensation on the glass, and improves overall insulation performance, all while showcasing your collection in a clean, modern way.
The Embraco inverter compressor is engineered for quieter, smoother operation compared to traditional compressors. It ramps up and down as needed instead of cycling hard on and off, helping to reduce noise and vibration around your bottles.
