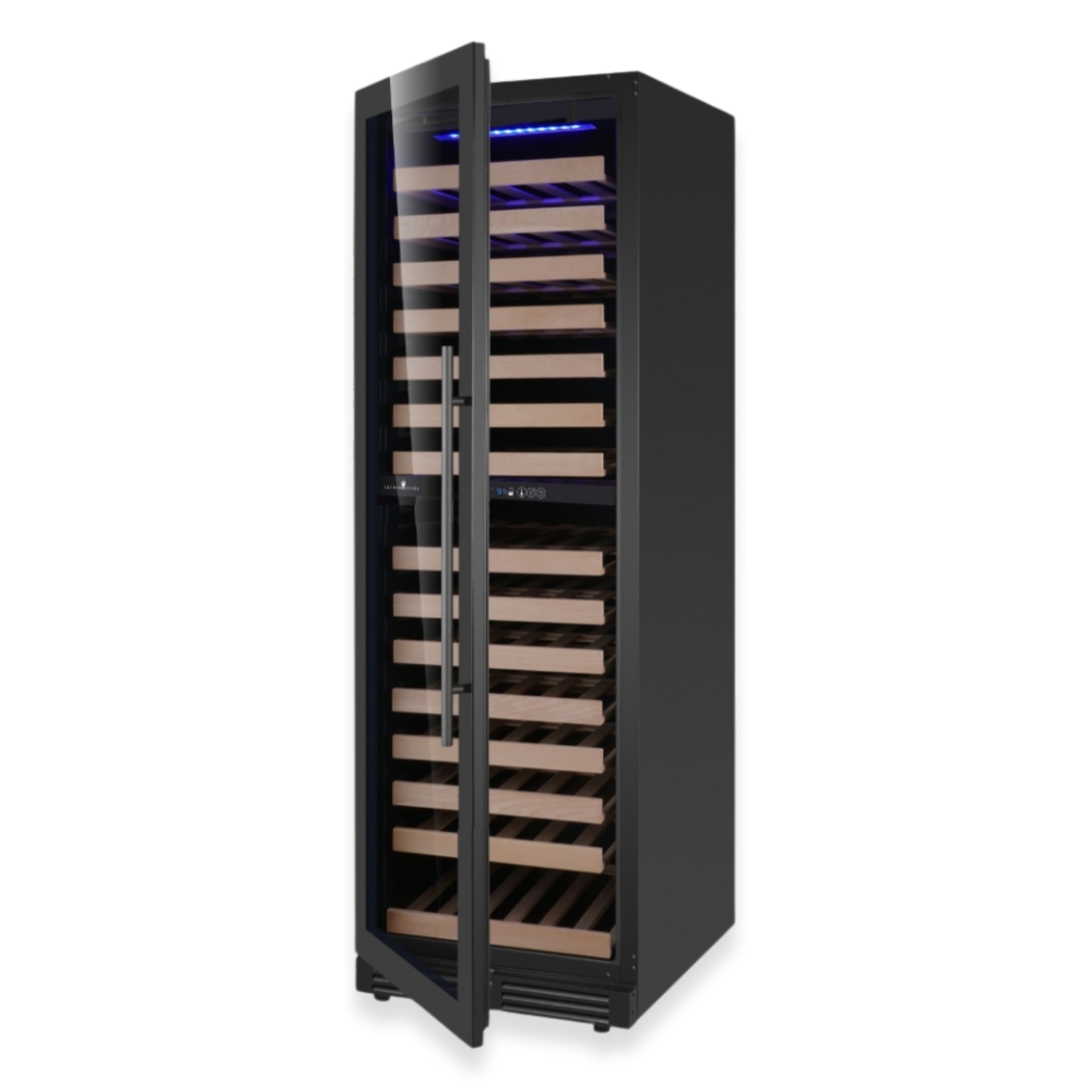

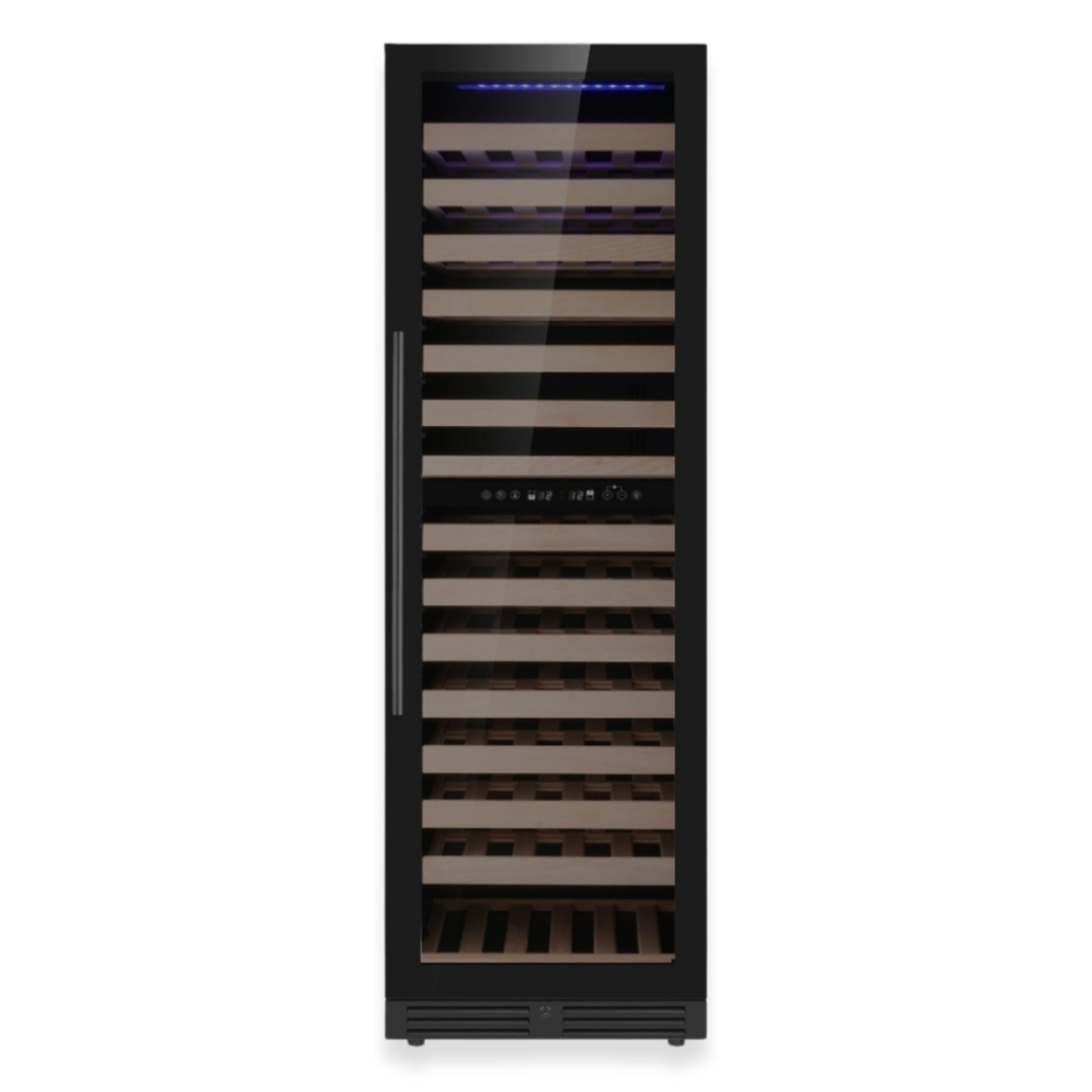

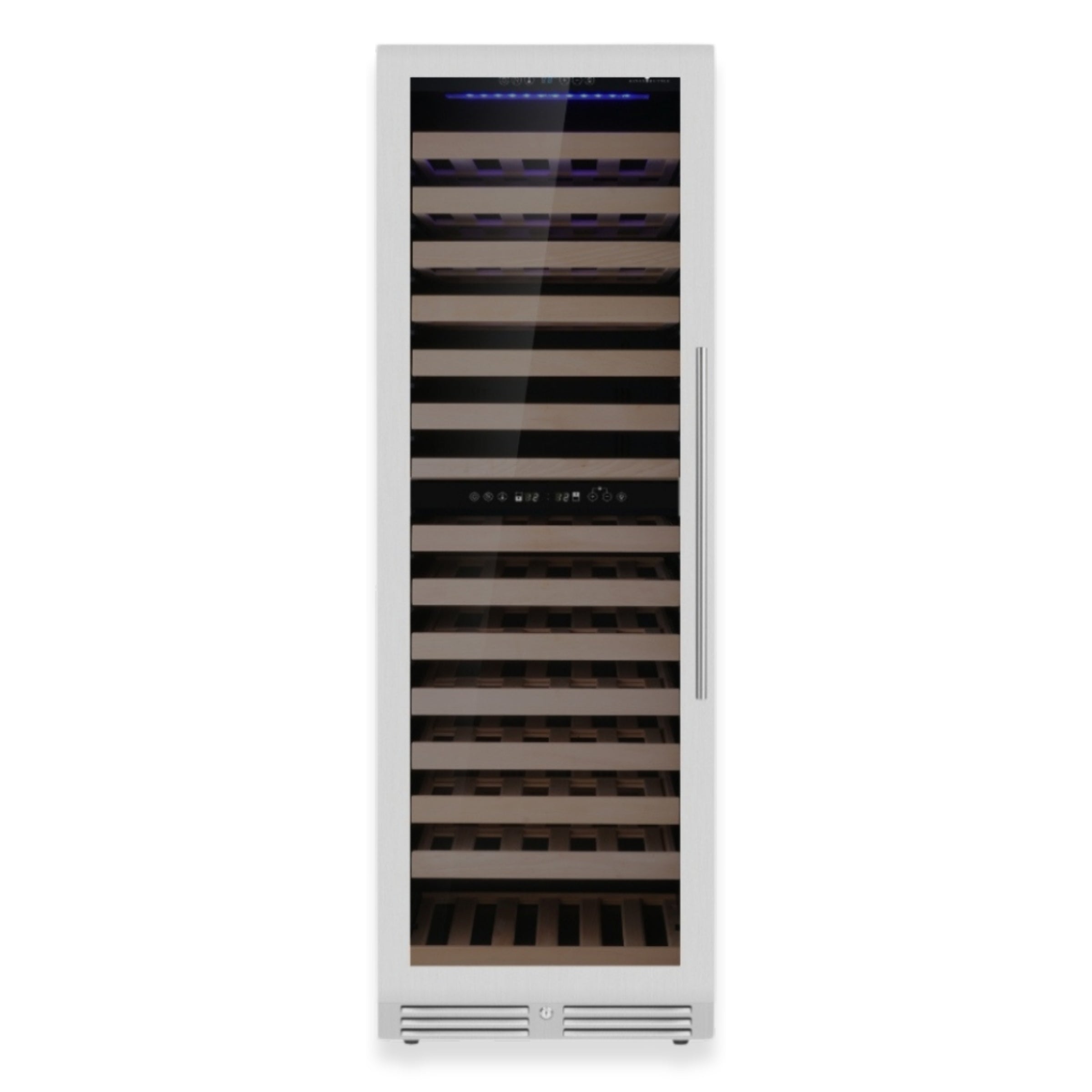

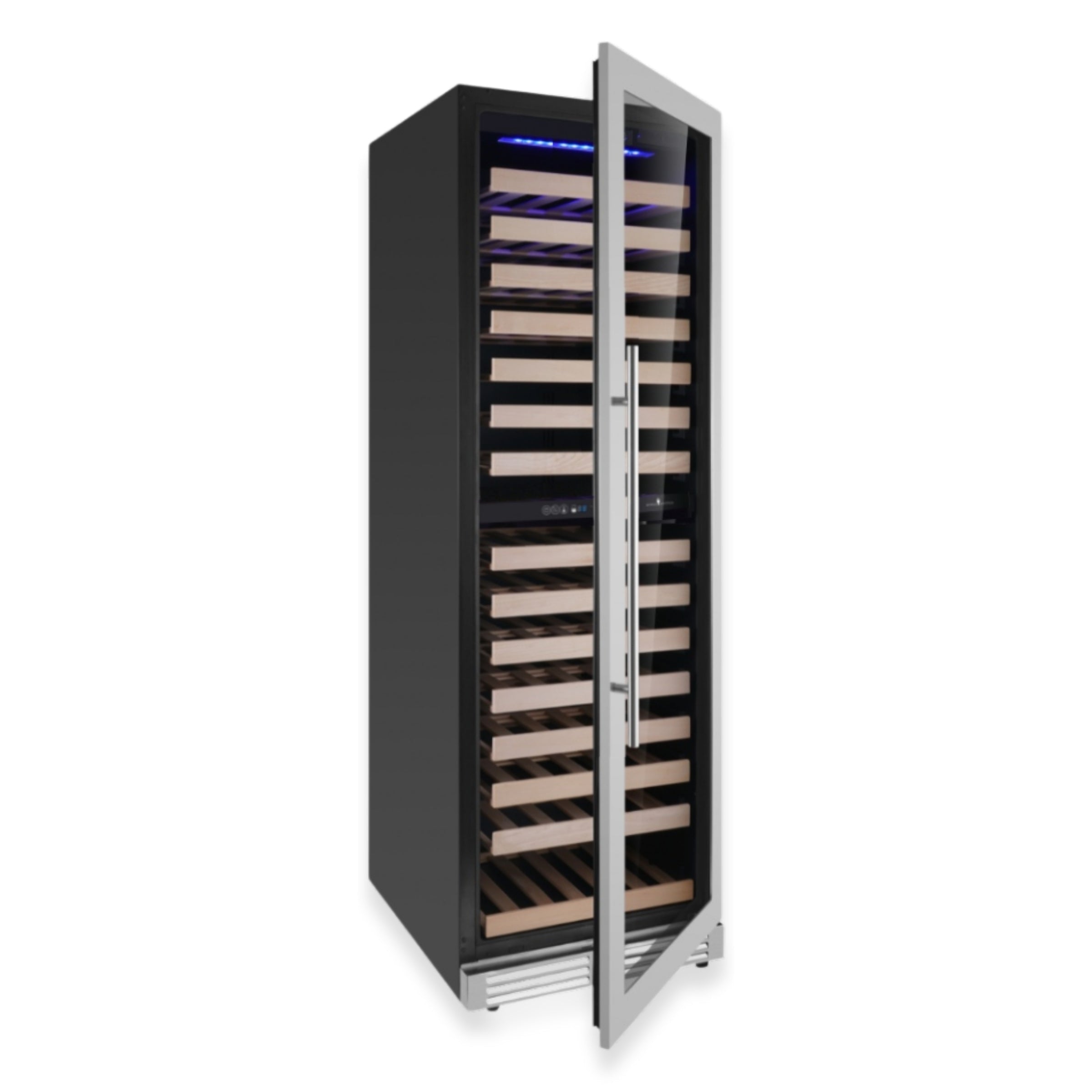

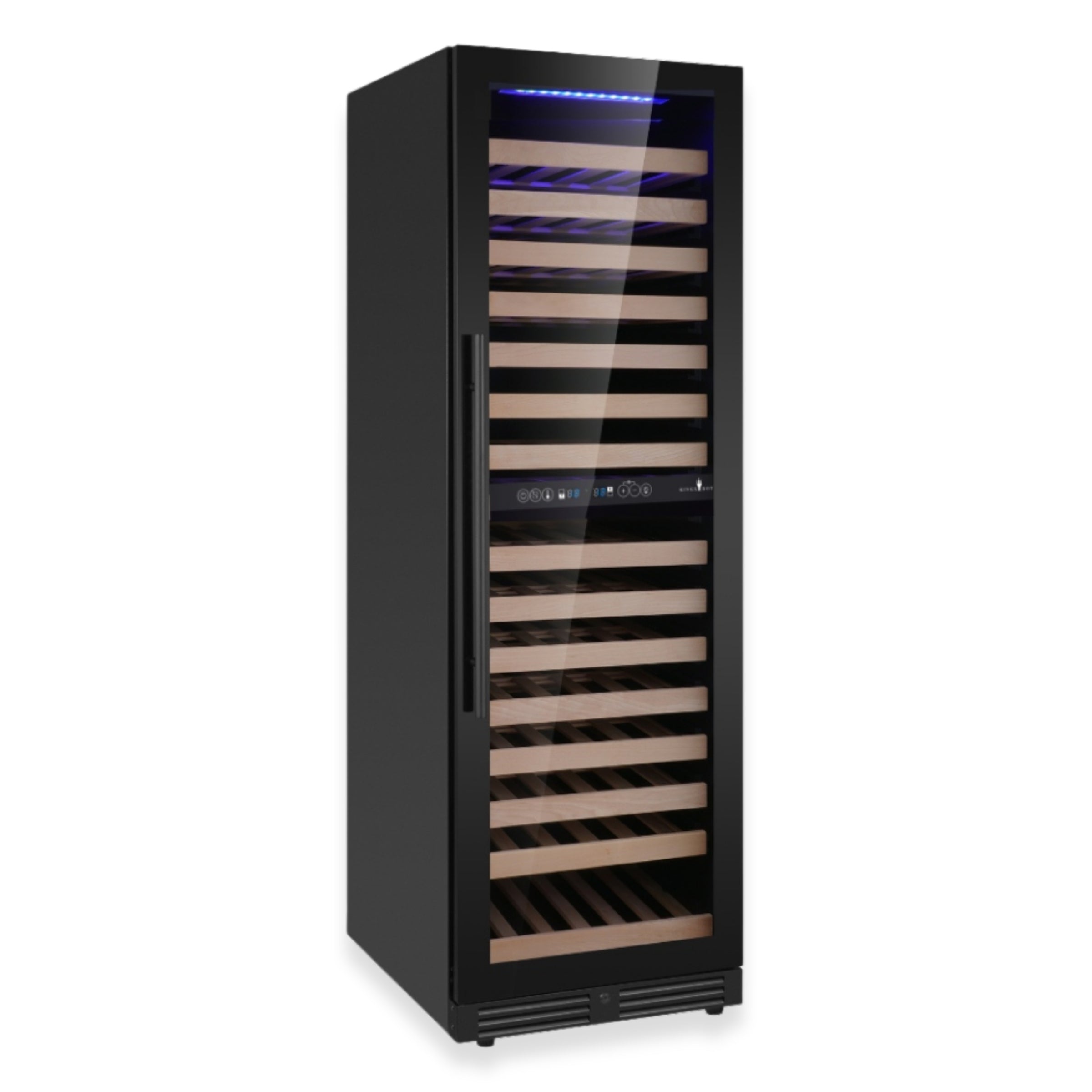

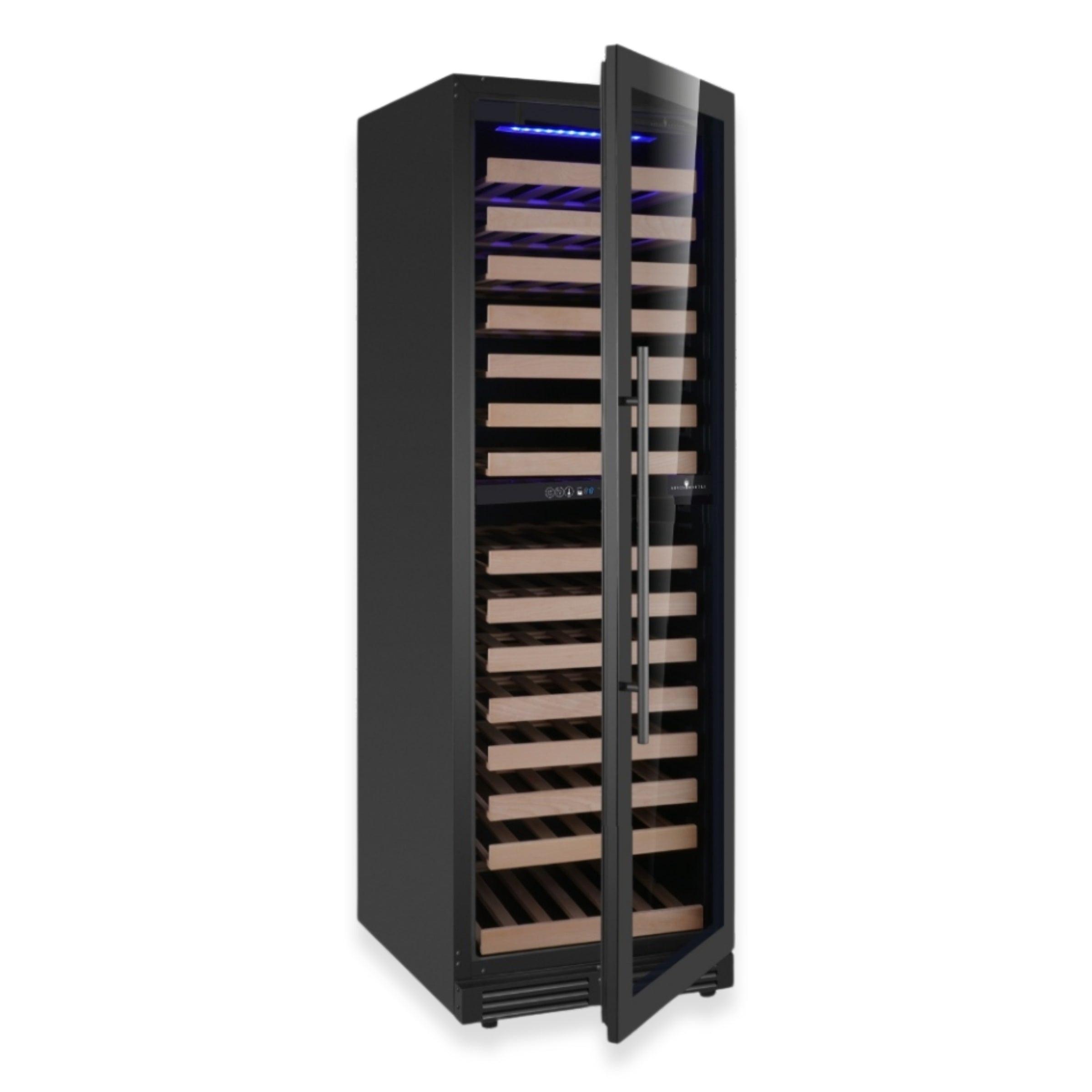

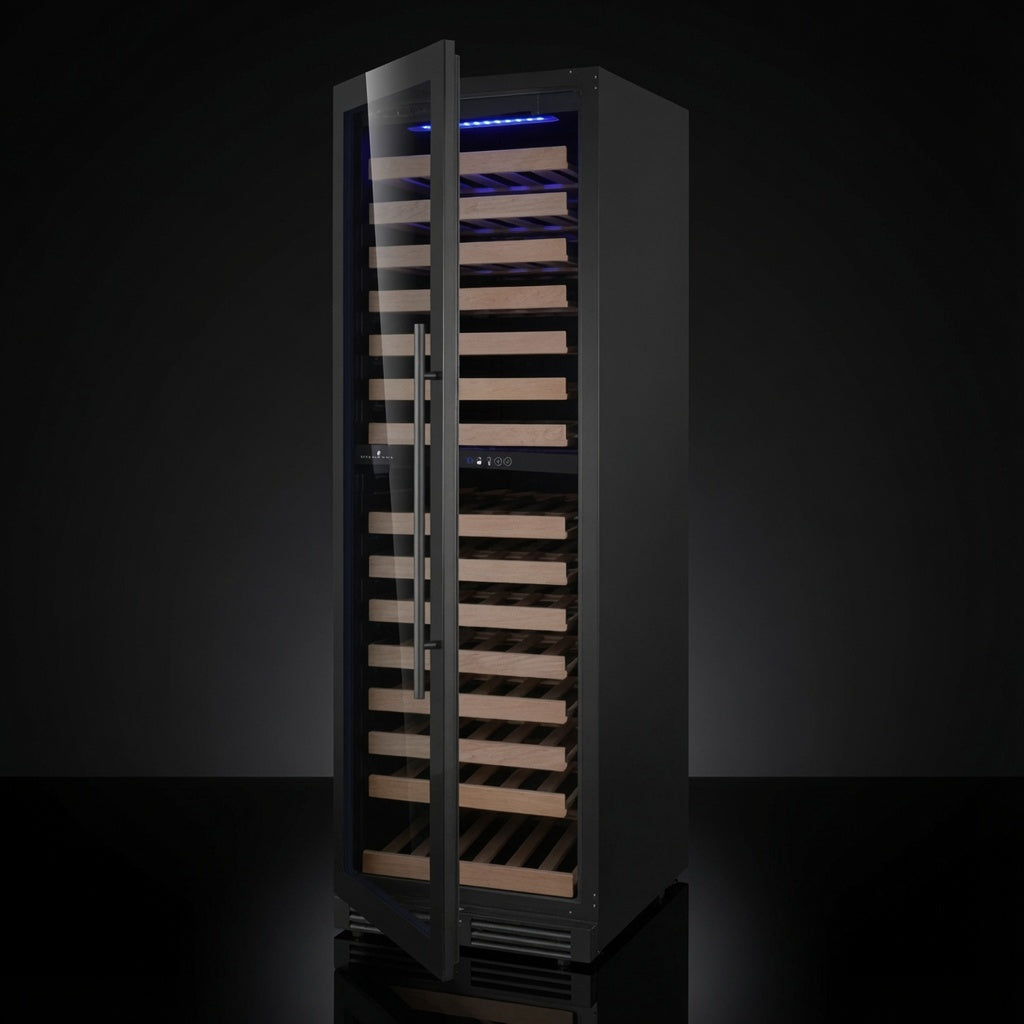

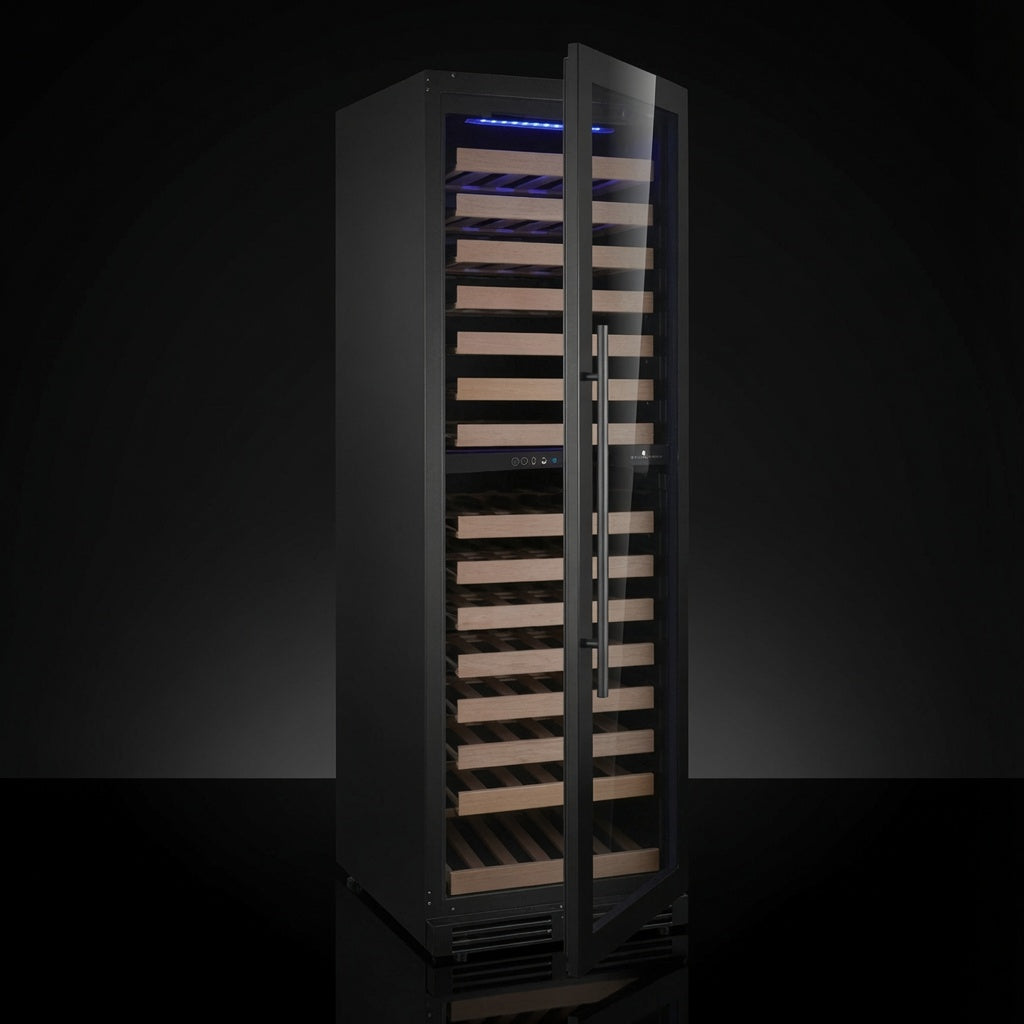

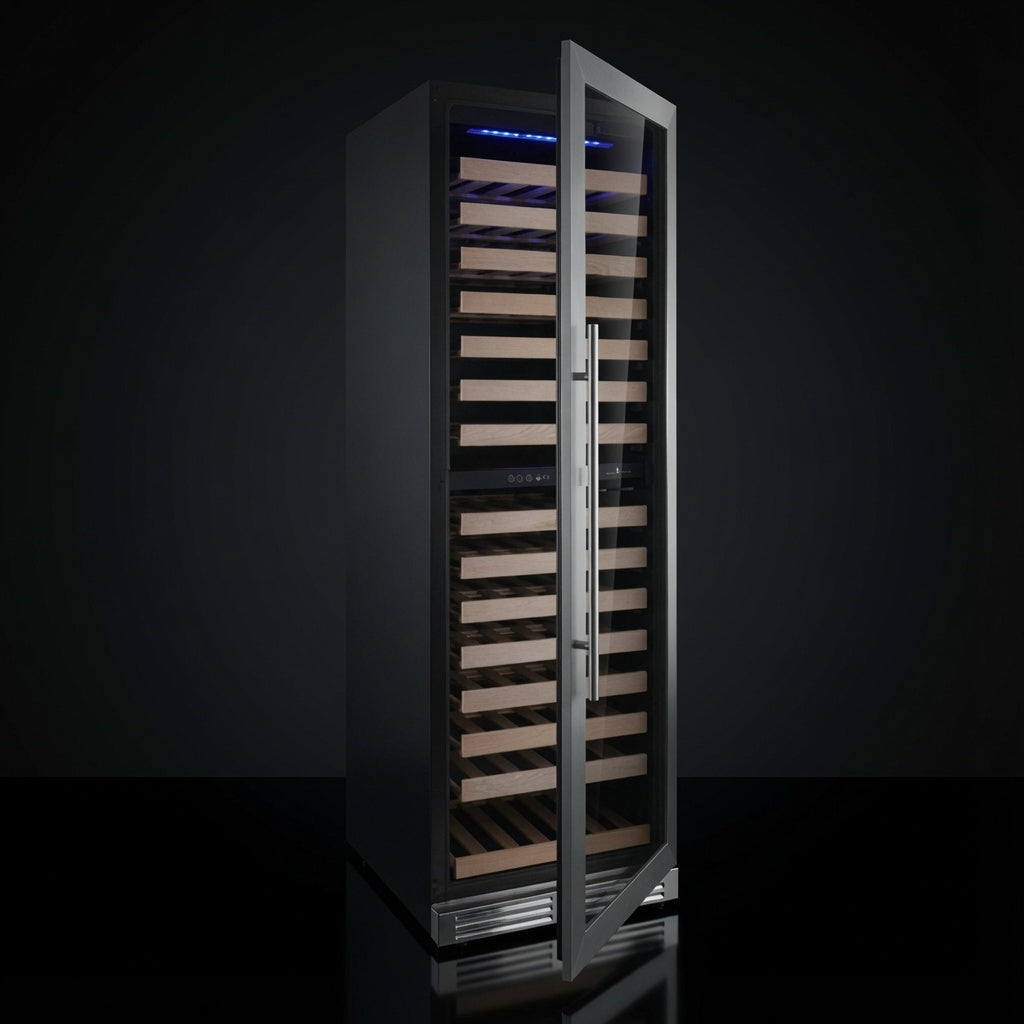

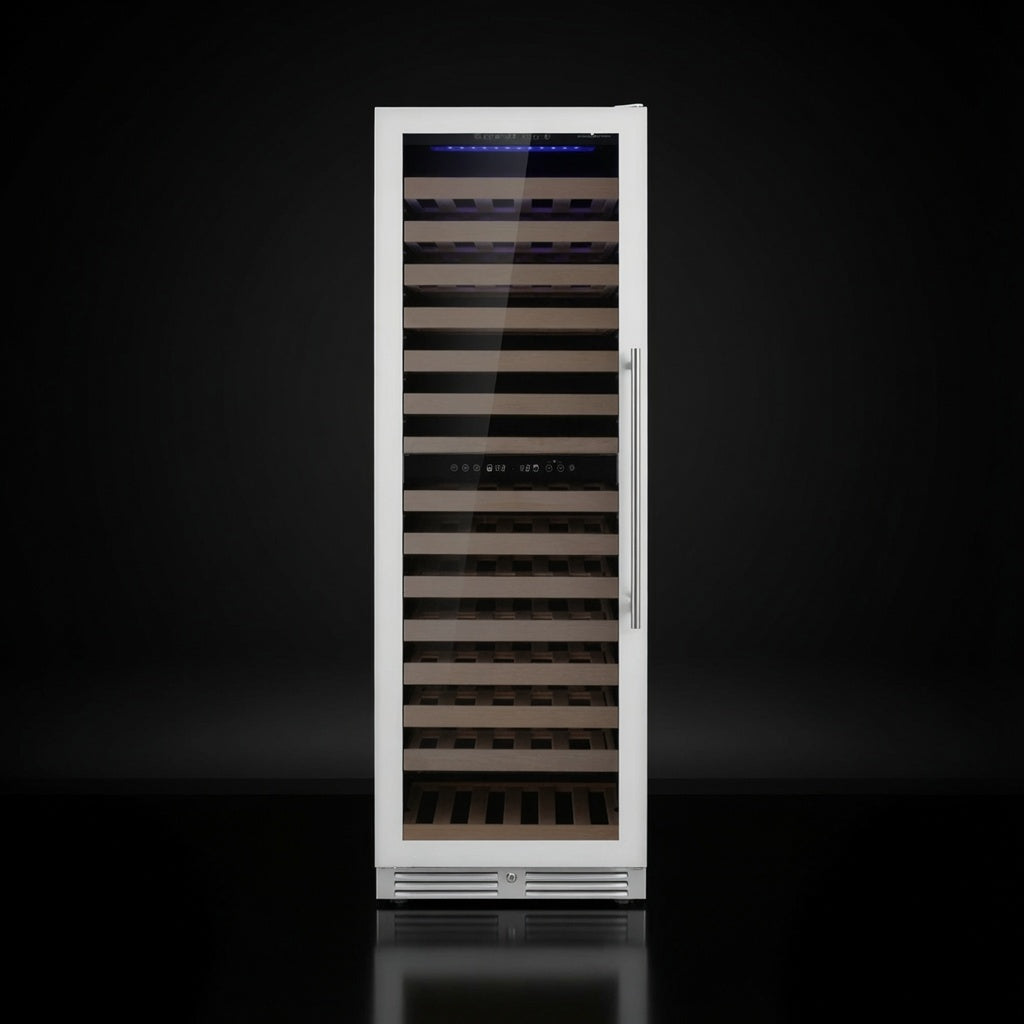

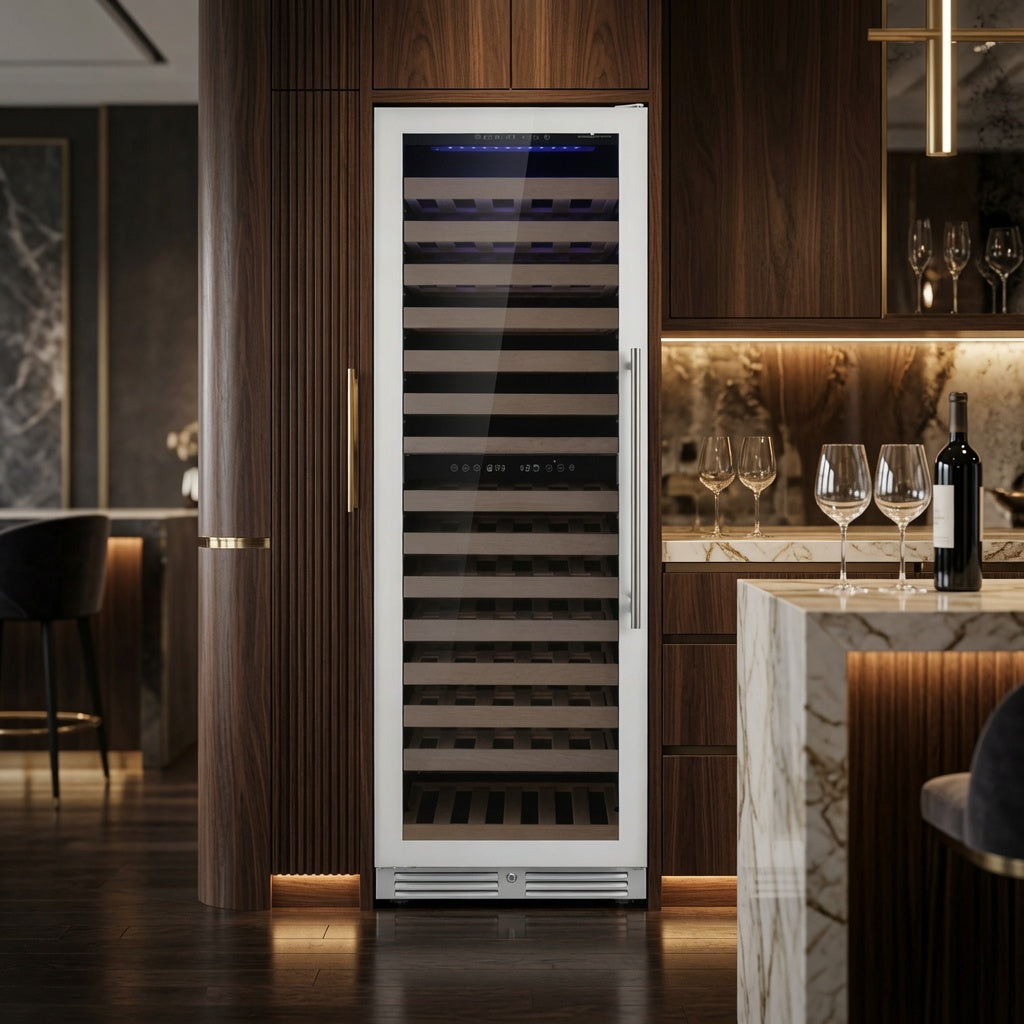

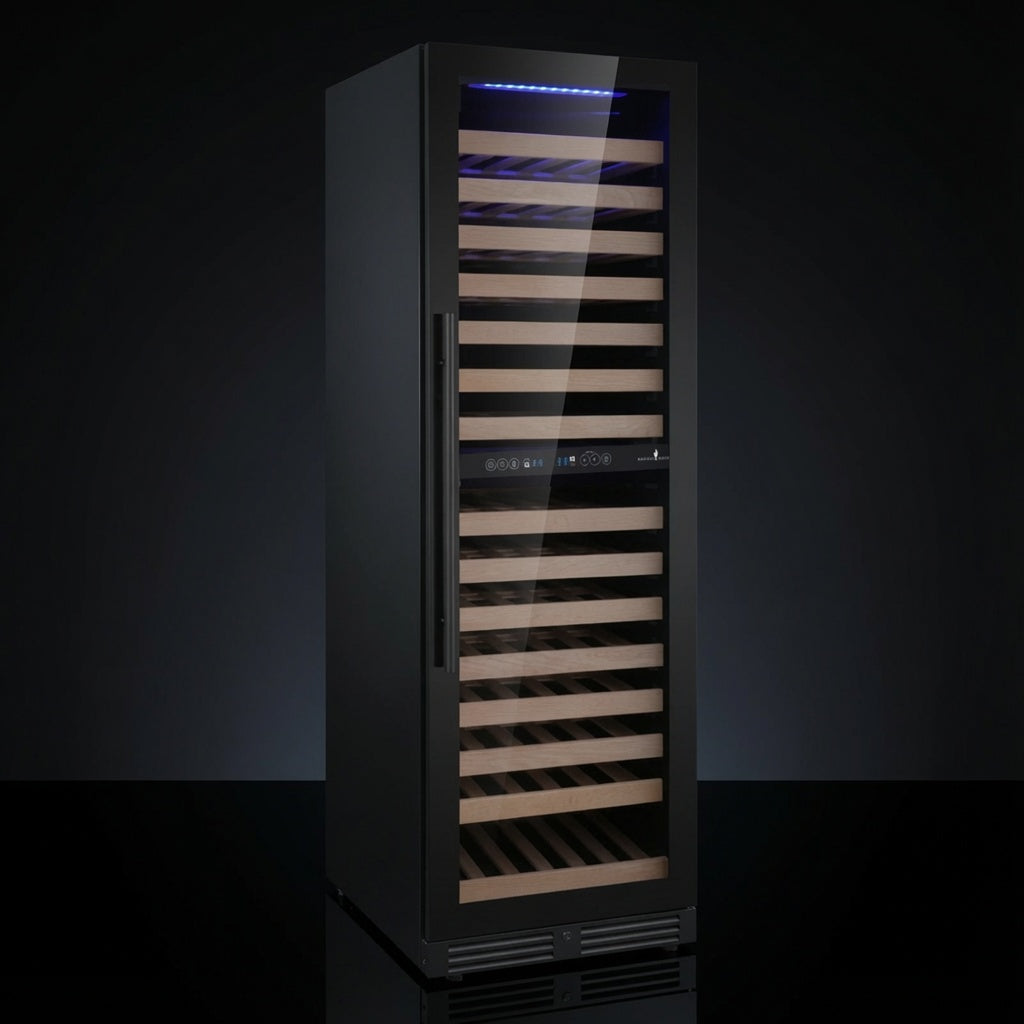

The Tall Dual Zone Upright Wine Cooler with Low-E Glass Door blends advanced cooling performance with a modern, streamlined design. Powered by the Embraco Inverter Compressor, it delivers quieter operation, greater efficiency, and up to 40% reduced energy consumption. The Low-E glass door enhances UV protection while minimizing condensation, helping maintain the integrity and flavor of your wine collection.
Dual-zone cooling allows you to store both reds and whites at their ideal temperatures, with independent temperature control for each zone. The spacious upright design provides excellent visibility and easy access, making it an exceptional choice for dedicated collectors as well as modern home and commercial environments.
Combining premium construction with precise temperature management, this cooler is engineered to deliver reliable, long-term protection for your wine collection.
Why it stands out
Dual-zone flexibility
Independent dual-zone cooling lets you store reds and whites at their ideal serving or cellaring temperatures in the same cabinet, with separate control over the upper and lower zones.
159-bottle capacity
A generous 15.0 cu ft (425 L) interior holds up to 159 bottles, making this upright cooler ideal for serious collectors, entertainers, and wine-focused spaces.
Efficient inverter cooling
The Embraco Inverter Compressor provides stable performance with super-quiet operation and up to 40% lower energy consumption than traditional compressor systems.
Low-E glass & beech shelves
A Low-E glass door helps protect your wine from UV and temperature fluctuations, while 15 beech wooden shelves provide full-extension access and bottle-friendly support.
Create a full beverage and wine center:
Pair this model with our
Large Beverage Refrigerator
to build a coordinated, high-end wine and beer storage setup.
Specifications
Key Specifications
| Volume | 15.00 CF (425 Liters) |
|---|---|
| Capacity (bottles) | 159 bottles |
| Installation Type | Built-in or freestanding |
| Climate Type | N |
| Temperature Zones | Dual zone |
| Upper Zone Temperature Range | 35°F to 54°F (2°C to 12°C) |
| Lower Zone Temperature Range | 54°F to 68°F (12°C to 20°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 15 beech wooden shelves |
| Dimensions | 23.42” W x 27.36” D x 70.86” H (includes 0.59” stand height) |
| Compressor | Embraco Inverter Compressor |
| Defrost Type | Automatic defrost |
| Power Supply | 110–115V / 60Hz |
| Rated Power Input | 165 W |
| Rated Current | 1.7 A |
| Refrigerant | R600a / 52 g |
| Energy Consumption | 0.63 kWh / 24 h |
Technical Features
Inverter compressor
Top-brand Embraco Inverter Compressor delivers super-quiet operation while reducing energy consumption by up to 40% compared to traditional compressor systems.
Patented sink of compressor
Increases air circulation space around the compressor, providing better cooling performance, less vibration, and reduced noise.
Low-E glass
Low-E glass reduces energy consumption and condensation on the glass door, acting as an invisible insulating barrier to help maintain stable internal temperatures.
Note: Low-E Glass features a thin coating that reduces heat transfer and condensation, enhancing energy efficiency and cooling performance.
Fan circulated air-cooling system
A fan-circulated air-cooling system helps ensure temperature uniformity throughout the cabinet and compensates for air humidity to protect your wine.
Activated carbon filter
An activated carbon filter effectively removes impurities in the air, helping keep the interior environment fresh and odor-free over long-term storage.

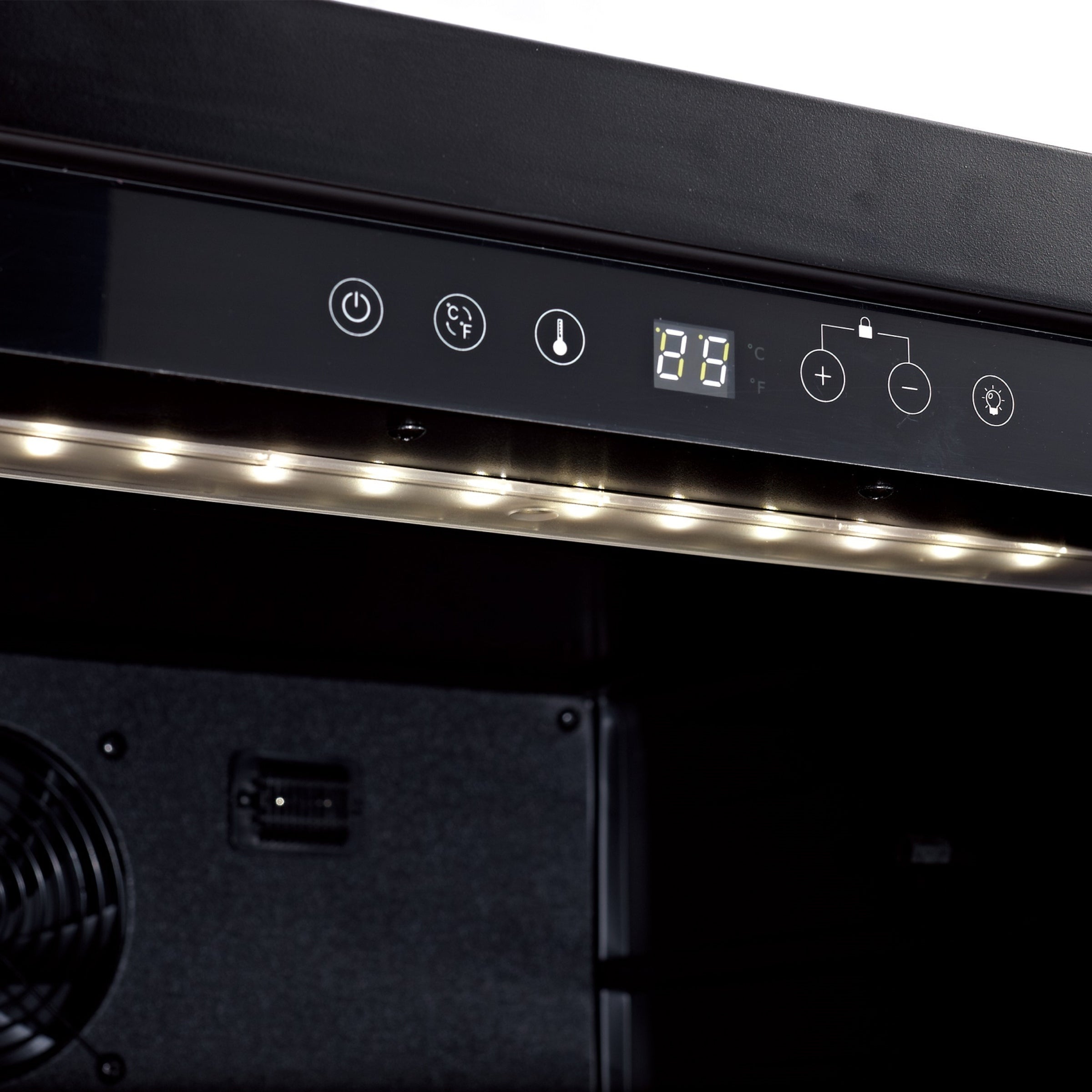

LED display digital touchpad control
Simple, easy-to-operate digital touch controls offer clear, accurate temperature settings and quick adjustments for each zone at a glance.

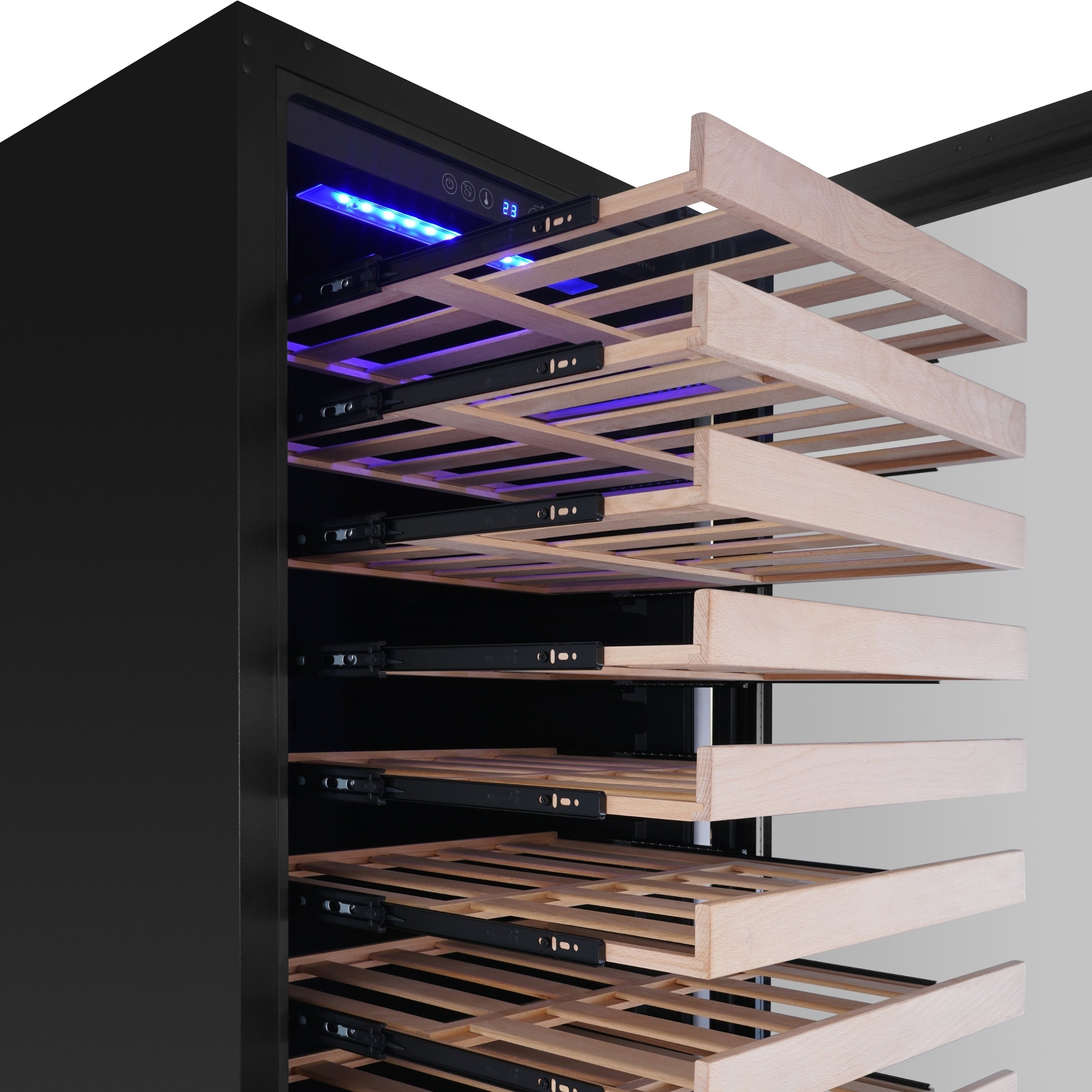

Beech wooden shelves

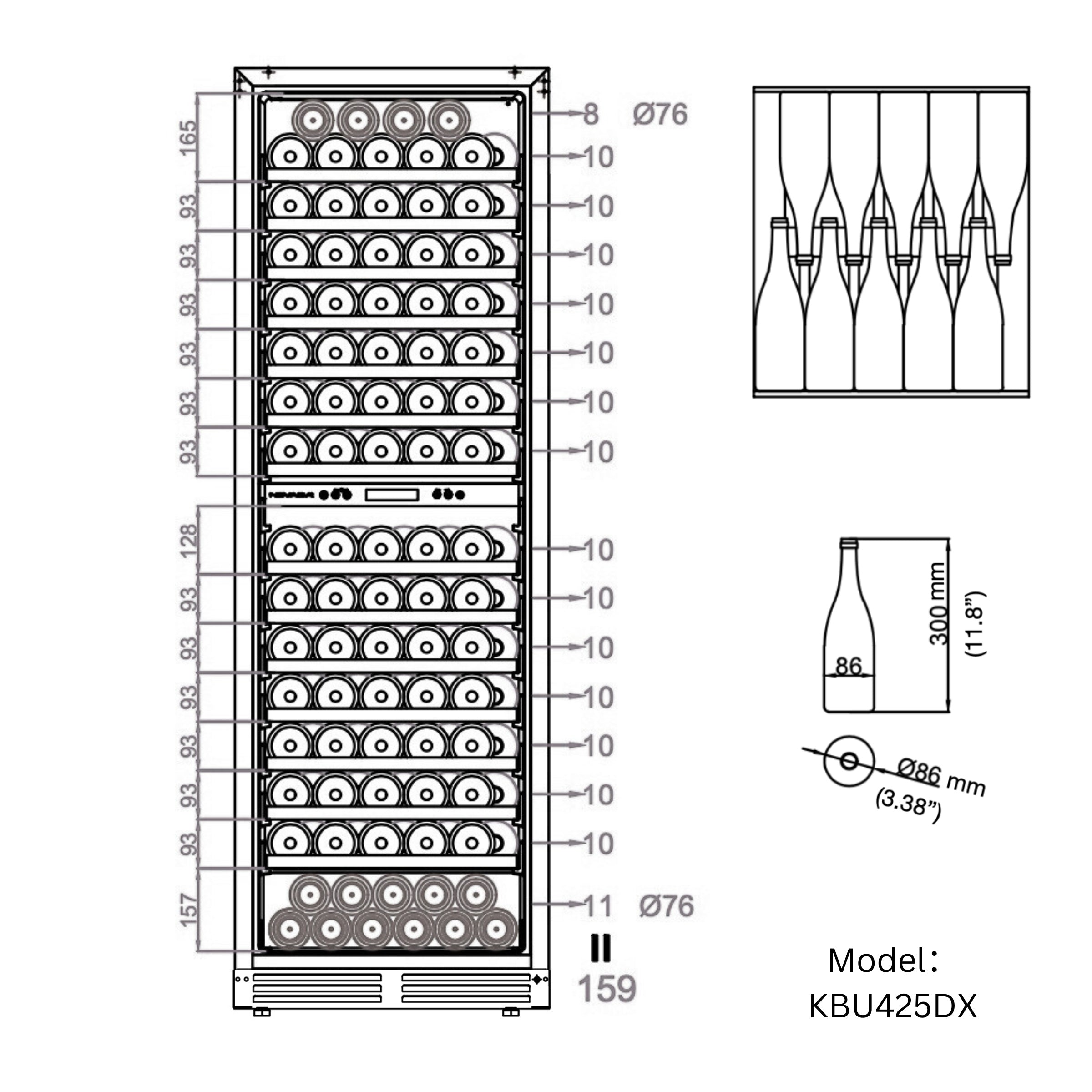

Optimized full-extension pull-out wood shelves, crafted from sturdy and wine-friendly beech, are cleverly spaced to fit both regular and larger bottles up to 3.39" (86 mm) in diameter.
Magnetic switch
An integrated magnetic switch supports a 2-minute door-open alarm to help protect temperature stability and your collection.
Hidden door hinge
Laminated steel plate with integrated molding supports a full built-in design for seamless integration into cabinetry and a clean, modern appearance.

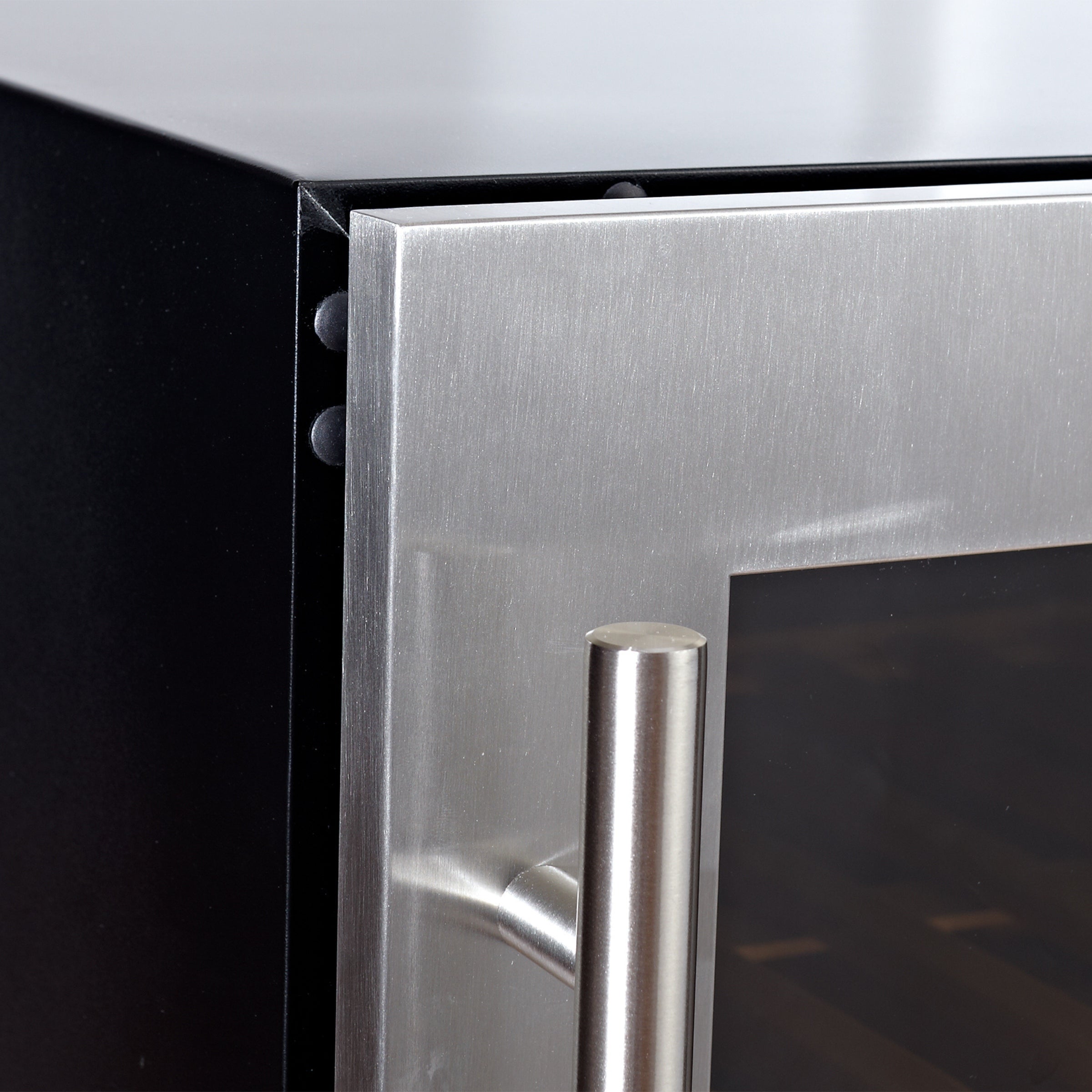

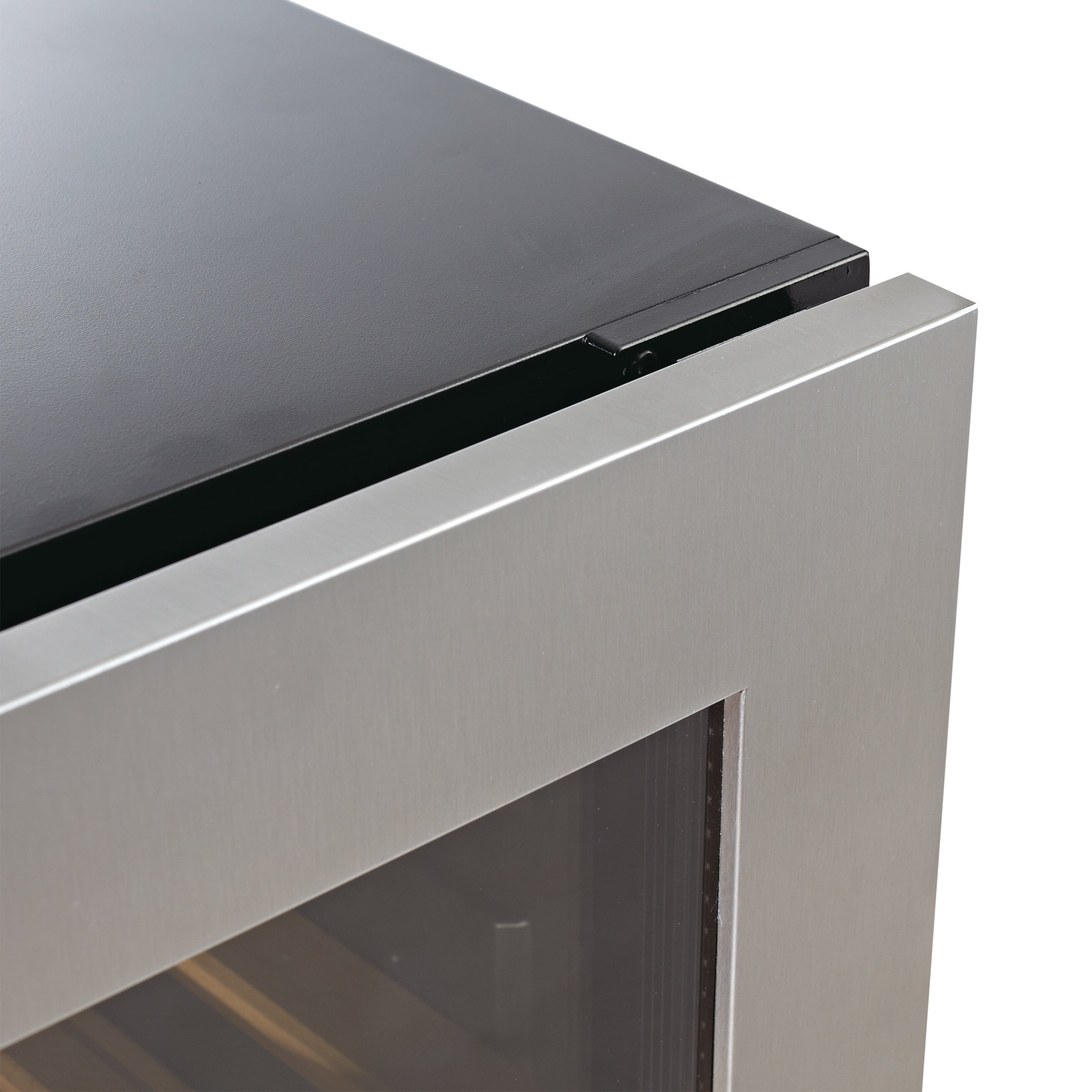

Seamless stainless steel door frame
A seamless stainless steel door frame with a thin-door profile provides an artistic, high-end aesthetic that complements modern interiors.
45mm thickness C-Pantane foaming
45 mm thick C-Pantane foam insulation optimizes cooling performance and helps reduce overall energy consumption.
Dimensions & Diagrams

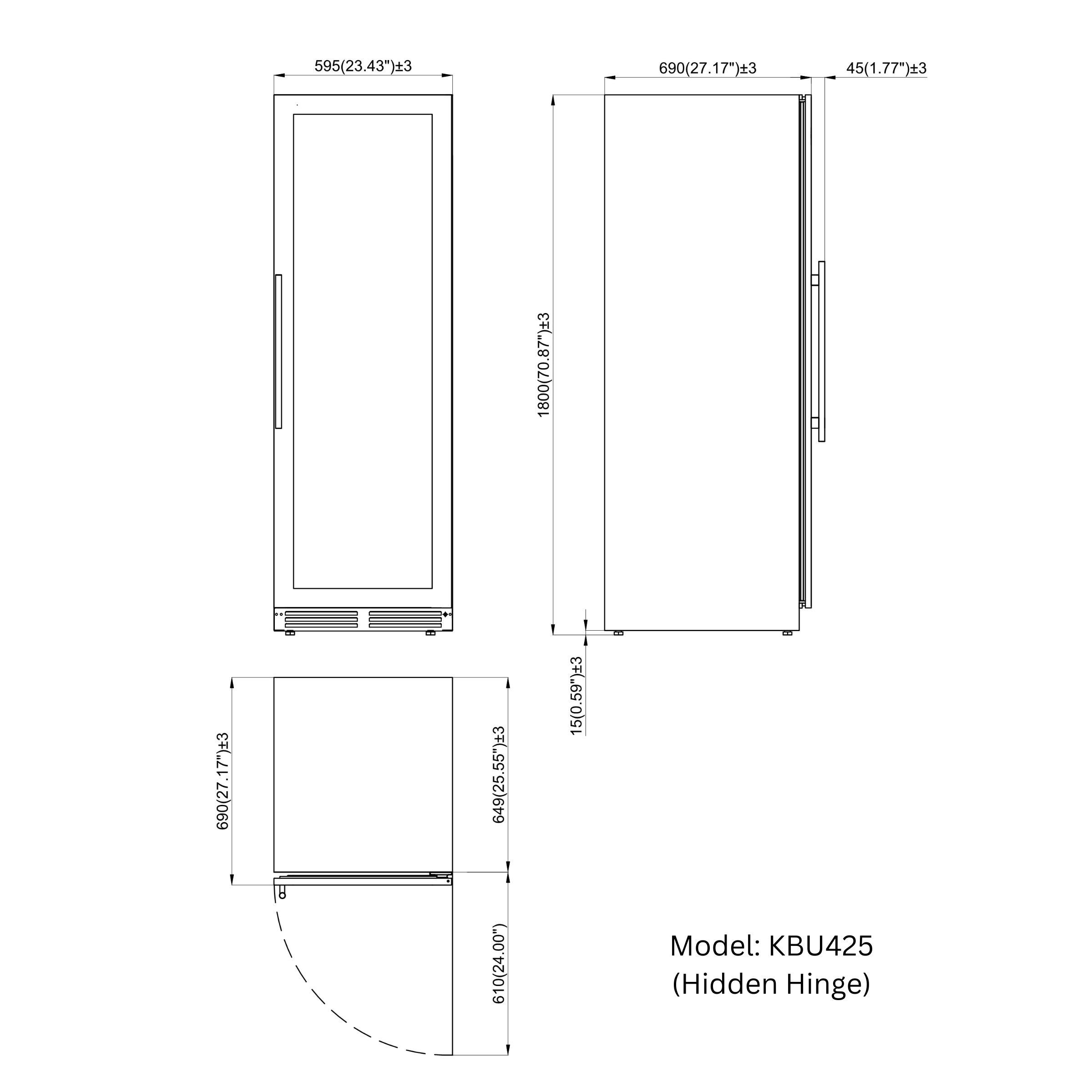

Technical dimensions
Use the technical dimensions diagram to confirm the footprint, clearances, and door swing before installation.

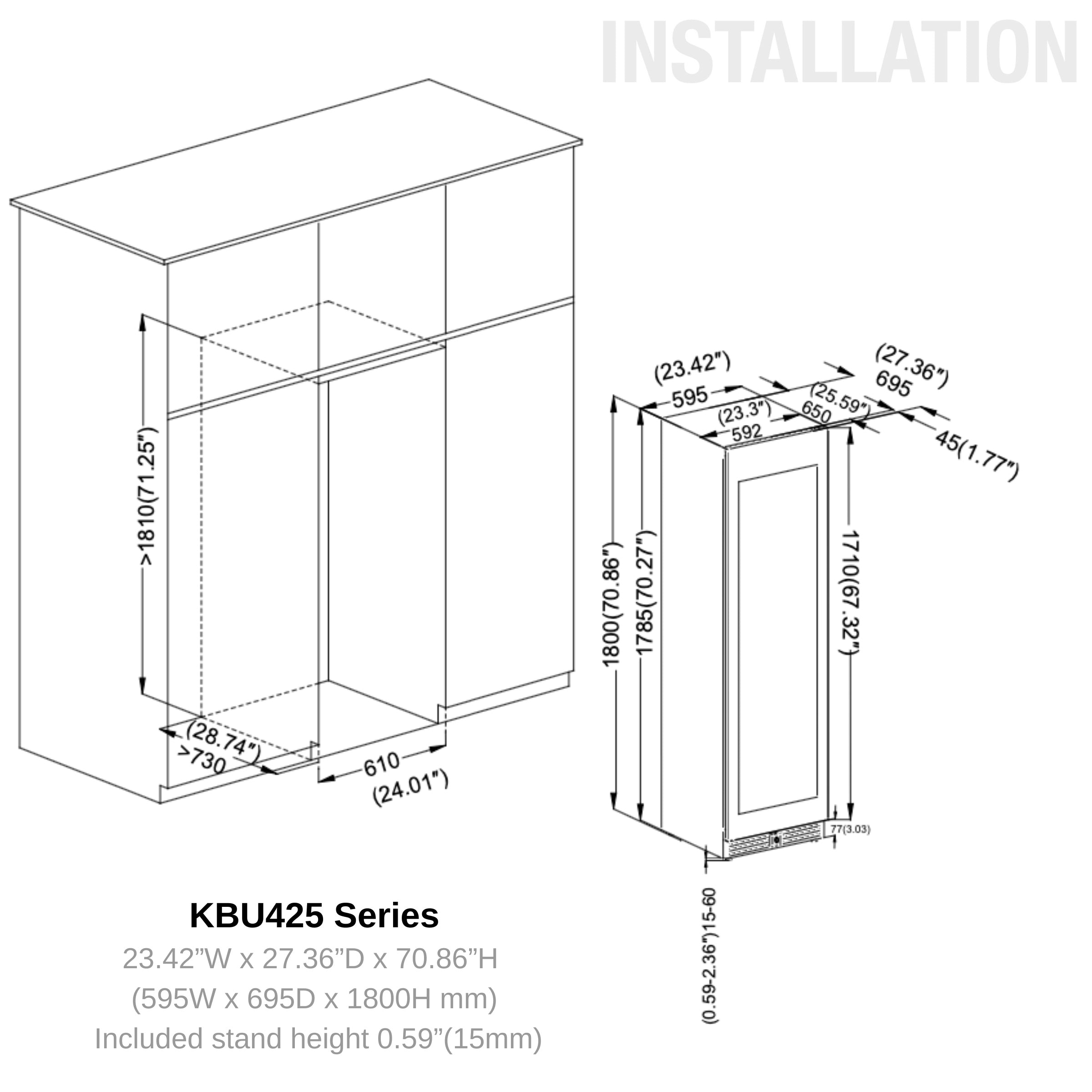

Installation diagrams
Reference the cutout and power plug diagrams when planning cabinetry, electrical location, and ventilation requirements.
Product Manual
Download & view the full manual
Review the complete user manual for detailed installation instructions, operating guidelines, and maintenance information.
Frequently Asked Questions
This tall dual zone upright wine cooler has a capacity of up to 159 bottles, depending on bottle shape and how the shelves are loaded.
The upper zone can be set between 35°F and 54°F (2°C to 12°C), while the lower zone ranges from 54°F to 68°F (12°C to 20°C), allowing you to store whites, sparkling wines, and reds at appropriate temperatures.

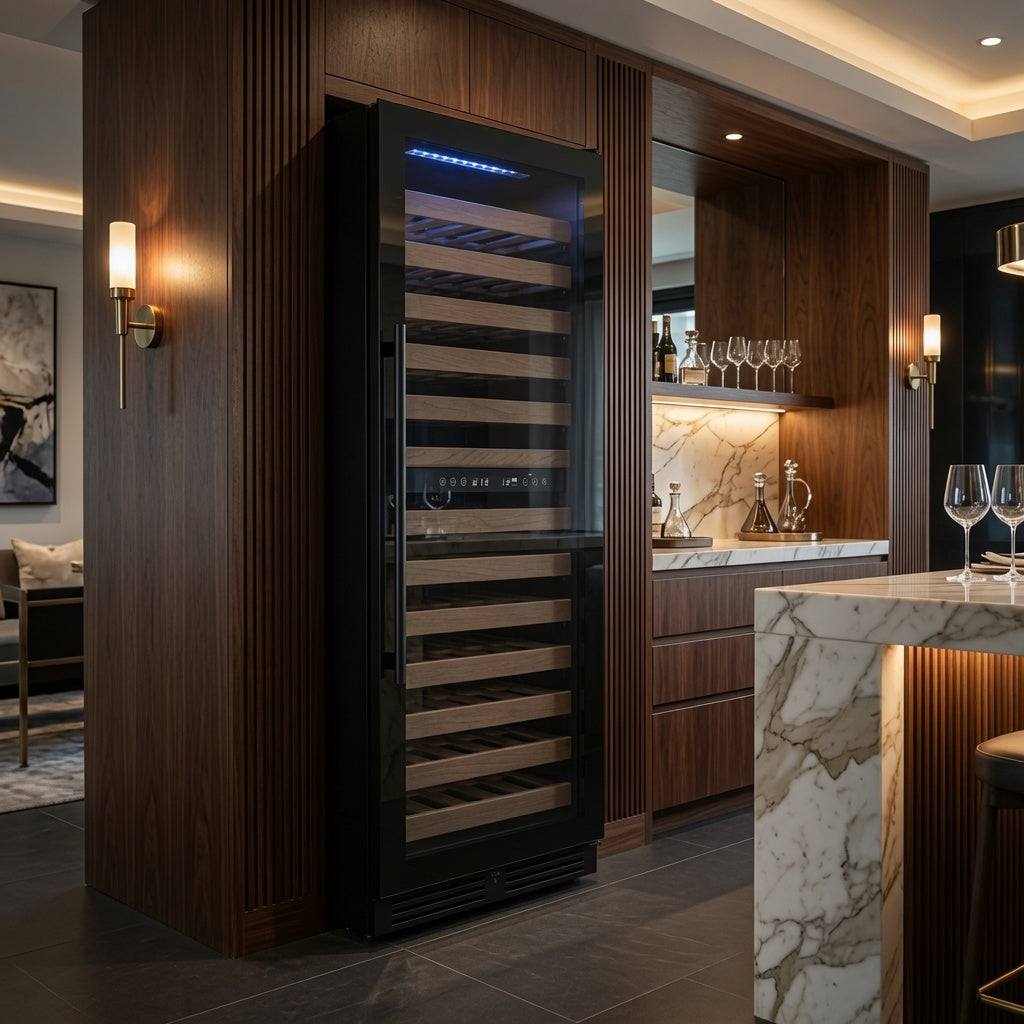

Yes. It is designed for built-in or freestanding installation, so you can integrate it into cabinetry or use it as a standalone feature in a bar or entertainment area.
With dual-zone control, Low-E glass, activated carbon filtration, and stable cooling from the inverter compressor and 45 mm C-Pantane insulation, this unit is well-suited for both long-term cellaring and serving-temperature storage for a wide range of wines.
The inverter compressor, fan-circulated air-cooling system, Low-E glass door, and thick C-Pantane foam insulation all work together to support stable temperatures and efficient, quiet performance.
