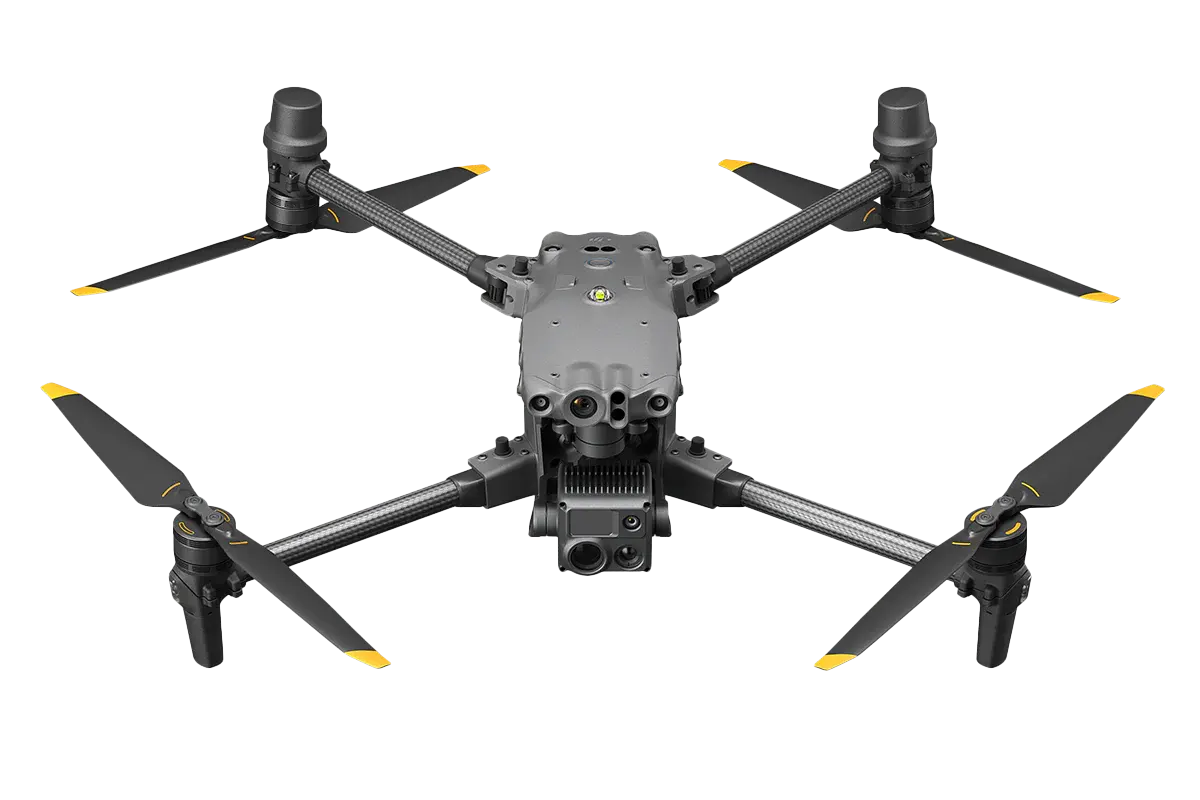

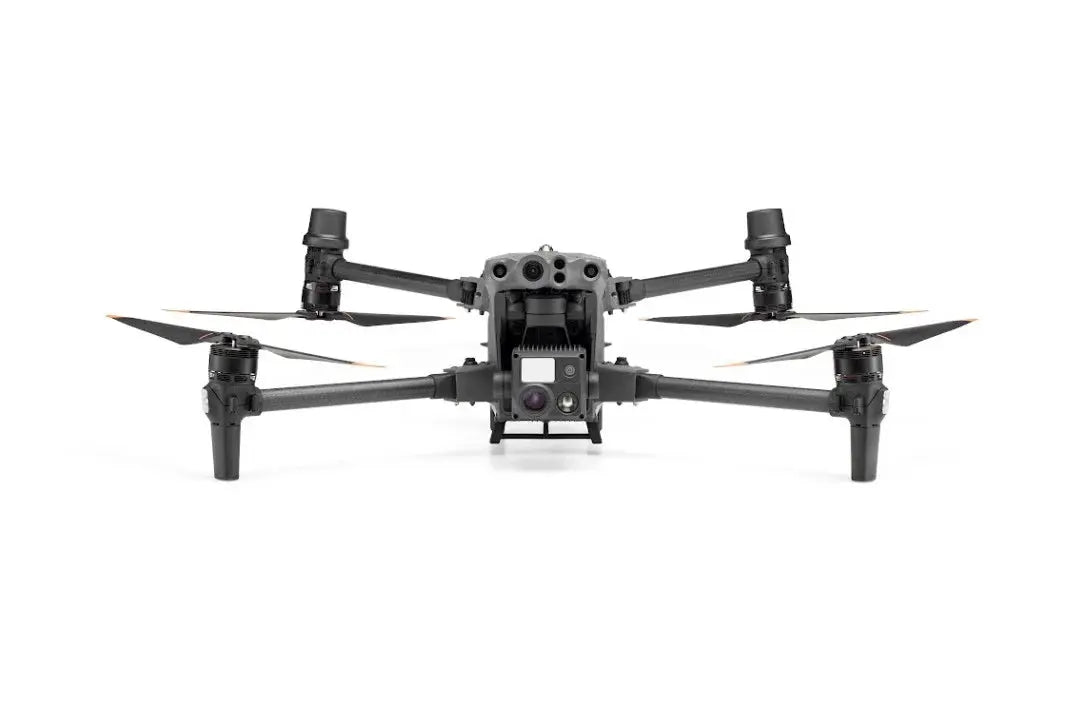

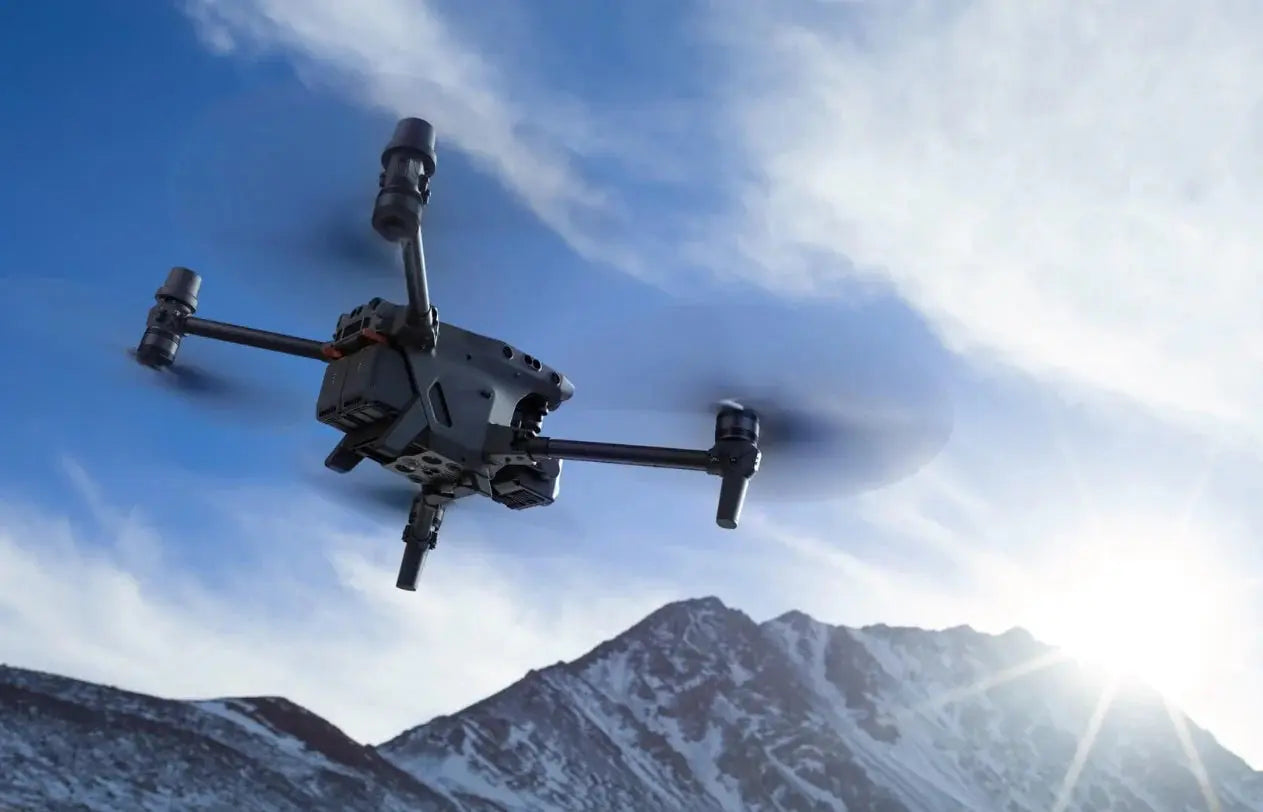

The DJI Matrice 30T Combo is a flagship, weather-resistant enterprise drone engineered for demanding field operations. Compact enough to fit in a backpack yet powerful enough for mission-critical work, the M30T integrates a wide camera, zoom camera, thermal camera, and laser rangefinder into a single, highly capable payload.
Controlled with the DJI RC Plus and running the upgraded DJI Pilot 2 software, the Matrice 30T delivers a refined flight experience, intelligent mission tools, and excellent data capture in all conditions. Its integrated 40 mm, 640×512 @ 30 fps thermal camera offers temperature measurement accuracy of ±2°C or ±2%, making it a proven solution for inspections, public safety, and emergency response.
Key Features

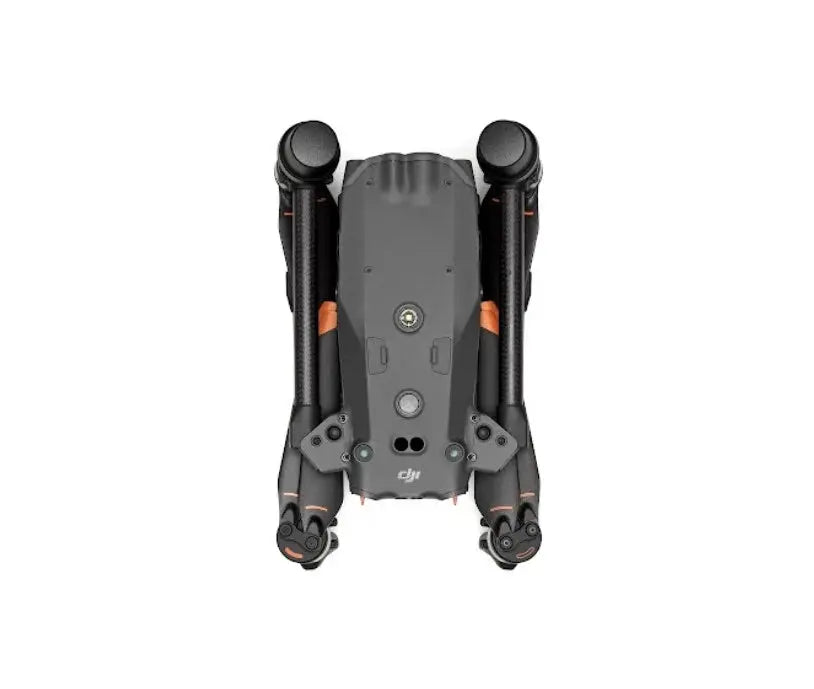

- Rugged, portable platform – weather-resistant (IP55-rated) airframe that folds for easy transport.
- Integrated multi-sensor payload – wide, zoom, thermal, and laser rangefinder combined in one gimbal.
- High-resolution zoom – 48 MP zoom camera with 21–75 mm focal range (113–405 mm equivalent).
- Thermal imaging – 640×512 thermal sensor with ±2°C or ±2% temperature measurement accuracy.
- Accurate ranging – laser rangefinder with a measuring range up to 1,200 m.
- Enterprise transmission – O3 Enterprise with up to 15 km transmission (FCC, unobstructed, low interference).
- All-weather readiness – operates from -20°C to 50°C (-4°F to 122°F) with strong wind resistance.
- Intelligent power system – dual hot-swappable TB30 batteries and BS30 intelligent battery station.
- RC Plus smart controller – 7.02" 1200-nit high-brightness screen for daytime visibility.
Professional Applications
The DJI Matrice 30T is built for teams that require reliable, high-quality aerial data in complex, real-world environments.
Public Safety & Emergency Response
- Search and rescue missions using thermal imaging to locate missing persons in low-visibility conditions.
- Fireground assessment with precise hotspot detection and temperature measurement.
- Law enforcement operations that benefit from long-range zoom, stable FPV, and strong transmission reliability.
Industrial & Utility Inspections
- Powerline, substation, and tower inspections using the zoom camera and laser rangefinder for standoff work.
- Thermal anomaly detection on solar panels, pipelines, or mechanical assets.
- Routine asset inspection and documentation in harsh or remote environments.
Infrastructure & Construction
- Bridge, structure, and façade assessments with stable hover and precise positioning.
- Construction progress documentation and site awareness with wide and zoom imaging.
- Operations in challenging conditions where weather resistance and portability are critical.
Specifications
The Matrice 30T combines compact form factor with serious enterprise-grade performance and durability.
Aircraft
- Takeoff Weight (with 2× TB30 batteries): 3770 ± 10 g
- Max Takeoff Weight: 4000 g
- Dimensions: Unfolded: 470 × 585 × 215 mm; Folded: 365 × 215 × 195 mm
- Diagonal Wheelbase: 668 mm
- Max Horizontal Speed: 23 m/s
- Max Ascent / Descent Speed: 6 m/s (ascent), 5 m/s (descent), 7 m/s tilt descent
- Max Service Ceiling: 5000 m (with 1671 propellers); 7000 m (with 1676 high-altitude propellers)
- Max Wind Resistance: 15 m/s (12 m/s during takeoff and landing)
- Max Hover Time: Approx. 36 minutes
- Max Flight Time: Approx. 41 minutes (lab conditions, no wind)
- Ingress Protection Rating: IP55
- GNSS: GPS + Galileo + BeiDou + GLONASS (GLONASS with RTK enabled)
- Operating Temperature: -20°C to 50°C (-4°F to 122°F)
- Hover Accuracy (Vision / GPS / RTK): Vertical: ±0.1 m / ±0.5 m / ±0.1 m; Horizontal: ±0.3 m / ±1.5 m / ±0.1 m
Gimbal & Stabilization
- Gimbal Stabilization: 3-axis (pan, tilt, roll)
- Angular Vibration Range: ±0.01°
- Controllable Range: Pan ±90°; Tilt -120° to +45°
- Mechanical Range: Pan ±105°; Tilt -135° to +60°; Roll ±45°
Zoom Camera
- Sensor: 1/2" CMOS, 48 MP effective pixels
- Focal Length: 21–75 mm (equivalent 113–405 mm)
- Aperture: f/2.8–f/4.2
- Focus Range: 5 m to ∞
Wide Camera
- Sensor: 1/2" CMOS, 12 MP effective pixels
- DFOV: 84°
- Focal Length: 4.5 mm (equivalent 24 mm)
- Aperture: f/2.8
- Focus Range: 1 m to ∞
Thermal Camera
- Type: Uncooled VOx microbolometer
- DFOV: 64°
- Focal Length: 9.1 mm (equivalent 40 mm)
- Aperture: f/1.0
- Focus Range: 5 m to ∞
- Temperature Measurement Accuracy: ±2°C or ±2% (whichever is greater)
FPV Camera
- Resolution: 1920 × 1080
- DFOV: 161°
- Frame Rate: 30 fps
Laser Rangefinder
- Wavelength: 905 nm
- Max Laser Power: 3.5 mW
- Pulse Width: 6 ns
- Measurement Range: 3–1200 m (on suitable target with 20% reflectivity)
- Measurement Accuracy: ±(0.2 m + D×0.15%), where D is distance to target
Obstacle Sensing & Vision
- Obstacle Sensing Range: Forward: 0.6–38 m; Up/Down/Back/Side: 0.5–33 m
- Vision FOV: 65° (horizontal), 50° (vertical)
- Infrared Sensing Range: 0.1–10 m (30° FOV)
- Operating Environment: Surfaces with clear patterns and adequate lighting (>15 lux)
TB30 Intelligent Flight Batteries
- Capacity: 5880 mAh
- Voltage: 26.1 V (LiPo 6S)
- Energy: 131.6 Wh
- Weight: Approx. 685 g
- Operating Temperature: -20°C to 50°C (-4°F to 122°F)
- Storage Temperature: 20°C to 30°C (68°F to 86°F)
- Charging Temperature: -20°C to 40°C (-4°F to 104°F) with self-heating as needed
Remote Controller – DJI RC Plus
- Display: 7.02" LCD touchscreen, 1920 × 1200, 1200 nits brightness
- Ingress Protection: IP54
- Internal Battery: 6500 mAh @ 7.2 V
- External Battery: WB37 (4920 mAh @ 7.6 V)
- Operating Time: Approx. 3h 18m (internal only); up to ~6h (internal + external)
- Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Transmission & Connectivity
- Video Transmission System: O3 Enterprise
- Operating Frequencies: 2.4000–2.4835 GHz, 5.725–5.850 GHz (availability depends on region)
- Max Transmission Distance (unobstructed, FCC): up to 15 km
- Wi-Fi: Wi-Fi 6
- Bluetooth: Bluetooth 5.1
BS30 Intelligent Battery Station
- Dimensions: 353 × 267 × 148 mm
- Weight: Approx. 3.95 kg
- Compatible Batteries: TB30 Intelligent Flight Battery, WB37 Intelligent Battery
- Input: 100–240 VAC, 50/60 Hz
- Max Output Power: 525 W
- Charging Performance: Approx. 30 minutes from 20–90% (two TB30); approx. 50 minutes from 0–100%
- Ingress Protection: IP55 (with lid properly closed)

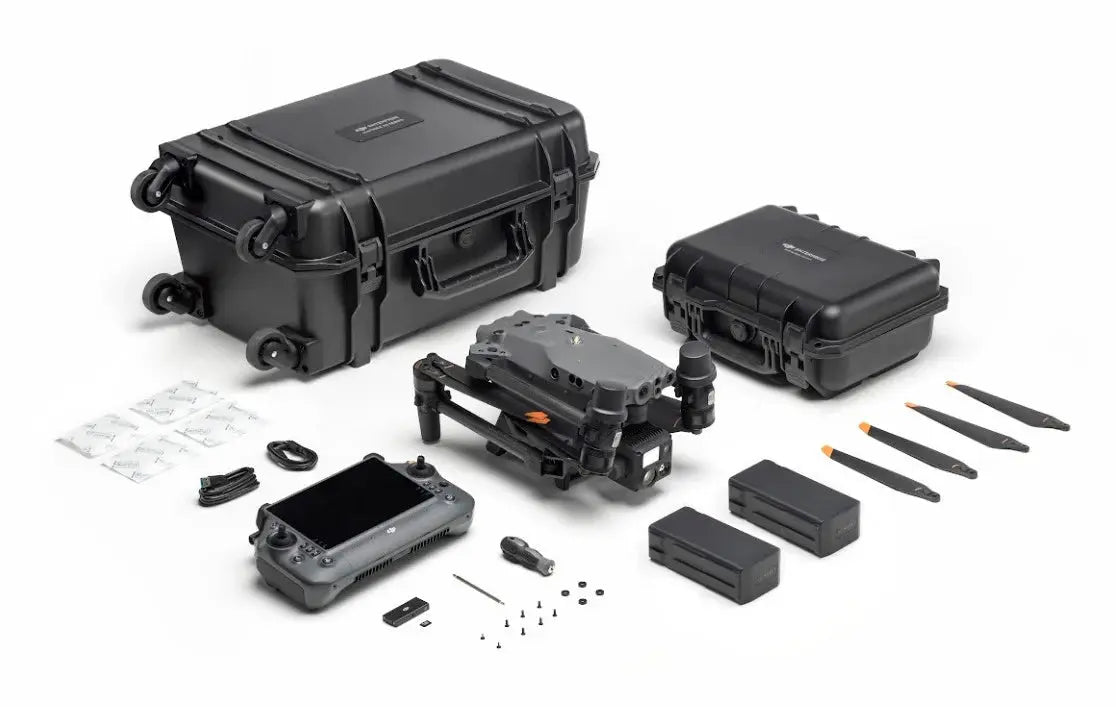

In the Box
- 1 × DJI Matrice 30T Aircraft
- 1 × DJI RC Plus Remote Controller
- 2 × TB30 Intelligent Flight Batteries
- 1 × BS30 Intelligent Battery Station
- 3 × Pairs of 1671 Propellers (two pairs installed, one spare pair)
- 1 × USB-C Cable
- 1 × USB-C to USB-C Cable
- 1 × Carrying Case
- 1 × Screws and Tools Set
