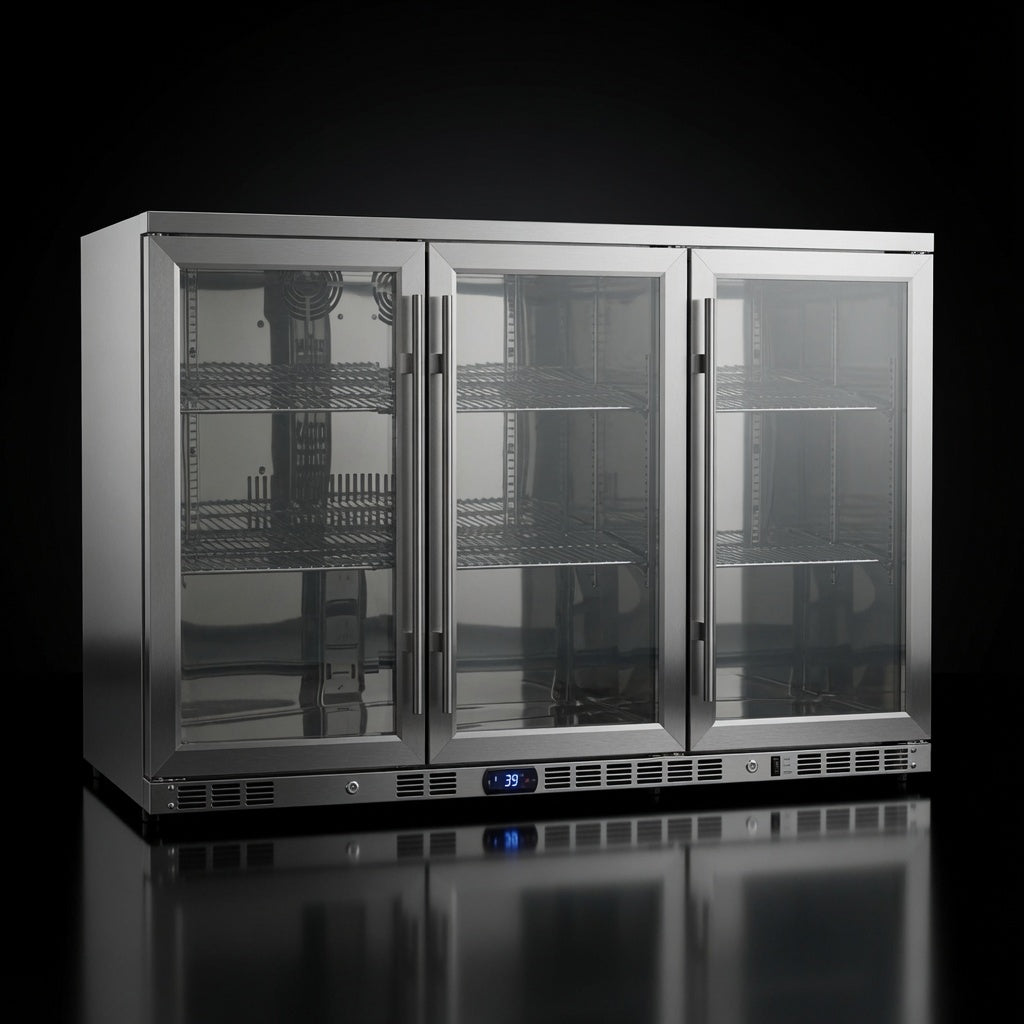

The 53-Inch 3-Door Heated Glass Undercounter Beverage Cooler blends modern design with advanced cooling performance, making it an exceptional choice for both residential and commercial use. Built with durable stainless steel, this unit features a highly efficient Carel Controller for precise temperature management and improved energy savings. Its Low-E heated glass doors minimize condensation to maintain a clear view of your beverages, with adjustable heating levels (Weak / Medium / Strong) to suit different environments.

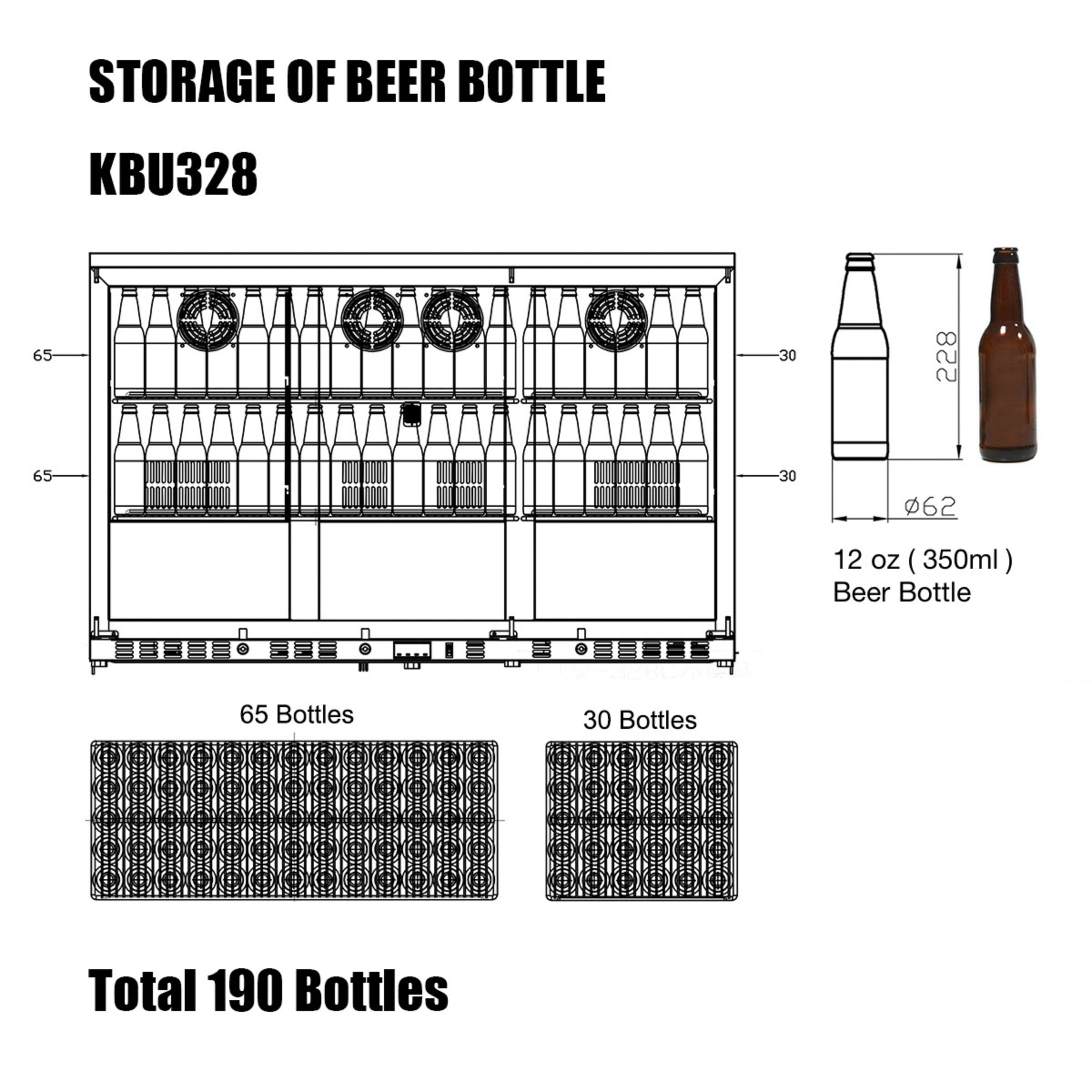

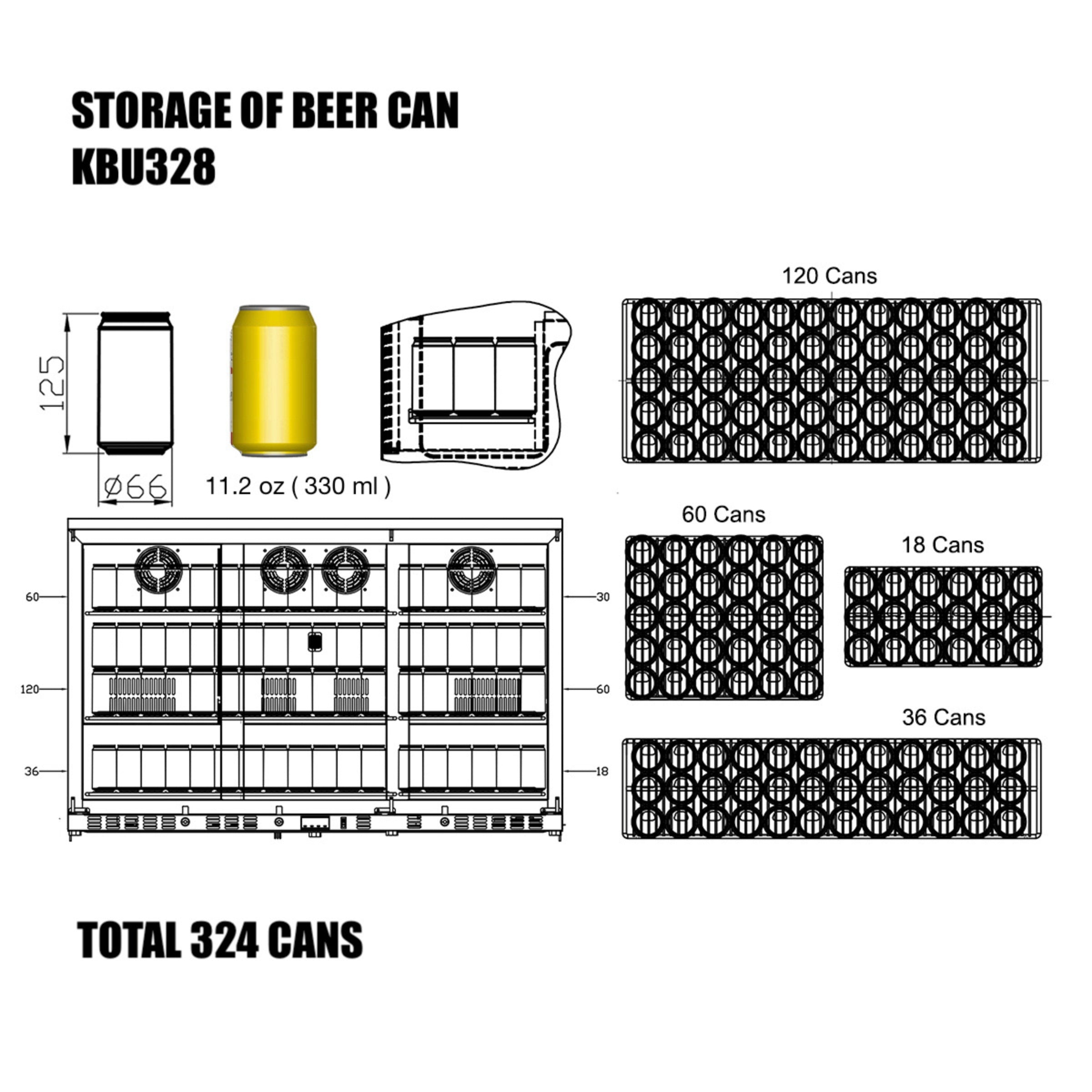

With storage for up to 190 bottles or 324 cans, this cooler provides generous capacity for home bars, restaurants, and entertainment spaces. Adjustable chromed shelves offer flexible configuration options, while the front-venting design supports both built-in and freestanding installations, giving you maximum placement versatility.
Prefer enhanced insulation for demanding environments?
Explore our
53-Inch Solid Door Beverage Cooler
for maximum cooling efficiency and reduced light exposure.
Why it stands out
Big capacity, low profile
Delivers 11.12 cu ft (315 L) of storage with room for up to 190 bottles or 324 cans, all in a 53-inch undercounter form factor that’s ideal for bars and entertainment spaces.
Heated Low-E glass doors
Low-E heated glass doors help minimize condensation and keep sightlines clear, with adjustable heating levels (Weak / Medium / Strong) to match your ambient conditions.
Carel digital controller
A premium Carel controller from Italy offers precise temperature management, helping maintain a stable environment and efficient operation in demanding residential or light commercial settings.
Built-in or freestanding
The front-venting design supports true undercounter built-in installation, while the stainless steel construction and clean lines also look great as a freestanding showpiece.
Specifications
Key Specifications
| Volume | 11.12 CF (315 Liters) |
|---|---|
| Capacity (bottles) | 190 bottles |
| Capacity (cans) | 324 cans |
| Installation Type | Built-in or freestanding |
| Climate Type | N/ST |
| Temperature Zones | Single zone |
| Adjustable Temperature Range | 34°F to 46°F (1°C to 8°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 2 fully adjustable chromed metal shelves |
| Dimensions | 52.6” W x 21.5” D x 33.9” H |
| Height Note | With the default 0.79-inch stand feet, height is 34.1 inches. It can be reduced to 33.61 inches by using the included 0.31-inch high stand feet. |
| Compressor | Embraco compressor |
| Power Supply | 110–115V / 60Hz |
| Rated Power Input | 360 W |
| Rated Current | 3.6 A |
| Refrigerant | R600a |
Technical Features
Quiet compressor
Utilizes a high-quality, quiet-running Embraco compressor that offers vibration-free cooling, helping keep beverages stable and undisturbed.
Fan circulated air-cooling system
A fan-circulated air-cooling system helps ensure temperature uniformity throughout the cabinet and compensates for air humidity to protect your beverages.
Activated carbon filter
An activated carbon filter effectively removes impurities in the air, helping keep the cabinet interior fresh and odor-free over long service hours.
Digital temperature control
Comes with a premium temperature controller from Carel of Italy, offering precise temperature management to keep beverages at ideal serving conditions while supporting energy-efficient operation.
Fully adjustable chromed metal shelves
Two fully adjustable chromed metal shelves let you configure the interior to accommodate bottles, cans, or mixed formats depending on your menu or collection.
Heated Low-E glass doors
Tempered safety glass with a conductive film helps prevent fogging using adjustable Low-E heat settings (Weak / Medium / Strong). Heating activates with the compressor to support clear visibility and stable performance across all three doors.
Notice: Glass temperature (approximately 80–93°F) must be kept away from rain and direct outdoor exposure.
Dimensions & Diagrams

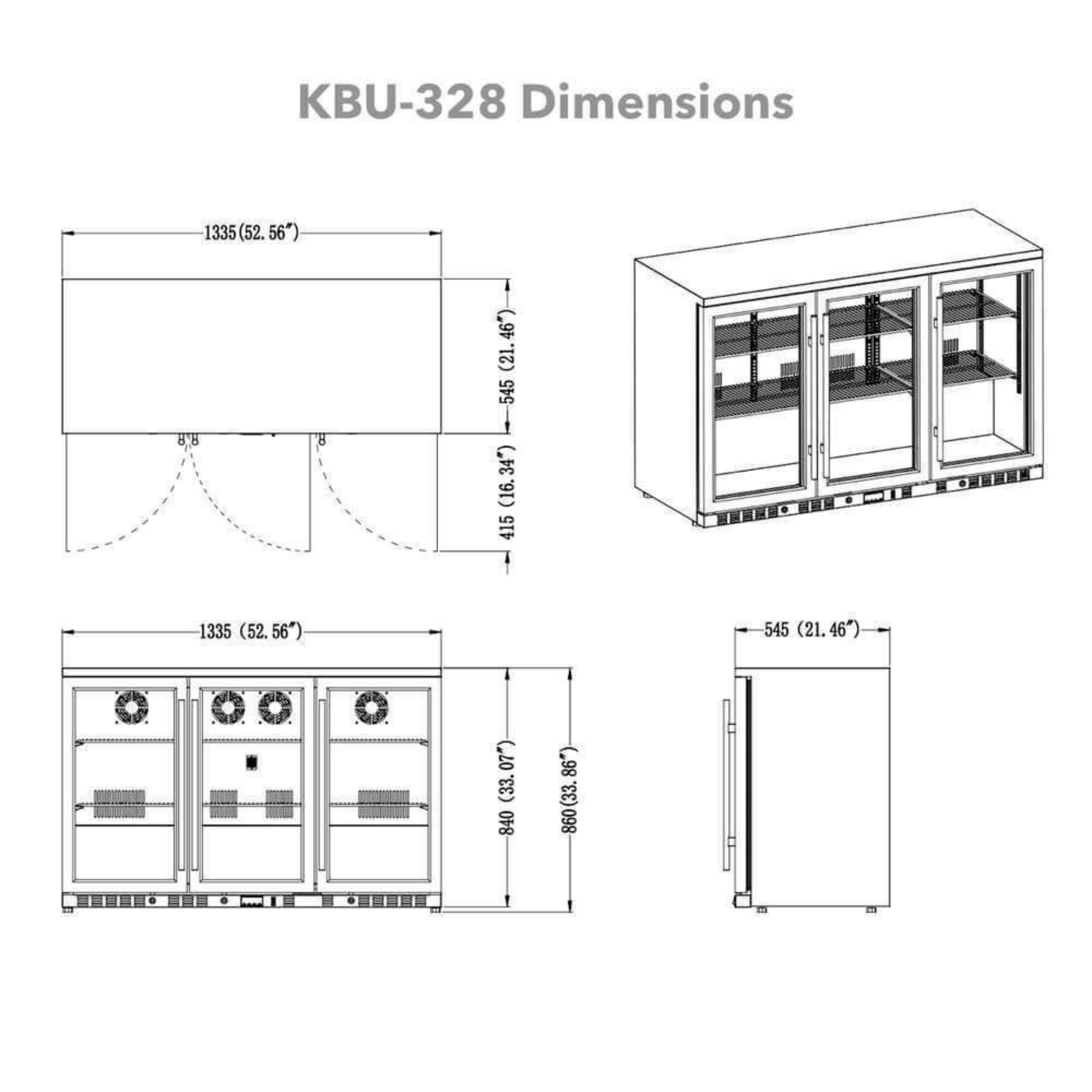

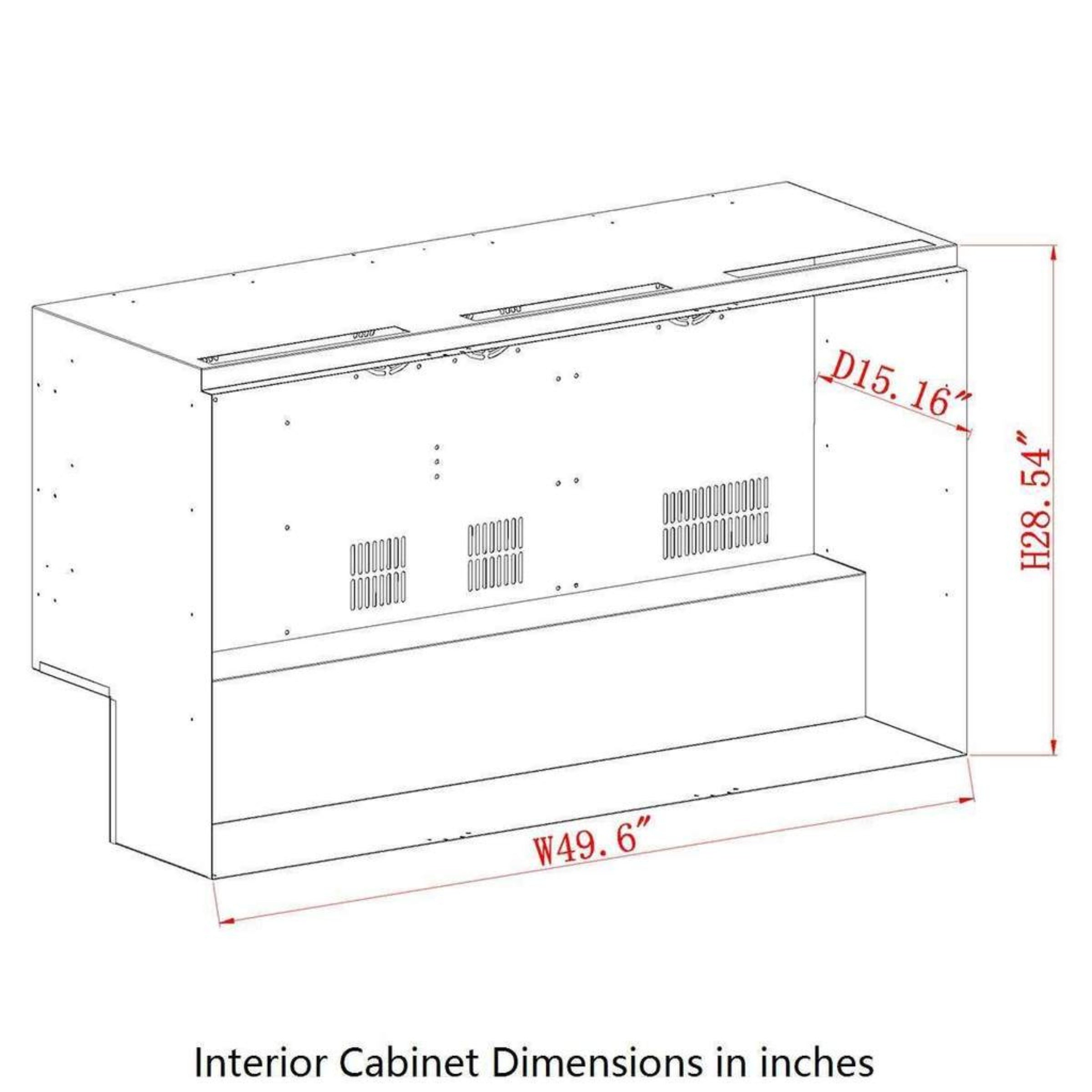

Technical dimensions
Use the technical dimensions diagrams to confirm footprint, internal layout, and clearances before building the cooler into millwork or bar cabinetry.

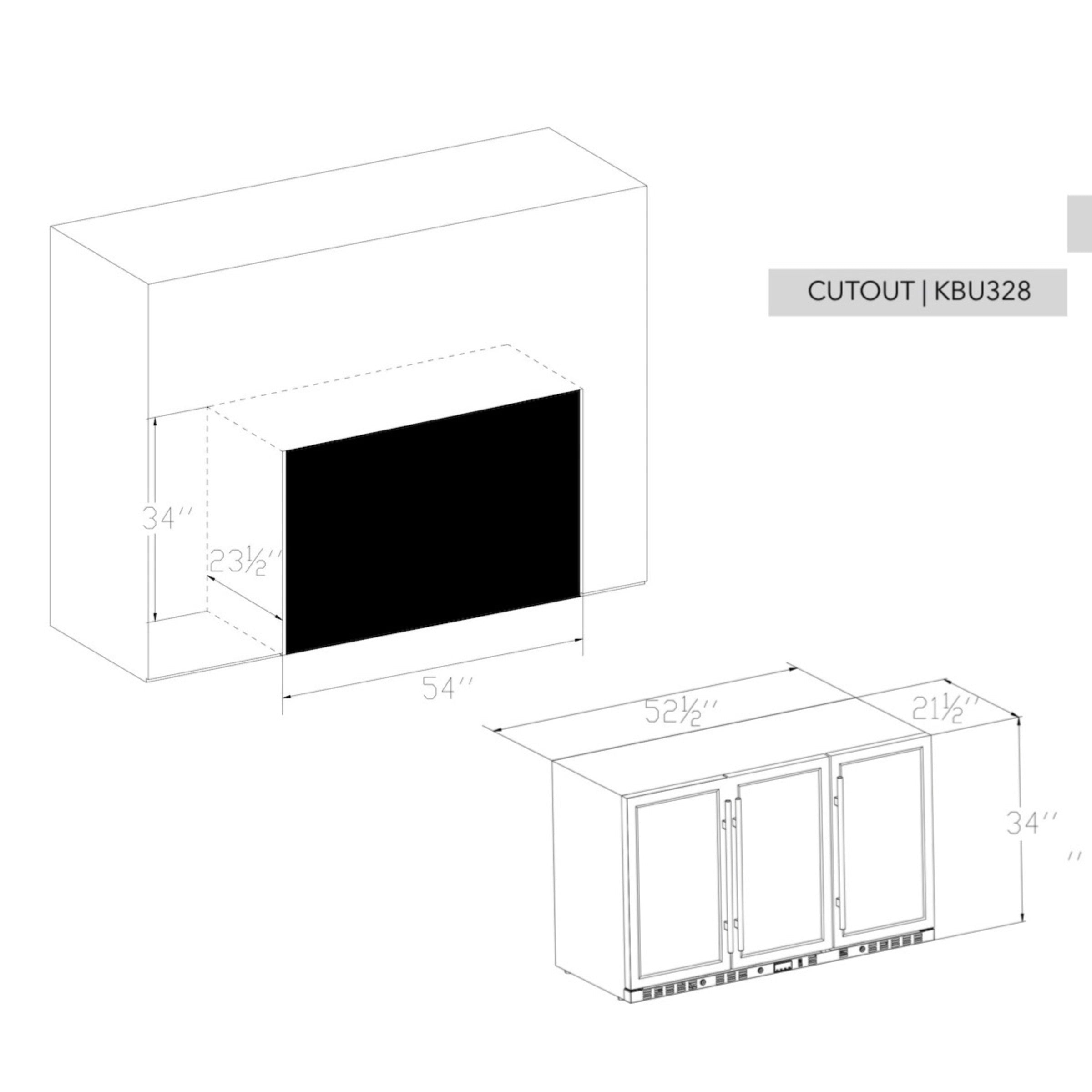

Installation diagrams
Reference the cutout and power plug diagrams when planning cabinetry, ventilation, and electrical placement for built-in installation.
Product Manual
Download & view the full manual
Review the complete user manual for detailed installation instructions, operating guidelines, and maintenance information for this 3-door undercounter beverage cooler.
Frequently Asked Questions
This 53-inch 3-door undercounter beverage cooler provides 11.12 cu ft (315 L) of storage and can hold up to 190 bottles or 324 cans, depending on how the shelves are arranged and the container sizes.
The unit is a single-zone cooler with an adjustable temperature range of 34°F to 46°F (1°C to 8°C), ideal for beer, soft drinks, and other ready-to-serve beverages.
Yes. The front-venting design supports true undercounter built-in installation, and it can also be used as a freestanding unit in bars, restaurants, or entertainment spaces.
The Low-E heated glass doors help reduce fogging and condensation, keeping visibility clear while maintaining efficient cooling. Adjustable heat levels (Weak / Medium / Strong) let you tune performance to match your ambient conditions.
Yes. The default stand feet (0.79 inches) set the height at 34.1 inches, but you can use the included 0.31-inch feet to reduce the overall height to approximately 33.61 inches for tighter undercounter installations.
