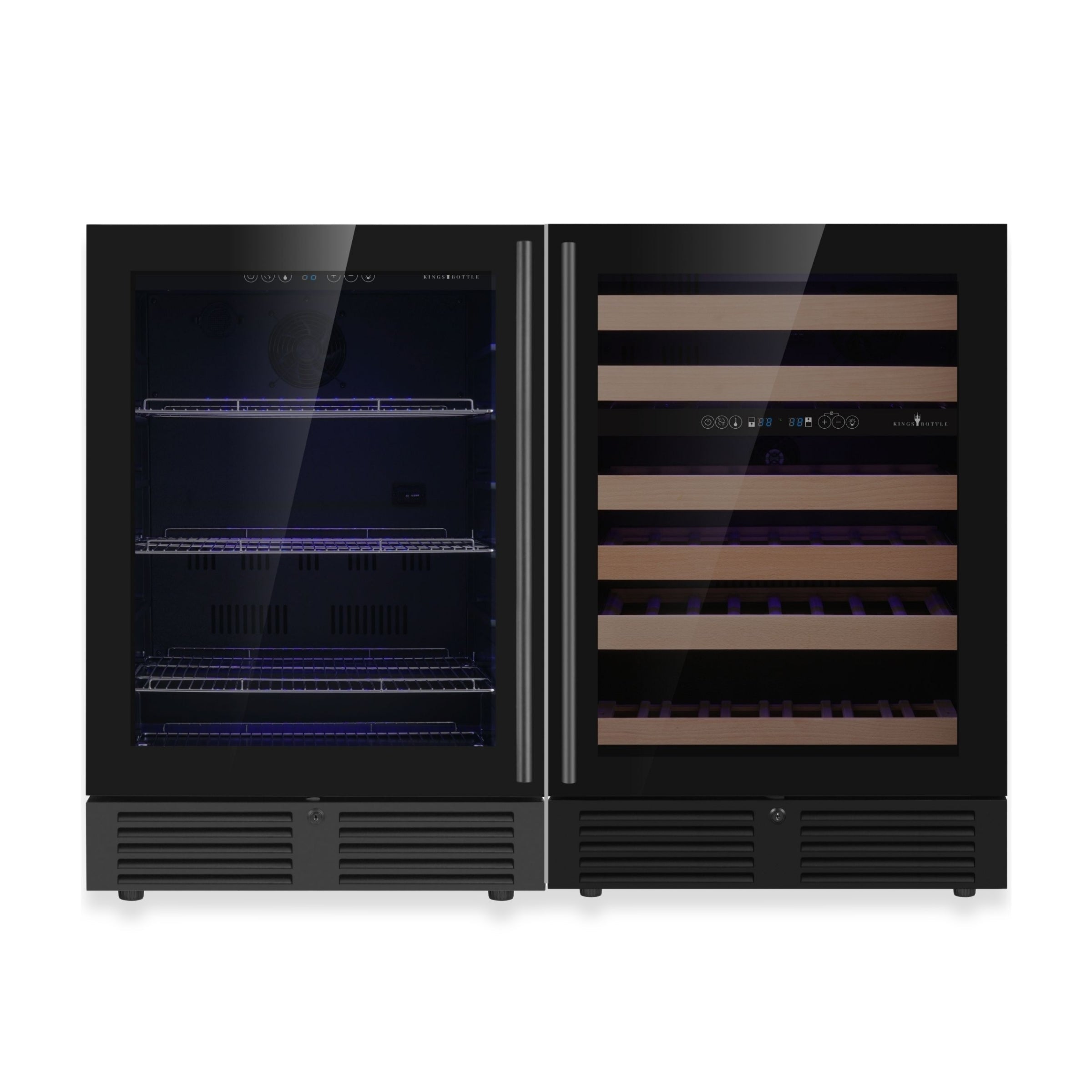

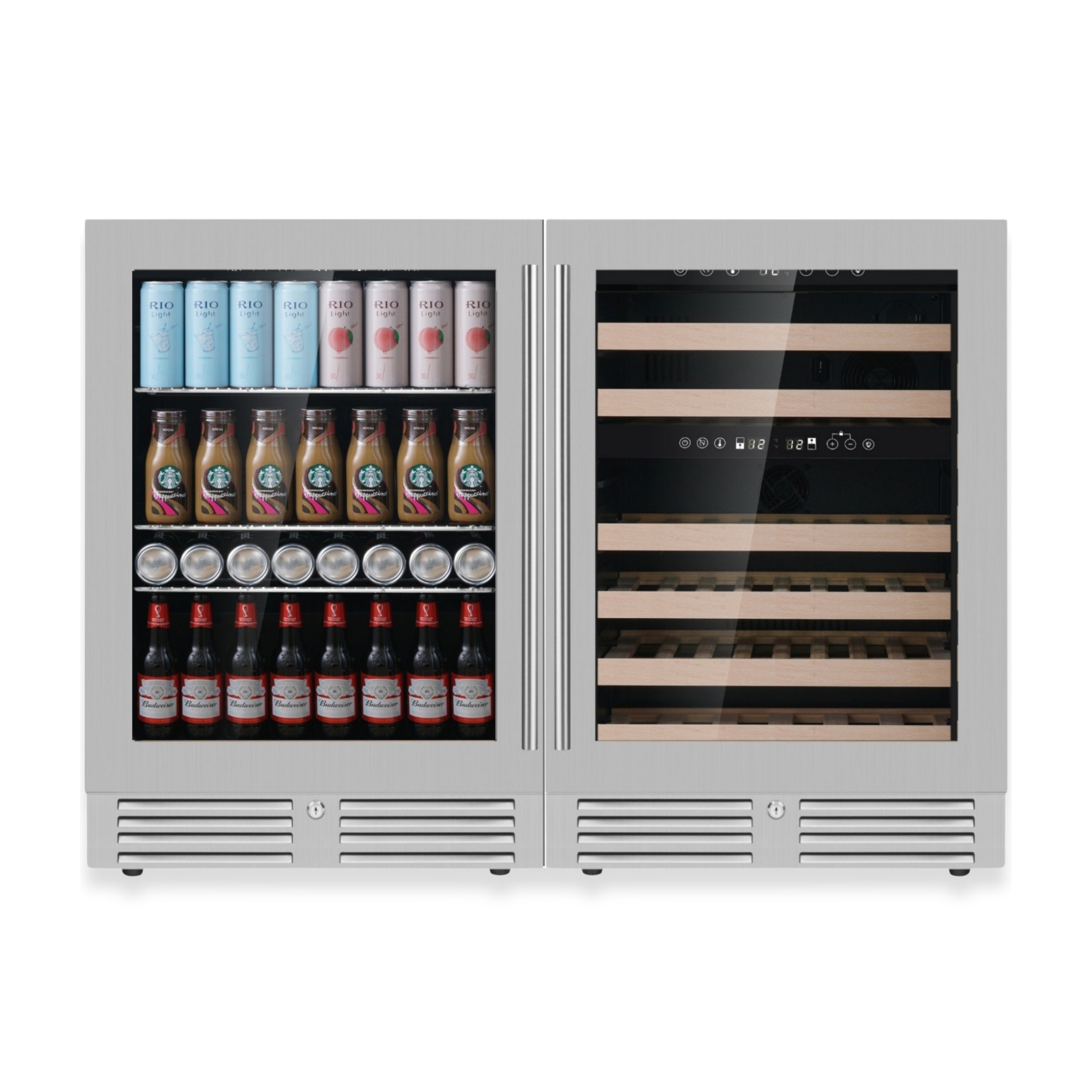

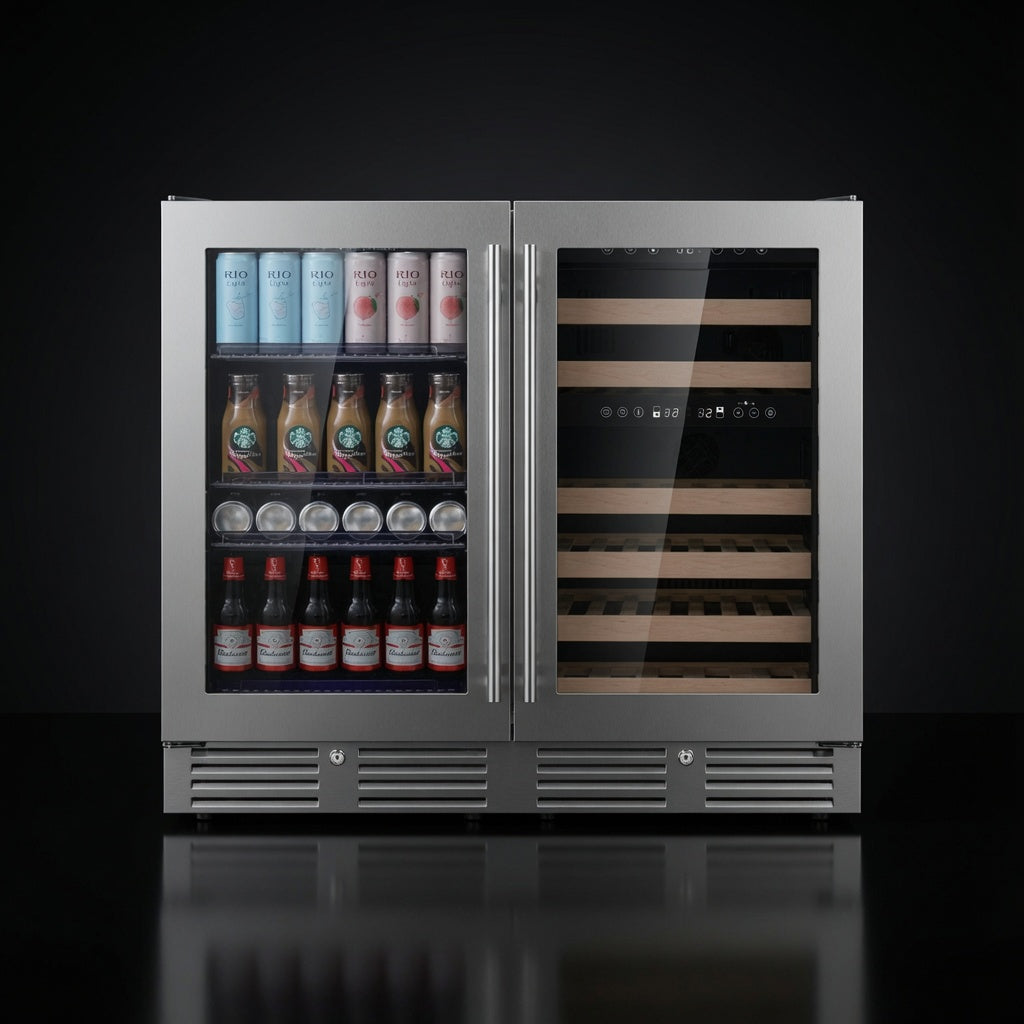

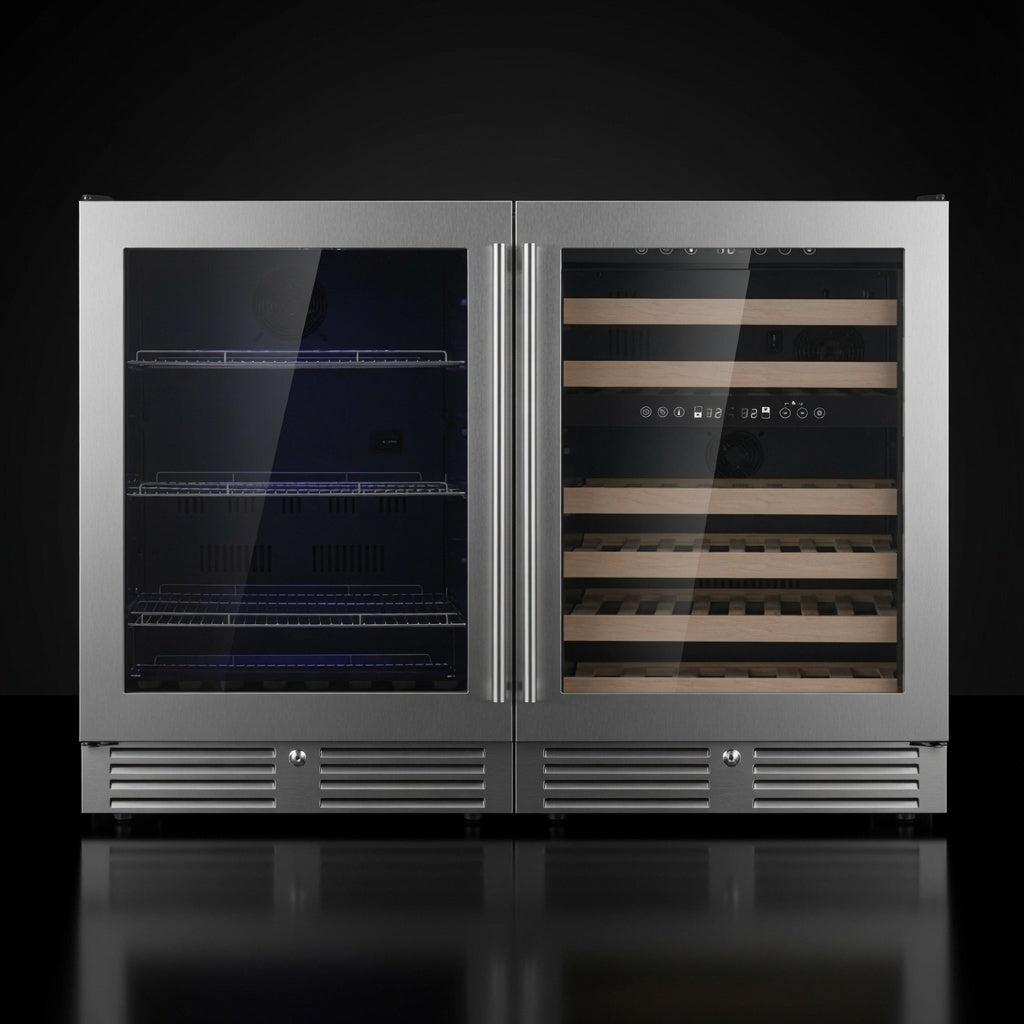

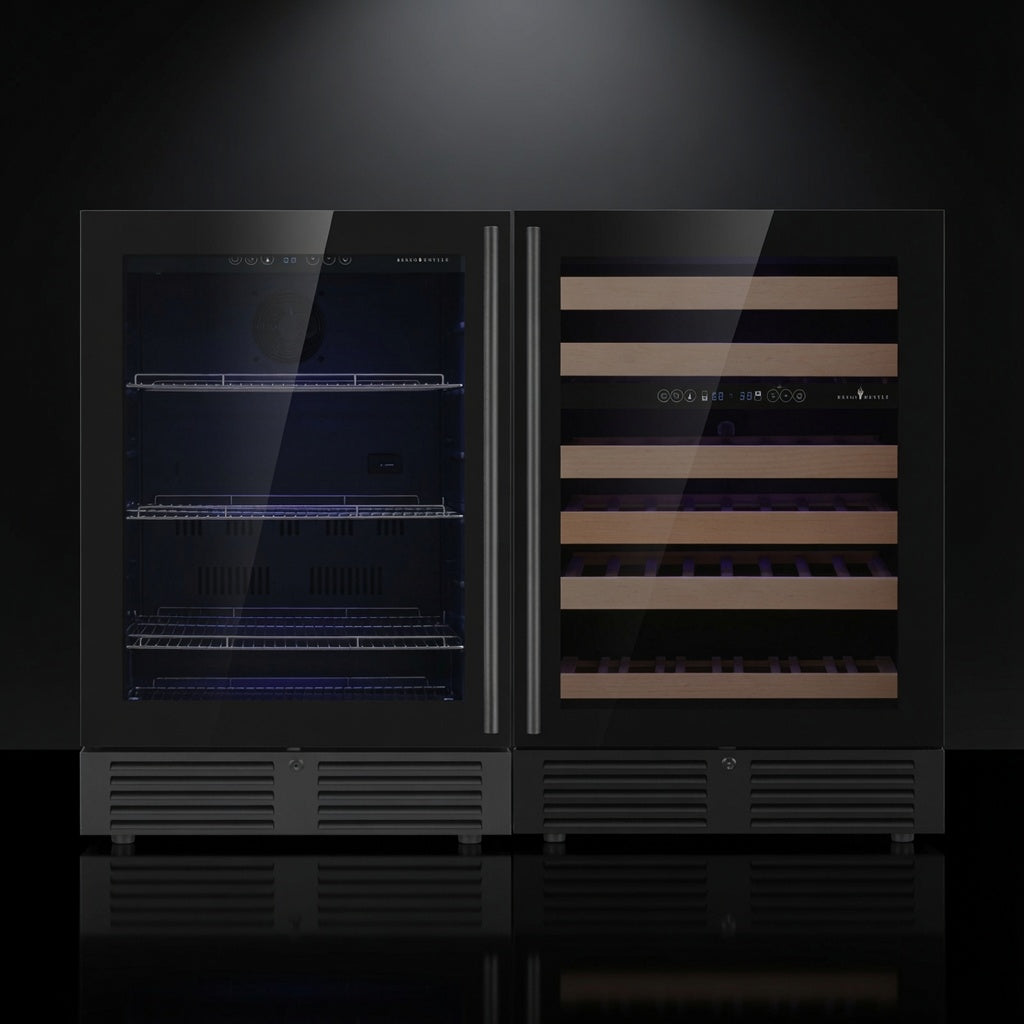

The 48-Inch Under-Bench Wine and Beverage Refrigerator Combo delivers a seamless blend of style, versatility, and premium cooling performance. Designed with two independent sections, the wine compartment stores up to 46 bottles, while the beverage compartment holds up to 161 cans—perfect for creating a refined, all-in-one under-counter beverage station in any home or commercial setting.
This model is powered by the Embraco Inverter Compressor , engineered for whisper-quiet operation, exceptional temperature stability, and up to 40% lower energy consumption than traditional compressors. Its advanced cooling technology ensures long-term reliability while maintaining ideal serving conditions for both wine and beverages.
Featuring a mix of adjustable wooden and metal shelves, the unit offers flexible storage options to accommodate various bottle shapes, cans, and specialty beverages. The Low-E glass doors provide UV protection and enhance energy efficiency by reducing heat transfer and condensation. Suitable for both built-in and freestanding installation, this refrigerator combo features a sleek stainless steel finish and modern design that elevates any kitchen, bar, or entertainment space.
Why it stands out
Triple-zone under-bench flexibility
Two dedicated units combine for a triple-zone layout—one side for wine, one for beer and beverages—letting you dial in ideal serving temperatures across your entire collection under a single counter run.
Wine & beverage storage in one

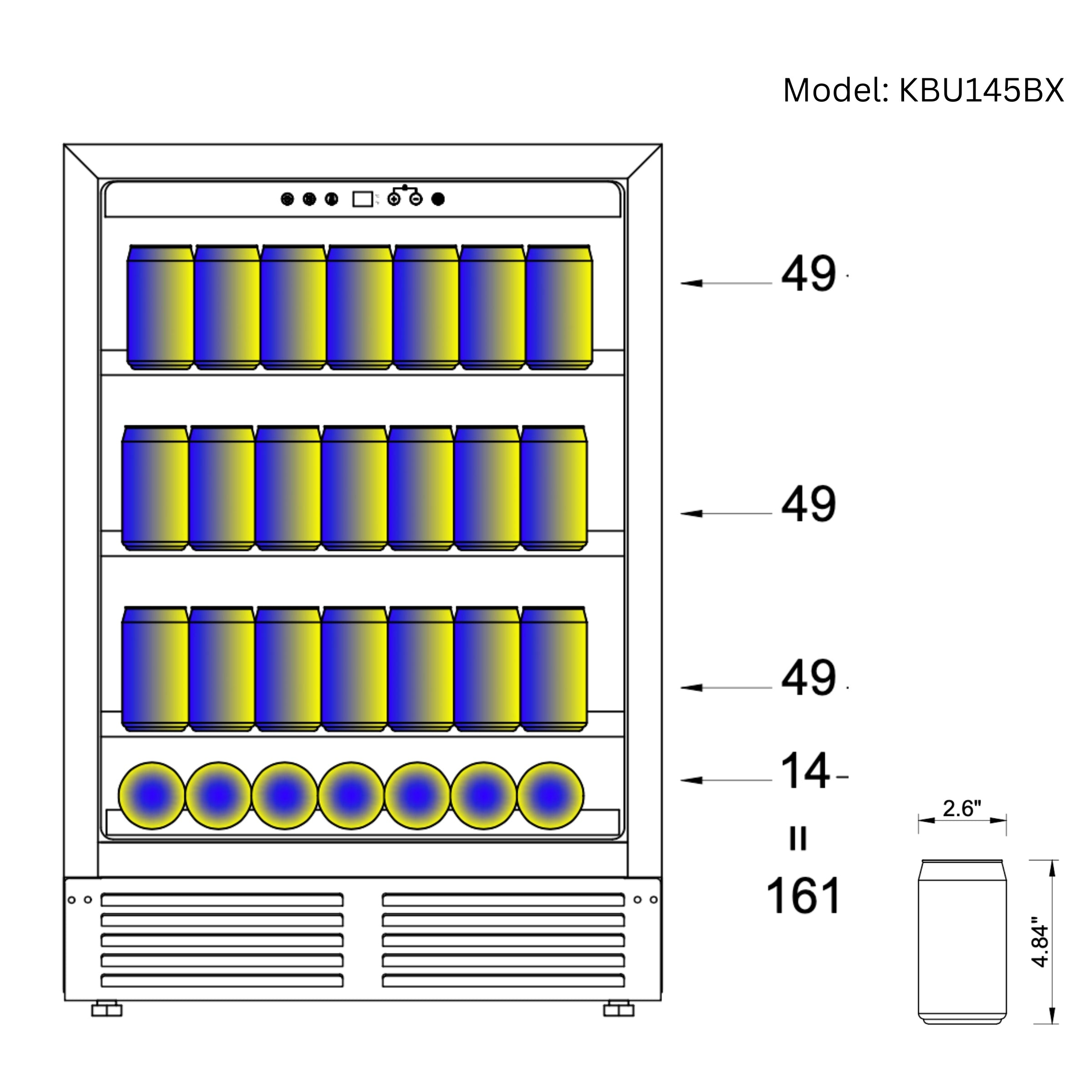

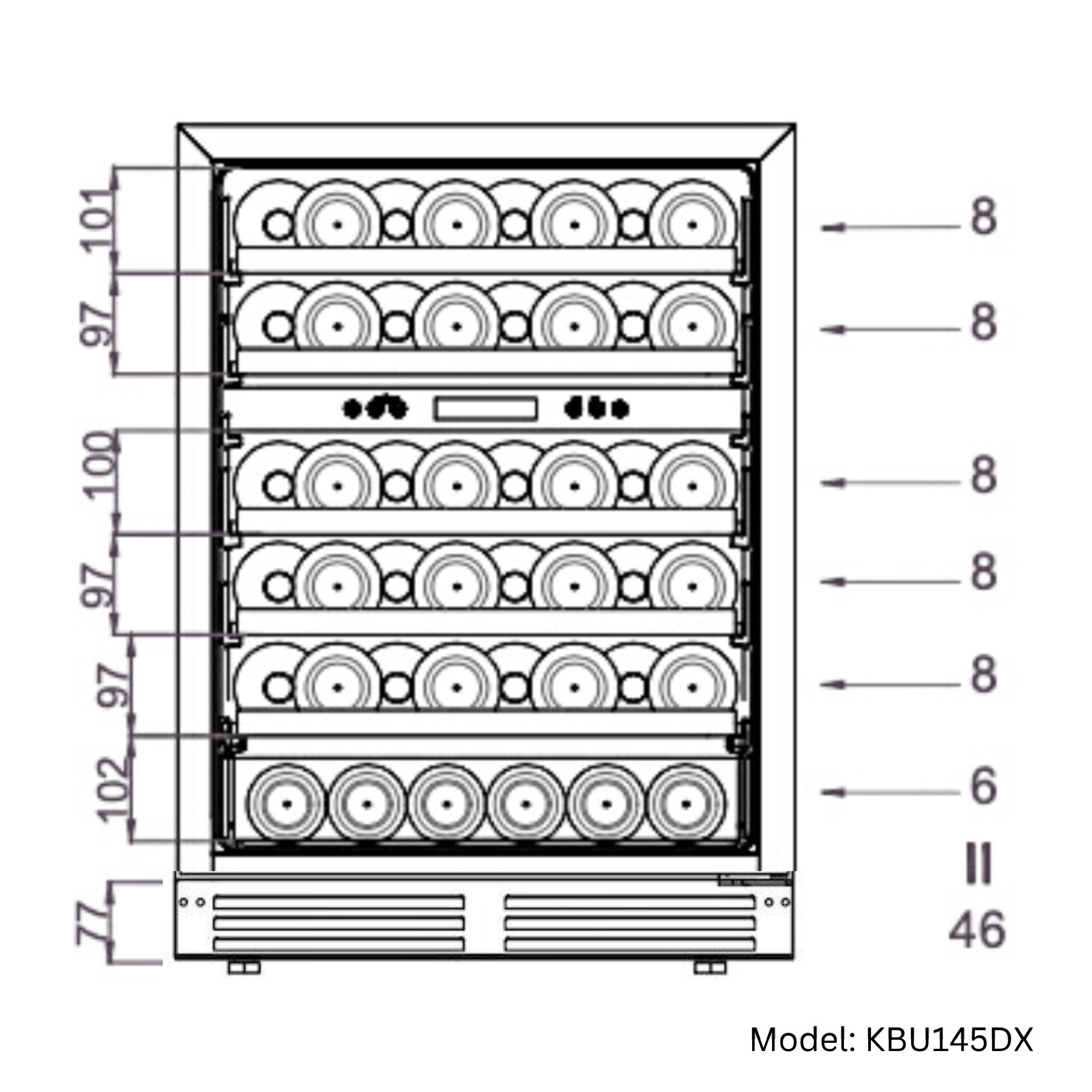

Offers a combined capacity of 46 wine bottles and 161 cans, with 4 chromed steel shelves for beverages and 6 beech wooden shelves for wine, so you can keep everything from craft beer to cabernet perfectly organized.
Efficient inverter cooling
Each side uses an Embraco Inverter Compressor for quieter performance and more precise temperature control, helping reduce energy consumption by up to 40% compared to traditional compressors.
Built-in ready, Low-E glass doors
The front-venting design supports true built-in installation, while the Low-E glass doors help limit UV exposure, reduce condensation, and showcase your collection with a clean, modern look.
Specifications
Key Specifications
| Volume | 10.24 CF (145 Liters) total, 5.12 CF (145 Liters) each |
|---|---|
| Capacity (bottles) | 46 bottles (wine side) |
| Capacity (cans) | 161 cans (beverage side) |
| Installation Type | Built-in or freestanding |
| Climate Type | N |
| Temperature Zones | Triple zone (wine + beverage) |
| Adjustable Temperature Range |
Beer / beverage side: 35°F to 68°F (2°C to 20°C) Wine side upper zone: 35°F to 54°F (2°C to 12°C) Wine side lower zone: 54°F to 68°F (12°C to 20°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 4 chromed steel shelves + 6 beech wooden shelves |
| Dimensions | 46.84” W x 22.75” D x 32.87” H (includes 0.59” stand height) |
| Compressor | Embraco Inverter Compressors (one per unit) |
| Power Supply | 110–115V / 60 Hz |
| Rated Power Input | 200 W total (100 W per unit) |
| Rated Current | 3.4 A total (1.7 A per unit) |
| Refrigerant | R600A / 25 g per unit |
| Efficiency Standard | ETL / DOE compliant |
Technical Features
Inverter compressor
Top-brand Embraco Inverter Compressors deliver super-quiet operation, smoother temperature control, and can reduce energy consumption by up to 40% compared to traditional compressors.
Patented compressor sink
A patented sink design increases air circulation space around the compressor, improving cooling performance while reducing vibration and operating noise.
Low-E glass doors
Low-E glass helps reduce energy consumption and condensation on the doors, acting as an invisible insulating barrier to protect your collection.
Note: Low-E glass features a thin coating that reduces heat transfer and condensation, enhancing overall energy efficiency and cooling performance.
Fan-circulated air-cooling
A fan-circulated air-cooling system promotes even temperature distribution throughout each cabinet and compensates for air humidity to protect labels, corks, and packaging.
Activated carbon filter
An integrated activated carbon filter helps remove impurities from the internal air, keeping the cabinets fresh and odor-free over long-term storage.
LED digital touchpad control
Easy-to-use digital touchpad controls and a clear LED display make it simple to monitor and adjust temperatures for both wine and beverages at a glance.

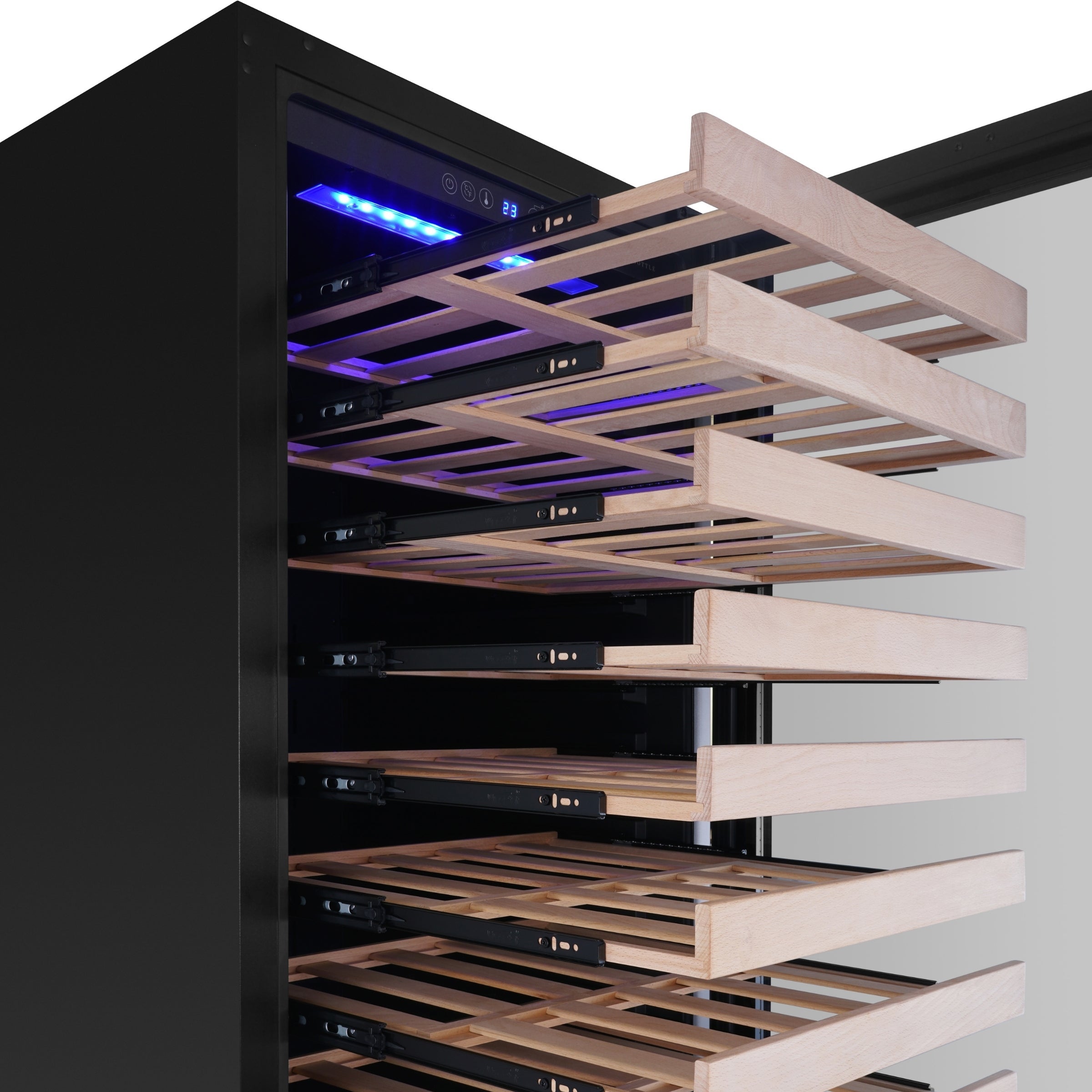

Full-extension beech wood shelves
Optimized full-extension beech wood shelves provide sturdy, wine-friendly support and are cleverly spaced to fit both regular and larger bottles up to 3.39" (86 mm) in diameter.
Magnetic door switch
A built-in magnetic switch includes a 2-minute door-open alarm, helping prevent temperature spikes and energy waste if a door is left ajar.
Hidden door hinge
A laminated steel plate with integrated molding creates a hidden hinge look, supporting a clean, fully built-in appearance with smooth door operation.
Seamless stainless steel frame
A thin, seamless stainless steel door frame adds a high-end, architectural look that pairs well with modern appliances and cabinetry.
45 mm C-Pentane foam
Thicker 45 mm C-Pentane foaming improves insulation, optimizes cooling performance, and helps reduce overall energy consumption.
Dimensions & Diagrams

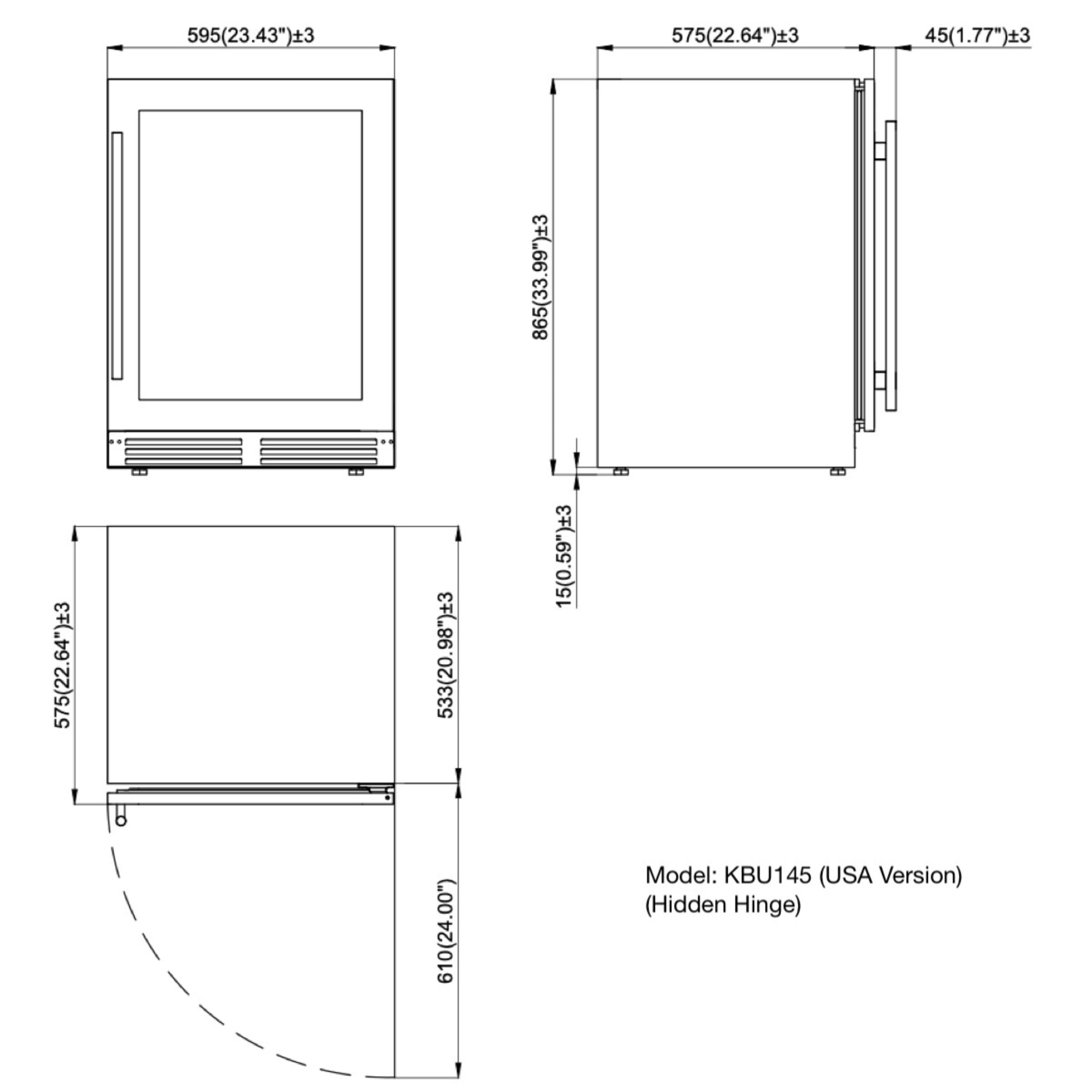

Technical dimensions
Use the technical dimensions diagrams to confirm footprint, internal layout, and clearances before integrating this under-bench combo into cabinetry or bar millwork.

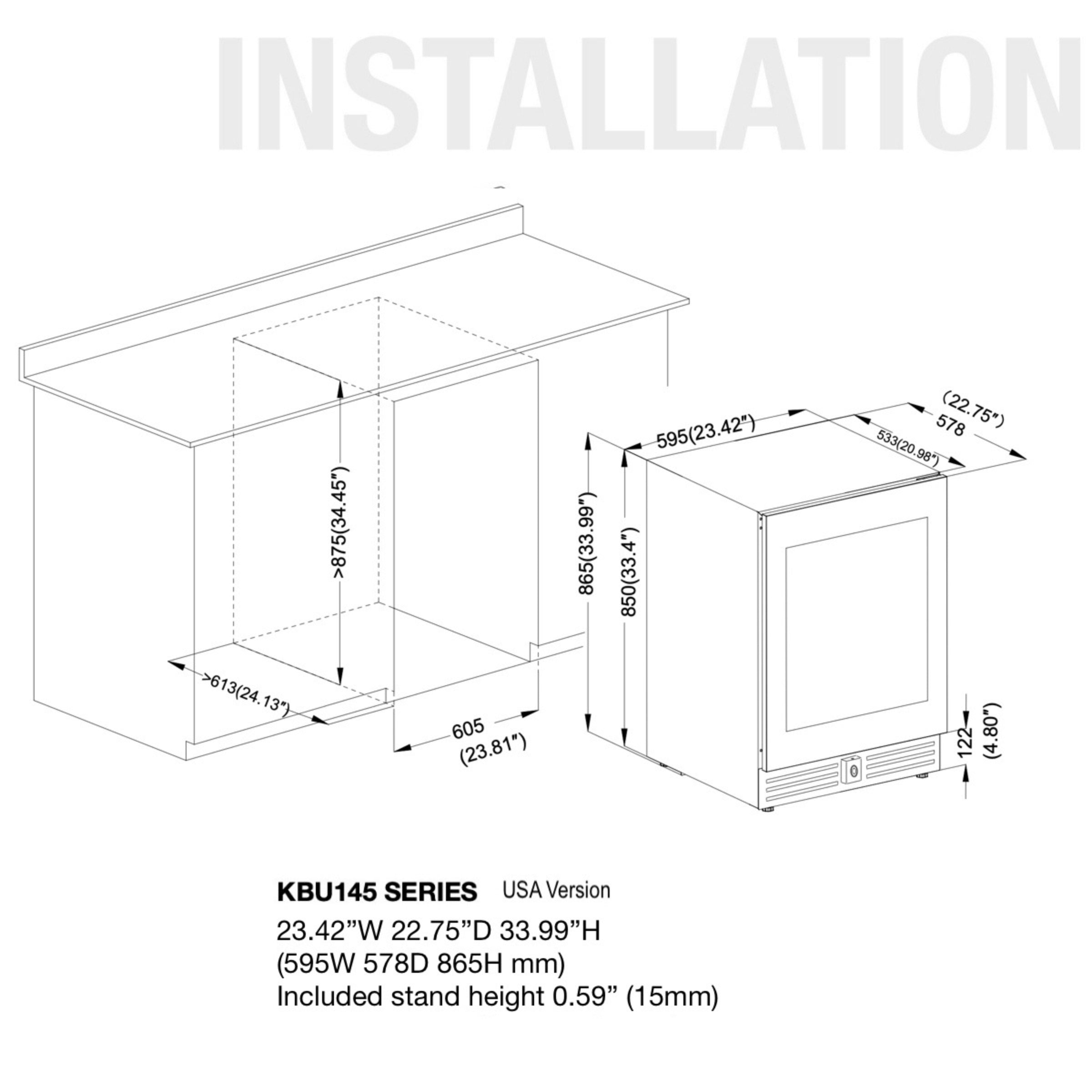

Installation diagrams
Reference the cutout and power plug diagrams when planning ventilation, cabinetry openings, and electrical locations for built-in installation.
Product Manual
Download & view the full manual
Review the complete user manual for detailed installation instructions, operating guidance, and maintenance information for this 48-inch under-bench wine and beverage refrigerator combo.
Frequently Asked Questions
This 48-inch under-bench combo provides 10.24 cu ft of total storage, with space for up to 46 wine bottles on beech wood shelves and approximately 161 cans on chromed steel shelves, depending on container size and arrangement.
It functions as a triple-zone system by pairing a dual-zone wine cooler (upper and lower zones) alongside a single-zone beverage cooler, giving you three independently adjustable temperature areas.
The beer / beverage side can be set between 35°F and 68°F (2°C to 20°C). The wine side offers an upper zone of 35°F to 54°F (2°C to 12°C) and a lower zone of 54°F to 68°F (12°C to 20°C), ideal for both white and red wines.
Yes. The front-venting design is engineered for under-counter, built-in applications and also looks great as a freestanding unit in kitchens, bars, and entertainment spaces.
Each side uses an Embraco Inverter Compressor, which runs more quietly than traditional compressors while maintaining stable temperatures—ideal for open-plan kitchens and home bars.
