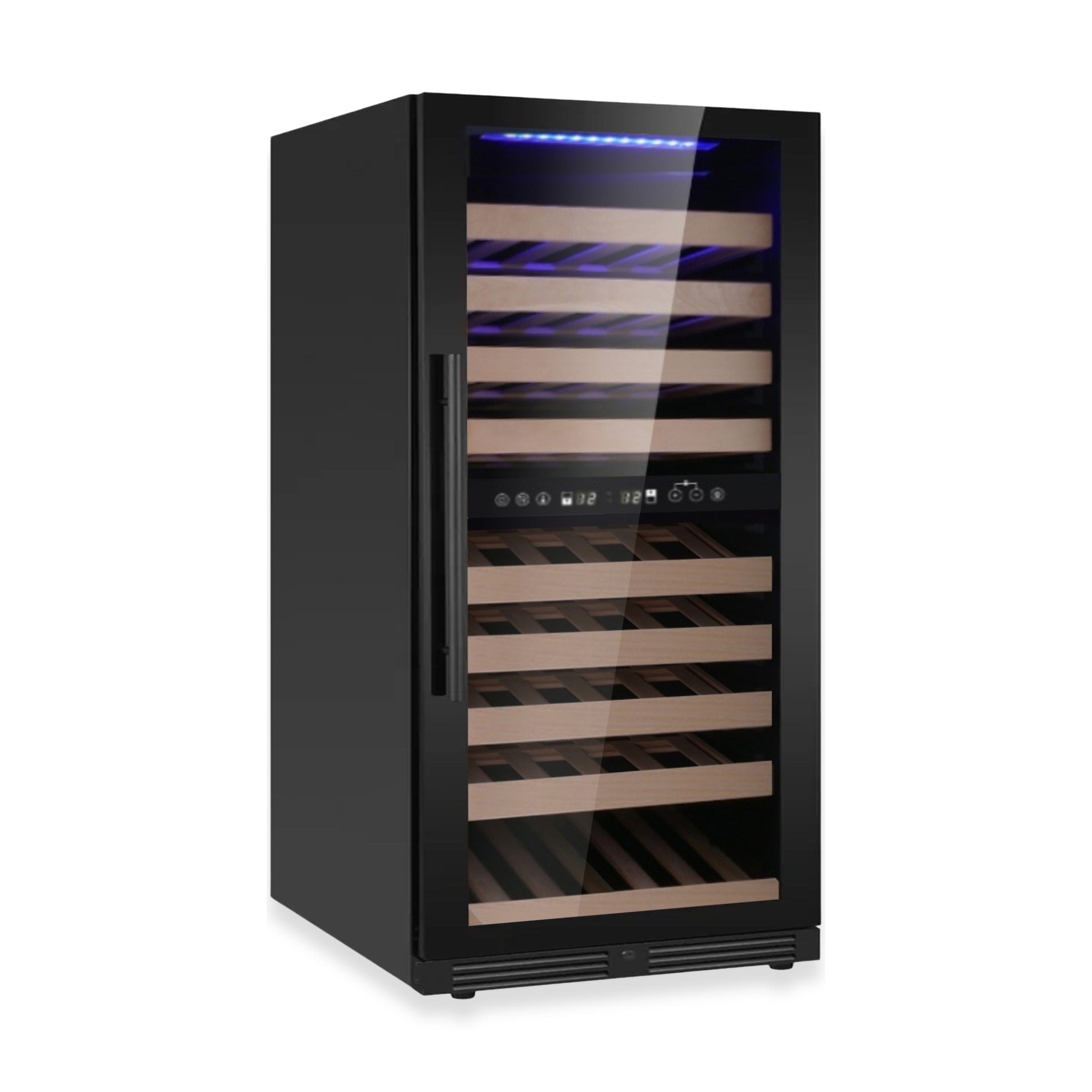

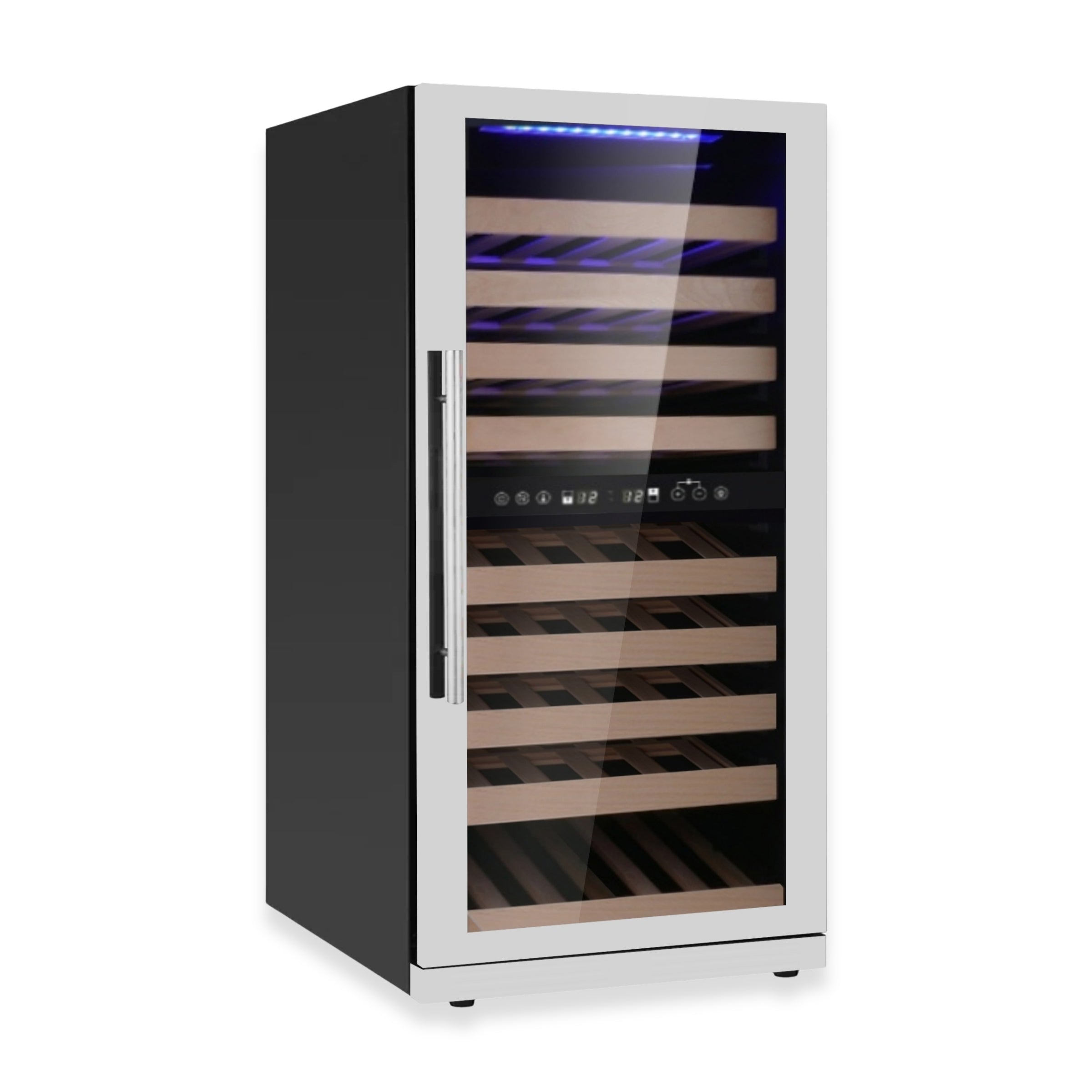

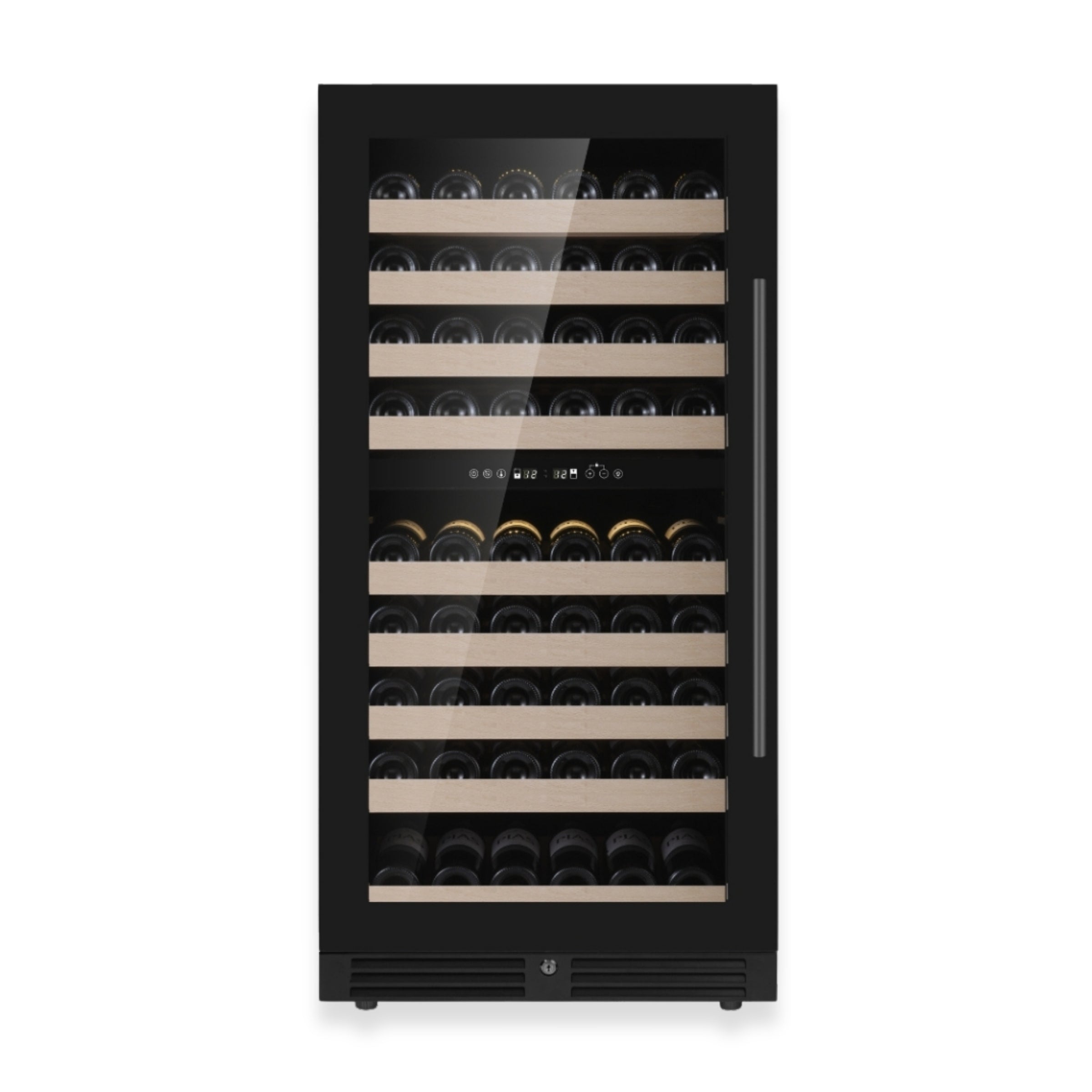

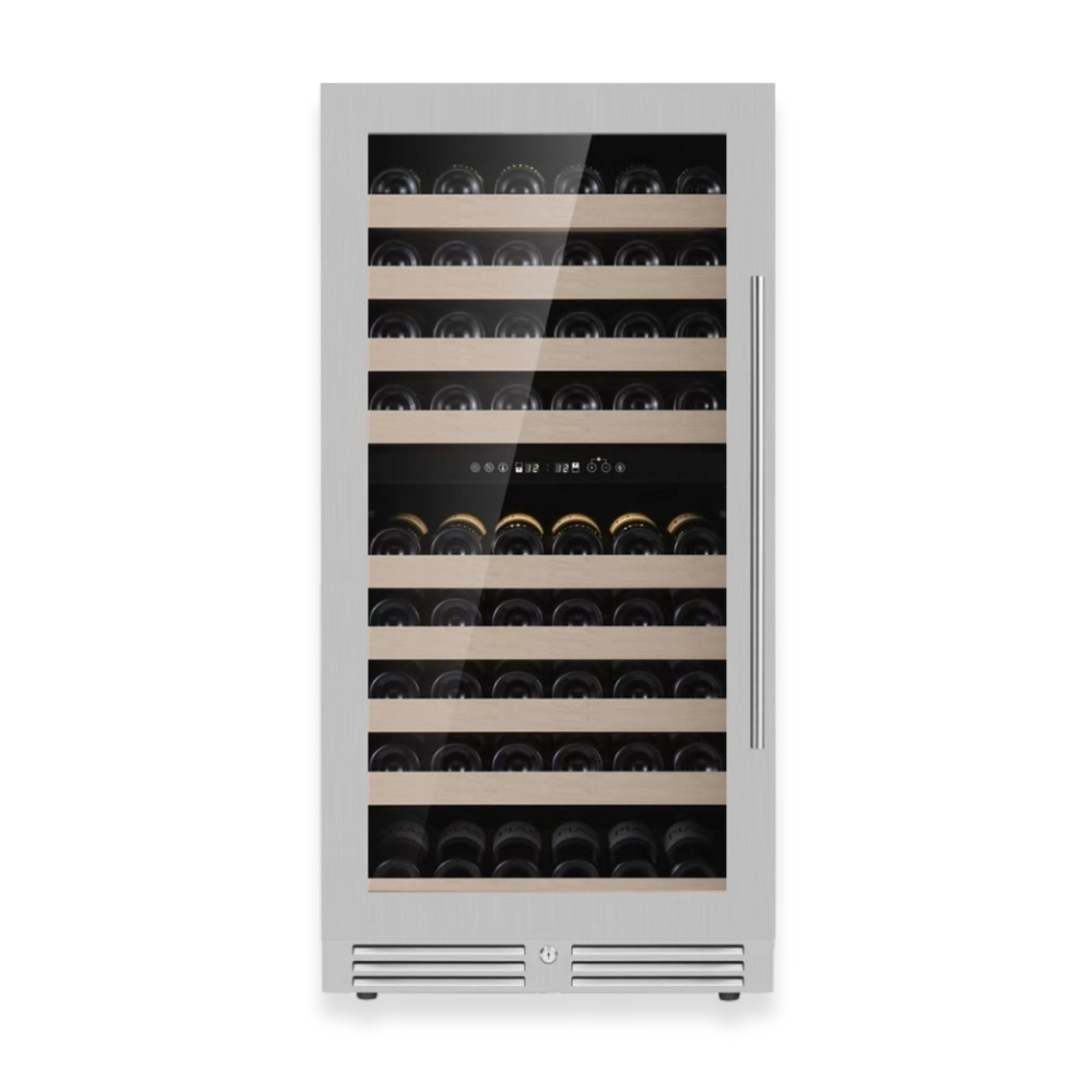

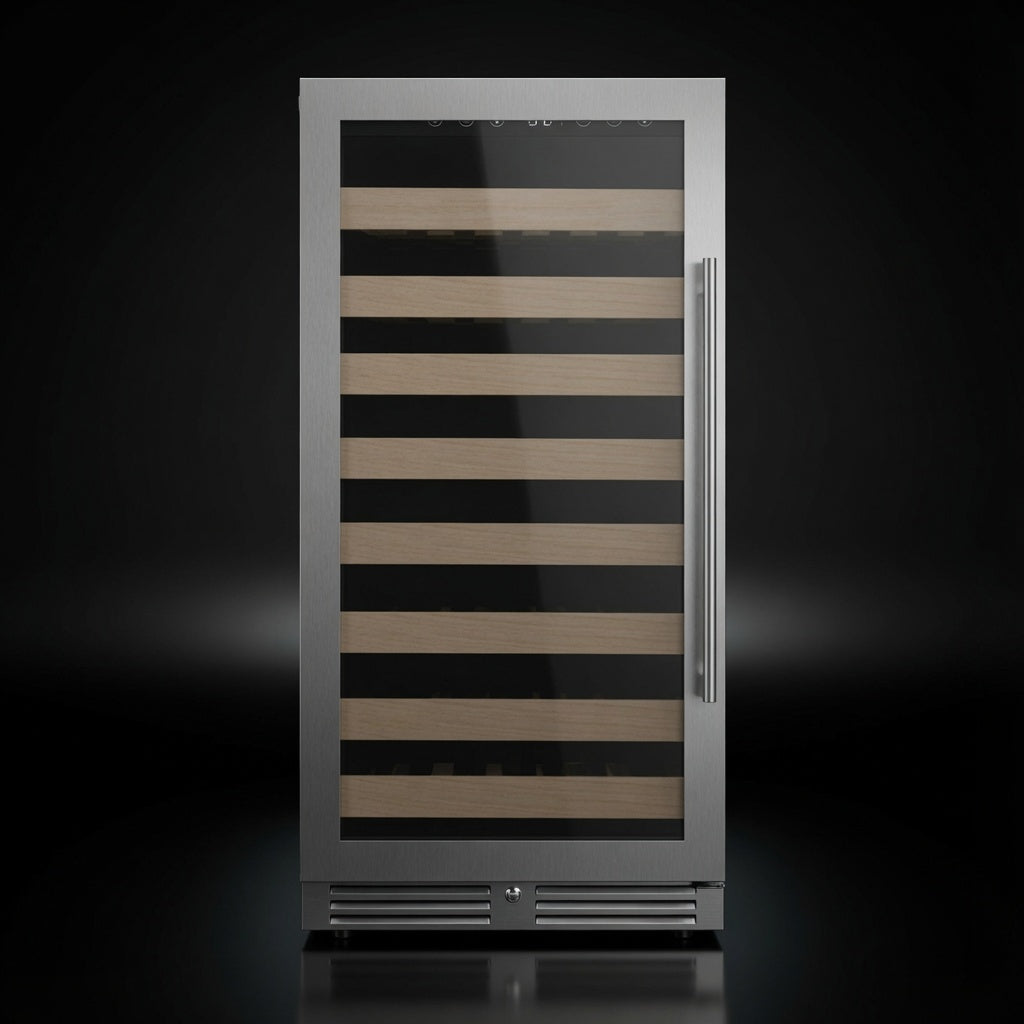

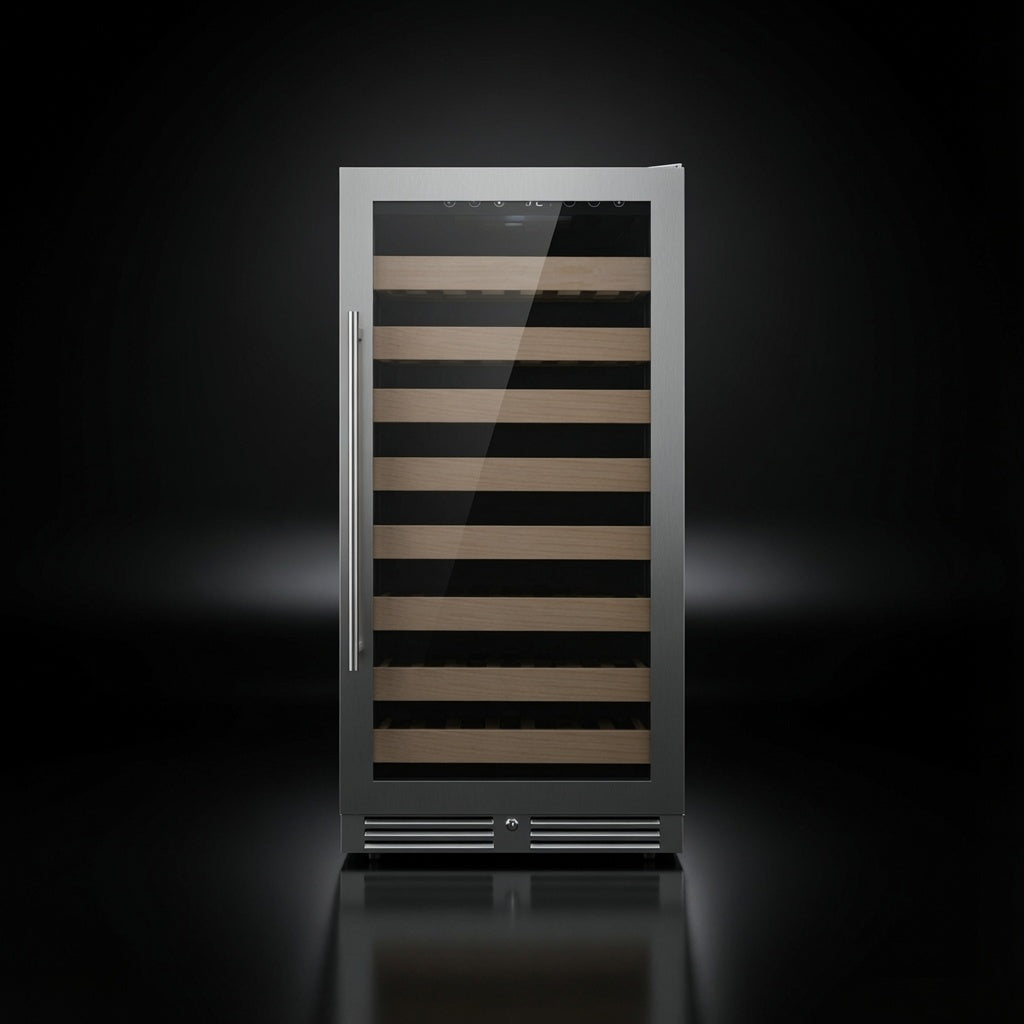

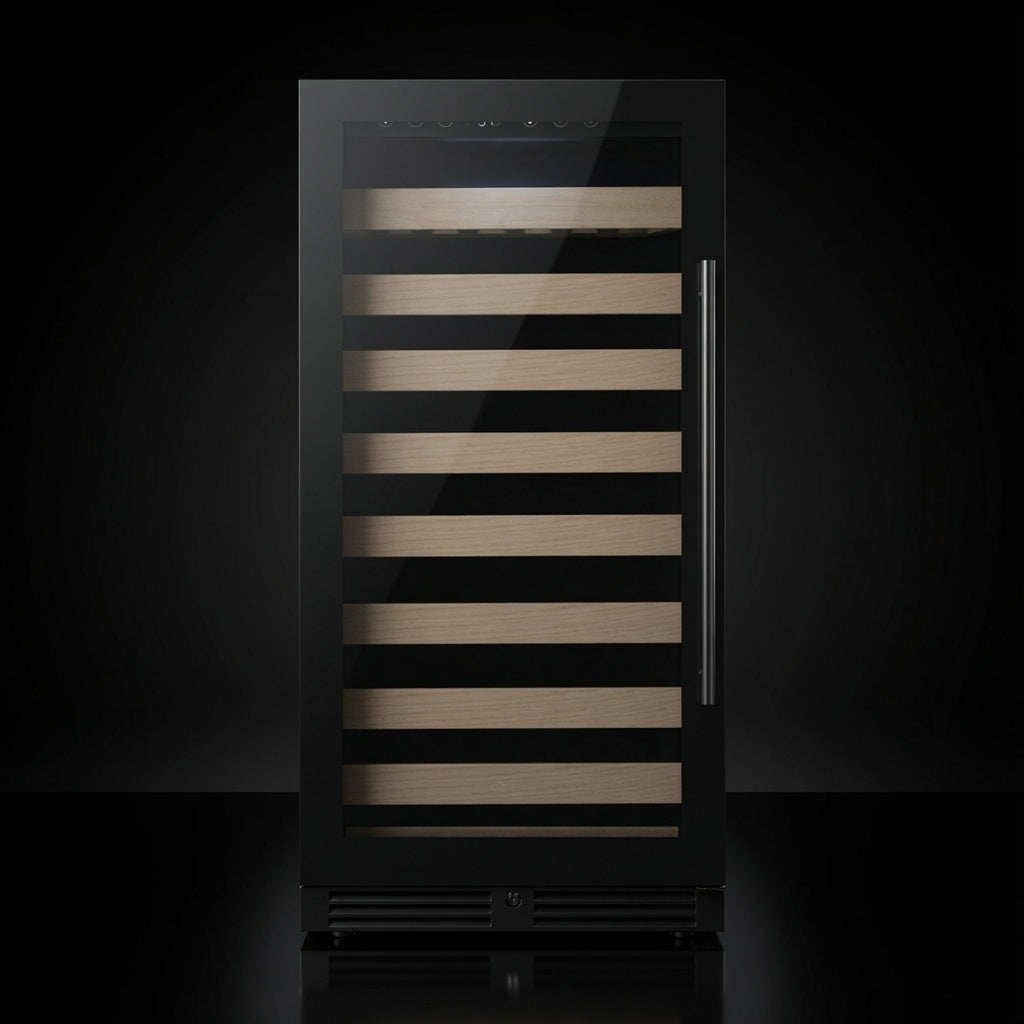

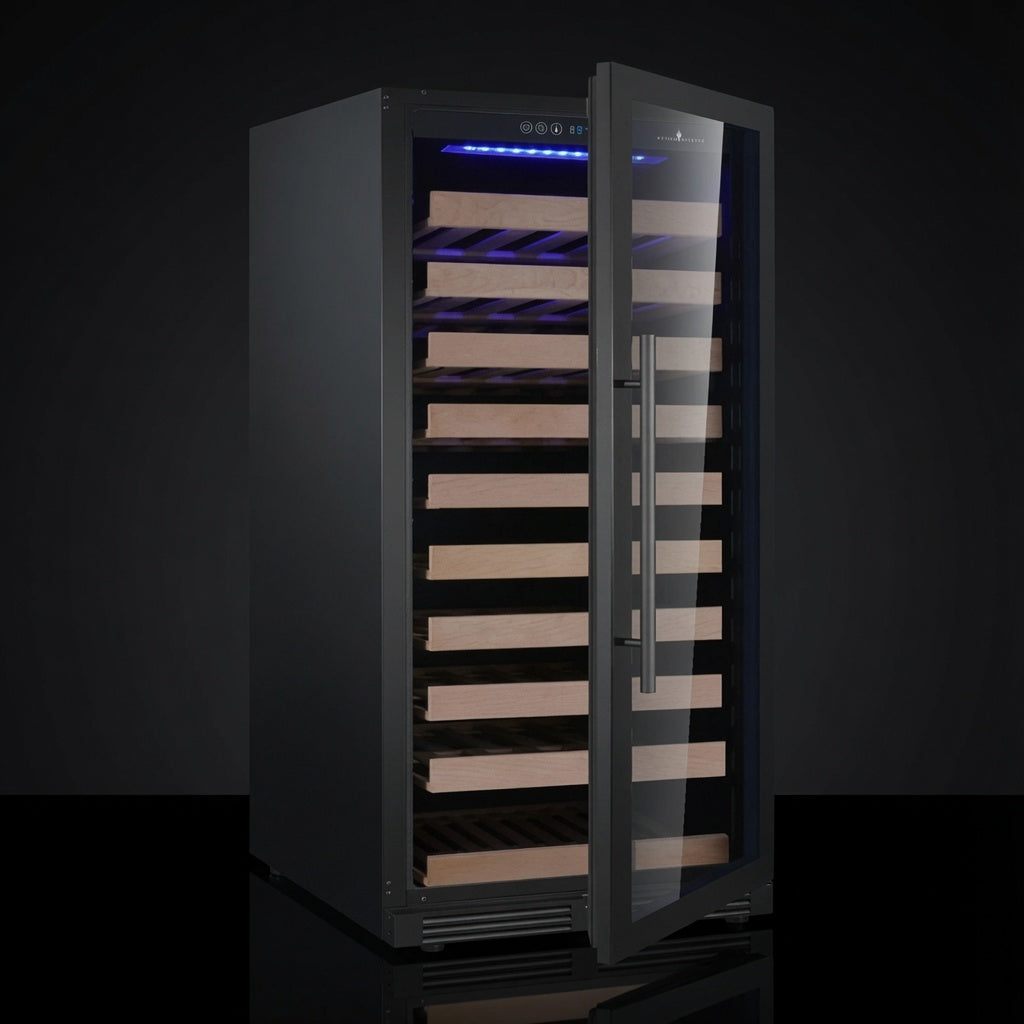

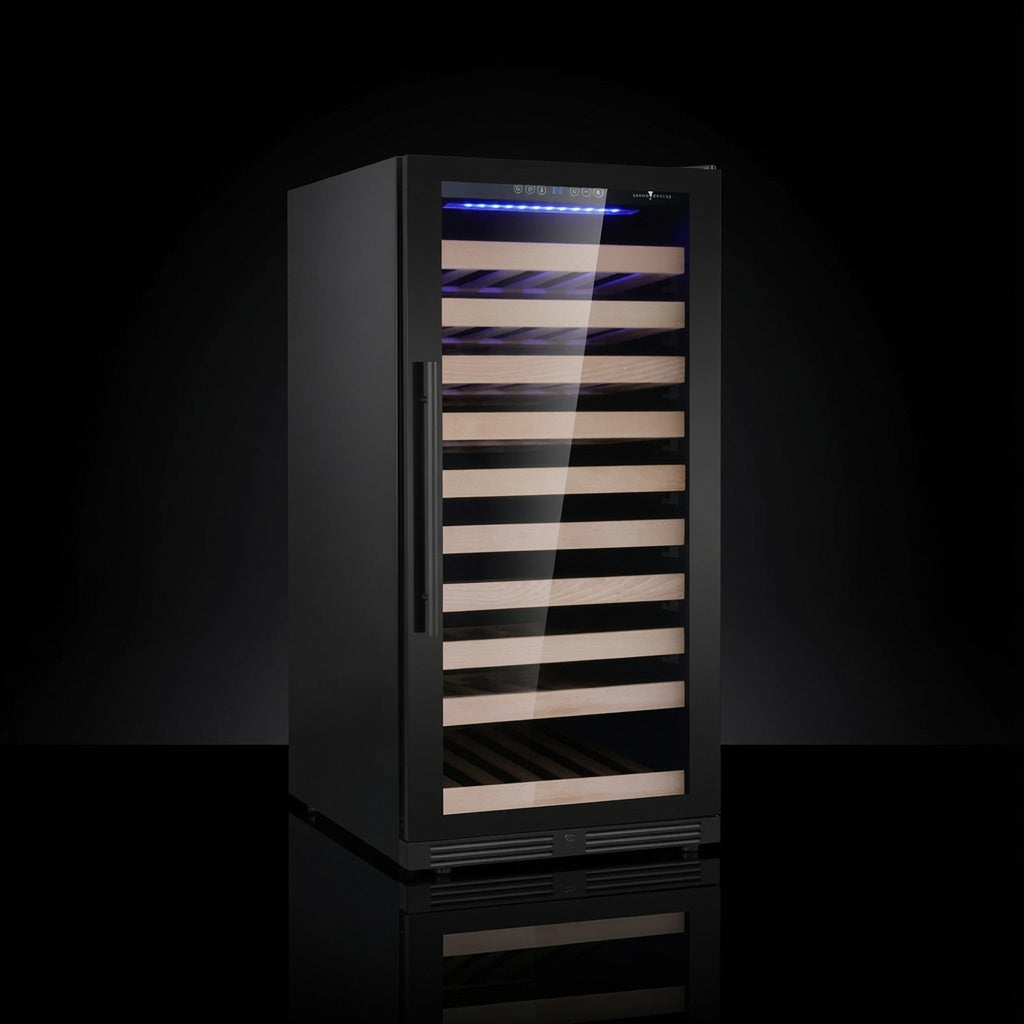

The 47-Inch Tall Dual Zone Wine Cooler with Low-E Glass Door is designed to provide optimal wine storage with modern efficiency. Featuring an Embraco Inverter Compressor , this wine cooler delivers ultra-quiet, energy-efficient cooling that can consume up to 40% less energy than traditional systems.
The Low-E glass door protects your wine from harmful UV rays while minimizing condensation so your collection stays clearly visible. With dual-zone temperature control, you can store both red and white wines at their ideal serving or cellaring temperatures in one compact footprint.

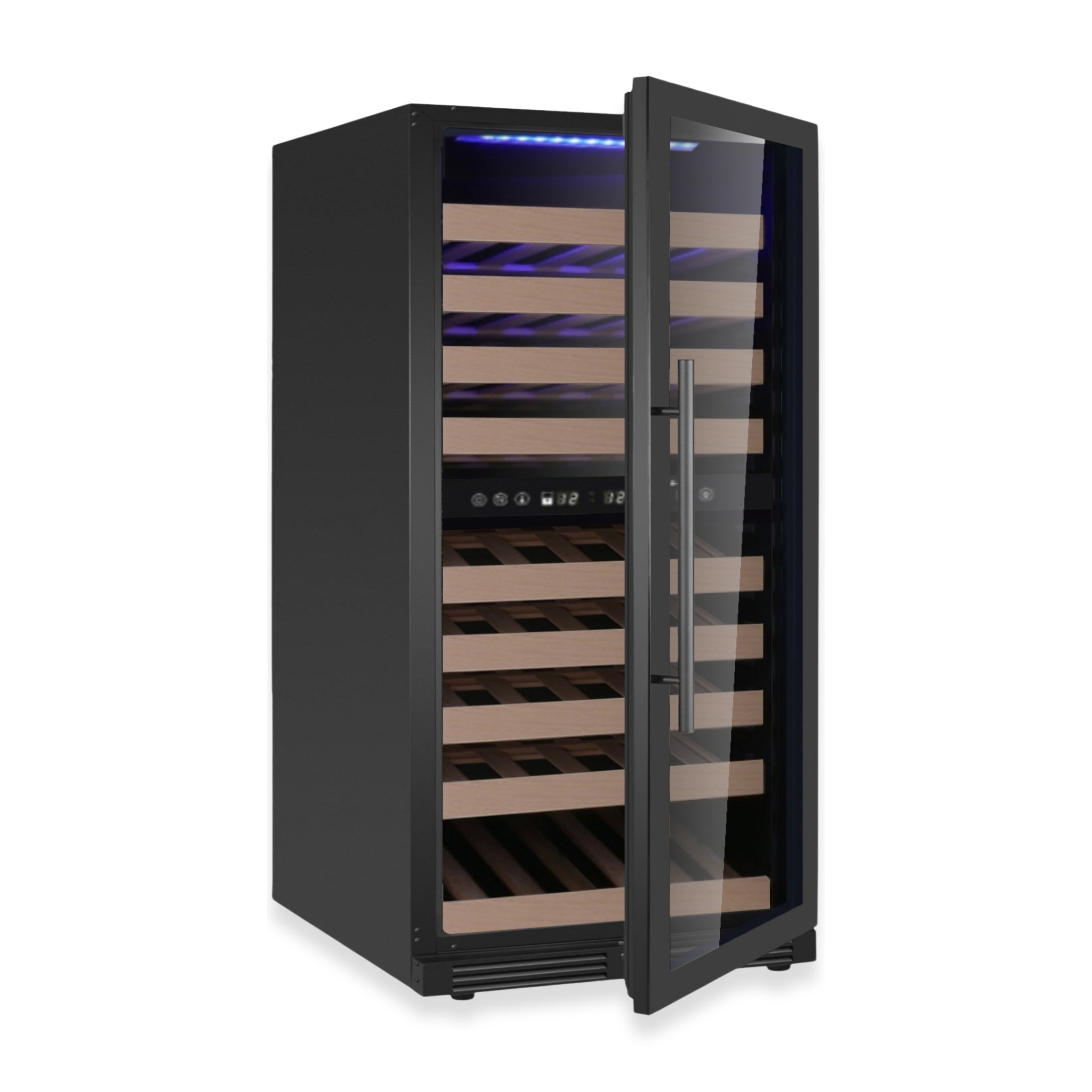

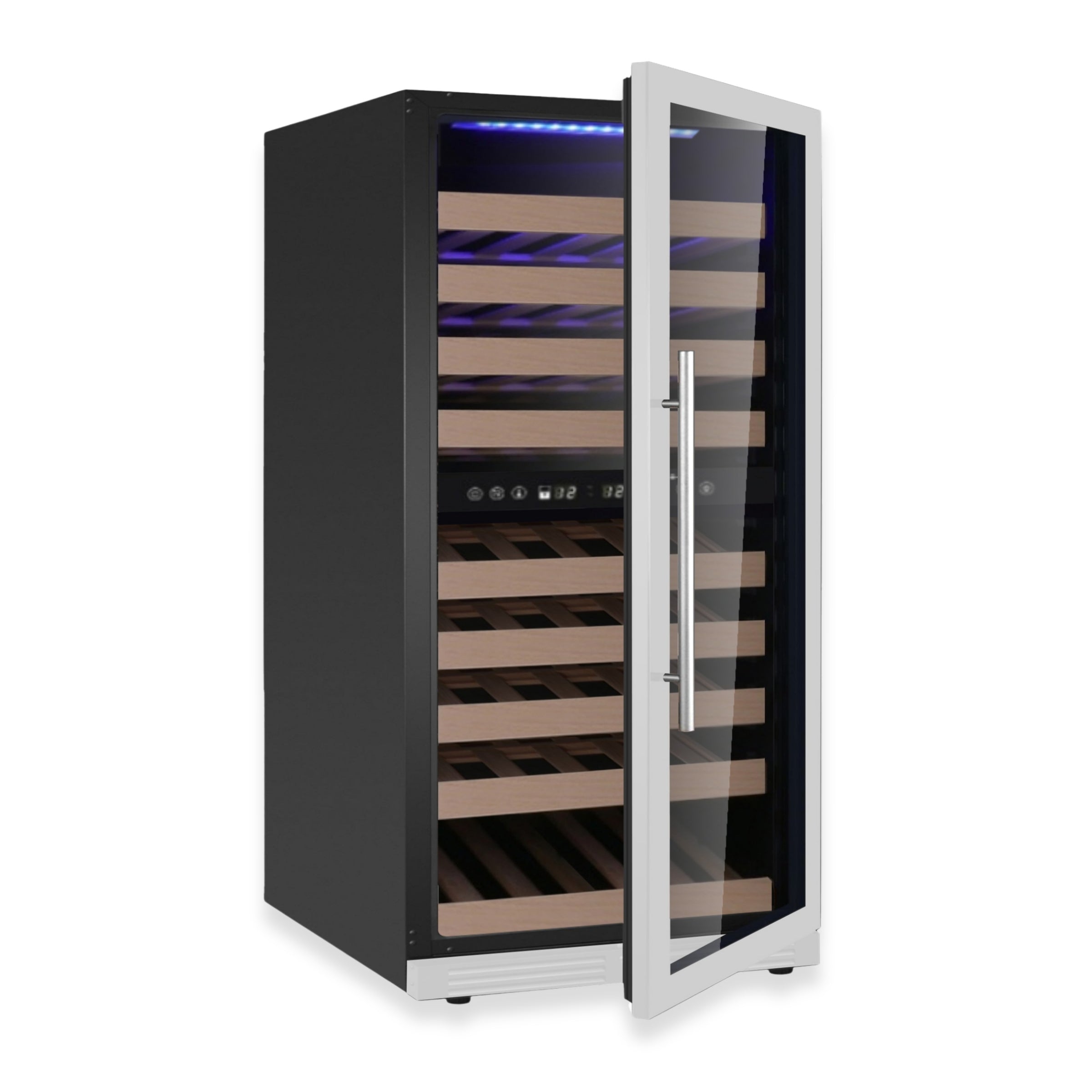

This unit offers ample storage for serious enthusiasts with space for up to 91 bottles, and 8+1 beech wooden shelves that can be adjusted to accommodate different bottle sizes and formats. The clean, upright design makes it a versatile and stylish addition to any home bar, kitchen, tasting room, or commercial space.
Build the ultimate beverage center!
Pair with our
47-Inch Beverage Cooler
for a side-by-side triple-zone setup that covers reds, whites, and ready-to-serve beverages.
Why it stands out
Dual-zone flexibility
Separate upper and lower zones let you keep whites cooler and reds slightly warmer, so your collection is always ready to pour at the ideal temperature.
Efficient inverter cooling
The Embraco Inverter Compressor runs quieter and more efficiently than traditional compressors, helping reduce energy consumption by up to 40%.
Low-E glass protection
A Low-E glass door helps block UV radiation, cuts condensation, and maintains a clean, gallery-style view of your wines.
Built-in or freestanding
Designed for built-in or freestanding use, this 47-inch wine cooler fits into cabinetry or stands alone as a premium upright showpiece.
Specifications
Key Specifications
| Volume | 9.36 CF (265 Liters) |
|---|---|
| Capacity (bottles) | 91 bottles |
| Installation Type | Built-in or freestanding |
| Climate Type | N |
| Temperature Zones | Dual zone |
| Upper Zone Range | 35°F to 54°F (2°C to 12°C) |
| Lower Zone Range | 54°F to 68°F (12°C to 20°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 8 + 1 beech wooden shelves |
| Dimensions | 23.42” W x 27.55” D x 47.24” H (includes 0.59” stand height) |
| Compressor | Embraco Inverter Compressor |
| Defrost Type | Automatic defrost |
| Power Supply | 110–115V / 60Hz |
| Rated Power Input | 165 W |
| Rated Current | 1.7 A |
| Refrigerant | R600A / 45 g |
| Power Lamp | 0.7 W |
| Energy Consumption | 0.63 kWh / 24 h |
Technical Features
Embraco inverter compressor
A top-brand Embraco Inverter Compressor delivers ultra-quiet performance and can reduce energy consumption by up to 40% compared to traditional fixed-speed compressors.
Patented sink of compressor
Increases air circulation space around the compressor, improving cooling performance while reducing vibration and overall noise.
Low-E glass door
Low-E glass helps reduce energy consumption and condensation on the glass door, acting as an invisible insulating barrier that protects your wines from UV exposure and temperature fluctuations.
Note: The Low-E coating reduces heat transfer and improves overall cooling efficiency and visual clarity.
Fan-circulated air-cooling
A fan-circulated air-cooling system helps maintain temperature uniformity throughout the cabinet and compensates for humidity, protecting your wines across both zones.
Activated carbon filter
An activated carbon filter helps remove impurities from the air, keeping the interior fresher and reducing unwanted odors that could affect corks over time.

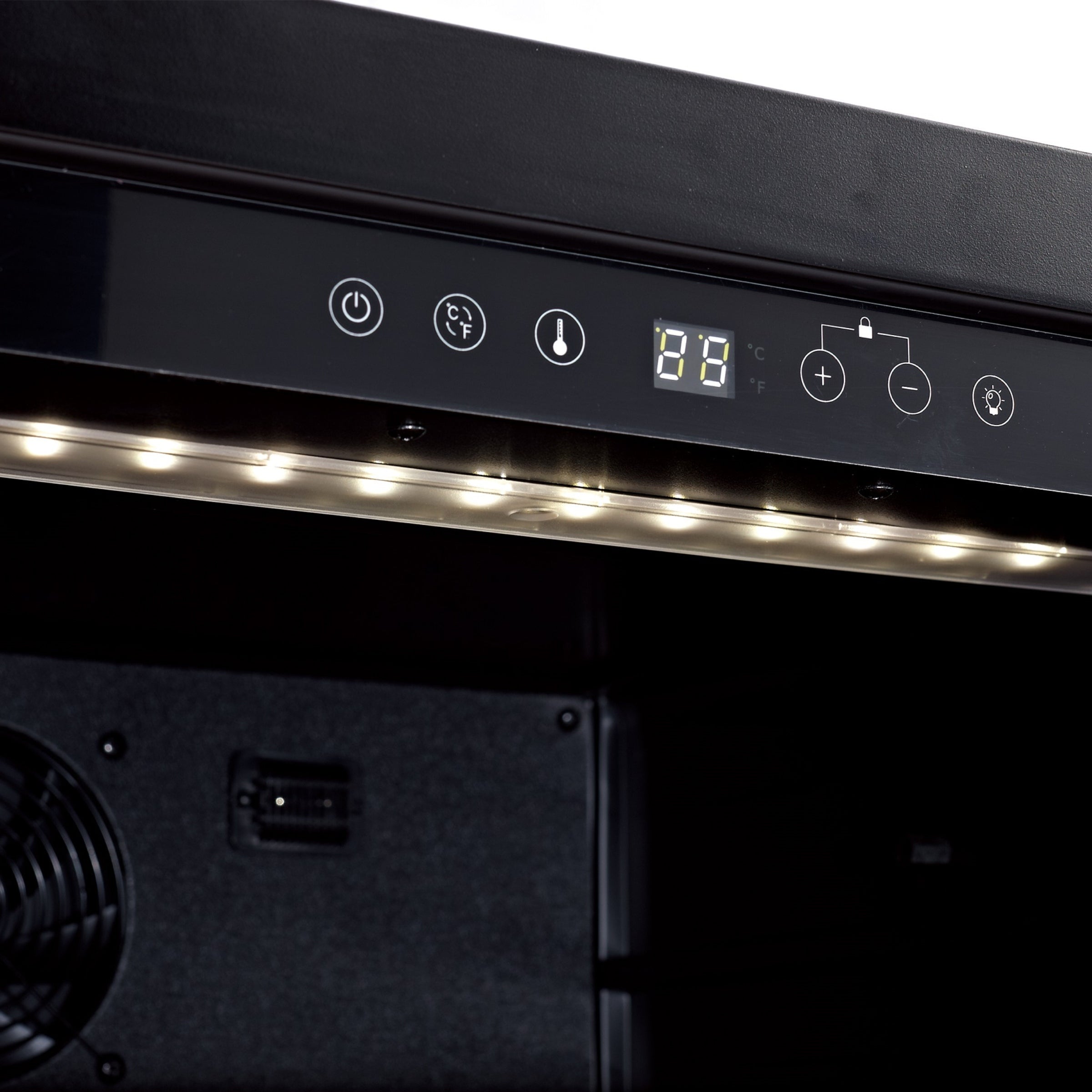

LED digital touchpad control
A simple, easy-to-operate LED display with digital touchpad control provides clear, accurate temperature settings for both zones.

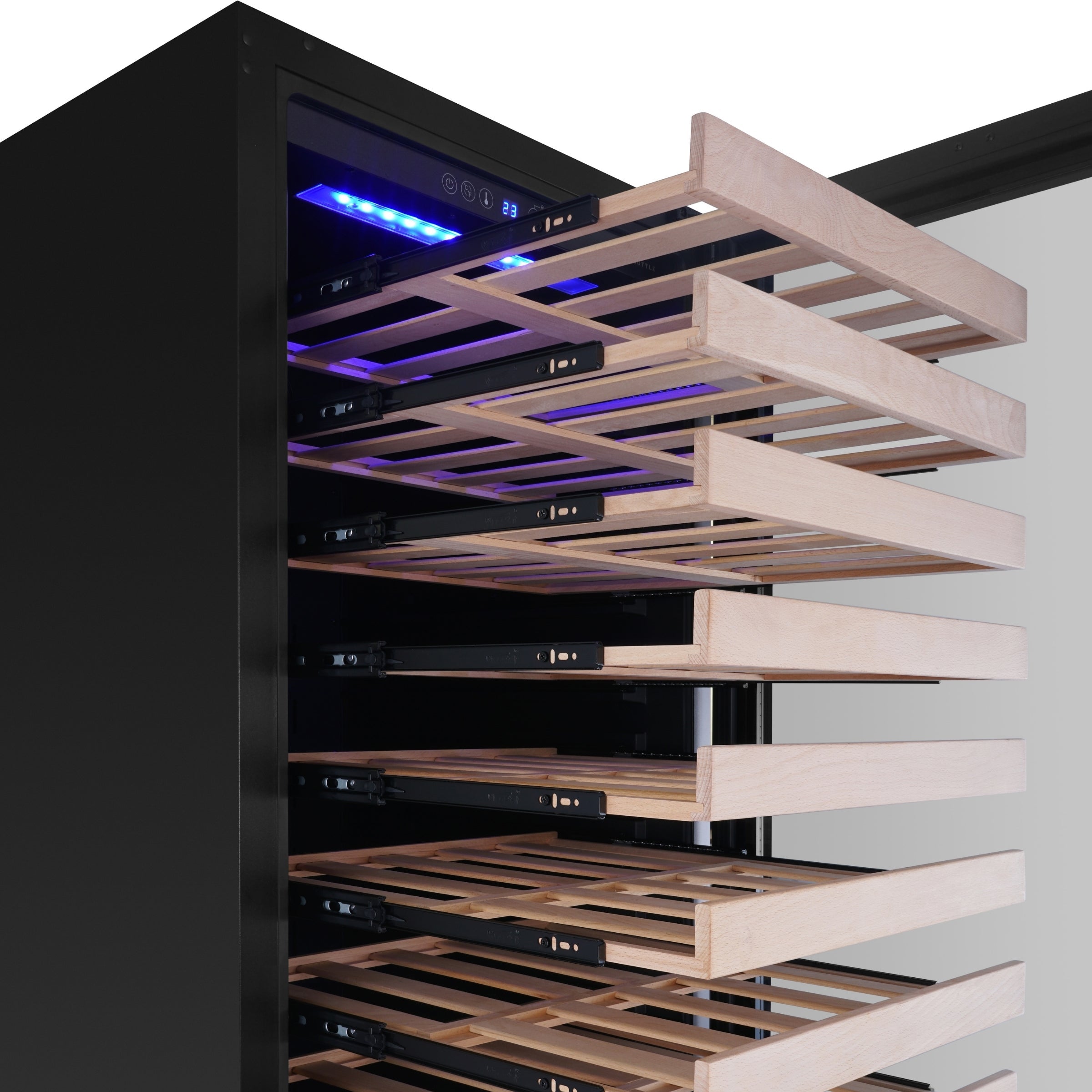

Full-extension beech wood shelves

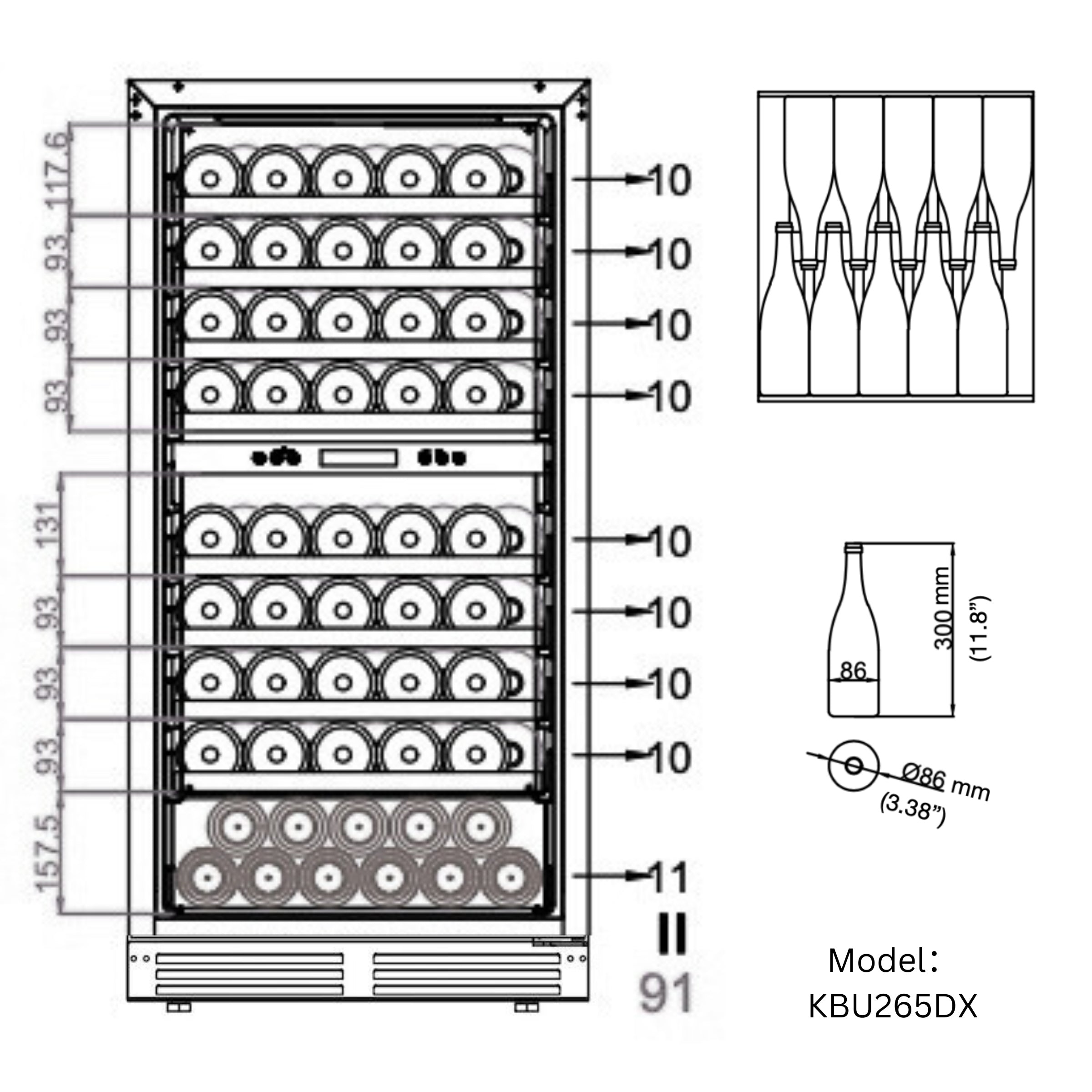

FULL-EXTENSION beech wood shelves are sturdy and wine-friendly, cleverly spaced to accommodate both regular and larger bottles up to approximately 3.39" (86 mm) in diameter.
Magnetic door switch
A magnetic switch triggers a 2-minute door-open alarm, helping protect your collection from accidental temperature spikes if the door is left ajar.

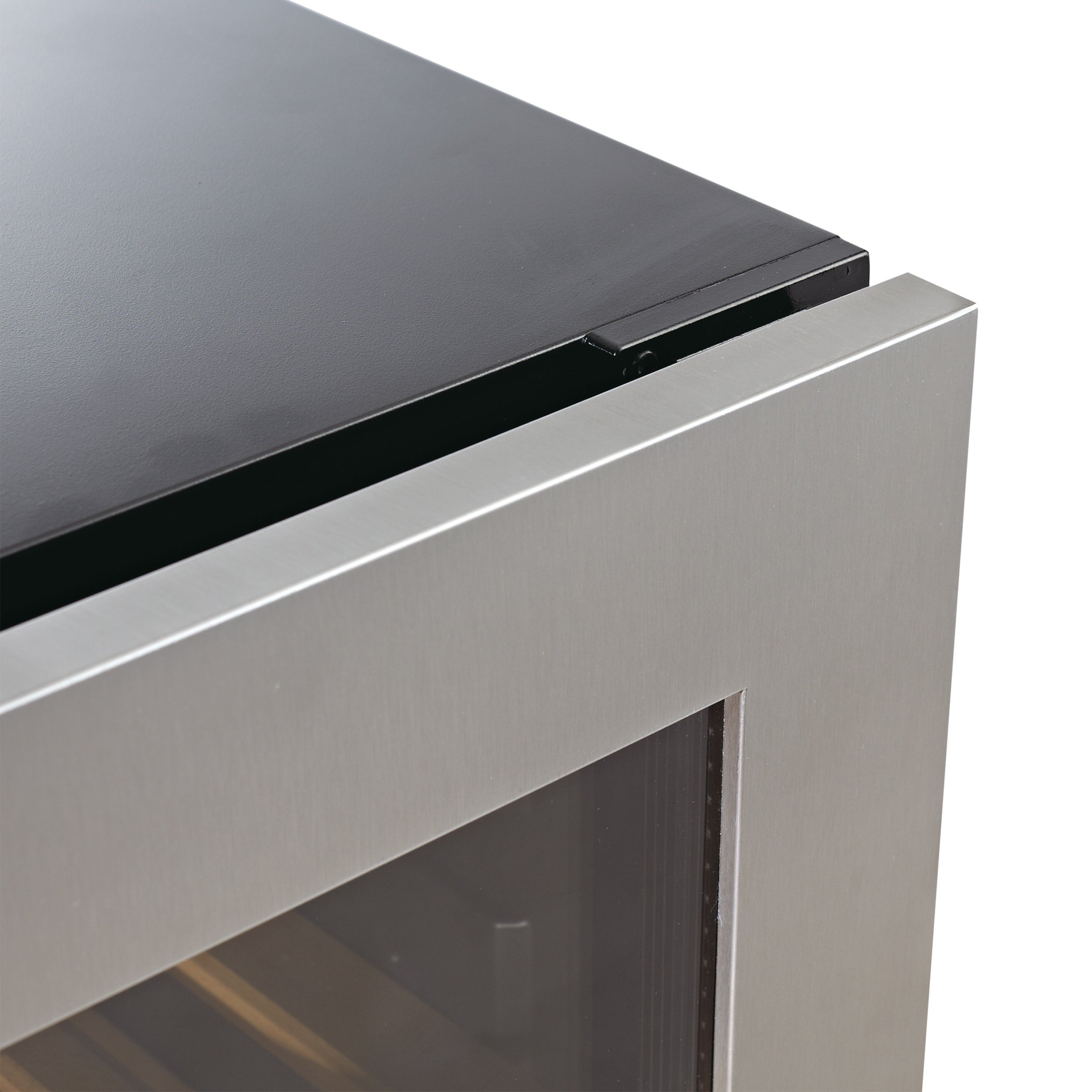

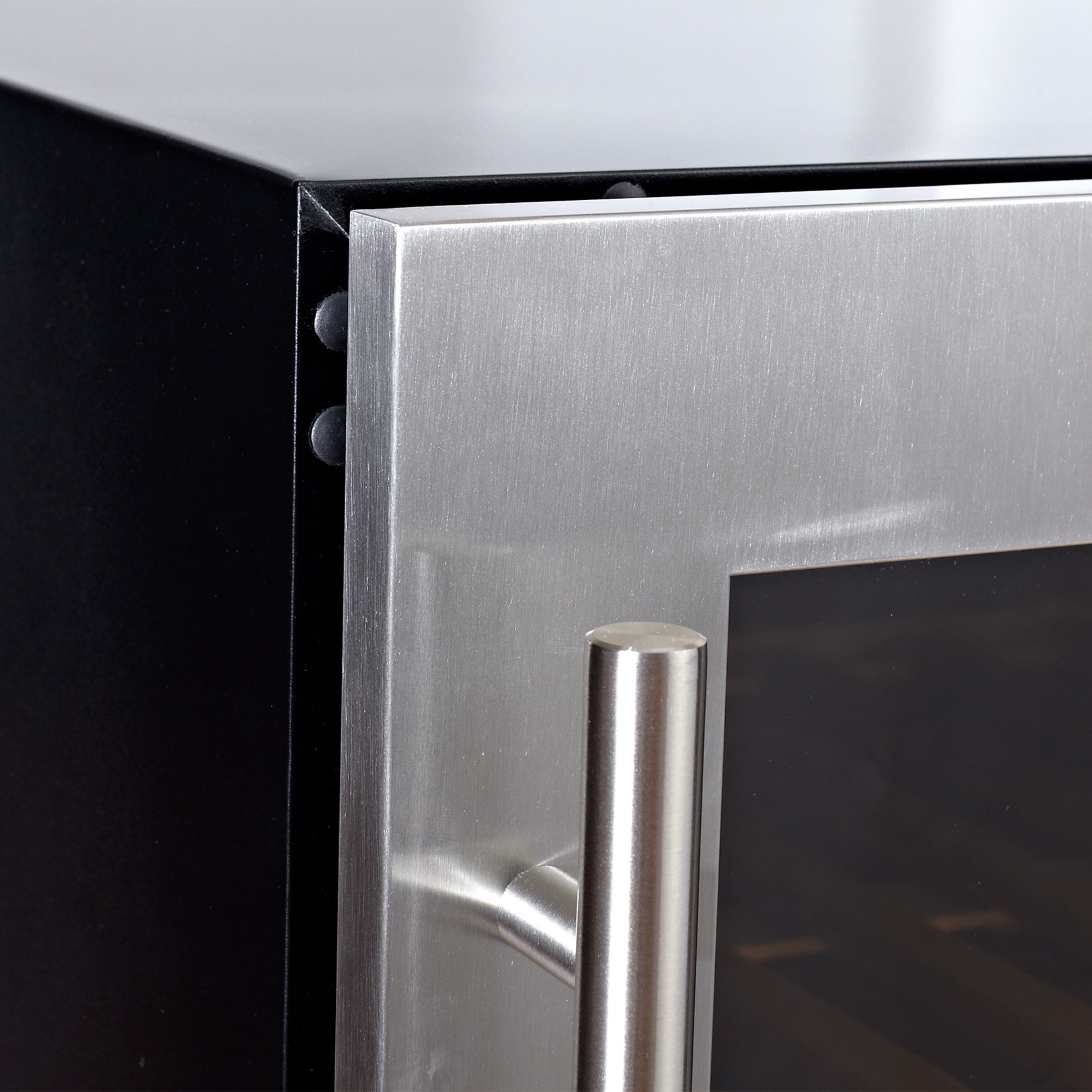

Hidden hinge & seamless frame
A hidden door hinge and seamless stainless steel door frame support a full built-in design with a clean, modern look that integrates into cabinetry.
45 mm C-pentane insulation
Thicker 45 mm C-pentane foam insulation optimizes cooling performance and helps reduce energy consumption by improving thermal stability.

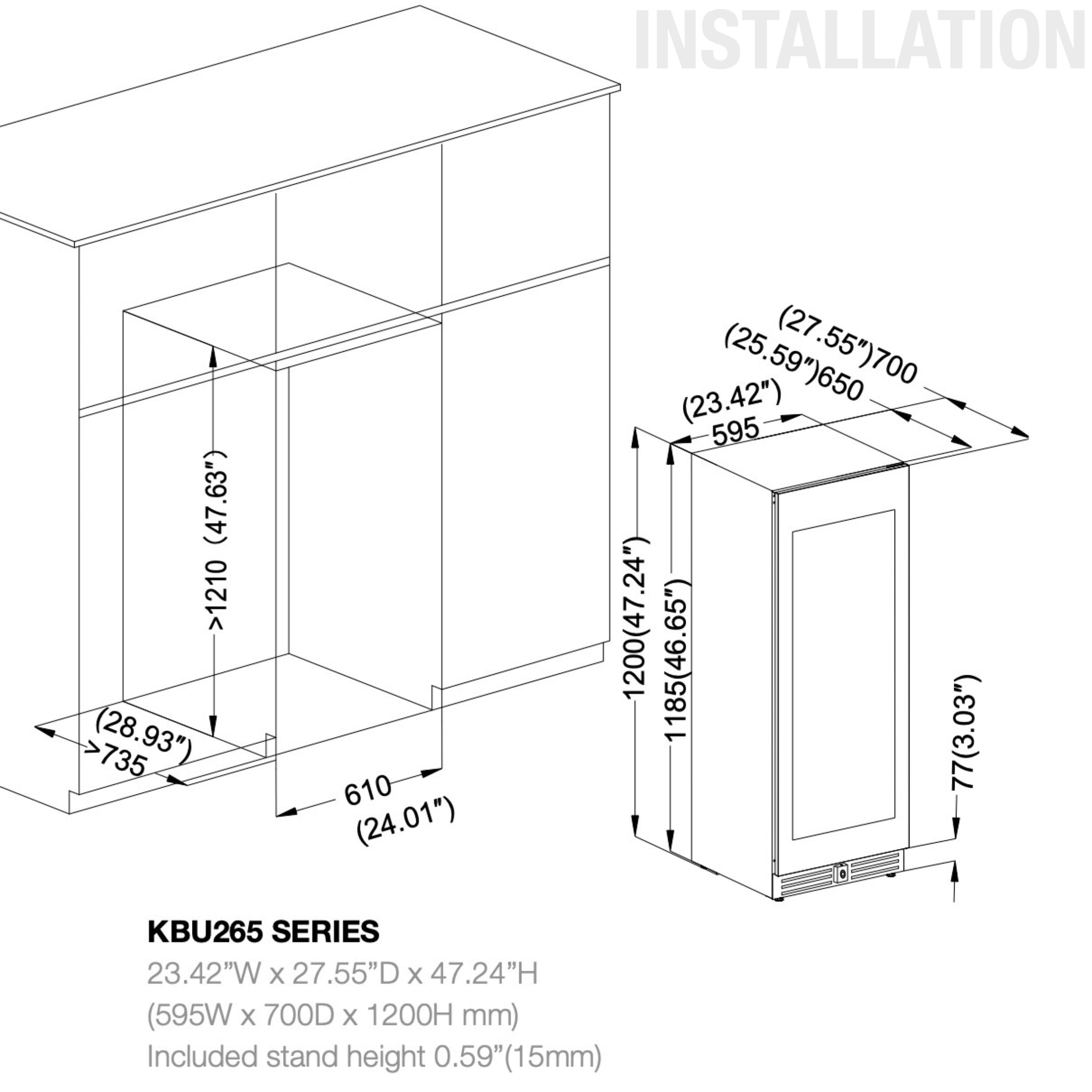

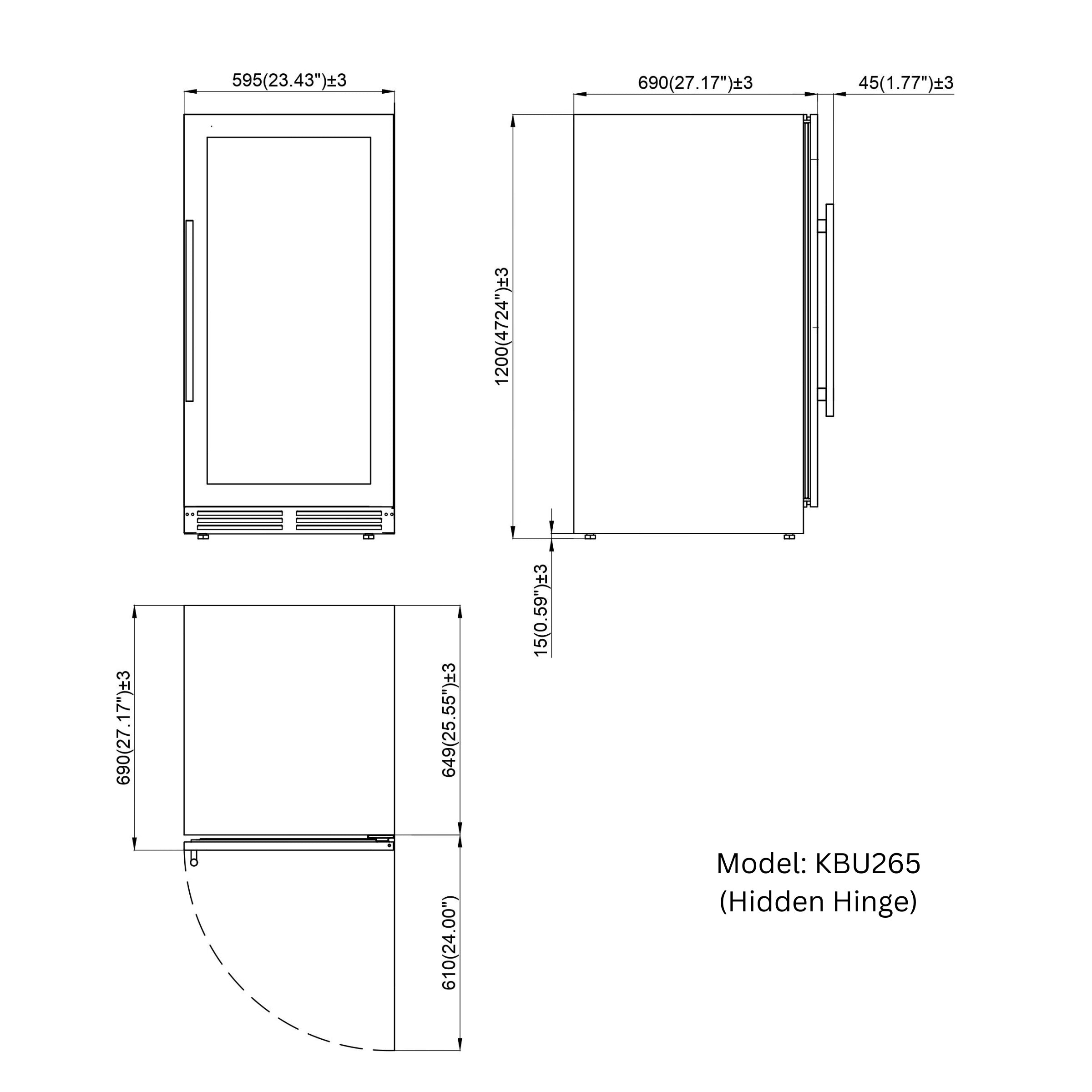

Dimensions & Diagrams
Technical dimensions
Use the technical and cutout diagrams to confirm footprint, clearances, and installation requirements before setting this unit into cabinetry or alongside a matching beverage cooler.
Product Manual
Download & view the full manual
Review the complete user manual for detailed installation instructions, operating guidelines, and maintenance information for this dual-zone upright wine cooler.
Frequently Asked Questions
This 47-inch tall dual zone wine cooler is designed to hold up to 91 bottles, depending on bottle shape and how the shelves are configured.
The upper zone can be set between 35°F and 54°F (2°C to 12°C), while the lower zone ranges from 54°F to 68°F (12°C to 20°C), giving you flexibility to store whites, sparkling, and reds at their ideal temperatures.
Yes. It is designed for built-in or freestanding installation. Always follow the cutout and ventilation guidelines shown in the diagrams to ensure proper airflow when integrating into cabinets or a bar wall.
The Low-E glass door helps reduce UV exposure and condensation while improving insulation. That means better temperature stability, improved energy efficiency, and a clearer view of your bottles.
The Embraco Inverter Compressor is engineered for quieter operation and smoother cycling than traditional compressors. It ramps up and down as needed instead of constantly turning on and off, which helps reduce noise and vibration around your collection.
