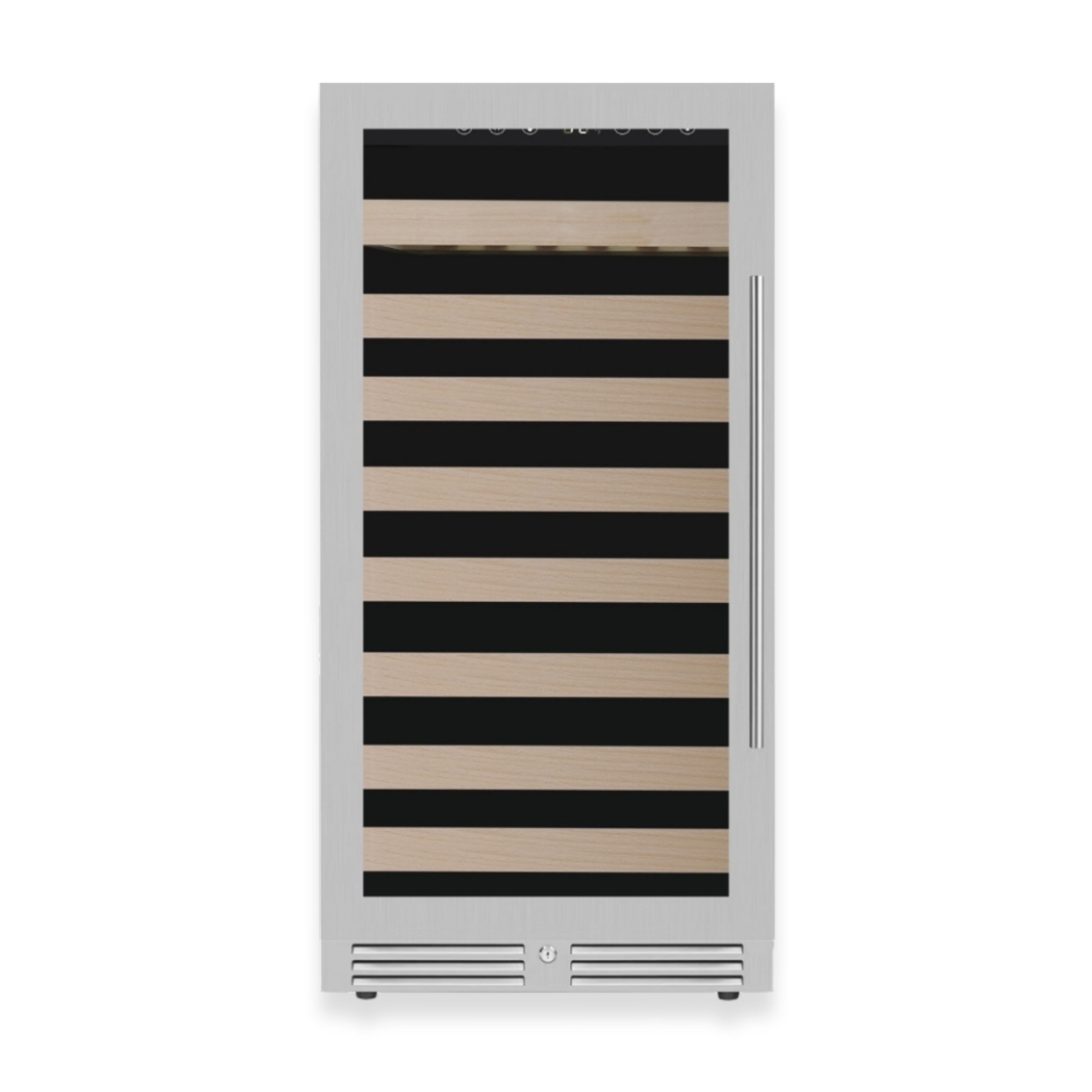

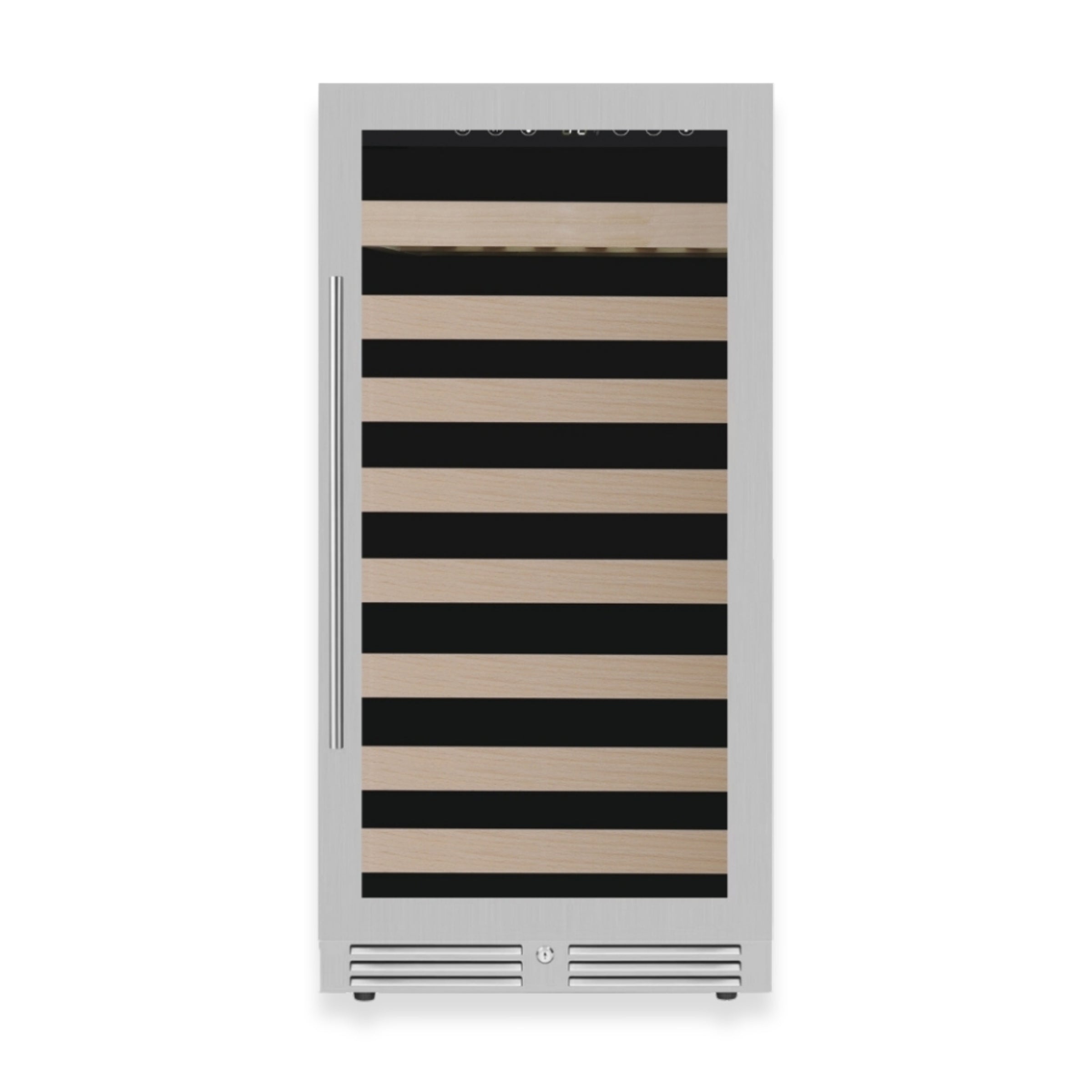

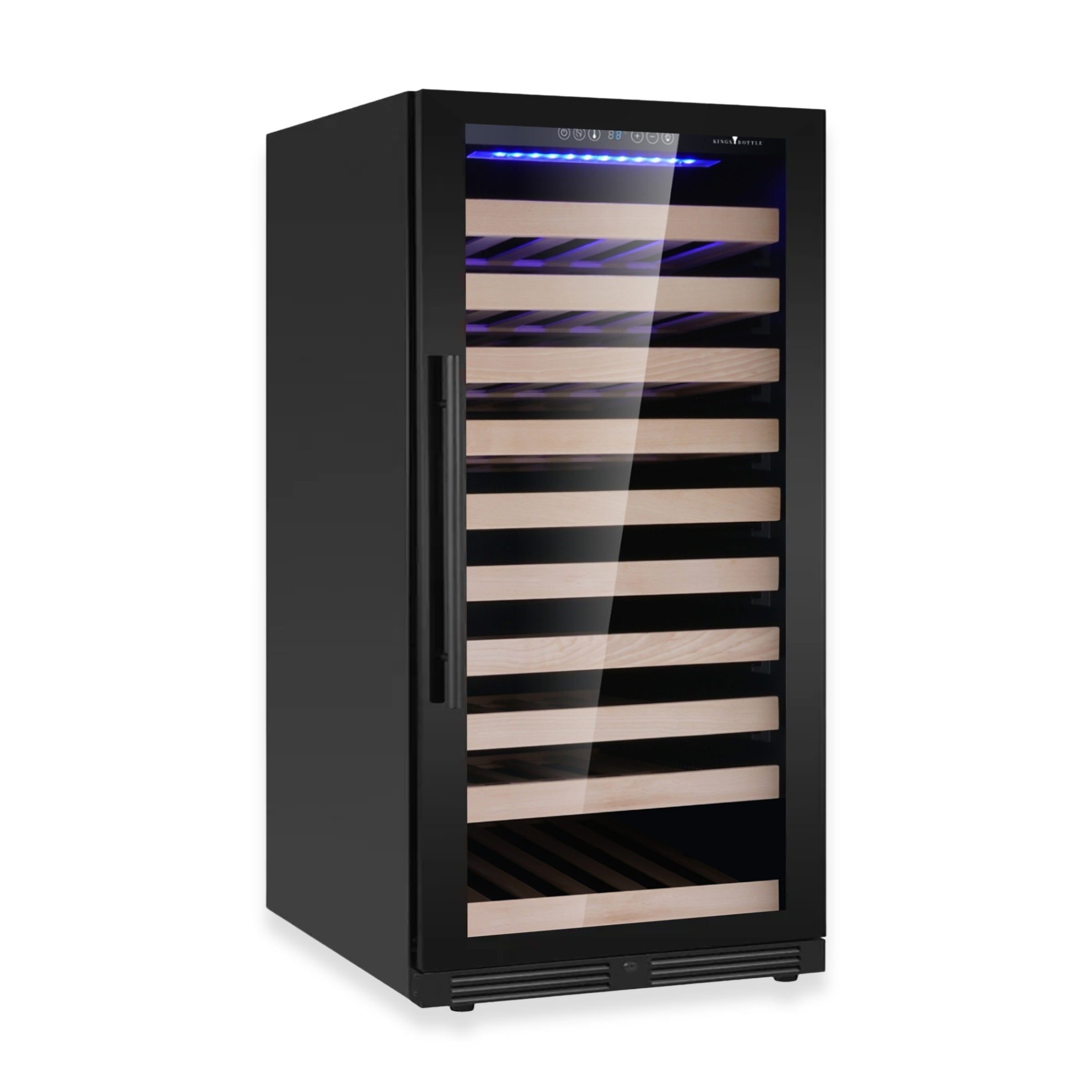

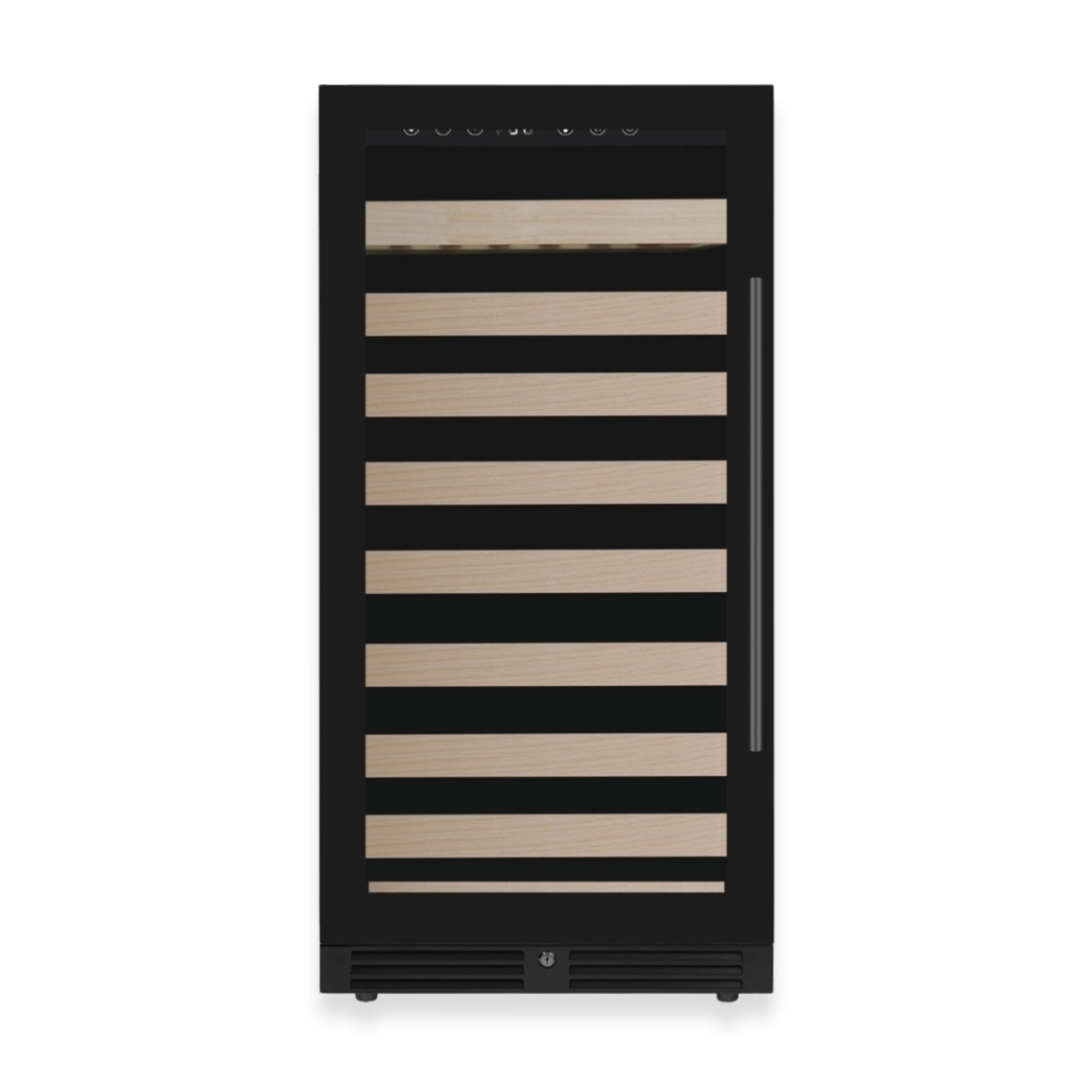

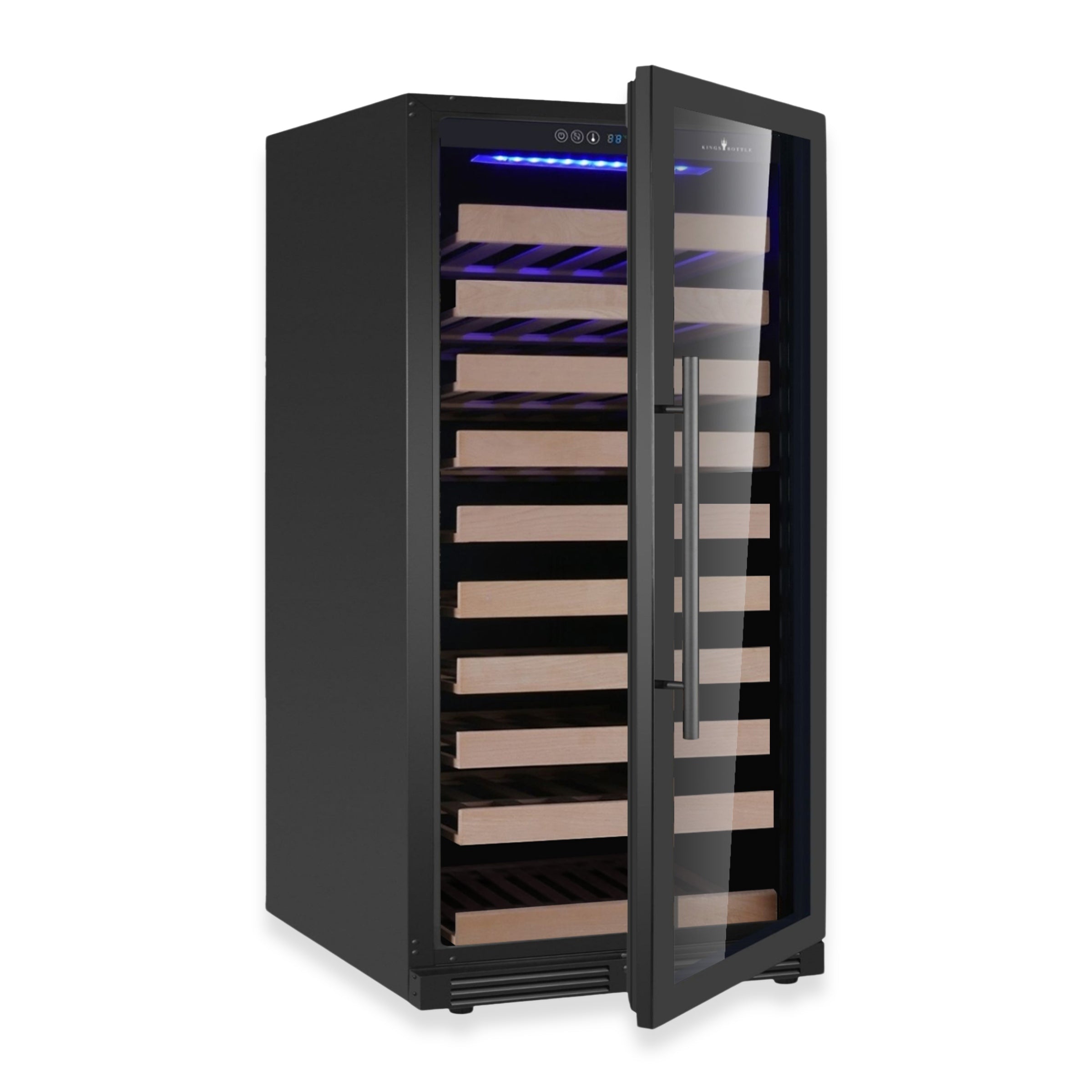

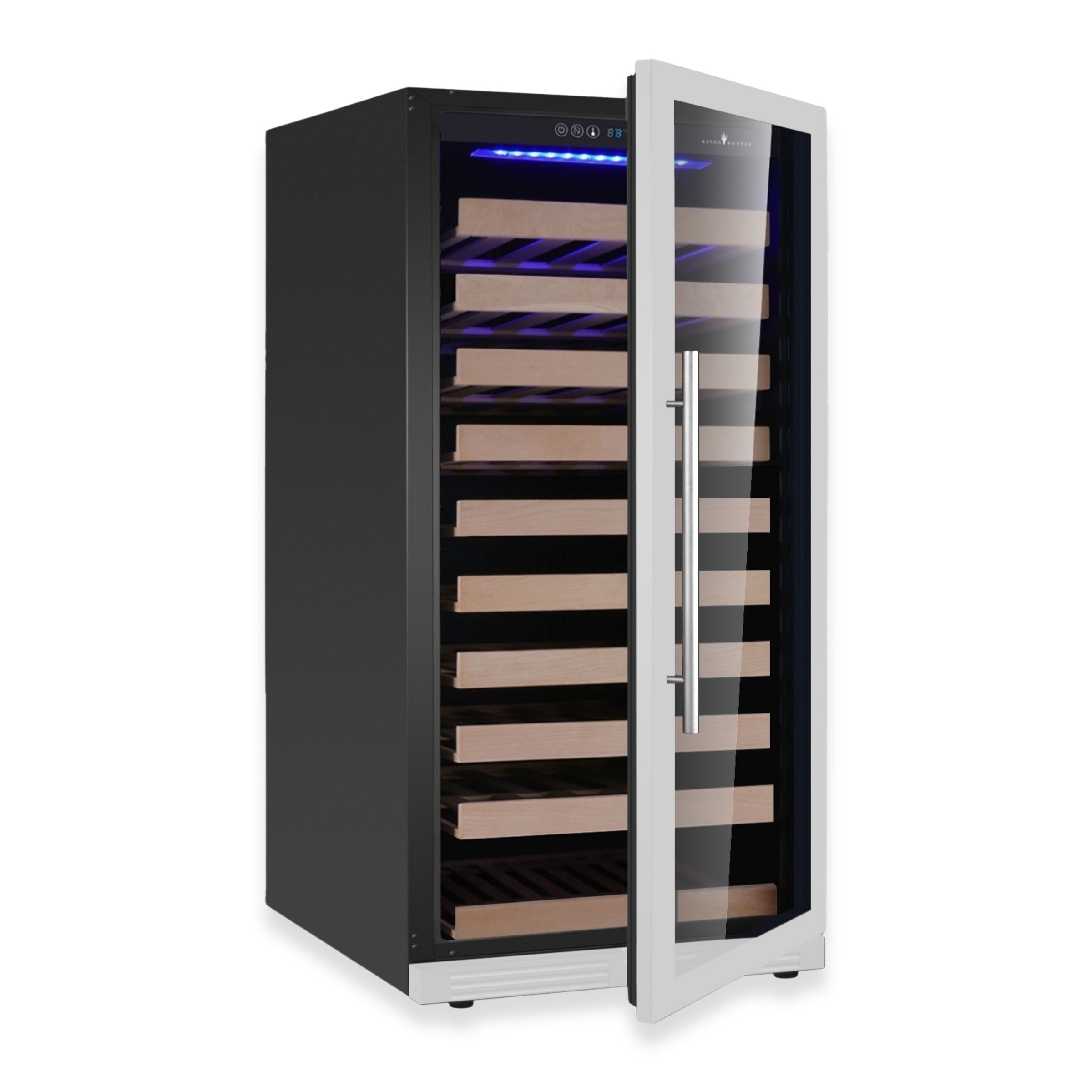

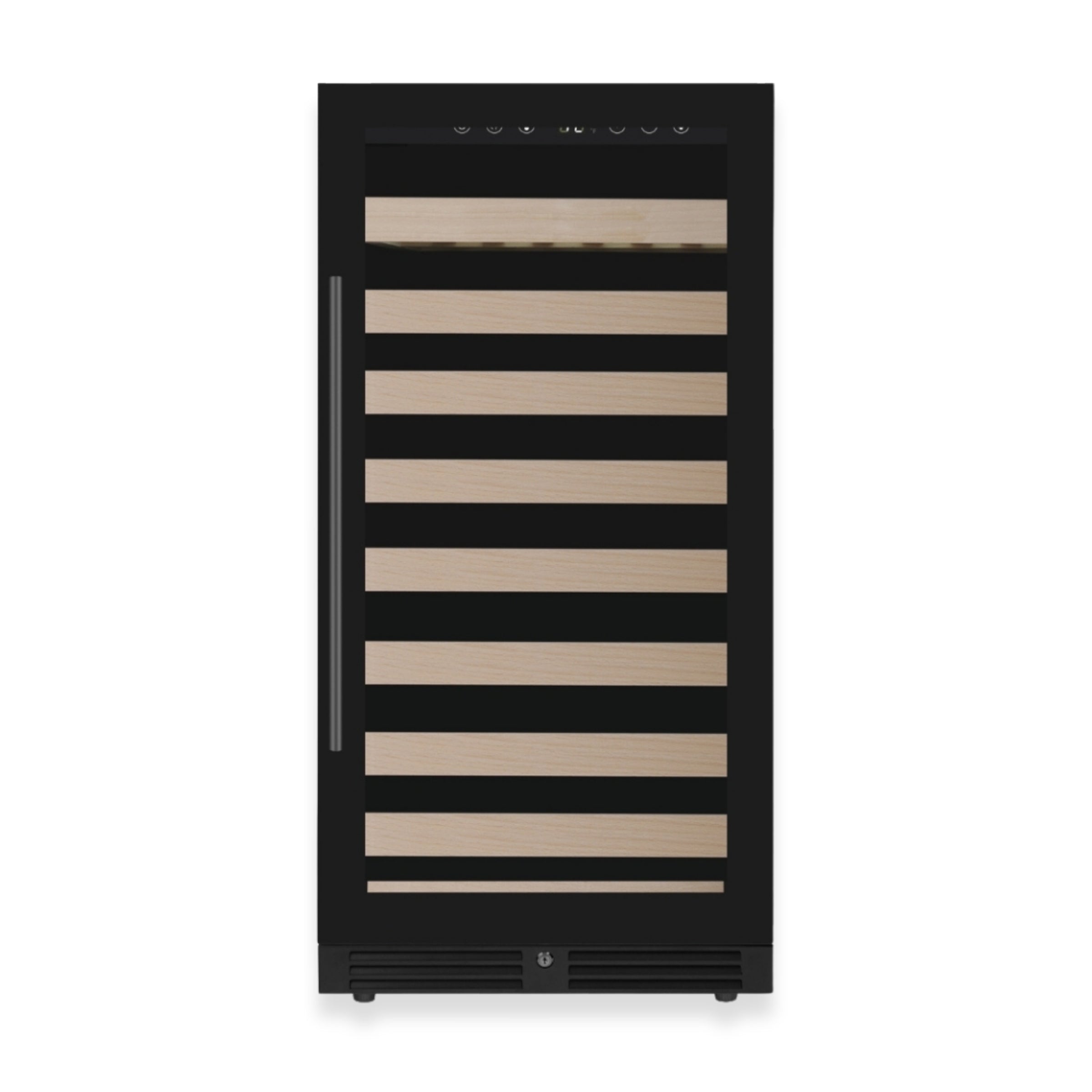

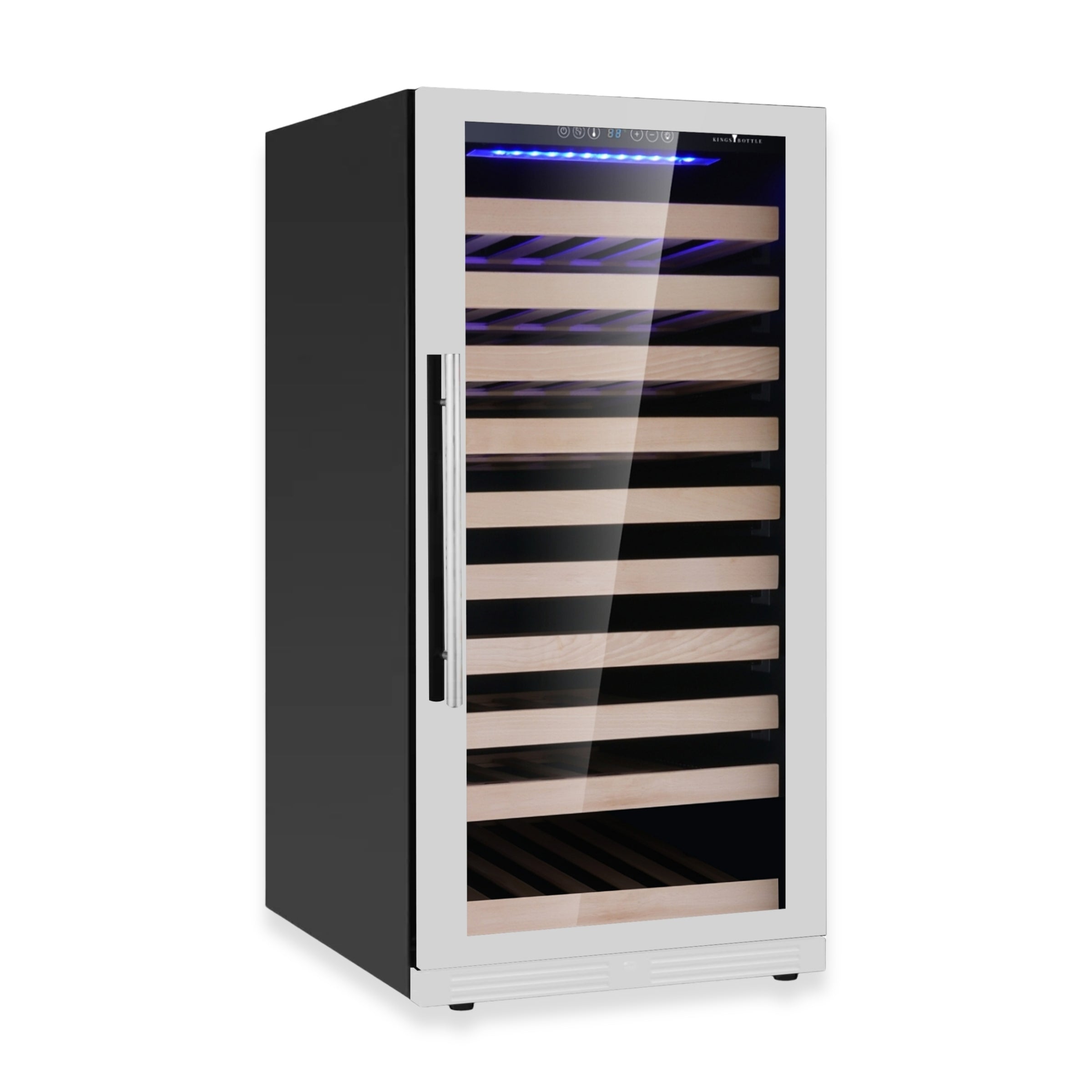

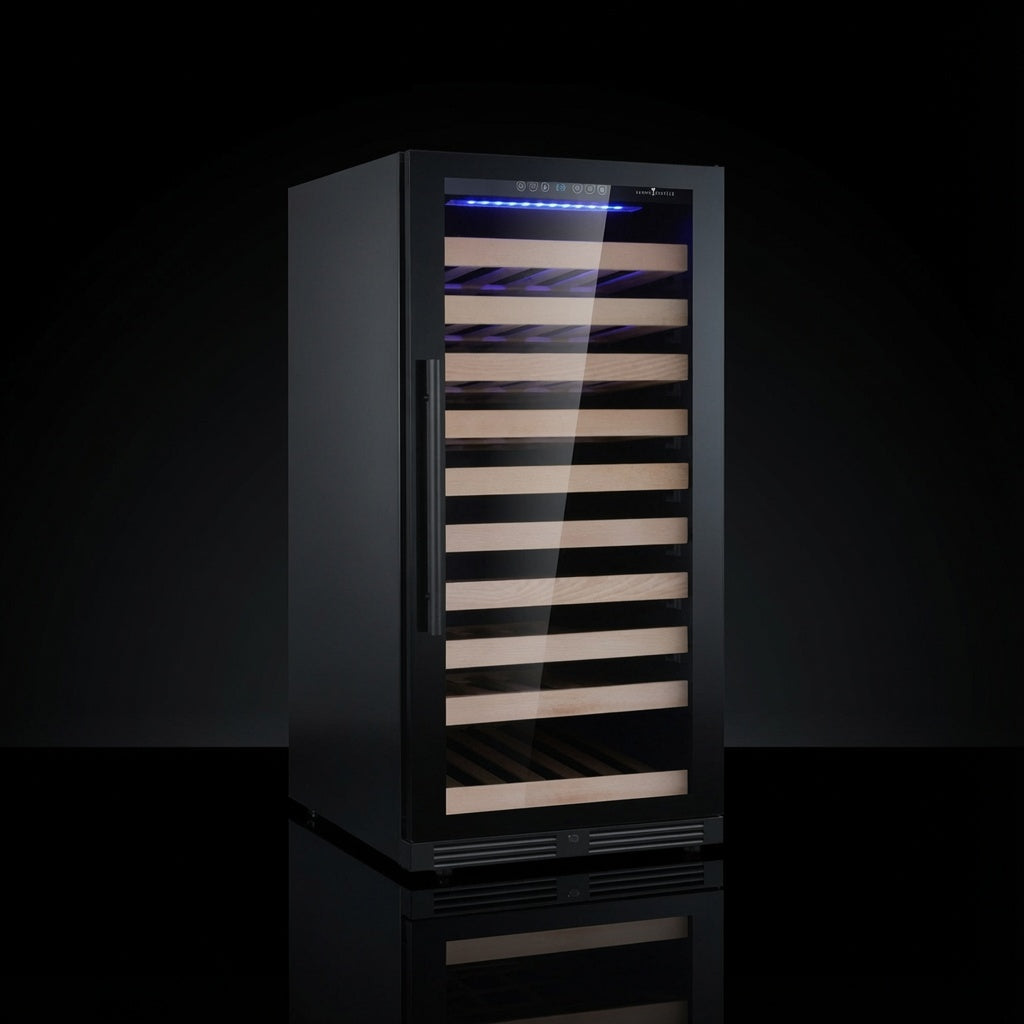

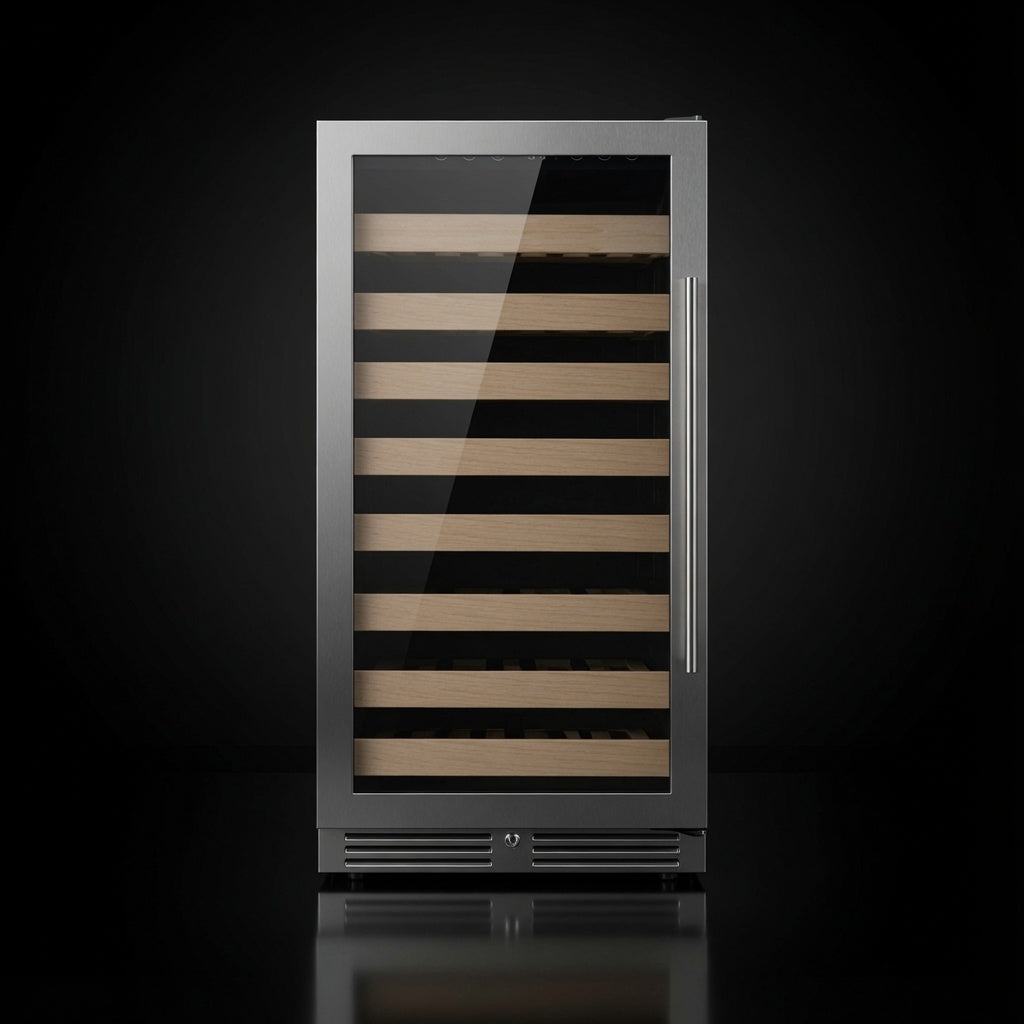

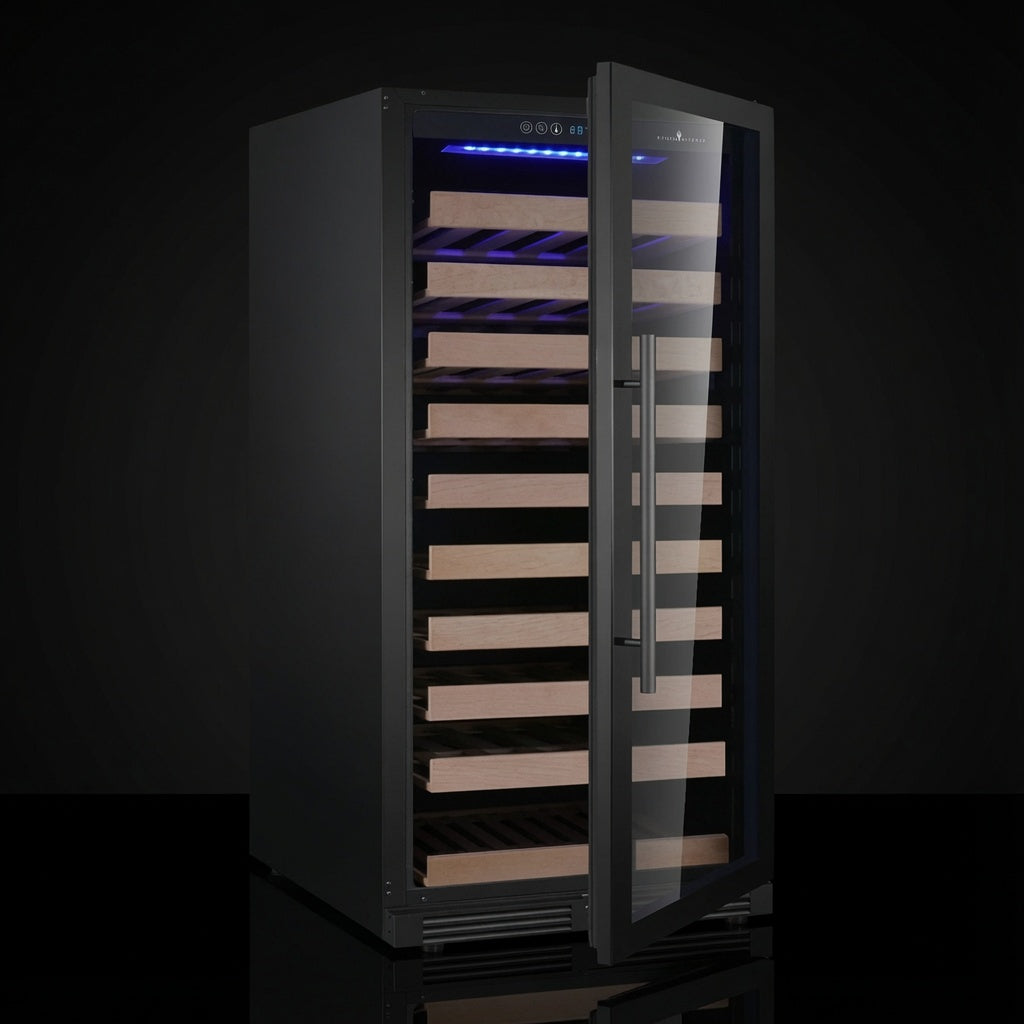

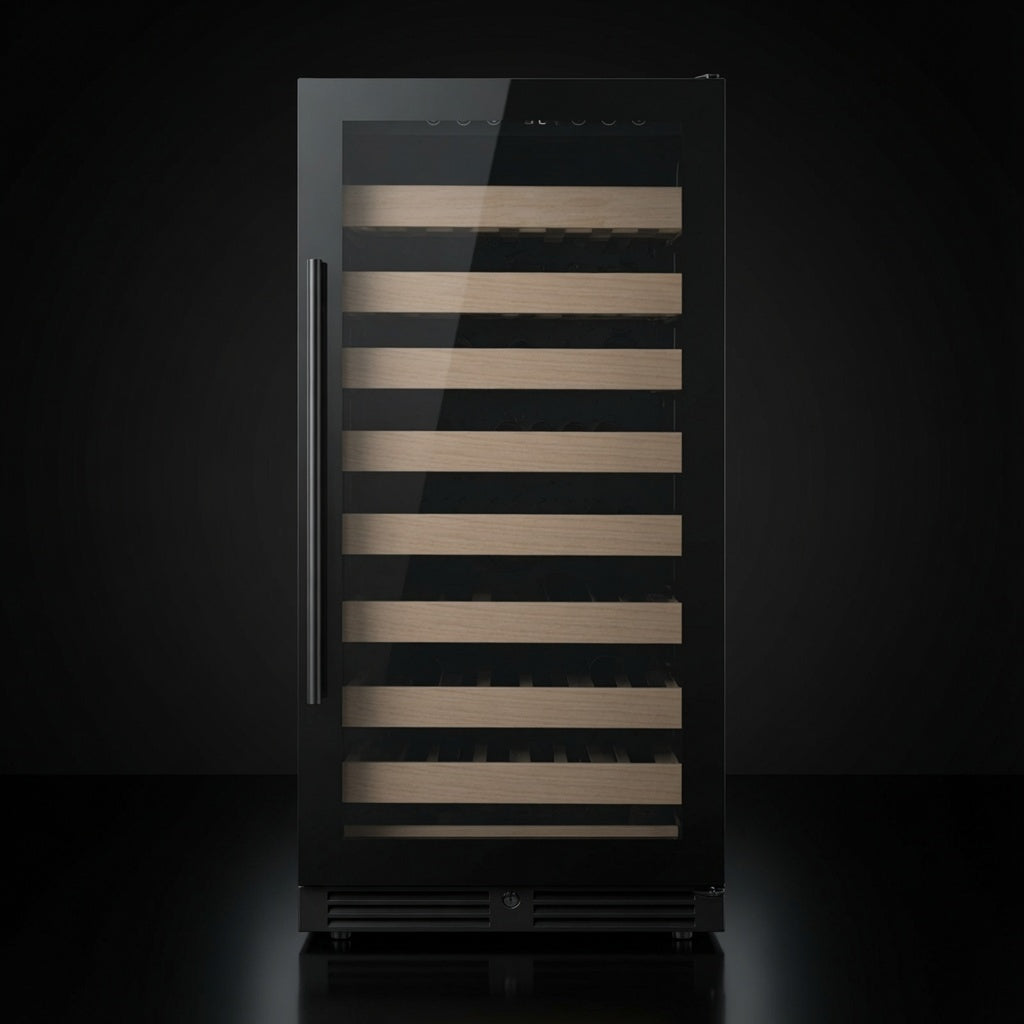

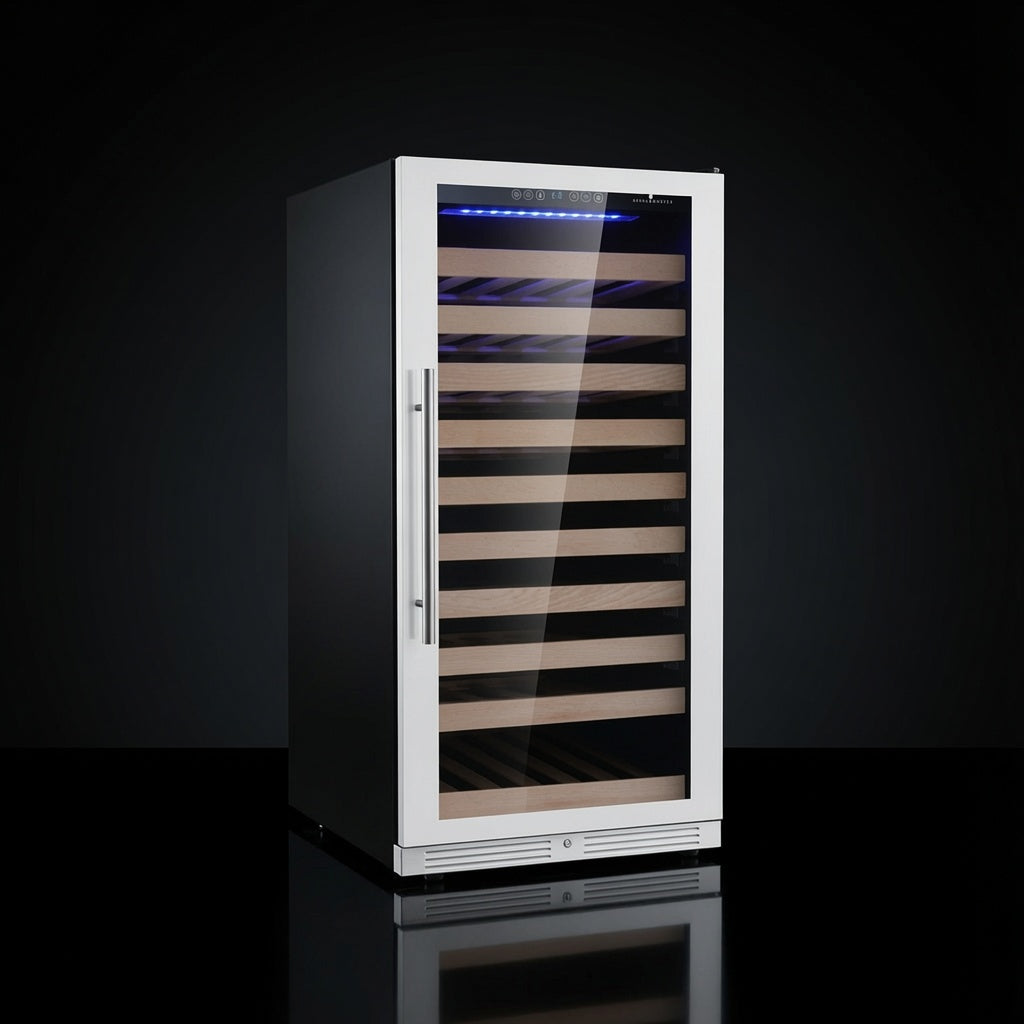

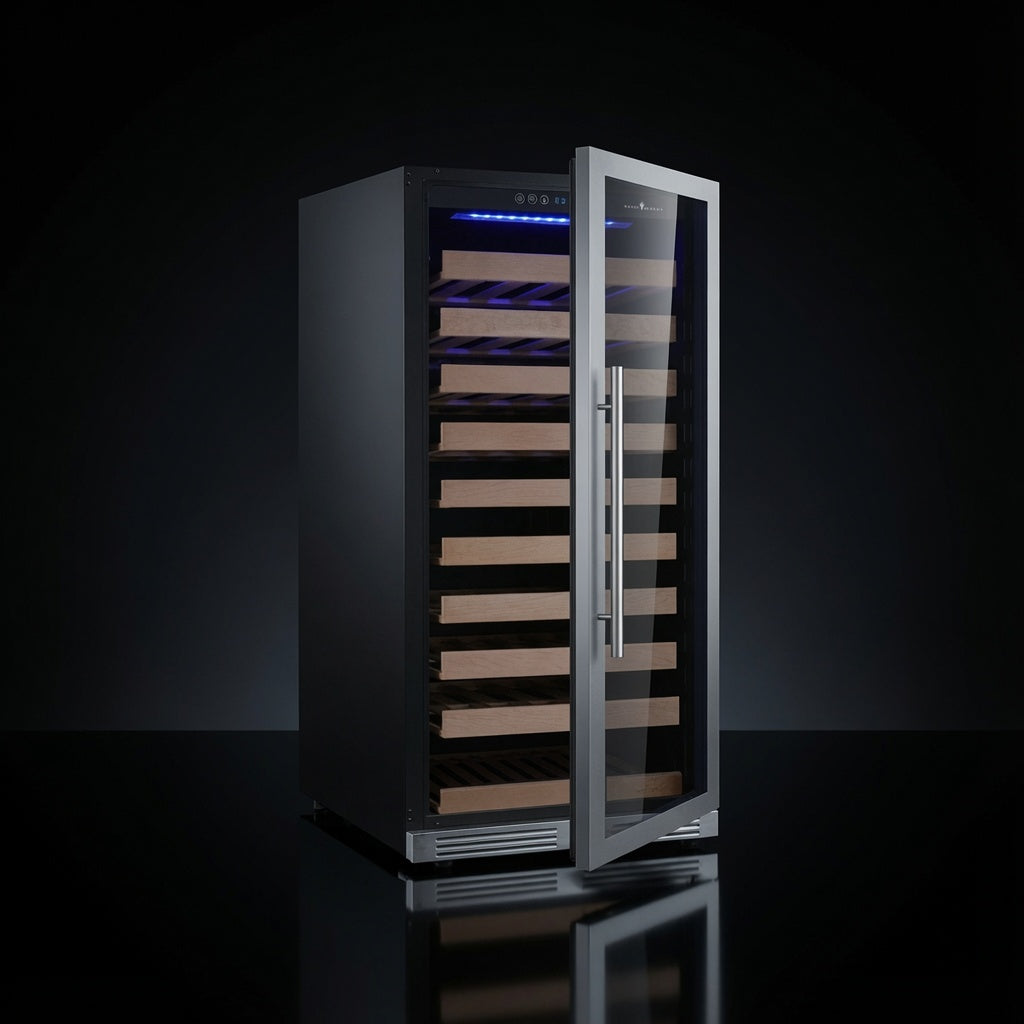

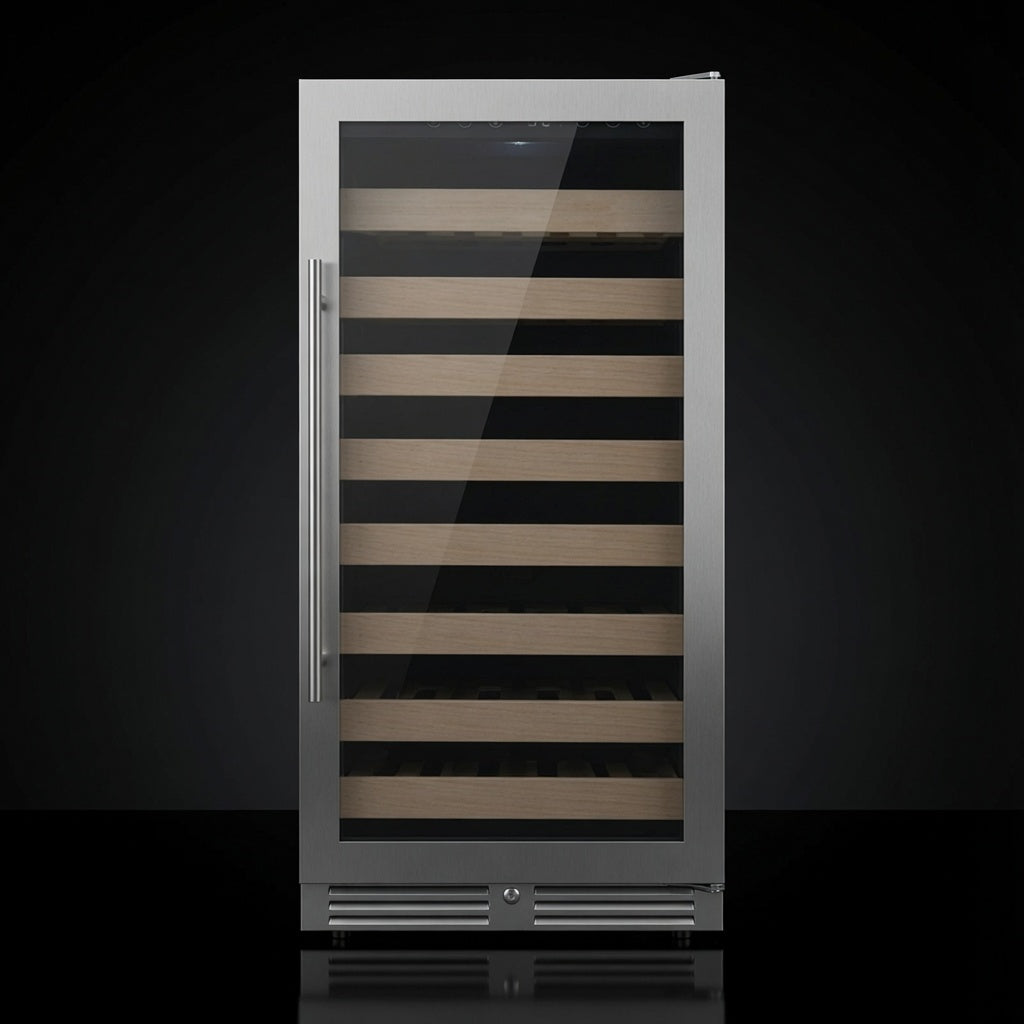

The 47-Inch Height Single-Zone Wine Cooler with Low-E Glass Door offers optimal storage for your wine collection with advanced, energy-efficient cooling technology. Powered by the Embraco Inverter Compressor , it delivers quieter operation, improved efficiency, and up to 40% reduced energy consumption compared with traditional compressors.
The Low-E glass door provides superior UV protection to help preserve the character, aroma, and structure of your wines while reducing condensation for a clean, uninterrupted view. With storage for up to 99 bottles and adjustable beech wooden shelves, this single-zone wine cooler is ideal for collectors who store primarily reds or whites at a consistent serving or cellaring temperature.

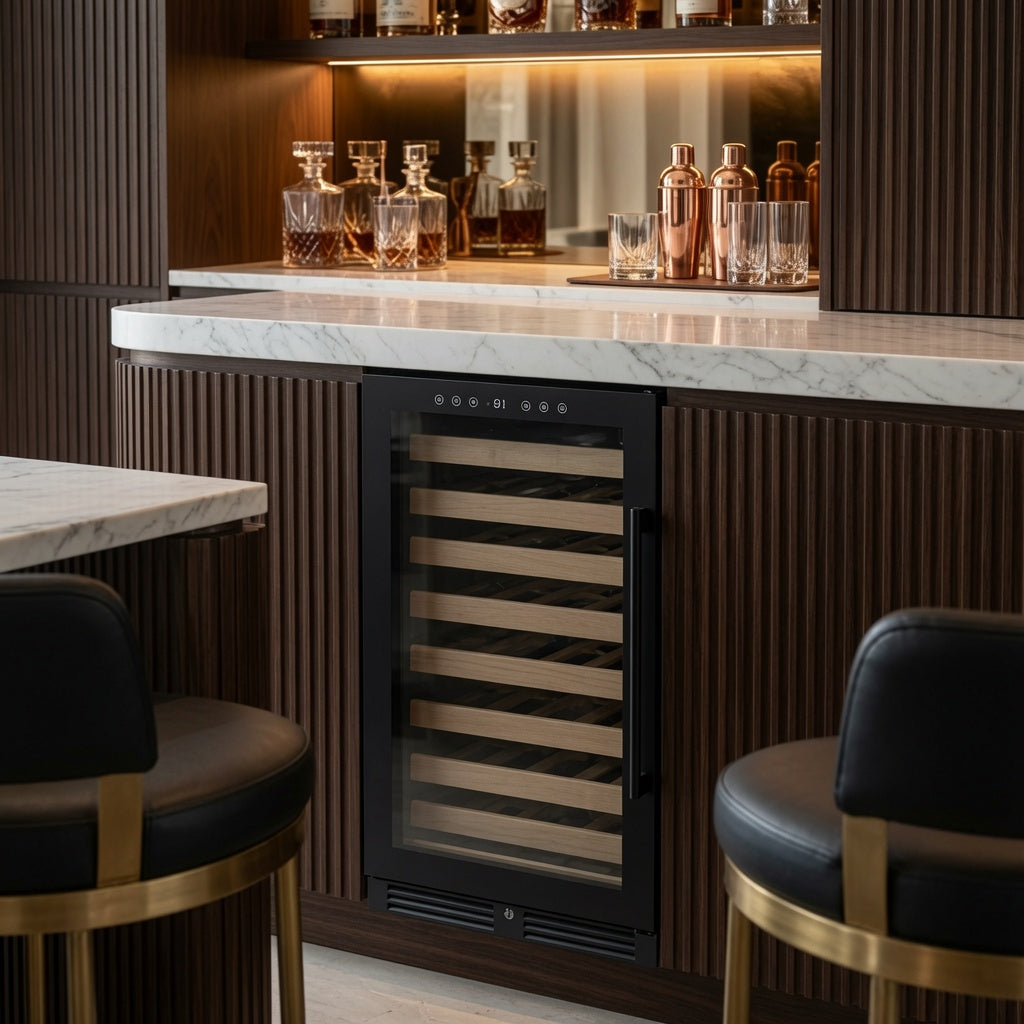

Designed for both built-in and freestanding installations, its sleek stainless-steel styling and modern digital controls make it a refined addition to kitchens, bars, and entertainment spaces in both residential and light commercial settings.
Need dual-zone flexibility?
For collectors storing both reds and whites, consider our matching
47-Inch Tall Dual Zone Wine Cooler
.
Its identical height and premium styling make it a perfect complement for a coordinated side-by-side installation.
Create a matching beverage center:
Pair this unit with our
389 Cans Capacity Upright Beverage Refrigerator
for a seamless, high-end wine and beverage setup.
Why it stands out
Generous 99-bottle capacity
Offers 9.36 cu ft (265 L) of storage with space for up to 99 standard bottles, making it a strong choice for growing collections and serious enthusiasts.
Energy-efficient inverter cooling
The Embraco Inverter Compressor delivers quieter, more consistent cooling while reducing energy consumption by up to 40% compared with conventional compressors.
Low-E glass door protection
The Low-E glass door shields your collection from UV light, helps minimize condensation, and acts as an invisible insulating barrier to support stable temperatures.
Built-in or freestanding

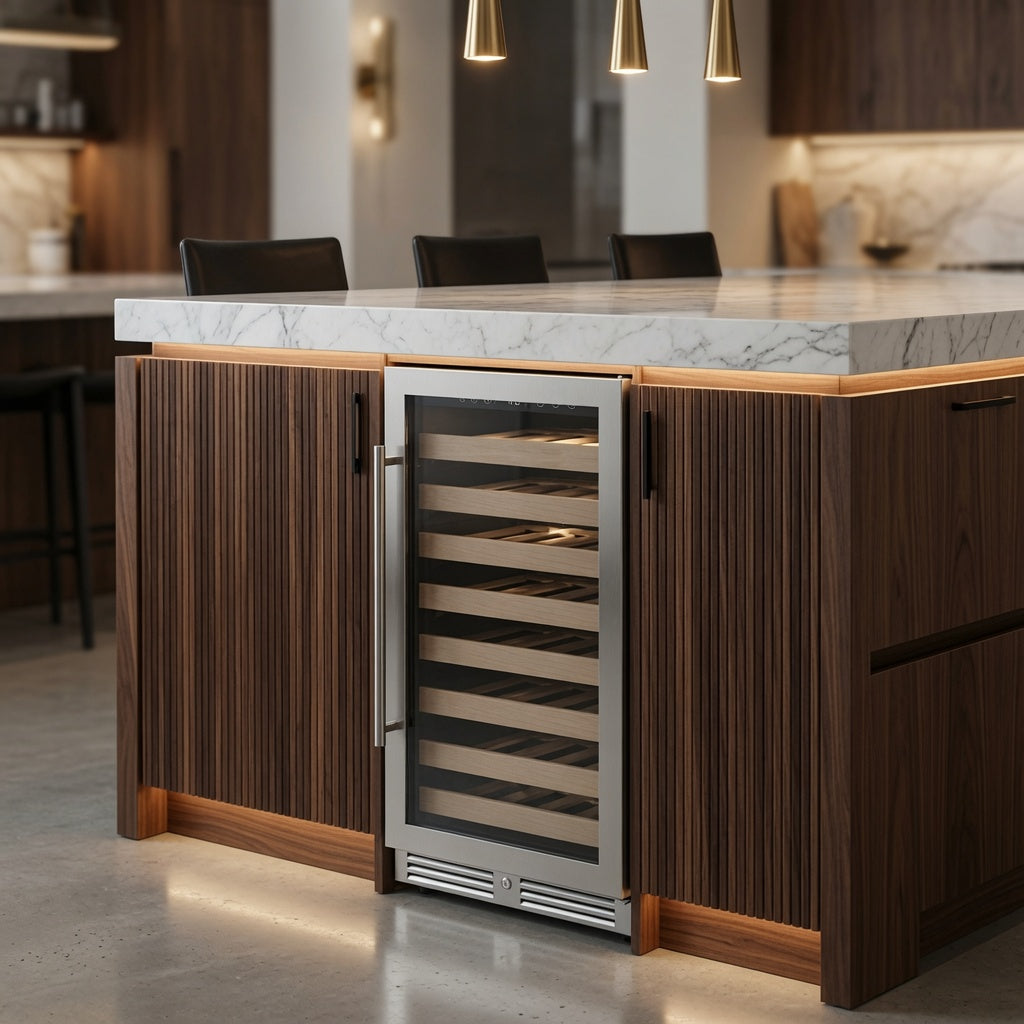

Designed for flexible installation, this cooler can be built into cabinetry or used as a freestanding statement piece in kitchens, tasting rooms, or home bars.
Specifications
Key Specifications
| Volume | 9.36 CF (265 Liters) |
|---|---|
| Capacity (bottles) | 99 bottles |
| Installation Type | Built-in or freestanding |
| Climate Type | N |
| Temperature Zones | Single zone |
| Adjustable Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 8 beech wooden shelves |
| Dimensions | 23.42” W x 27.55” D x 47.24” H (includes 0.59” stand height) |
| Compressor | Embraco Inverter Compressor |
| Defrost Type | Automatic defrost |
| Power Supply | 110–115V / 60 Hz |
| Rated Power Input | 165 W |
| Rated Current | 1.7 A |
| Refrigerant | R600A / 45 g |
| Power Lamp | 0.7 W |
| Energy Consumption | 0.63 kWh / 24 h |
Technical Features
Inverter compressor
Utilizes a top-brand Embraco Inverter Compressor for super-quiet operation, smooth cycling, and up to 40% lower energy consumption versus traditional fixed-speed compressors.
Patented sink of compressor
Increases air circulation space around the compressor, supporting better cooling performance, lower vibration, and reduced operating noise over time.
Low-E insulated glass door
The Low-E glass door helps reduce energy consumption and condensation on the glass while acting as an invisible insulating barrier to support stable cabinet temperatures.
Note: Low-E glass uses a thin, transparent coating to reduce heat transfer and enhance both energy efficiency and cooling performance.
Fan circulated air-cooling
A fan-circulated air-cooling system helps ensure temperature uniformity throughout the cabinet and compensates for air humidity to better protect your wine.
Activated carbon filter
The integrated activated carbon filter helps remove impurities from the air and keeps the cabinet interior fresh and odor-free, ideal for long-term wine storage.

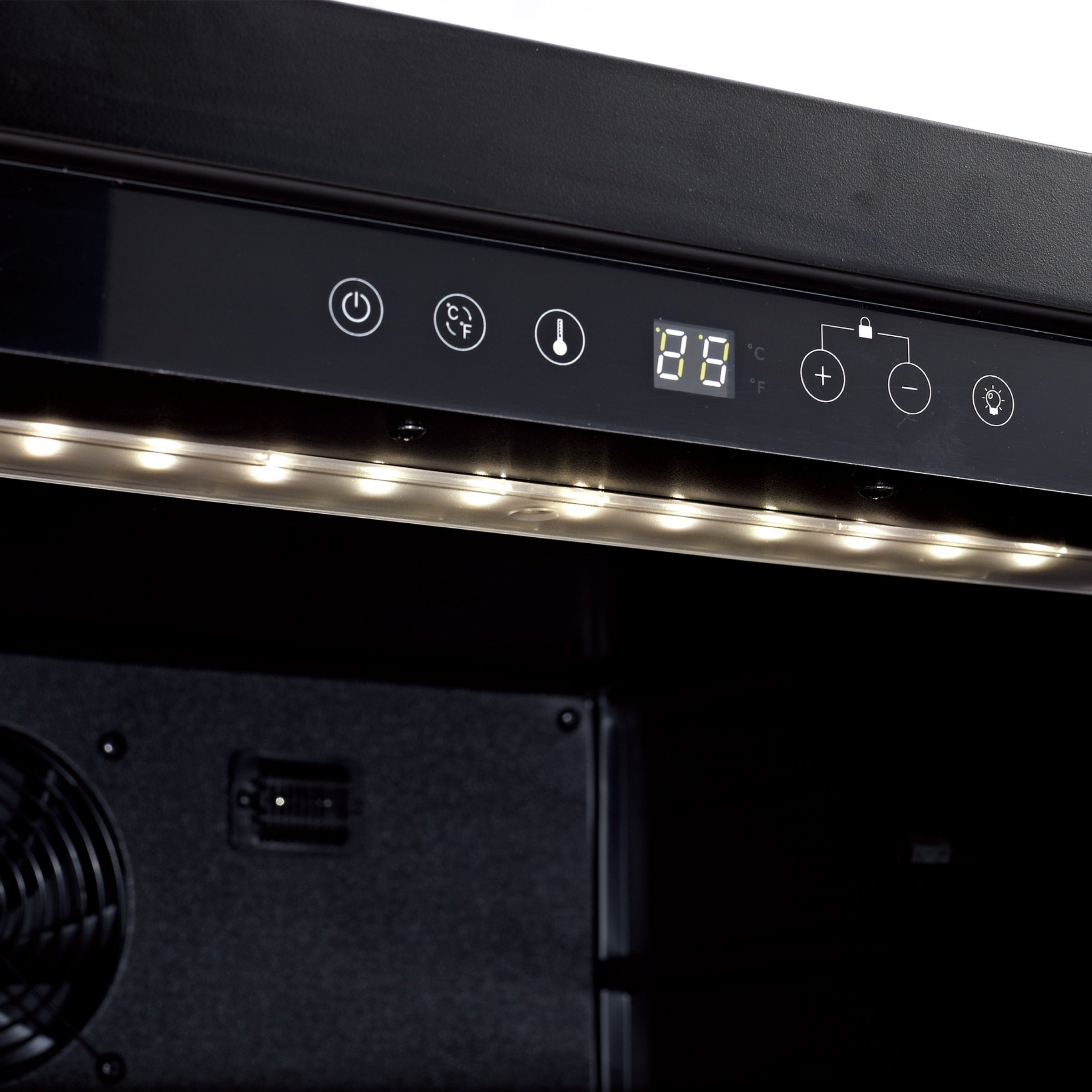

LED digital touchpad control
A clear, easy-to-use LED display with digital touchpad controls lets you fine-tune temperature settings at a glance for precise, reliable performance.

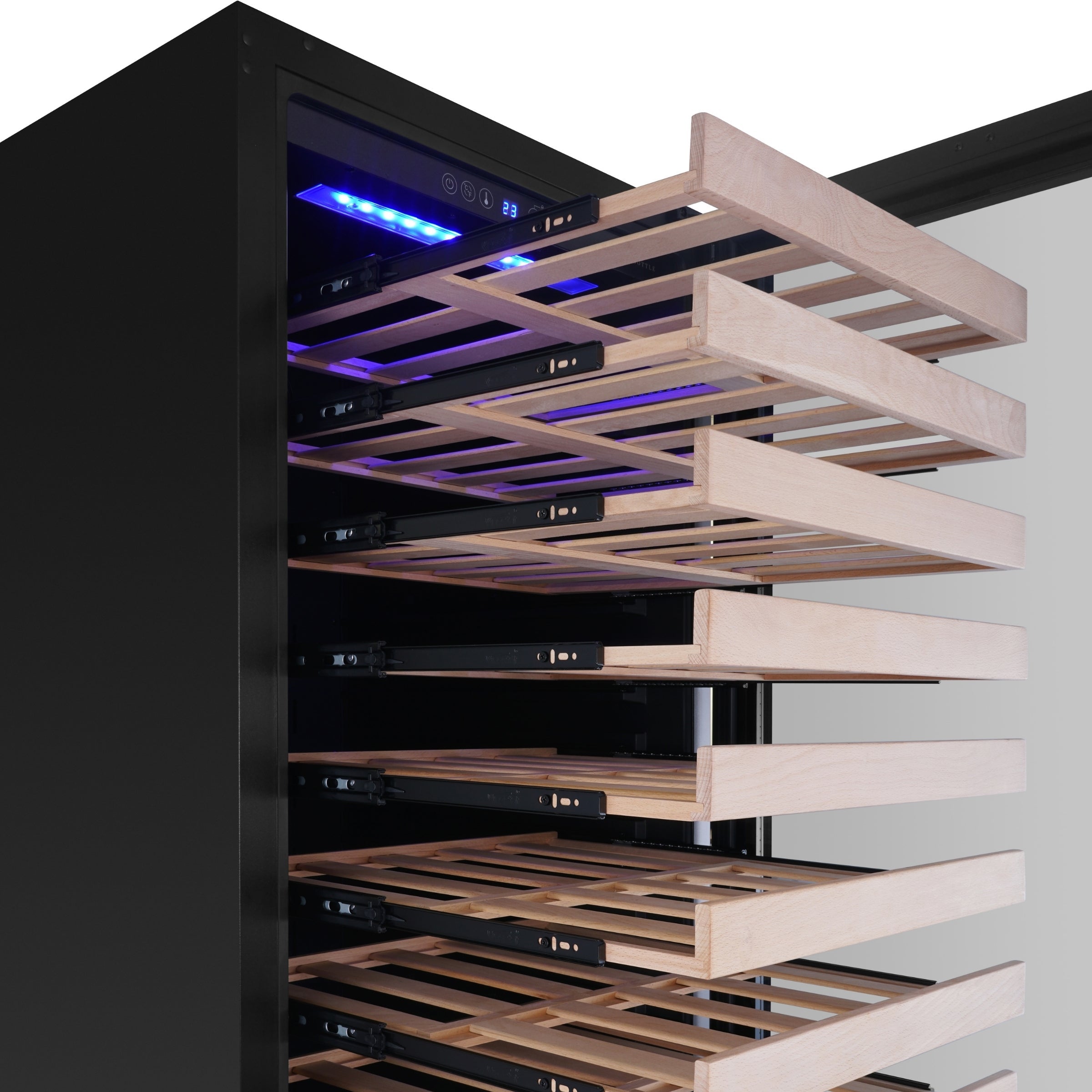

Full-extension beech wood shelves
Optimized FULL-EXTENSION pull-out beech wood shelves are designed to be wine-friendly and are cleverly spaced to fit both regular and larger bottles up to 3.39" (86 mm) in diameter.
Magnetic door switch
A built-in magnetic switch triggers a 2-minute door-open alarm, helping you avoid accidental temperature swings from doors left open too long.
Hidden door hinge
A laminated steel plate with integrated molding creates a hidden hinge design that supports a full built-in look and smoother door action.

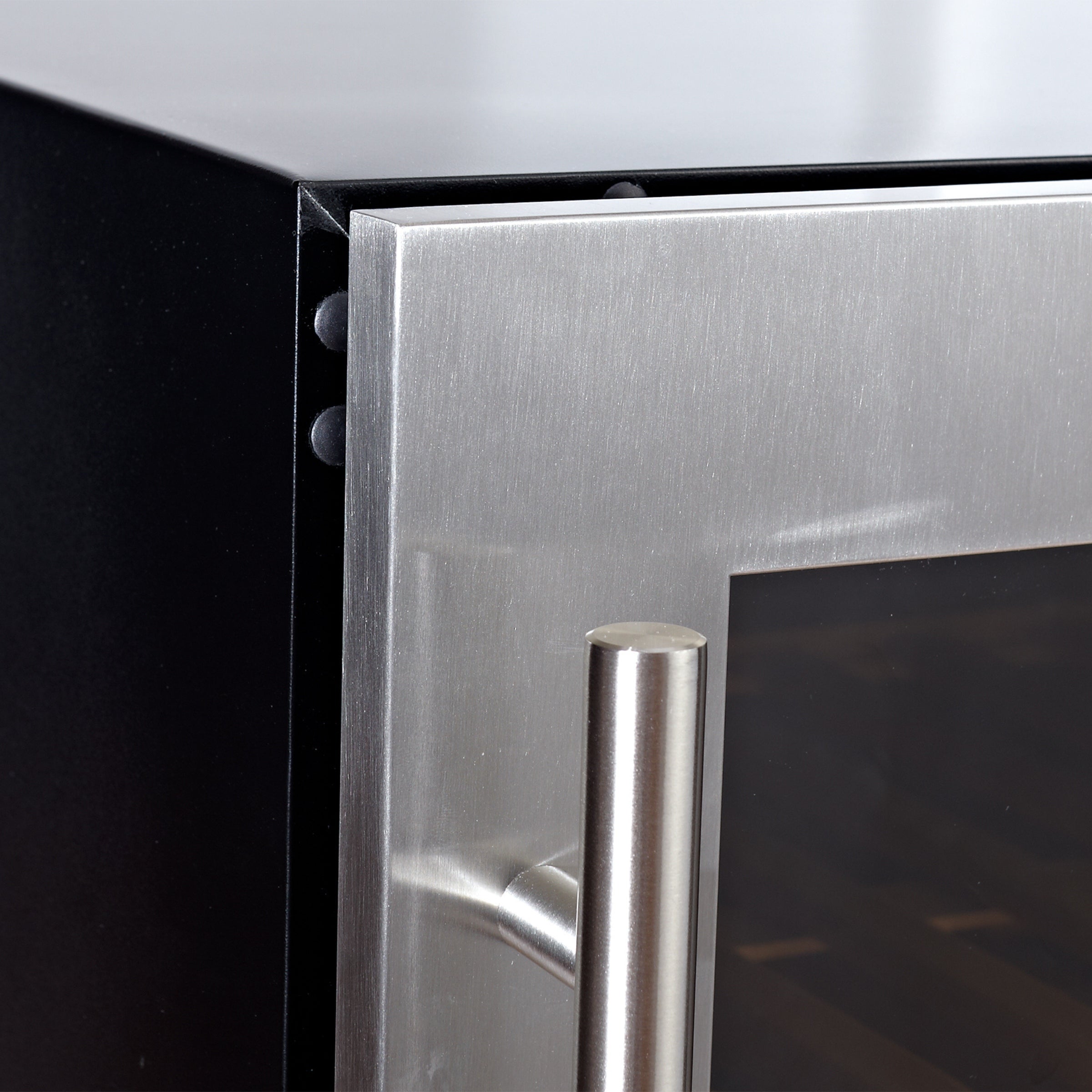

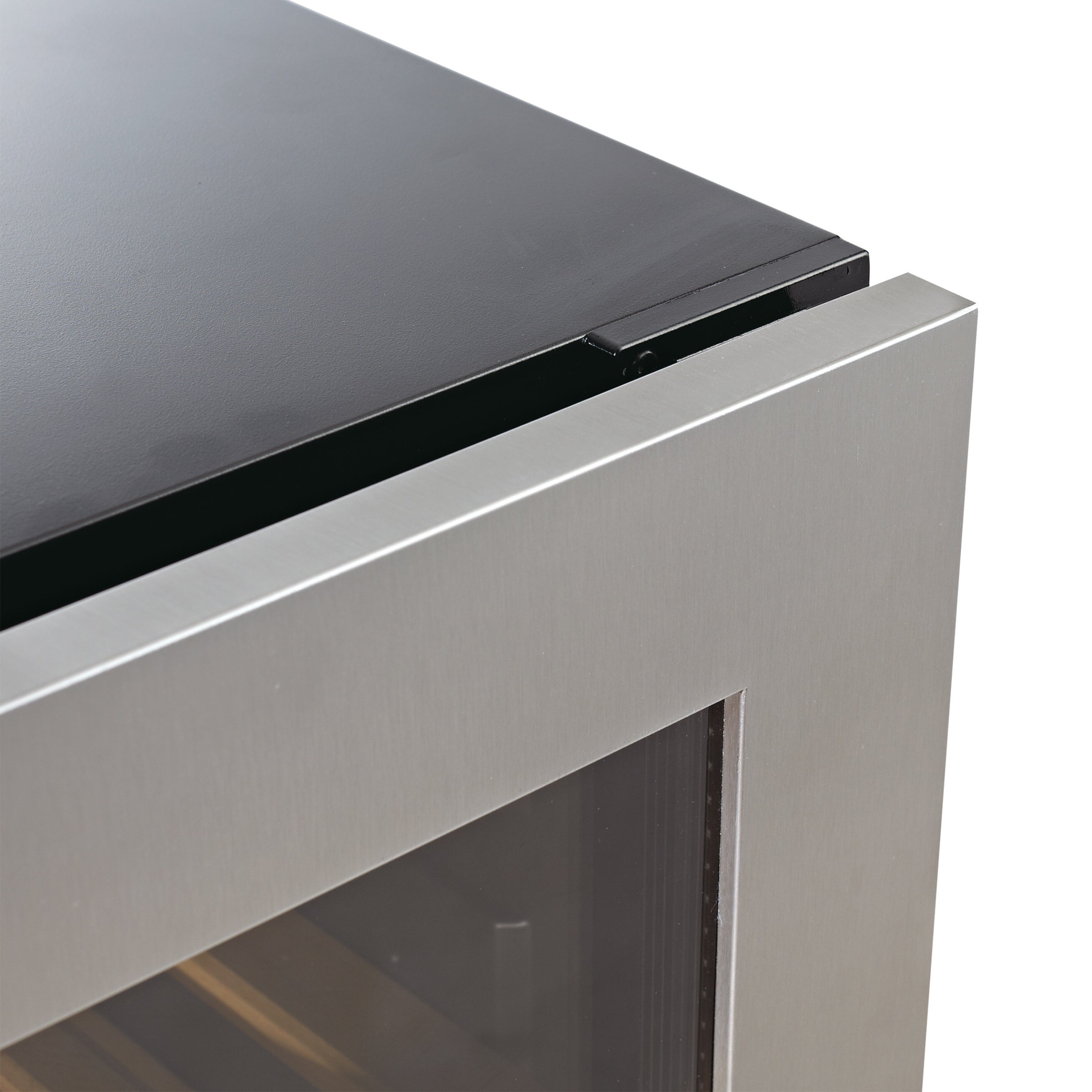

Seamless stainless steel frame
A seamless stainless steel door frame with a thin, modern profile delivers an elevated aesthetic that pairs well with premium appliances and millwork.
45mm C-Pentane insulation
Thicker 45 mm C-Pentane foam insulation helps optimize cooling performance while reducing energy consumption, supporting efficient long-term operation.
Dimensions & Diagrams

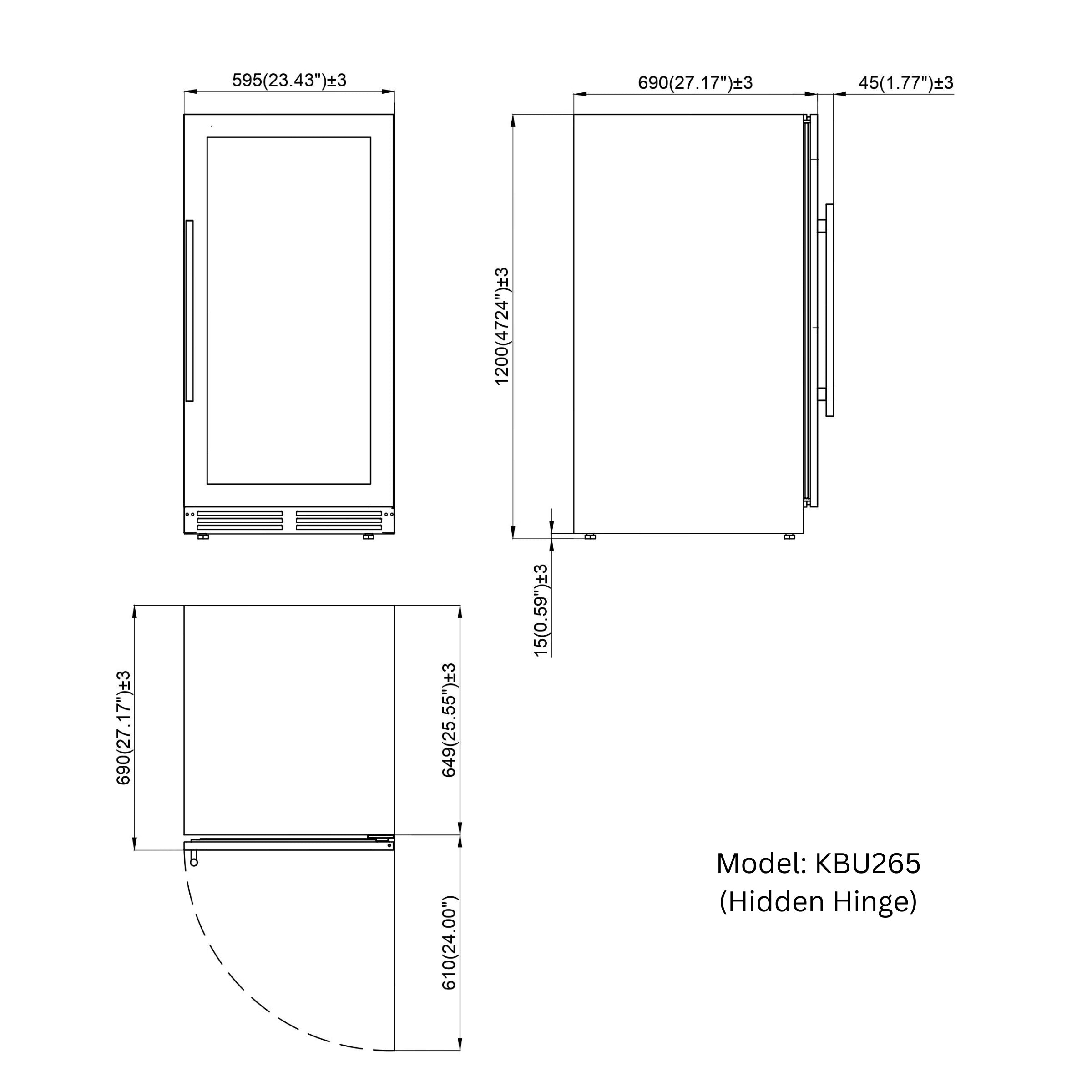

Technical dimensions
Use the technical dimensions diagram to confirm footprint, internal layout, and clearances before integrating the cooler into cabinetry or a custom wine wall.

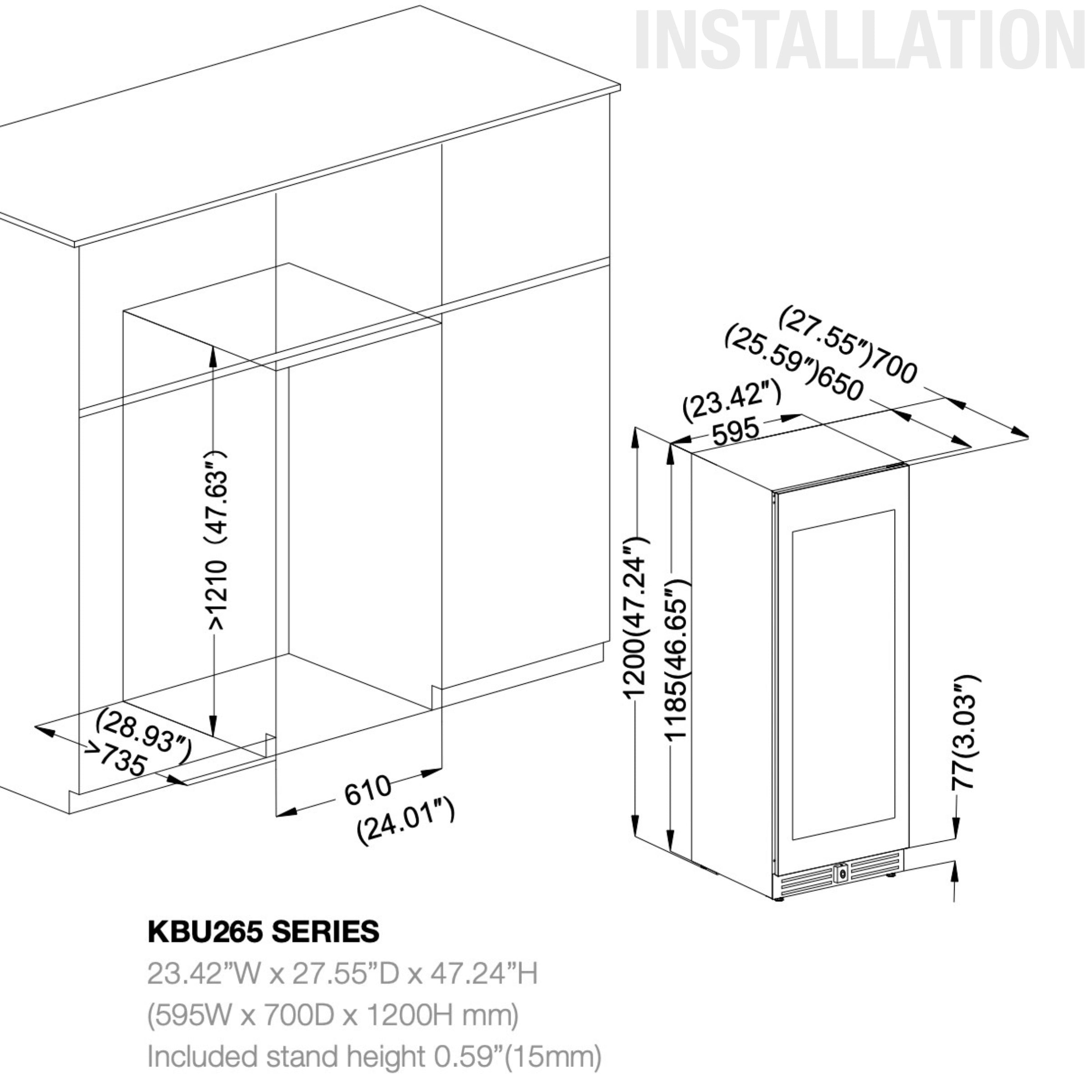

Installation diagrams
Reference the cutout and power plug diagrams when planning your built-in installation, ventilation requirements, and electrical placement.
Product Manual
Download & view the full manual
Review the complete user manual for detailed installation guidance, operating instructions, and maintenance recommendations for this 47-inch single-zone upright wine cooler.
Frequently Asked Questions
This 47-inch single-zone upright wine cooler offers 9.36 cu ft (265 L) of storage and can hold up to 99 standard 750 ml bottles, depending on bottle shape and shelf configuration.
The unit is a single-zone cooler with an adjustable temperature range of 35°F to 68°F (2°C to 20°C), suitable for both serving temperatures and long-term cellaring for reds or whites.
Yes. It is designed for both built-in and freestanding use. Always follow the manufacturer’s clearance and ventilation requirements outlined in the product manual when installing it into cabinetry.
The Low-E glass door helps reduce UV light exposure, limits condensation, and improves insulation. This supports more stable temperatures inside the cabinet and helps preserve the flavor and structure of your wine over time.
Absolutely. It is designed to pair neatly with the 47-Inch Tall Dual Zone Wine Cooler or the 389 Cans Capacity Upright Beverage Refrigerator for a coordinated, high-capacity wine and beverage wall.
