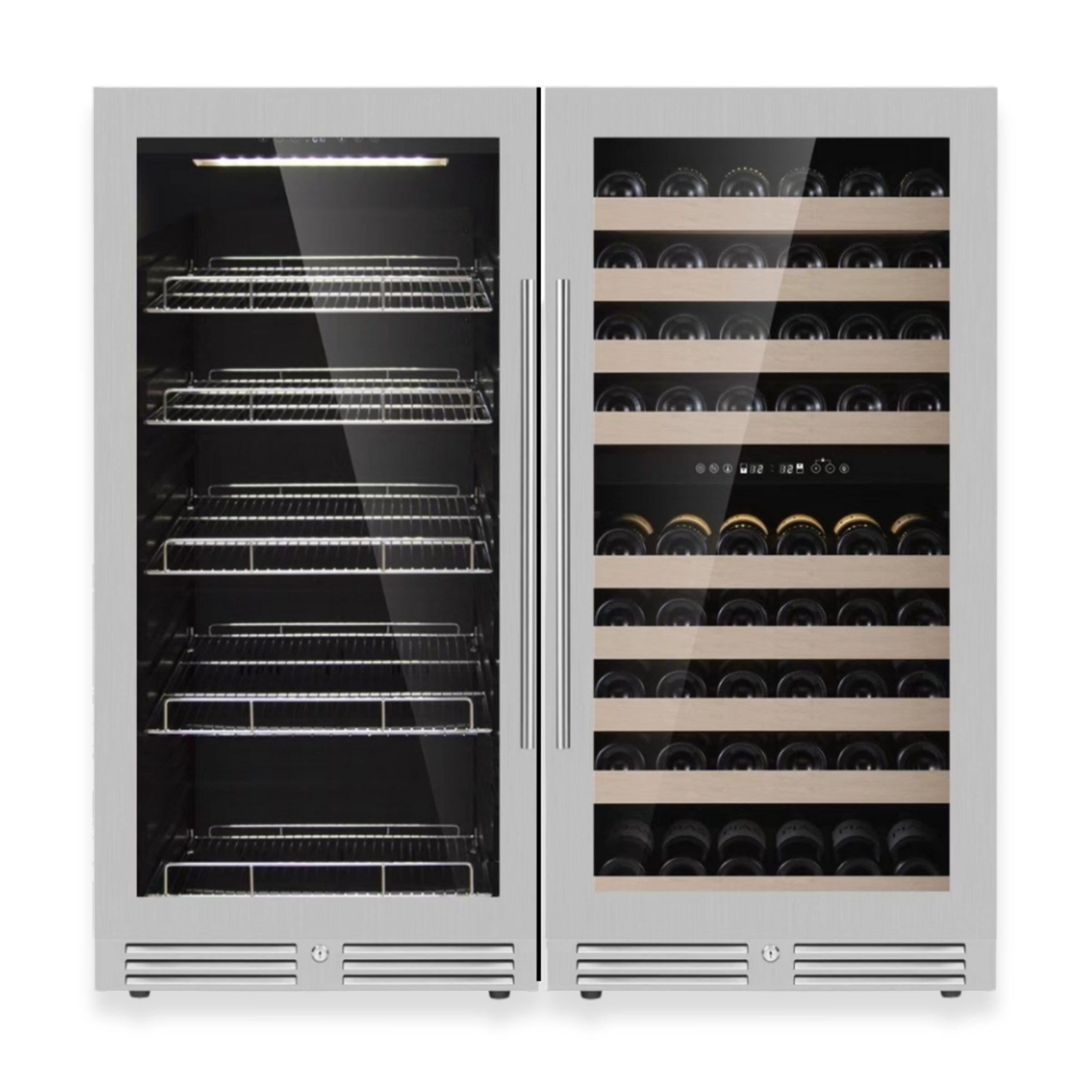

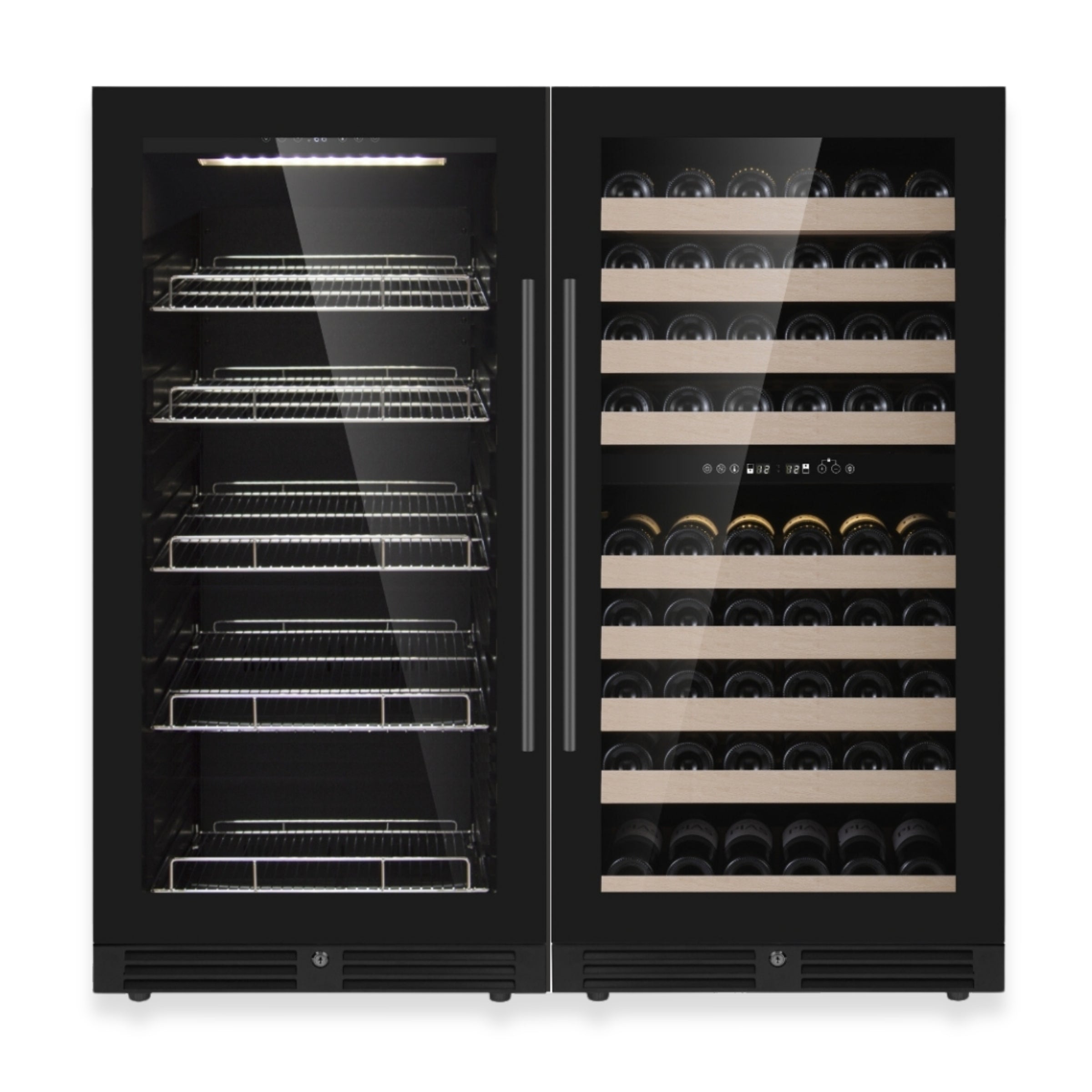

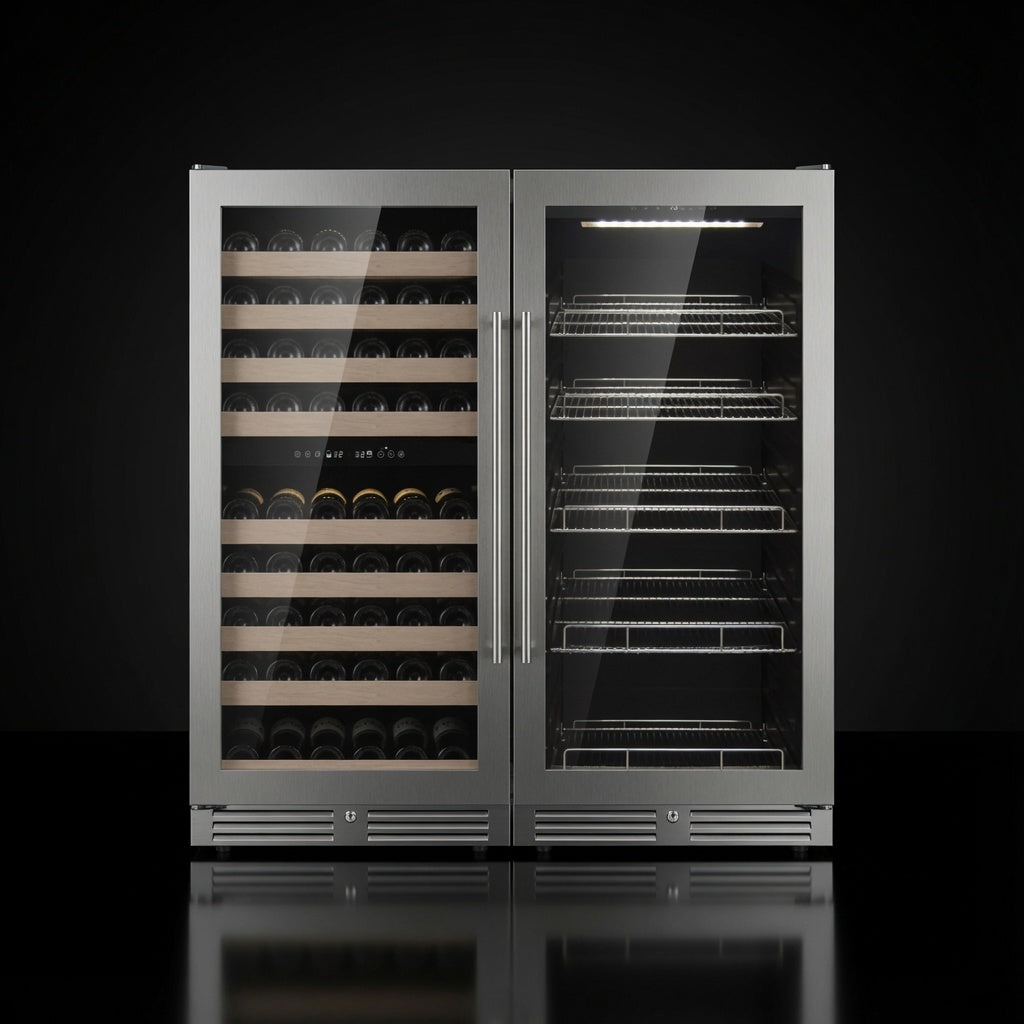

The 47-Inch Triple-Zone Wine & Beverage Refrigerator Combo delivers a refined, high-capacity storage solution for collectors who want premium cooling performance for both wine and beverages. Designed with two independent wine zones and a dedicated full-height beverage compartment, this combo provides precise, zone-specific temperature management for everything you store.
-
Dual-Zone Wine Cooler:
- Upper Zone: 41°F to 54°F (5°C to 12°C) — ideal for white wines.
- Lower Zone: 54°F to 68°F (12°C to 20°C) — perfect for reds.

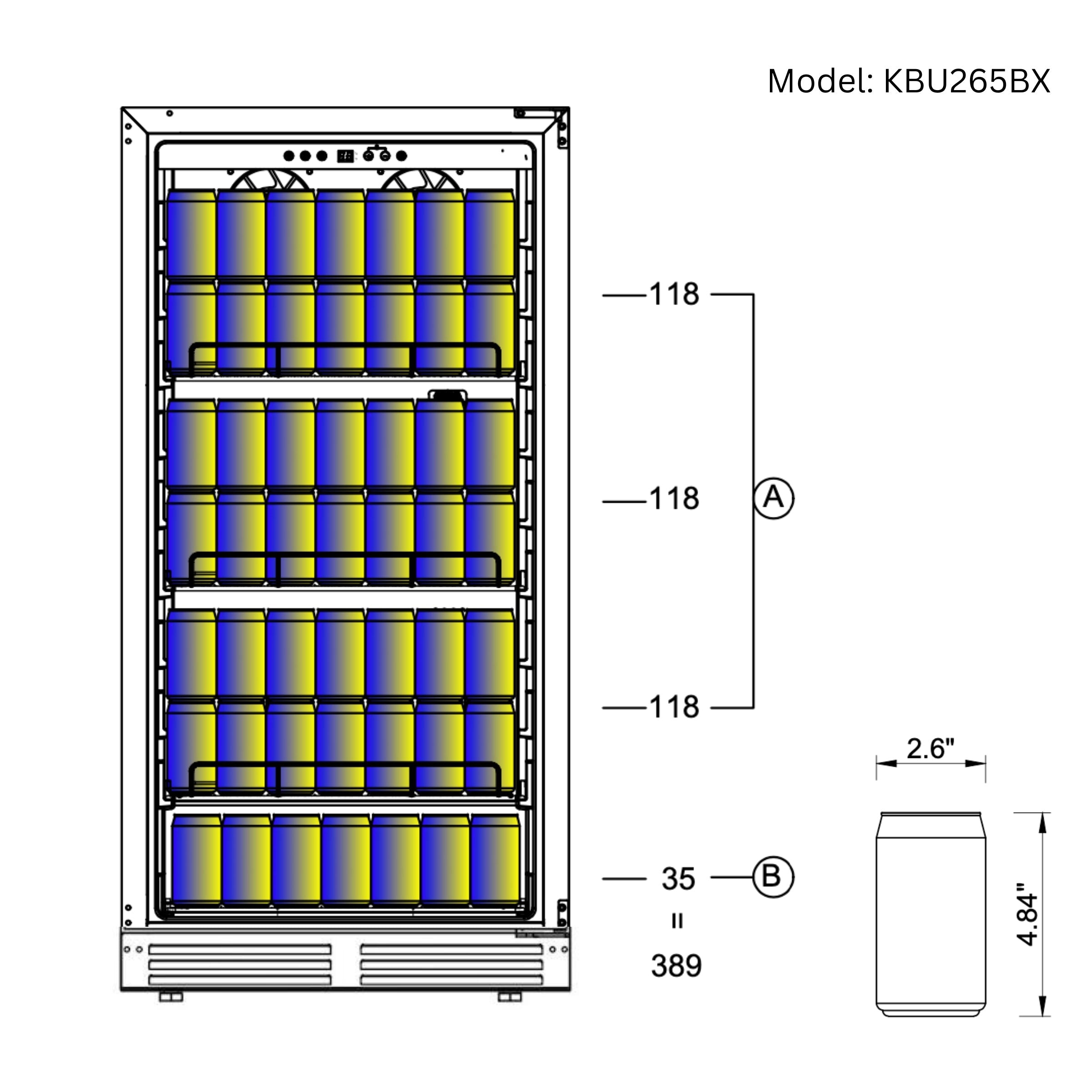

- Beverage Zone: Holds up to 389 cans (12 oz) at a crisp, refreshing serving temperature.
Powered by the Embraco Inverter Compressor , this triple-zone combo delivers whisper-quiet operation, outstanding temperature stability, and up to 40% improved energy efficiency compared to traditional cooling systems. The elegant Low-E glass doors enhance insulation while helping protect your collection from UV exposure.
Premium adjustable shelving across all three zones allows for flexible configuration of bottles, magnums, specialty formats, and cans. Designed for both built-in or freestanding installation, the 47-inch-wide footprint and modern stainless steel styling make this a standout centerpiece in luxury kitchens, bars, and entertainment spaces.
Why it stands out
True triple-zone flexibility
Dedicated dual-zone wine cabinet plus a full-height beverage zone give you three independently controlled environments—perfect for cellaring reds, chilling whites, and keeping beer and sodas ice-cold in one integrated system.
High-capacity collector storage
Store up to 91 wine bottles and 389 cans (12 oz) with a layout tailored to serious entertainers and collectors who want both display-worthy presentation and practical everyday access.
Embraco inverter performance
Equipped with Embraco Inverter Compressors for smoother, variable-speed cooling, whisper-quiet operation, and up to 40% lower energy consumption compared to traditional fixed-speed systems.
Low-E glass & modern styling
Low-E glass doors reduce heat transfer and condensation while showcasing your collection behind a sleek stainless steel frame—ideal for open-plan kitchens and designer bars.

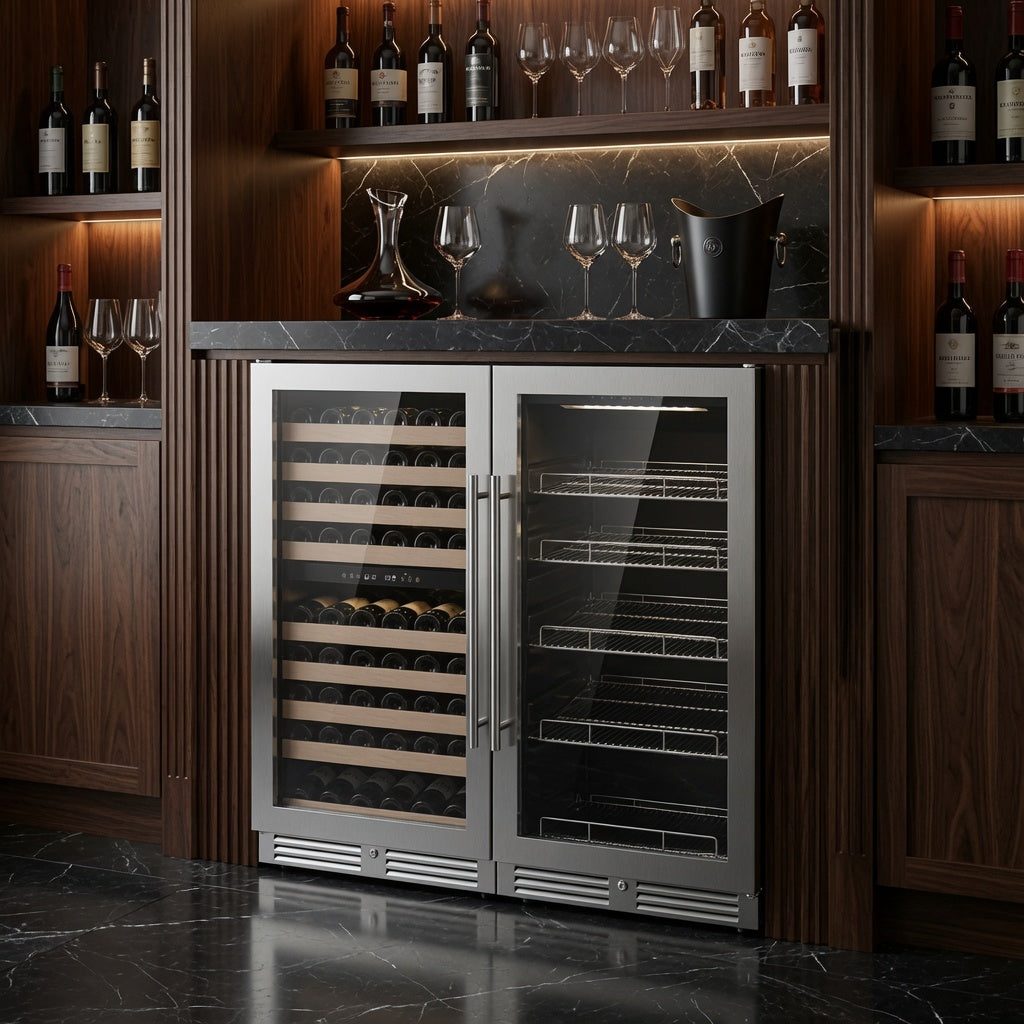

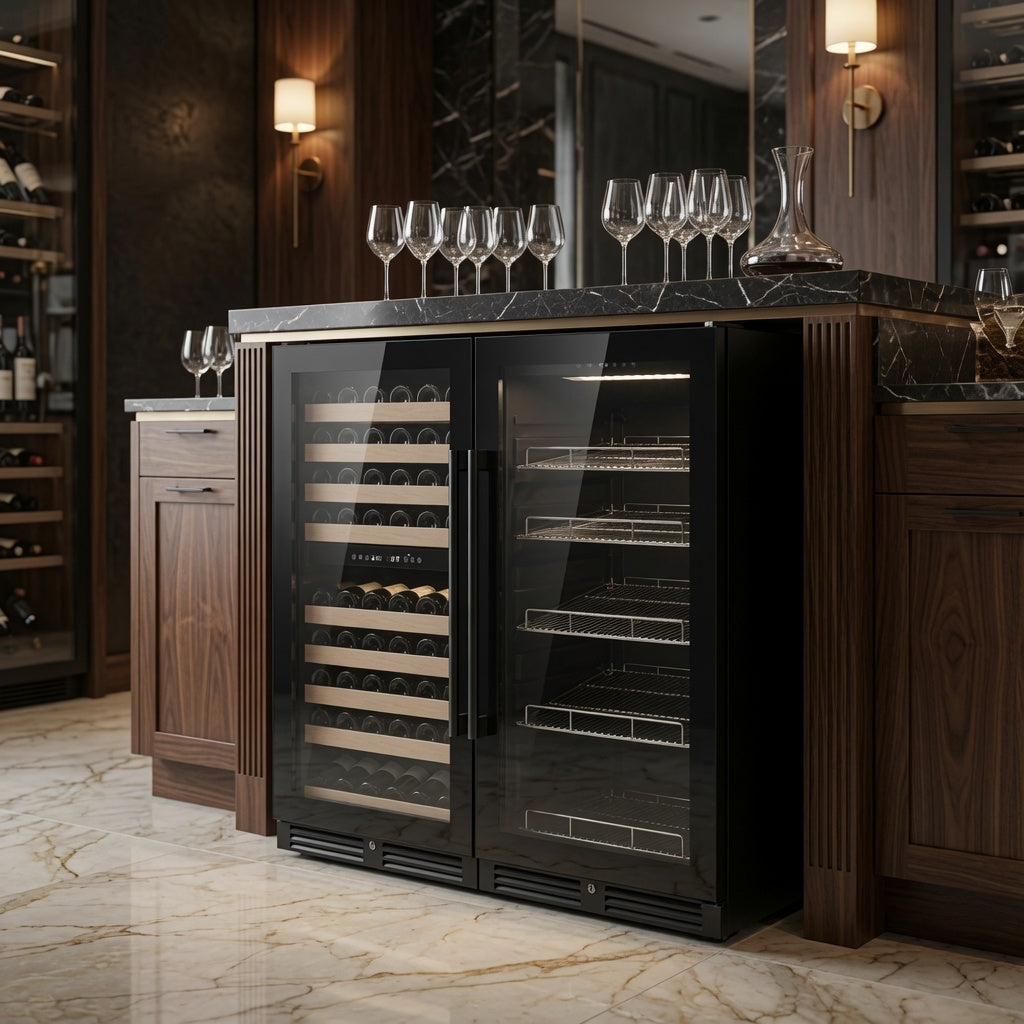

Built-in or freestanding installation
Engineered for built-in applications with front ventilation yet equally at home as a freestanding showpiece, this 47-inch combo adapts easily to remodels, new builds, and custom beverage centers.
Specifications
Key Specifications
| Volume | 18.72 CF (530 Liters) total, 9.36 CF (265 Liters) each unit |
|---|---|
| Capacity – Wine | Up to 91 bottles (configuration-dependent) |
| Capacity – Beverages | Up to 389 cans (standard 12 oz / 355 ml) |
| Installation Type | Built-in or freestanding |
| Climate Type | N |
| Temperature Zones | Triple zone (dual-zone wine + dedicated beverage zone) |
| Adjustable Temperature Range |
Beverage zone: 35°F to 68°F (2°C to 20°C) Wine zones: Upper 41°F to 54°F (5°C to 12°C), lower 54°F to 68°F (12°C to 20°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 5 chromed steel shelves + 8 beech wooden shelves |
| Dimensions (W × D × H) | 46.84" W × 27.55" D × 47.24" H (includes 0.59" stand height) |
Electrical
| Compressor | Embraco Inverter Compressors |
|---|---|
| Power Supply | 110–115V / 60 Hz |
| Rated Power Input | 330 W total (approximately 165 W per unit) |
| Rated Current | 3.4 A total (approximately 1.7 A per unit) |
| Refrigerant | R600a / 45 g per unit |
Technical Features
Embraco inverter compressors
Top-brand Embraco Inverter Compressors deliver smoother, variable-speed cooling with super-quiet operation and up to 40% lower energy consumption compared to conventional fixed-speed systems—ideal for open living and entertainment areas.
Patented compressor sink
A patented sink design increases air circulation space around the compressor to support better cooling performance, reduced vibration, and lowered operating noise—especially important in tall triple-zone configurations.
Low-E glass doors
Low-E glass helps reduce energy consumption and condensation on the glass doors while acting as an invisible insulating barrier.
Note: The Low-E coating also helps reduce heat transfer and filter UV light, protecting labels, corks, and flavors in your wine collection over time.
Fan-circulated air cooling
A fan-circulated air-cooling system ensures temperature uniformity throughout each zone and helps manage humidity, protecting both wines and beverages from hot spots and uneven cooling in a tall, multi-zone cabinet.
Activated carbon filtration
Integrated activated carbon filters help remove impurities and odors from the internal air, keeping all three compartments fresh—especially important for long-term wine storage next to a busy beverage zone.

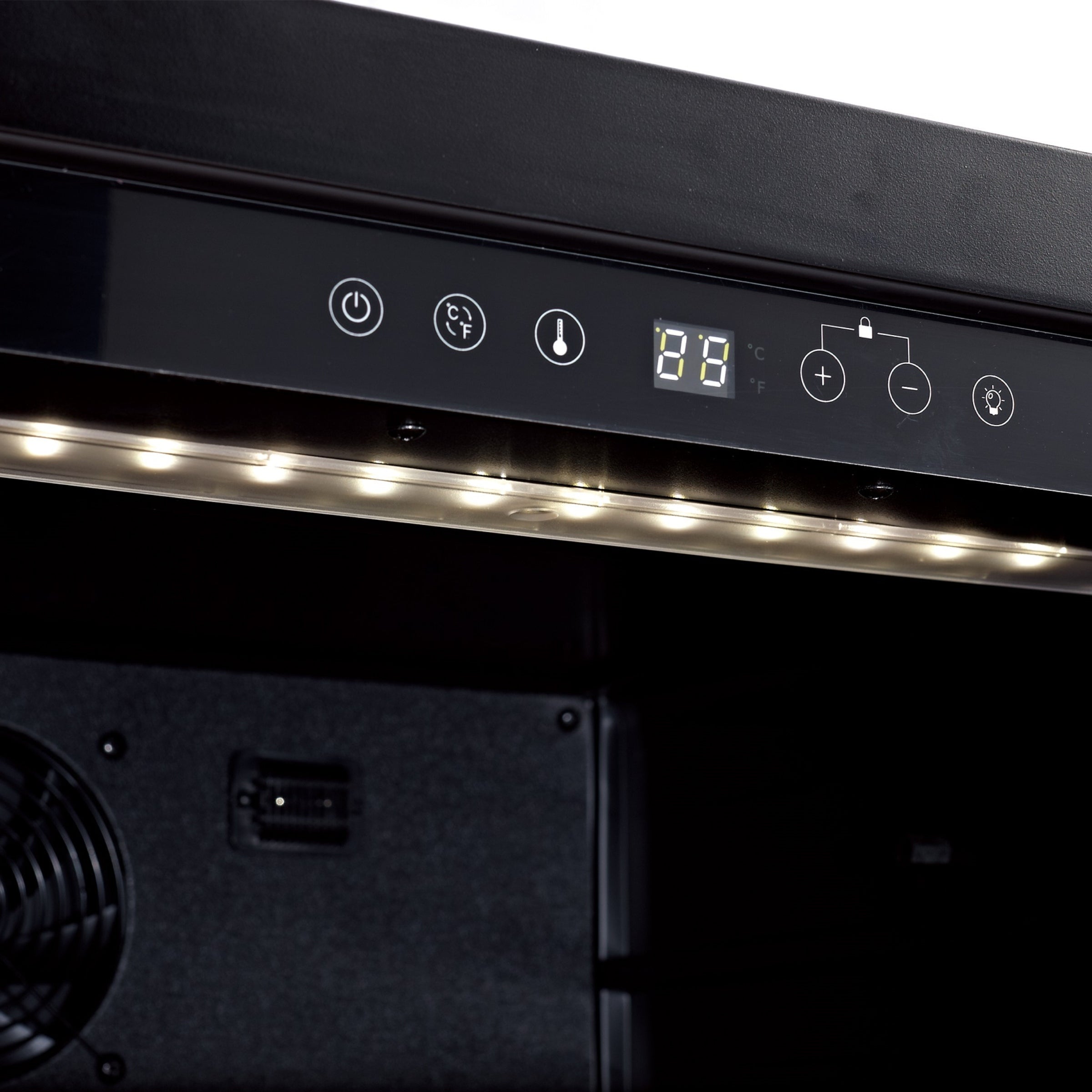

LED digital touchpad controls
Simple, easy-to-operate LED touchpad controls provide clear temperature readouts and precise adjustments, so you can dial in each of the three zones for storage or serving temperatures with confidence.

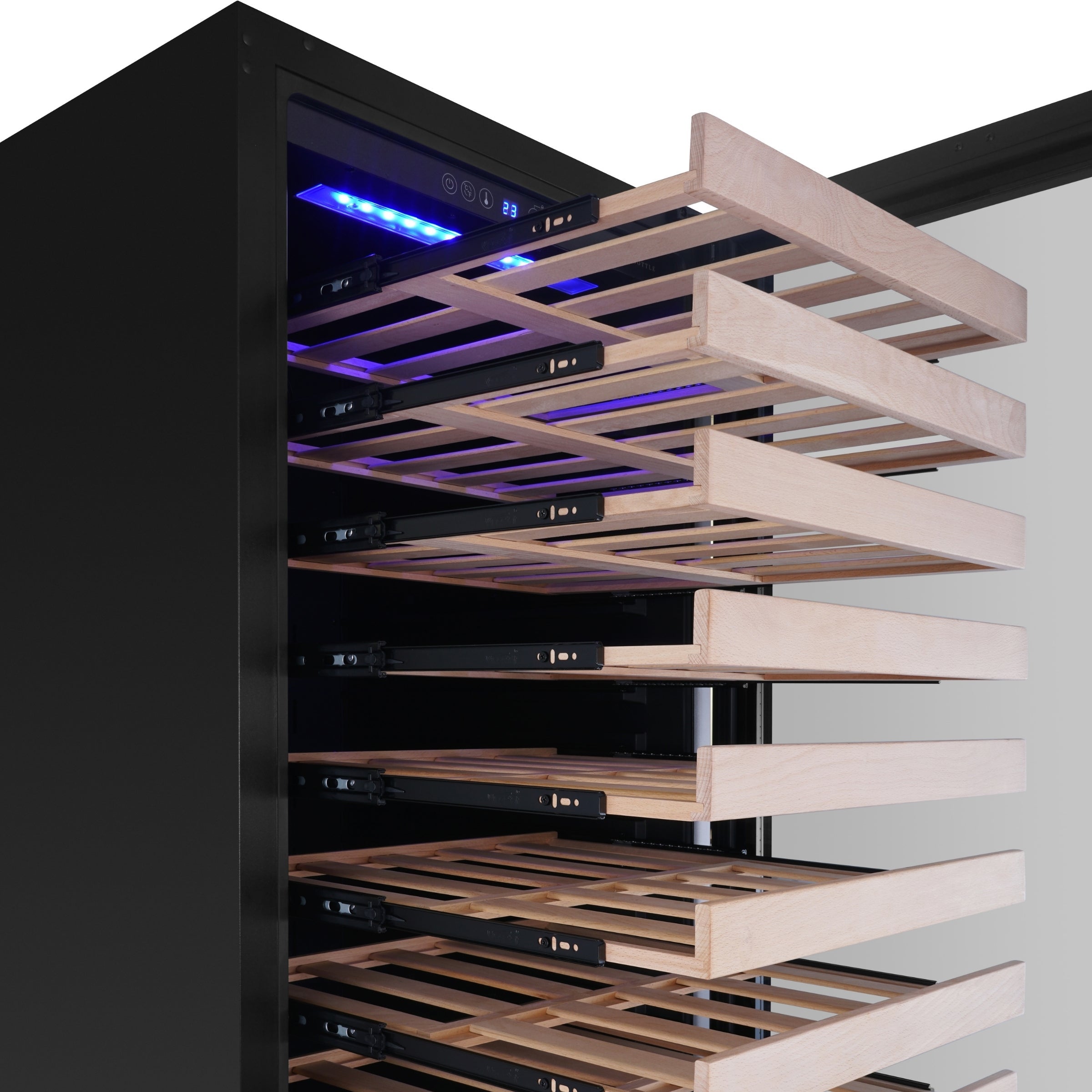

Full-extension beechwood shelves

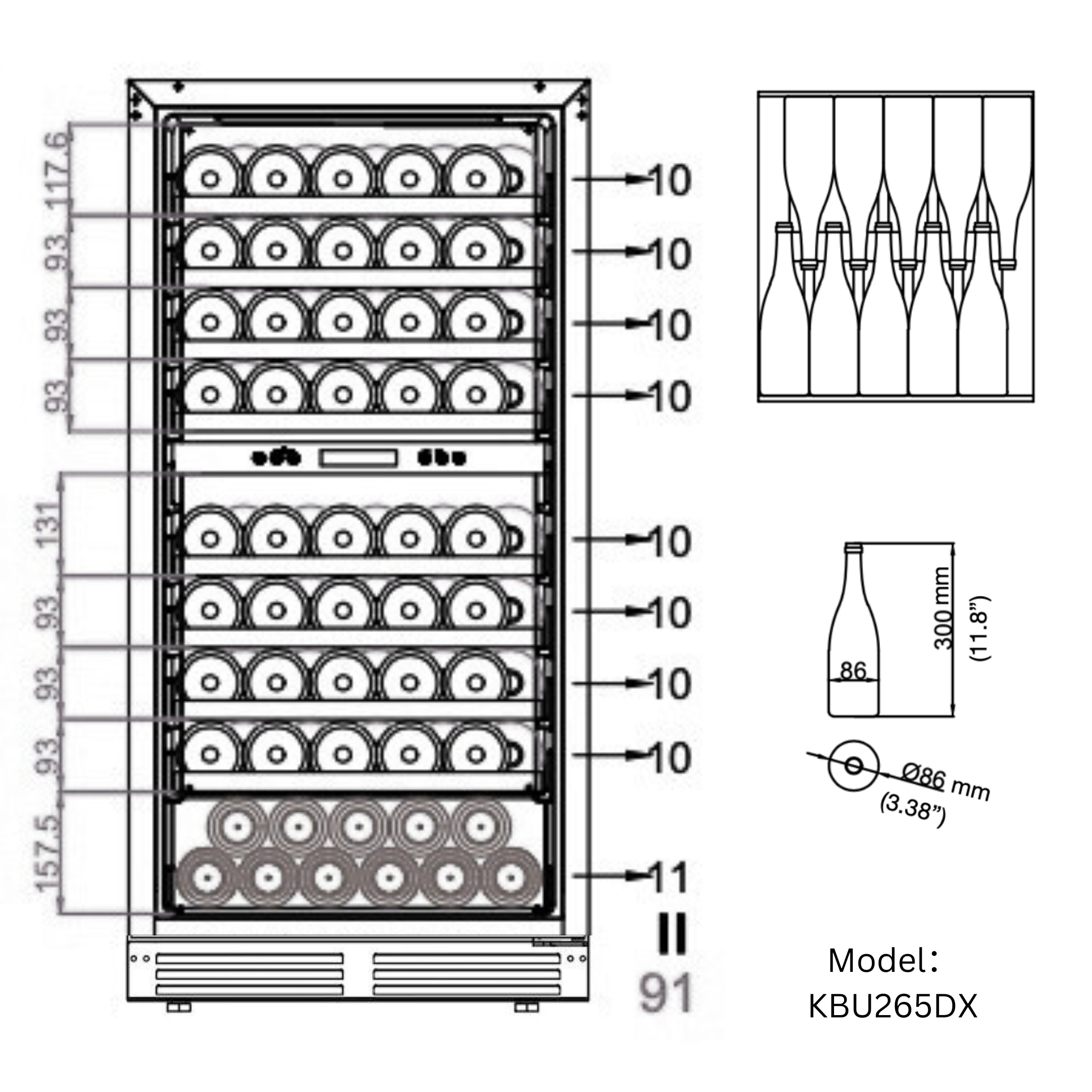

The wine zones feature FULL-EXTENSION pull-out beechwood shelves that are sturdy and bottle-friendly, cleverly spaced to fit both standard and many larger bottles up to 3.39" (86 mm) in diameter.
Magnetic door switch & alarm
A built-in magnetic switch triggers a 2-minute door-open alarm, helping prevent temperature drift and energy waste if a door is accidentally left open—especially useful on taller units with larger doors.

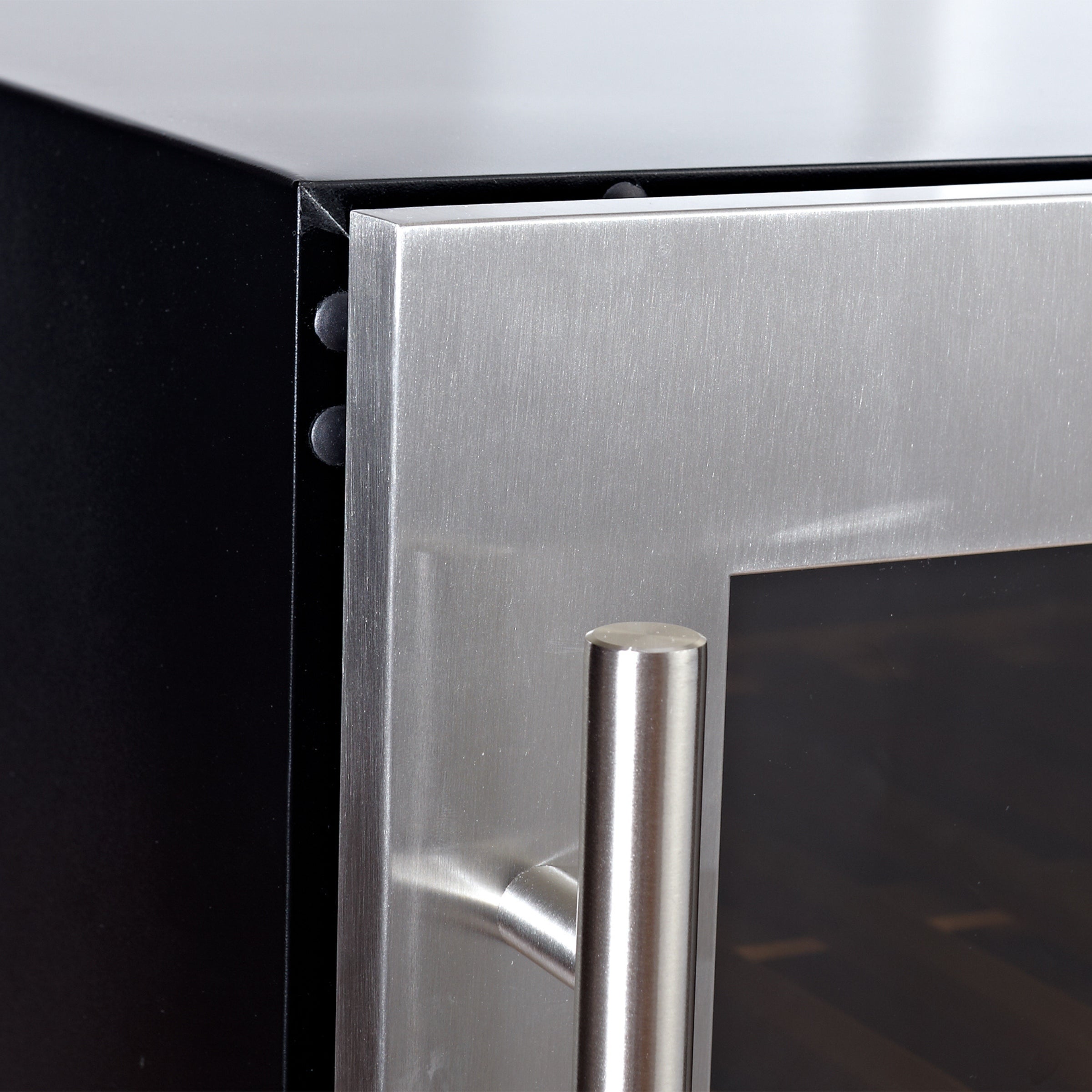

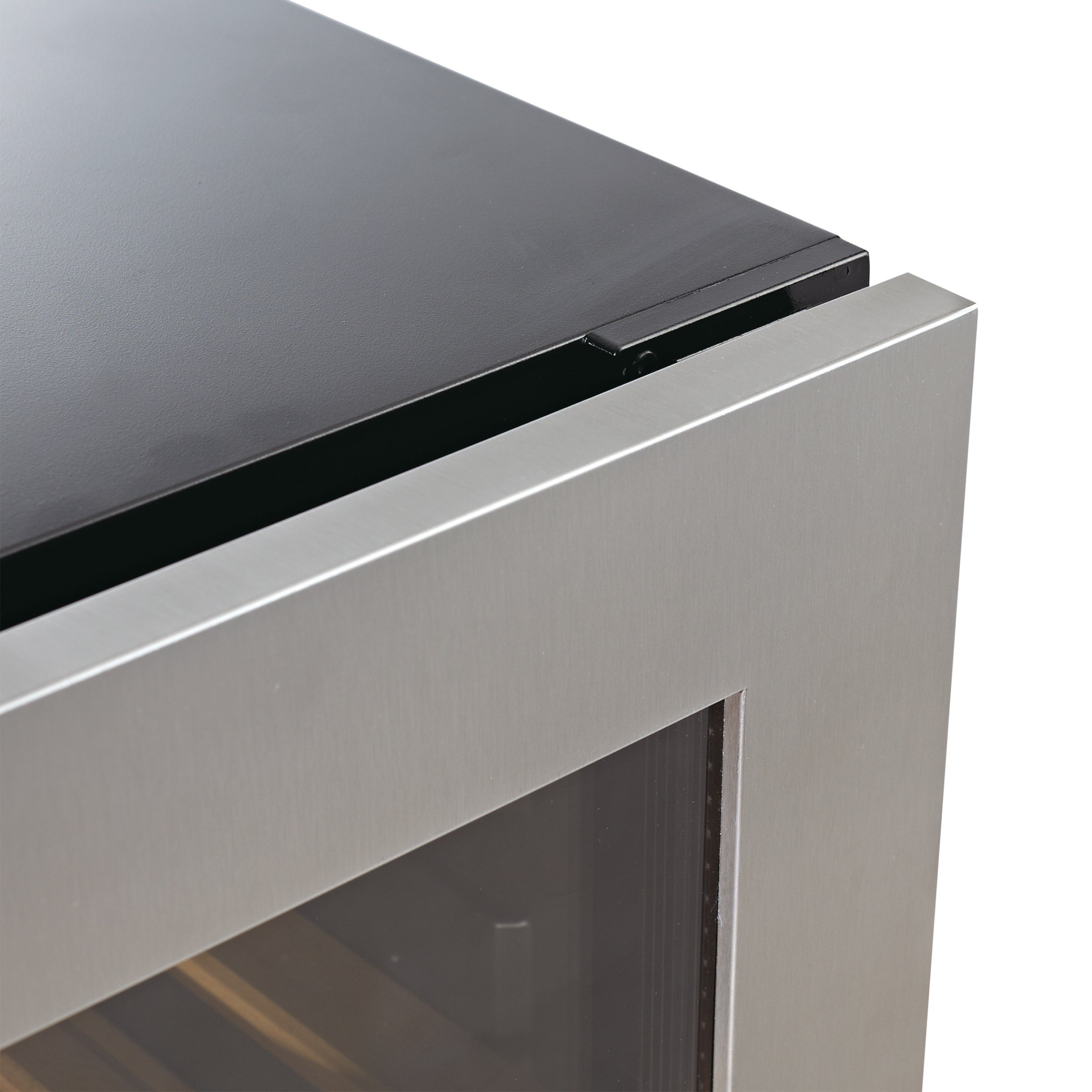

Hidden hinge & seamless frame
A hidden door hinge with laminated steel plate and integrated molding, combined with a seamless stainless steel door frame, creates a flush, built-in look that pairs easily with high-end cabinetry and appliance packages.
45 mm C-pentane insulation
Thick 45 mm C-pentane foam insulation supports efficient cooling, reduced energy consumption, and stable temperature performance across all zones—even as room conditions change.
Dimensions & Diagrams

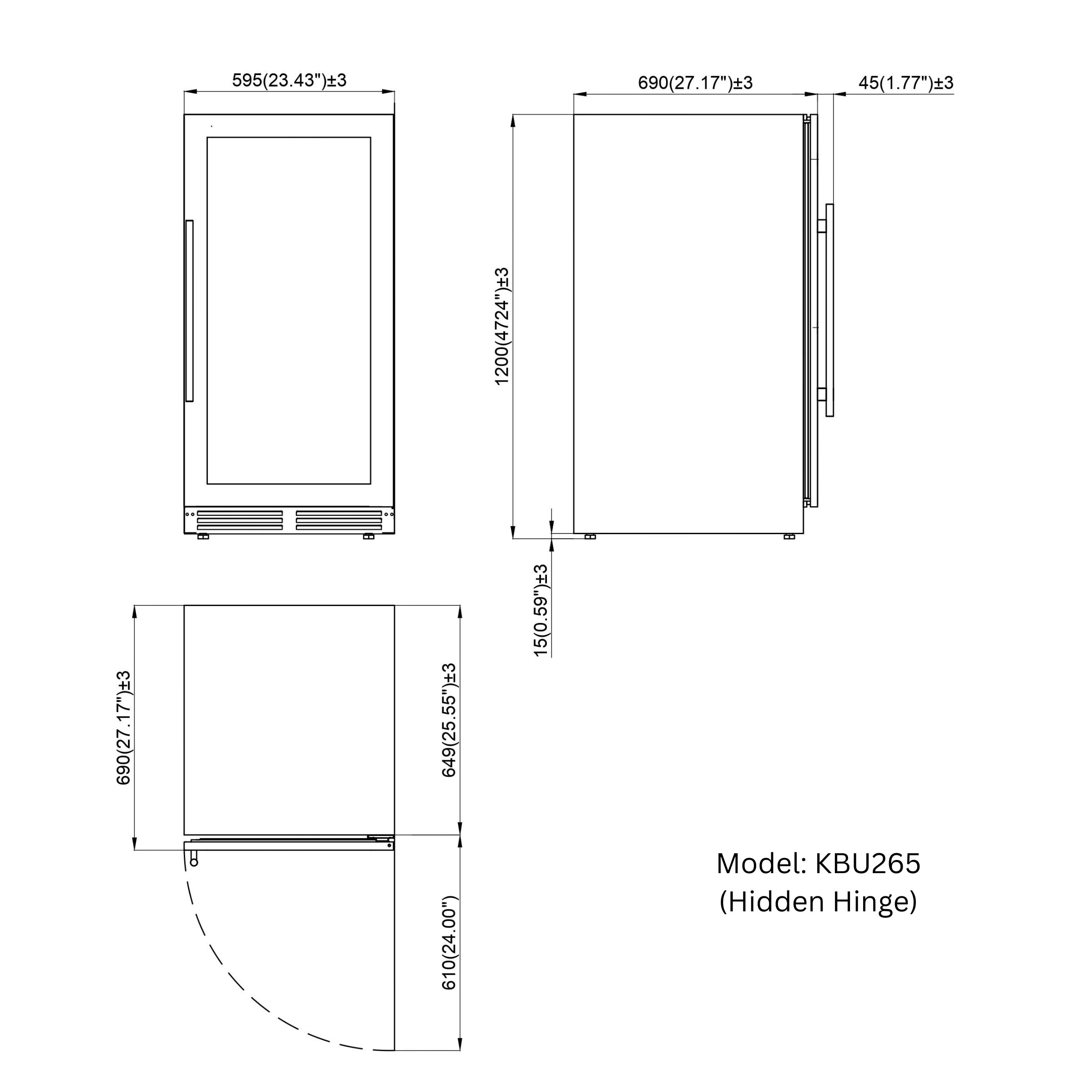

Technical dimensions
Use the technical dimension diagrams to confirm footprint, door swing, and clearances before integrating the 47-Inch Triple-Zone Wine & Beverage Refrigerator Combo into your cabinetry layout or feature wall.

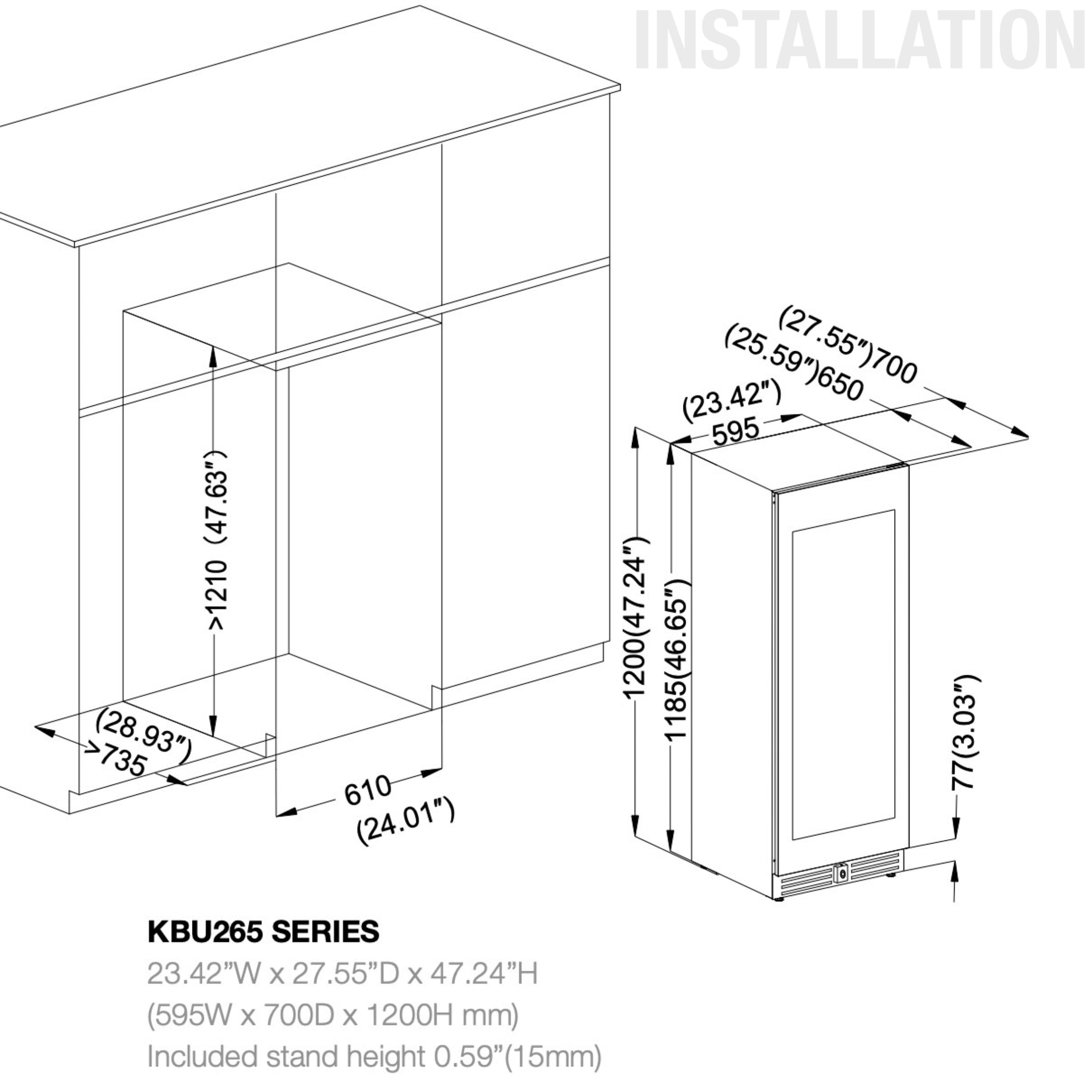

Installation diagrams
Reference the cutout and power-plug diagrams when planning ventilation, cabinet depth, and electrical placement for built-in installation.
Product Manuals
View the full manuals
These manuals cover the combo set of two coordinated units: a Dual-Zone Wine Cooler and a Beverage Cooler. Review them for detailed installation instructions, operating guidance, and maintenance recommendations.
FAQ
This triple-zone combo provides approximately 18.72 CF (530 Liters) of total capacity. When configured as designed, it can hold up to 91 wine bottles plus 389 cans (12 oz), with flexibility to adjust shelves for larger bottles and mixed formats.
Yes. The system is configured as a triple-zone combo: an upper wine zone for whites and sparkling, a lower wine zone for reds, and a separate full-height beverage zone for beer, sodas, and ready-to-serve drinks—each with its own temperature control.
It is sold and installed as a coordinated combo set: a dual-zone wine cooler paired with a matching beverage cooler, designed to sit side by side and create a continuous 47-inch-wide triple-zone beverage center.
Yes. The combo is engineered for built-in installation with front ventilation, and it can also be used freestanding. For best performance, follow the cutout dimensions and ventilation guidelines shown in the installation diagrams and manuals.
The Embraco Inverter Compressors are designed for whisper-quiet, low-vibration operation, making this triple-zone combo well-suited for open-concept kitchens, great rooms, and entertainment spaces where noise control matters.
Yes. The combination of chromed steel shelves and FULL-EXTENSION beechwood shelves is designed for flexibility. Many shelves can be repositioned or removed to accommodate larger bottles, magnums, and mixed storage layouts, with wine shelves spaced to fit bottles up to approximately 3.39" (86 mm) in diameter.
Low-E glass helps reduce heat transfer, limits UV exposure, and minimizes visible condensation on the glass doors. This improves cooling efficiency while helping preserve the integrity of your wines and keeping the display clear and attractive.
