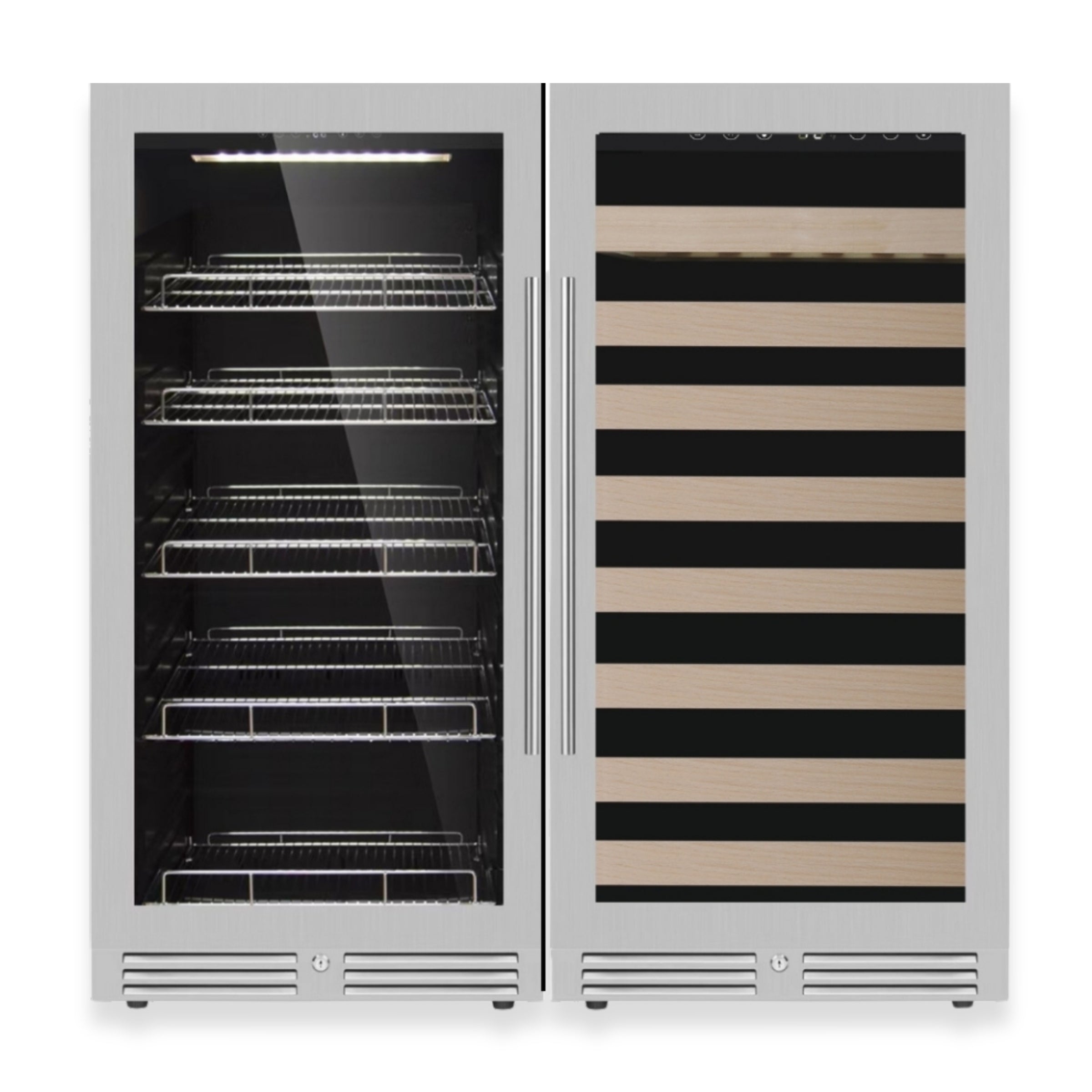

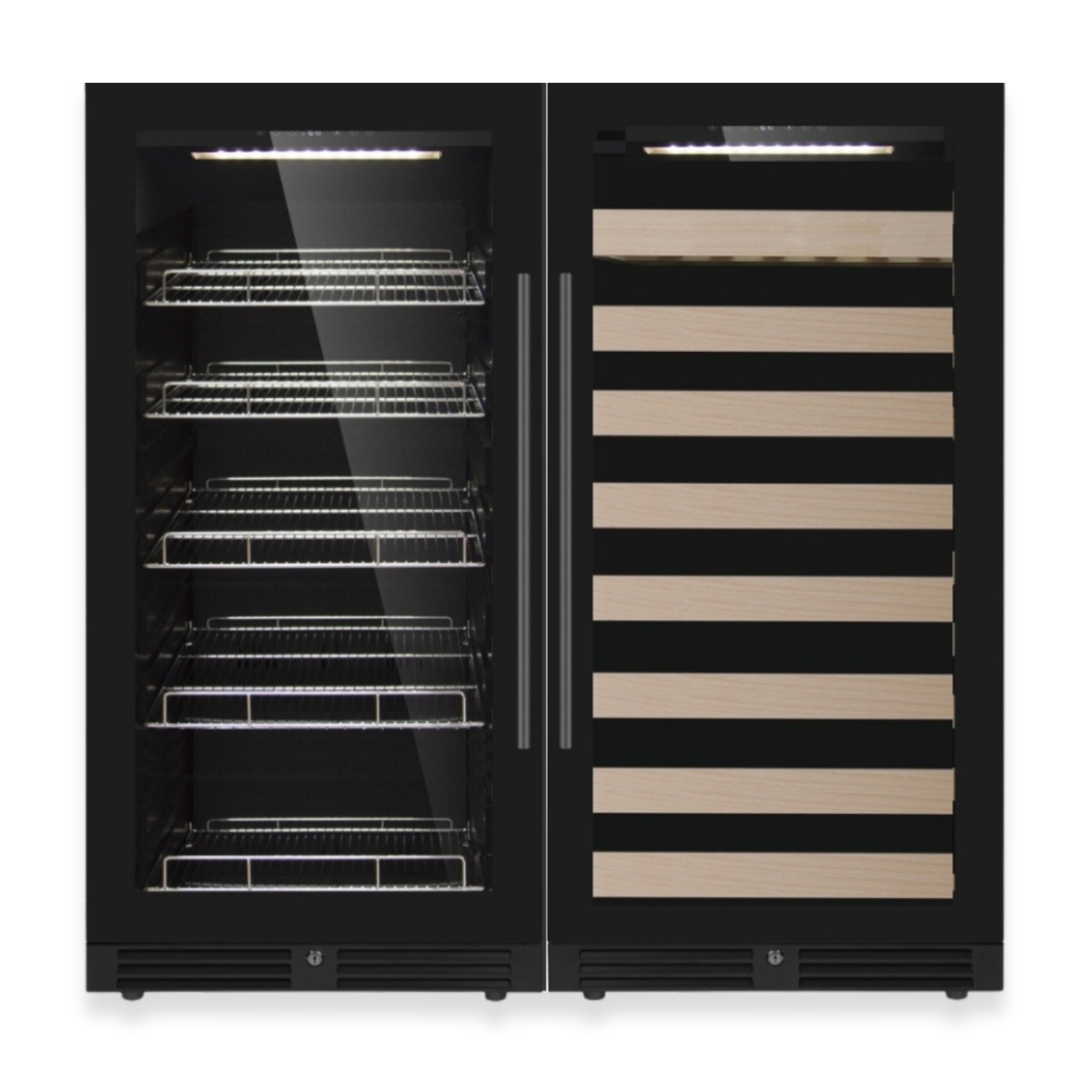

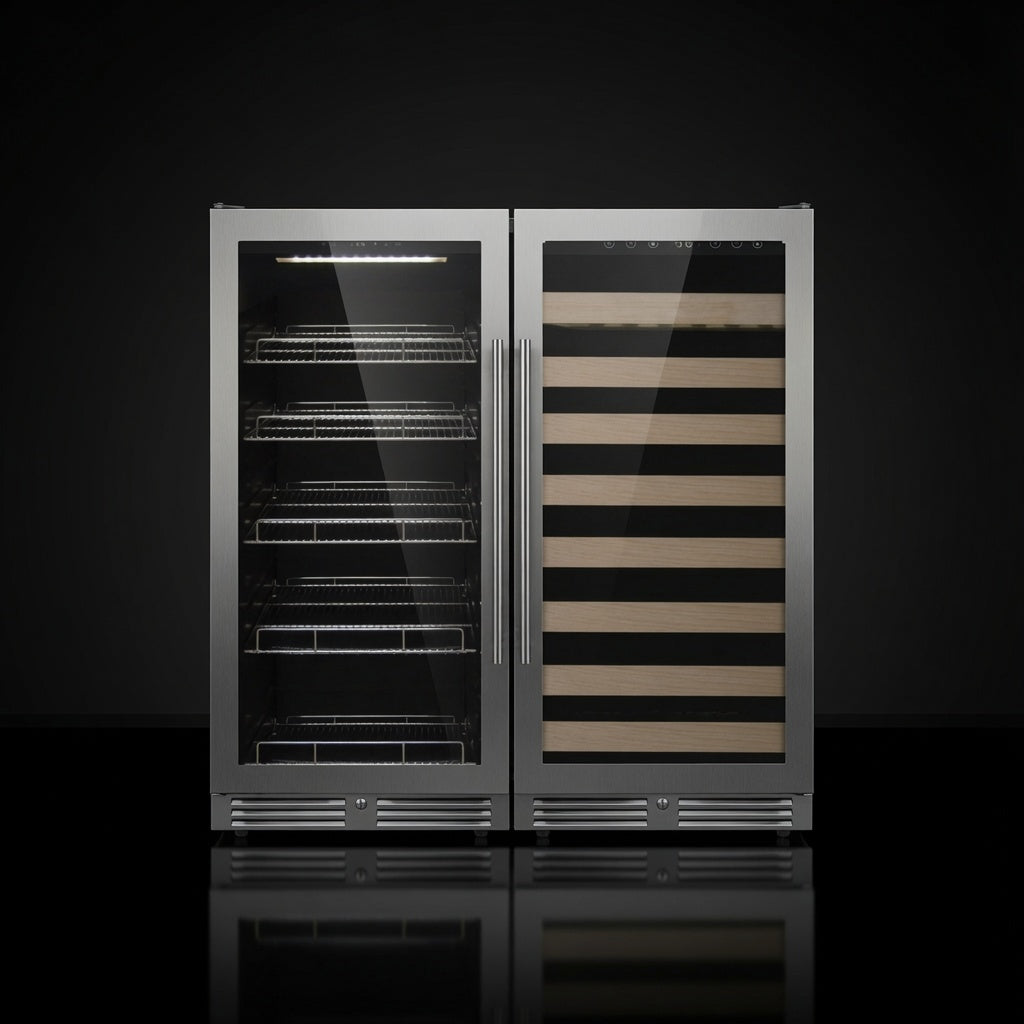

The 47-Inch Upright Wine & Beverage Refrigerator Combo offers a refined, high-capacity storage solution for collectors who want both wine and beverages perfectly organized in one integrated system. This versatile unit features a dedicated wine compartment and a spacious beverage section, with combined storage for up to 99 wine bottles and 389 cans.
Powered by the Embraco Inverter Compressor , the cooler delivers quiet operation, exceptional energy efficiency, and consistent temperature stability. With a wide temperature range of 36°F to 68°F (2°C to 20°C), it supports ideal storage conditions for red wine, white wine, craft beer, sodas, and other beverages.
The sleek Low-E glass doors provide UV protection to preserve flavor and quality while reducing condensation for a clear view of your collection. Adjustable shelving allows you to accommodate various bottle shapes and can sizes with ease. Suitable for both built-in and freestanding placement, this refrigerator combo blends seamlessly into modern kitchens, home bars, and entertainment spaces.
Why it stands out
All-in-one wine & beverage center
Dedicated wine compartment plus a full-height beverage section give you a single, integrated solution instead of juggling multiple units.
Serious storage capacity
Holds up to 99 wine bottles and 389 cans, ideal for entertainers, collectors, and high-usage family or bar setups.
Low-E glass doors
Low-E glass helps protect your wine and beverages from UV exposure while reducing condensation on the door for a clearer, more premium display.

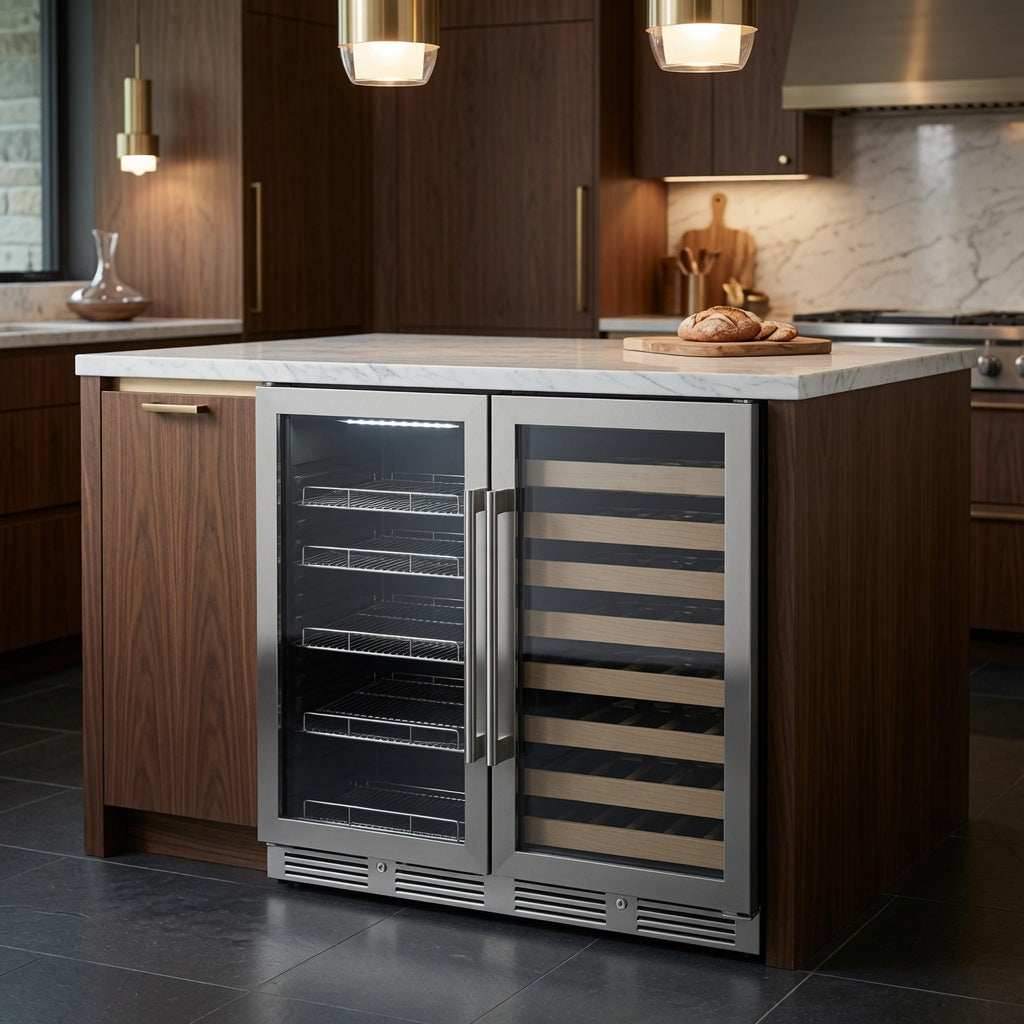

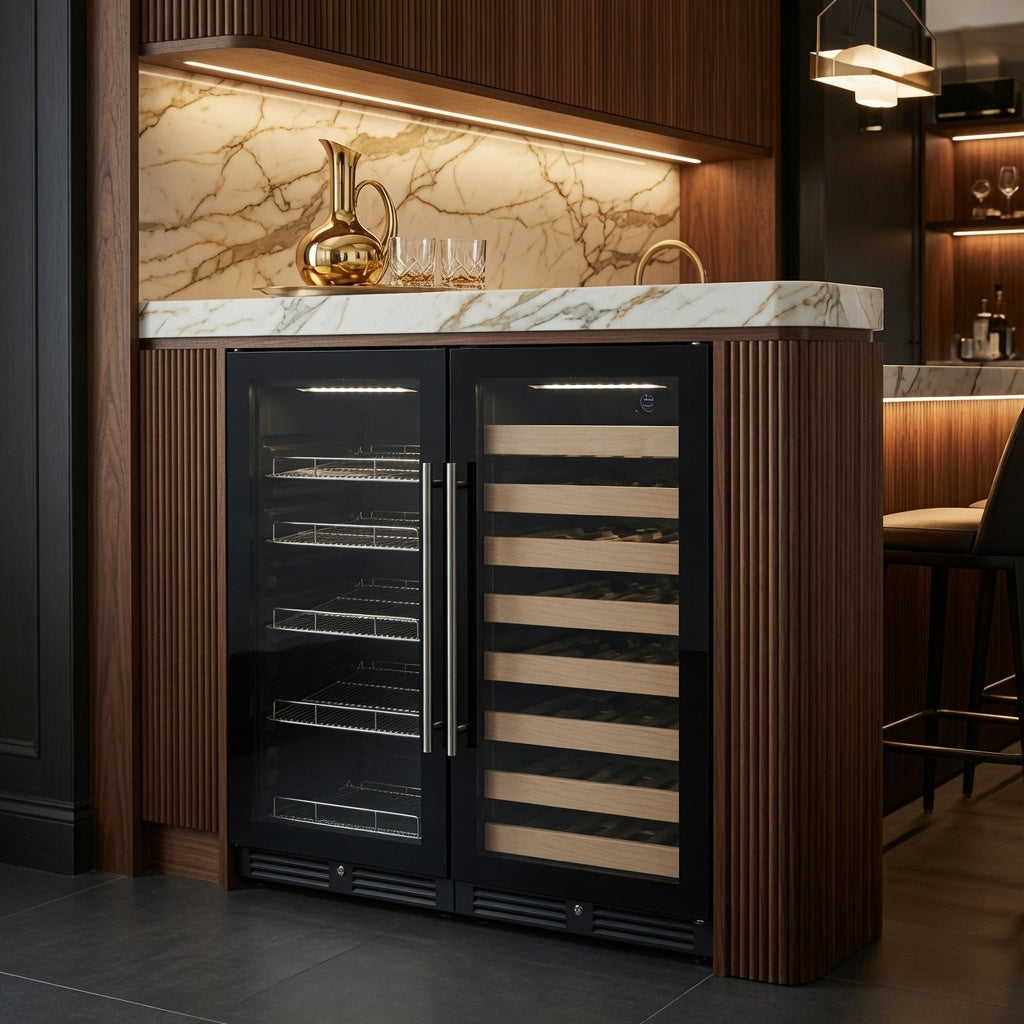

Built-in or freestanding
Engineered for built-in or freestanding installation, this combo fits seamlessly into cabinetry or stands out as a statement piece in a dedicated bar or entertainment area.
Specifications
Key Specifications
| Volume | 18.72 CF (530 Liters) total; 9.36 CF (265 Liters) each |
|---|---|

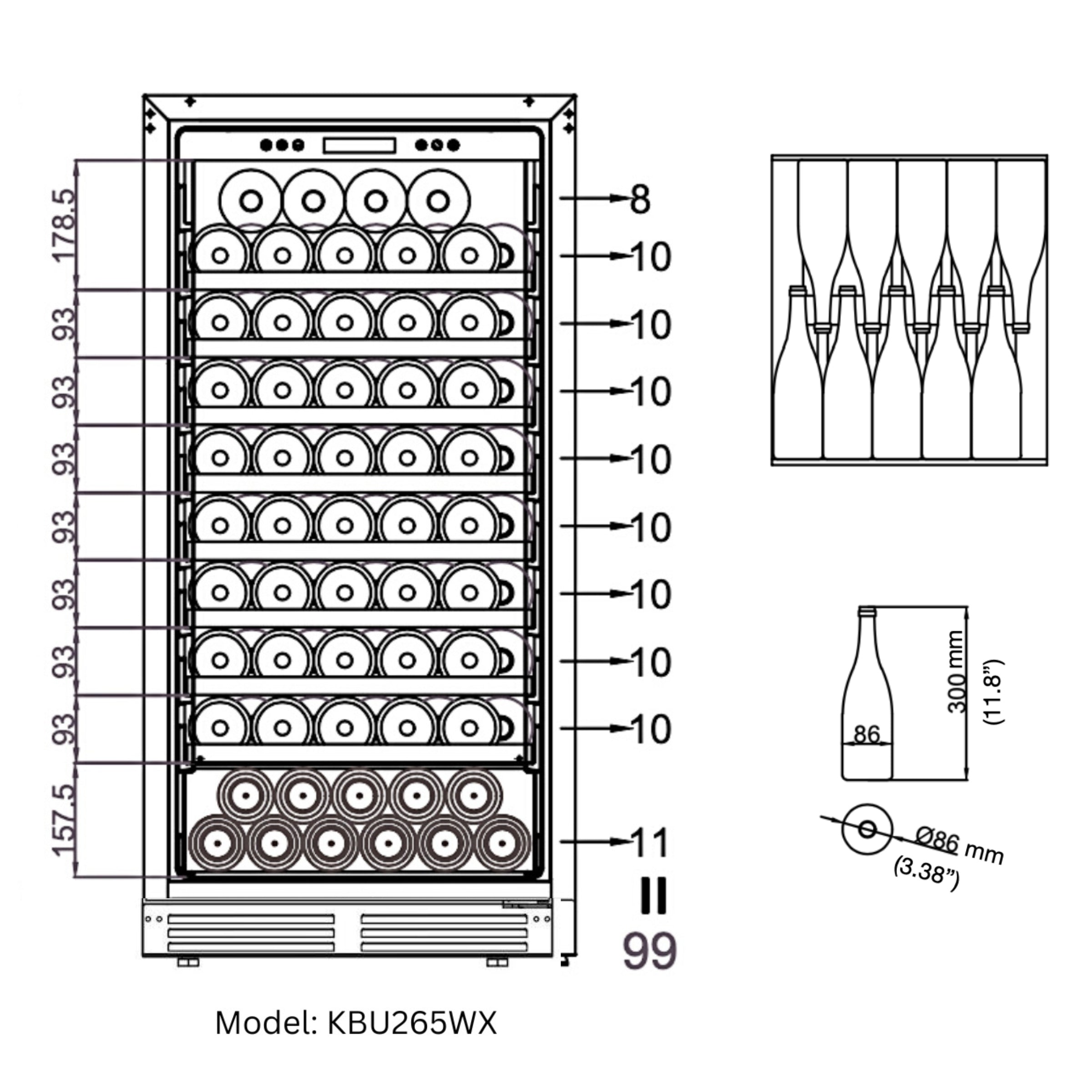

| Capacity (bottles) | 99 bottles |

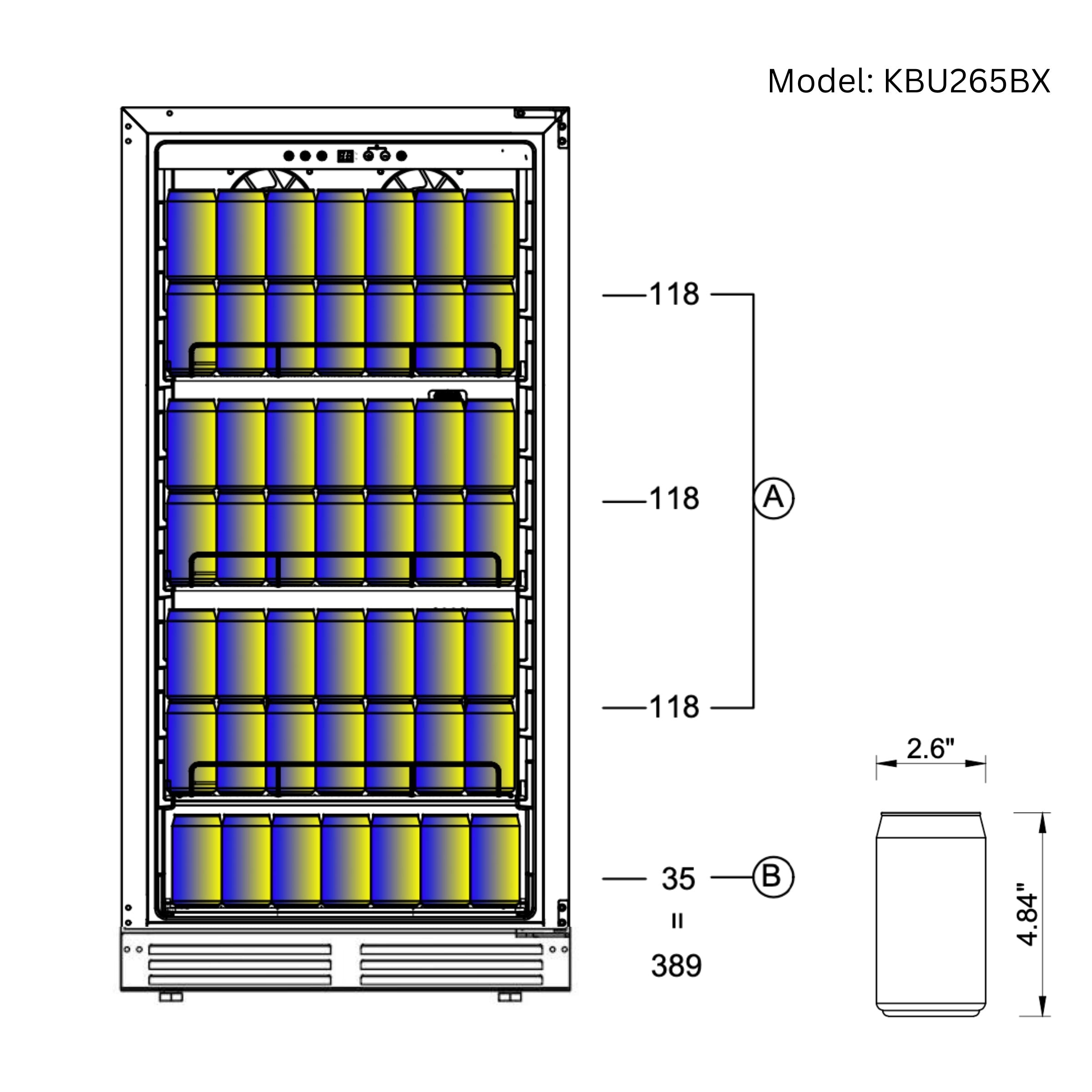

| Capacity (cans) | 389 cans |
| Installation Type | Built-in or freestanding |
| Climate Type | N |
| Temperature Zones | Dual zone (wine + beverage) |
| Adjustable Temperature Range |
Beer side: 35°F to 68°F (2°C to 20°C) Wine side: 35°F to 68°F (12°C to 20°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 5 chromed steel shelves + 6 beech wooden shelves |
| Dimensions | 46.84” W x 27.55” D x 47.24” H (includes 0.59” stand height) |
| Compressors | Embraco inverter compressors (one per unit) |
| Power Supply | 110–115V / 60Hz |
| Rated Power Input | 330 W total (165 W per unit) |
| Rated Current | 3.4 A total (1.7 A per unit) |
| Refrigerant | R600a / 45 g per unit |
Technical Features
Embraco inverter compressors
Each side uses a top-brand Embraco inverter compressor for ultra-quiet, energy-efficient cooling with up to 40% reduced energy consumption compared to traditional compressors.
Patented compressor sink
The patented sink design increases air circulation space around the compressor to improve cooling performance, reduce vibration, and help lower operating noise.
Low-E glass doors
Low-E glass helps reduce energy consumption and condensation while acting as an invisible insulating barrier to protect your wine and beverages from temperature swings and UV exposure.
Note: The thin Low-E coating improves energy efficiency and cooling performance by reducing heat transfer and condensation on the glass.
Fan-circulated air-cooling
A dedicated fan-circulated air-cooling system ensures temperature uniformity in each cabinet and helps compensate for humidity to better protect your collection from hot or cold spots.
Activated carbon filtration
An activated carbon filter helps remove impurities and odors from the internal air, keeping the cabinets fresher and better suited for long-term storage.

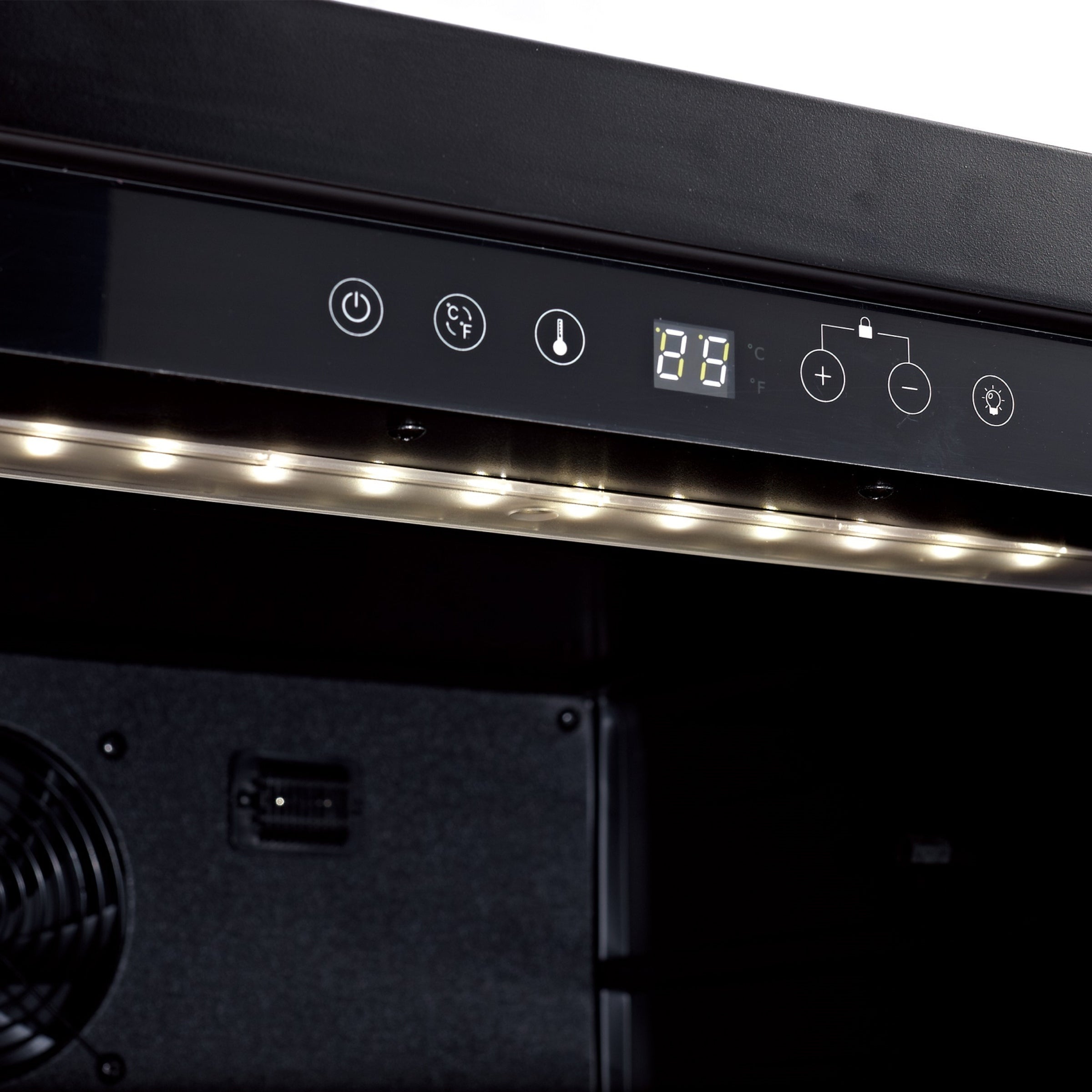

Digital touchpad control
Simple, easy-to-operate LED display touchpad controls provide clear temperature readouts and precise setting adjustments for both the wine and beverage compartments.

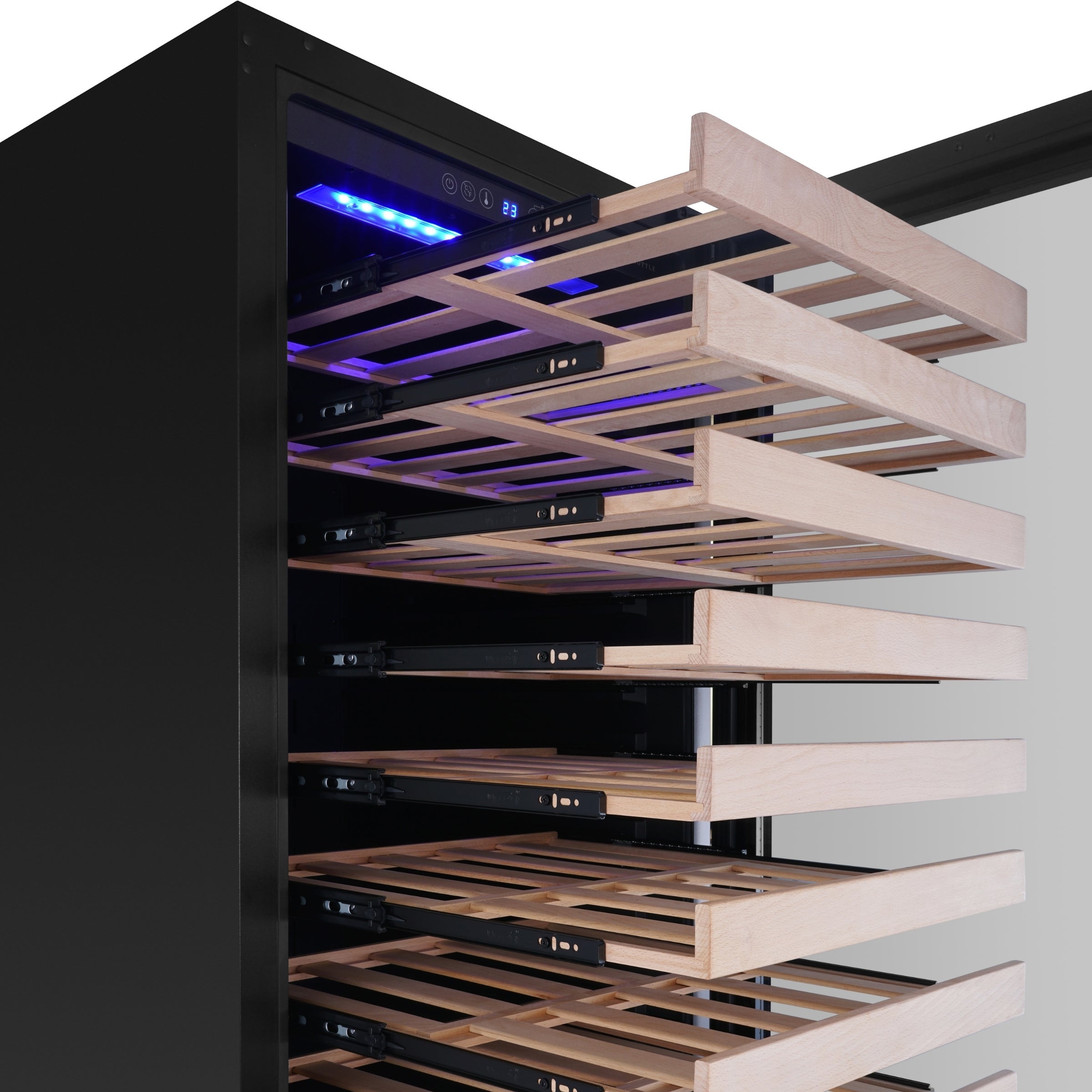

Full-extension beech wood shelves
Optimized FULL-EXTENSION beech wood shelves are designed for wine storage, with spacing that fits both regular and larger bottles up to approximately 3.39" (86 mm) in diameter.
Magnetic door switch & alarm
A magnetic switch triggers a 2-minute door-open alarm to help protect your collection and maintain consistent internal temperatures.

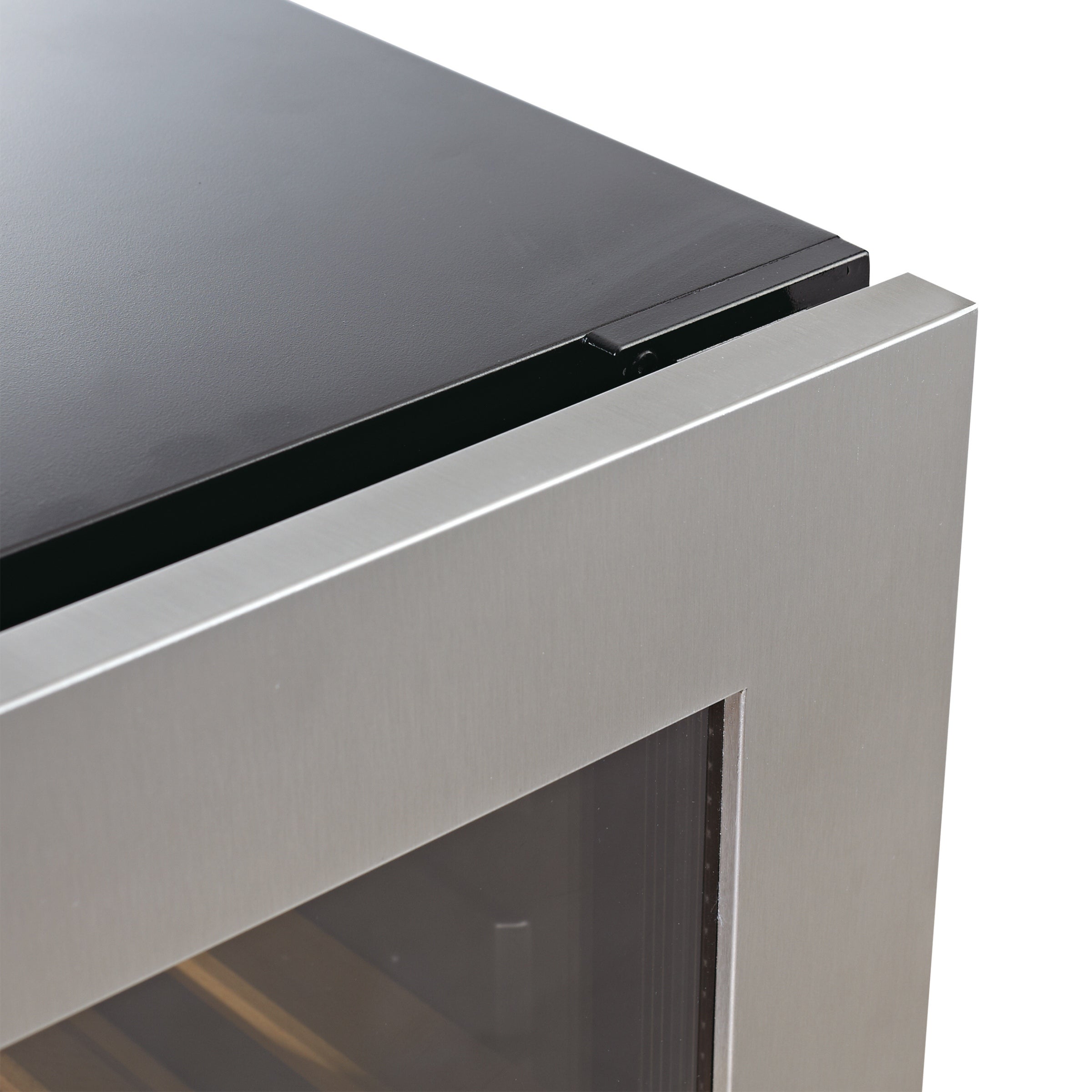

Hidden door hinge
A laminated steel plate with integrated molding and hidden hinge design delivers a clean, built-in look that integrates smoothly with surrounding cabinetry.

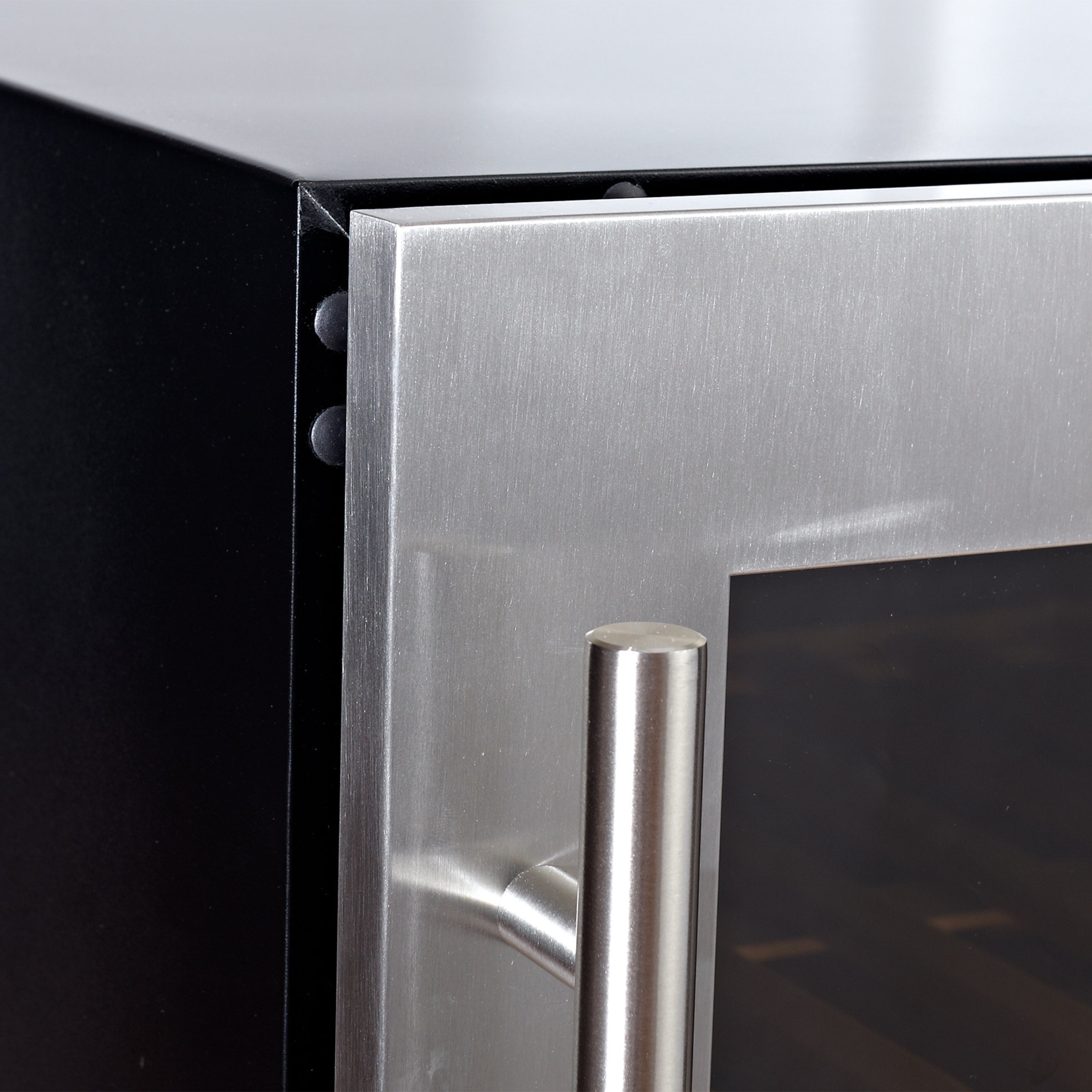

Seamless stainless steel frame
The seamless stainless steel door frame offers an elevated, thin-door appearance that pairs well with premium appliances and modern kitchen designs.
45 mm thick insulation
45 mm C-Pantane insulation helps optimize cooling performance and reduce energy consumption, supporting long-term, stable storage for wine and beverages.
Dimensions & Diagrams

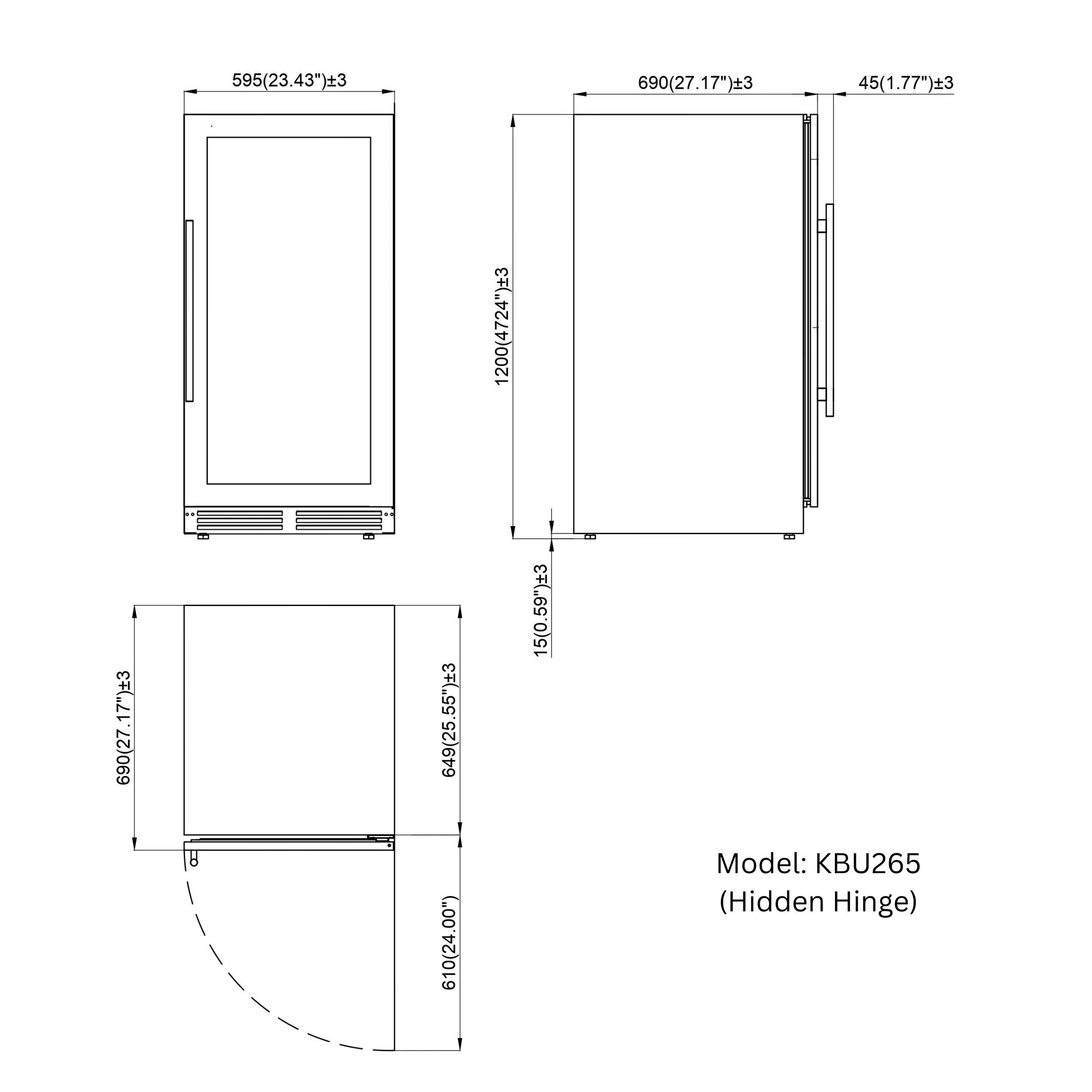

Technical dimensions

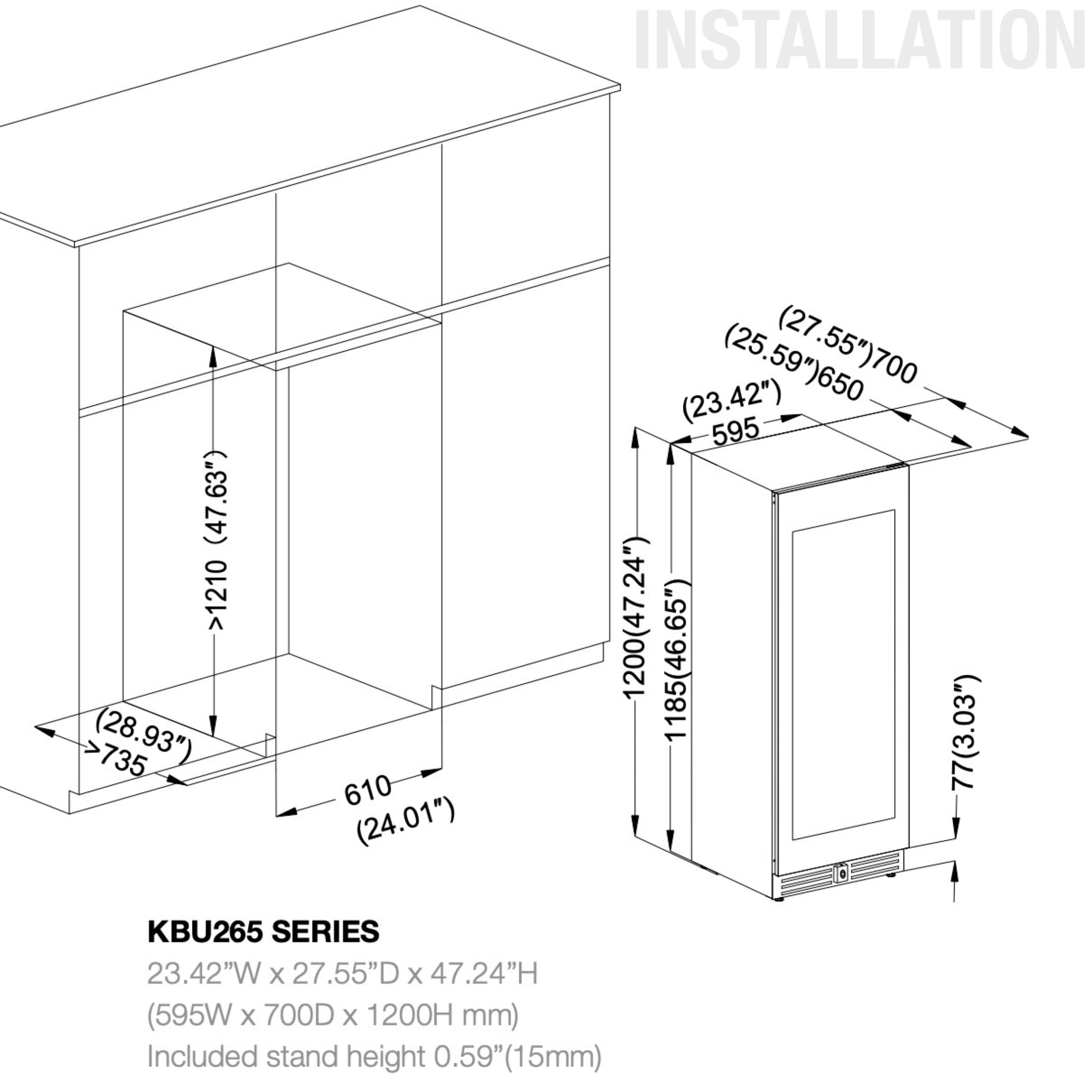

Use these diagrams to confirm cutout size, ventilation, and clearances before installing the wine and beverage combo into cabinetry or a built-in bar.
Installation diagrams
Product Manual
Download & view the full manual
Review the complete user manual for detailed installation instructions, operating guidelines, and maintenance information for the 47-inch upright wine and beverage refrigerator combo.
Frequently Asked Questions
This upright combo is designed for serious storage, with capacity for up to 99 wine bottles and 389 cans, depending on how you configure the shelves and mix bottle and can sizes.
Yes. The combo is suitable for built-in or freestanding installation. Follow the cutout and ventilation guidelines in the technical diagrams to ensure proper airflow and performance.
Each side has its own temperature control, letting you dial in optimal storage conditions for wine and beverages within the specified 35°F–68°F range.
Absolutely. The wide temperature range supports both red and white wines. Many owners keep wine on one side and beverages on the other, but you can also dedicate both to wine for larger collections.
The use of Embraco inverter compressors and a patented sink design help keep operating noise low, making this unit suitable for open-plan kitchens, great rooms, and home bars.
