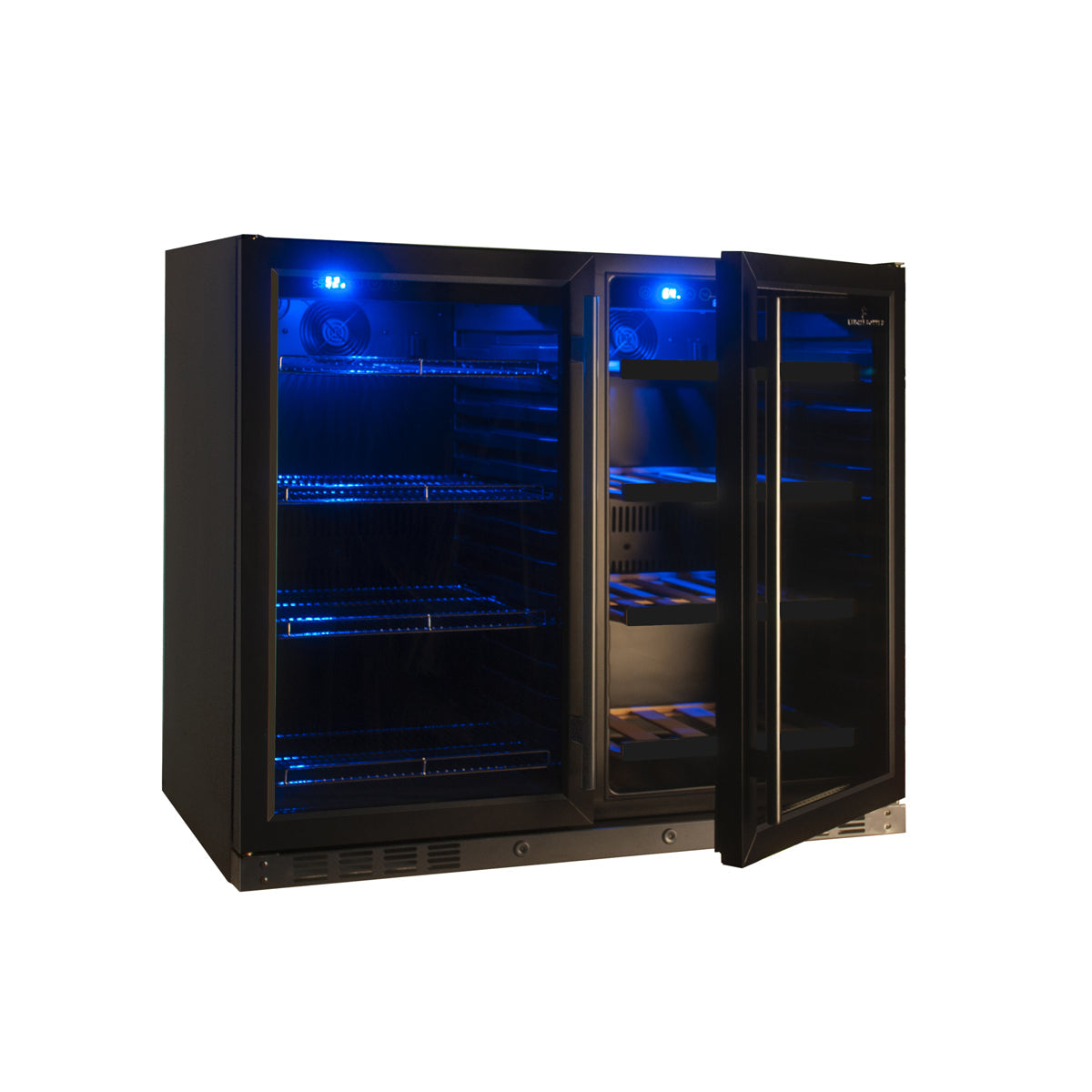

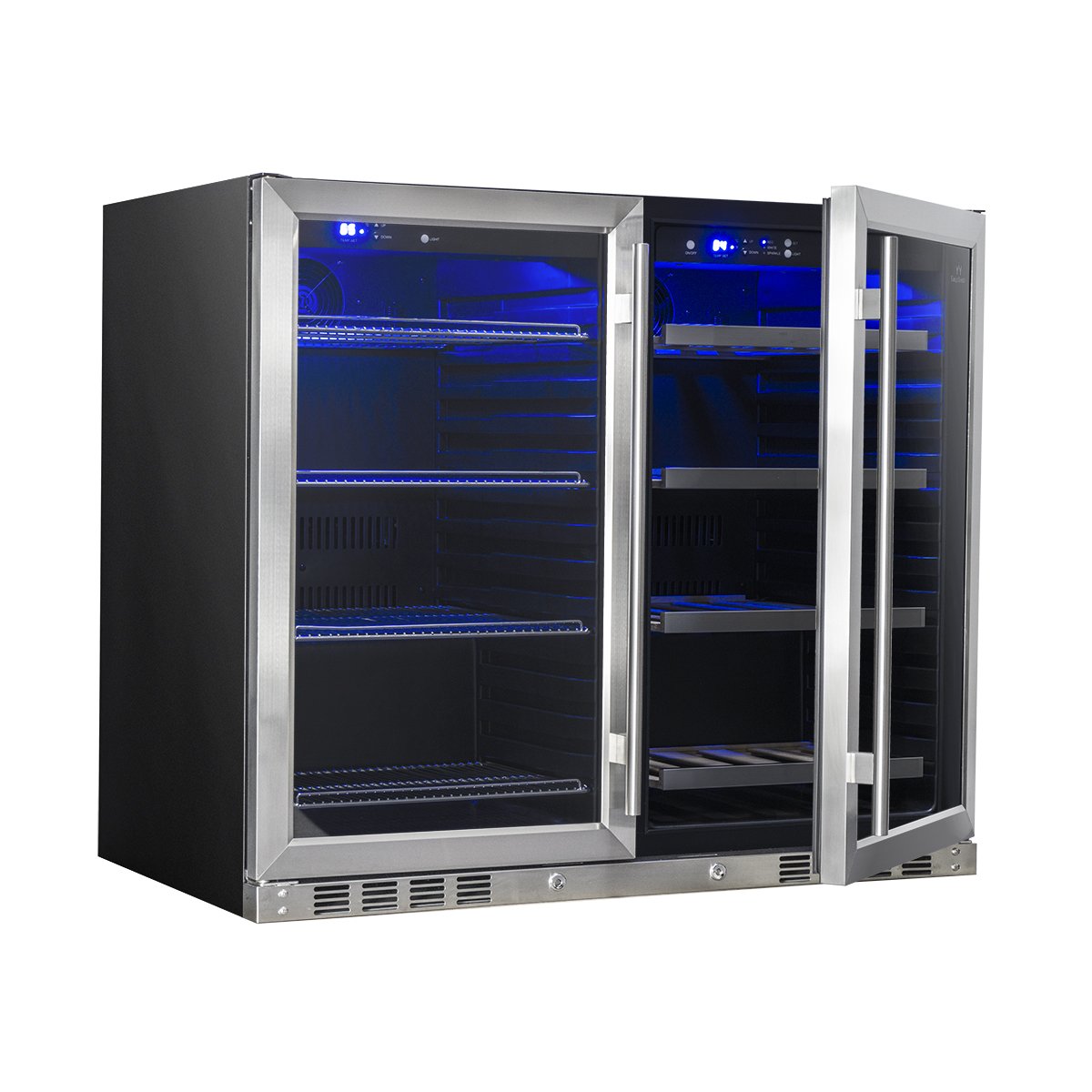

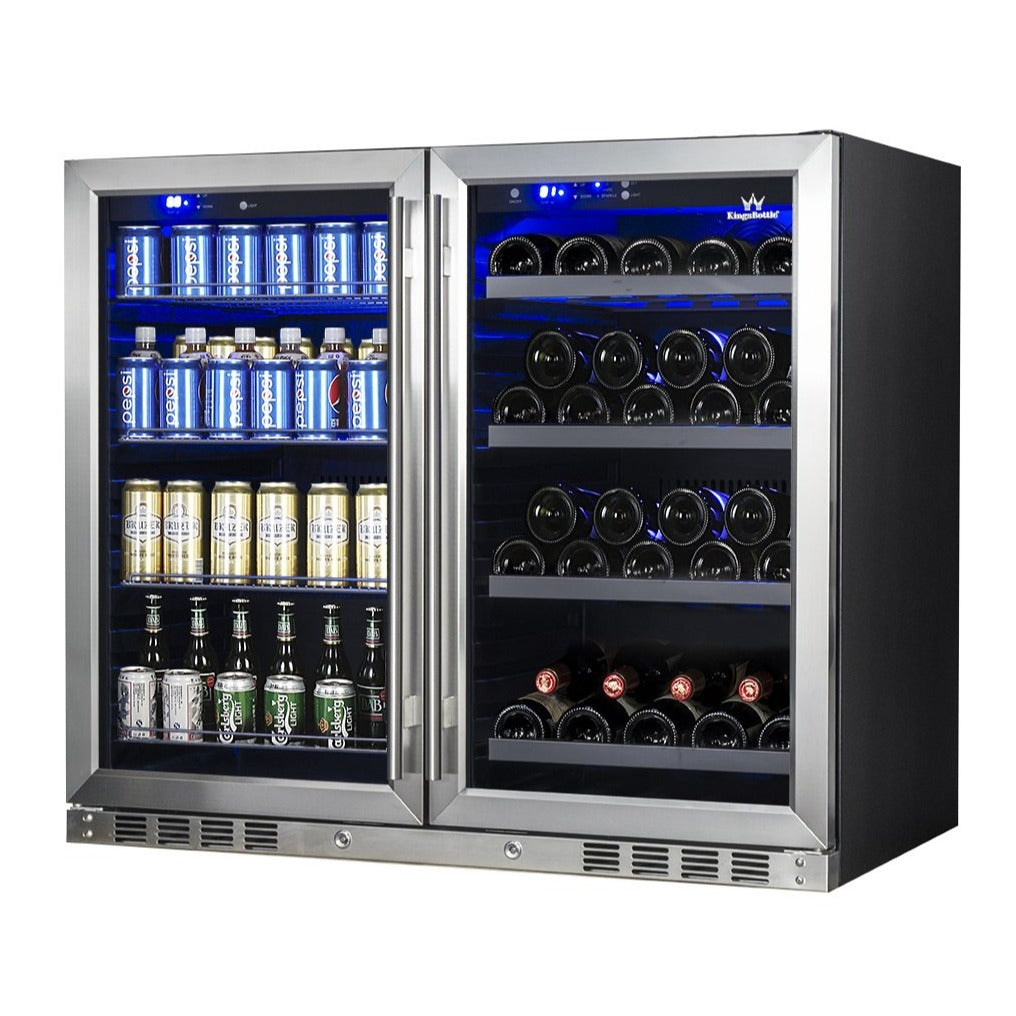

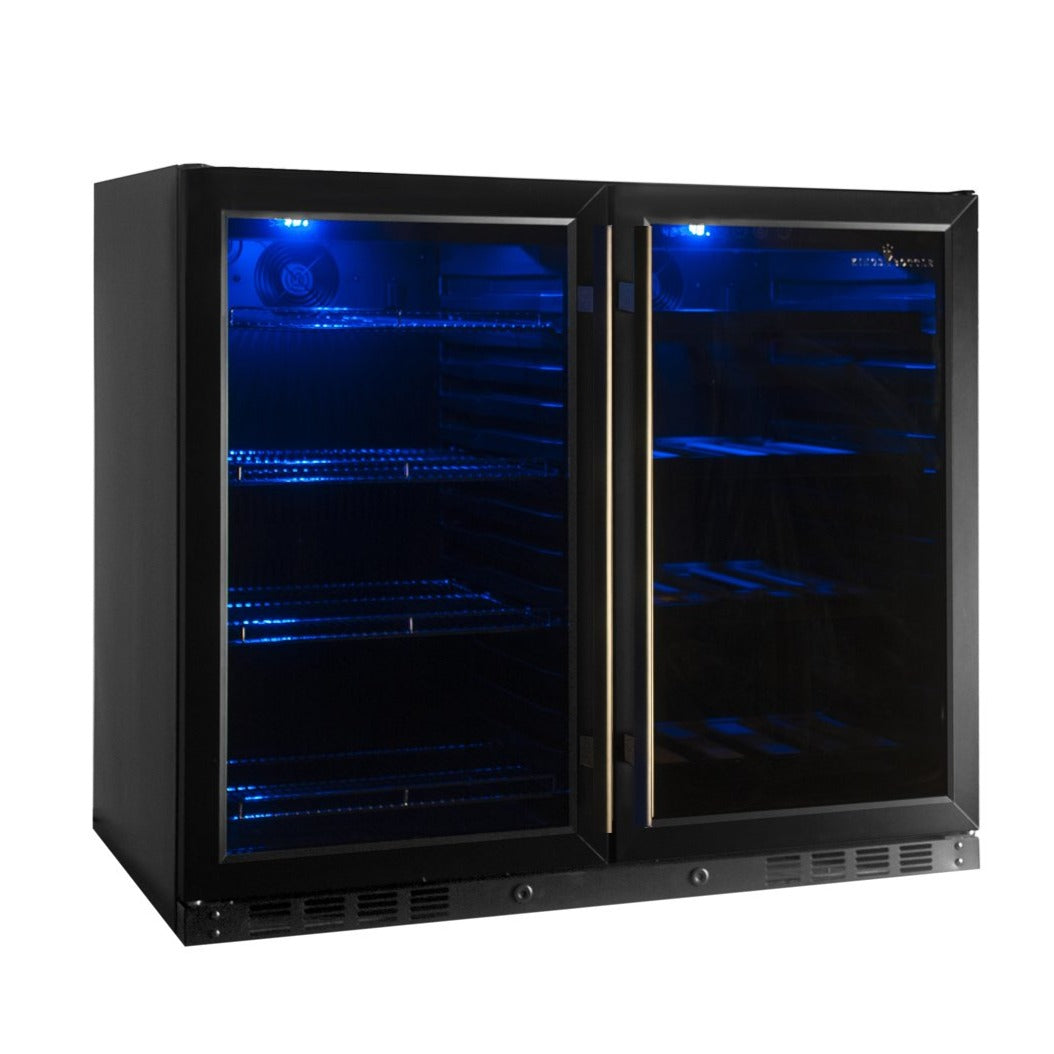

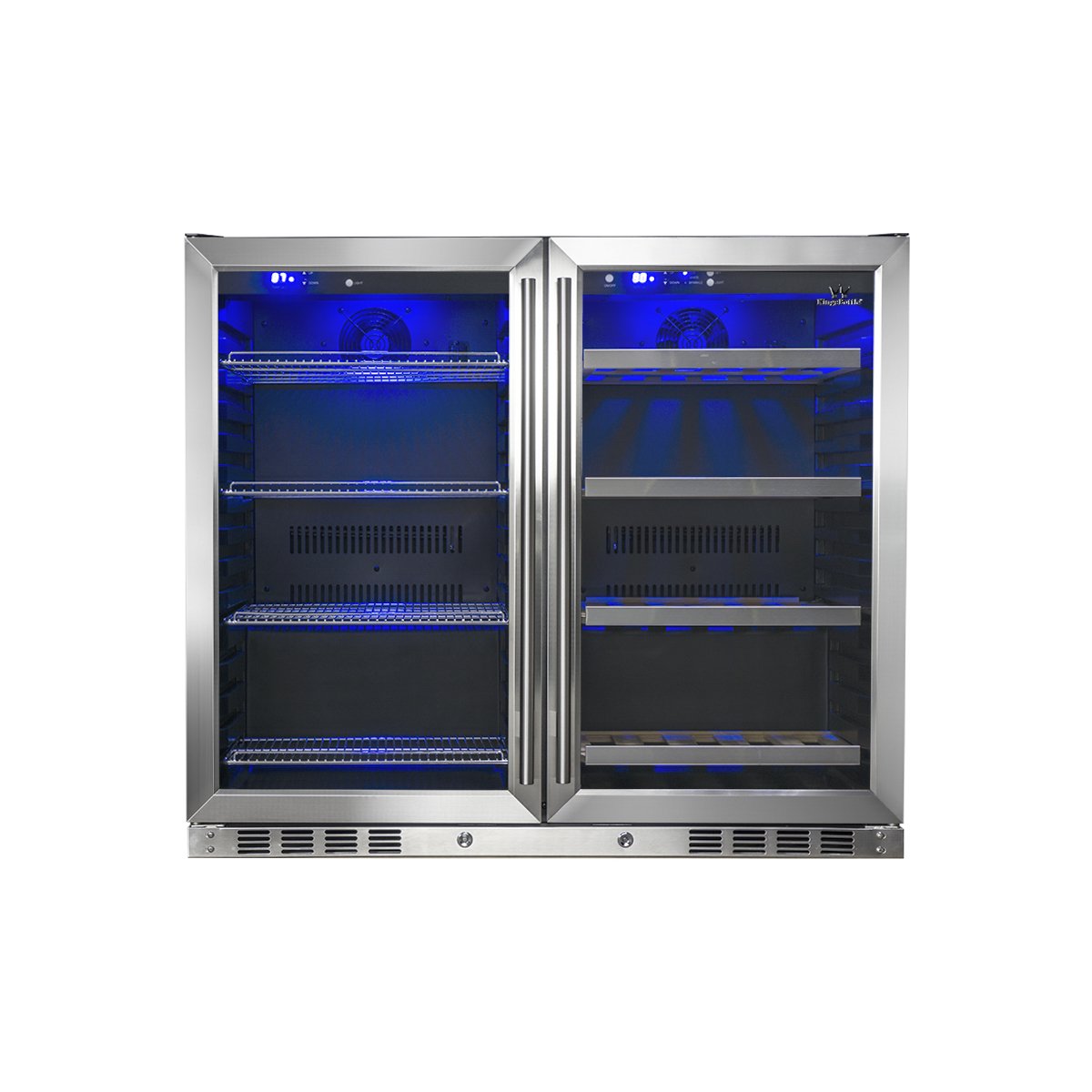

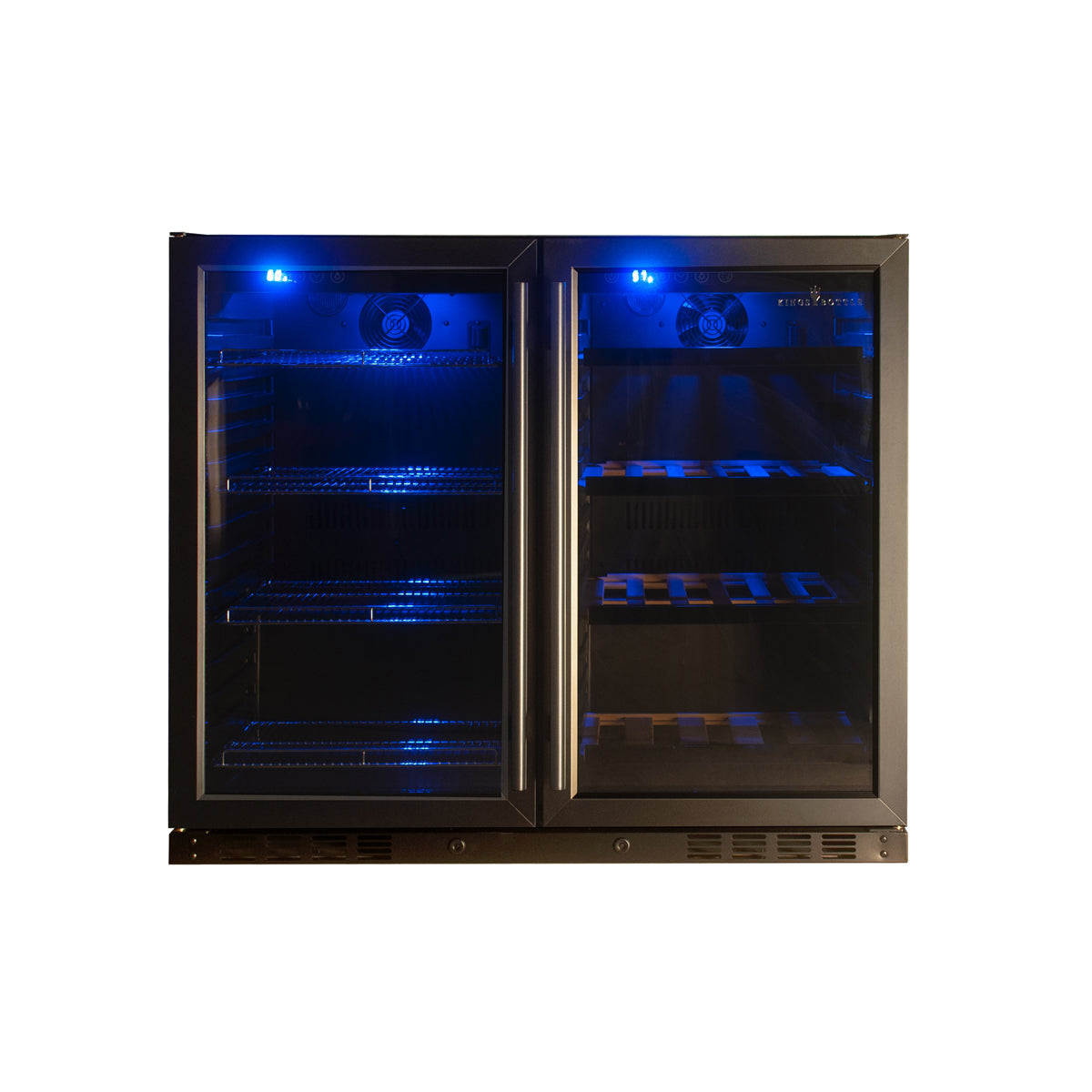

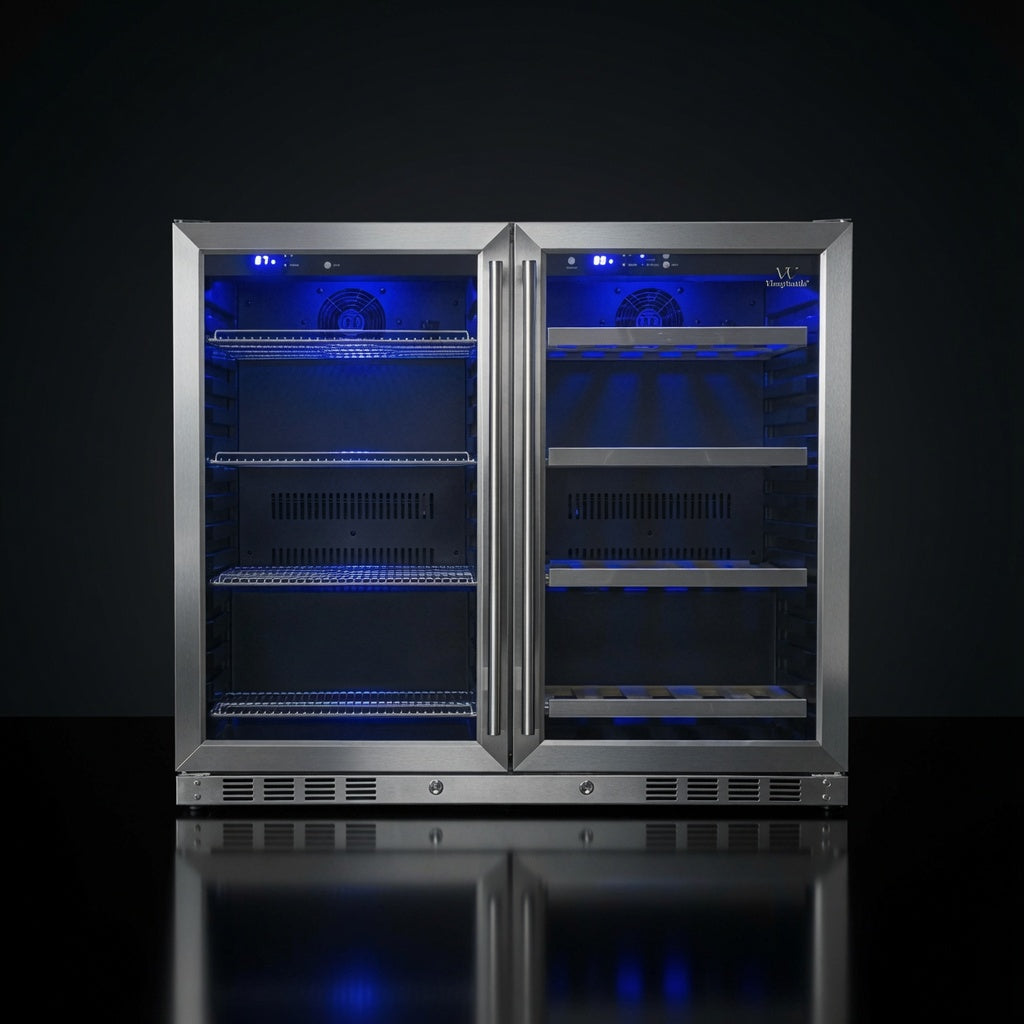

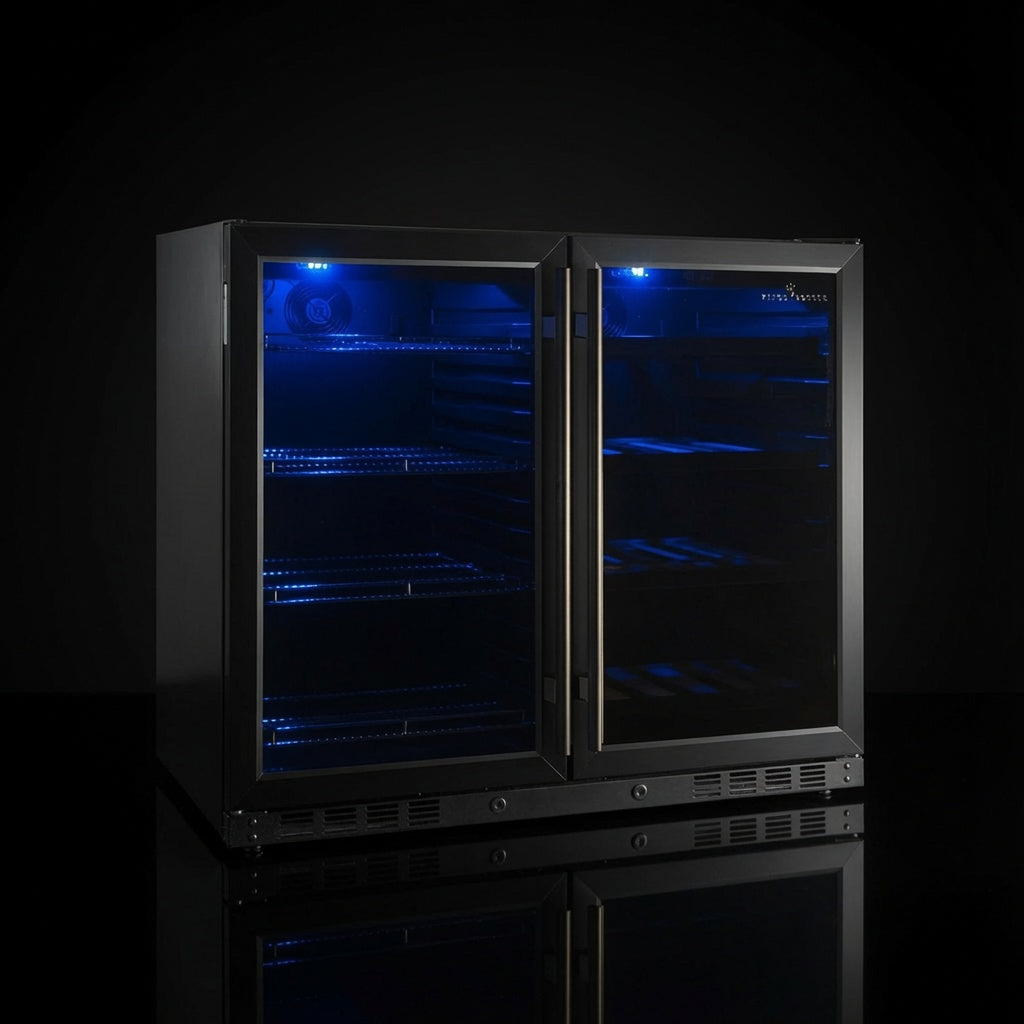

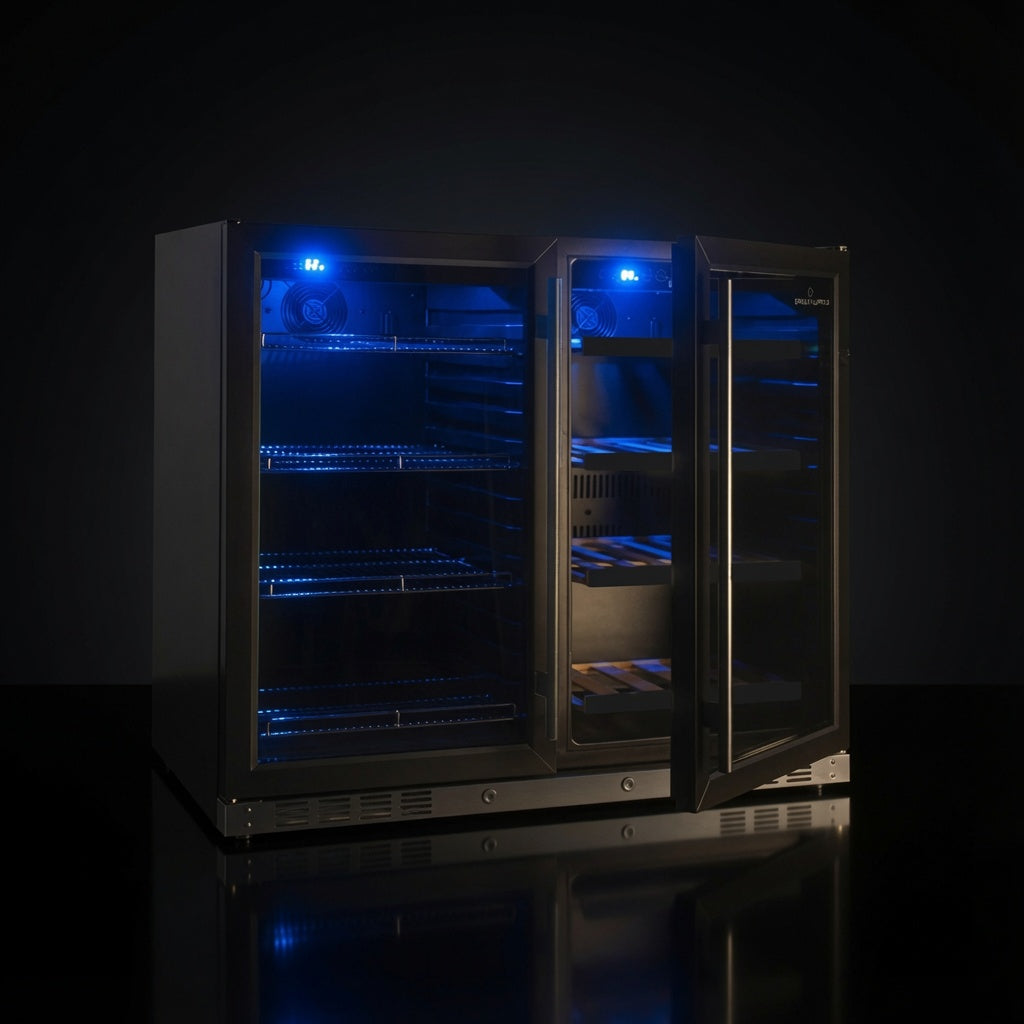

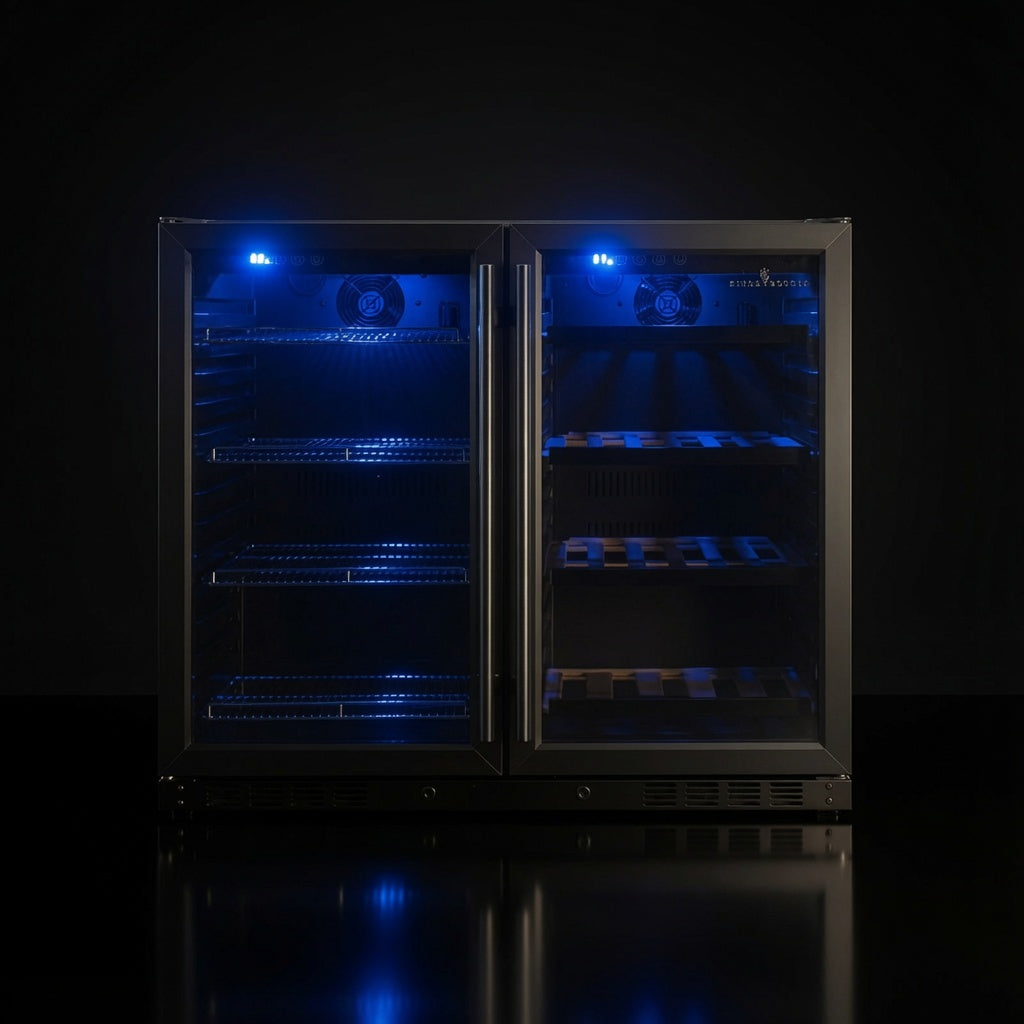

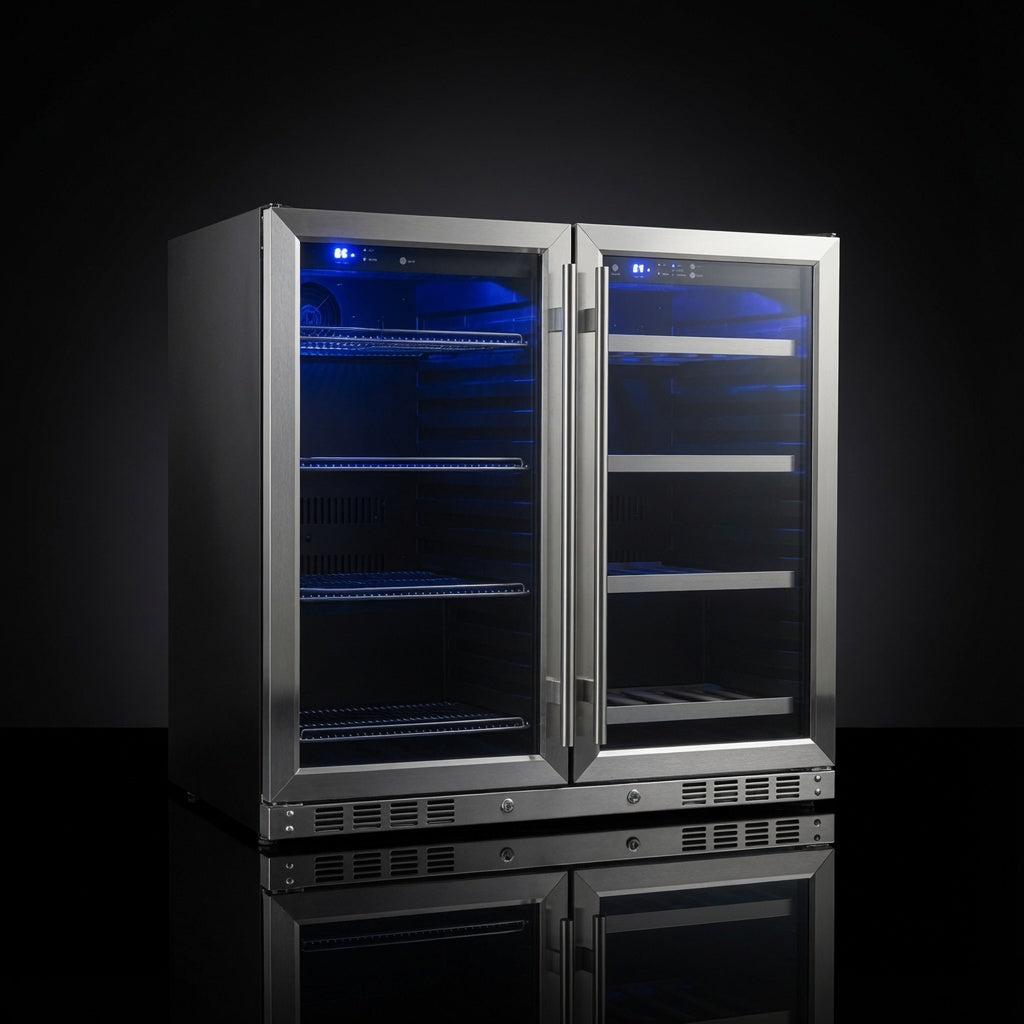

The Beer & Wine Dual-Zone Cooler delivers a refined balance of premium performance, modern design, and versatile storage capacity—engineered for the serious entertainer. Powered by the Embraco FullMotion Inverter Compressor , this model provides whisper-quiet operation, tighter temperature control, and up to 40% energy savings over traditional compressors.

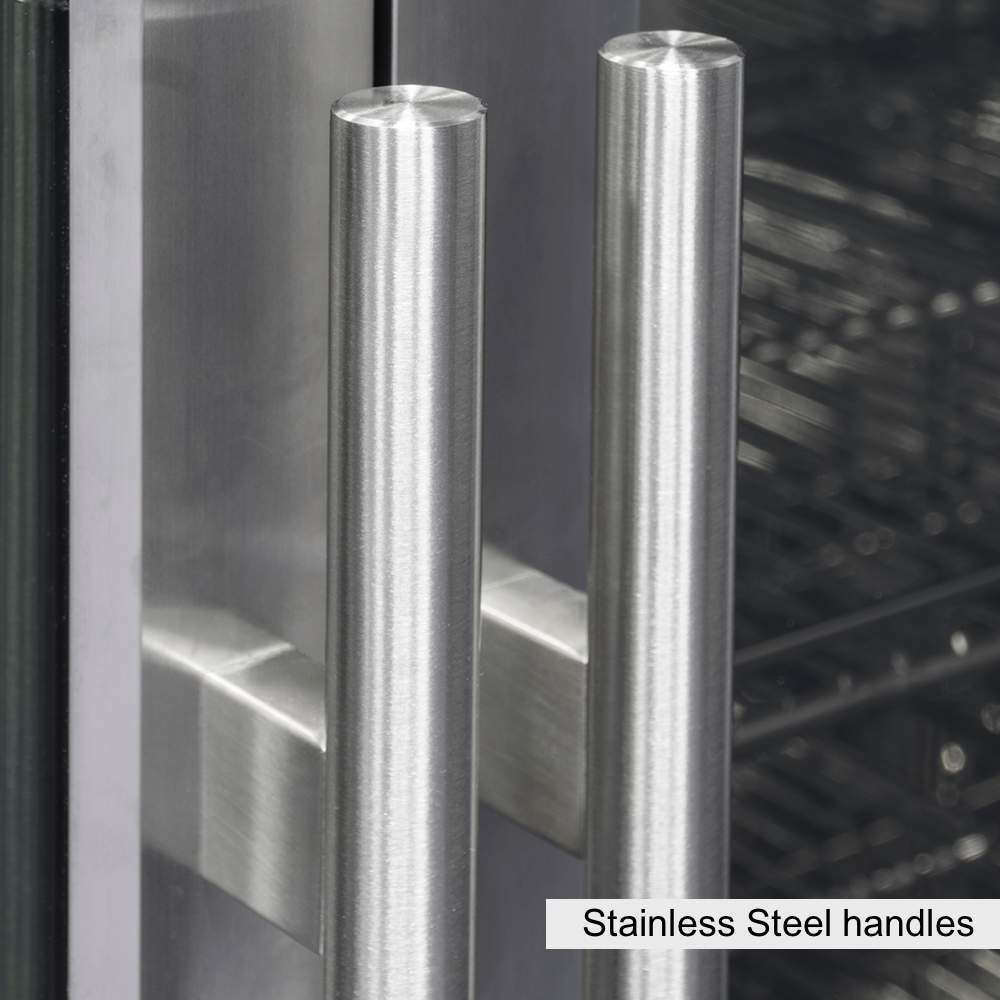

Its true dual-zone cooling system allows wine and beverages to maintain independent temperature environments, ensuring reds, whites, beers, and craft beverages are always served at their ideal conditions. A sleek stainless steel frame paired with a Low-E UV-shielding glass door protects flavors while enhancing overall efficiency and reducing condensation.

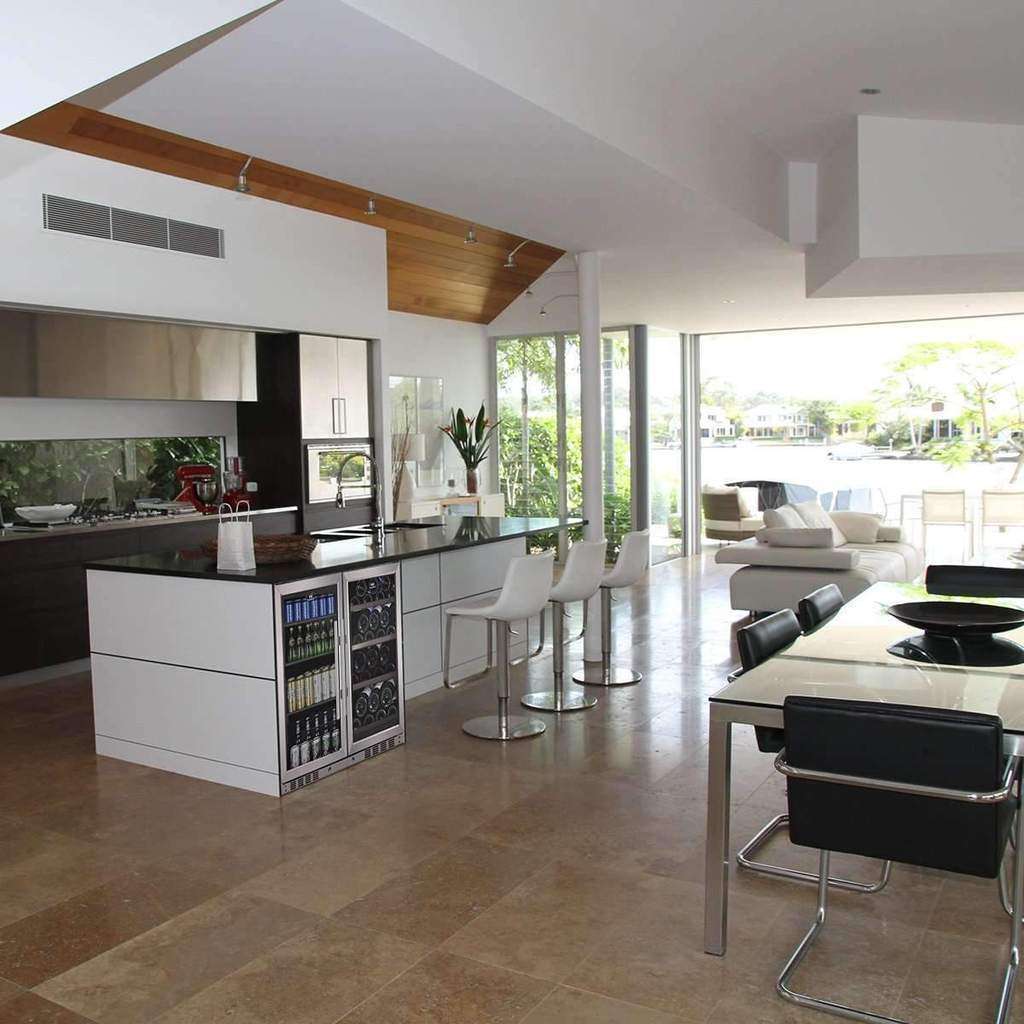

Fully adjustable wooden and chromed steel shelving gives you the freedom to store bottles of all sizes, standard cans, tall cans, and specialty beverages. Designed for both built-in cabinetry and freestanding placement, this cooler seamlessly elevates kitchens, bars, media rooms, and luxury entertainment spaces.
Why it stands out
True dual-zone flexibility
Independent temperature zones for wine and beverages let you serve reds, whites, beers, and soft drinks at their ideal temperatures in a single compact footprint.
Efficient inverter cooling
The Embraco inverter compressor ramps smoothly, runs quieter, and can use up to 40% less energy than traditional fixed-speed systems while holding tighter temperature ranges.
Low-E glass performance
A Low-E glass door helps reduce heat transfer, UV exposure, and condensation, acting as an invisible thermal barrier while keeping your collection beautifully on display.
Flexible shelf configuration

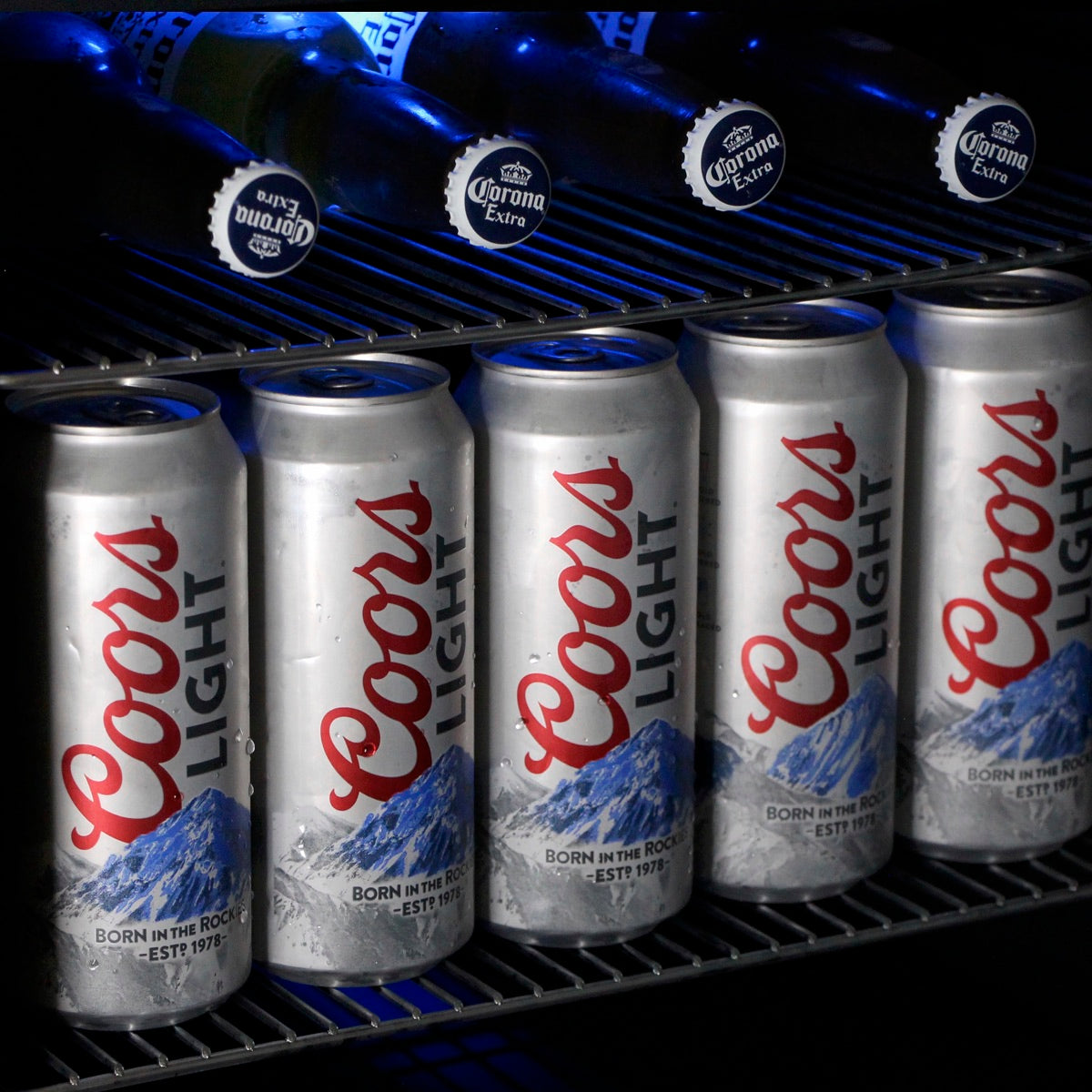

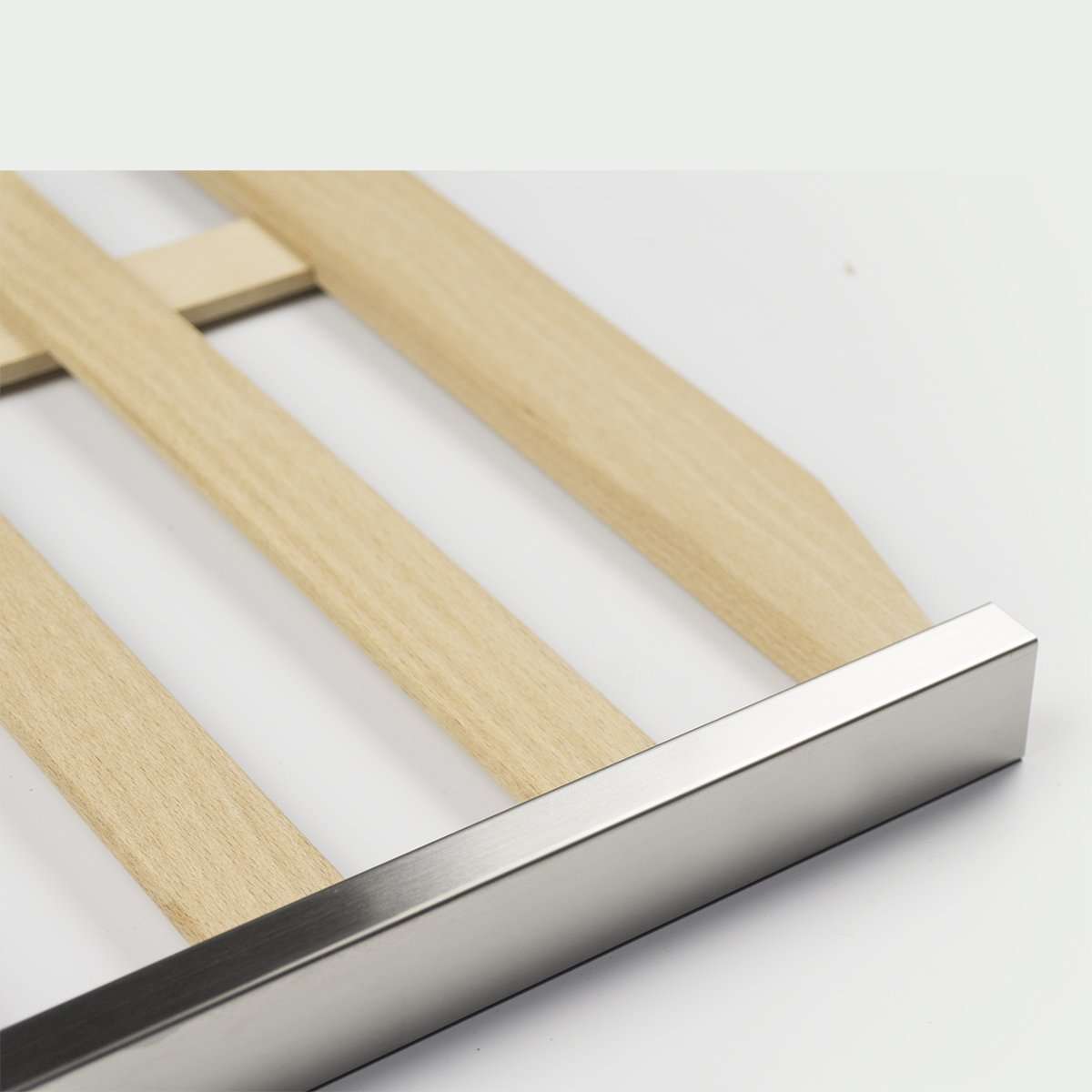

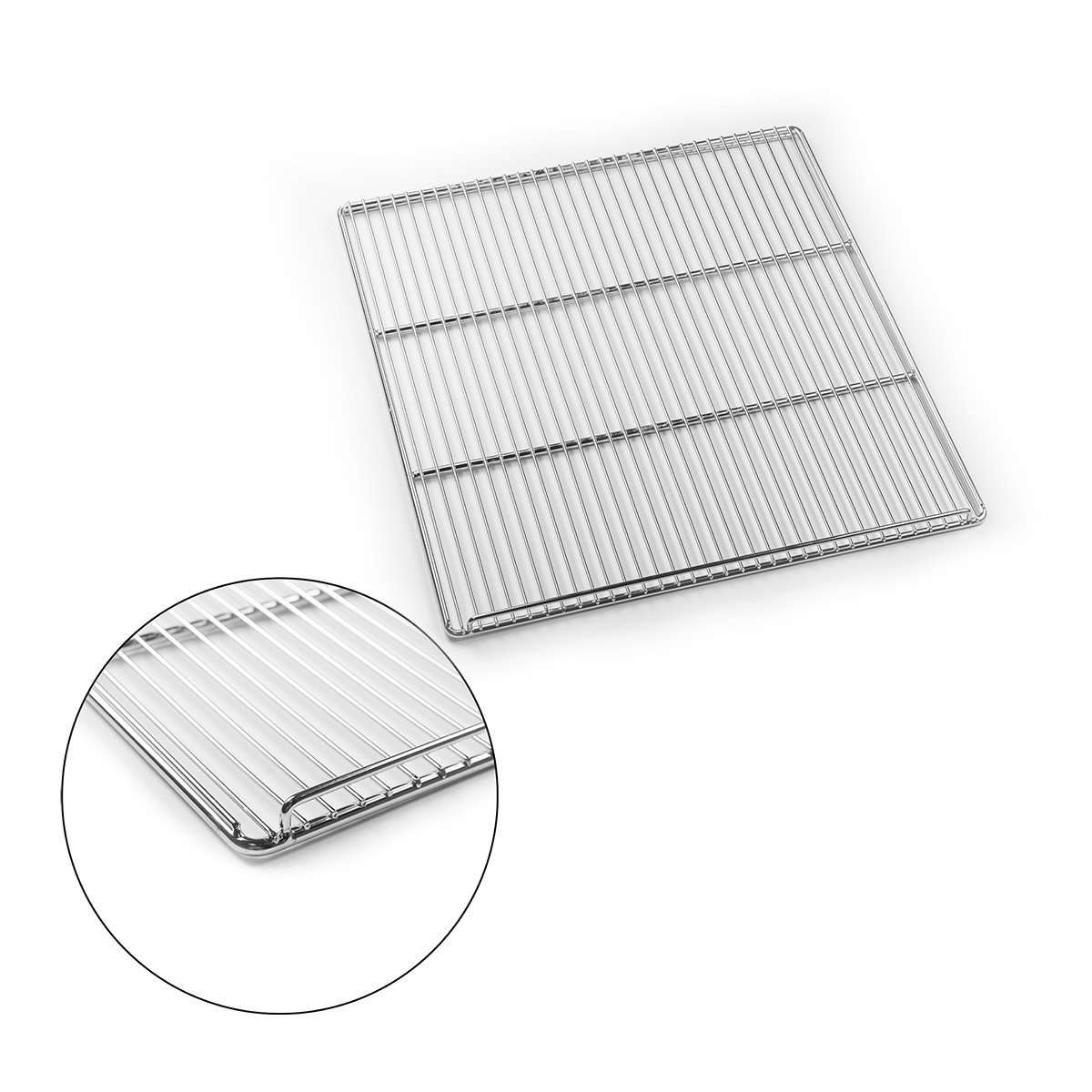

A mix of 4 wood shelves and 4 chromed steel shelves with adjustable spacing allows you to configure the interior for bottles, standard cans, tall cans, and specialty formats.
Specifications
Key Specifications
| Volume | 7.76 CF (220 Liters) |
|---|---|
| Capacity (bottles) | 28 bottles |
| Capacity (cans) | 100 cans |
| Installation Type | Built-in or freestanding |
| Climate Type | ST; N; SN |
| Temperature Zones | Dual zone (1 × wine, 1 × beverage) |
| Adjustable Temperature Range |
Beer / beverage side: 34°F to 64°F (1°C to 18°C) Wine side: 34°F to 64°F (1°C to 18°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |

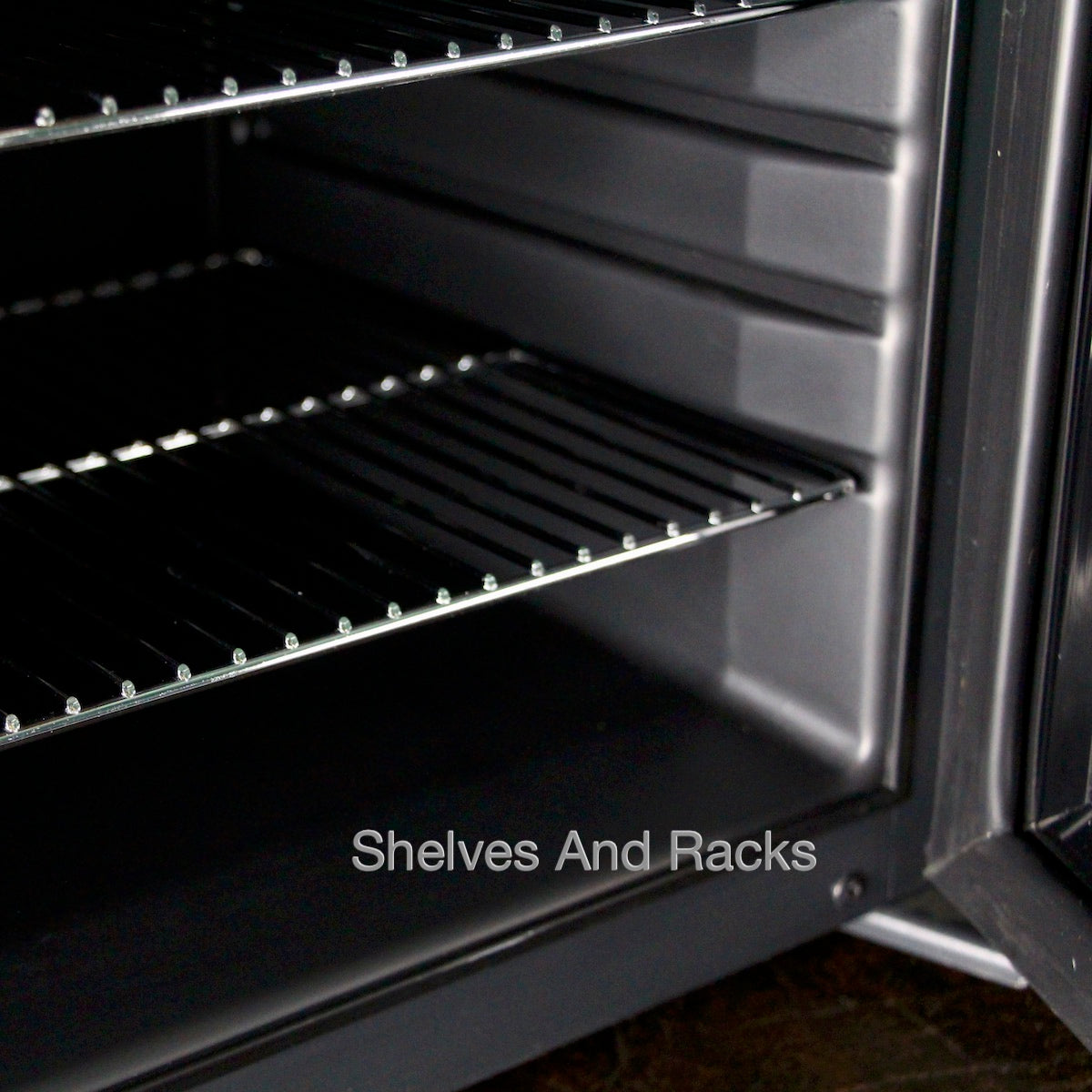

| Shelf Configuration | 4 wood shelves + 4 chromed steel shelves; fully adjustable distances between shelves |
| Dimensions | 38.8” W × 23.2” D × 34.0” H |
| Built-in Clearances | 0.5" on either side, 0.25" on top, and 0.5" at the rear (minimum recommended) |
| Compressor | Embraco Inverter Compressor |
| Power Supply | 110–115V / 60 Hz |
| Rated Power Input | 80 W |
| Rated Current | 1.1 A |
| Refrigerant | R600a / 70 g |
| Energy Consumption | 0.8 kWh / 24 h |
Technical Features
Quiet inverter compressor
A high-efficiency Embraco inverter compressor delivers smooth, low-vibration performance with tighter temperature control and up to 40% lower energy use than traditional fixed-speed compressors.
Low-E glass door
The Low-E glass door helps reduce heat transfer and condensation while filtering UV light, improving energy efficiency and protecting the flavor and stability of your collection.
Fan-circulated air cooling
A fan-circulated air-cooling system helps maintain even temperatures throughout both zones, reducing hot spots and supporting consistent conditions from top to bottom.
Activated carbon filtration
An internal activated carbon filter helps remove impurities from the cabinet air, keeping the interior fresh and odor-free—especially important for long-term wine storage.
LED digital touchpad controls
Easy-to-use LED touchpad controls provide clear temperature readouts and simple adjustments for each zone, so you can quickly dial in serving or storage conditions.
45 mm C-pentane insulation
Thick 45 mm C-pentane foam insulation helps optimize cooling performance, reduce energy consumption, and support stable storage even in warmer ambient conditions.
Dimensions & Diagrams
Technical dimensions
Use the technical dimension diagrams to confirm footprint, door clearance, and internal layout before integrating the cooler into cabinetry or custom millwork.
Installation diagrams

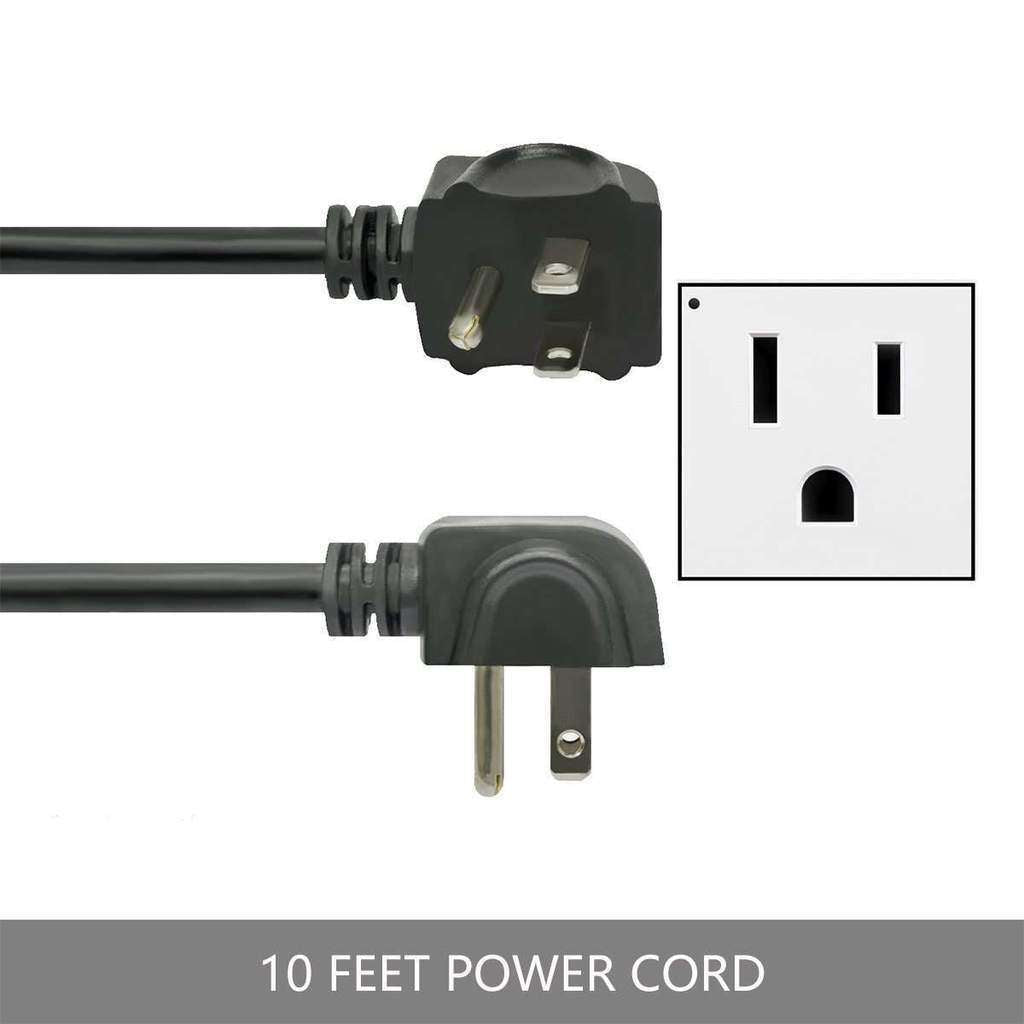

Reference the installation and power-plug diagrams when planning cutout dimensions, ventilation, and electrical placement for built-in applications.
Product Manual
View the full manual
Review the complete user manual for installation guidance, operating instructions, and maintenance recommendations for the Beer & Wine Dual-Zone Cooler.
Manual – Beer & Wine Dual-Zone Cooler
Frequently Asked Questions
This dual-zone cooler provides 7.76 cubic feet (220 L) of storage and can hold up to 28 wine bottles plus 100 cans, depending on how you configure the shelves and the mix of bottle and can sizes.
Yes. It features a true dual-zone design with independent temperature controls for the wine side and beverage side, so you can store reds, whites, and drinks at different serving temperatures at the same time.
Yes. The cooler is designed for both built-in and freestanding use. When installing as a built-in, follow the recommended clearances—0.5" on each side, 0.25" on top, and 0.5" at the rear—and reference the installation diagrams and manual for best performance and longevity.
The Embraco inverter compressor is designed for quiet, low-vibration operation, making this cooler well-suited for open-concept kitchens, bars, and entertainment spaces where noise levels matter.
Both zones are adjustable from 34°F to 64°F (1°C to 18°C), giving you flexibility to store beer and beverages at colder settings or configure both zones for wine if your collection changes over time.
