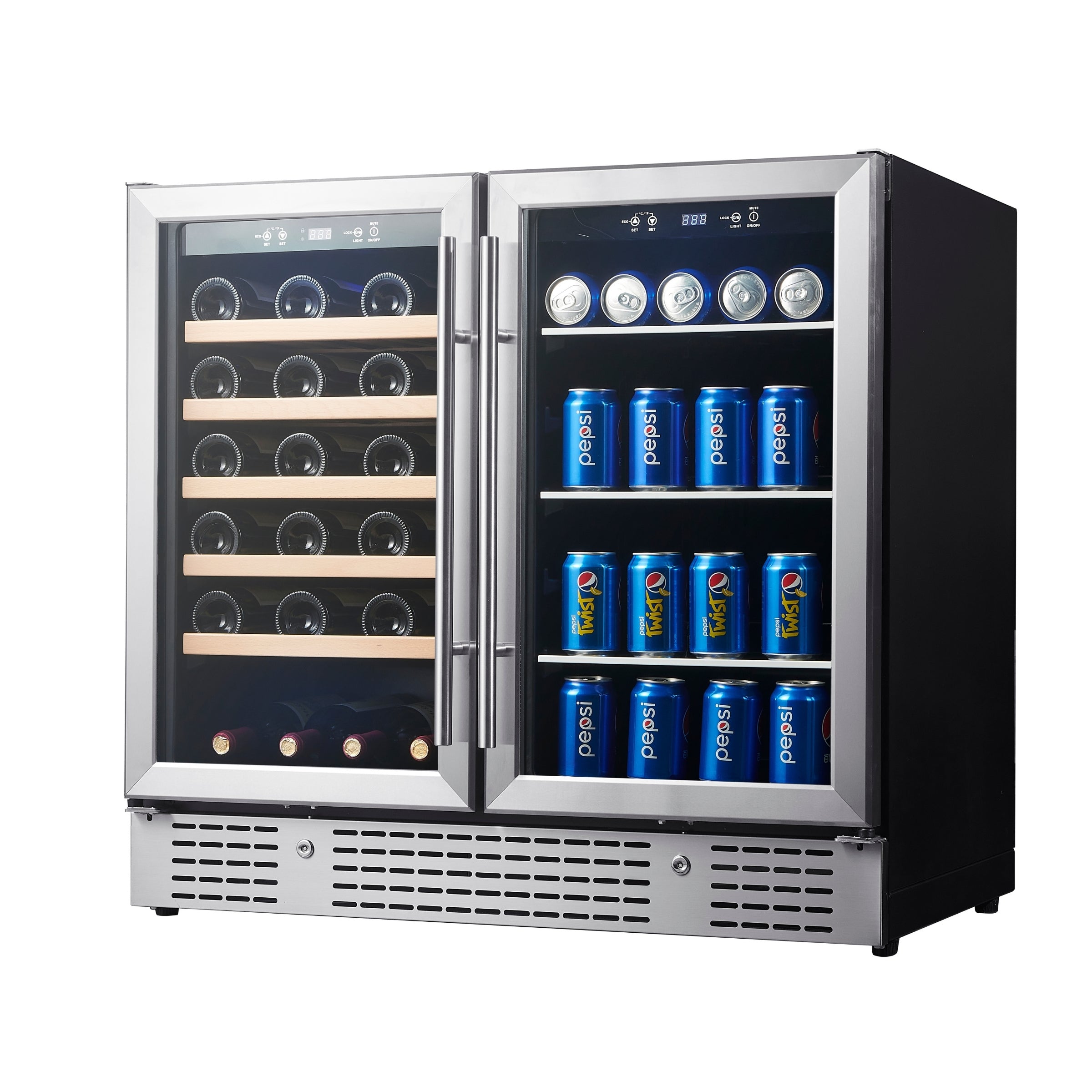

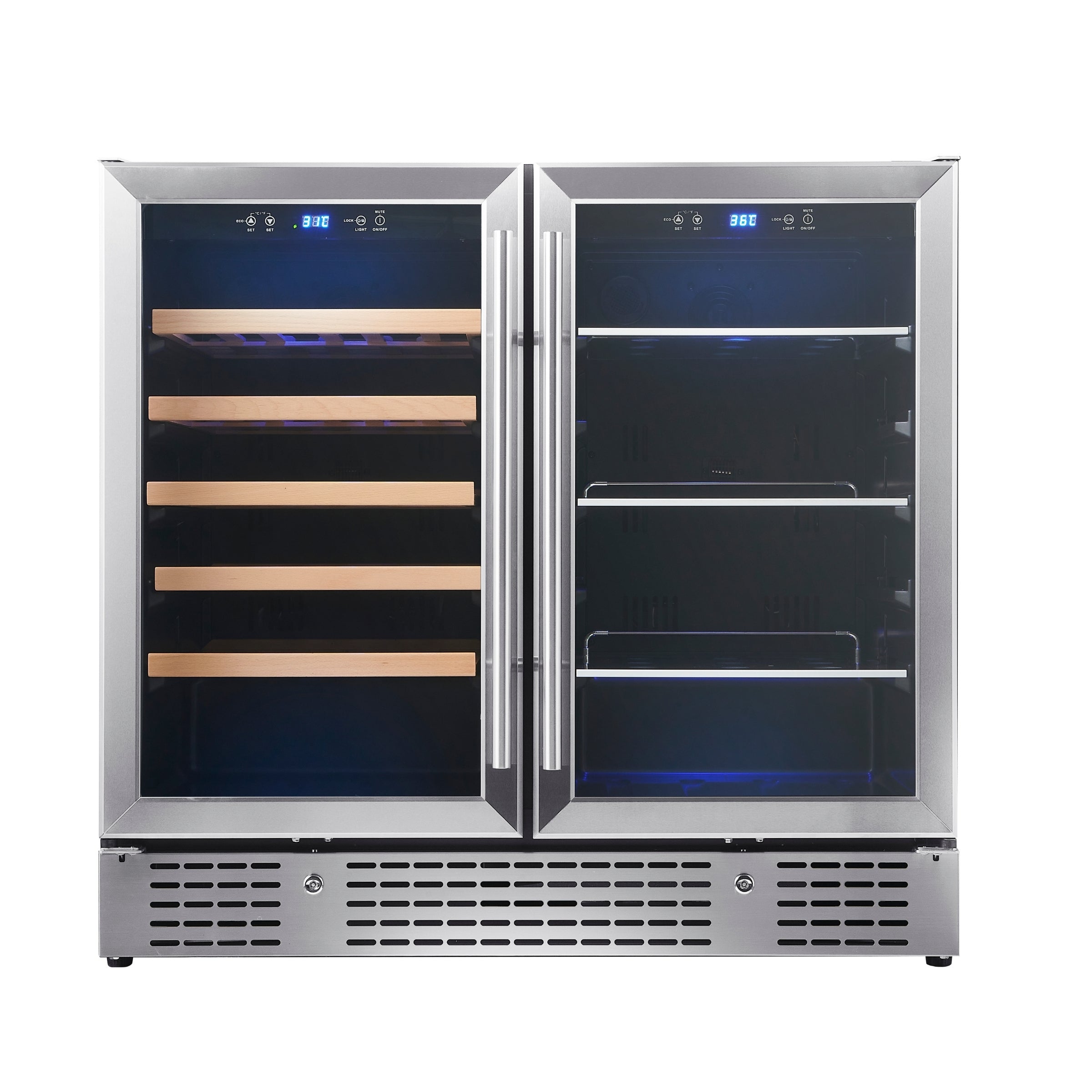

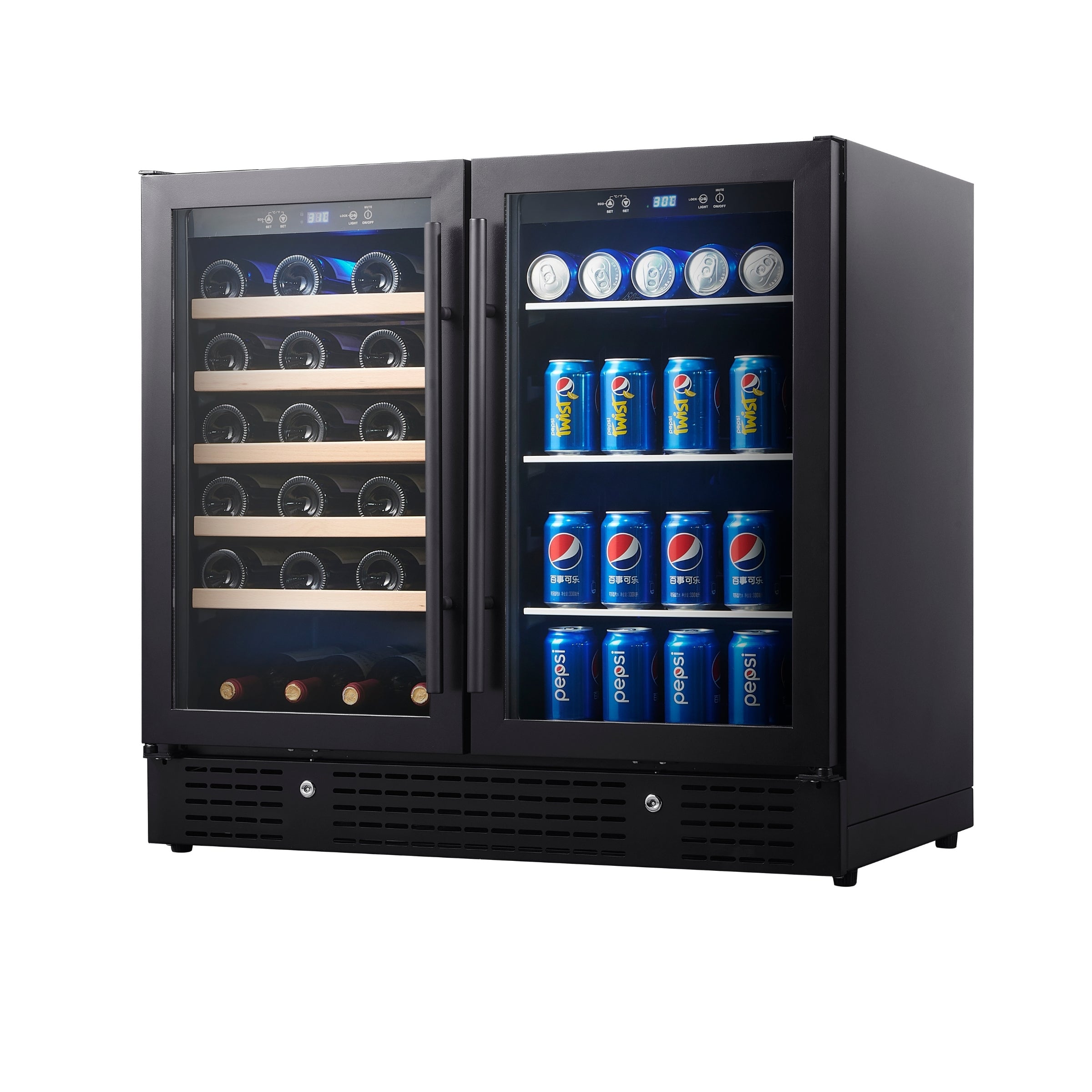

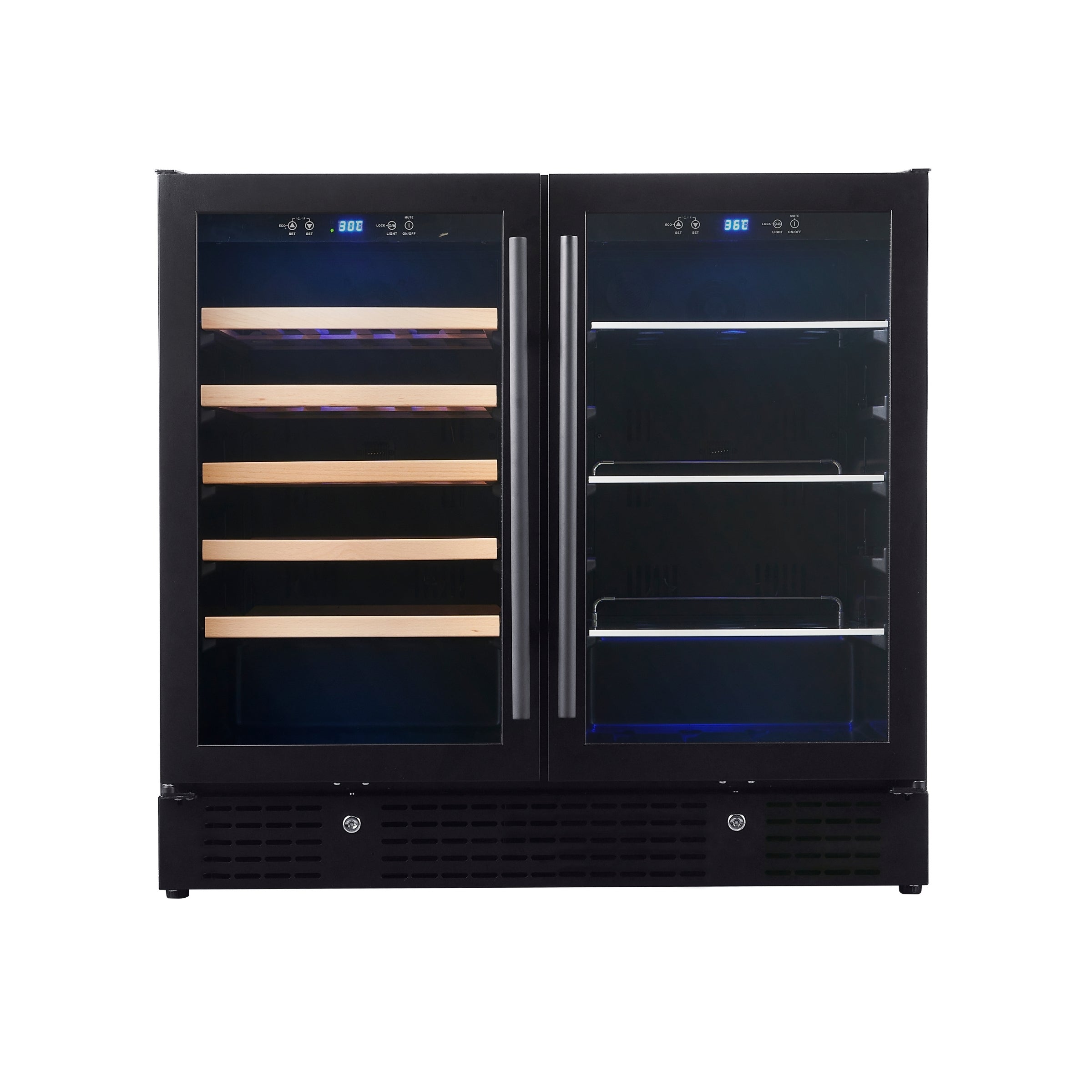

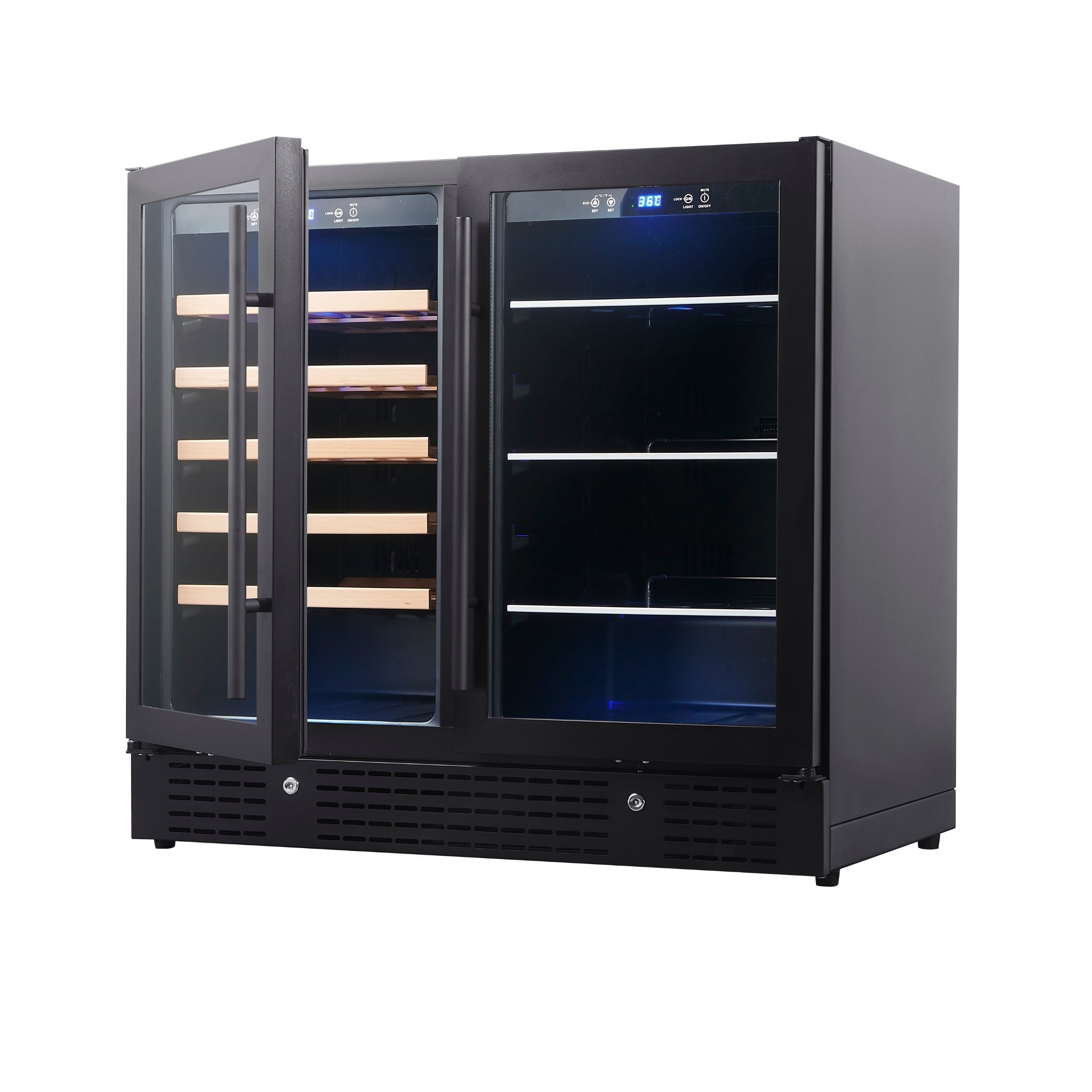

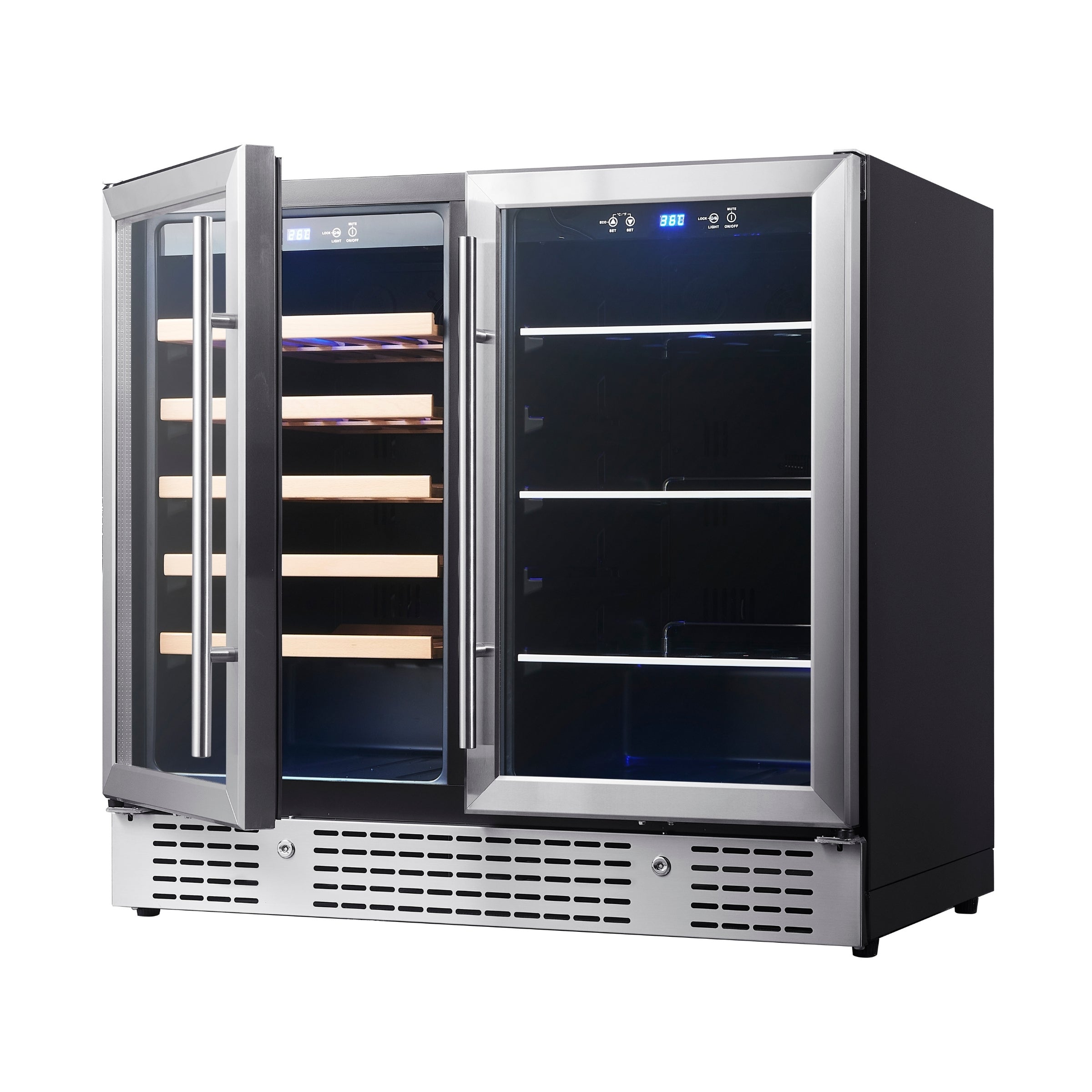

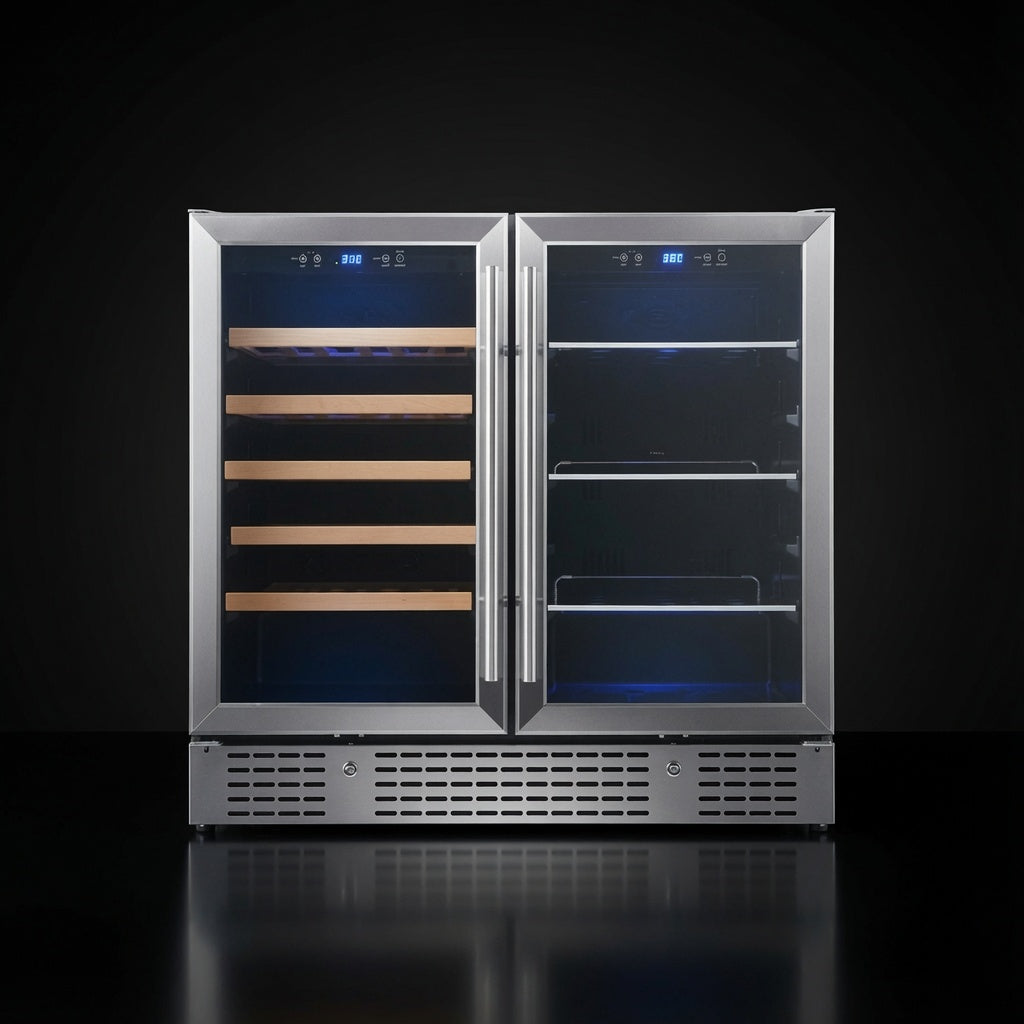

The 36-Inch Beer and Wine Cooler Combination offers a sophisticated, space-efficient solution for storing a full assortment of beverages in one sleek, modern unit. With a true dual-zone cooling system, each compartment can be independently adjusted to deliver ideal temperatures for both wine and beer, so every bottle and can is perfectly chilled.

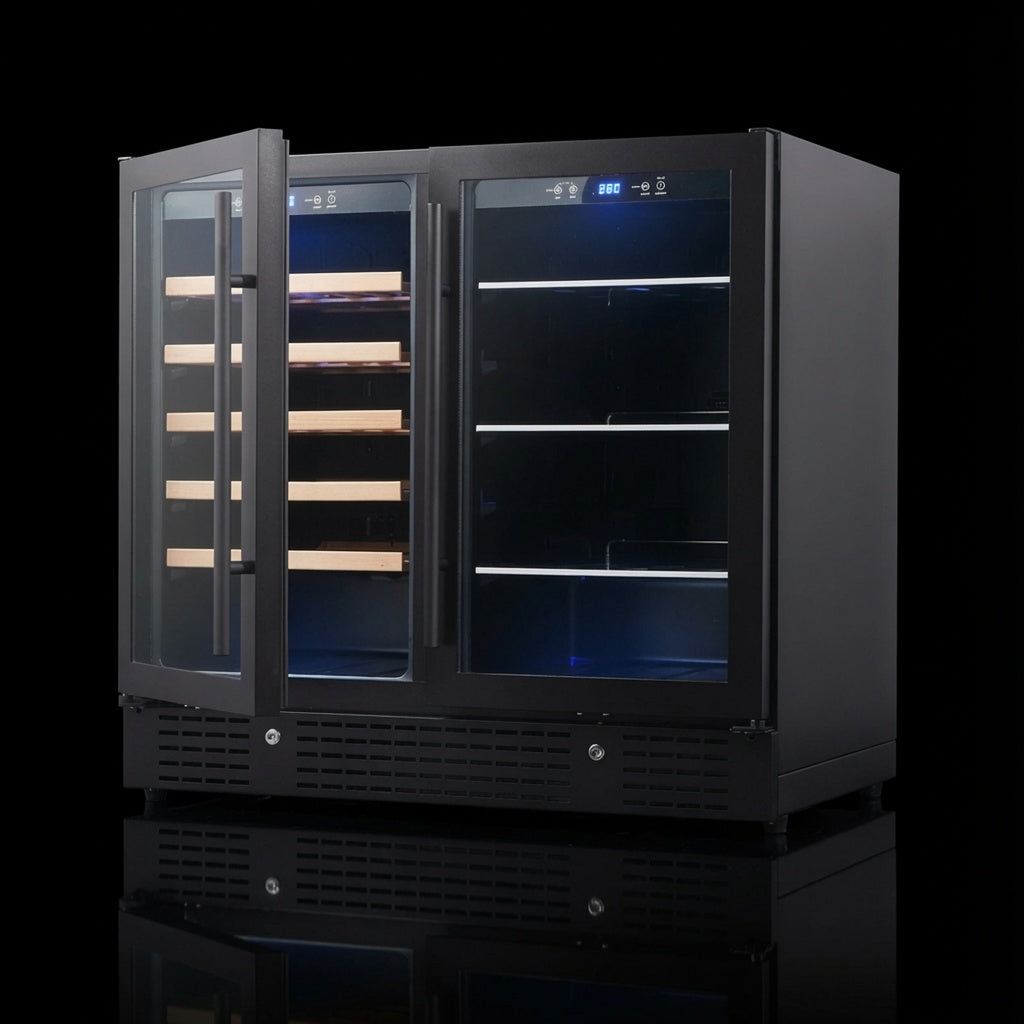

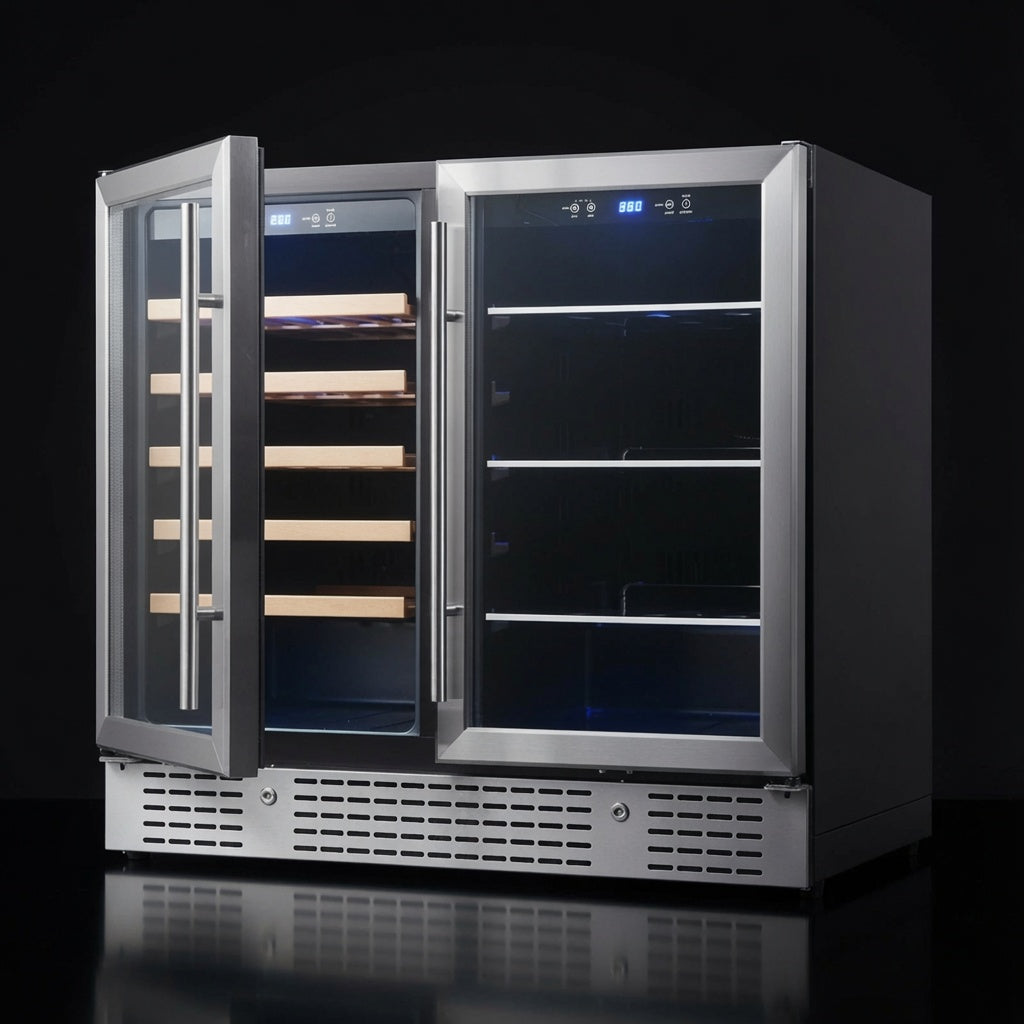

The premium Low-E glass door helps reduce condensation and block UV light, protecting the flavor and integrity of your wine collection while keeping your display clean and crisp. Inside, the cooler includes five wooden shelves in the wine section and three tempered glass shelves in the beverage compartment—each fully removable to accommodate larger formats, specialty bottles, and mixed storage layouts.
A sleek stainless steel exterior and front-venting design allow for seamless built-in installation under counters or flexible freestanding placement. The advanced, low-vibration compressor ensures quiet operation and stable temperature performance, while the intuitive digital display makes it easy to dial in precise settings.
Durable, efficient, and visually elevated, this 36-inch combination cooler is a standout addition to luxury kitchens, bars, and modern entertainment spaces.
Why it stands out
True dual-zone performance
Independently controlled wine and beer zones, each with its own adjustable temperature range, let you serve reds, whites, craft beers, and soft drinks at their ideal temperatures in one integrated unit.
Elevated mixed storage capacity

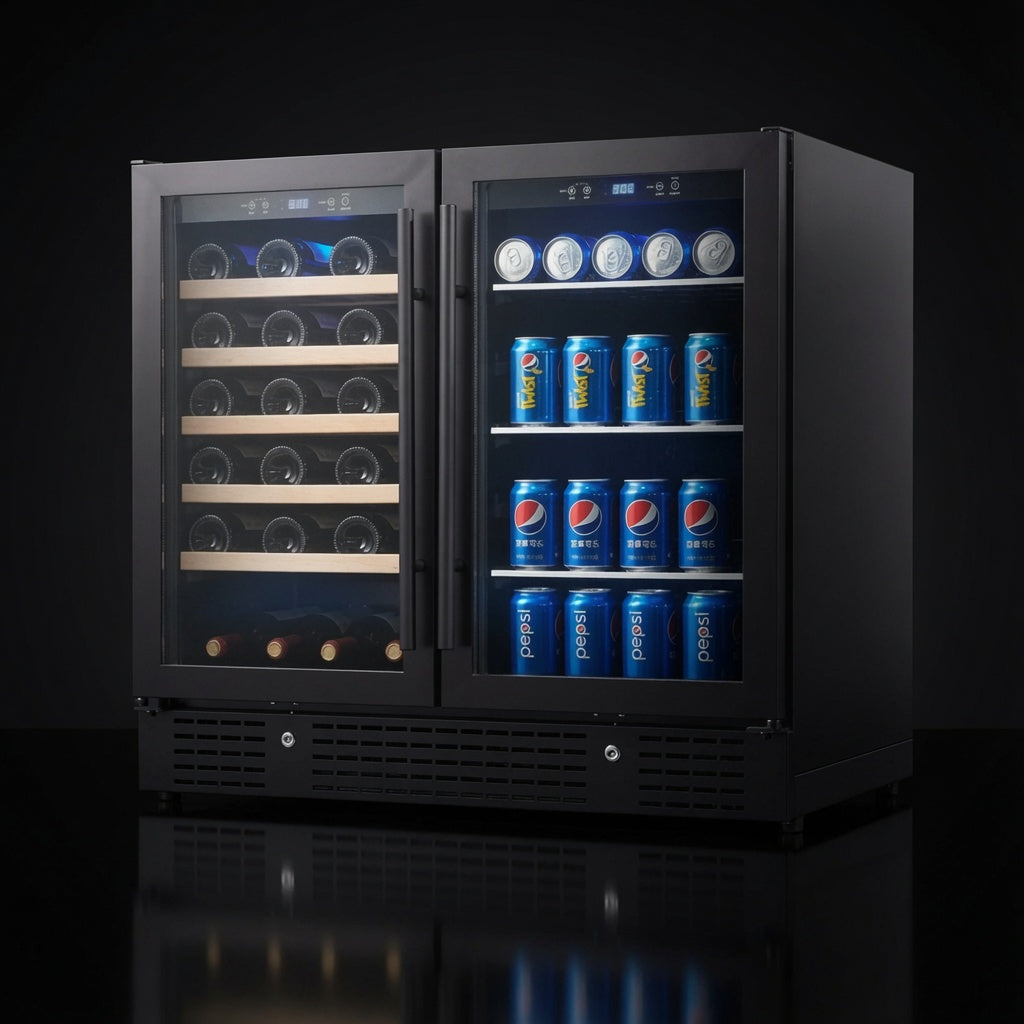

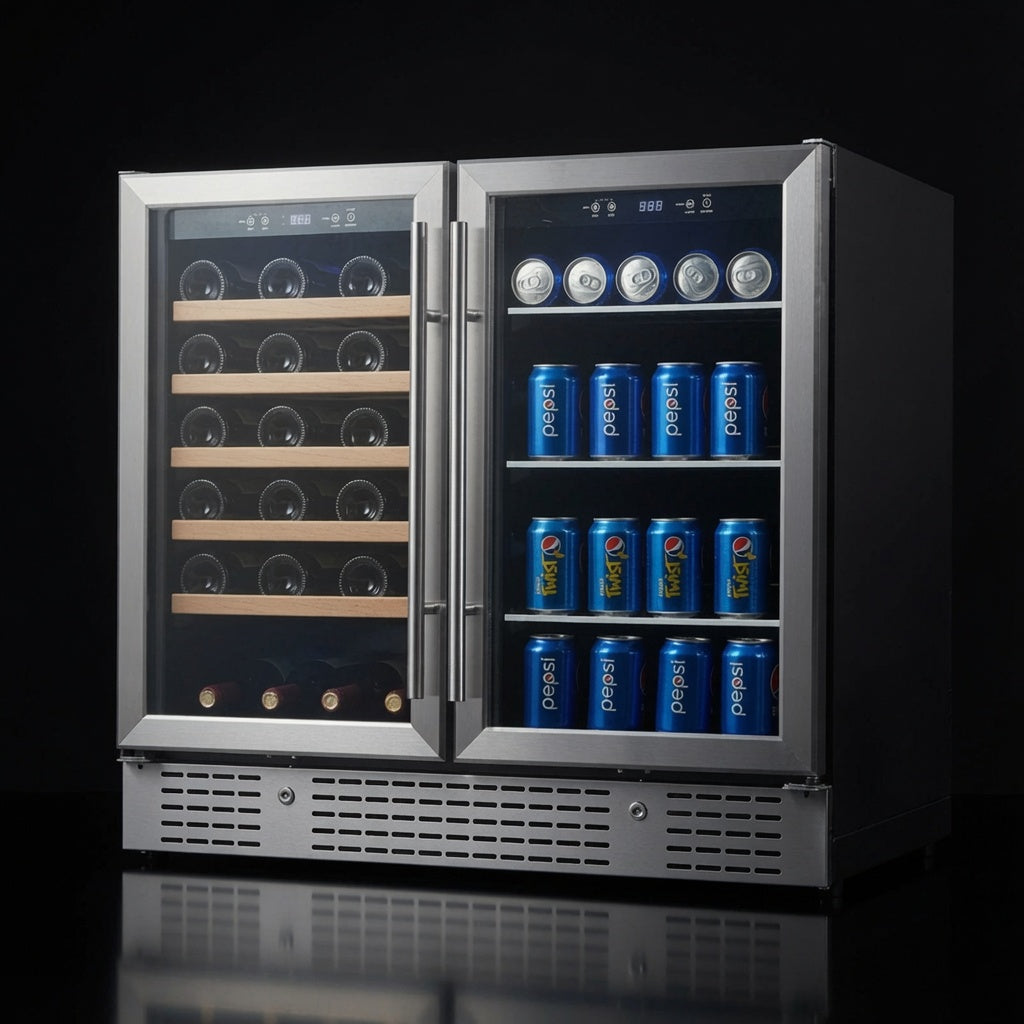

Optimized interior layout supports up to 34 wine bottles and 98 cans (configuration dependent), using 5 wooden shelves for bottles and 3 tempered glass shelves for cans and tall beverages.
Low-E glass & stainless styling
A Low-E glass door reduces condensation and blocks UV exposure, while the stainless steel frame and trim deliver a clean, professional look that pairs with premium appliances and bar fixtures.

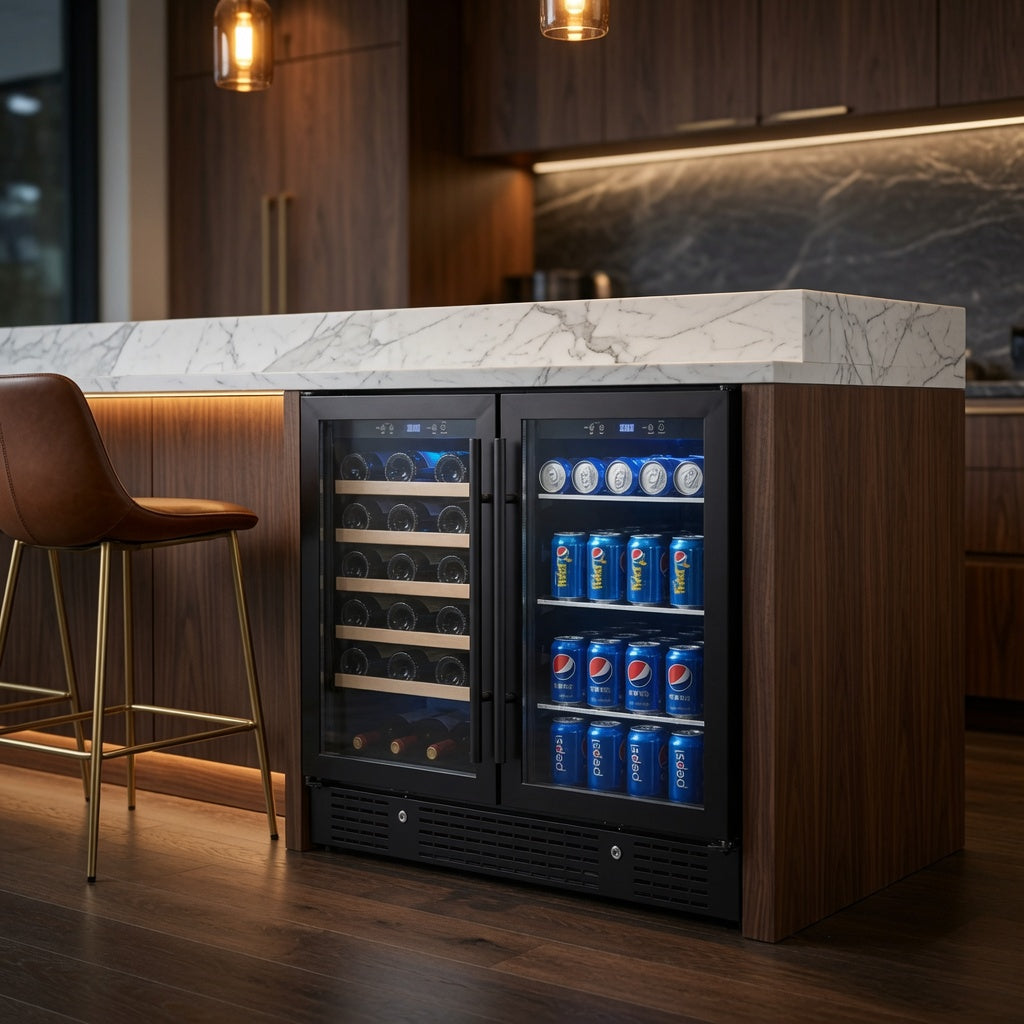

Built-in or freestanding flexibility
The front-venting system is engineered for seamless under-counter integration but also supports freestanding use in bars, game rooms, lounges, and entertainment spaces.
Quiet, stable cooling
A low-vibration Embraco compressor and fan-forced cooling help maintain uniform temperatures across both zones without excessive noise—ideal for open-concept living and entertaining areas.
Specifications
Key Specifications
| Volume | 6.70 CF (190 Liters) |
|---|---|
| Capacity (bottles) | Up to 34 wine bottles (configuration-dependent) |
| Capacity (cans) | Up to 98 cans (configuration-dependent) |
| Installation Type | Built-in or freestanding |
| Climate Type | ST; N; SN |
| Temperature Zones | Dual zone (beer / beverage + wine) |
| Adjustable Temperature Range |
Beer side: 35°F to 68°F (2°C to 20°C) Wine side: 35°F to 68°F (2°C to 20°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 5 wooden wine shelves, 3 tempered glass beverage shelves |
| Dimensions (W × D × H) | 35.5” W × 23.4” D × 33.5” H |
| Compressor | Embraco compressor |
| Power Supply | 110–115V / 60 Hz |
| Rated Power Input | 120 W |
| Rated Current | 1.1 A |
| Refrigerant | R600a / 35 g |
| Energy Consumption | 595 kWh / year |
Technical Features
Quiet Embraco compressor
A high-quality Embraco compressor delivers efficient, low-vibration cooling, helping maintain stable temperatures across both zones without disturbing your living or entertaining space.
Low-E glass door
The Low-E glass door helps reduce heat transfer and condensation on the surface while acting as an invisible insulating barrier to support temperature stability and energy efficiency.
Note: The Low-E coating also helps block UV light, which can negatively affect wine over time, especially in brighter rooms.
Fan-circulated air cooling
A fan-circulated air-cooling system helps maintain uniform temperatures inside the cabinet, reducing hot and cold spots and compensating for humidity to better protect both wine and beverages.
Activated carbon filtration
An internal activated carbon filter helps remove impurities from the air inside the cabinet, keeping the interior fresh and odor-free—important for long-term storage and maintaining wine character.
LED digital touchpad controls
Simple, easy-to-operate LED touchpad controls provide clear temperature readouts and accurate adjustments for each cooling zone, so you can quickly set serving or cellaring conditions.
45 mm C-pentane insulation
Thick 45 mm C-pentane foam insulation helps optimize cooling performance and reduce energy consumption, supporting more stable internal temperatures across a wide range of ambient conditions.
Dimensions & Diagrams

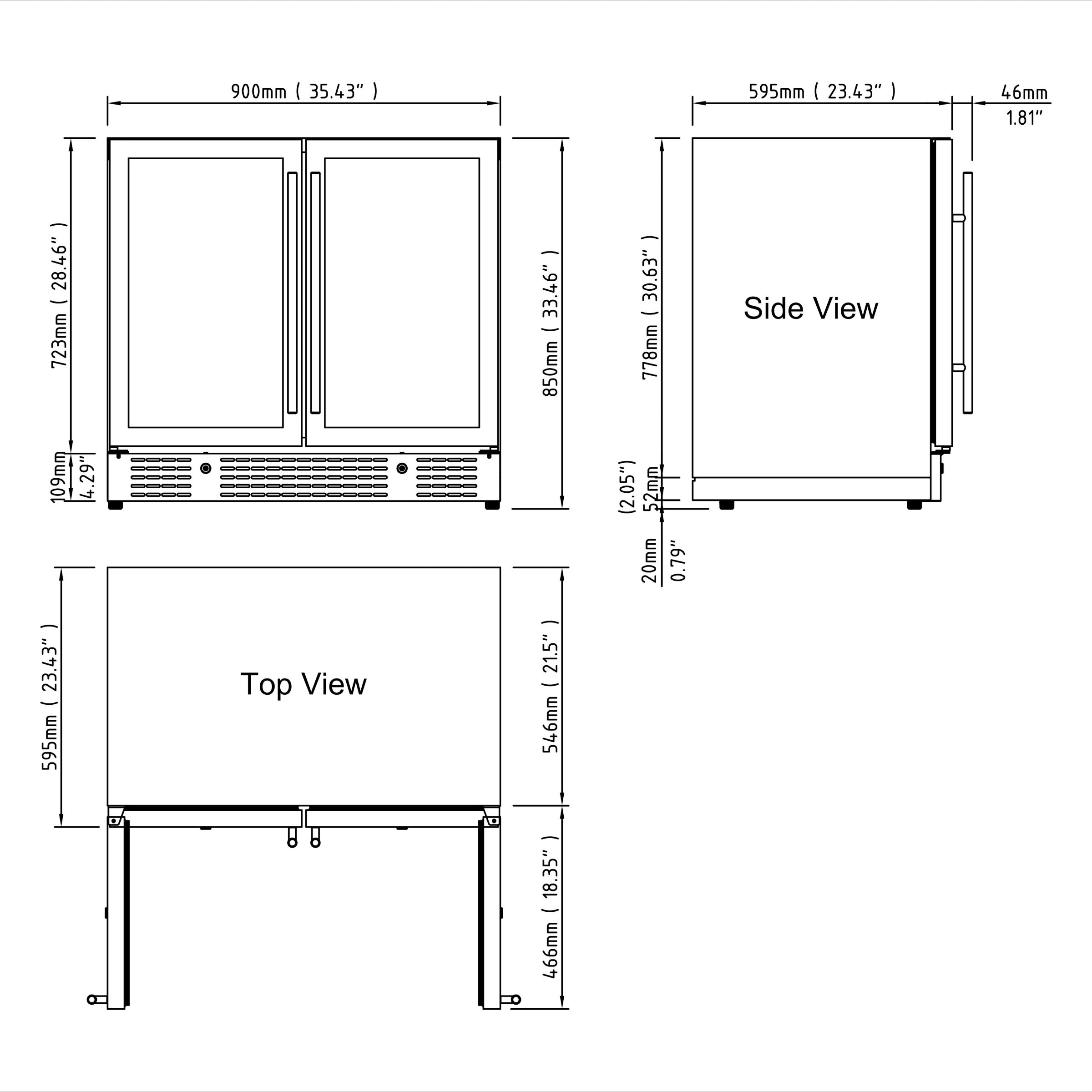

Technical dimensions

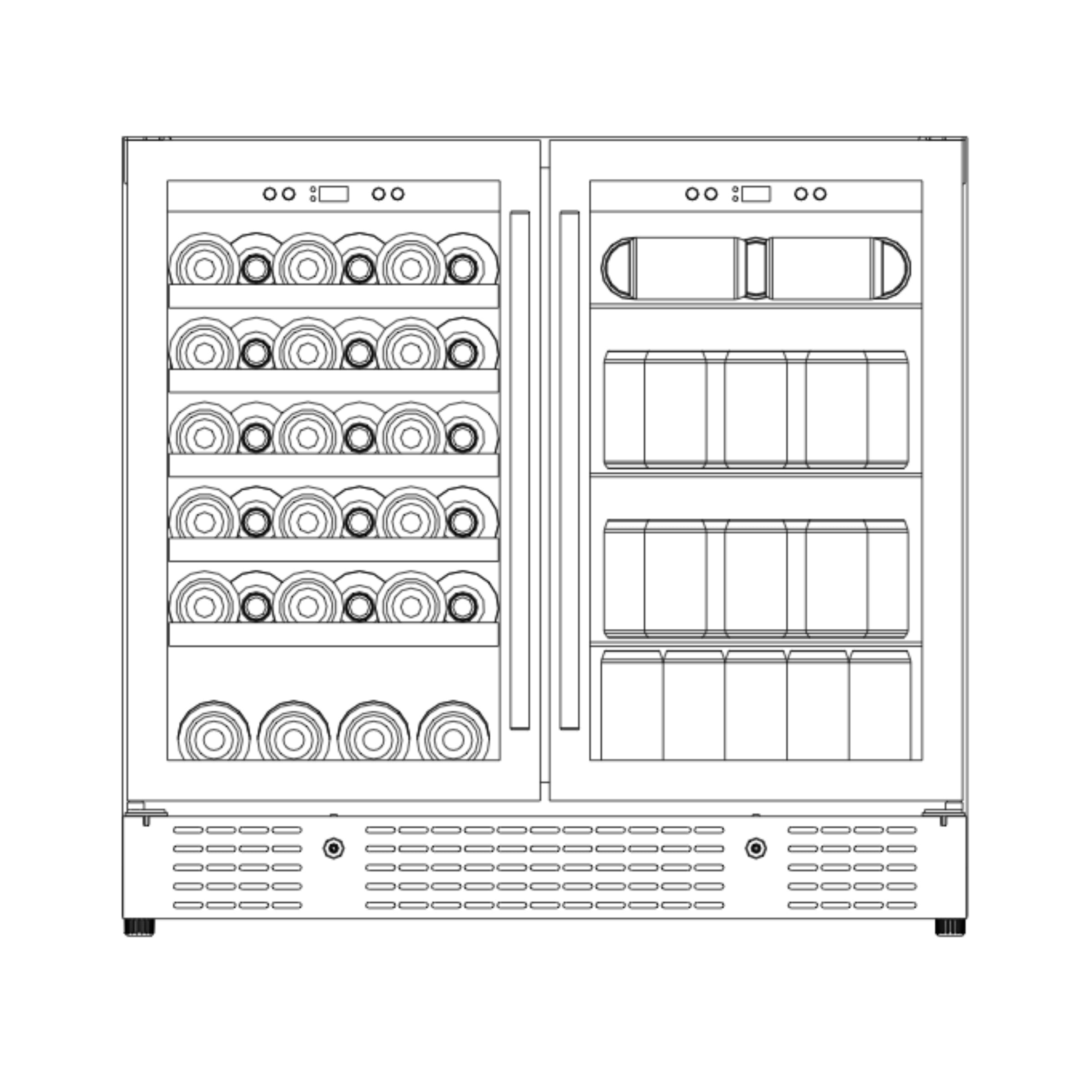

Use the technical dimension diagrams to confirm footprint, door swing, and internal layout before integrating the 36-inch combination cooler into cabinetry, islands, or custom millwork.

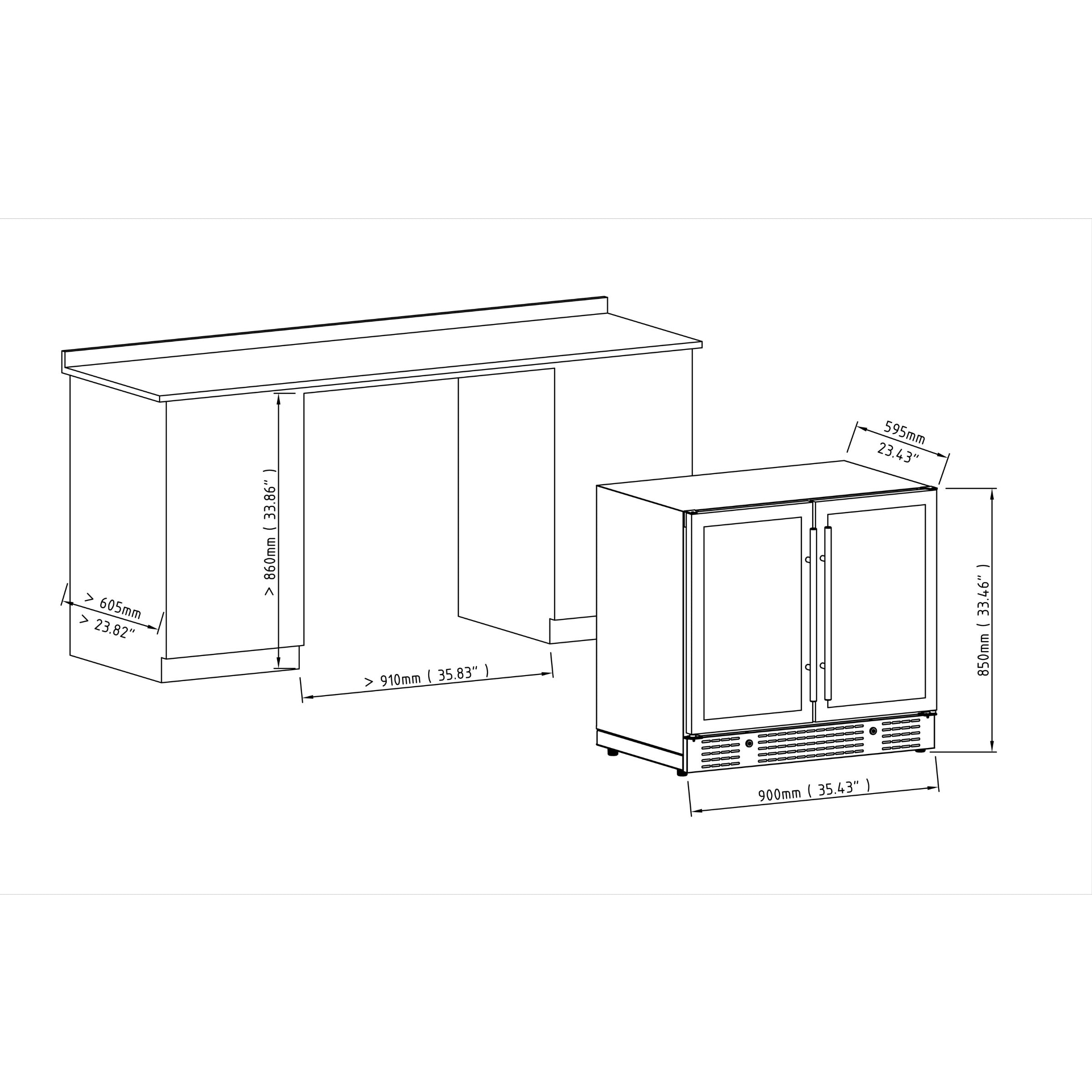

Installation diagrams
Reference the cutout and power-plug diagrams when planning ventilation clearances, recess depth, and electrical placement for built-in installations.
Product Manual
View the full manual
Review the complete user manual for installation guidance, operating instructions, and maintenance recommendations for the 36-Inch Beer and Wine Cooler Combination.
Manual – 36-Inch Beer & Wine Cooler Combo
FAQ
This unit provides 6.70 cubic feet (190 L) of storage and is designed to hold up to 34 wine bottles plus 98 cans, depending on how you configure the wooden bottle shelves and tempered glass beverage shelves.
Yes. The cooler features a true dual-zone design with independent temperature controls for the wine compartment and the beer / beverage compartment. Both zones share an adjustable range of 35°F to 68°F (2°C to 20°C), allowing you to fine-tune serving conditions for different drinks.
Absolutely. The front-venting design is engineered for built-in installation under counters or in bar runs, while also supporting freestanding use. For best performance and longevity, always follow the cutout and ventilation guidelines shown in the installation diagrams and product manual.
The Embraco compressor is designed for low-vibration, low-noise performance, and the fan-circulated cooling system helps distribute cold air quietly. It’s well suited for open kitchens, bar areas, and entertainment spaces where excess noise would be distracting.
Yes. Because both zones offer the same adjustable temperature range of 35°F to 68°F (2°C to 20°C), you can configure the cooler as all-wine, all-beverage, or a mixed setup based on your collection and entertaining needs.
The Low-E glass door features a special coating that helps reduce heat transfer, limit condensation, and block UV light. This improves energy efficiency and helps protect wine from light exposure that can impact flavor and aging over time.
