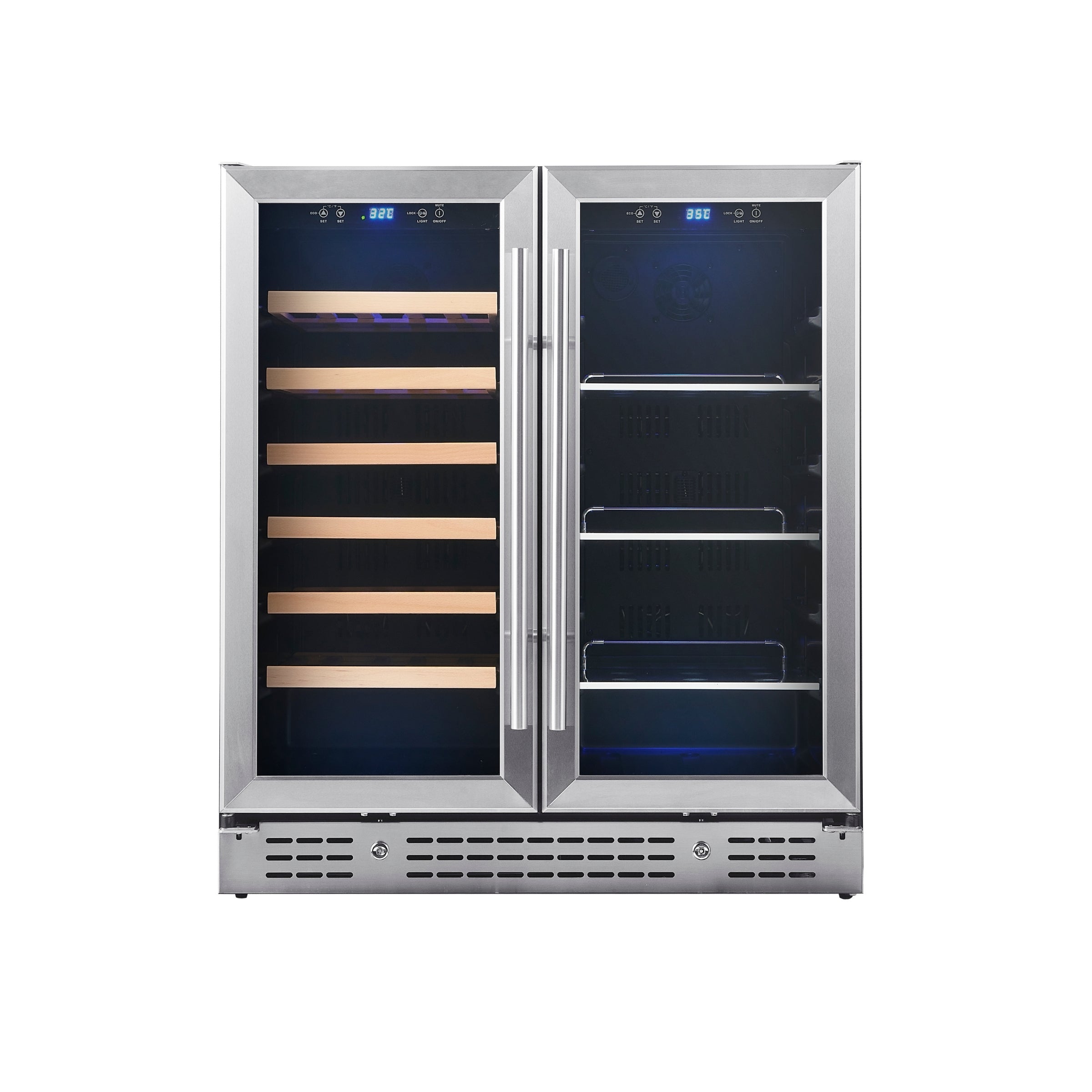

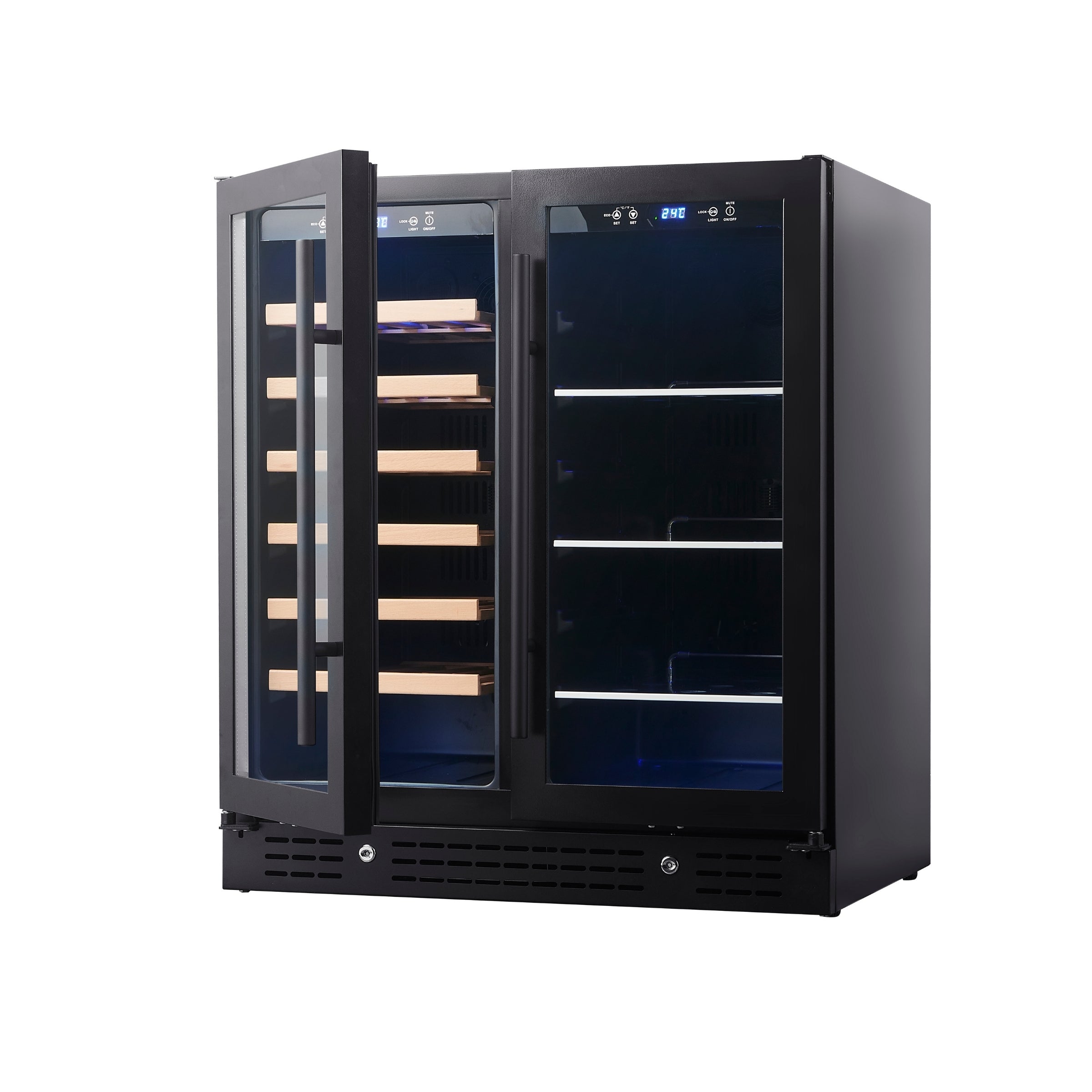

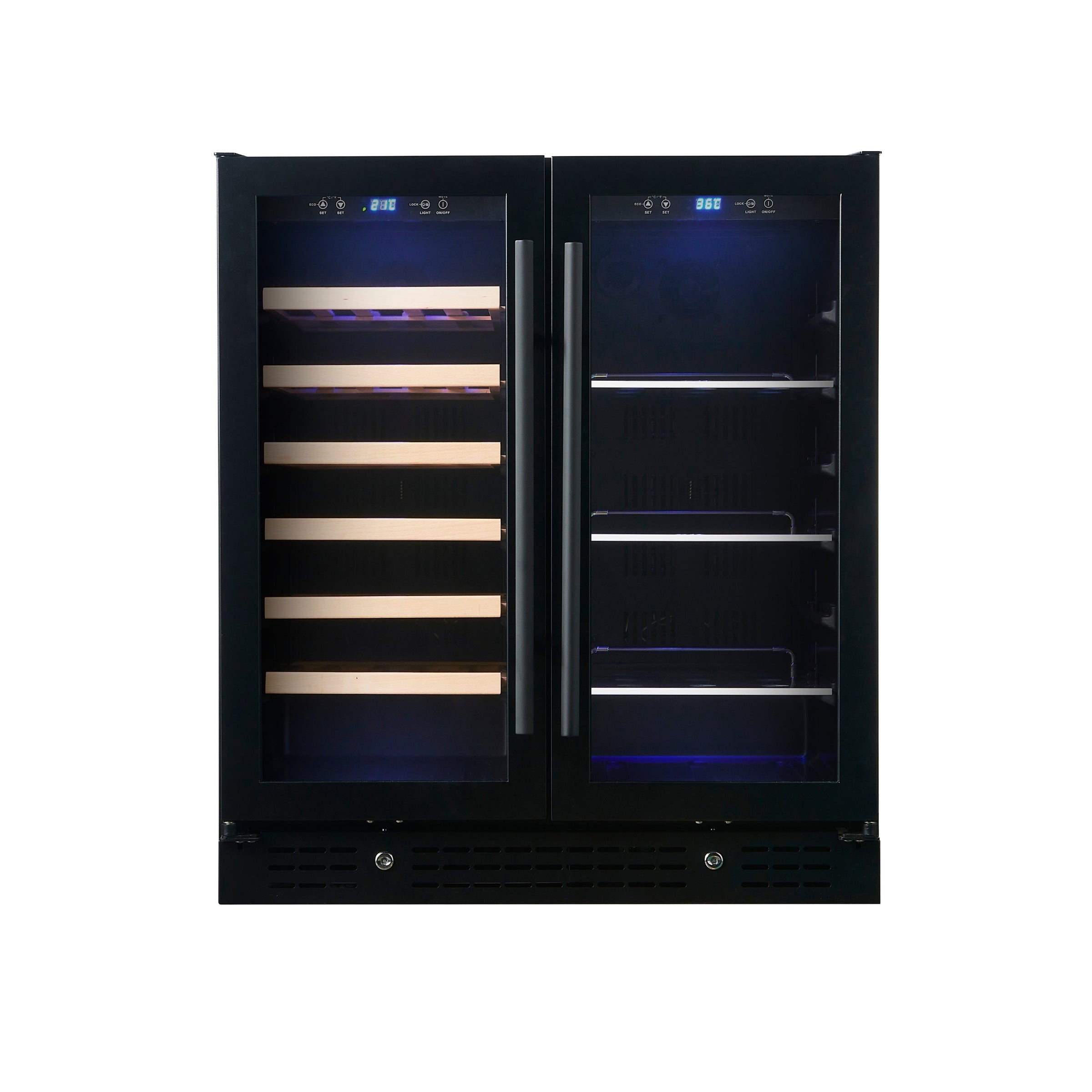

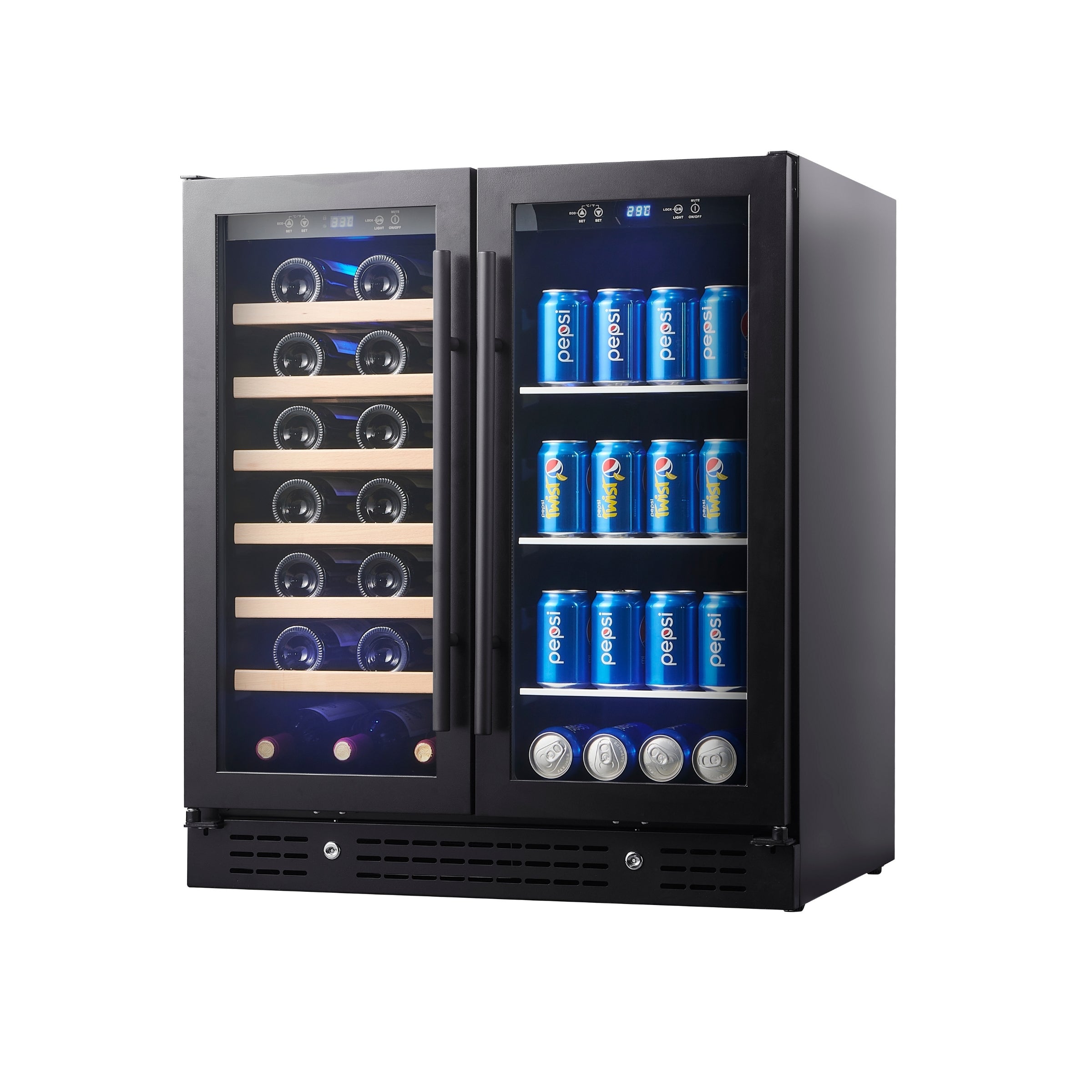

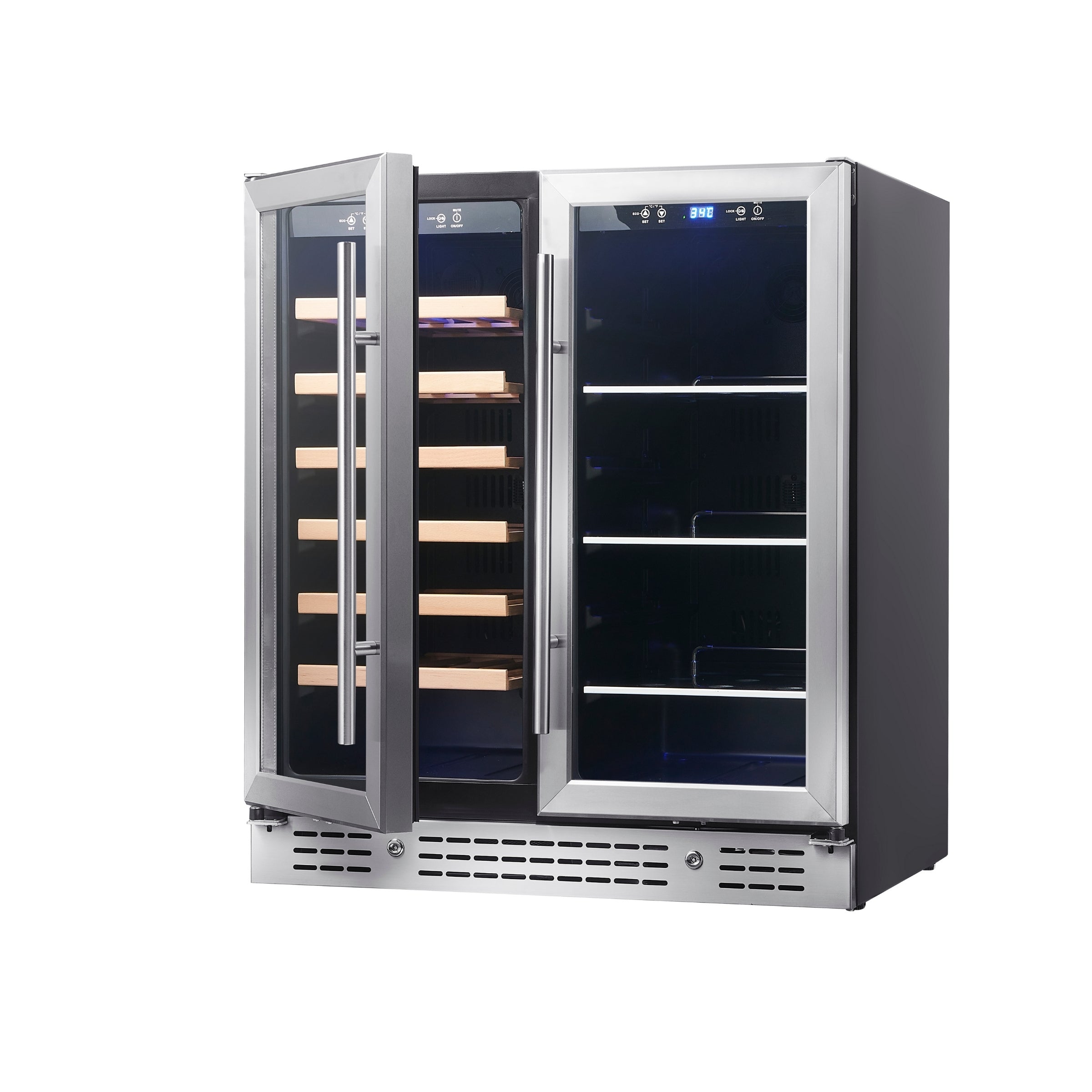

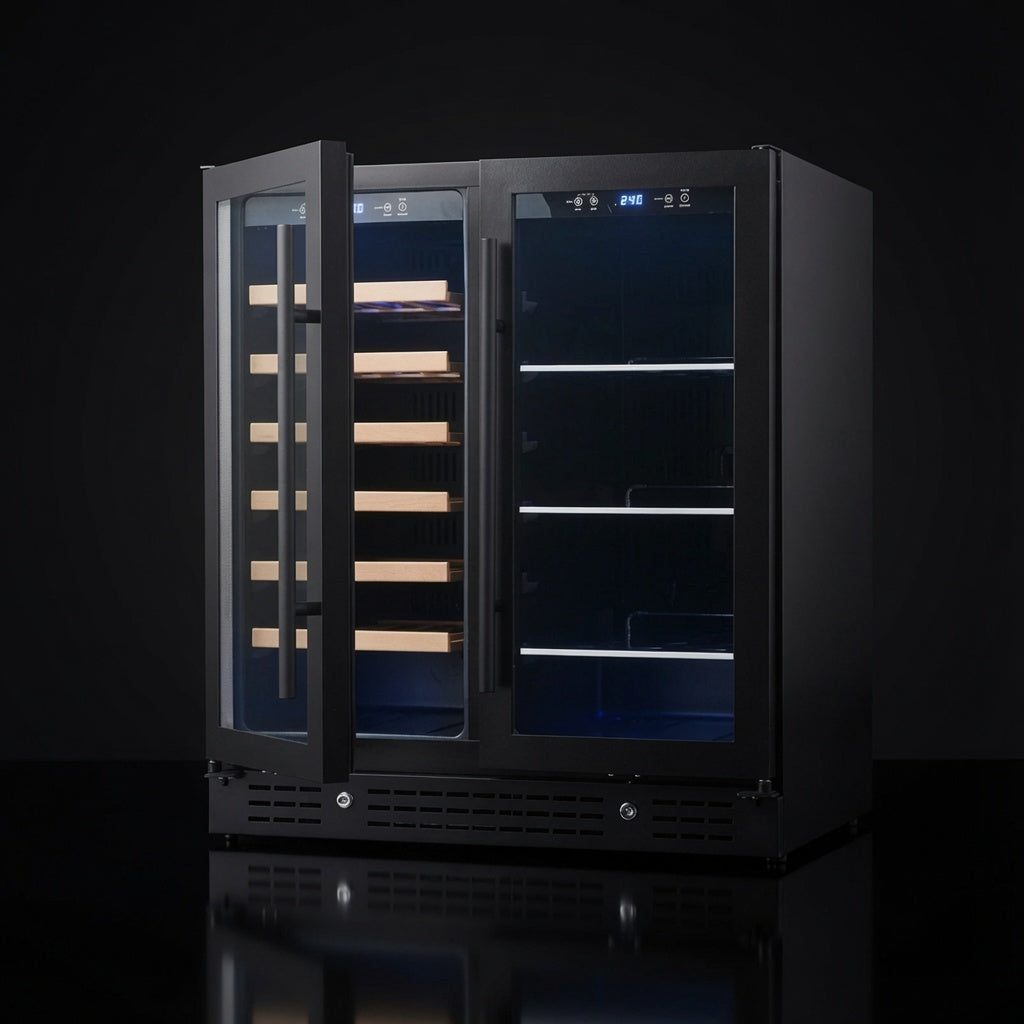

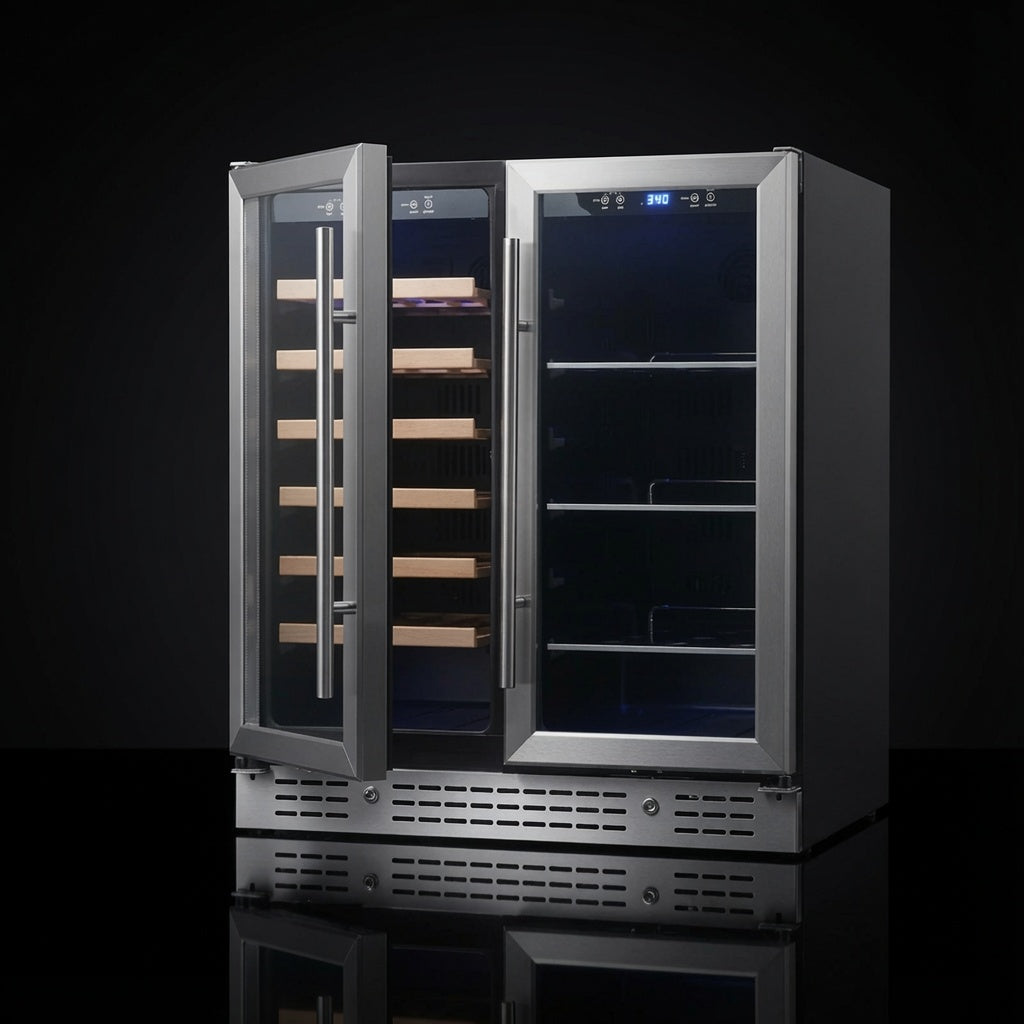

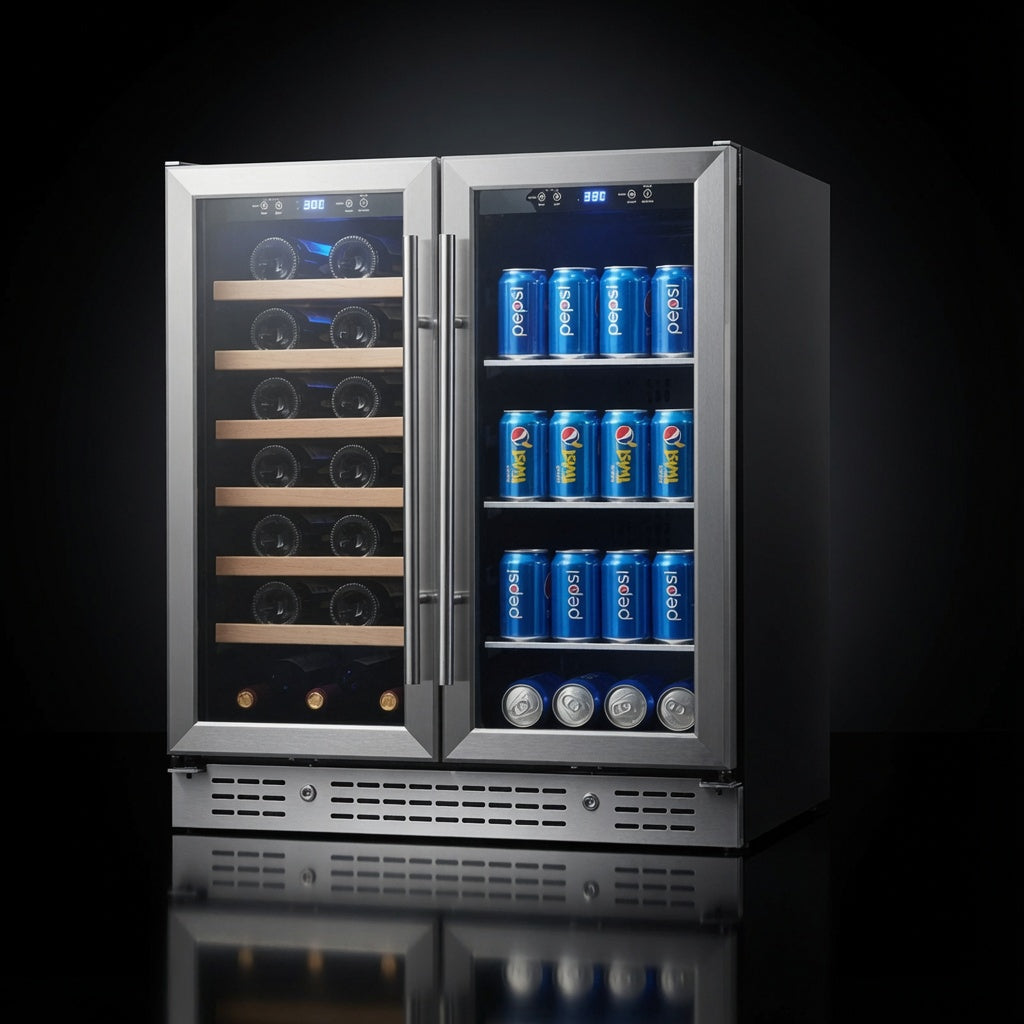

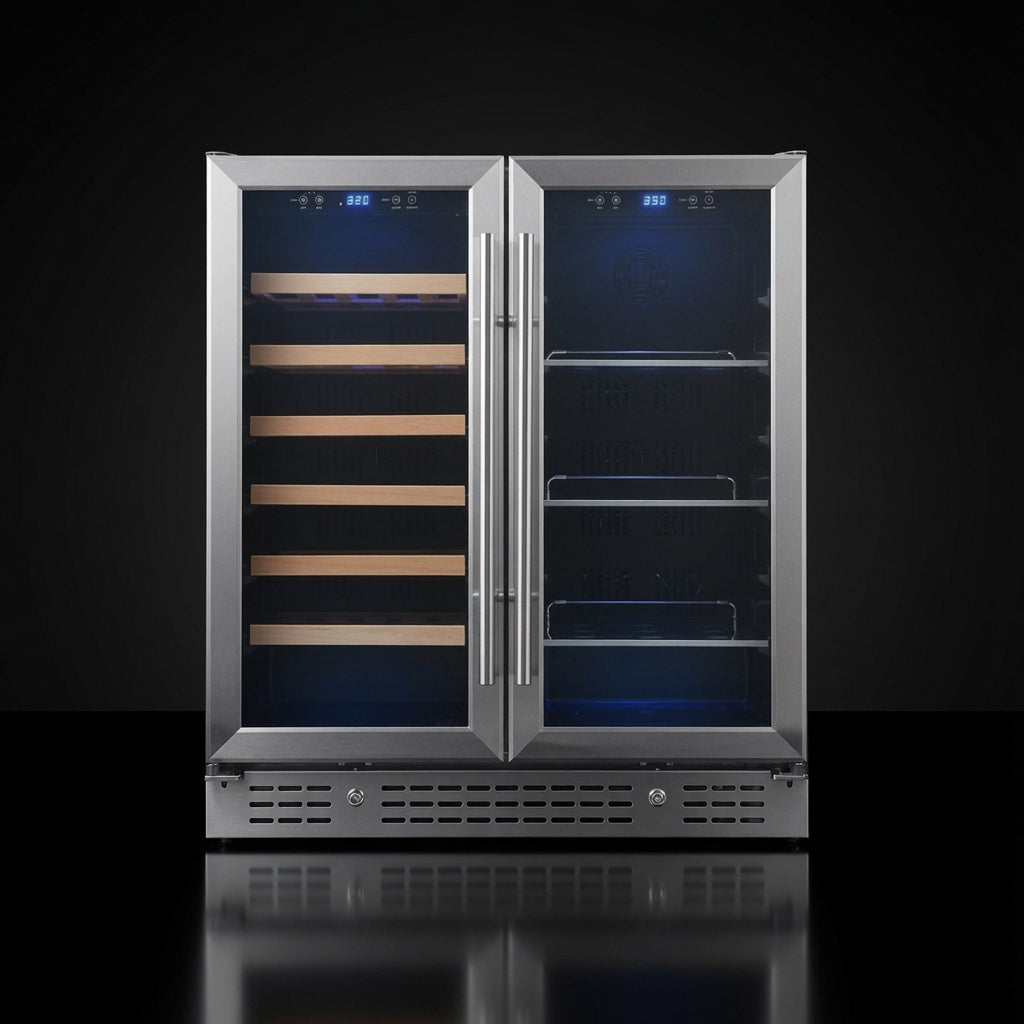

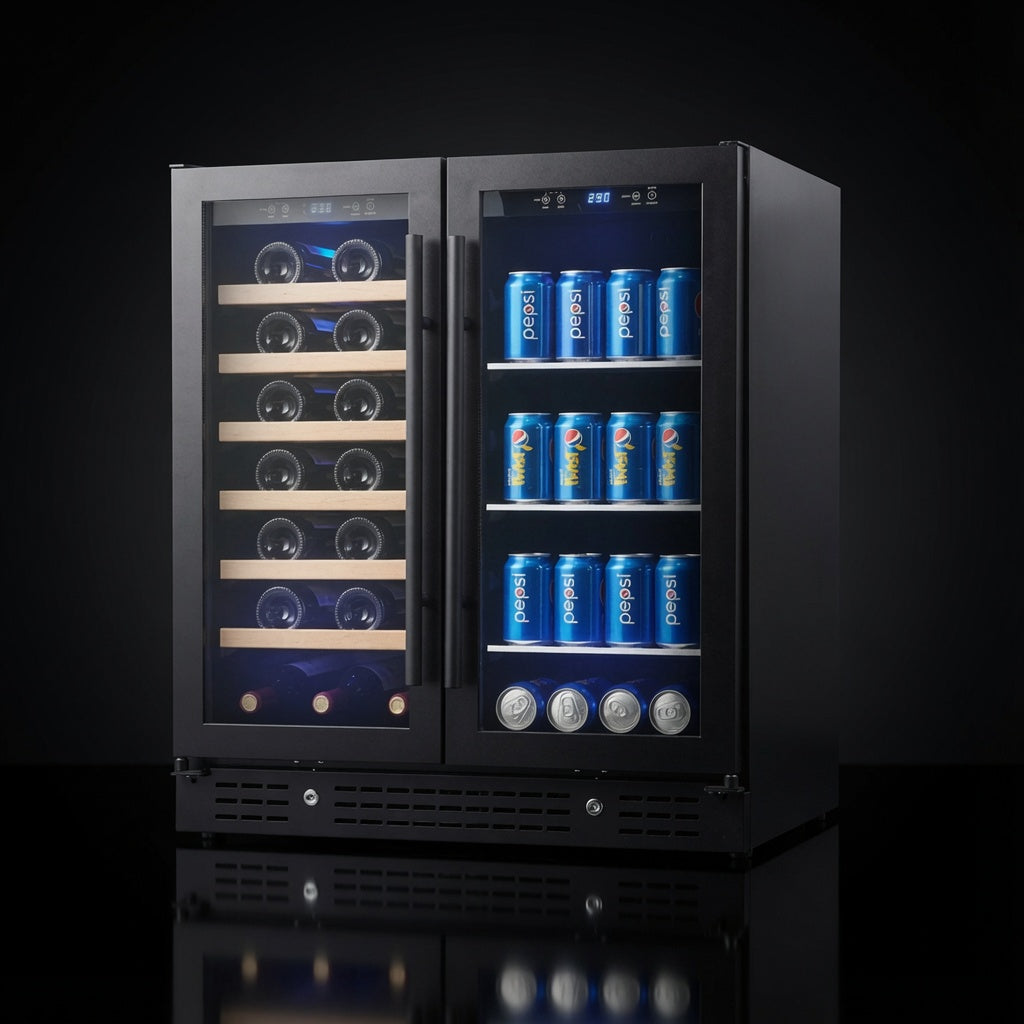

The 30-Inch Combination Beer and Wine Cooler delivers a refined, space-efficient solution for storing a full assortment of beverages in one sleek and modern unit. Designed with a premium Low-E glass door, it minimizes condensation while enhancing insulation to maintain precise, stable temperatures across both zones.
This model features two independently controlled temperature zones—perfect for chilling beverages on one side while storing wine at ideal serving conditions on the other. A combination of removable wooden shelves for bottles and tempered glass shelves for cans provides flexible storage tailored to a variety of formats.
The advanced cooling system operates with low noise and reduced vibration, ensuring consistent airflow and uniform temperatures throughout the refrigerator. Whether used as a built-in appliance or placed as a freestanding unit, its clean lines and stainless steel styling make it a seamless addition to kitchens, bars, and entertainment spaces.
Combining efficiency, durability, and a visually elevated design, this cooler offers the perfect balance of performance and aesthetics for modern beverage storage.
Why it stands out
True dual-zone flexibility
Two independently controlled temperature zones let you chill beer and ready-to-drink beverages on one side while maintaining wine at its ideal serving temperature on the other.
Low-E glass performance
A premium Low-E glass door helps reduce heat transfer and condensation, improving energy efficiency while keeping your collection visible and protected.
Mixed wine & beverage storage

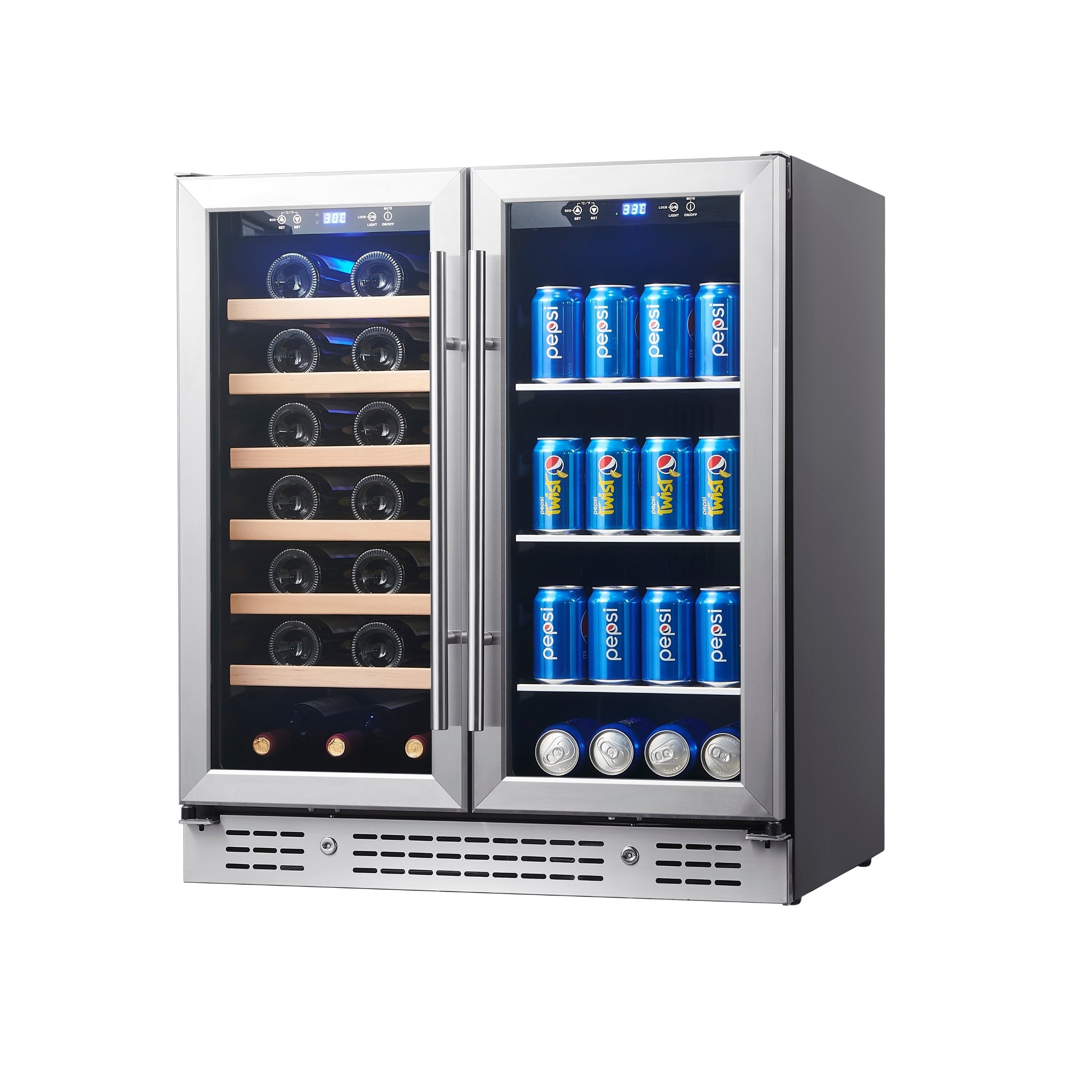

Interior layout is optimized for up to 33 wine bottles plus 77 cans (configuration-dependent), combining bottle-friendly wooden shelves with tempered glass shelves for cans.
Built-in or freestanding
Designed for built-in cabinetry or freestanding placement, the 30-inch footprint and stainless steel trim integrate cleanly into modern kitchens, bars, and entertainment spaces.
Specifications
Key Specifications
| Volume | 5.83 CF (165 Liters) |
|---|---|
| Capacity (bottles) | Up to 33 wine bottles (configuration-dependent) |
| Capacity (cans) | Up to 77 cans (configuration-dependent) |
| Installation Type | Built-in or freestanding |
| Climate Type | ST; N; SN |
| Temperature Zones | Dual zone |
| Adjustable Temperature Range |
Beer side: 35°F to 68°F (2°C to 20°C) Wine side: 35°F to 68°F (2°C to 20°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | Mixed layout designed to support 33 wine bottles plus 77 cans across removable wooden and tempered glass shelves. |
| Dimensions (W × D × H) | 29.6” W × 22.4” D × 33.9” H |
| Compressor | Embraco compressor |
| Power Supply | 110–115V / 60 Hz |
| Rated Power Input | 120 W |
| Rated Current | 1.1 A |
| Refrigerant | R600a / 30 g |
| Energy Consumption | 570 kWh / year |
Technical Features
Quiet Embraco compressor
A high-quality Embraco compressor delivers efficient, low-vibration cooling to help maintain stable temperatures without disrupting your space.
Low-E glass door
The Low-E glass door helps reduce heat transfer and condensation on the glass while acting as an invisible insulating barrier to support temperature stability.
Note: The Low-E coating improves energy efficiency and cooling performance, especially in brighter rooms and warmer climates.
Fan-circulated air cooling
A fan-circulated air-cooling system helps maintain even temperatures throughout both zones, reducing hot spots and compensating for humidity to protect your beverages.
Activated carbon filtration
An internal activated carbon filter helps remove impurities from the cabinet air, keeping the interior fresh and odor-free—ideal for long-term wine and beverage storage.
LED digital touchpad controls
Simple, easy-to-operate LED touchpad controls provide clear temperature readouts and accurate adjustments for each cooling zone.

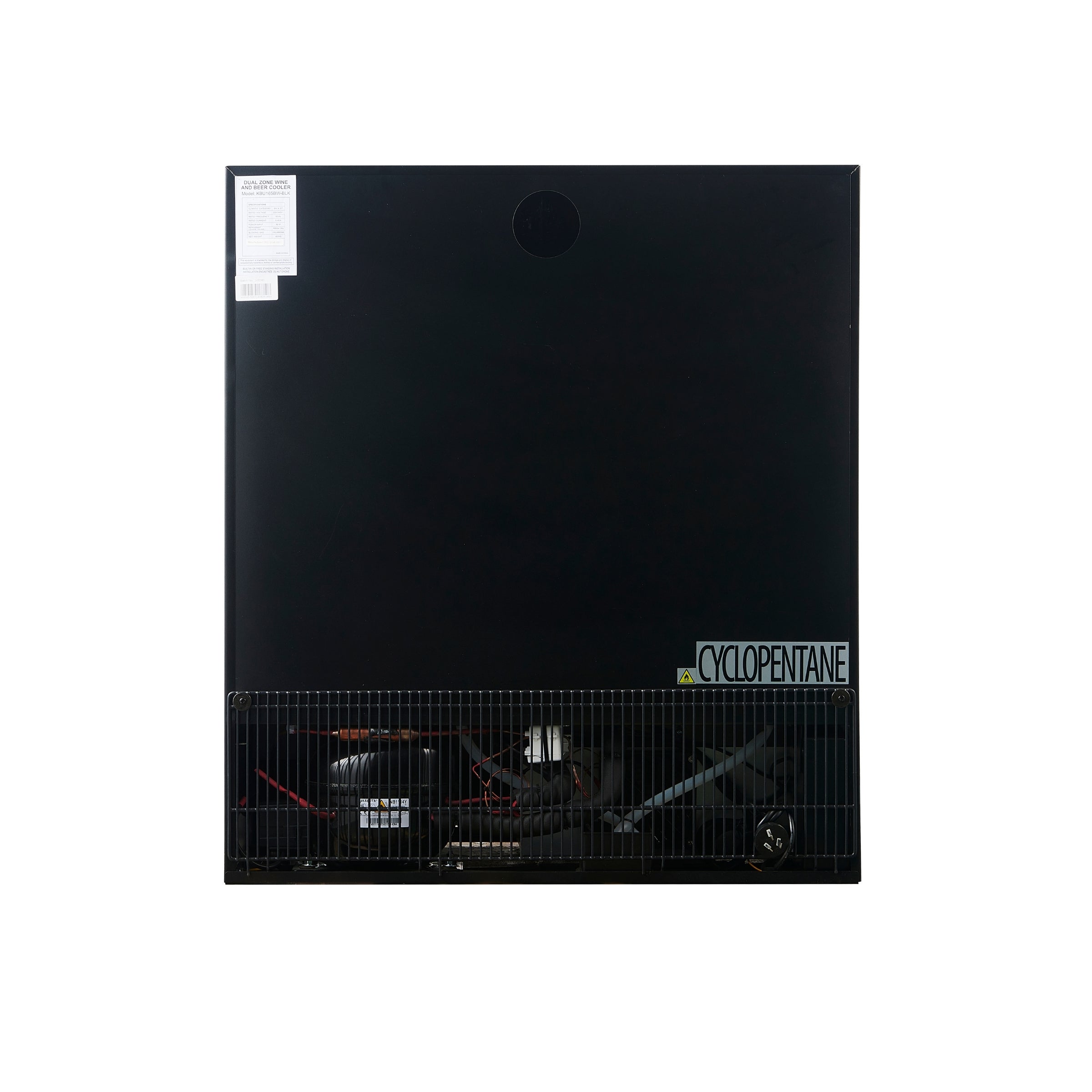

45 mm C-pentane insulation
Thick 45 mm C-pentane foam insulation helps optimize cooling performance and reduce energy consumption, supporting stable temperatures in a wide range of room conditions.
Dimensions & Diagrams

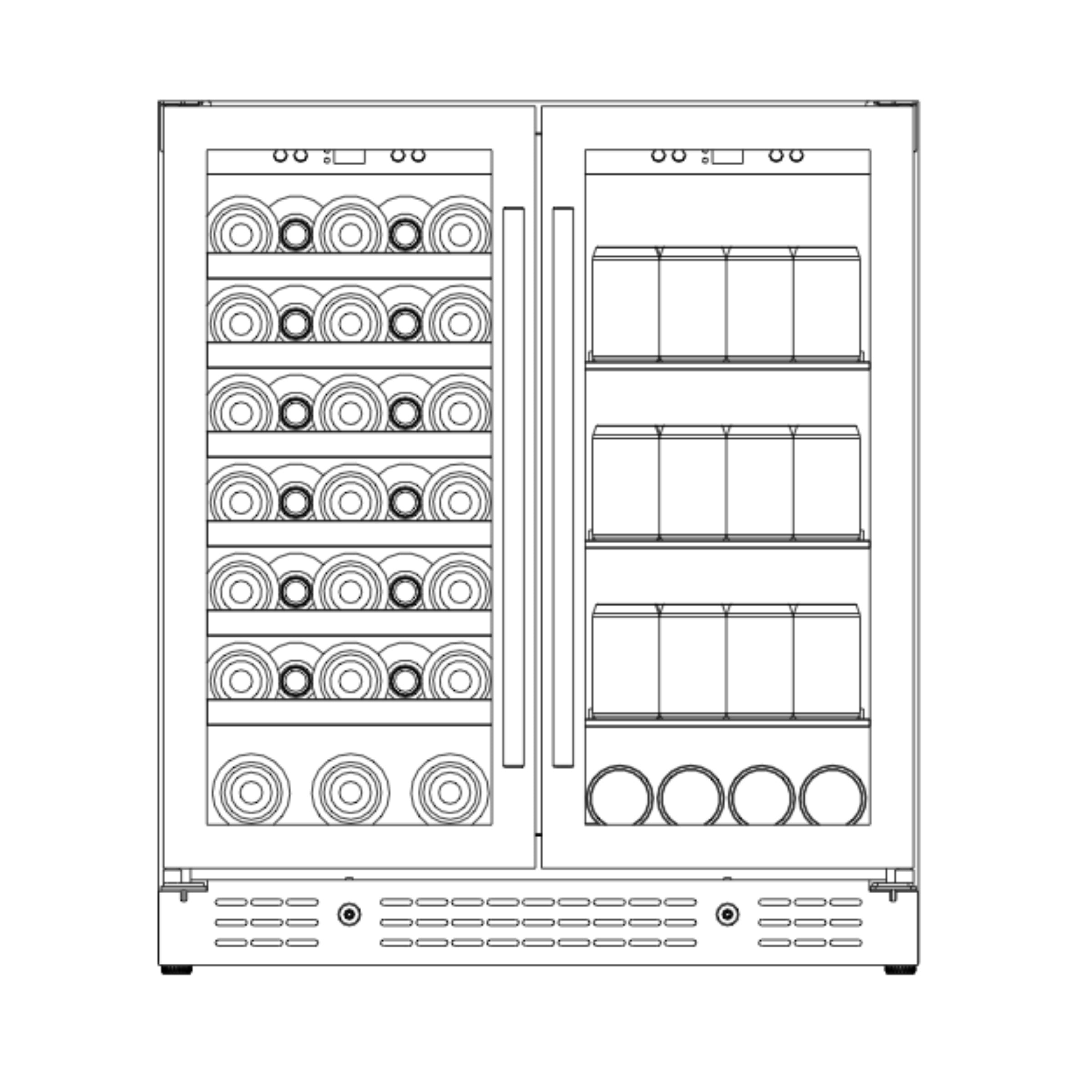

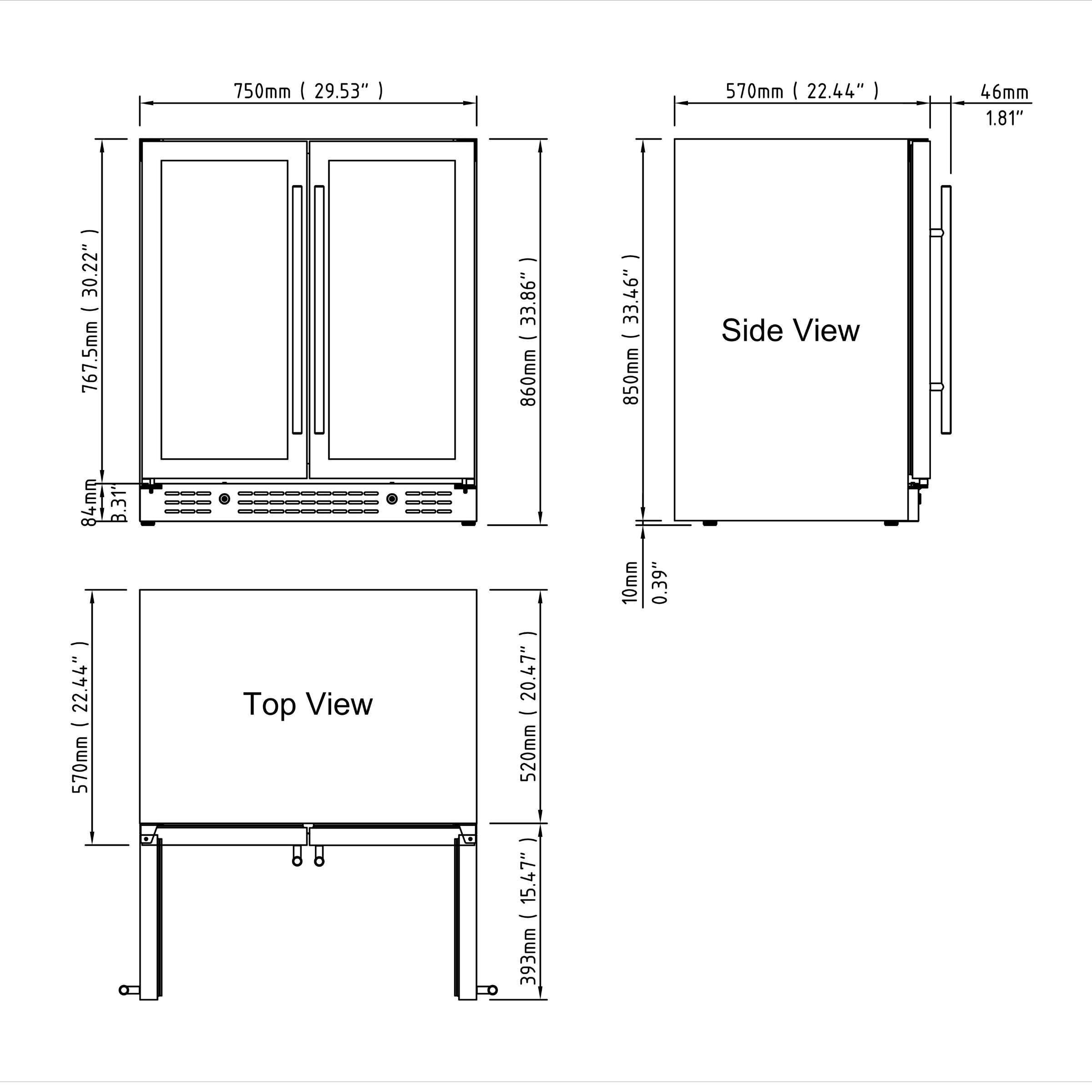

Technical dimensions
Use the technical dimension diagrams to confirm footprint, door swing, and internal layout before integrating the cooler into cabinetry or custom millwork.

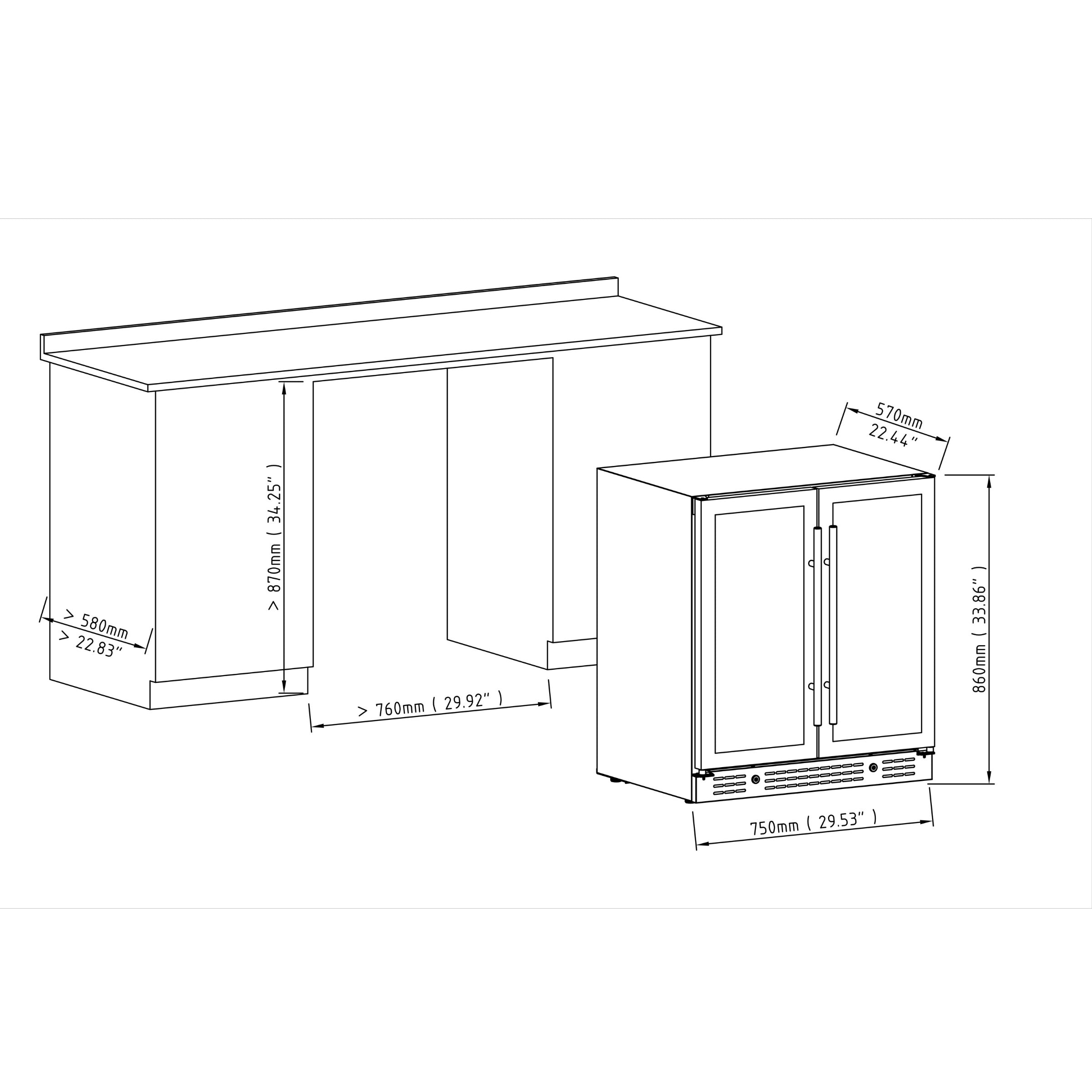

Installation diagrams
Reference the cutout and power-plug diagrams when planning clearances, ventilation, and electrical placement for built-in installations.
Product Manual
View the full manual
Review the complete user manual for installation guidance, operating instructions, and maintenance recommendations for the 30-Inch Combination Beer and Wine Cooler.
Manual – 30-Inch Combination Beer & Wine Cooler
Frequently Asked Questions
This dual-zone unit provides 5.83 cubic feet (165 L) of storage and can hold up to 33 wine bottles plus 77 cans, depending on how you configure the wooden bottle shelves and tempered glass can shelves.
Yes. It features a true dual-zone design with independent temperature controls for the beer/beverage side and the wine side, each adjustable from 35°F to 68°F (2°C to 20°C).
Yes. The cooler is designed for both built-in and freestanding use. When installing as a built-in, be sure to follow the cutout and ventilation requirements shown in the installation diagrams and manual for best performance and longevity.
The Embraco compressor and fan-circulated cooling system are designed for low-noise, low-vibration operation, making this cooler well-suited for open kitchens, bars, and entertainment spaces.
Yes. Both zones share the same adjustable temperature range of 35°F to 68°F (2°C to 20°C), so you can configure the interior for all wine, all beverages, or a mixed setup as your collection changes.
