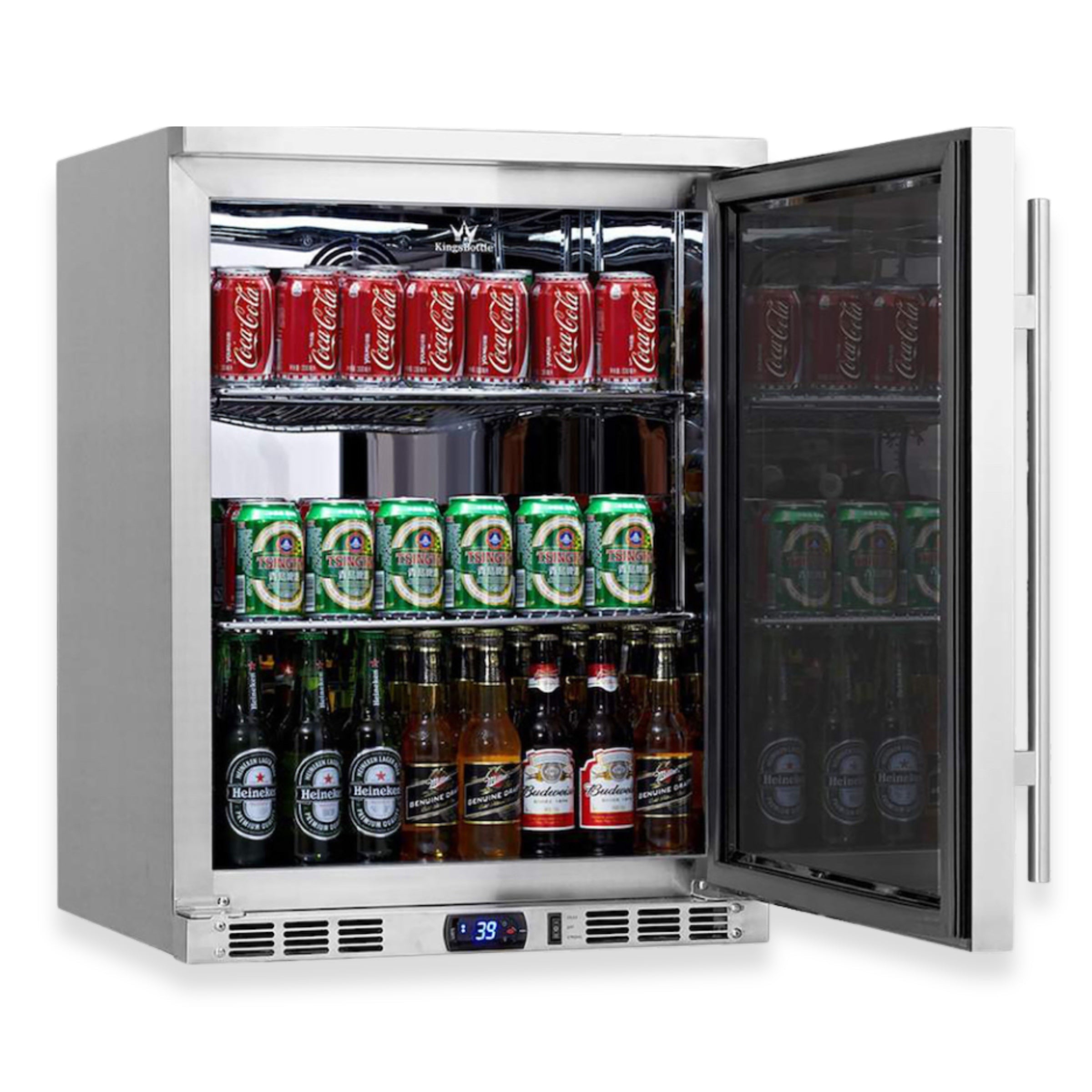

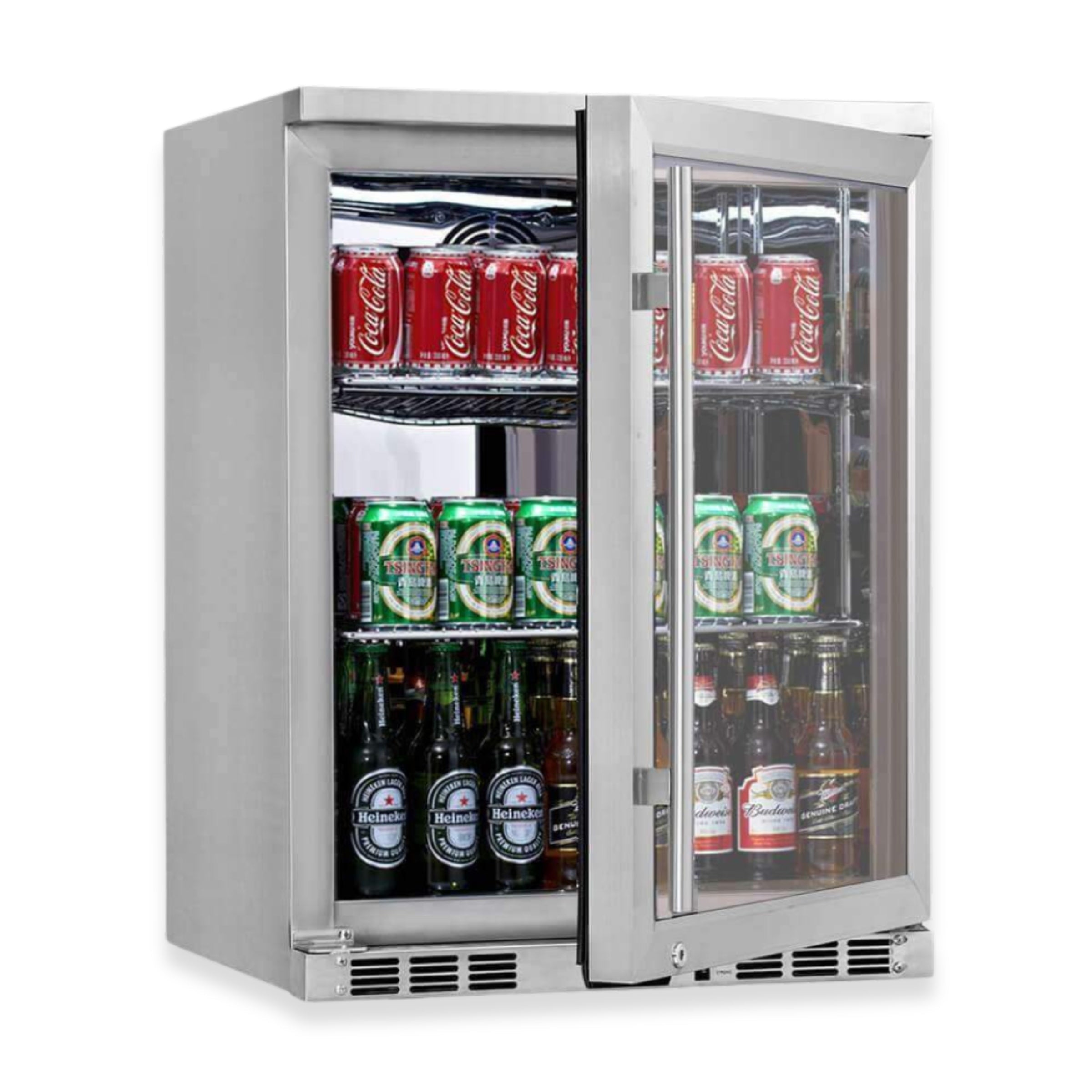

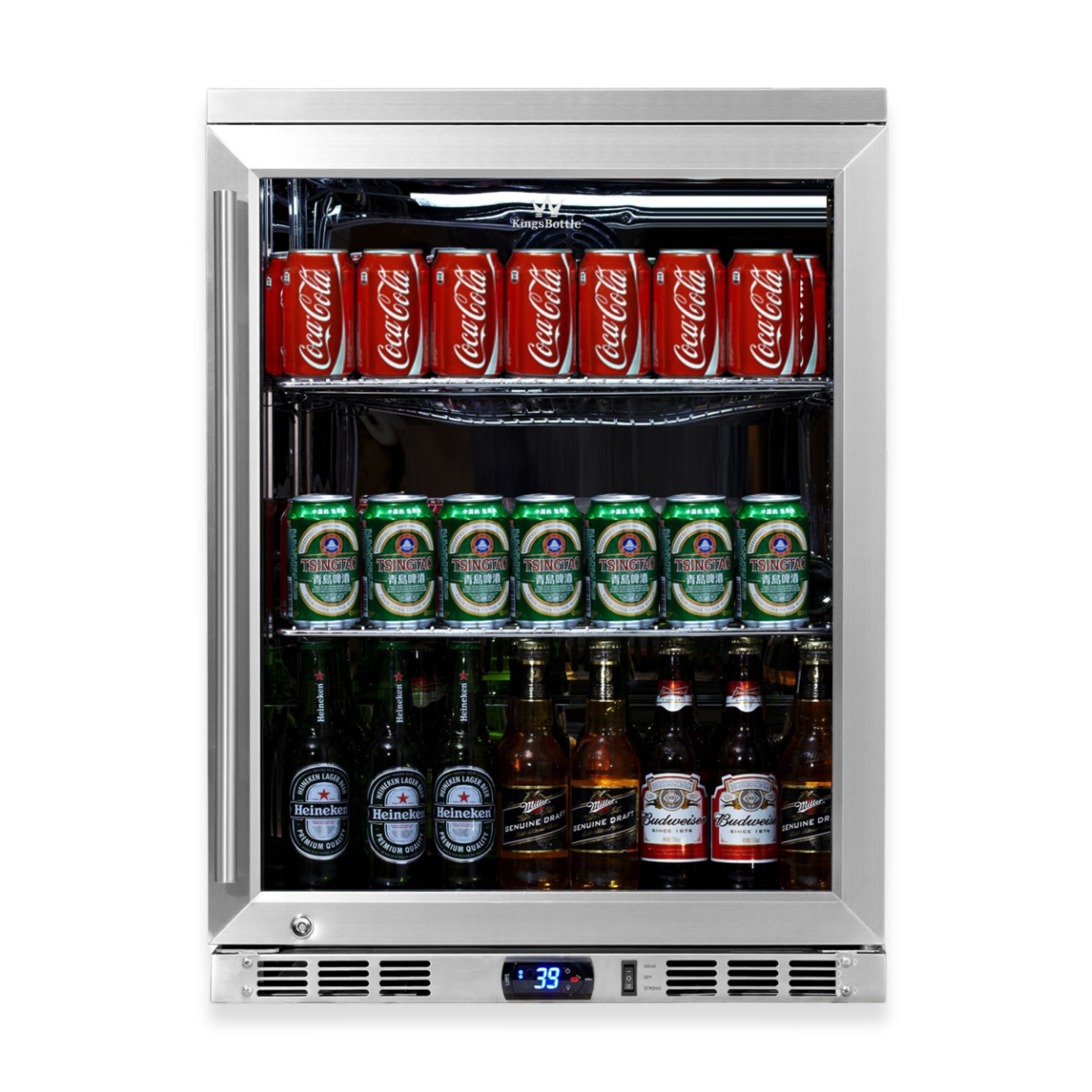

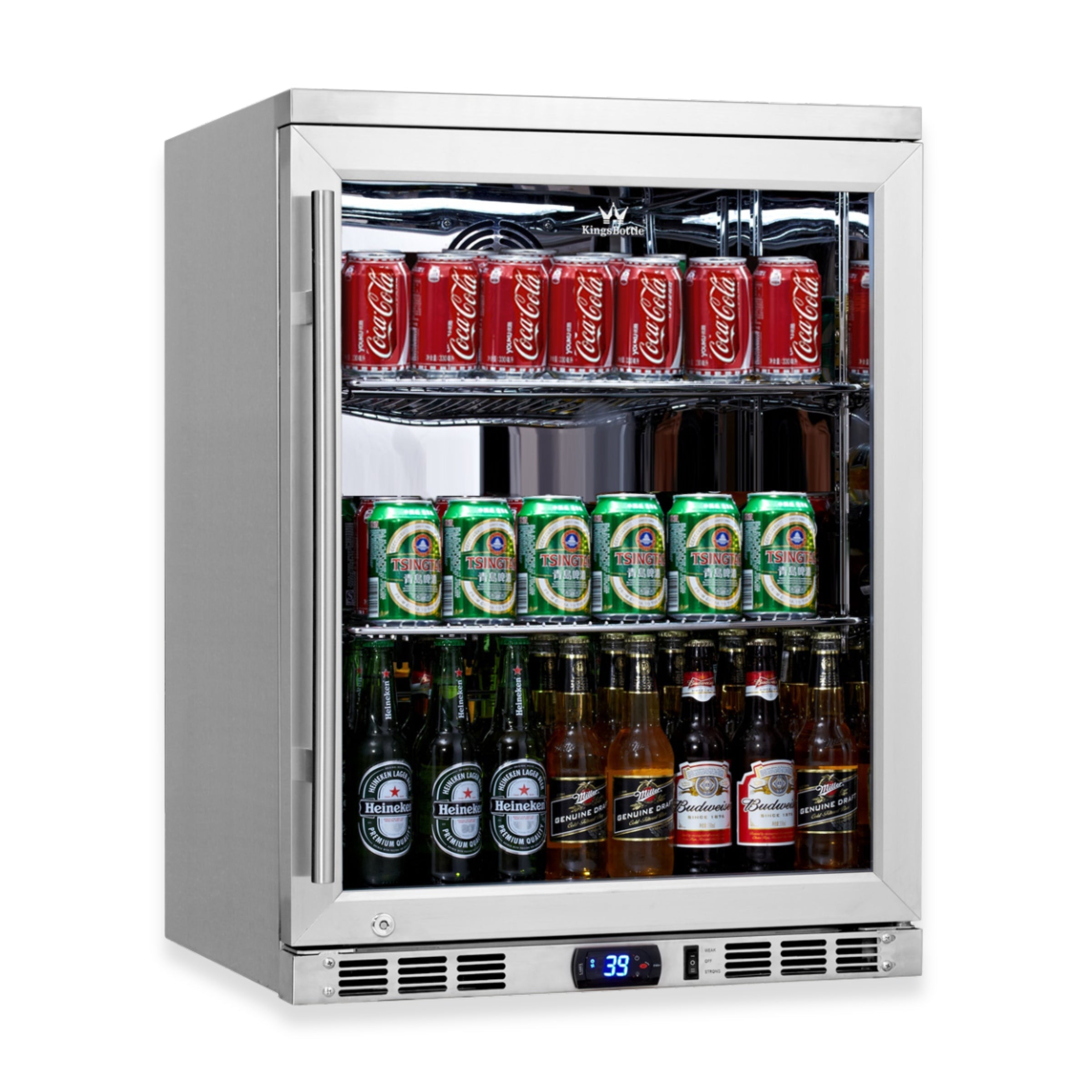

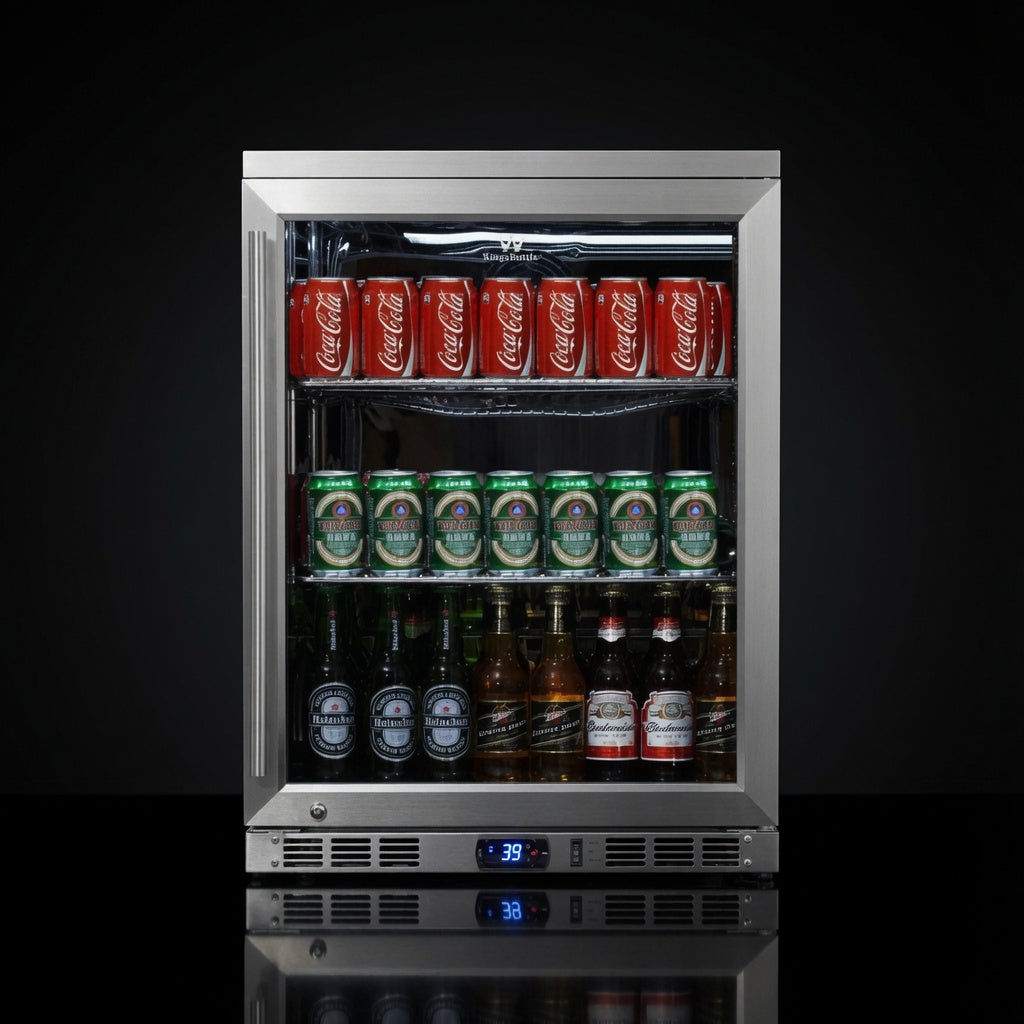

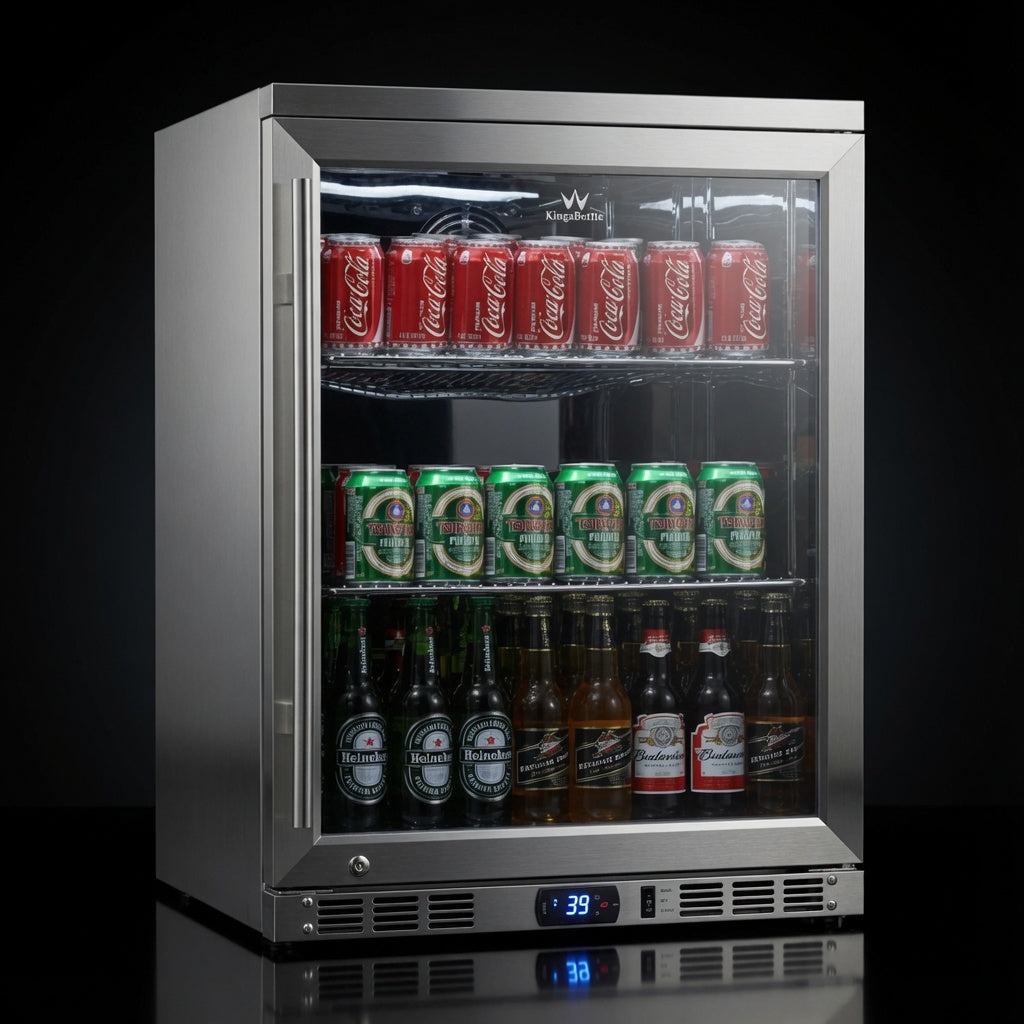

The 24-Inch Undercounter Beverage Cooler with Heated Glass Door is engineered to deliver exceptional beverage storage with a clean, modern aesthetic. The heated glass technology minimizes condensation, ensuring a clear, unobstructed view of your drinks while maintaining optimal cooling efficiency.
Built with durable 304 stainless steel, this unit is designed for long-lasting performance in both residential and commercial environments. Its front-venting system allows for seamless built-in installation, while the quiet, efficient compressor ensures consistent temperature control across the entire cabinet.
The interior features fully adjustable chromed shelves to accommodate a wide range of bottle and can sizes, along with a built-in security lock for added protection. Sleek, reliable, and versatile, this cooler is an ideal choice for kitchens, bars, patios, or entertainment spaces.
Why it stands out
Compact, high-capacity storage

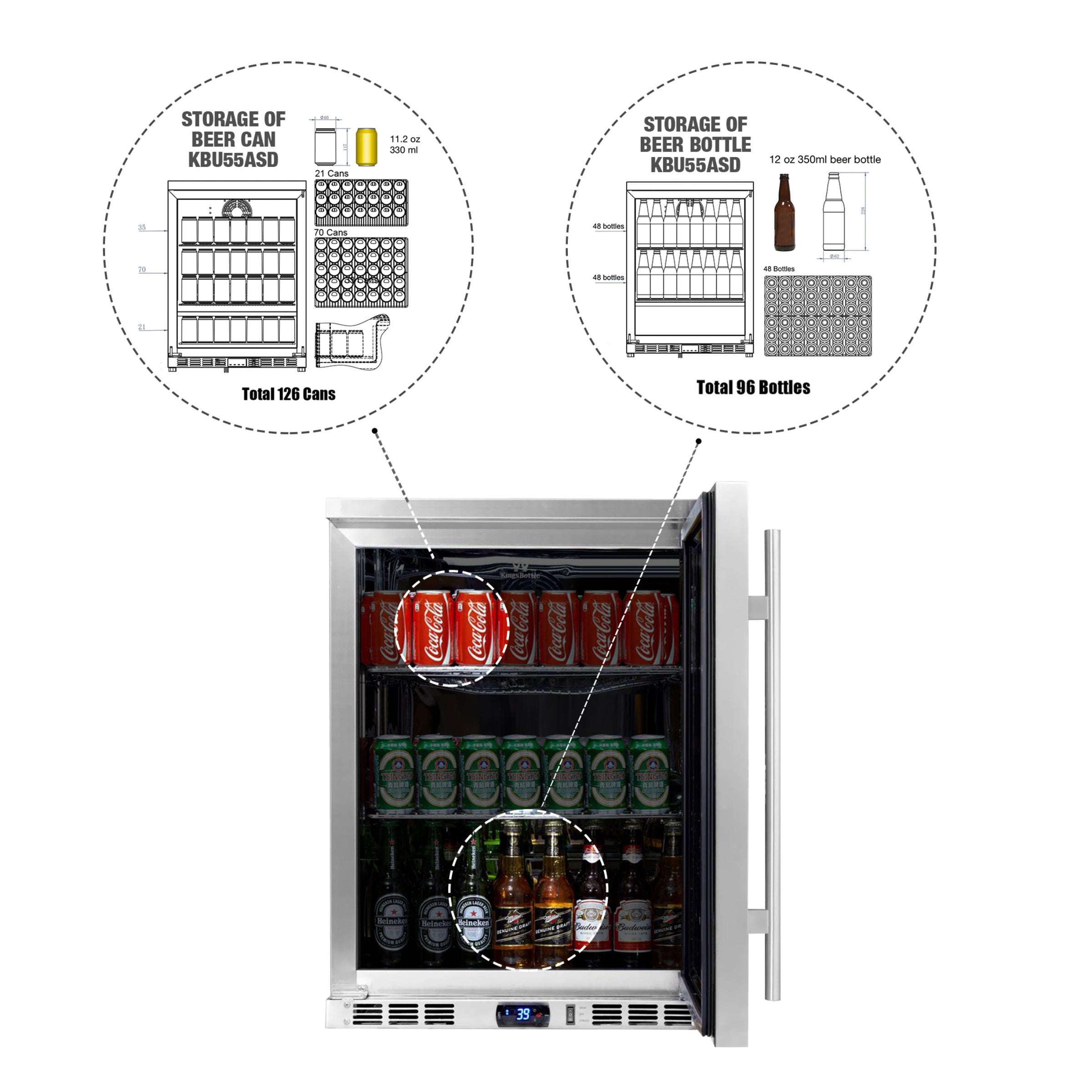

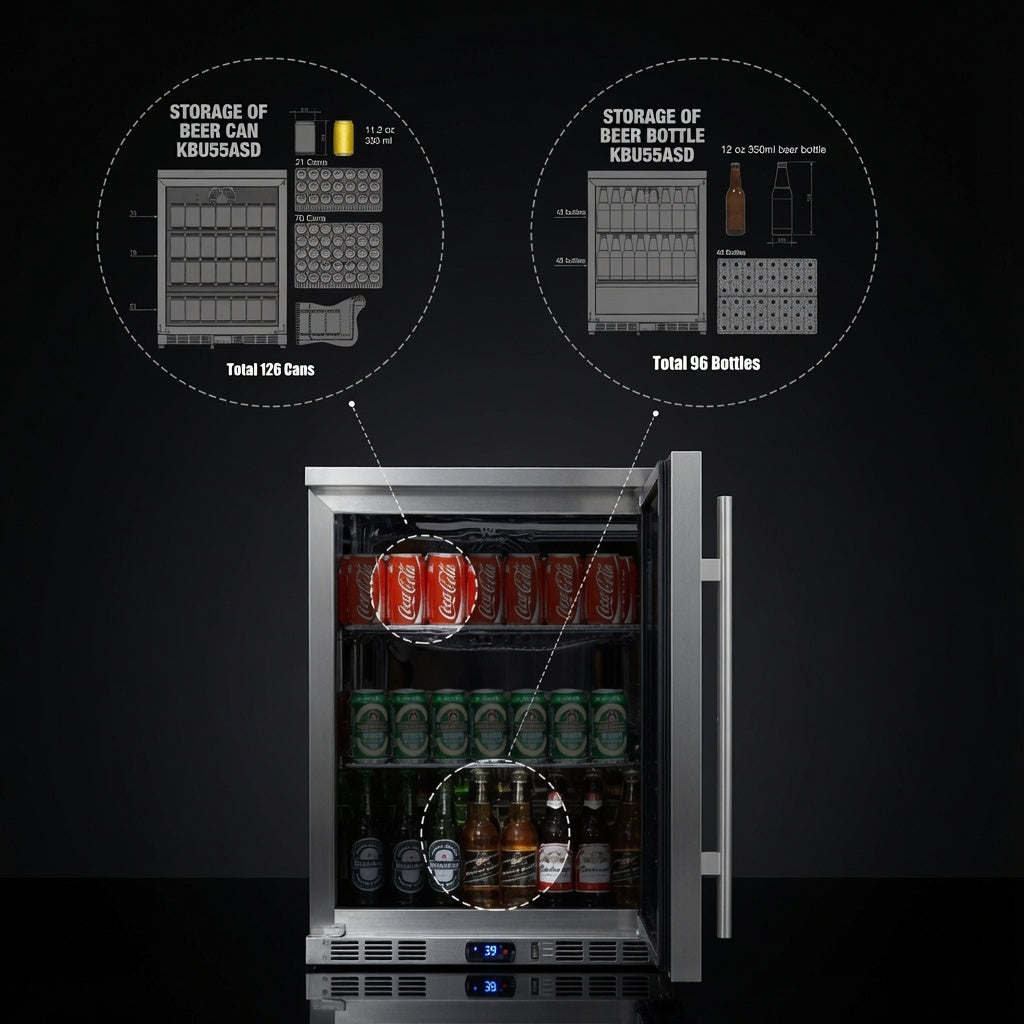

Offers 4.34 cu ft (123 L) of internal volume, holding up to 96 bottles or 126 cans, making it a powerful space-saver for undercounter installations.
Heated glass door
The heated glass door minimizes condensation for a clear view of your beverages while helping maintain stable internal temperatures and a premium, display-ready appearance.
304 stainless steel build
Constructed with 304 stainless steel for durability and corrosion resistance, suitable for demanding residential and light commercial environments.
Built-in or freestanding

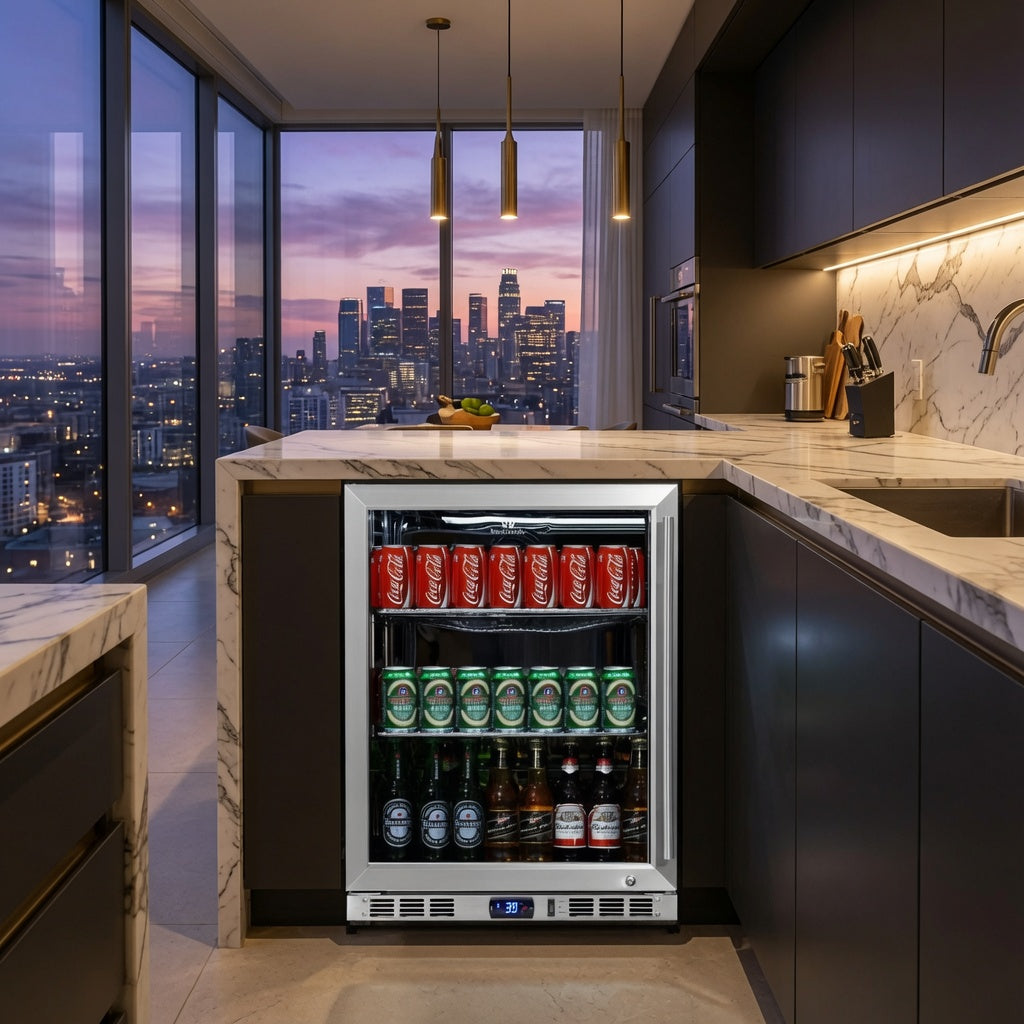

A front-venting system supports true built-in installation beneath counters, while its clean design also works as a freestanding unit in bars, kitchens, or entertainment spaces.
Prefer a solid door for superior insulation?
Explore our
24-Inch Outdoor Beverage Refrigerator with Solid Stainless Steel Door
for enhanced thermal efficiency and outdoor-ready durability.
Specifications
Key Specifications
| Volume | 4.34 CF (123 Liters) |
|---|---|
| Capacity (bottles) | 96 bottles |
| Capacity (cans) | 126 cans |
| Installation Type | Built-in or freestanding |
| Climate Type | N/ST |
| Temperature Zones | Single zone |
| Adjustable Temperature Range | 34°F to 46°F (1°C to 8°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 2 fully adjustable chromed metal shelves |
| Dimensions | 23.4” W x 21.5” D x 32.3” H |
| Compressor | Embraco compressor |
| Power Supply | 110–115V / 60Hz |
| Rated Power Input | 140 W (Heated Glass OFF); 170 W (Heated Glass ON) |
| Rated Current | 2.1 A |
| Refrigerant | R600a |
| Energy Consumption | 0.83 kWh / 24 h (Heated Glass OFF); 1.29 kWh / 24 h (Heated Glass ON) |
Technical Features
Quiet compressor
Utilizes a high-quality, quiet-running Embraco compressor that offers vibration-free cooling, helping keep beverages stable and undisturbed.
Fan circulated air-cooling system
A fan-circulated air-cooling system helps ensure temperature uniformity throughout the cabinet and compensates for air humidity to protect your beverages.
Activated carbon filter
An activated carbon filter effectively removes impurities in the air, helping keep the cabinet interior fresh and odor-free.
Digital temperature control
Equipped with a premium temperature controller from Carel of Italy, providing precise temperature management to keep beverages at ideal serving temperatures.

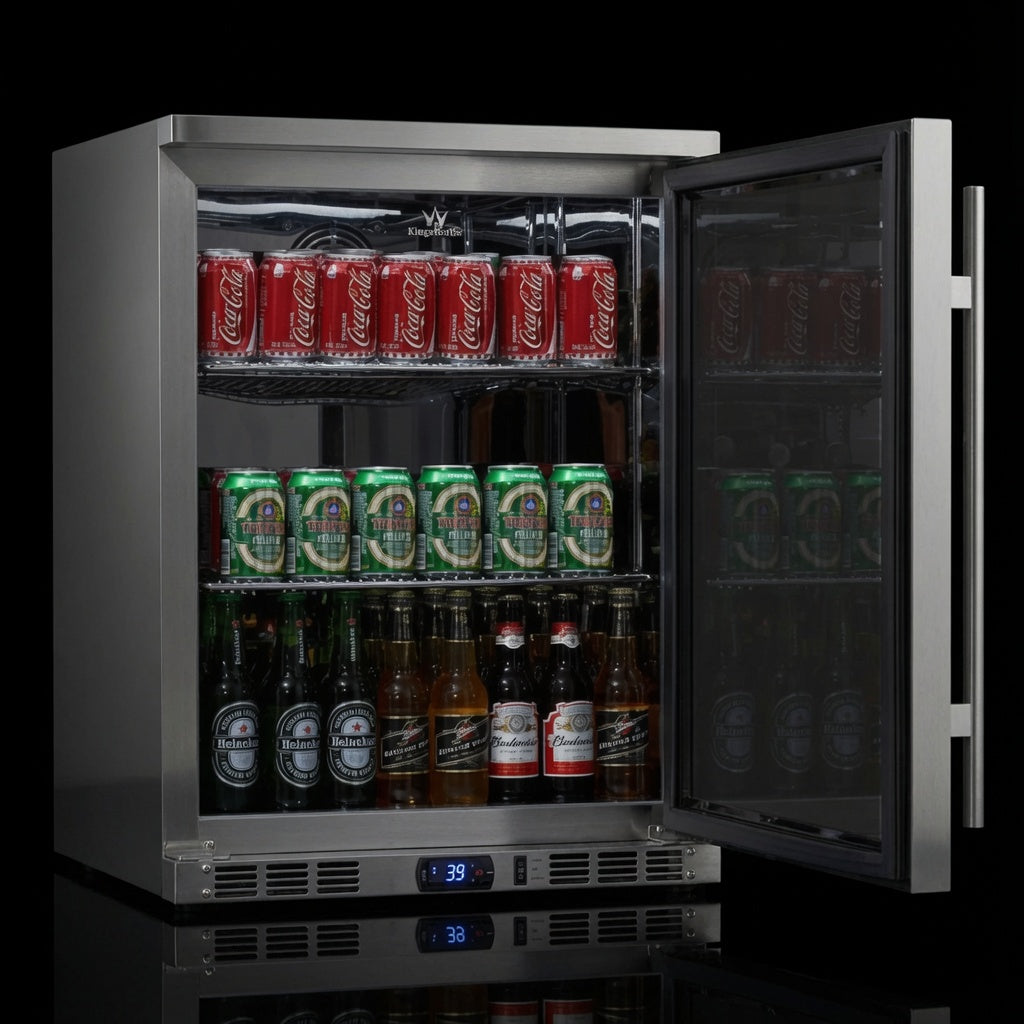

Fully adjustable chromed shelves
Two fully adjustable chromed metal shelves let you configure the interior for bottles, cans, or mixed storage, depending on your needs.

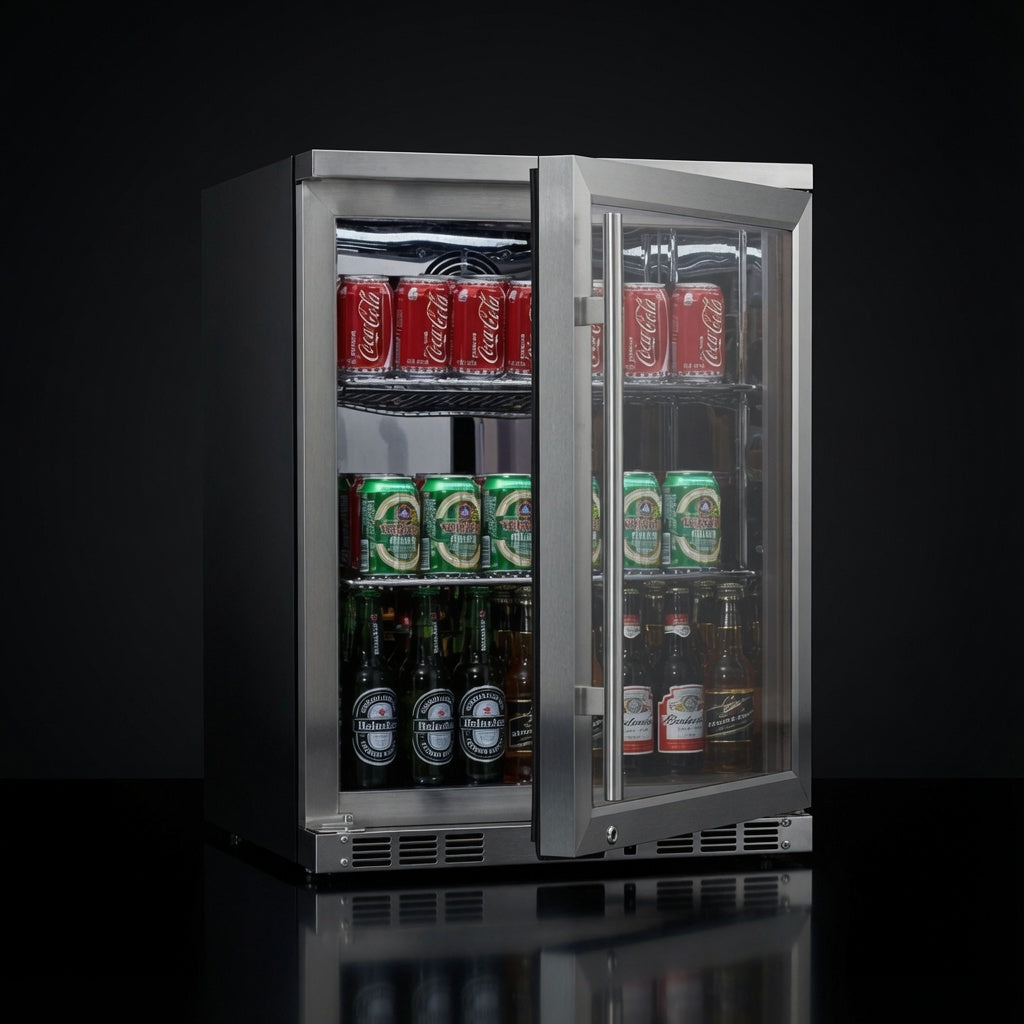

Heated glass door

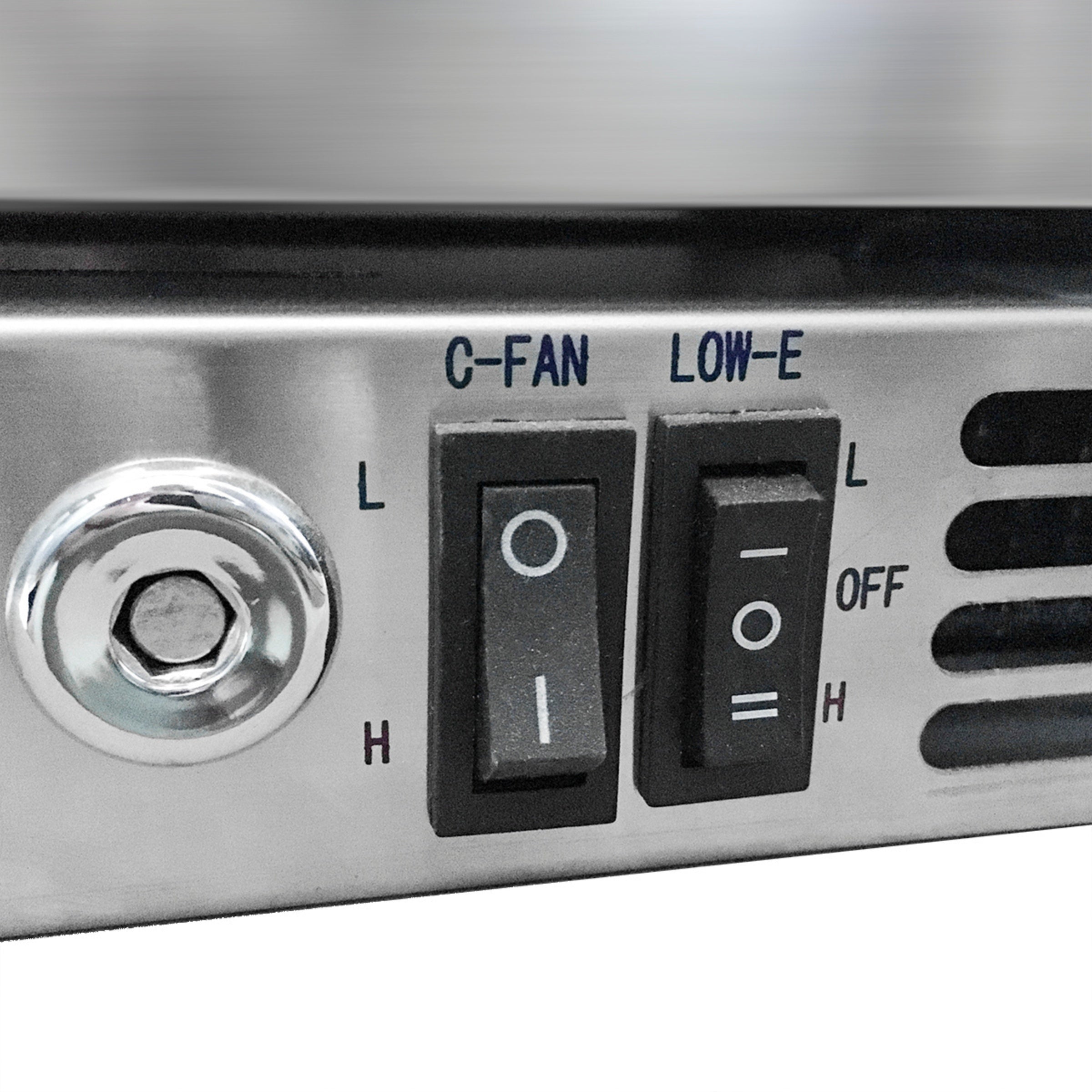

Tempered safety glass with a conductive film helps prevent fogging using adjustable low-E heat settings (Weak / Medium / Strong). The heating function activates with the compressor to support clear visibility and stable performance.
Notice: Glass temperature (approximately 80–93°F) must be kept away from rain and direct outdoor exposure.
Dimensions & Diagrams

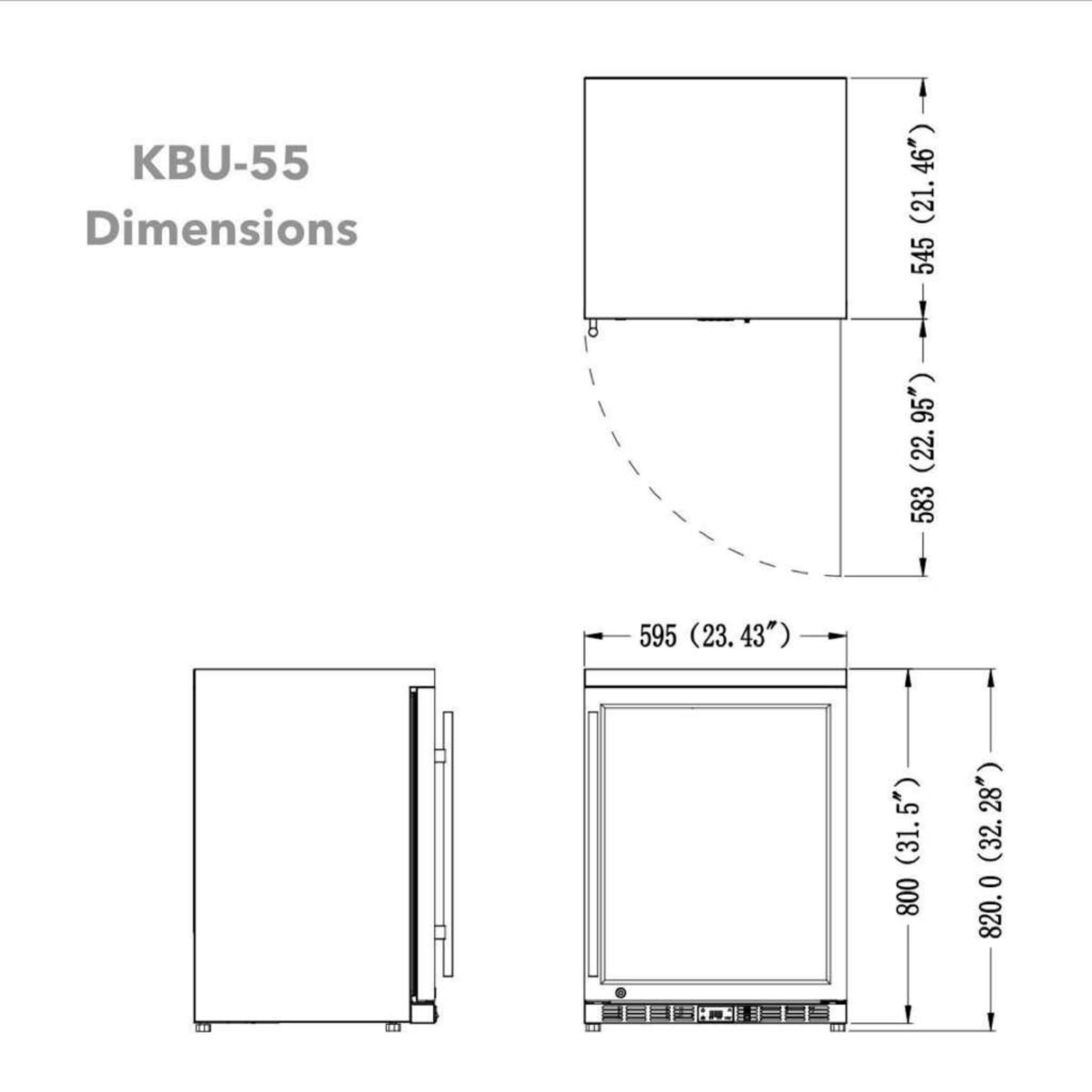

Technical dimensions

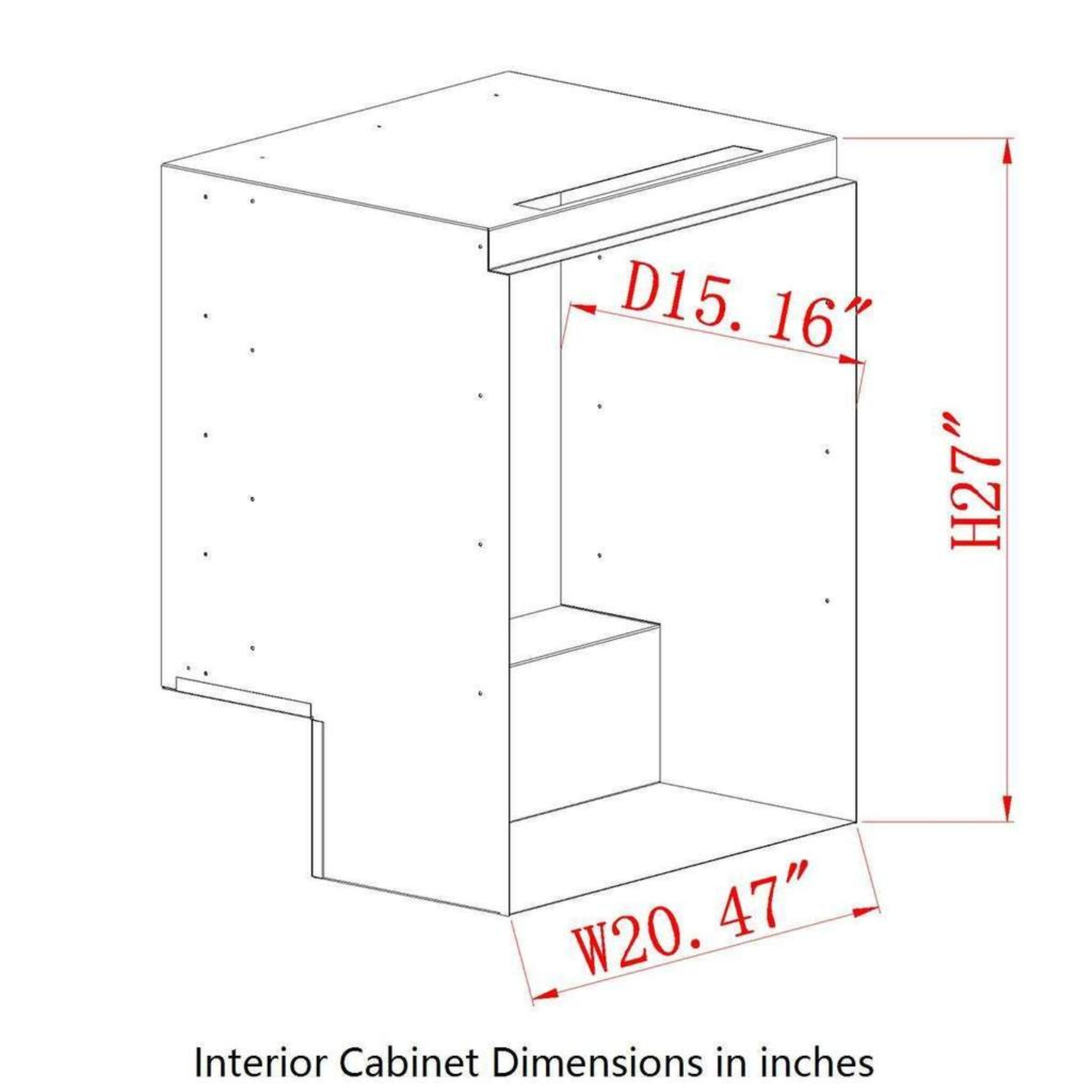

Use the interior dimensions diagram to confirm bottle and can clearance, shelf spacing, and overall internal layout before planning your storage.
Installation diagrams

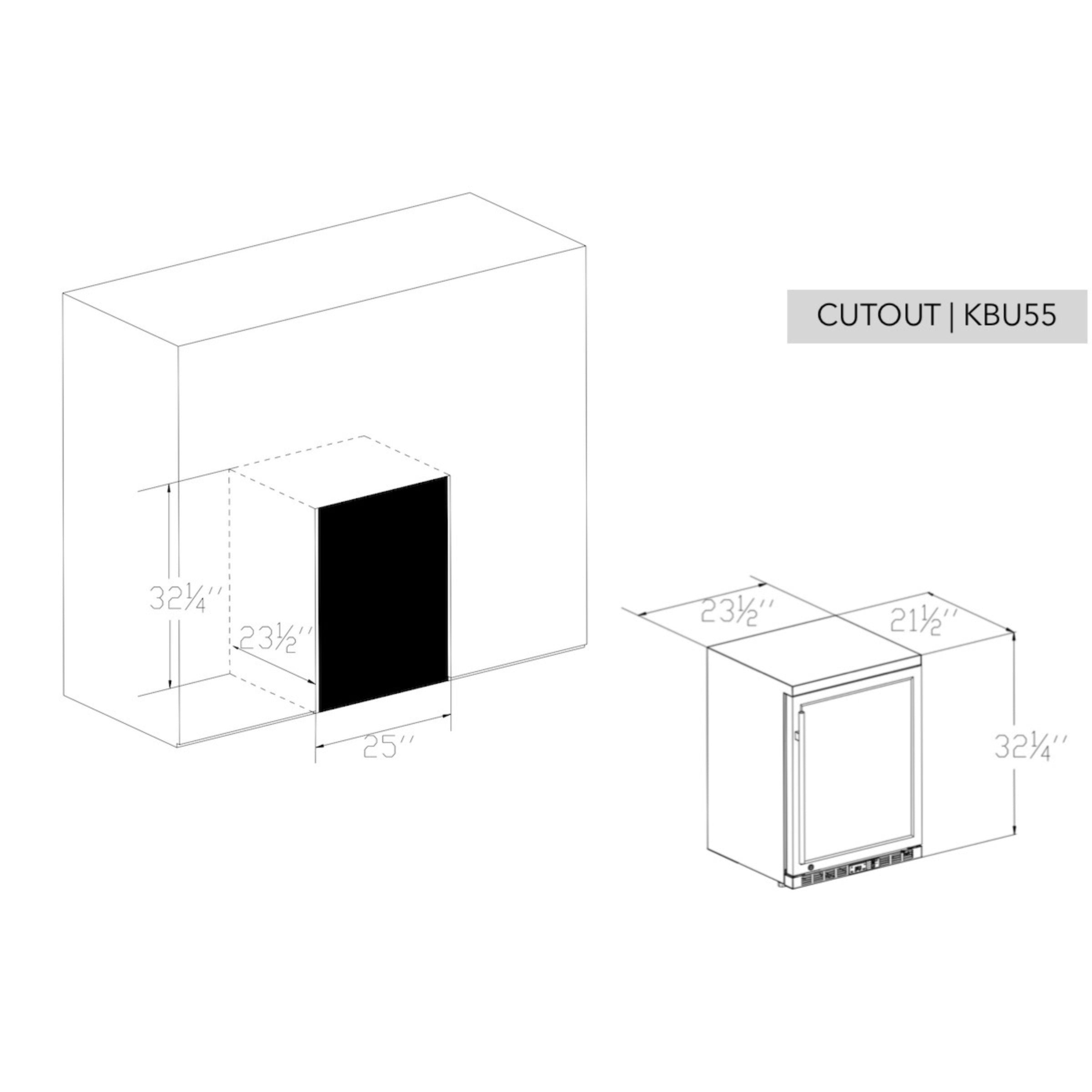

Reference the cutout and power plug diagrams when planning cabinetry, ventilation, and electrical placement for built-in installation.
Product Manual
Download & view the full manual
Review the complete user manual for detailed installation instructions, operating guidelines, and maintenance information for this undercounter beverage cooler.
Frequently Asked Questions
This 24-inch undercounter beverage cooler offers 4.34 cu ft (123 L) of storage, holding up to 96 bottles or 126 cans, depending on how the shelves are configured and the bottle/can sizes.
The unit is a single-zone cooler with an adjustable temperature range of 34°F to 46°F (1°C to 8°C), ideal for beer, soft drinks, and other ready-to-serve beverages.
Yes. Its front-venting design supports true built-in installation beneath counters, and it can also be used as a freestanding unit in bars, kitchens, or entertainment spaces.
The heated glass is designed to reduce fogging and condensation, but the glass temperature (approximately 80–93°F) should be kept away from direct rain and outdoor exposure. For more exposed outdoor environments, consider a solid-door outdoor-rated unit.
The combination of a quiet Embraco compressor, fan-circulated air-cooling system, and activated carbon filter helps maintain stable temperatures and fresh, odor-free air inside the cabinet.
