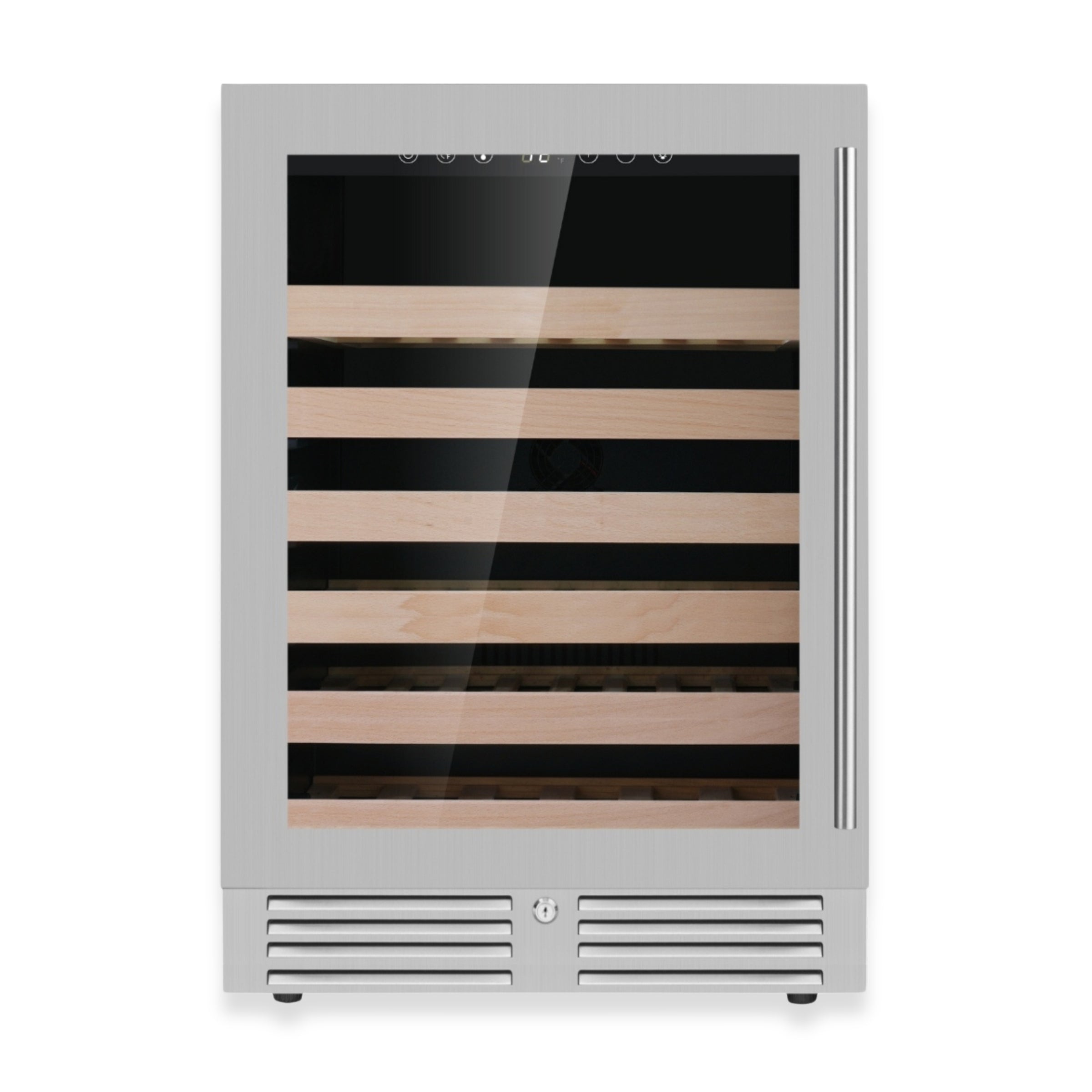

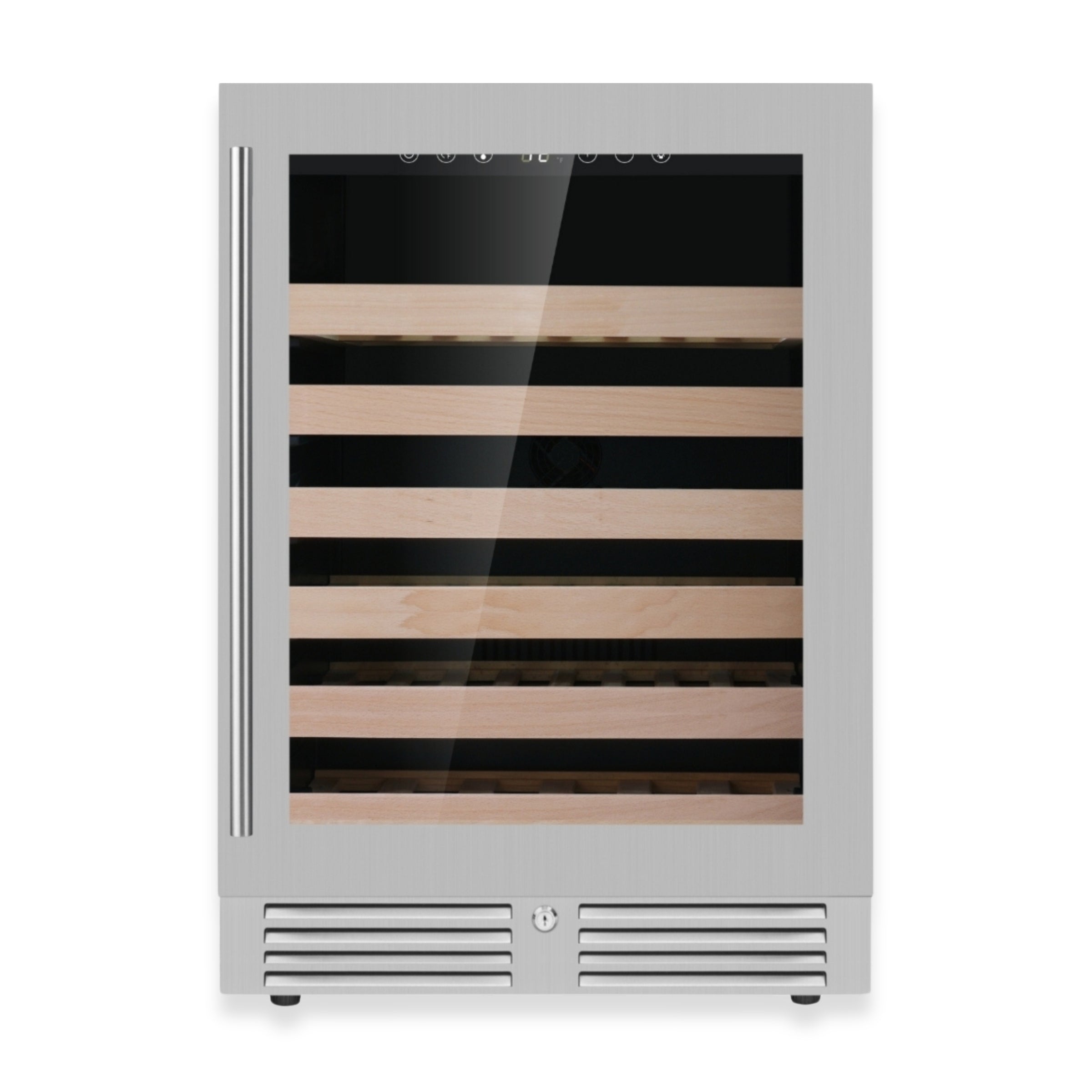

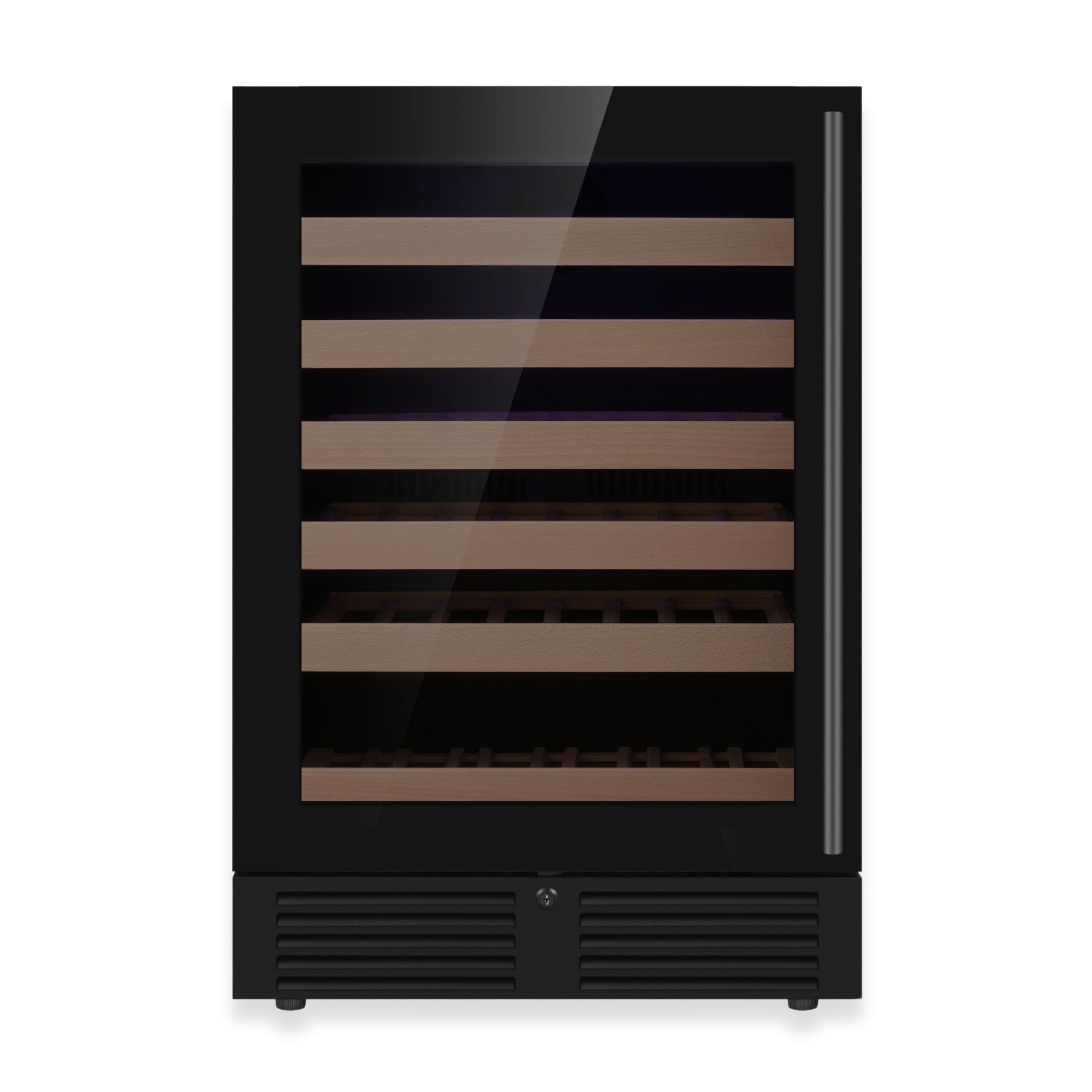

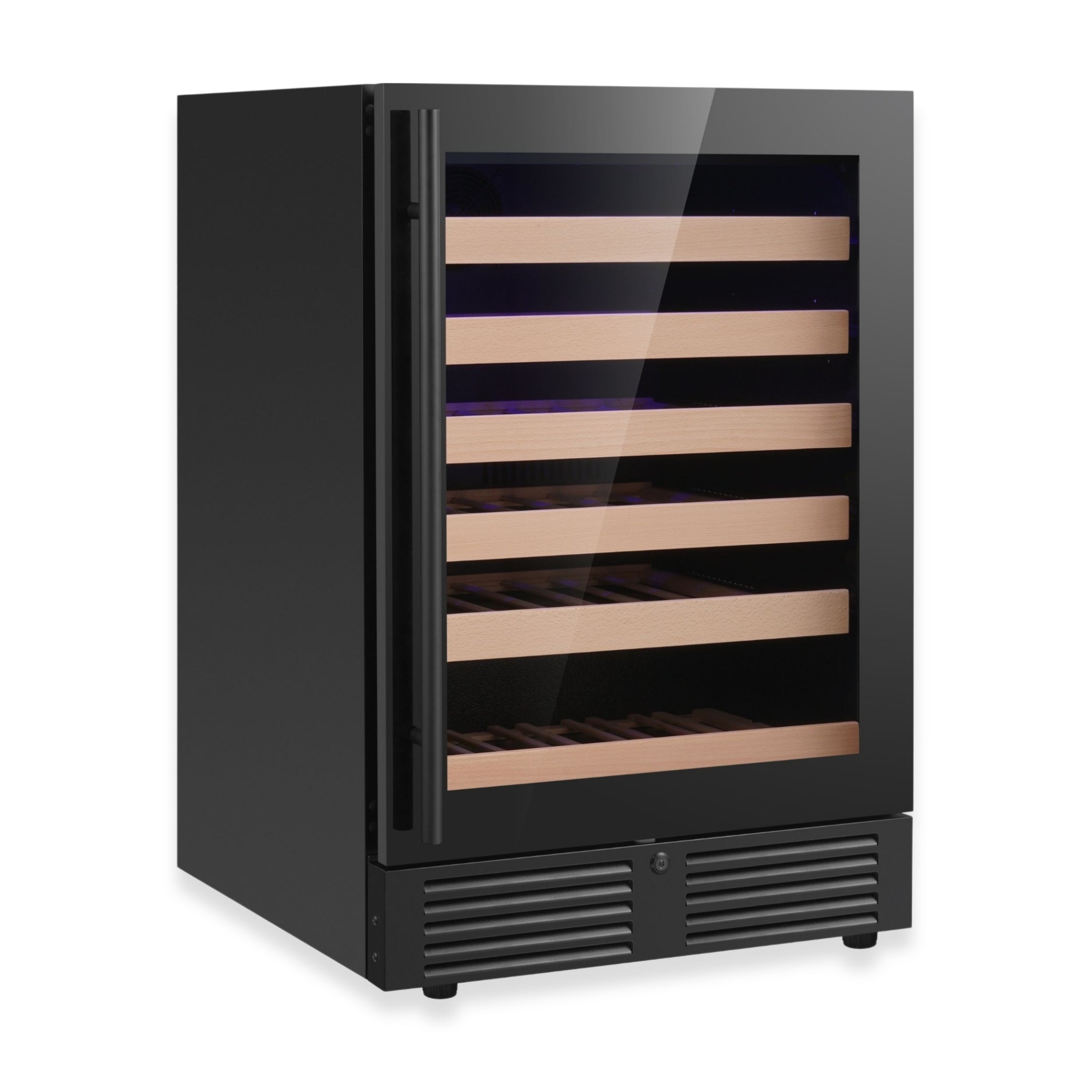

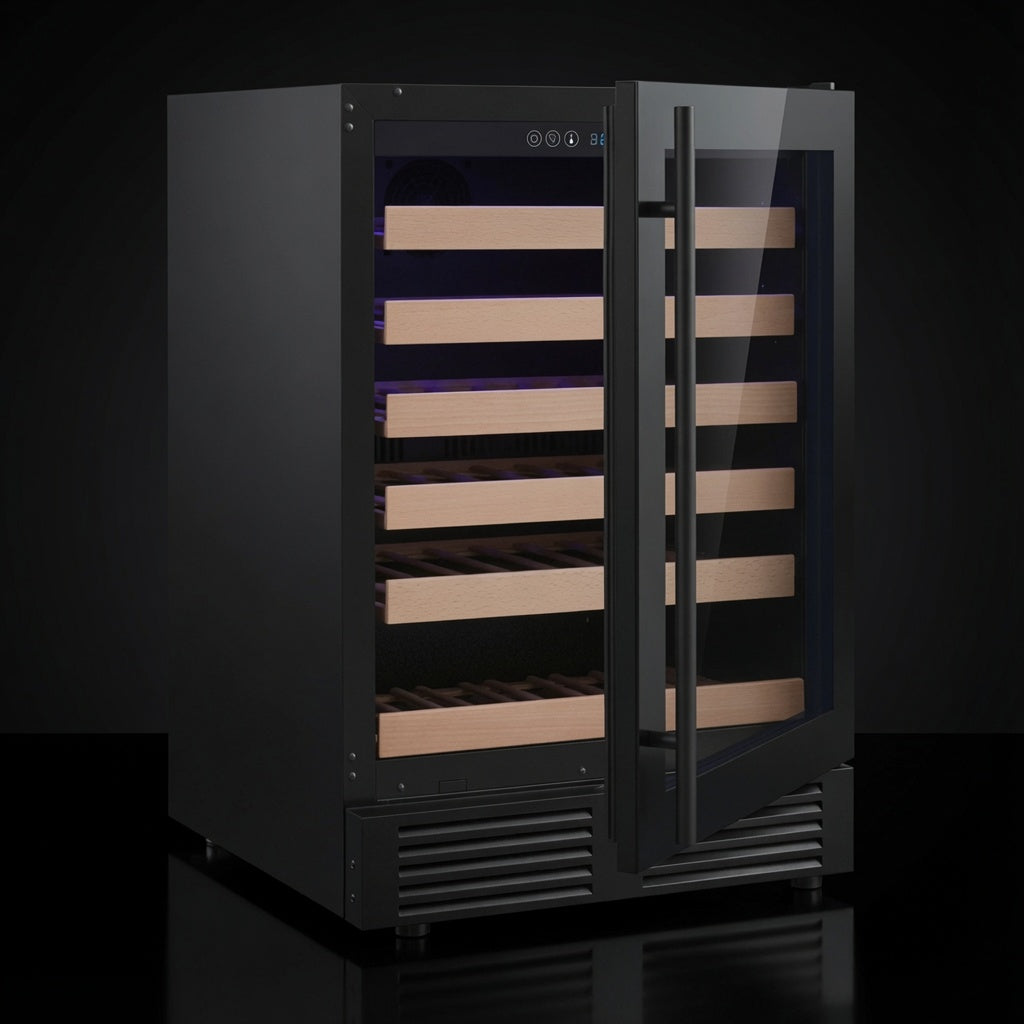

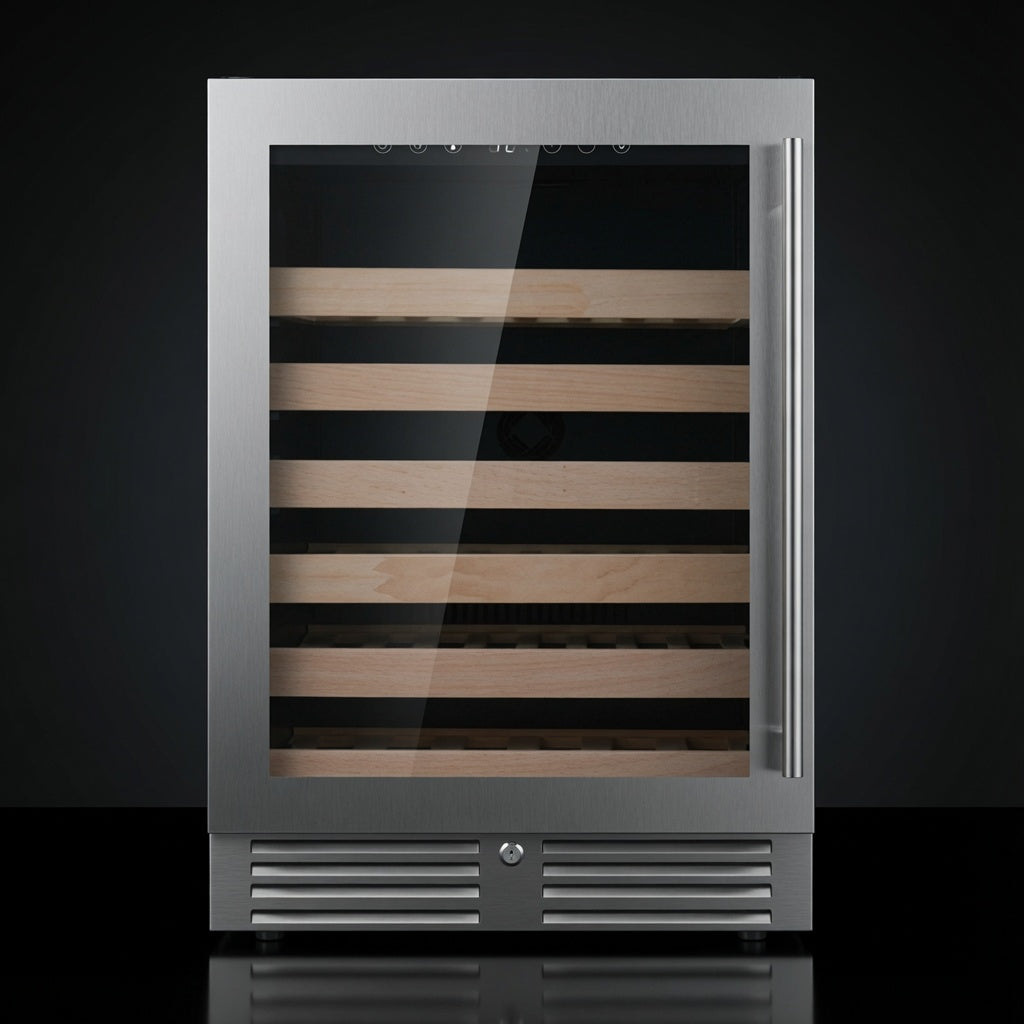

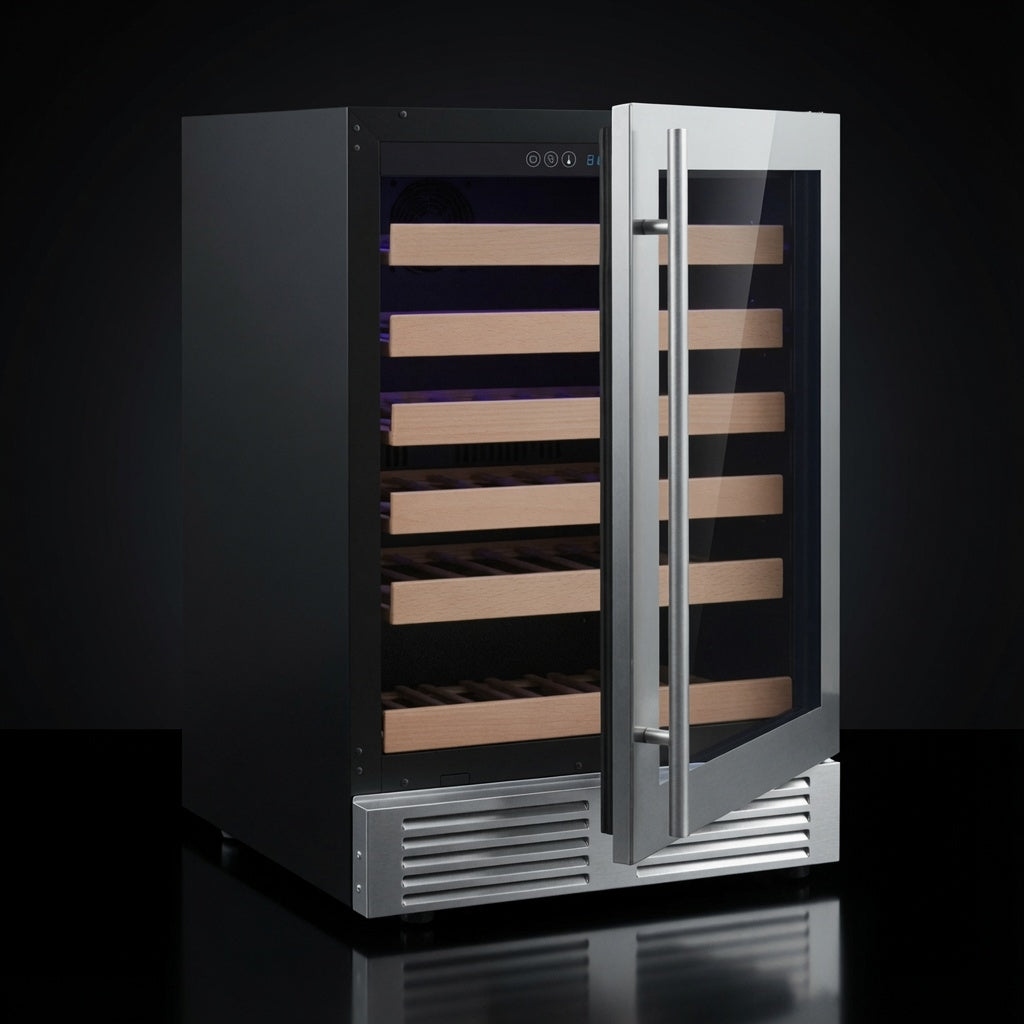

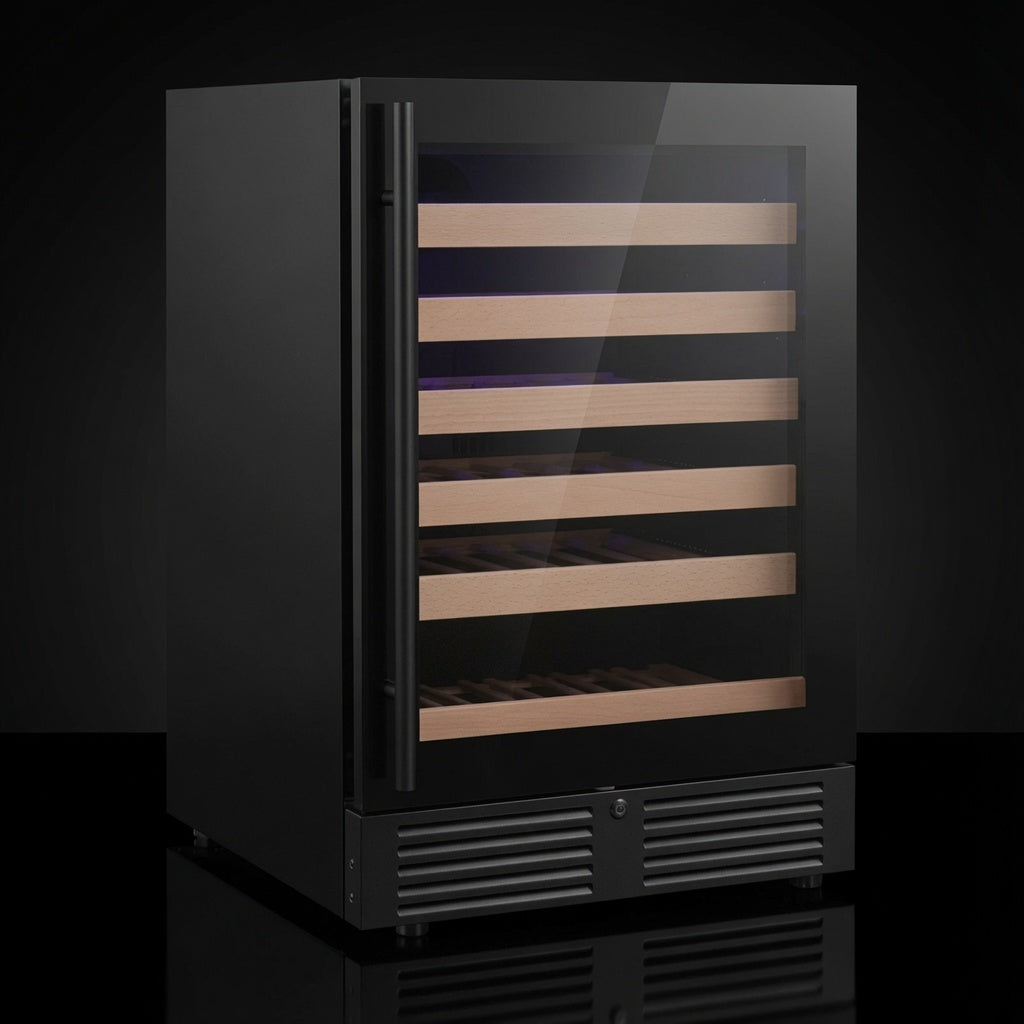

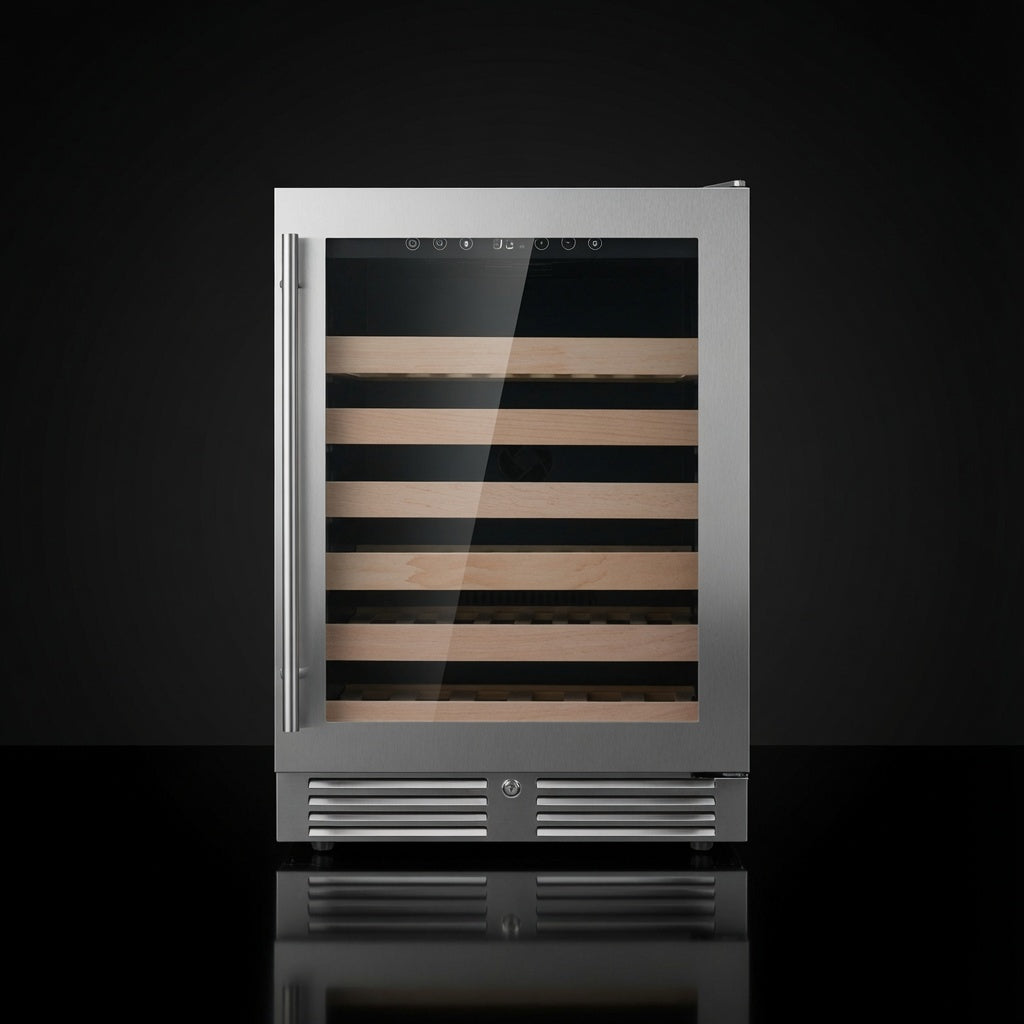

The 24-Inch Under-Counter Low-E Glass Door Single-Zone Wine Cooler is engineered to keep your wine collection at the ideal serving temperature with refined, reliable performance. Powered by the Embraco Inverter Compressor , this unit provides whisper-quiet operation, improved energy efficiency, and consistent temperature stability for long-term preservation.
The Low-E glass door offers superior UV protection while minimizing condensation, ensuring clarity and optimal insulation. Its single-zone design is ideal for collectors who store primarily red or white wines at a uniform temperature.
With its sleek under-counter build and adjustable shelving, this cooler integrates seamlessly into modern kitchens, bars, and entertainment spaces while accommodating a variety of bottle sizes.
Looking for dual-zone flexibility?
Explore our same-size
24-Inch Under-Counter Dual Zone Wine Cooler
for independent temperature control of both reds and whites.
Create a matching beer & wine center:
Pair this wine cooler with our
24-Inch Under-Counter Beverage Fridge
for a seamless, high-end side-by-side combo.
Why this cooler stands out

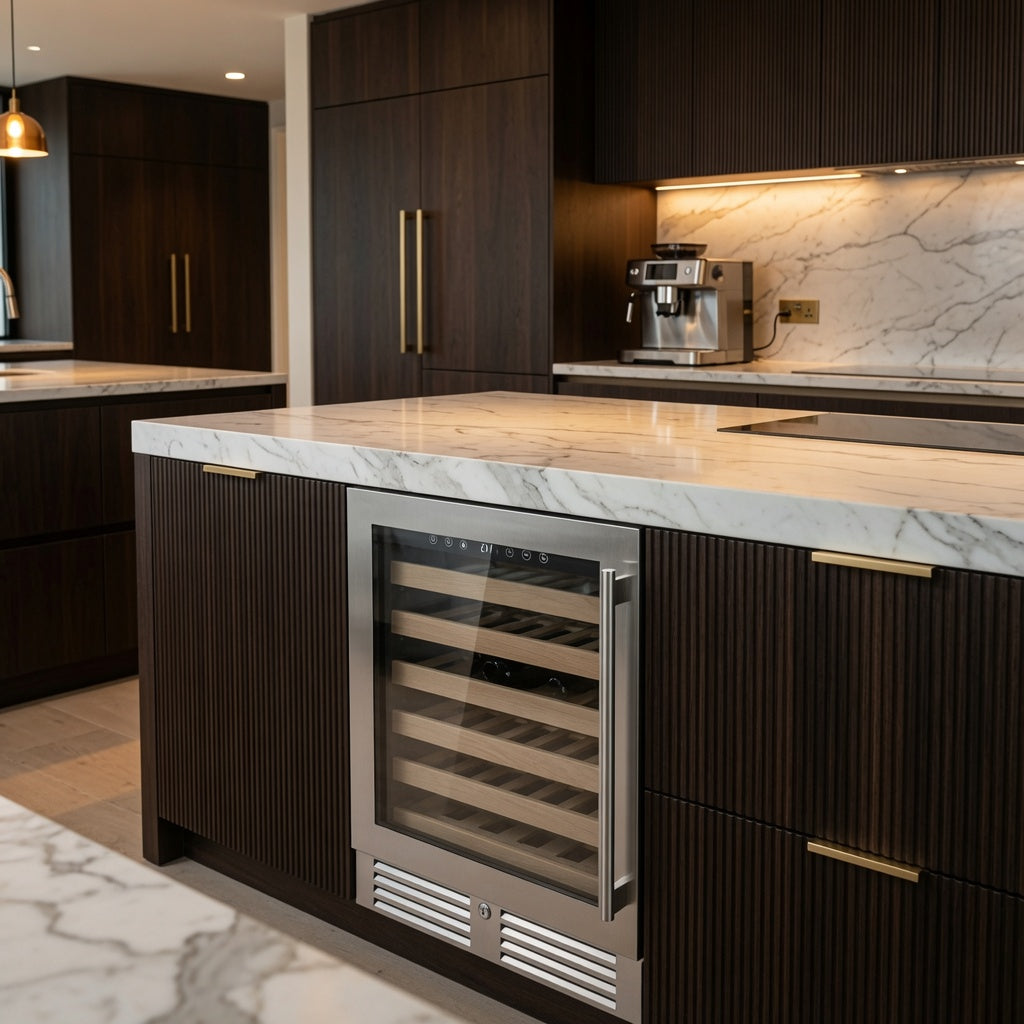

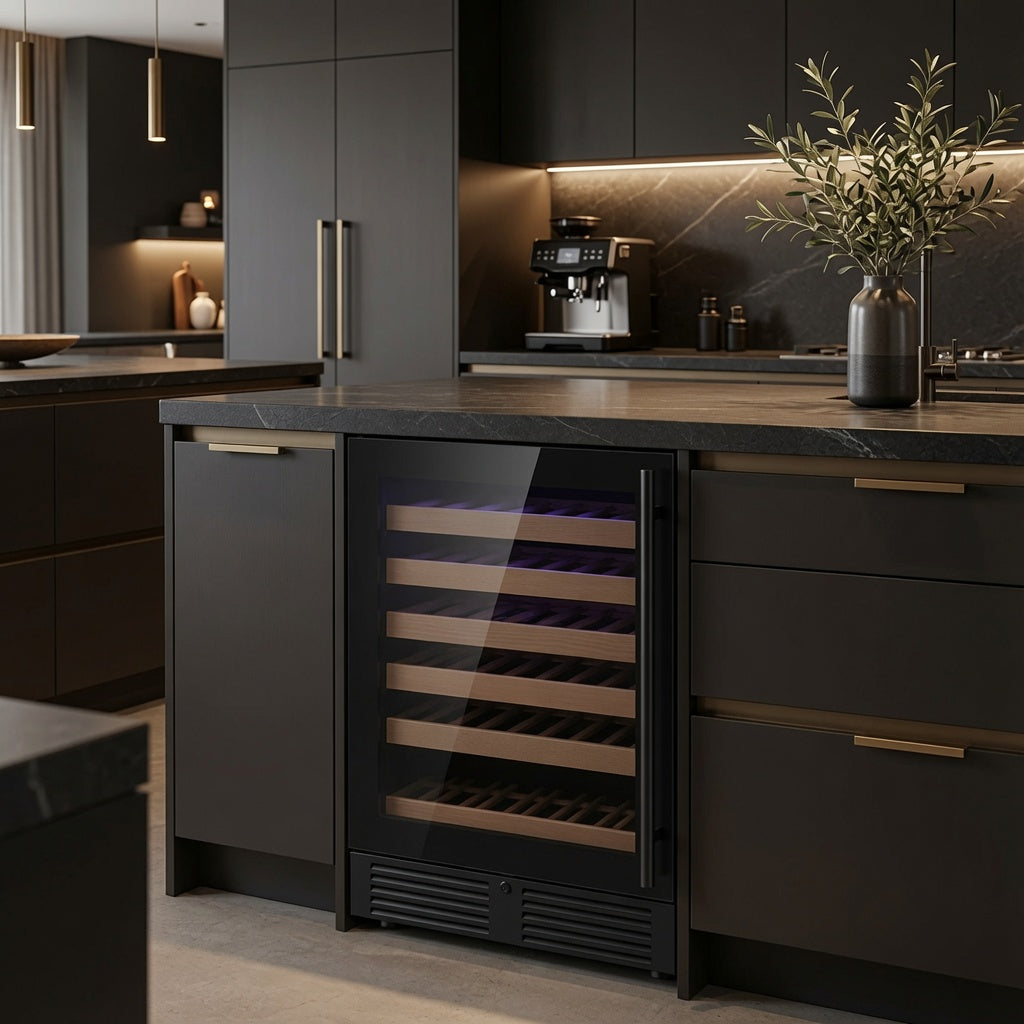

Under-counter, space-saving design
Built to slide cleanly beneath standard countertops, this 24-inch wine cooler is perfect for kitchen islands, wet bars, and built-in beverage centers.
Dedicated wine capacity

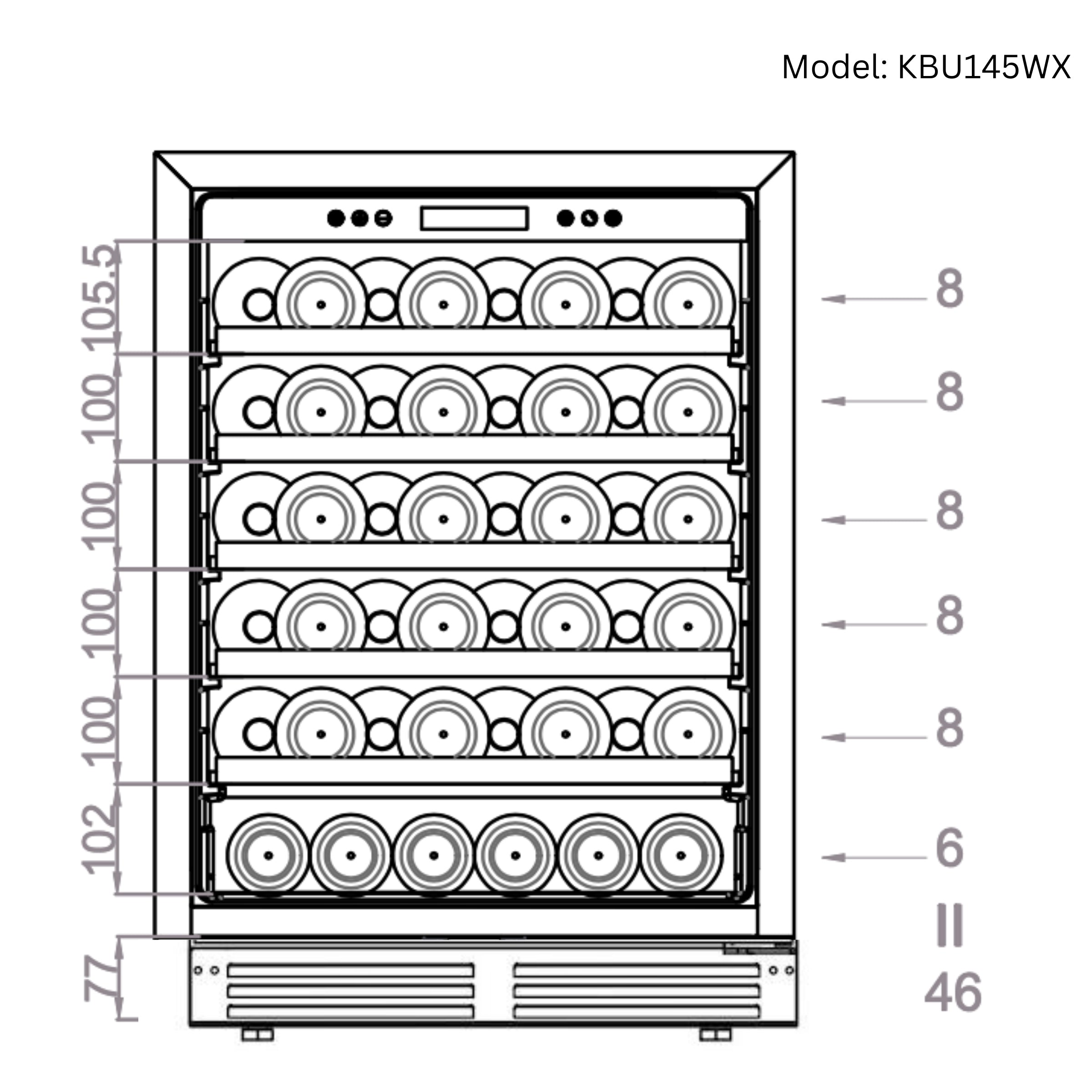

Holds up to 46 bottles, with intelligently spaced beech shelves that handle standard Bordeaux plus many larger-format bottles.
Low-E glass protection
The Low-E glass door minimizes UV exposure and reduces condensation while showcasing your collection behind a modern, frameless look.
Built-in or freestanding
A front-venting system supports true built-in installation under counters or flexible use as a freestanding wine cooler in any entertainment space.
Specifications
| Volume | 5.12 CF (145 Liters) |
|---|---|
| Capacity (bottles) | 46 bottles |
| Installation Type | Built-in or freestanding |
| Climate Type | N |
| Temperature Zones | Single zone |
| Adjustable Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Operating Room Temperature | 32–100°F (0–38°C) |
| Shelf Configuration | 6 beech wooden shelves |
| Dimensions | 23.42” W x 22.75” D x 33.99” H (includes 0.59” stand height) |
| Compressor | Embraco Inverter Compressor |
| Defrost Type | Automatic defrost |
| Power Supply | 110–115V / 60 Hz |
| Rated Power Input | 165 W |
| Rated Current | 1.7 A |
| Refrigerant | R600A / 45 g |
| Power Lamp | 0.7 W × 2 |
| Efficiency Standard | ETL / DOE compliant |
Technical Features
Embraco inverter compressor
Top brand Embraco Inverter Compressor delivers super-quiet operation and can reduce energy consumption by up to 40% compared to traditional fixed-speed compressors.
Patented compressor sink
The patented sink of compressor increases air circulation space around the compressor to enhance cooling performance, reduce vibration, and further cut down operating noise.
Low-E glass door
Low-E glass reduces energy consumption and condensation on the glass door while acting as an invisible insulating barrier to help guard your wines from temperature swings and UV exposure.
Note: The Low-E coating lowers heat transfer and surface moisture, enhancing energy efficiency and cooling performance.
Fan-circulated air system
A fan-circulated air-cooling system maintains temperature uniformity throughout the cabinet and compensates for air humidity, helping protect corks and labels from overly dry or damp conditions.
Activated carbon filter
The built-in activated carbon filter helps remove impurities and odors from the air inside the cabinet, keeping your wine environment fresh and stable over time.
LED digital touchpad control
A LED display digital touchpad makes it easy to view and adjust your temperature settings with clear, accurate feedback at a glance.
Full-extension beech shelves
Optimized FULL-EXTENSION beech wood shelves slide out smoothly for easy access, with spacing designed to fit both regular and many larger bottles up to 3.39" (86 mm) in diameter.
Magnetic door switch & alarm
A magnetic switch powers a 2-minute door-open alarm to help prevent accidental temperature spikes if the door is left ajar.
Hidden door hinge
A laminated steel plate with integrated molding and hidden hinge design supports a clean, full built-in aesthetic that lines up with your cabinetry.
Seamless stainless-steel frame
The seamless stainless-steel door frame delivers a slim, modern look that pairs perfectly with contemporary appliances and fixtures.
45 mm C-Pantane insulation
45 mm thick C-Pantane foam improves cooling efficiency and helps lower energy consumption, supporting consistent long-term storage conditions for your collection.
Dimensions & Diagrams

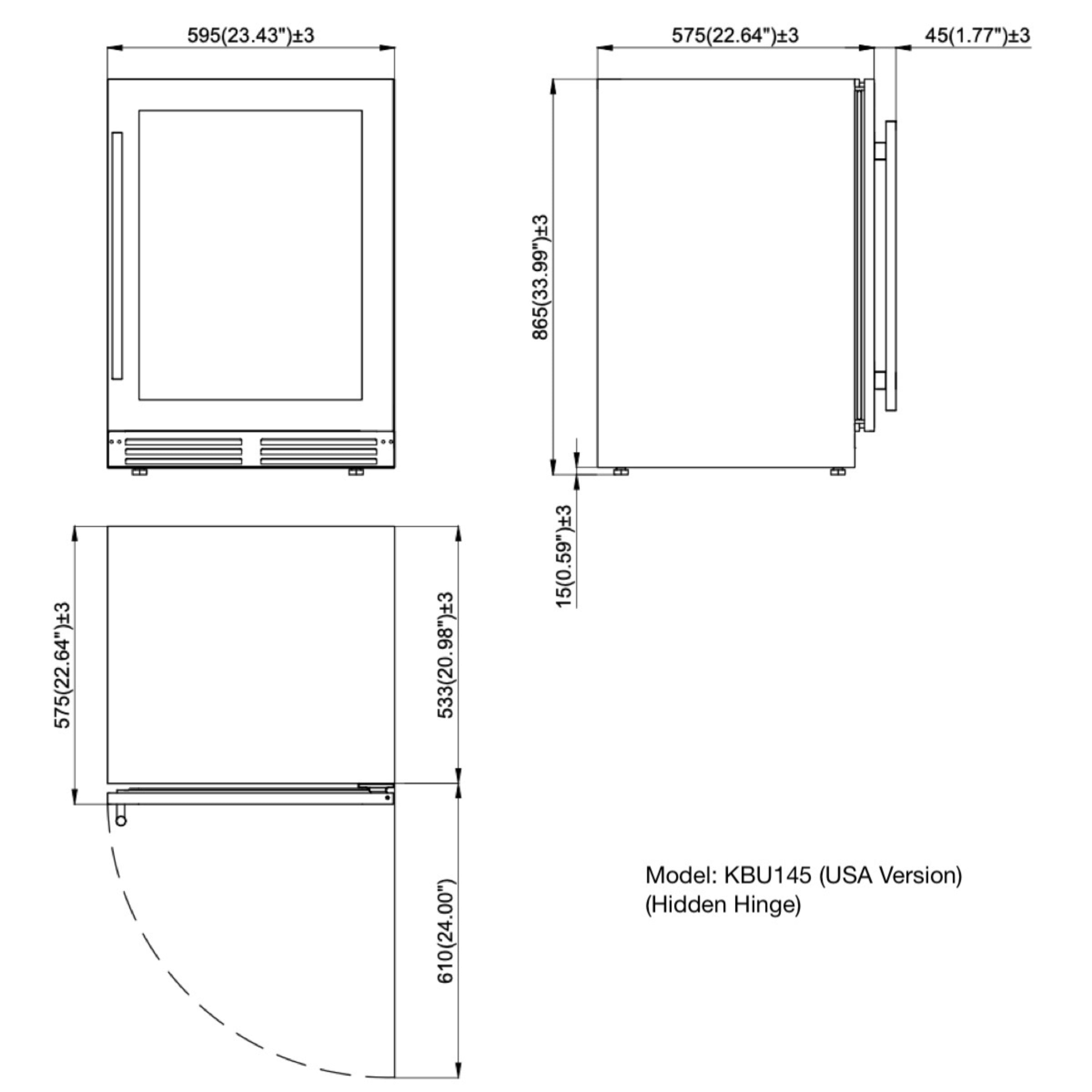

Technical dimensions
Use these technical drawings to confirm cutout size, door swing, and ventilation requirements before installing the wine cooler into built-in cabinetry or an under-counter bar.

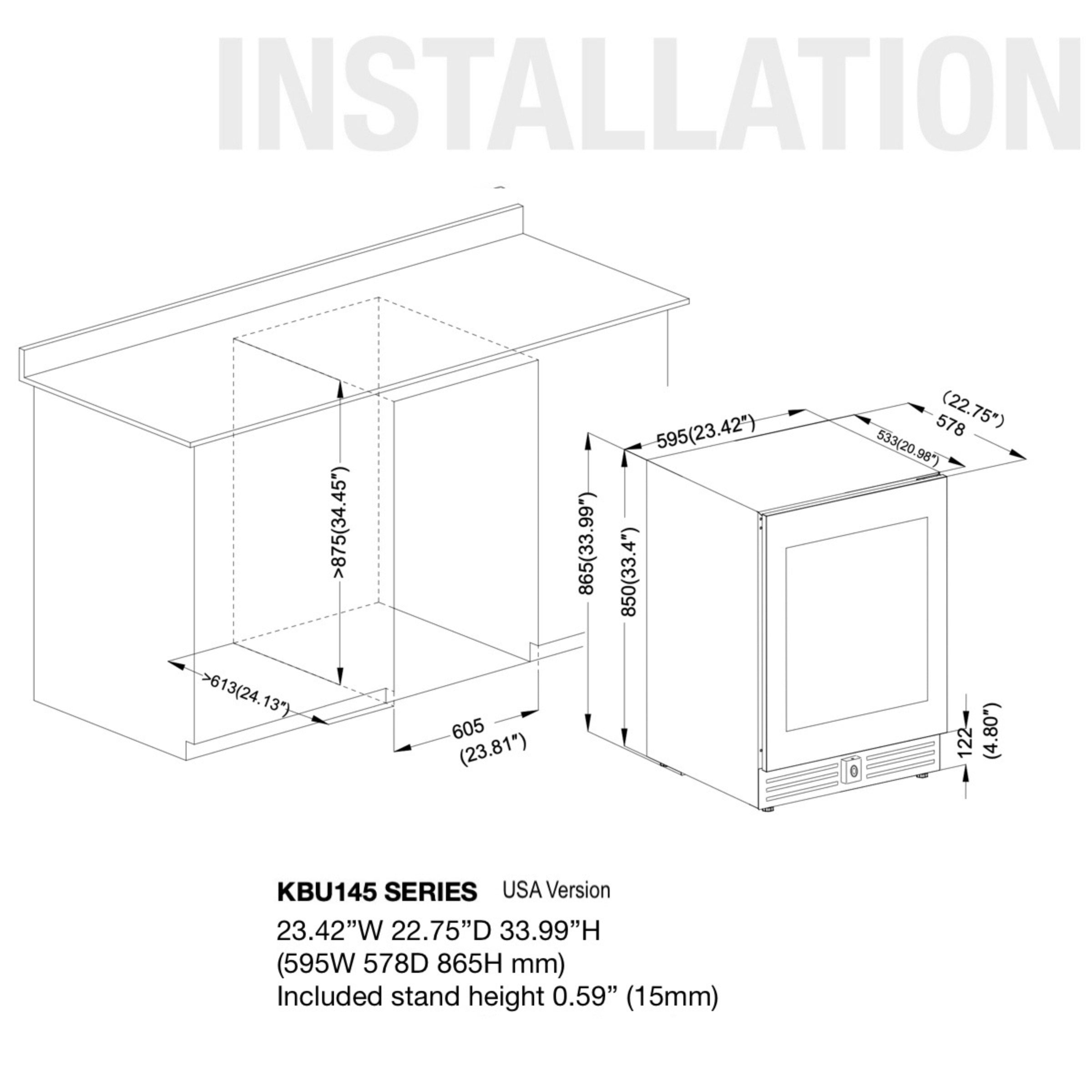

Installation diagrams
Product Manual
Download & view the full manual
Review the complete user manual for detailed installation instructions, operating guidance, and maintenance recommendations for the 24-inch under-counter single-zone wine cooler.
Frequently Asked Questions
This 24-inch under-counter wine cooler is designed to store up to 46 bottles, depending on the mix of standard and larger-format bottles you load on the beech wood shelves.
This model is a single-zone wine cooler, ideal for storing either red or white wines at a uniform temperature. If you need separate temperature zones for reds and whites, consider the matching 24-Inch Under-Counter Dual Zone Wine Cooler.
Yes. The unit supports both built-in and freestanding installation. Its front-venting design allows under-counter integration as long as you follow the recommended cutout and ventilation clearances in the installation diagrams.
The Low-E glass door is engineered to reduce heat transfer and help limit UV exposure compared to standard glass, while also minimizing condensation for a clearer view of your collection.
The cooler offers an adjustable range of 35°F to 68°F (2°C to 20°C), giving you flexibility for both short-term serving temperatures and longer-term storage.
